SPECIFICATIONS

1: ampere transducer

10: Current Sensor

2: current transformer

3: Current Transmitter 4-20ma

4: Hall Current Sensor

5: Electric Ampere Transducer Transmitter

6: DC current transmitter

7: current transducer sensor

8: AC Current Sensor

9: Current Transmitter

Accuracy Class: 1%

Battery Included: no

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

DIY Supplies: Electrical

Dimensions: 35mm

Display Type: Analog Only

High-concerned chemical: none

Model Number: JXK-14

Name: Close Loop Hall Effect AC/DC Curent Transducer

Operating Temperature: -10~+70 Celsius

Origin: Mainland China

Semi-finishedproduct: No

Supply Voltage: DC12V,DC24V

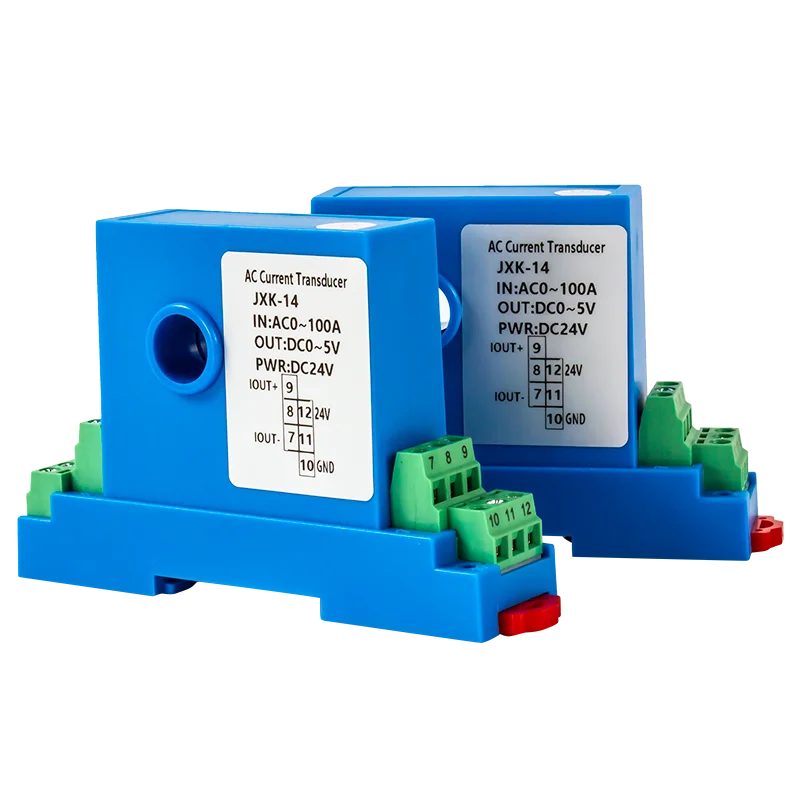

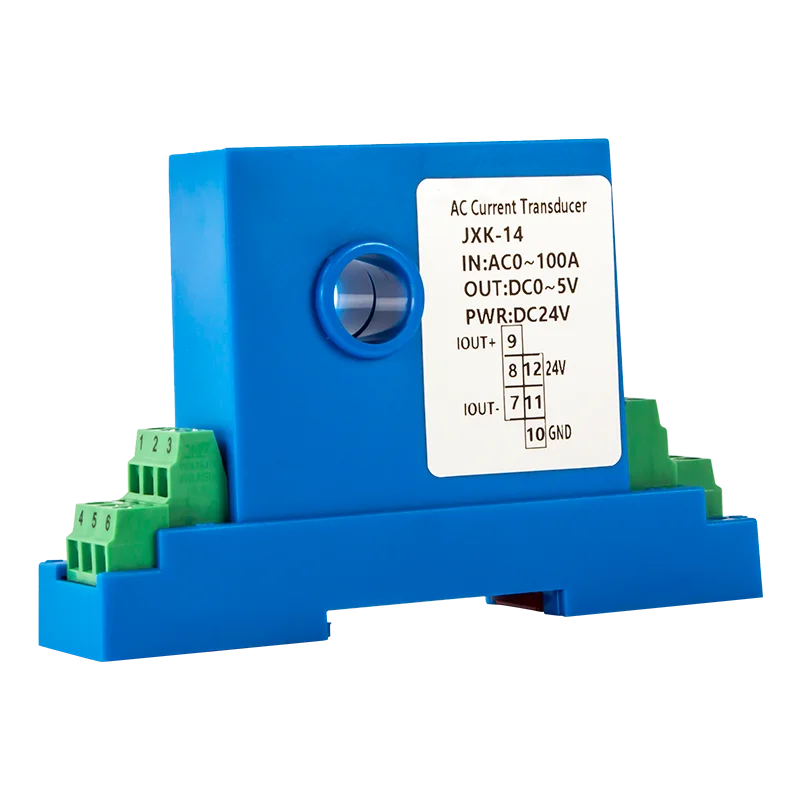

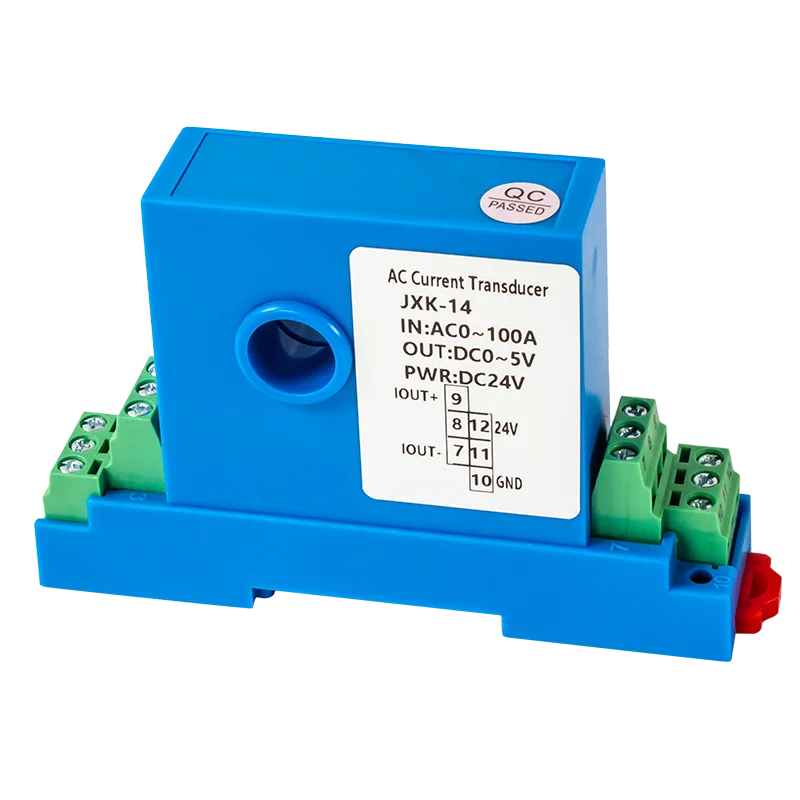

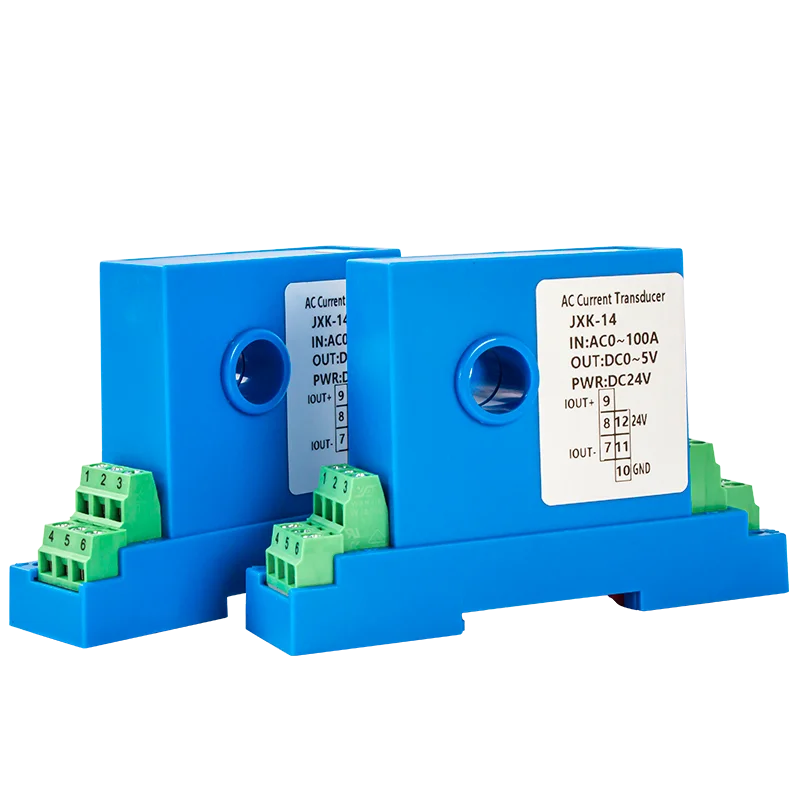

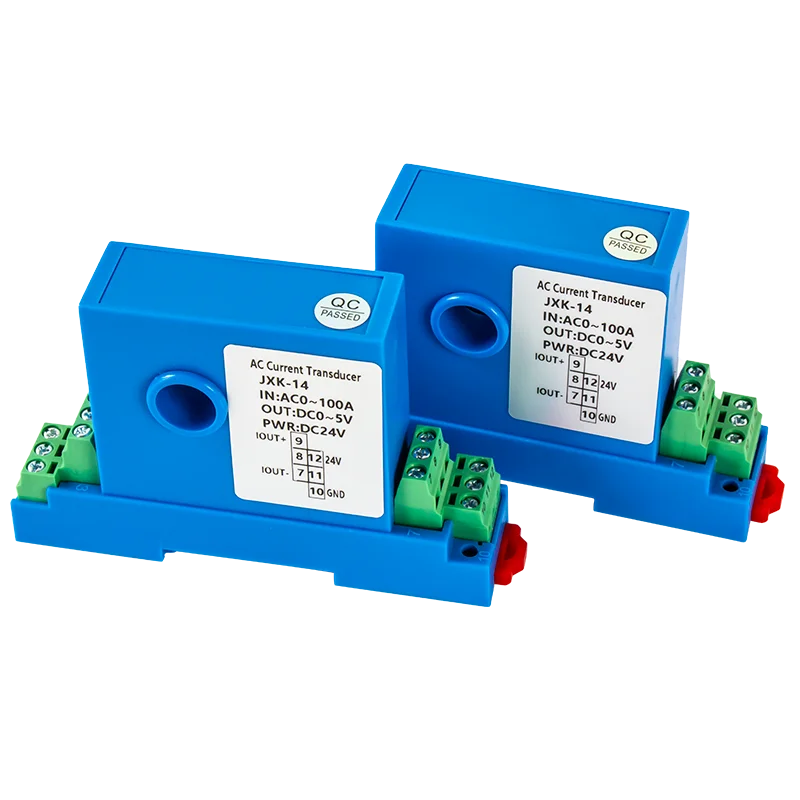

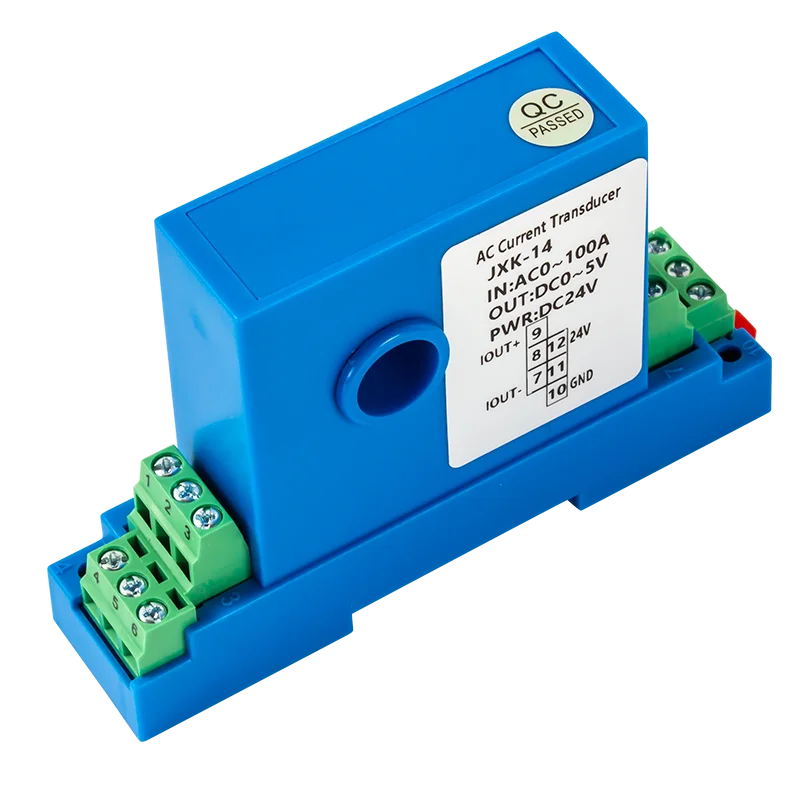

QIDIAN JXK-14 DC 0-50A 0-100A 0-150A Current Transmitter 4-20mA 0-20mA 0-5V 0-10V Output Current Transducer

Input Range ：

8mm Hole : AC/DC 0-100A

12mm Hole : AC/DC 0-200A

If your measurement Current exceed 200A. Please contact me and we can do the 15mm hole for your demand.

Before Purchase, Please confirme those :

1. Input Current ? AC/DC ?

2. Output Signal ?

3. Supply Power? We default Supply DC24V. If you need other Power Voltage. Please contact me advance.

4. How many quantity? We have some discount if you purchase many .

Thanks for your cooperation.

Introduction

<1>. Working principle: open loop direct measurement.
<2>. Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>. Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<4>. Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
<6>. Full channel configuration,Parameter customizable.
