SPECIFICATIONS

Brand Name: Keshy

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

is_customized: Yes

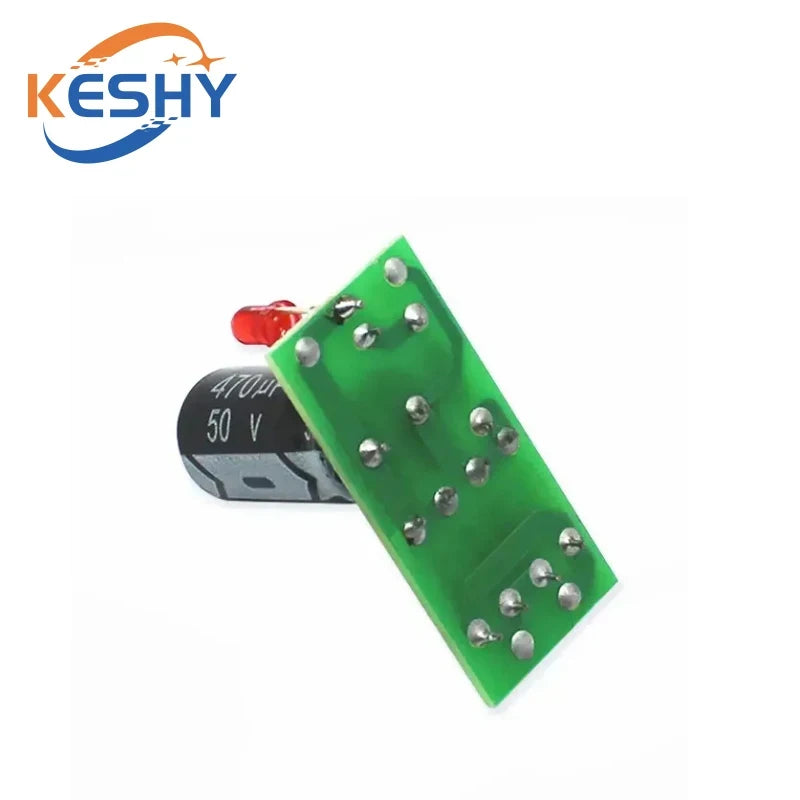

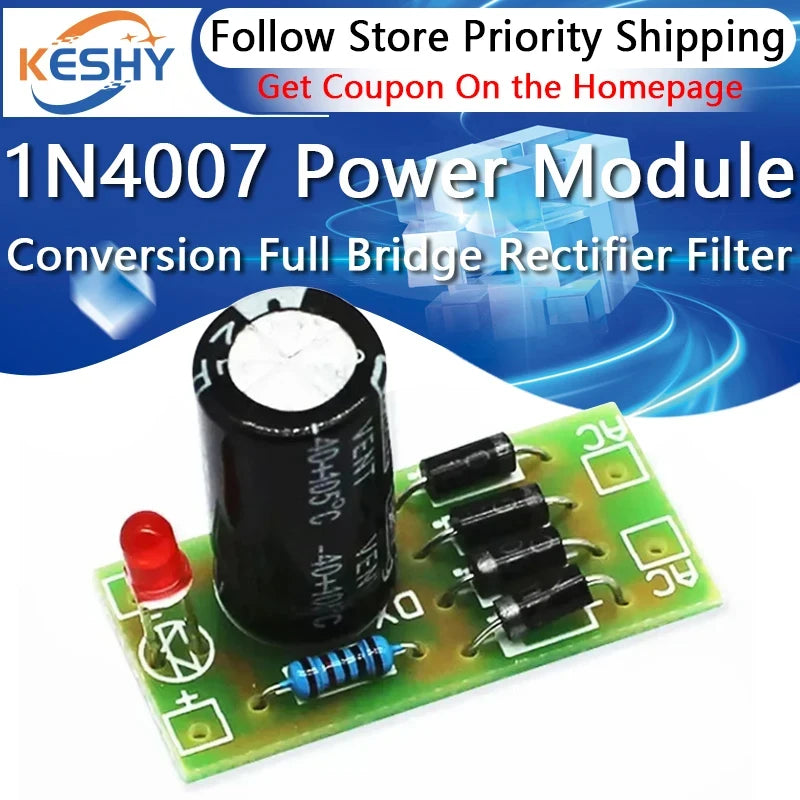

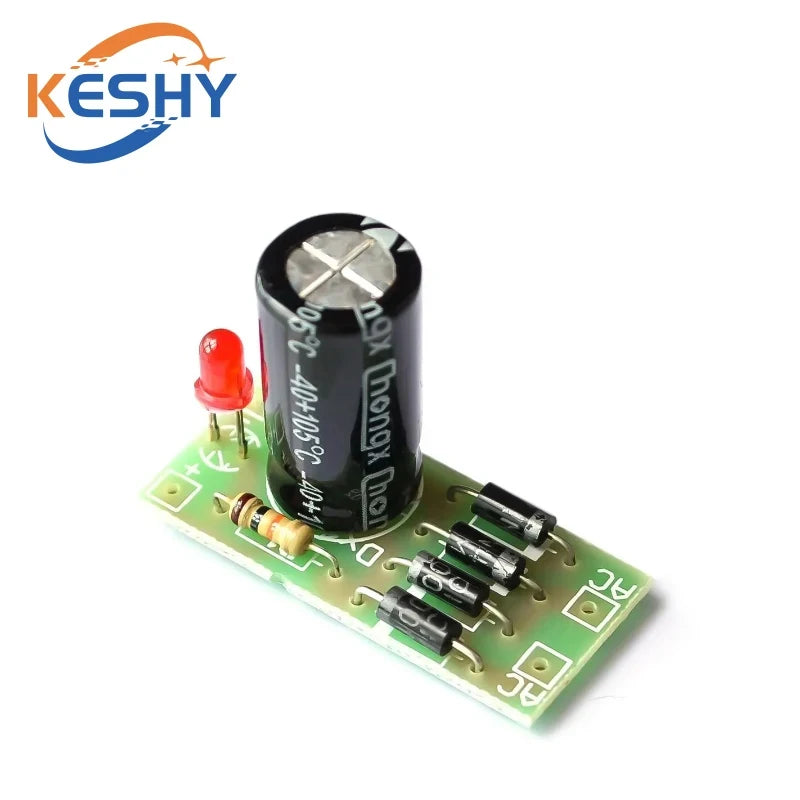

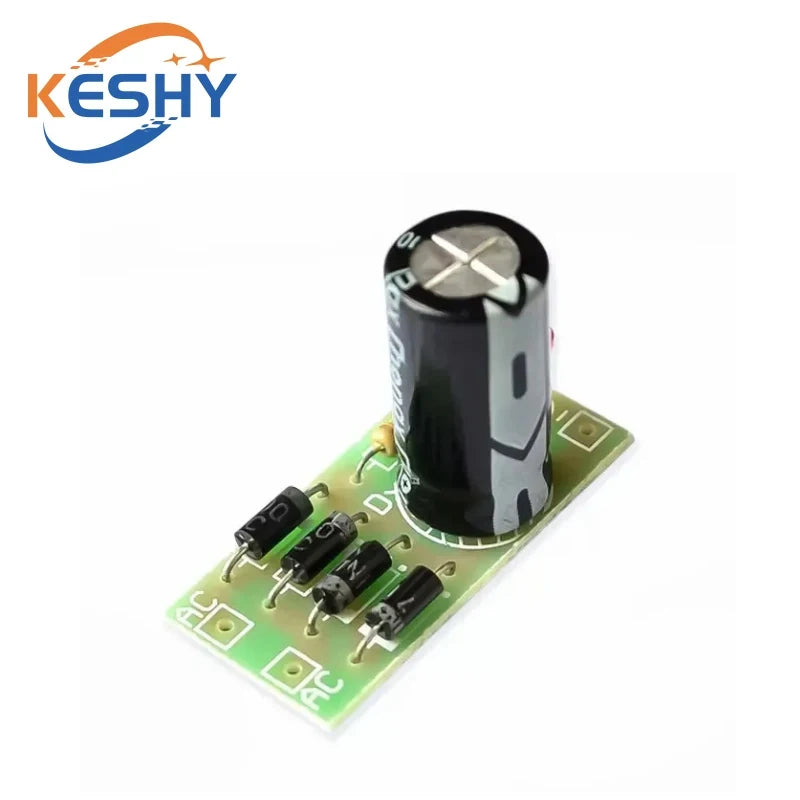

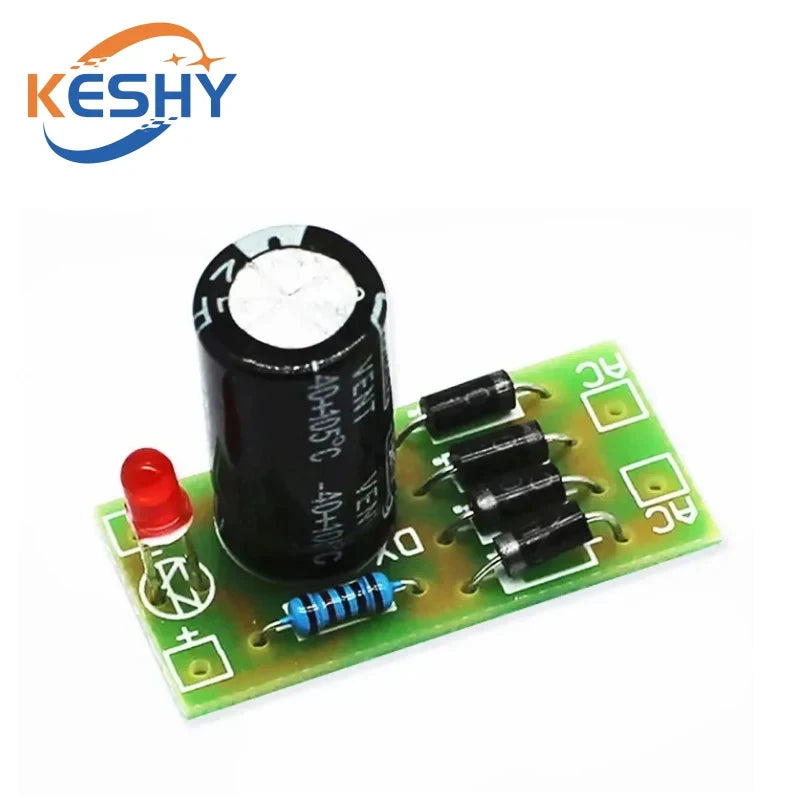

AC to DC power conversion module

1N4007 bridge rectifier filter

Input AC voltage [6V-16V] (capacitance 25V1000UF)

Input AC voltage [6V-32V] (capacitance 50V470UF)

Maximum input / output current [1A]

Use frequency range [50-60HZ]

Conductor length (9 cm)

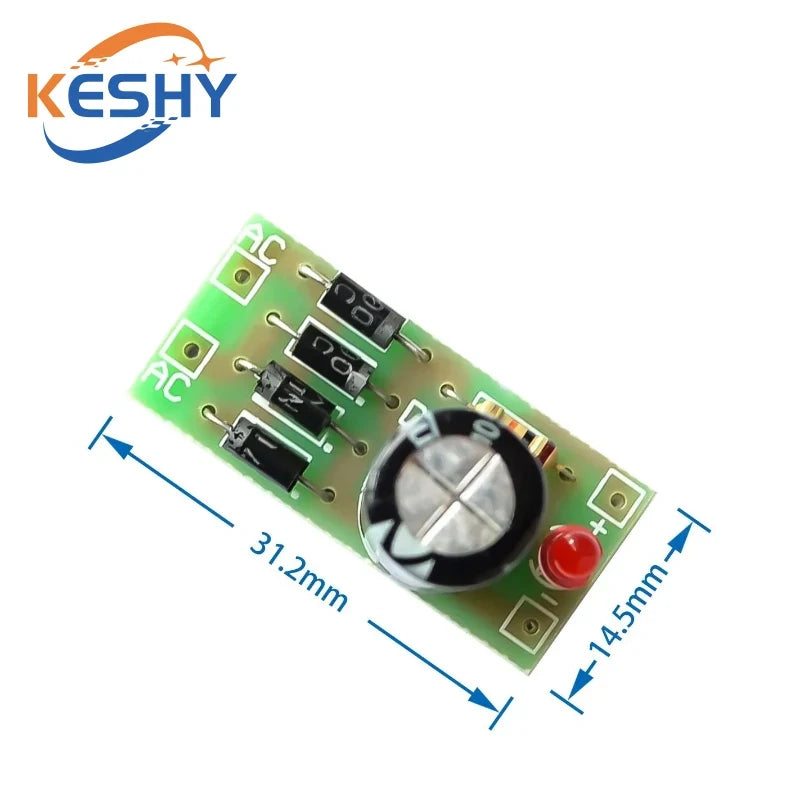

PCB size mm [28*13*1.2]

Rectifier output voltage [output = input x1.414] [for example: input 12V AC, then the output 12x1.414=16.968V, which is the calculation of the no-load voltage, only for reference, there will be a deviation

This baby is a streamlined rectifier module, a rectifier filter is widely used in small transformer output, mainly used in electric power requirements is not high above, the power module design of small electric appliance box can be placed in the small circuit board, which is designed with power indicator, convenient power can be intuitive to know the power of the state.
