SPECIFICATIONS

Product introduction:

1.  Compact Size and Versatile: The rectifier filter power supply board features a compact size that makes it suitable for various scenarios.  Its small form factor allows for easy integration into different projects or systems.  It comes with built-in mounting holes, enabling convenient and straightforward installation.

2.  Safe and Easy to Use: This rectifier prioritizes safety and reliability.  It is designed to provide stable, consistent power output for your electronics.  With its user-friendly design, it is easy to operate and ensures a hassle-free experience.  You can use it with confidence, knowing that it meets high-quality standards.

3.  Powerful Functionality: This AC to DC transformer delivers powerful performance.  It supports a maximum DC output of 10A or more, making it capable of handling demanding power requirements.  Whether you need to power high-current devices or multiple components, this board has the capacity to meet your needs.

4.  Efficient Rectification and Filtering: Equipped with efficient rectification and filtering components, this AC to DC single power supply board ensures clean and stable DC power output.  It effectively filters out unwanted noise or fluctuations, providing a reliable and steady power source for your electronic devices.

5.  Wide Range of Applications: The power rectifier filter board is versatile and can be used in various applications.  It is ideal for DIY projects, prototyping, electronic repairs, or as a replacement part for damaged power supplies.  Its flexibility and robust performance make it suitable for both professional and hobbyist use.

Specification:

Origin: Mainland China

Type: Module

Condition: New

Model Number: Rectifier Filter Power Supply Board

Features:

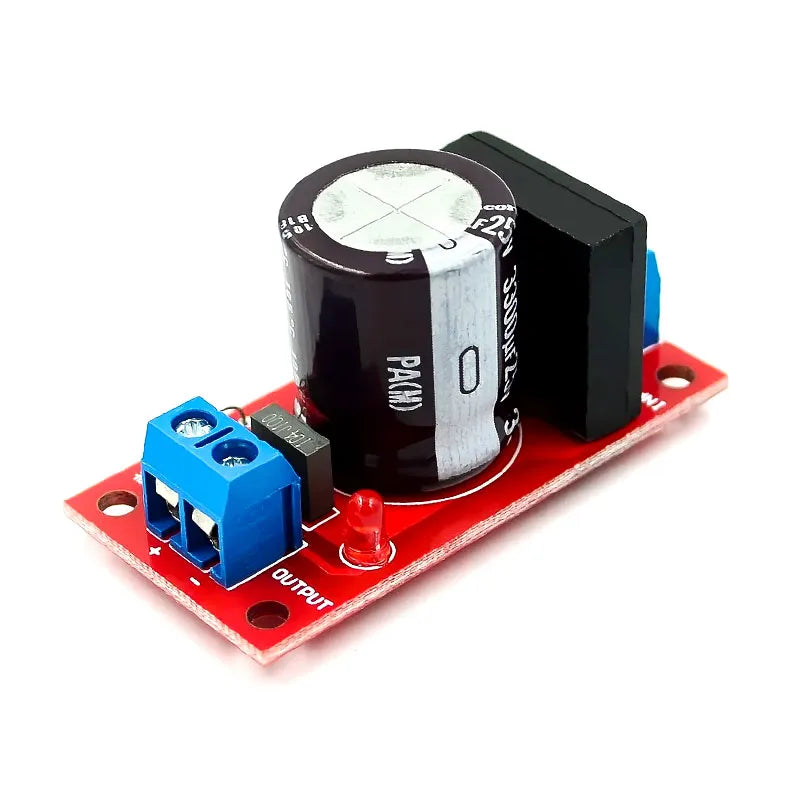

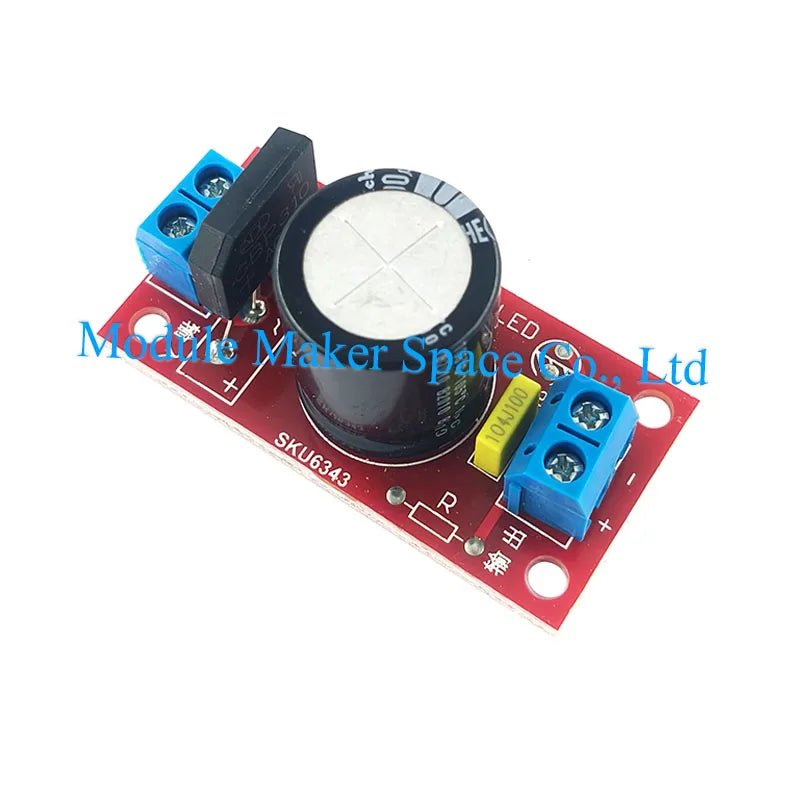

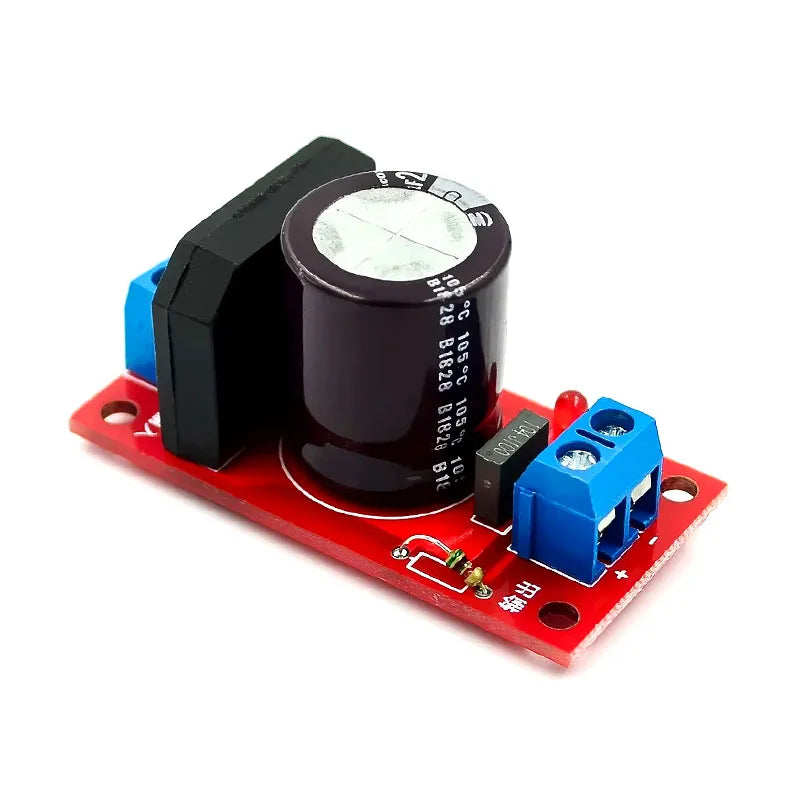

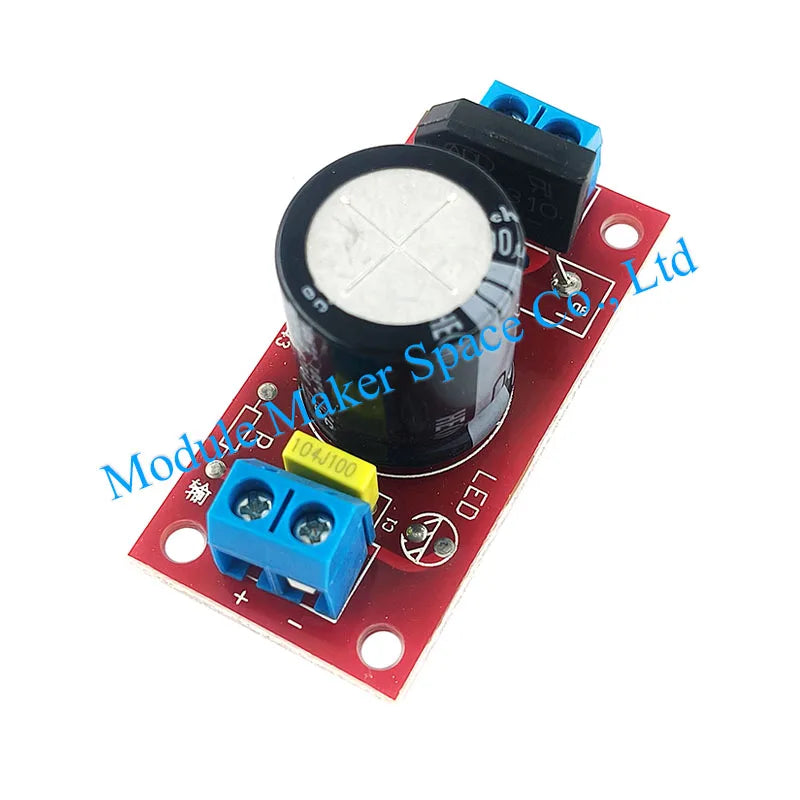

1.  This is a power board that converts AC single power supply transformer, to DC single power output.

2.  Maximum DC output can support more than DC10A.

3.  DC output voltage/current is related to the output of the transformer, DC DC output voltage (no load) = AC input voltage x 1.42 4.  Capacitor withstanding voltage is 4700uF35V.

4. Maximum AC voltage input: single 18V, if you want to input higher AC voltage, change to higher withstand voltage capacitor.

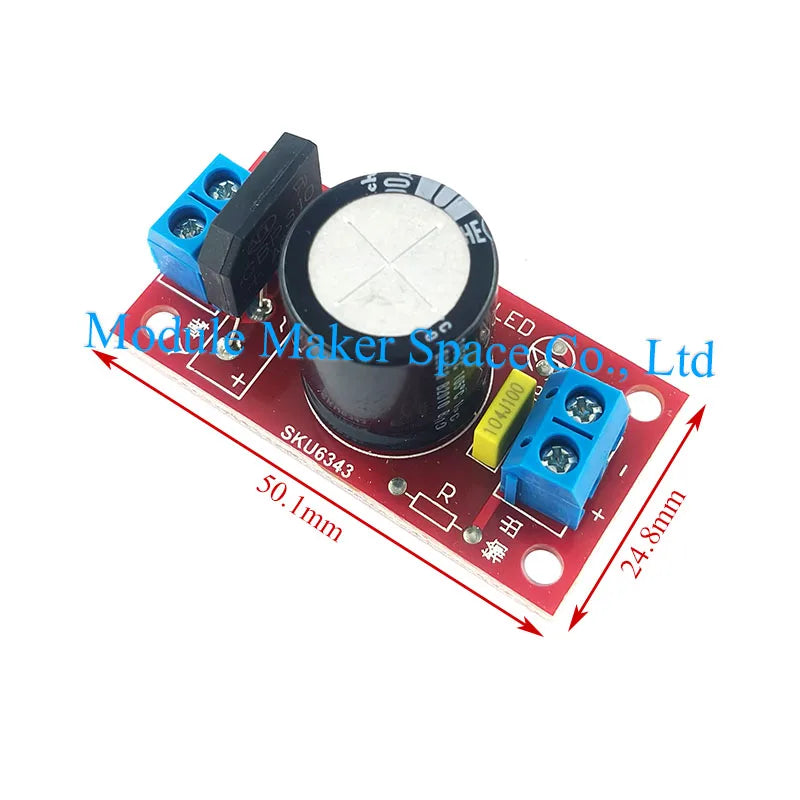

Size: 50.1x24.8x24mm

Weight: 18g

Type(optional): 3A without LED indicator/8A with LED indicator

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.  Thank you! Please allow 1-2cm measuring deviation due to manual measurement.
