SPECIFICATIONS

Product parameters:

1. Brand
2. Model: IO33H01
3. Output current: 7A (MAX 10A)
4. Working power consumption: 43mA
5. Output voltage: AC110-220V
6. Power supply voltage: AC 110-220V
7. Weight with shell: 29g

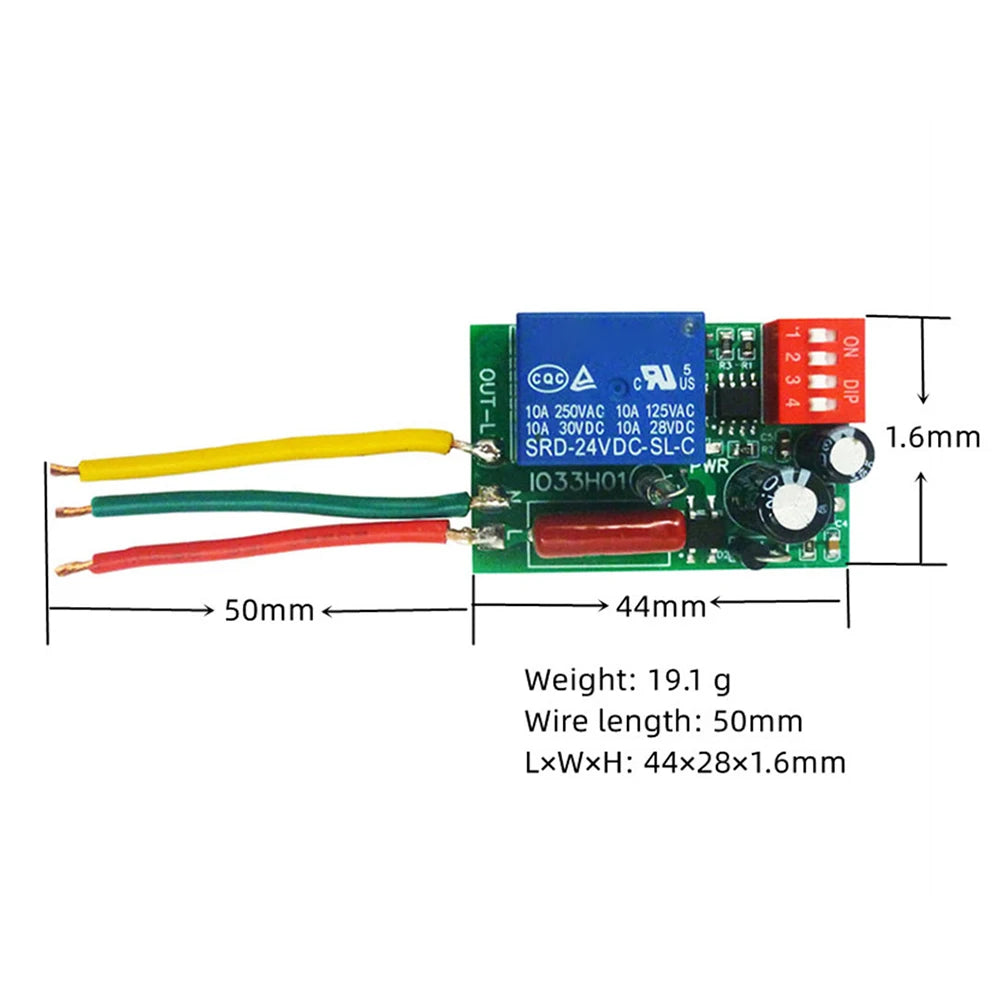

8. Shell size: 57 × thirty-five × 20mm
9. Weight without shell: 19.1 g
10. Size without housing: 44 × twenty-eight × 1.6mm
11. Unified line length: 50mm
12. Maximum standby power consumption: 12mA
13. Number of control channels: 1 output
14. Working temperature: - 25 ℃~85 ℃
15. Working humidity: 5%~95% RH

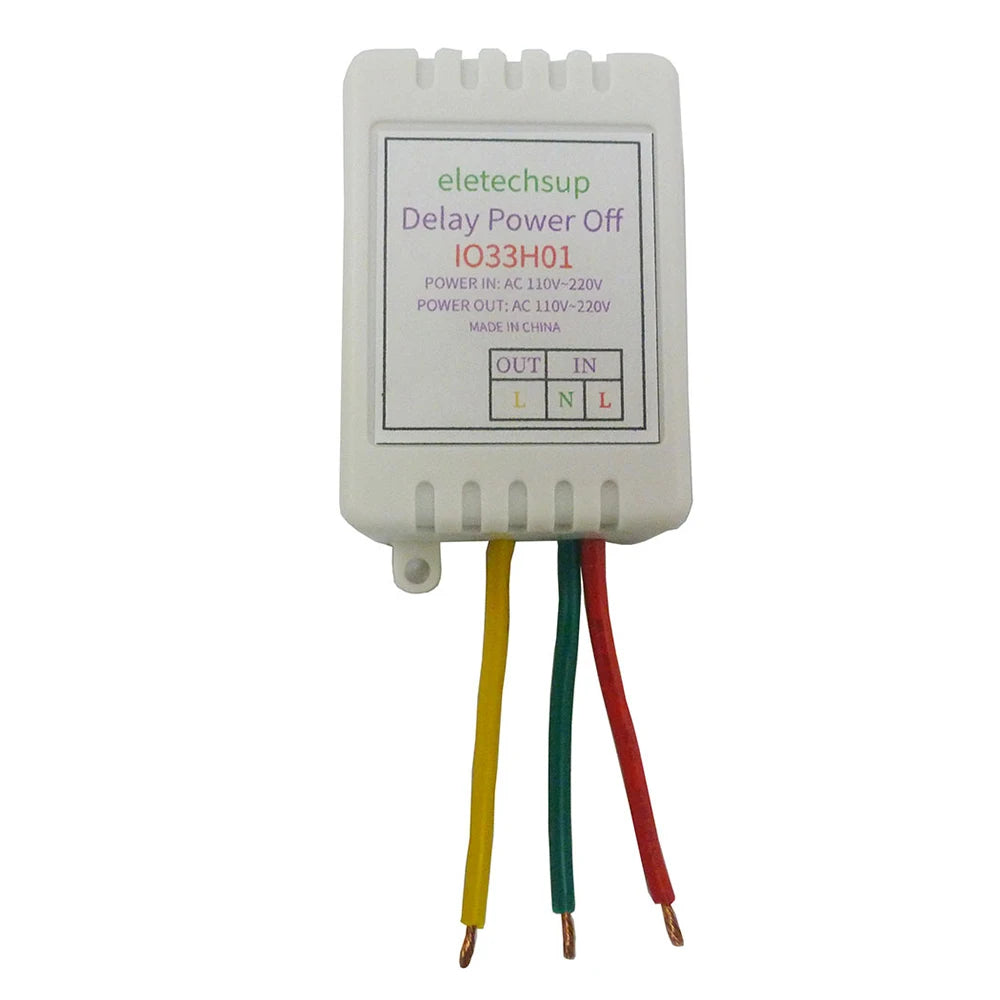

16. Housing: high-quality housing, dust-proof and flame-retardant
17. Function: stop power supply after a time delay
18. Control power: 1400W (maximum) incandescent lamp, 300W (maximum) energy-saving lamp
19. With LED indicator light to display the working status (normally on means working, flashing means delayed end)
20. Applicable scenarios: living room, kitchen, bathroom, bedroom, corridor, stairs, etc
21. Wide use: such as exhaust fan, motor, air cooler, cooling fan, sterilization lamp, humidifier, heater, etc.
22. 16 delay modes can be selected (1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 25 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes, 240 minutes, 300 minutes, 480 minutes)

Feature:

-Module function: This module is a delayed shutdown module. When the set delay time expires, the power supply is stopped.
-Working state: after power on, the indicator light (PWR) is always on; After the delay, the indicator light (PWR) will continue to flash.

Usage method:

① : Set the delay time (live broadcast setting is not allowed);

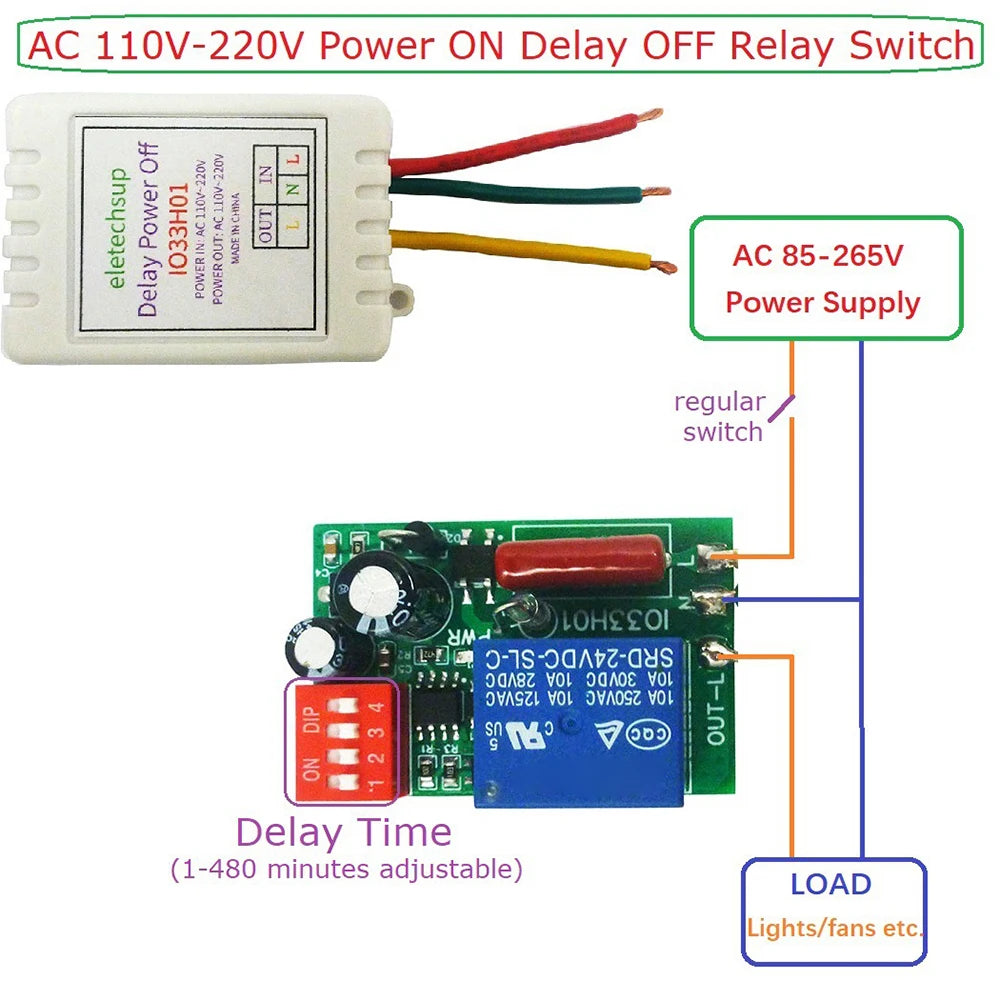

② : After checking that the wiring is correct, power on the module. After power on, the module starts to work (the indicator light is always on). After the time is up, the module stops power supply (the indicator light flashes).

1. If it needs to be turned off in advance during use, just disconnect the main power supply of the module directly.
2. Start the second delay: power on again.
Delay time selection method:
① : Select the time to delay by referring to the delay mode table;
② : Turn the dial switch (red) according to the delay mode table;
③ : After setting, check the wiring, and then power on.

Note:

When a new delay mode needs to be set, in order to ensure personal safety, it must be set to power off mode, and live operation is prohibited.
