SPECIFICATIONS

Features:
1.Simple operation, sensitive response, and reliable operation

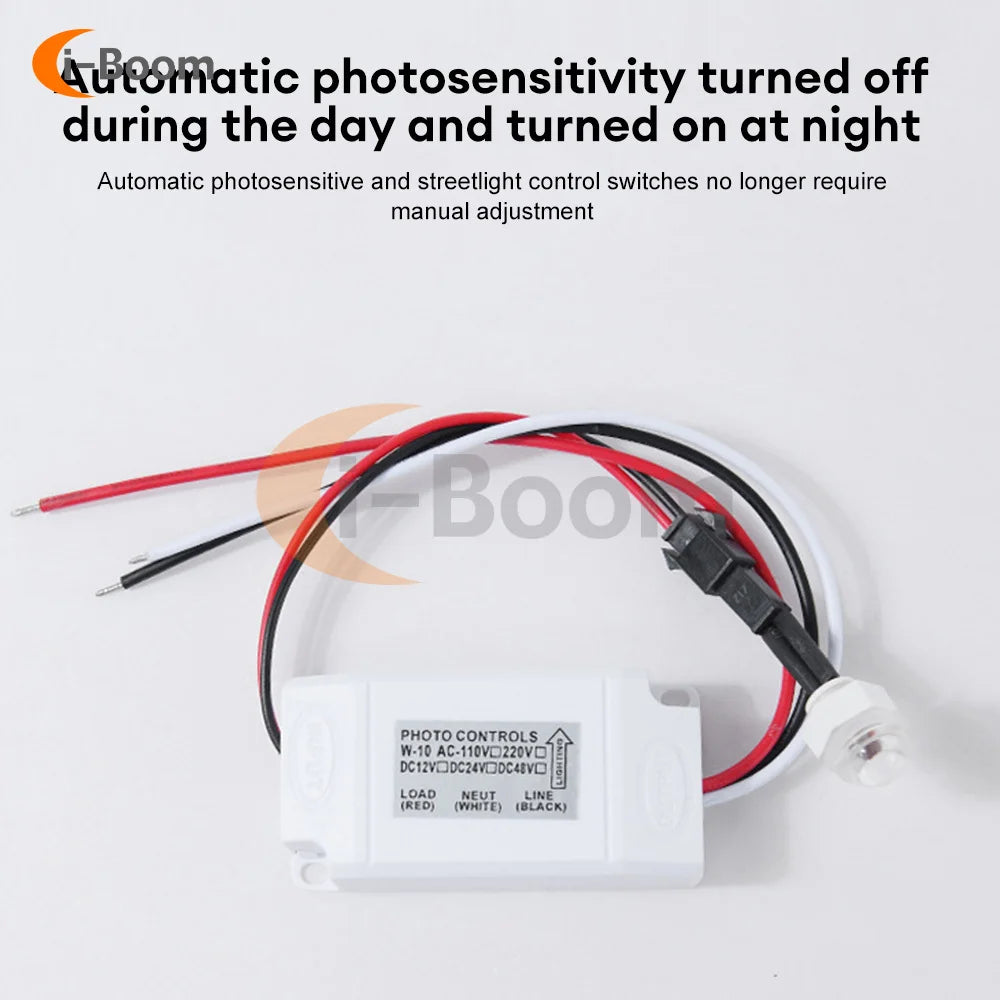

2.Automatic photosensitivity is turned off during the day and on at night, without the need for manual adjustment
3.Delay circuit function to prevent accidental opening and closing

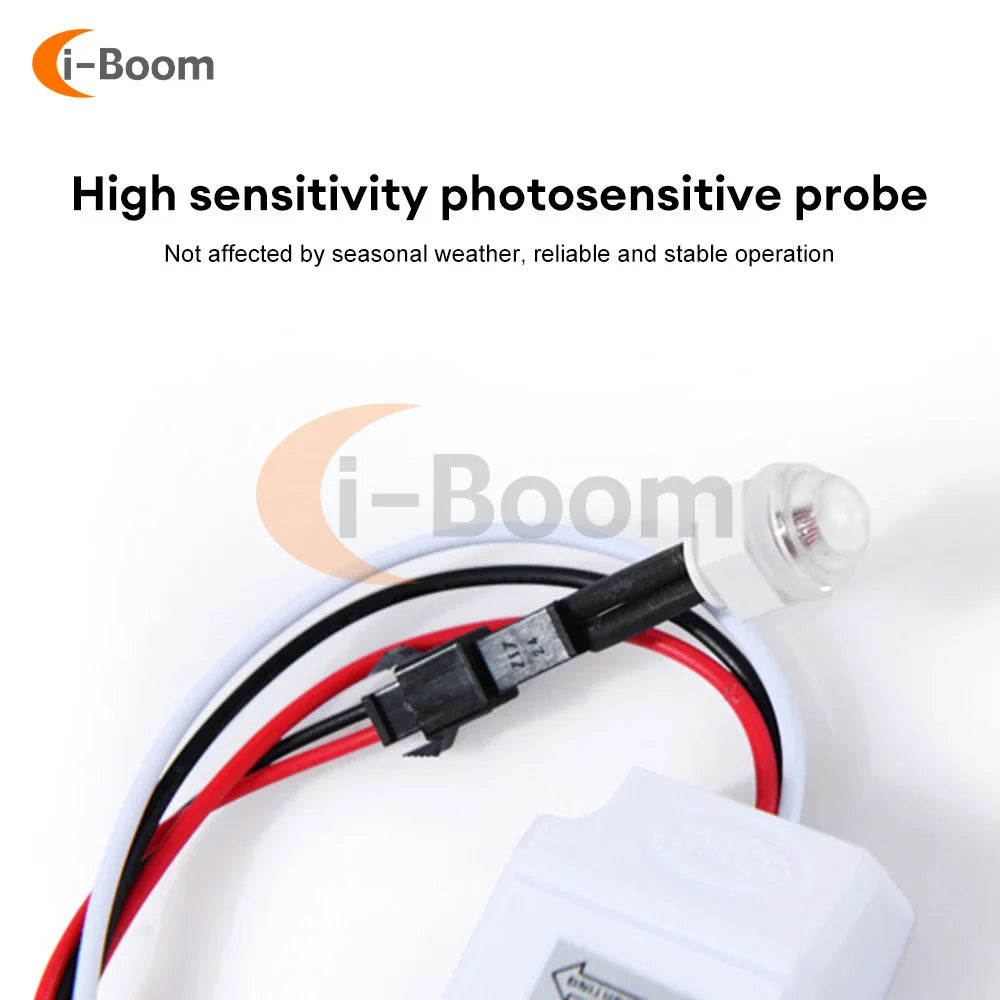

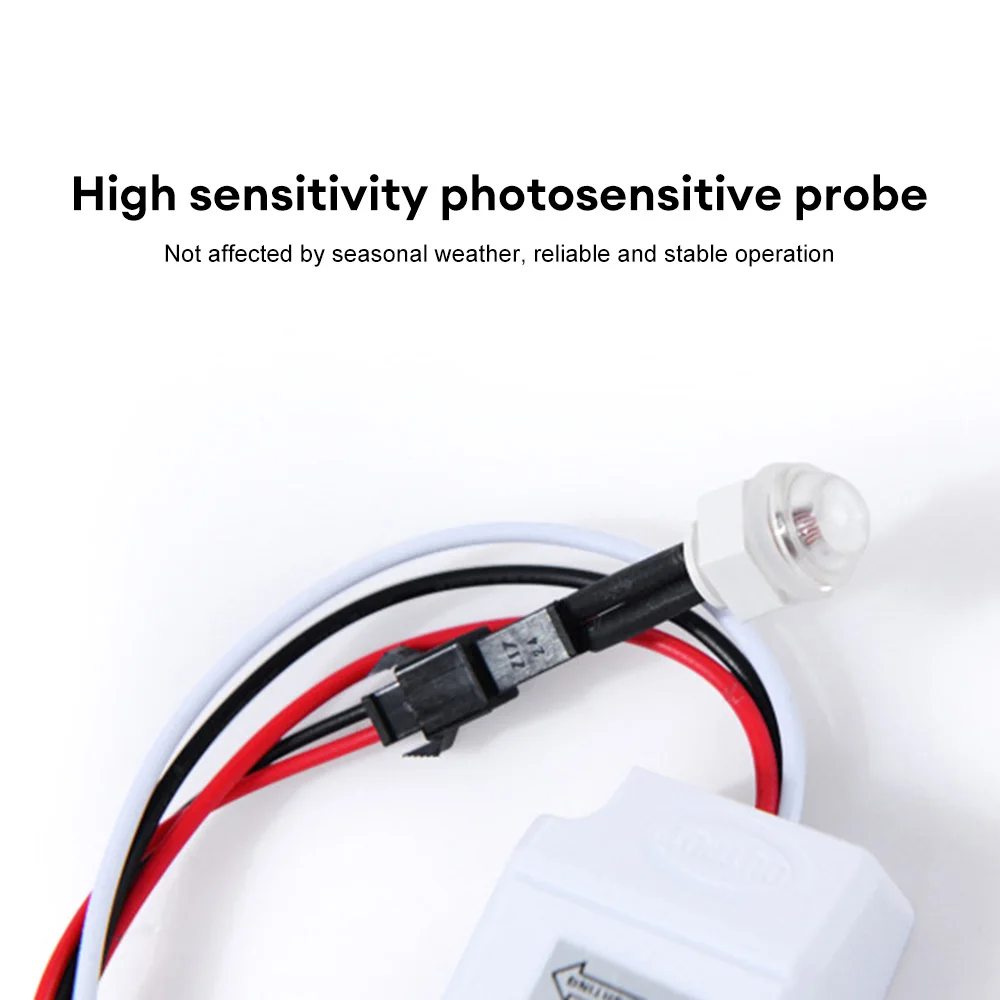

4.High sensitivity photosensitive probe, unaffected by seasonal weather, reliable and stable operation
5.Wide range of use: suitable for street lights, corridor and aisle lights, advertising light boxes, traffic police license plate lights, monitoring fill lights in factories, schools, streets, or other circuit equipment that needs to be turned off during the day and turned on at night

Product Introduction:

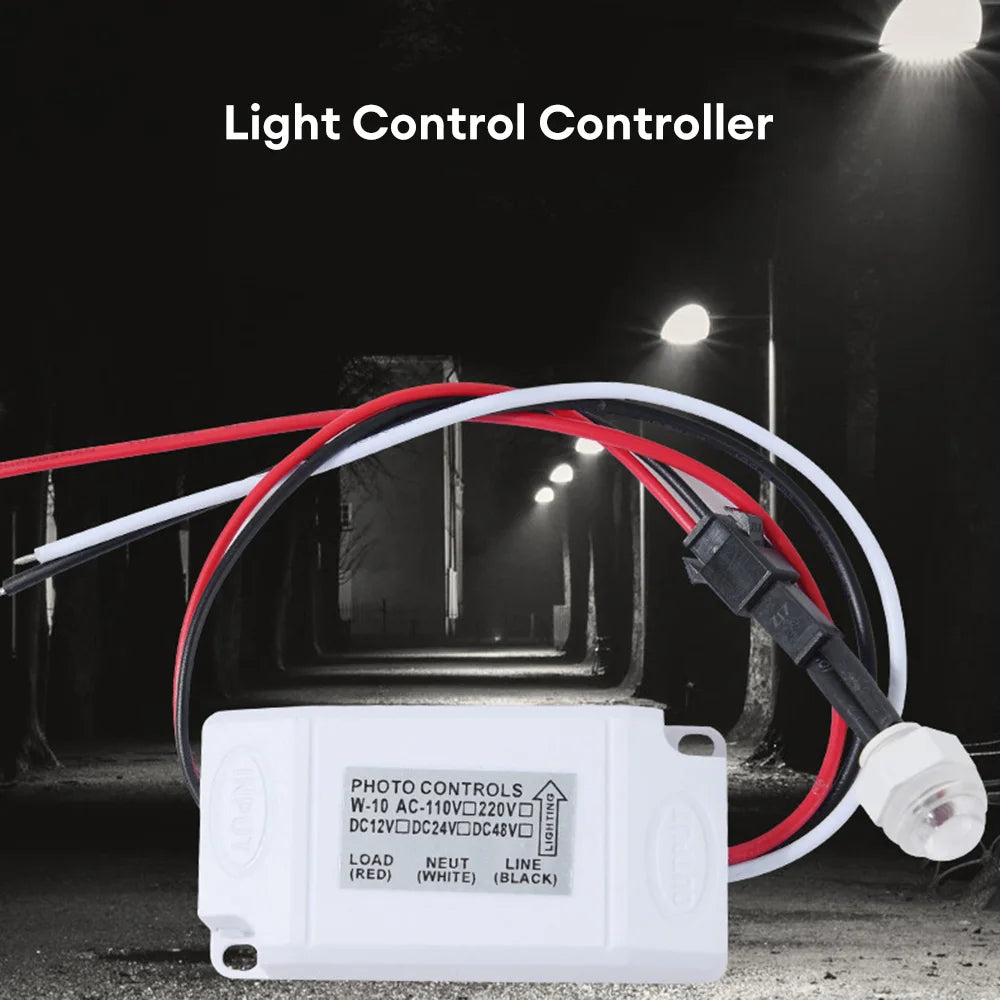

Street light control switches are commonly used to control street lights in factories, schools, and streets, corridor and aisle lights, advertising light boxes, traffic police license plate lights, monitoring fill lights, or other circuit devices that need to be turned off during the day and turned on at night. By automatically controlling the power supply through brightness, they can also be combined with lighting fixtures to achieve automatic off at dawn and on at night without the need for manual control, Avoiding delays in turning on or off lights due to control by duty personnel.

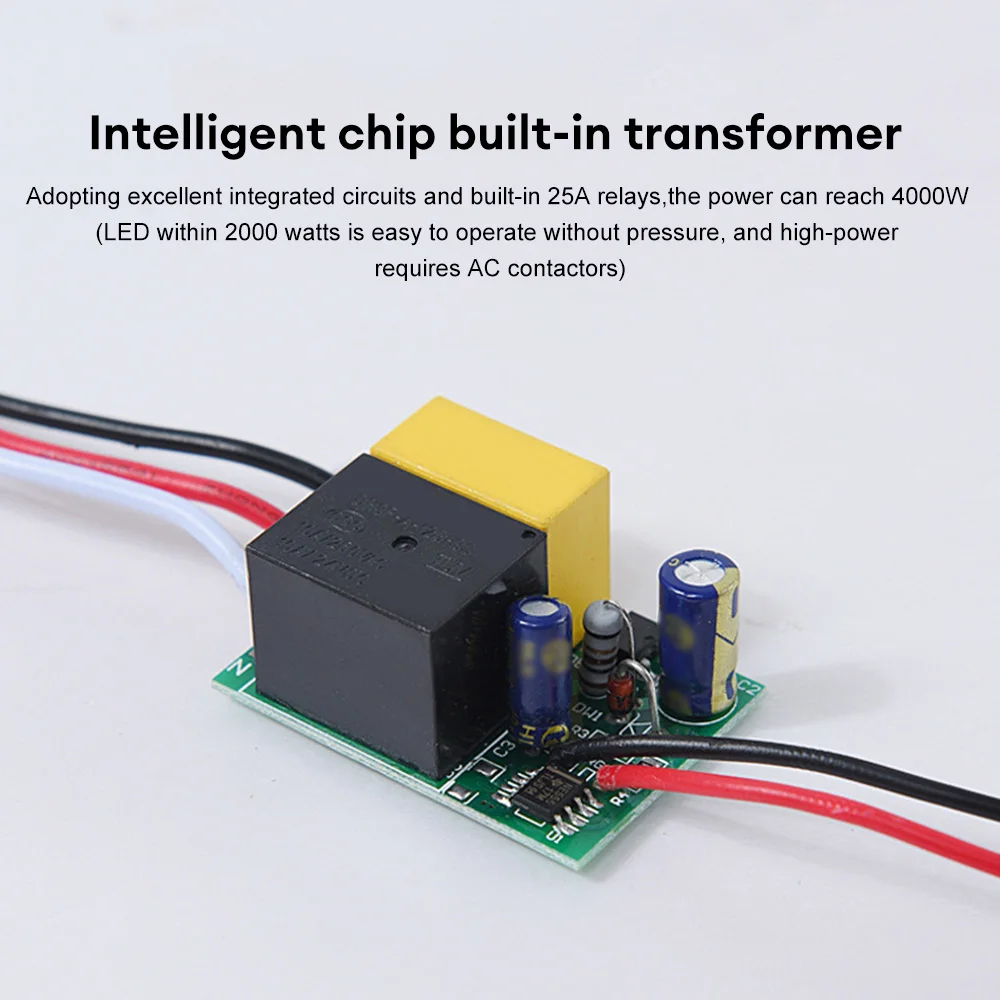

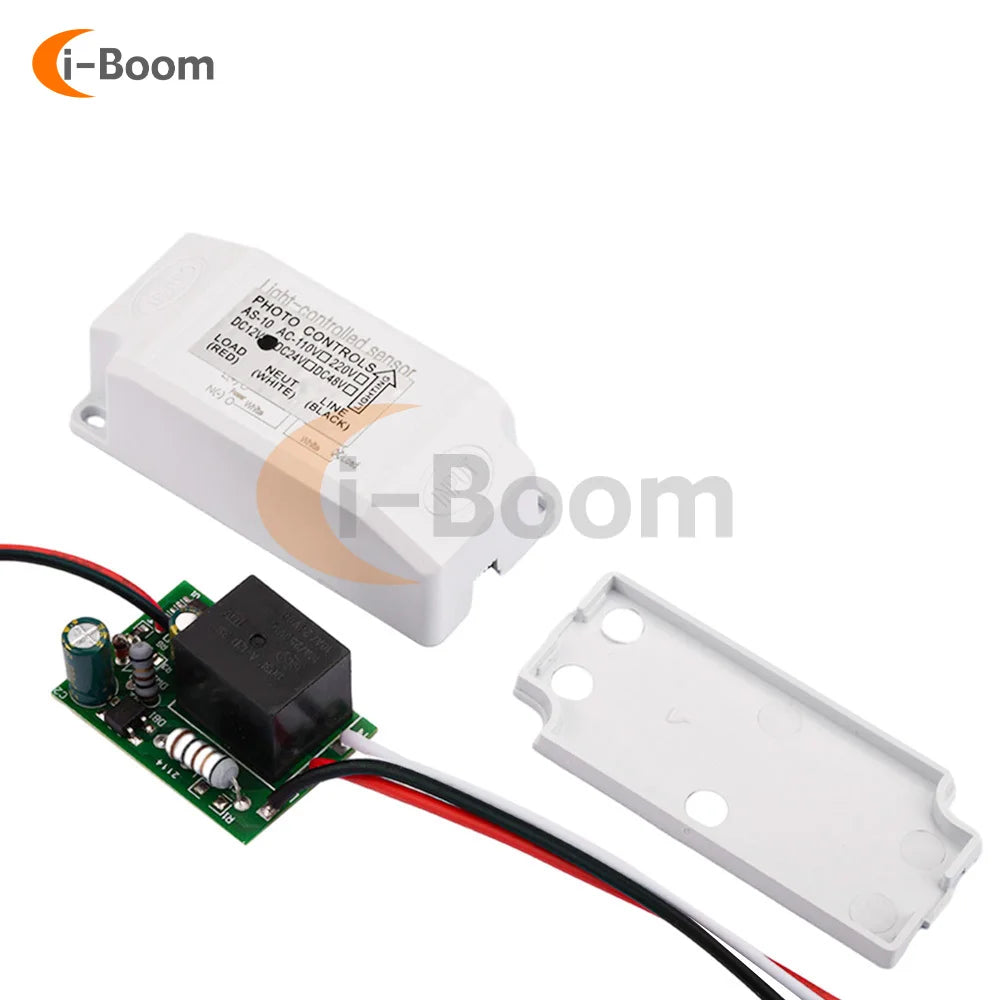

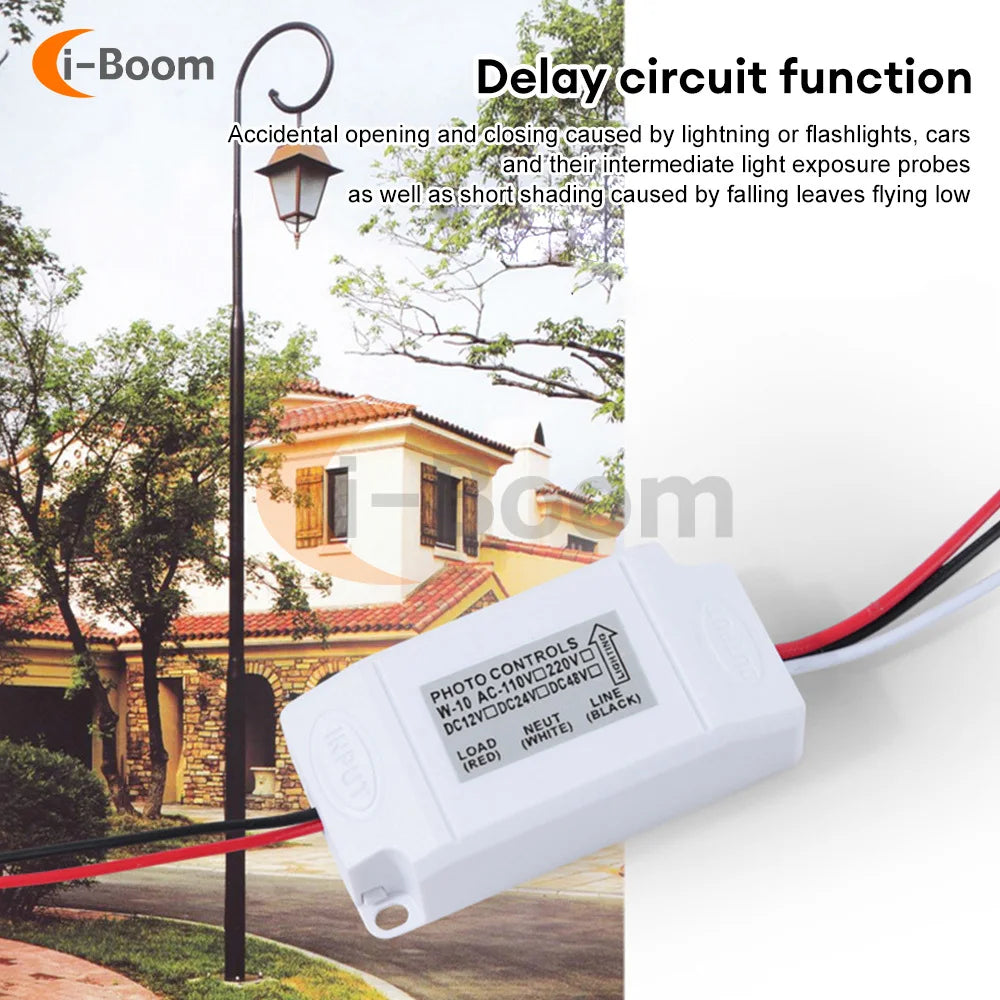

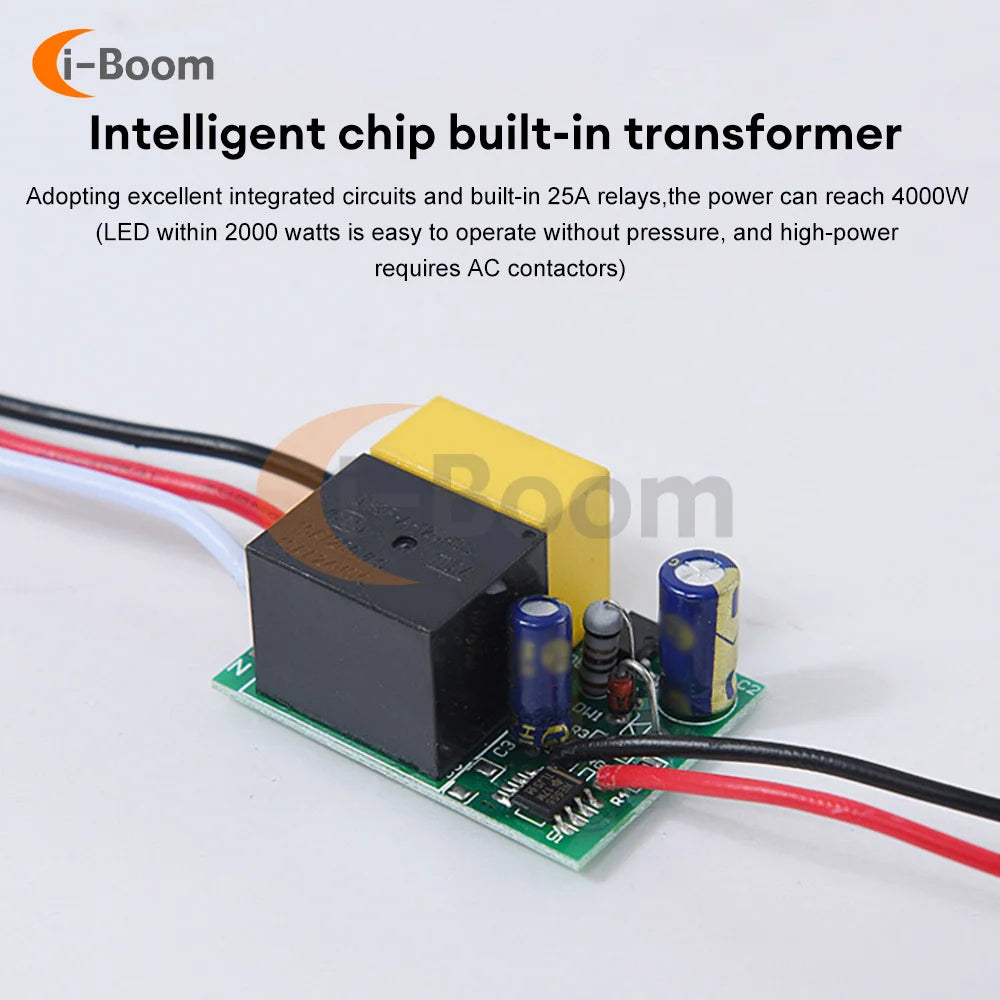

The circuit is equipped with a delay circuit, which has the anti-interference ability to prevent accidental lightning, flashlights, car lights, and other lights from shining on the photoelectric head, and the accidental opening and closing of the photoelectric components are briefly blocked by fallen leaves. The automatic switch of the street light is composed of a photoelectric conversion device, namely a photoelectric head, an integrated block, electronic components, and an executing relay. During the day, when the light is strong and the current of the photosensitive element increases, the relay of the integrated electrical appliance is released, and the street light does not light up. In the evening, when it reaches a certain level of darkness, due to the weakened light, the voltage generated by the photosensitive element is low. The relay pulls in the street light and it lights up until breakfast the next day. The integrated trigger automatically activates again and the street light goes out.

Parameters:
Article number: CDS-W10

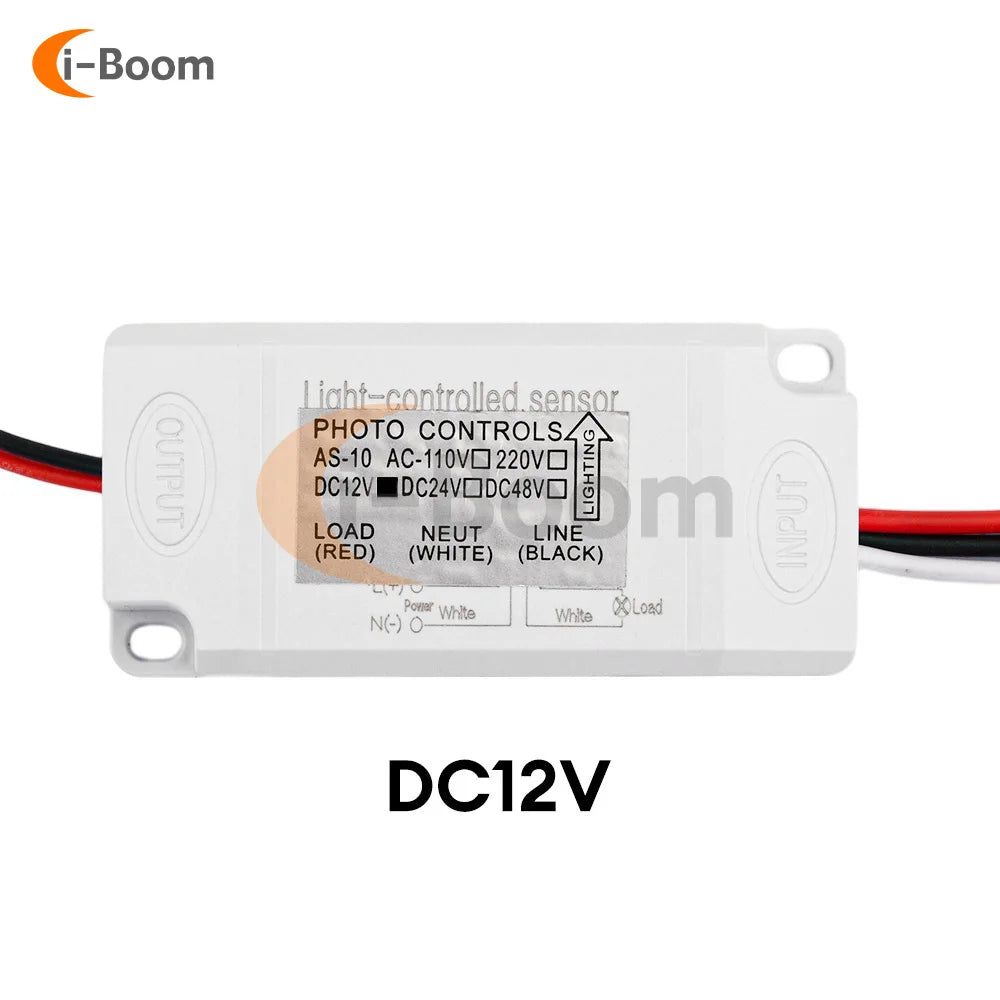

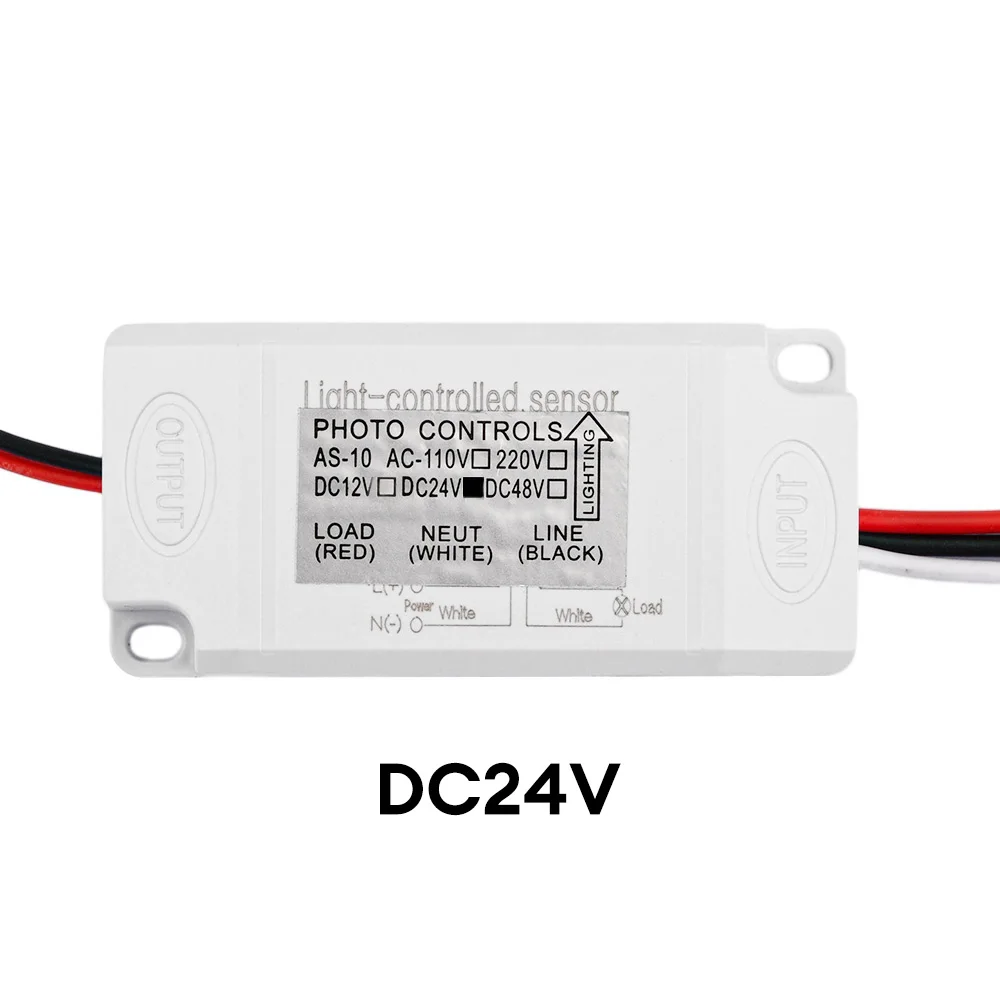

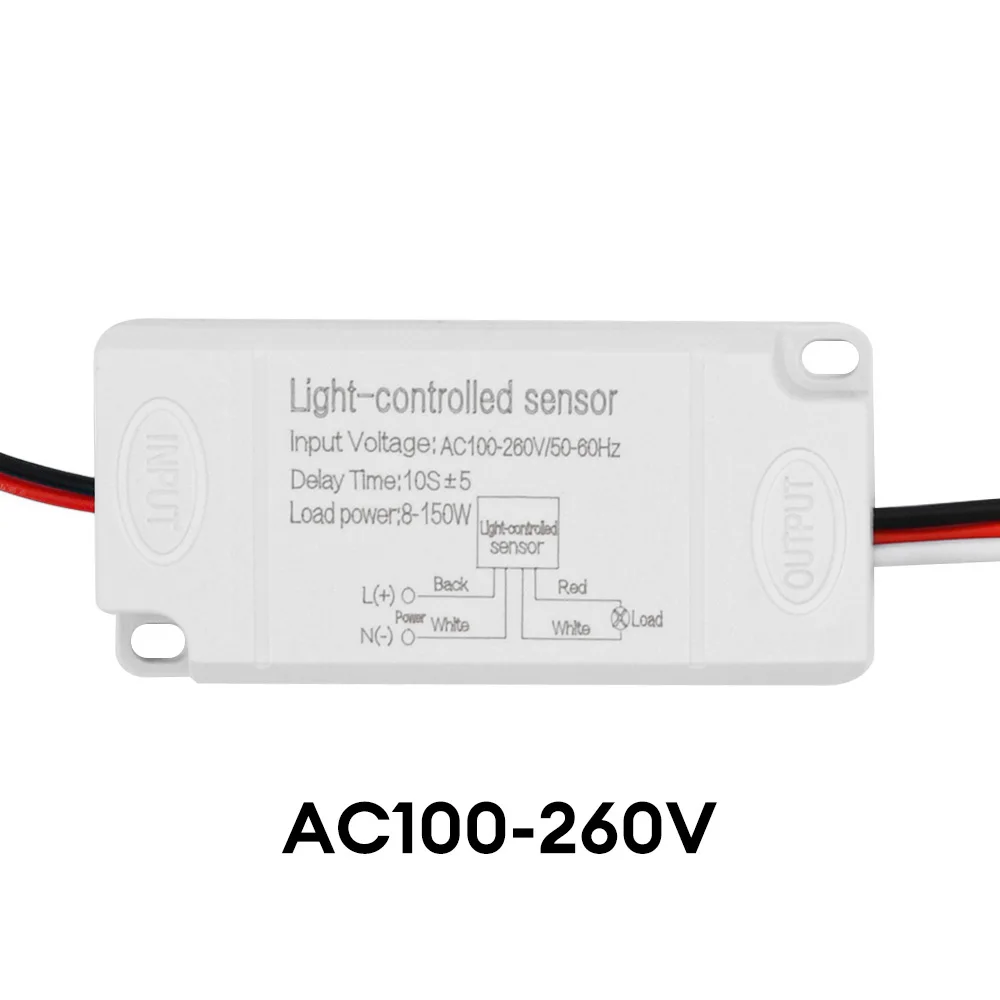

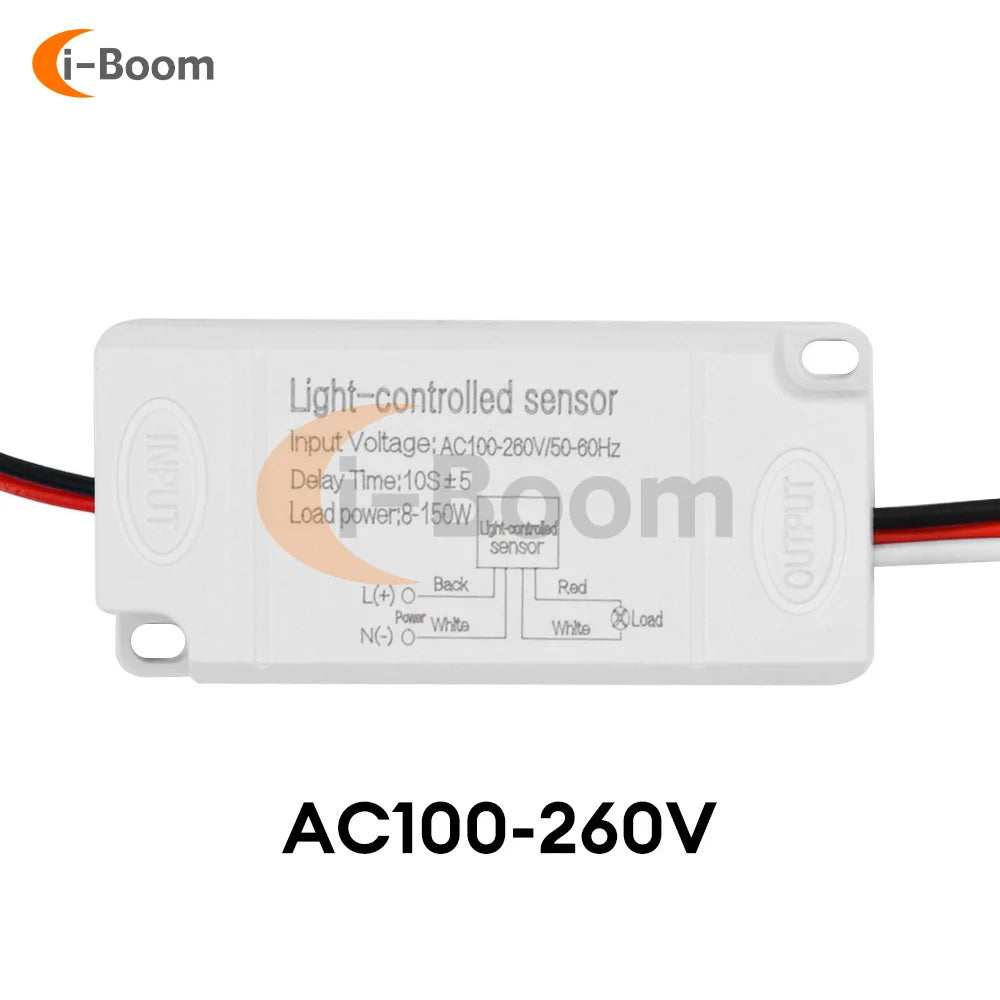

Voltage: DC12V DC24V AC100-260 (optional)
Frequency: 50-60Hz
Operating environment temperature: -20~+50 ℃

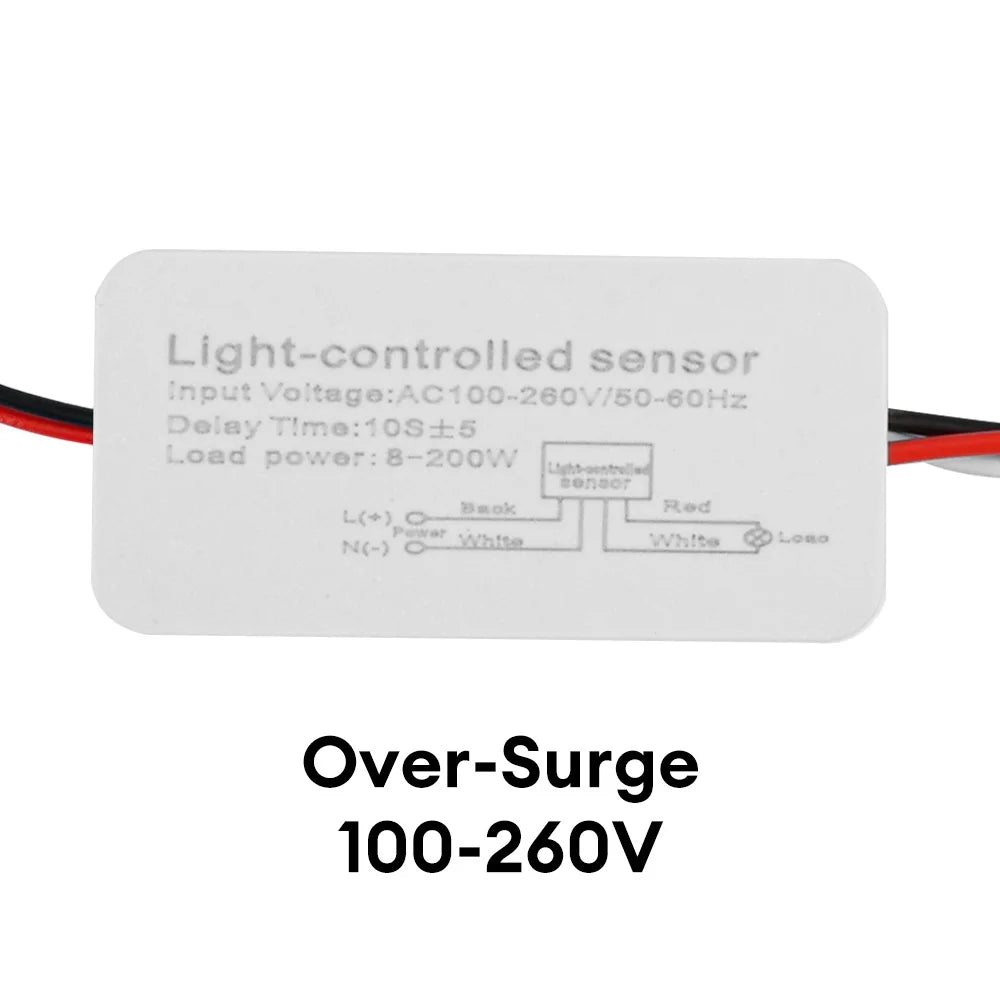

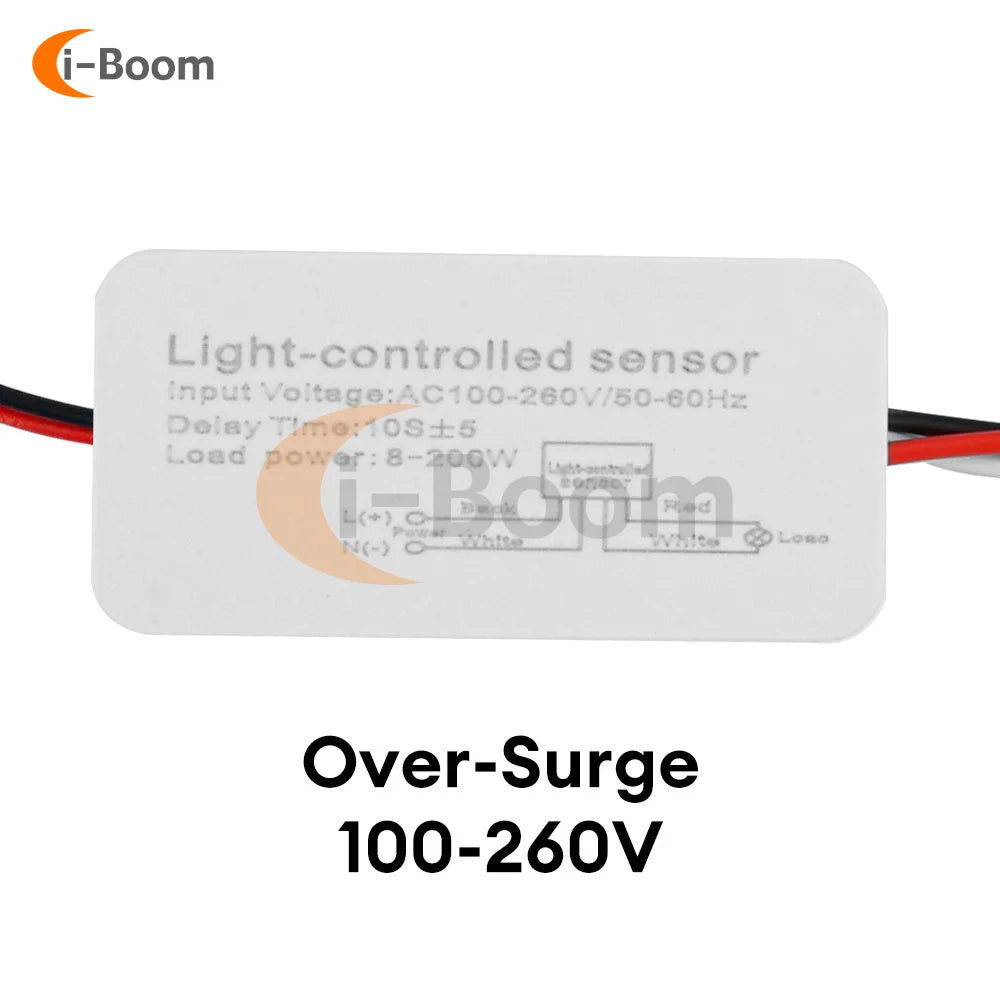

Style 1: Regular Style 2: Over Surge Style
When the brightness is lower than 30LUX, the power automatically turns on, and when the brightness is higher than 150LUX, the power automatically turns off (products with adjustable sensitivity are not included in the second column)
Please cover the photosensitive part of the switch with opaque material during daytime testing.
Installation matters
1. Do not install this device in particularly dark areas during the day or in areas directly illuminated by normally closed lights
2. The automatic switch wiring should connect the white and black wires to the power supply, and the white and red wires to the load.

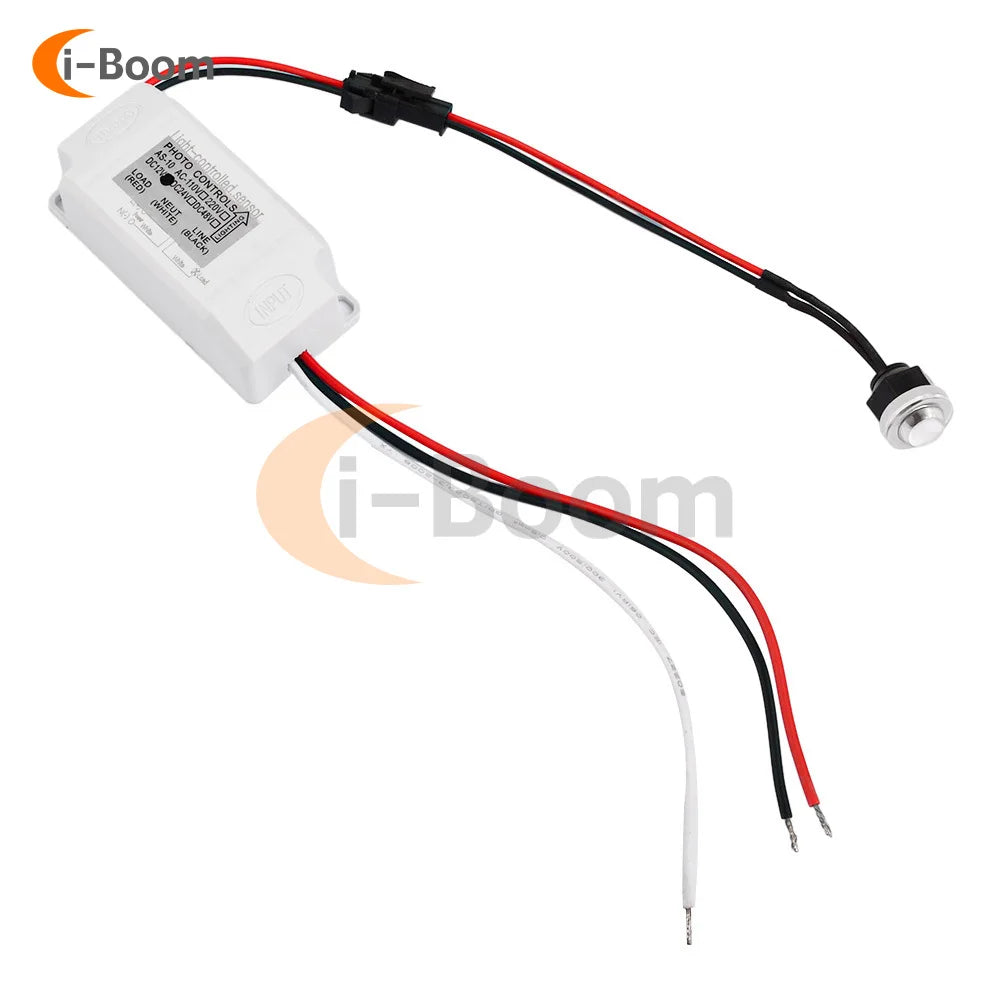

Wiring method
Black wire - AC input L
White line - AC input/light source N
Red line - light source L

Package include:
Inductive switch * 1
