SPECIFICATIONS

Feature:

Overcurrent protection, over temperature protection

Overload protection, short circuit protection

The double-sided layout of electronic components has a smaller volume. Small volume installation is more convenient,

It has temperature protection, overcurrent protection, short circuit protection, and high and low voltage insulation functions

Suitable for industrial instruments, smart home switches, sockets, hosts, civilian electronic products, toys, chargers, and other products

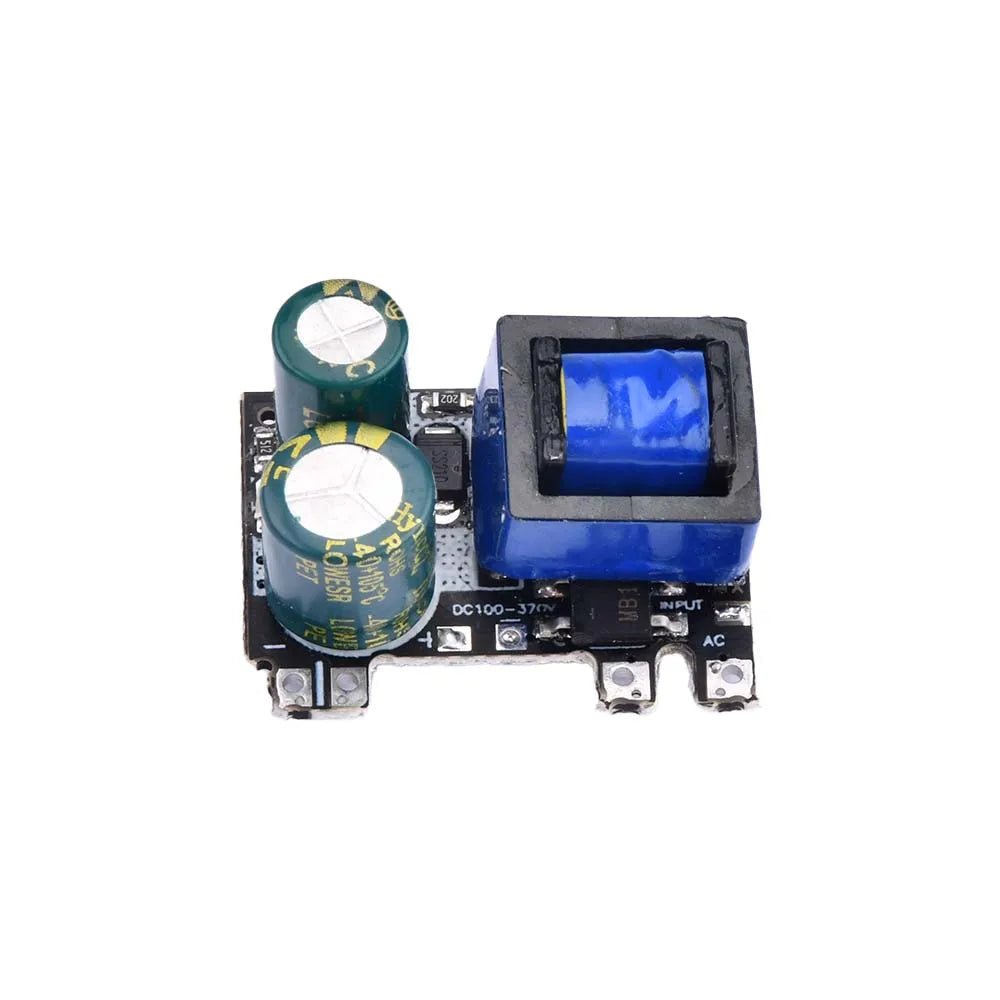

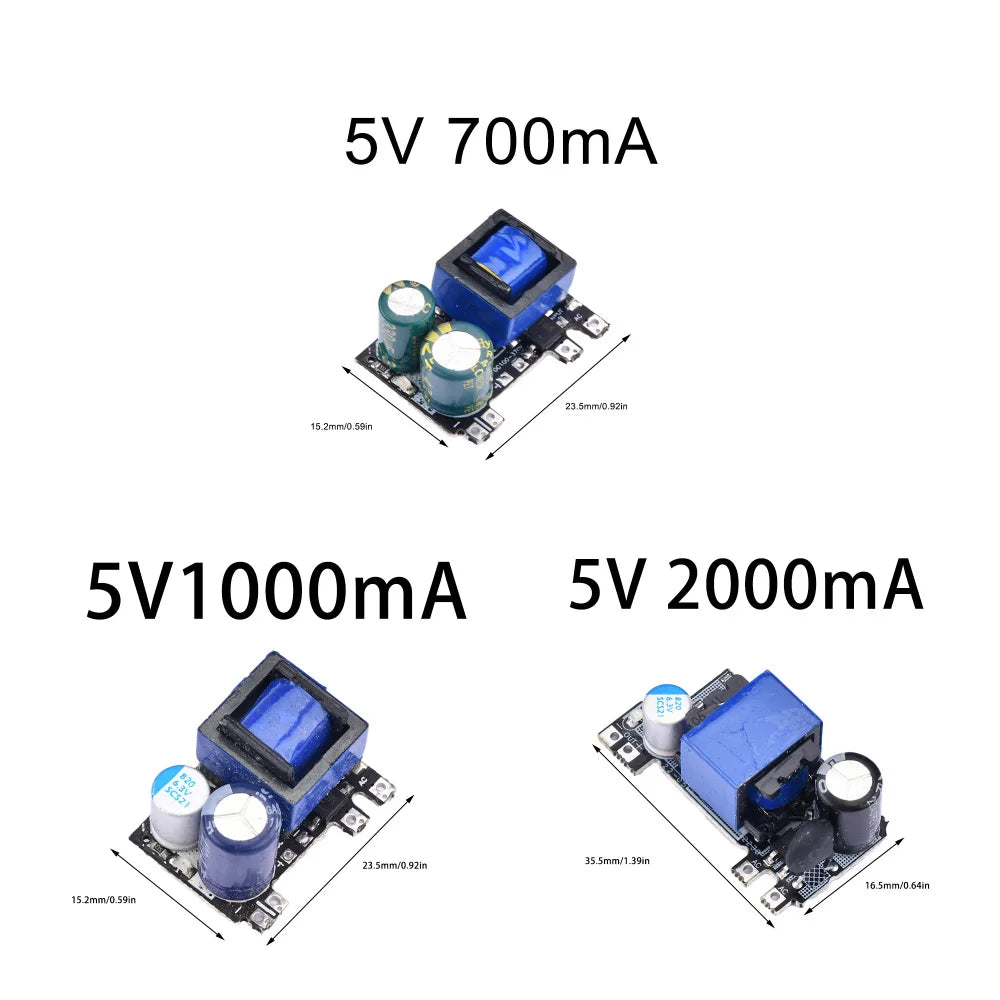

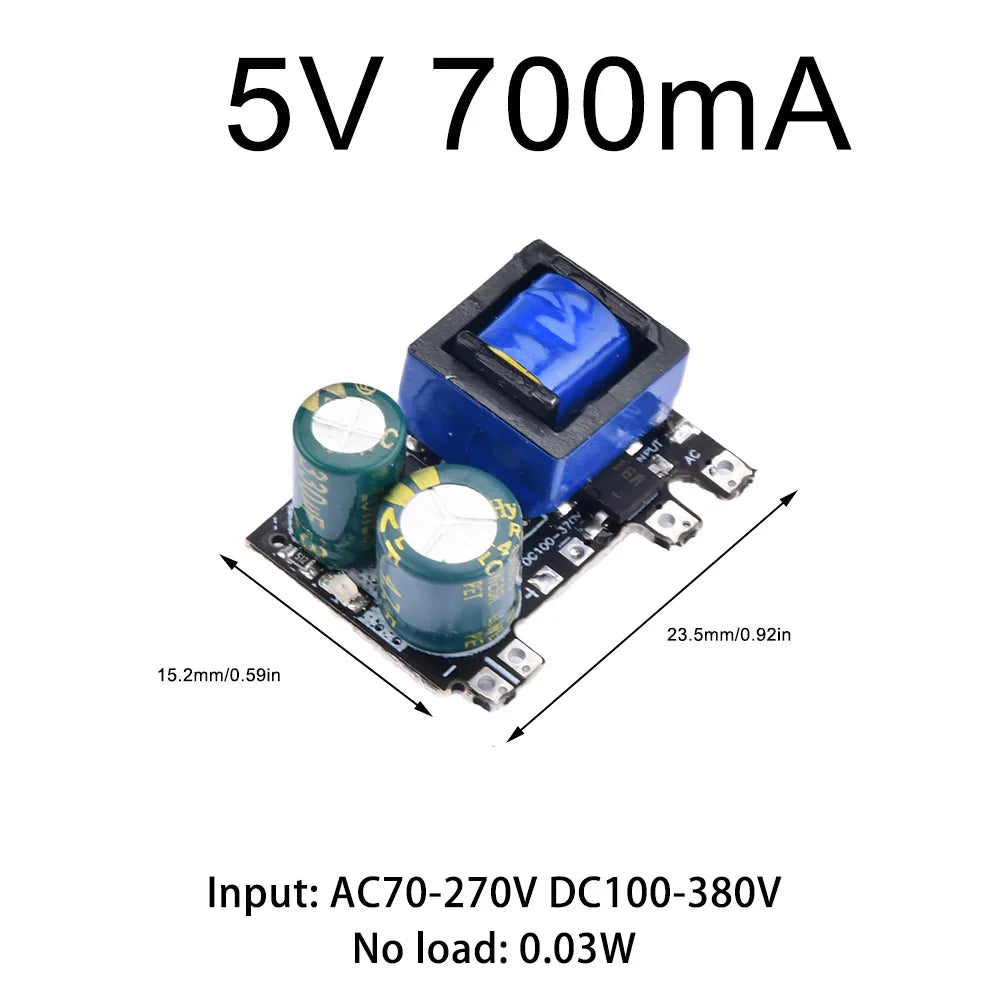

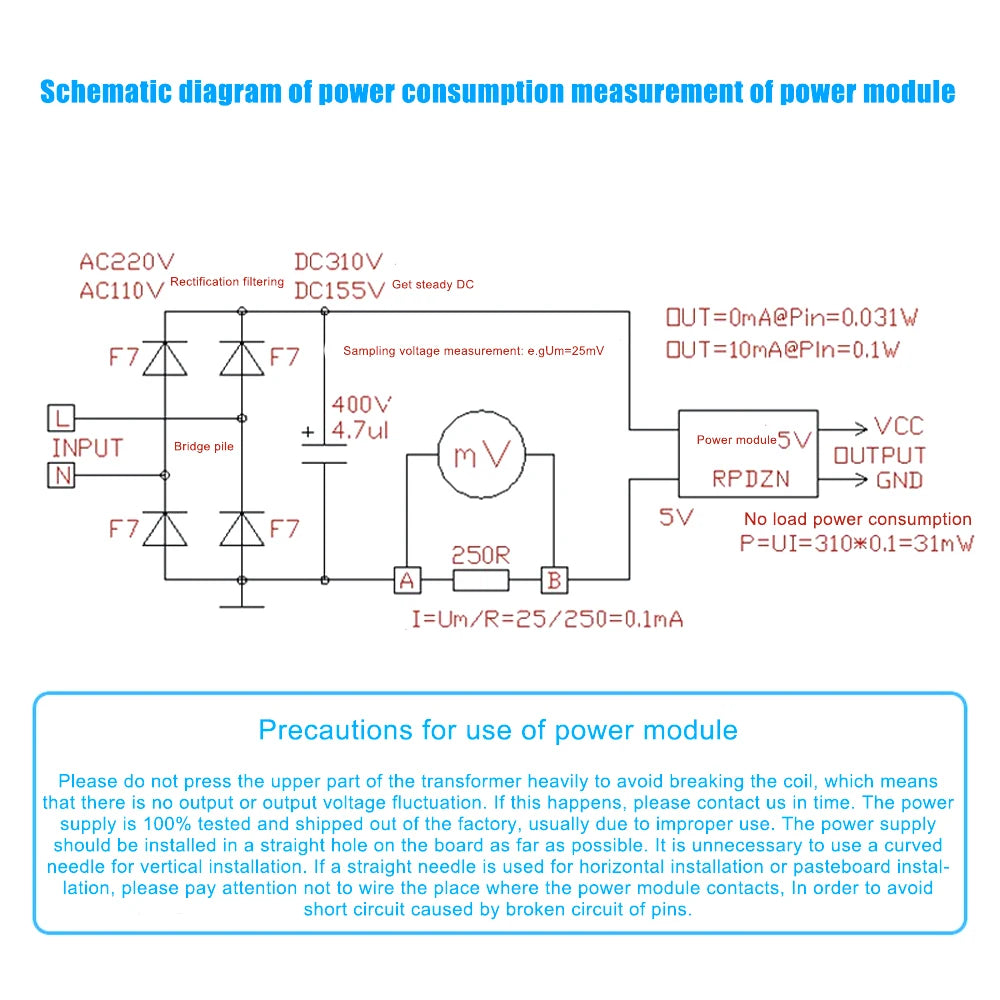

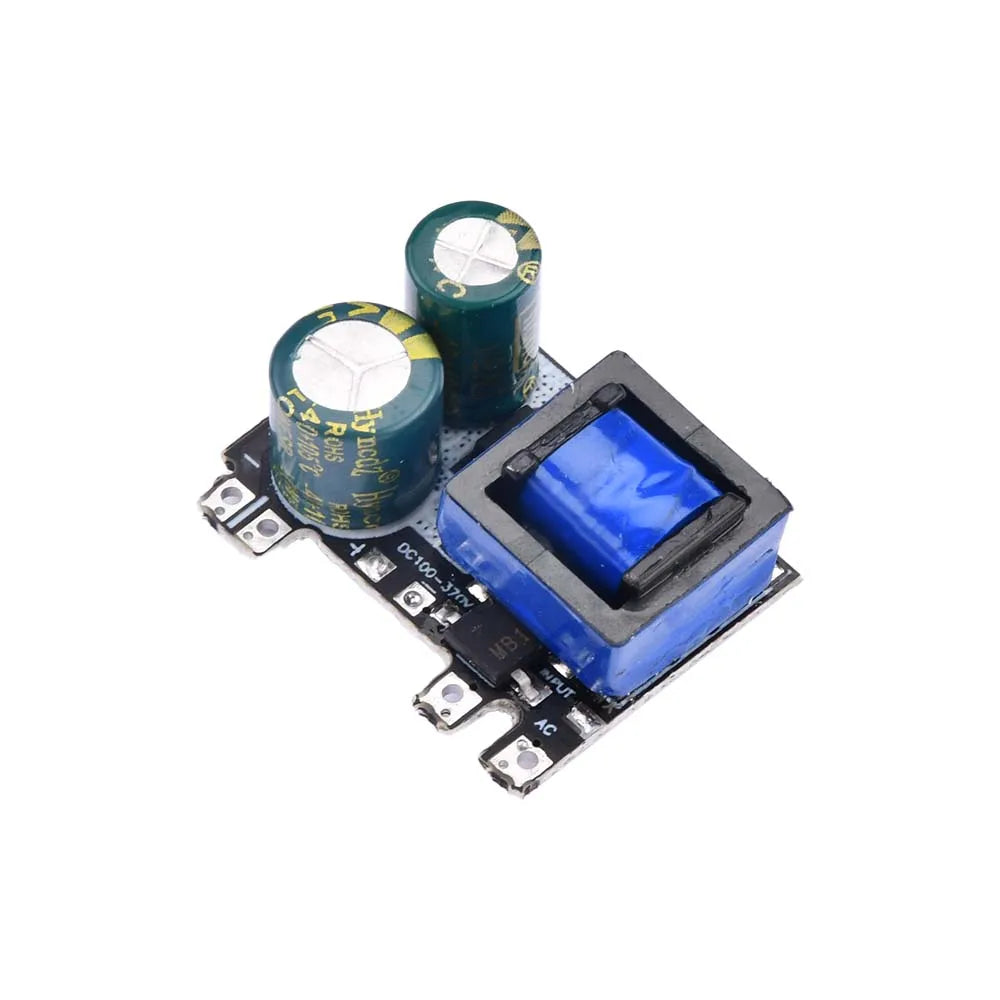

5V 700mA 3W：

1. Output indicator light: green

2. Total load power:< 4w

3. No load power: 0.03W

4. Frequency range (Hz): 47-63

5. Working temperature:- 25-70 ° C (maximum temperature resistance of components is 105 ° C) (not recommended for use above 70 ° C)

6. Test resistance: 7 Ω (4.9v) to 5V

7. Output power: ≥ 73%-80%;

Surge current (A) Cold start: 4A/230VAC

8. Input voltage range: AC70-270V ，DC100-380V

9. Output current: 5vma-700ma, enter constant current mode after fully charged

10. Output protection: overvoltage, overcurrent, overtemperature, short circuit protection, etc.

11. Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of small and large currents

12. Output voltage: 5V+-0.15V no load and full load, light load -0.1V, rebound during heavy load, 50% 60mV load ripple

13. Working temperature (℃): 13. Working humidity (RH): 20-90%, no condensation

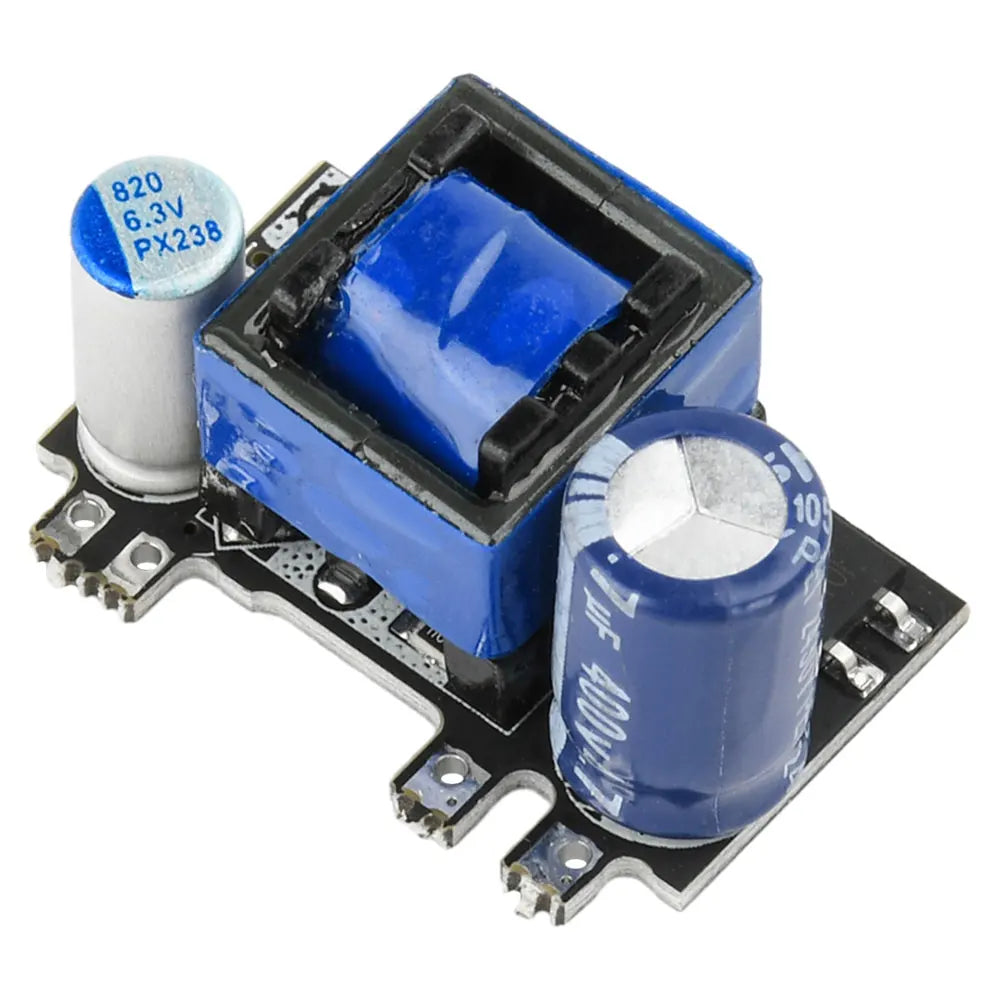

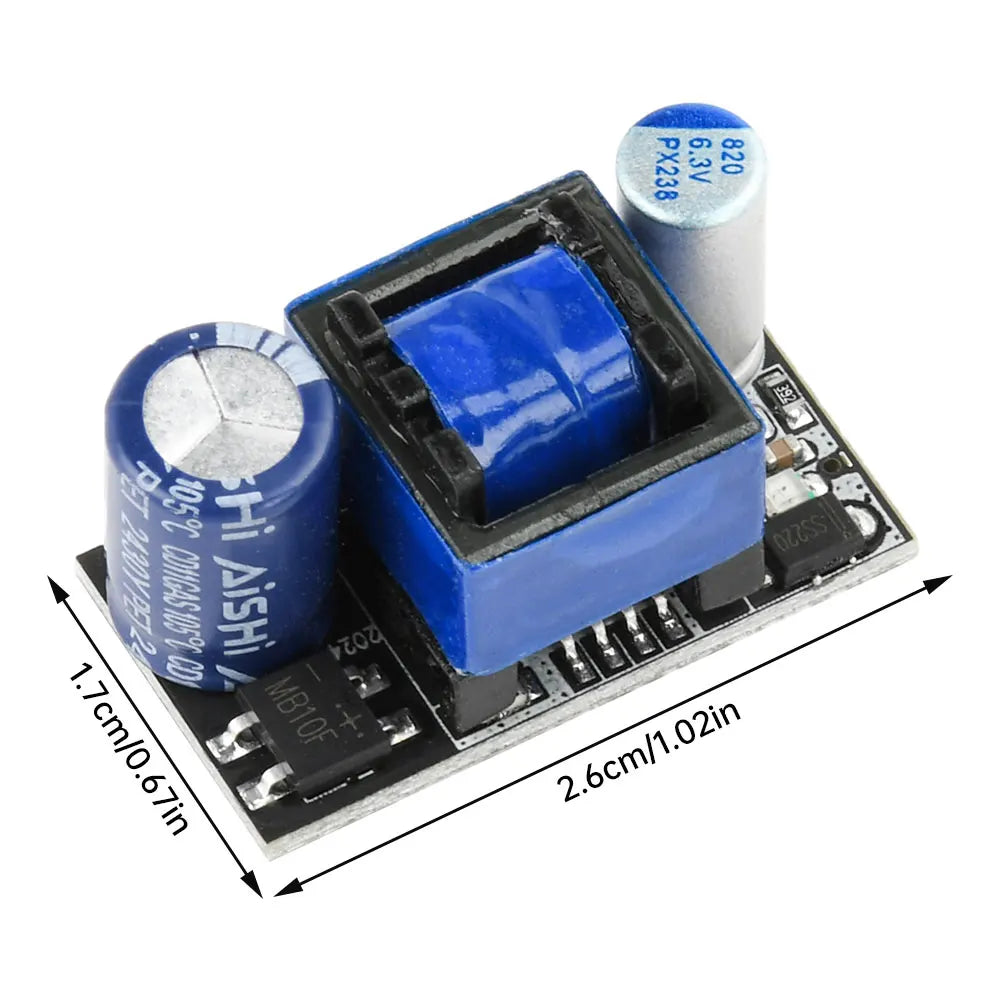

5V 1000MA 5W:

Voltage range: AC70-270V DC100-380V

Frequency range (Hz): 47-63

Efficiency (TYP): ≥ 73% -80%

Idle standby (mW): Micro power consumption 5V ≤ 35MW

Working temperature:- 25-70 ° C (maximum temperature resistance of components is 105 ° C) (not recommended for use above 70 ° C)

Surge current (A) Cold start: 4A/230VAC

Output protection: overvoltage, overcurrent, overtemperature, short circuit protection, etc.

Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of small and large currents

Linear adjustment rate: ± 1% at full load

Load adjustment rate: 10-100% load ± 3%

Vibration resistance: 10-500Hz 2G10 minutes/cycle, 10 minutes each for x, Y, Z

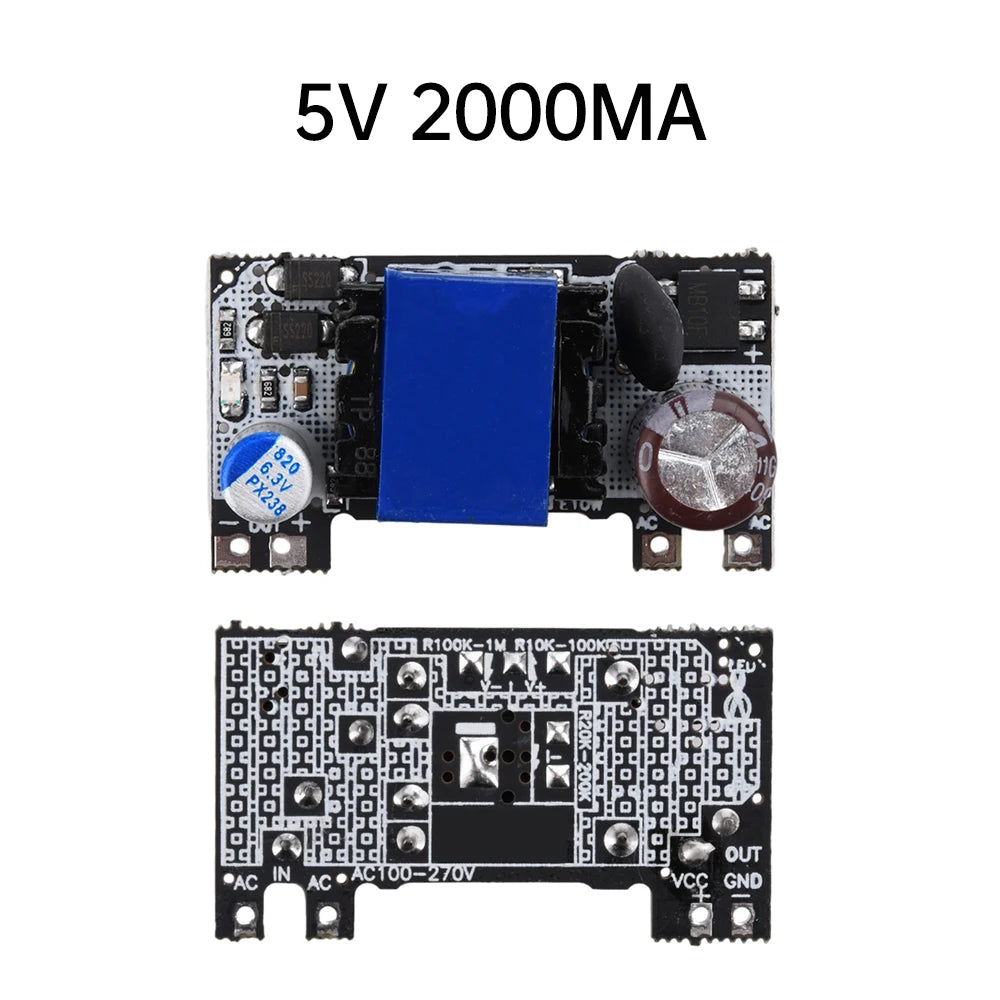

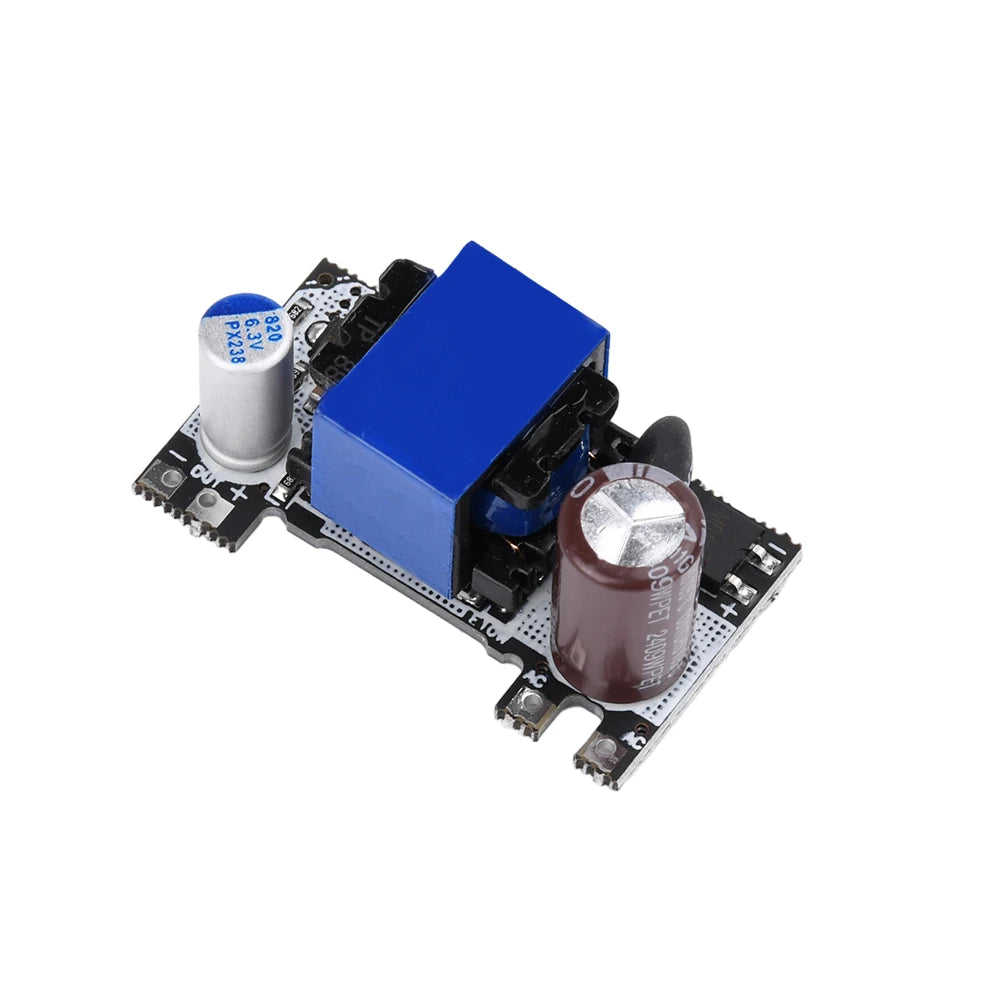

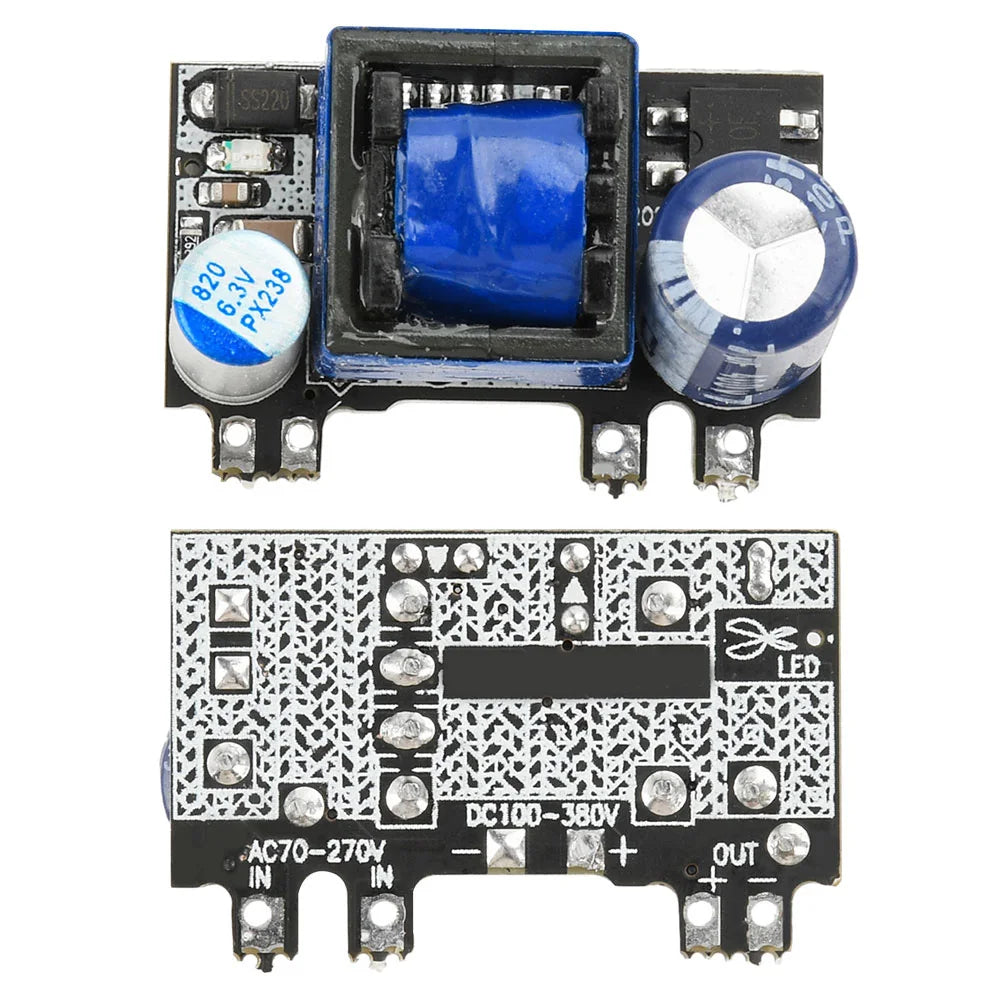

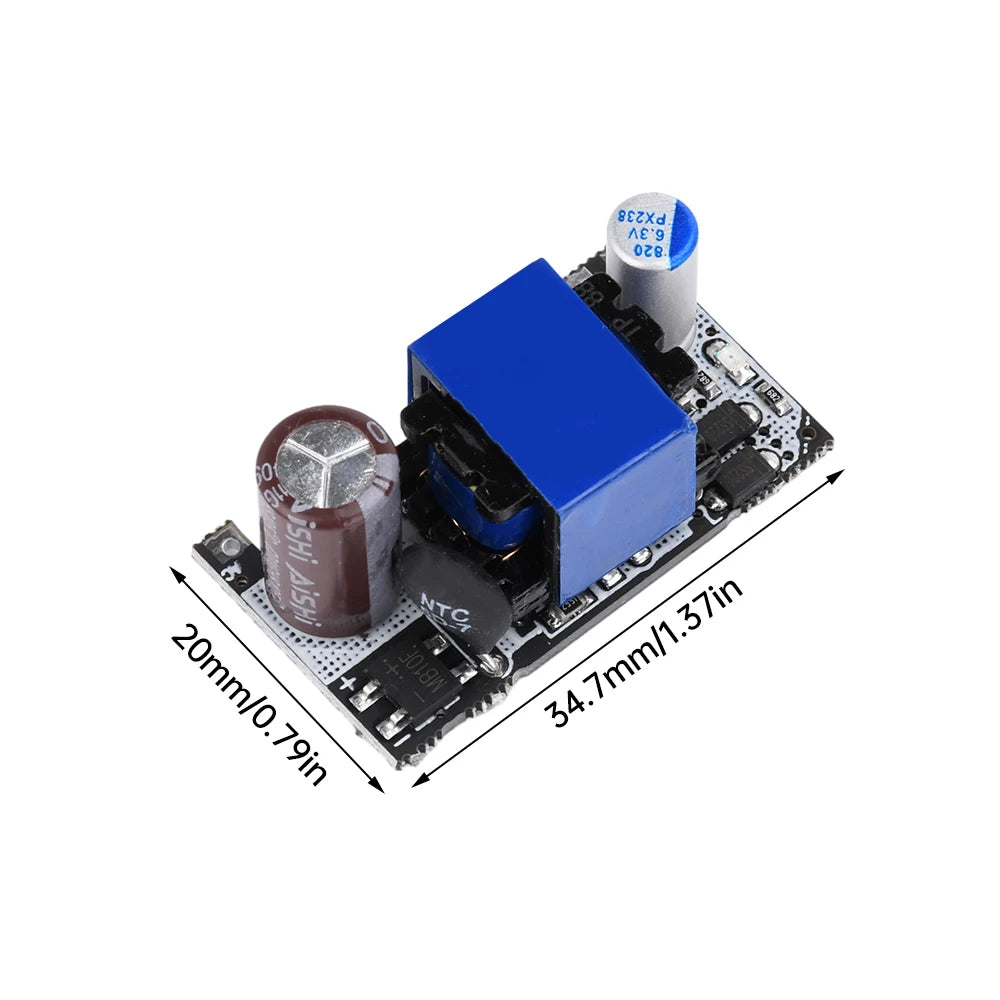

5V 2000MA 10W:

Input: AC70-277V DC100-380V

Frequency range (Hz): 47-63

Input current (a): 0.12/115vac/0.06/230vac

Surge current (a): Cold start: 10am/230vac

Efficiency (typical value): 77% -83%

Idle standby mode (MW): 80 80mW

Rated power (w): 10w

Linear adjustment rate: Total load: ± 1%

Load regulation rate: 10-100% Load: ± 3%

Switching frequency (kHz): 0.8-65 (frequency conversion control chip)

Insulation voltage (vac): output test input: 60s 55ma=1000v

Insulation resistance (m Ω): Output test input: 500vdc=100

Input voltage: Long term short circuit, self-healing short circuit protection: rated

Input voltage: Full load constant current mode Overcurrent protection: Rated

Start delay time (ms): vin: 230vac=500ms

Shutdown standby time (ms): vin: 230vac=25ms

Package included:

1 x AC-DC 5V 700mA 5V 1A 5V 2A Precision Buck Converter AC70-270V 220V to 5V DC Step Down Transformer Power Supply Module
