SPECIFICATIONS

Brand Name: SNVI

Choice: yes

High-concerned chemical: none

Origin: Mainland China

semi_Choice: yes

Product Features

Realize industry leadership through patented amplifier and filter design processes

The initial noise performance

Integrated shielding can significantly reduce electrical interference caused by high dV/dt signals

The capacitive coupling between the current conductor and the chip can prevent high-end and high-end issues

Bias drift in voltage applications.

Improving overall output error rate through temperature gain and bias adjustment

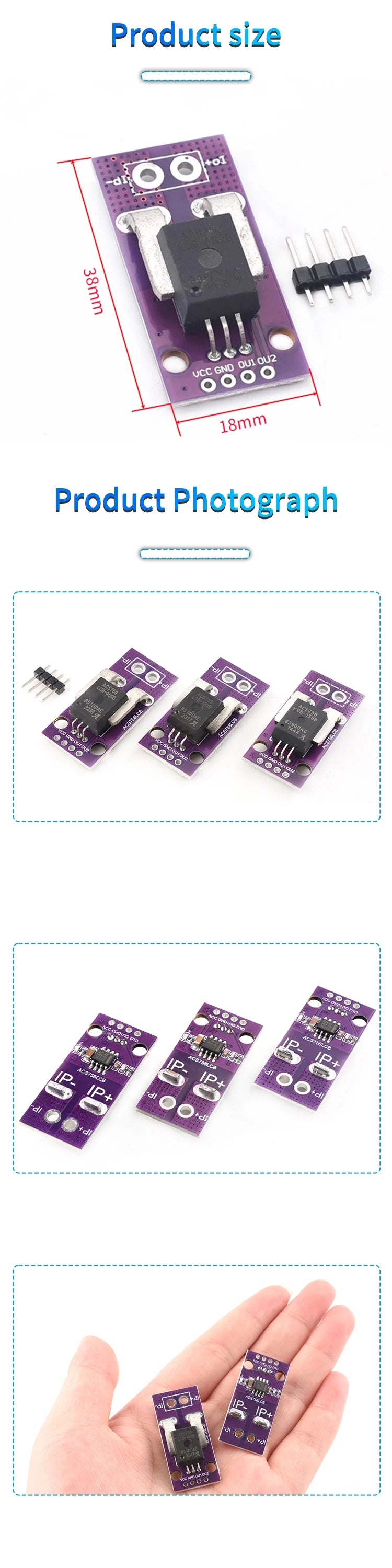

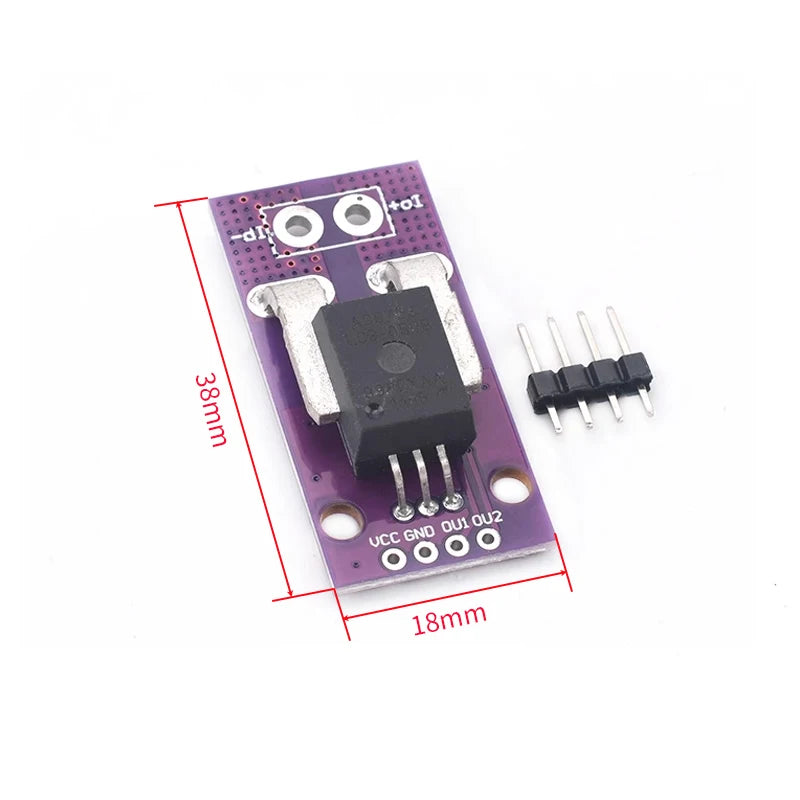

Small package size, easy to install

High reliability single-chip Hall IC

Ultra low power loss: internal conductive resistance of 100uQ

Insulation design can achieve cost-effective high-end in high-voltage systems

current sensing

Compliant with AEC Q-100 automotive grade standards

3.0 to 5.5V, single power supply operation

Typical bandwidth of 120kHz

Corresponding to the step input current, the output rise time is 3 μ s

Output voltage proportional to AC or DC

It has been calibrated at the factory to ensure accuracy

Extremely stable output offset voltage

Near zero hysteresis

[Main Parameters]

1. Working voltage: 3V-5V (MAX 8V)

2. Static output voltage: VCC/2

3. Working current: 13.5 mA (MAX)

4. Storage temperature range: -65 ° C -165 ° C

5. Maximum output current (VIOUT-GND): 3 mA

6. Internal bandwidth: 120 KHz

7. Module weight: 8.8g
