SPECIFICATIONS

1、output method

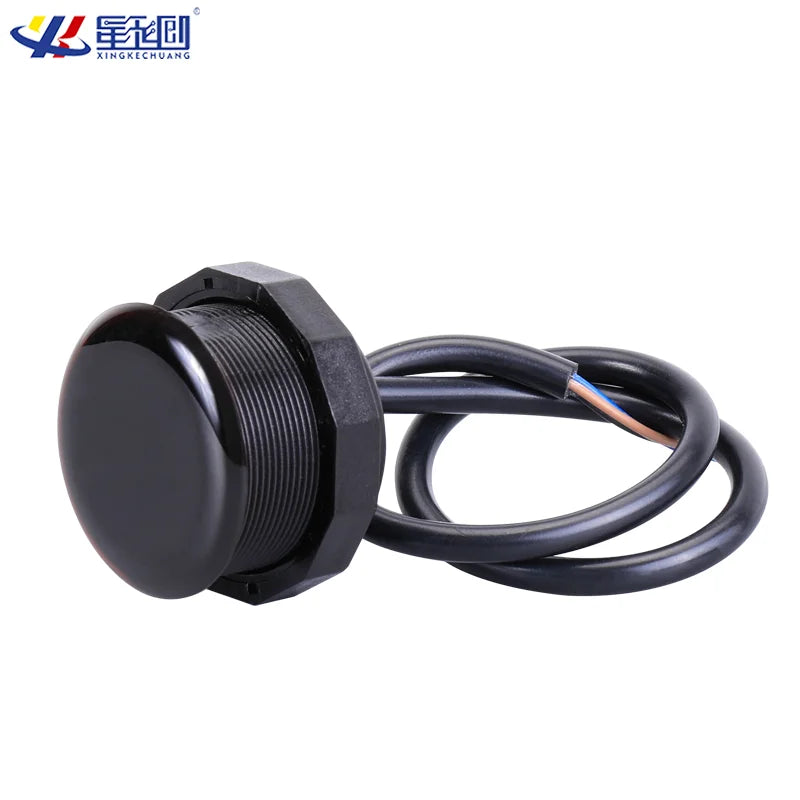

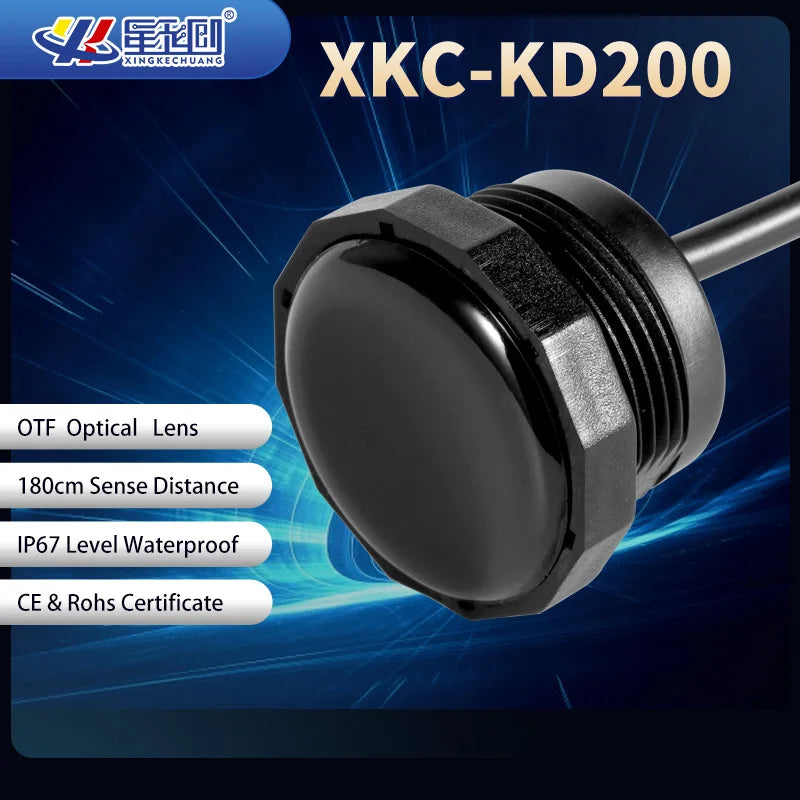

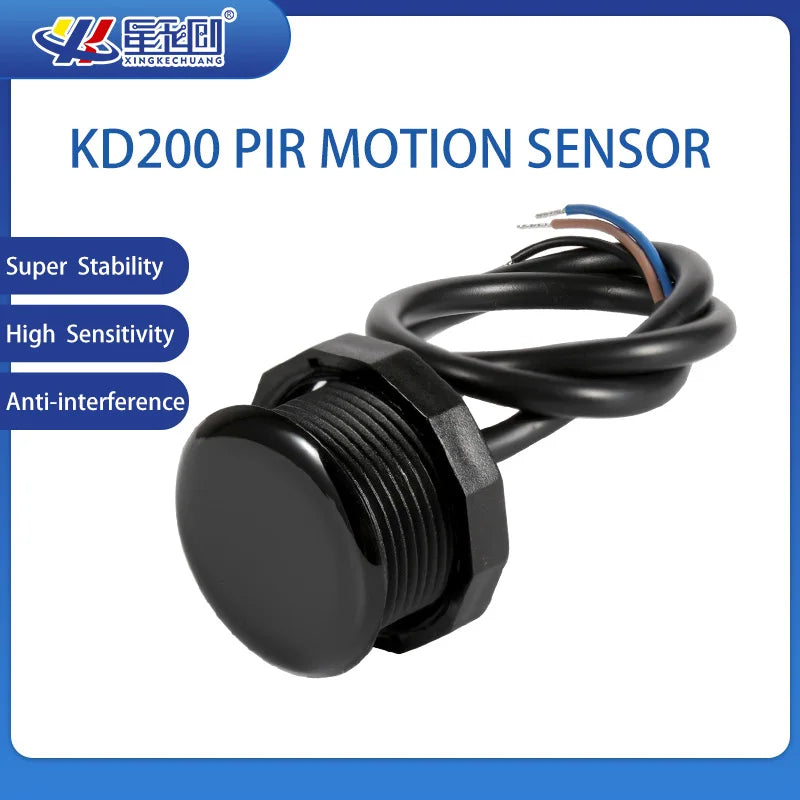

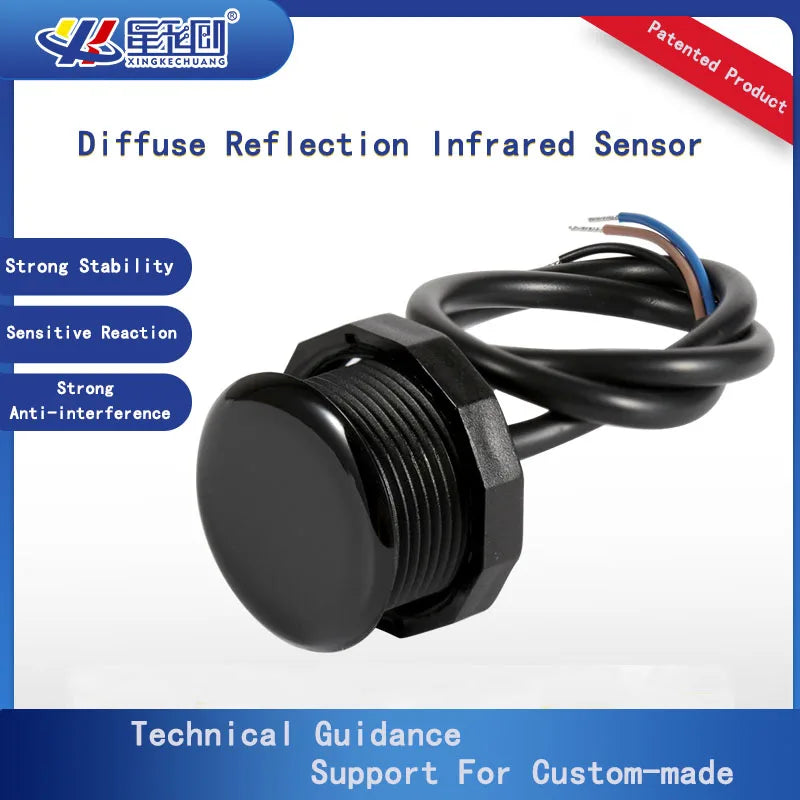

XKC-KD200 is an intelligent non-contact sensor switch. The sensor uses the principle of diffuse reflection of infrared light on the object. When a person or object enters the sensing range directly in front of the sensor, the sensor immediately judges that there is a sensor, thereby controlling the output signal ; After the person or object leaves the sensing range, it is immediately judged that there is no sensing, and the output signal is released to achieve the purpose of intelligent control (reverse output can also be customized).

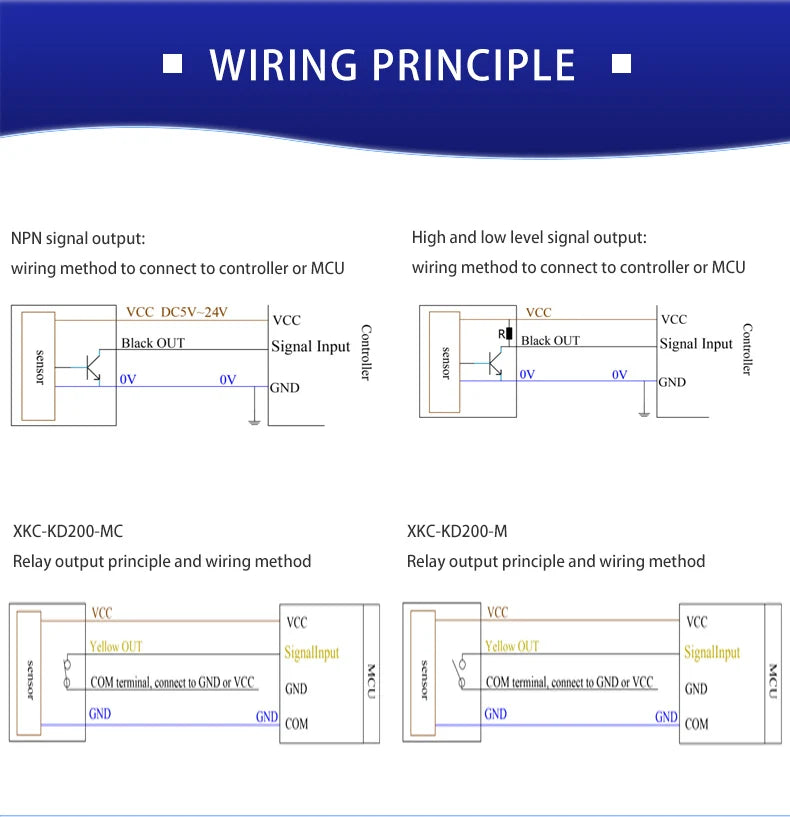

1.XKC-KD200M--------Relay normally open 5V -24V output
2.XKC-KD200 MC----------Relay normally closed 5V -24V output
3.XKC-KD200N NPN-------open collector output (normally open) DC 5V-24V
4.XKC-KD200NC NPN--------open collector output (normally closed) DC 5V-24V
5.XKC-KD200V---------High and low signal output (positive output) 5V-24V

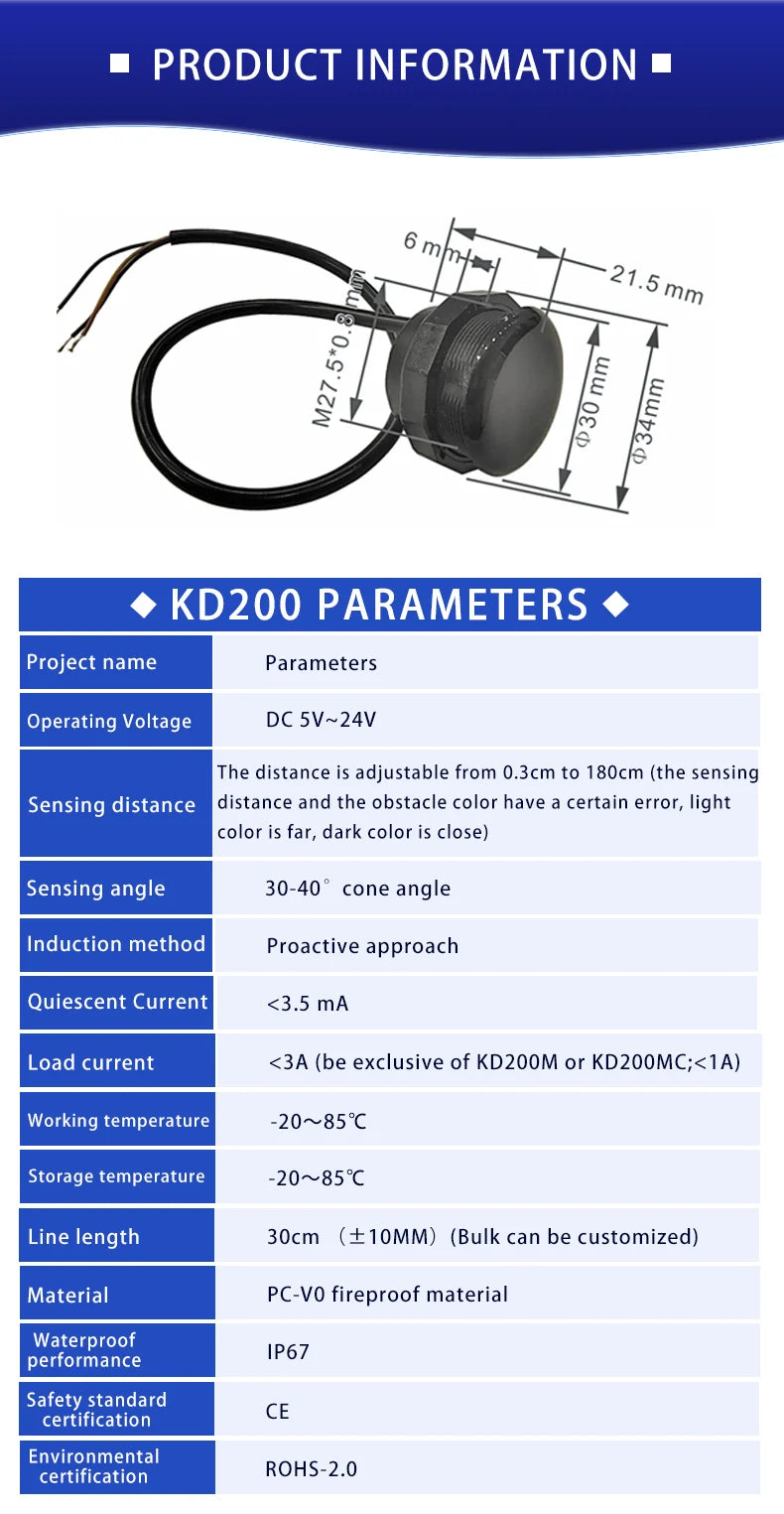

2、Technical Parameters

1.Operating Voltage：DC 5V~24V

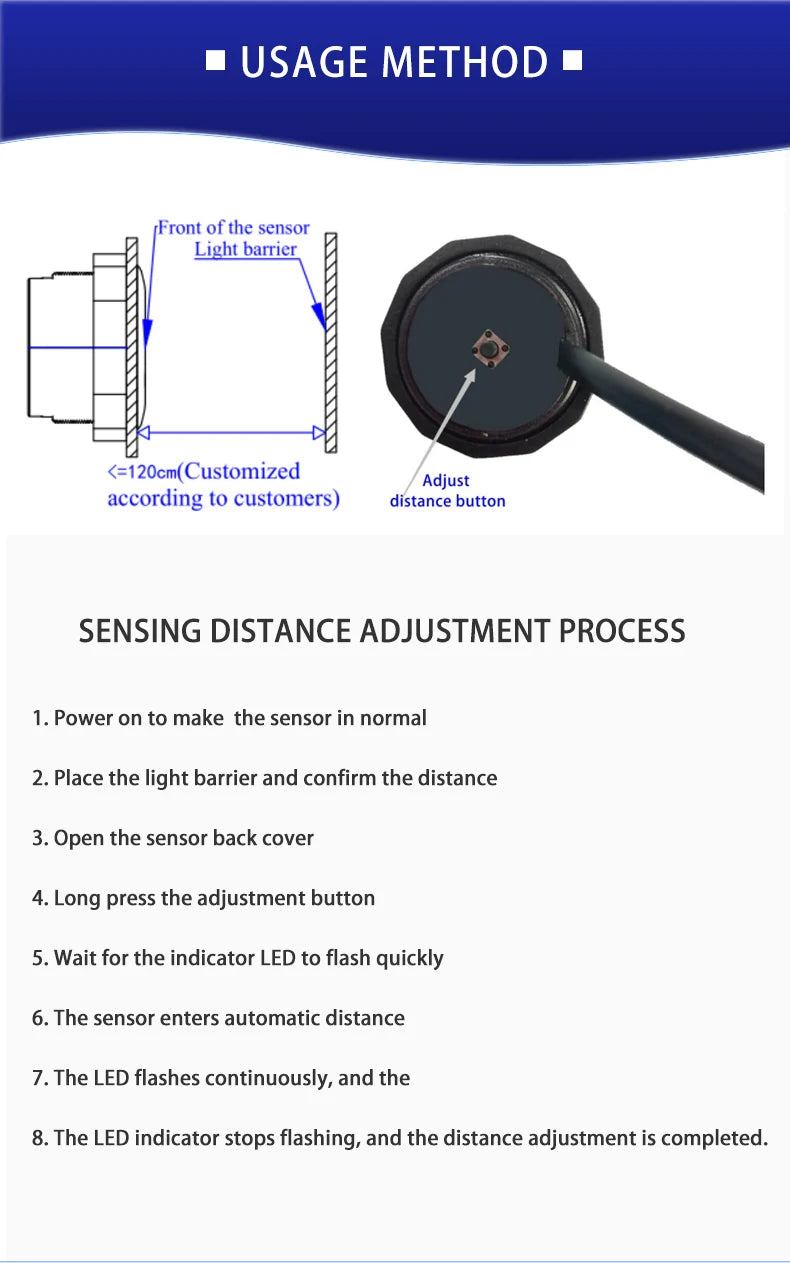

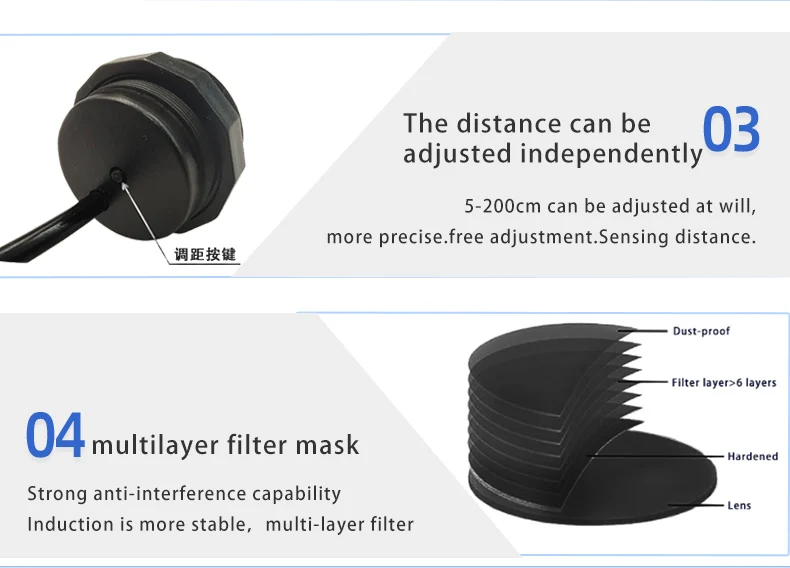

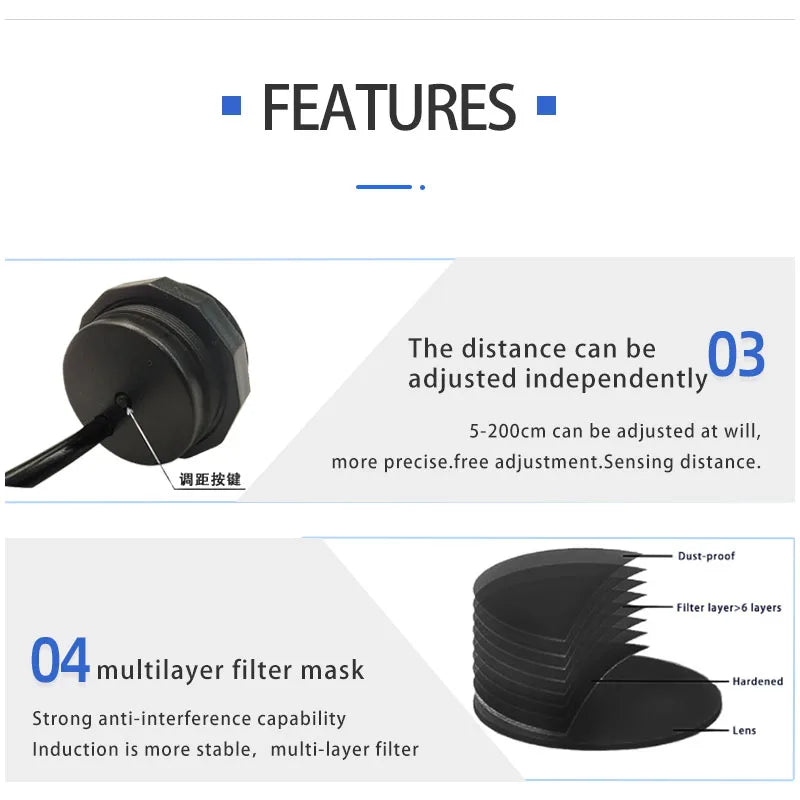

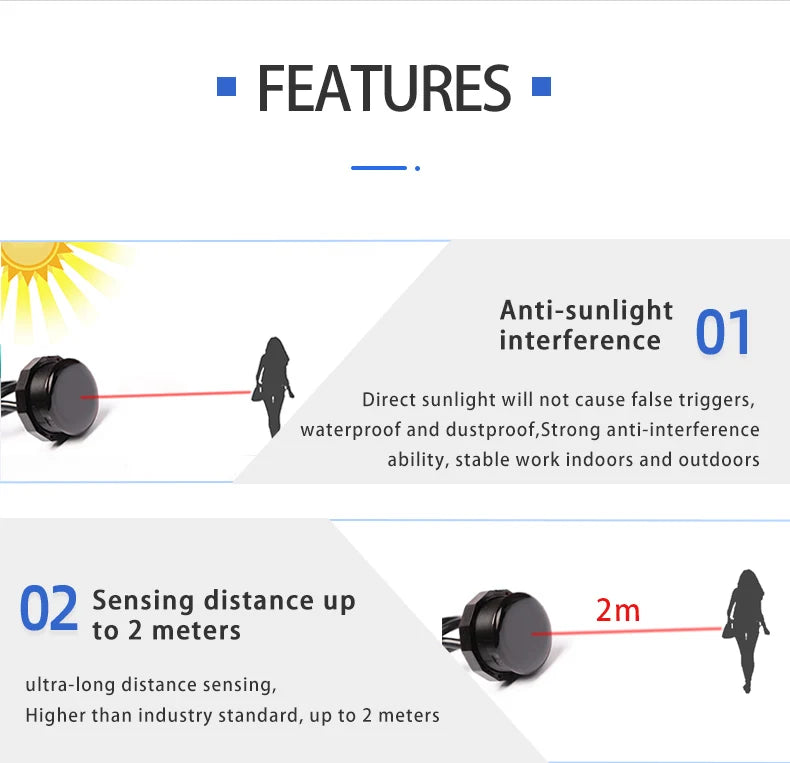

2.Sensing distance：The distance is adjustable from 0cm to 200cm (the sensing distance and the obstacle color have a certain error, light color is far, dark color is close)

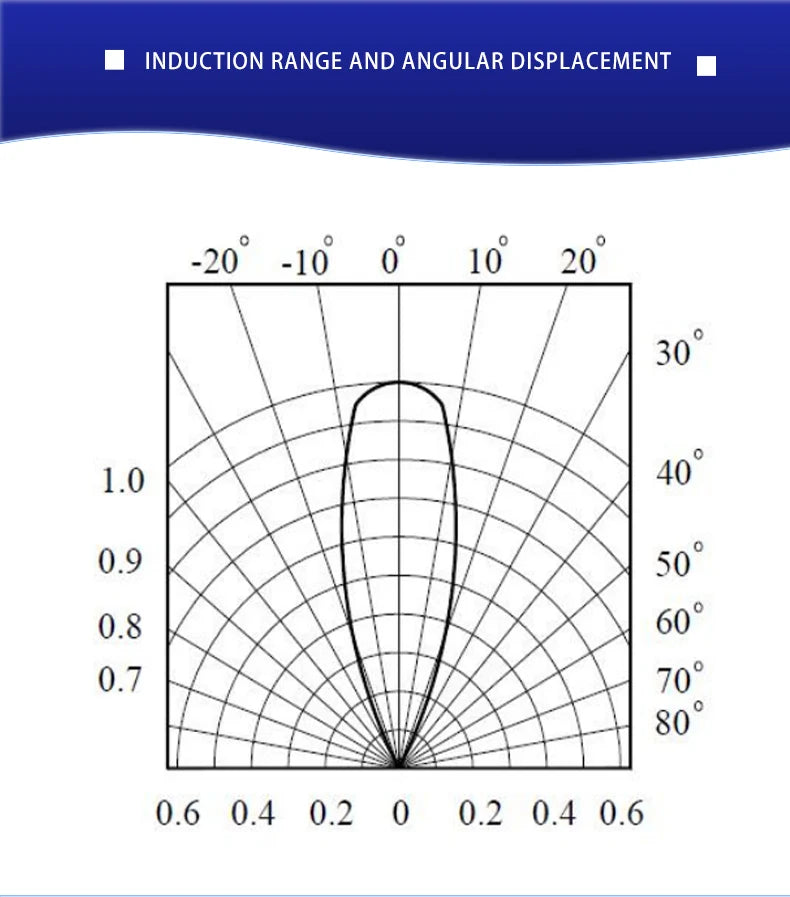

3.Sensing angle：30-40°cone angle
4.Induction method：Proactive approach
5.Quiescent Current：<3.5 mA
6.Load current：<3A (be exclusive of KD200M or KD200MC;<1A)
7.Working temperature：-20～85℃
8.Line length：30cm （±10MM）(Bulk can be customized)
9.Material：PC-V0 fireproof material
10.Waterproof performance：IP67
11.Safety standard certification：CE
12.Environmental certification：ROHS-2.0
