SPECIFICATIONS

Brand Name: NONE

Condition: New

Dissipation Power: -

High-concerned chemical: none

Operating Temperature: -

Origin: Mainland China

Quantity: 1

Supply Voltage: -

Type: Module

is_customized: Yes

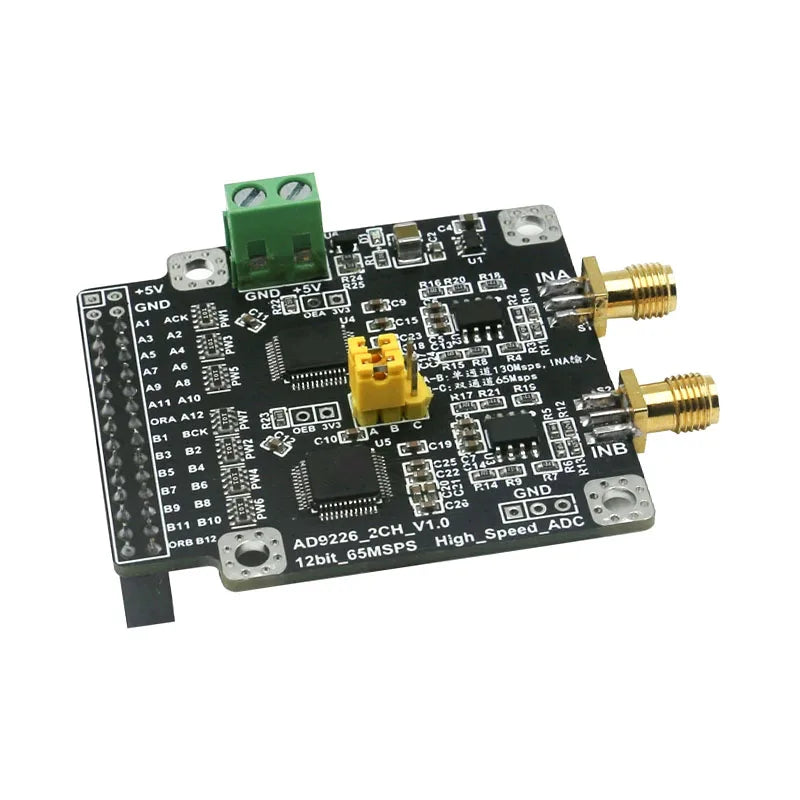

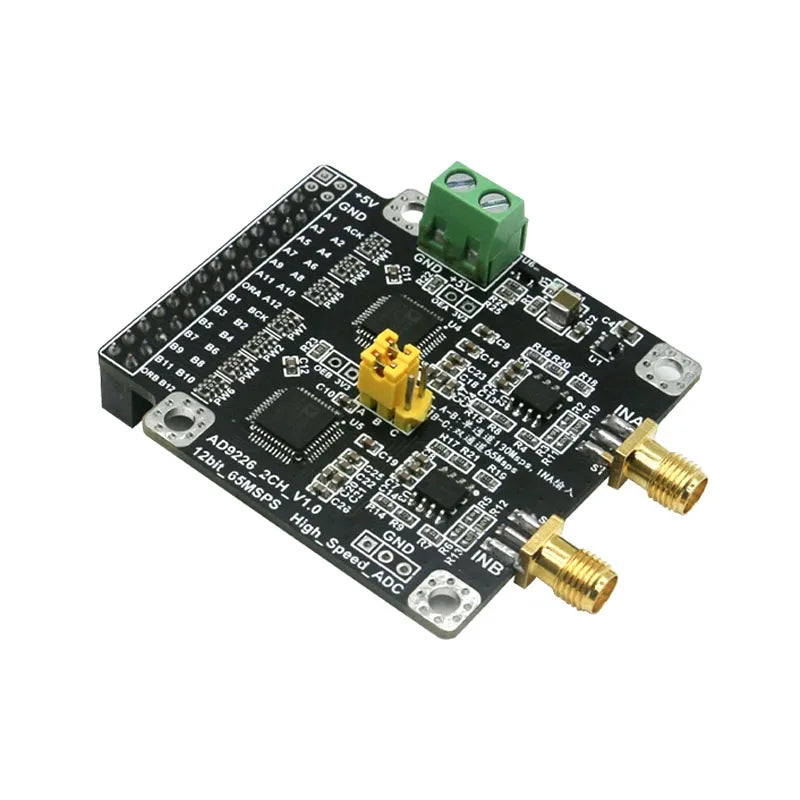

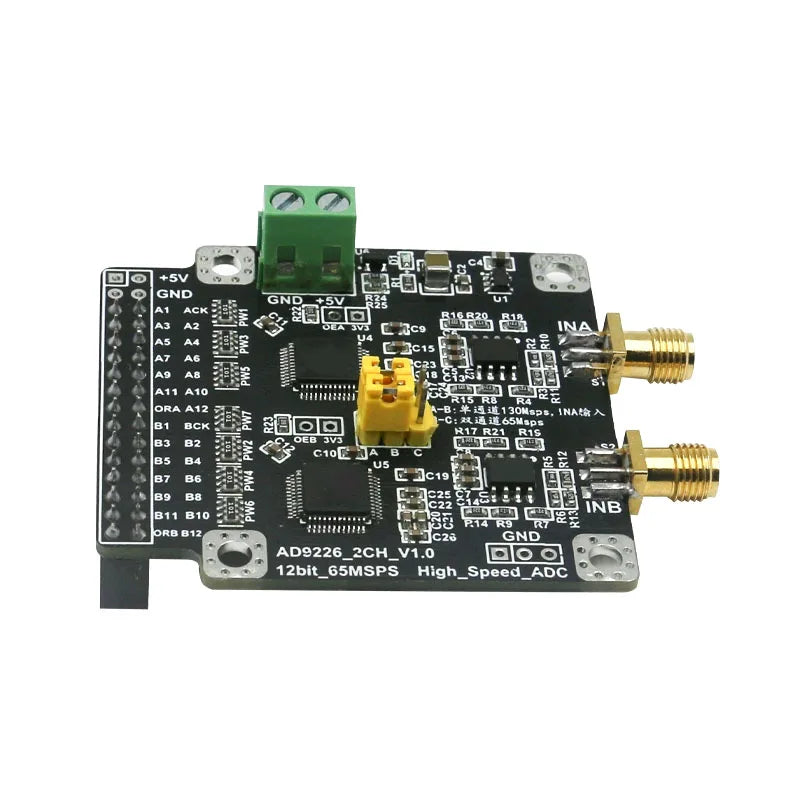

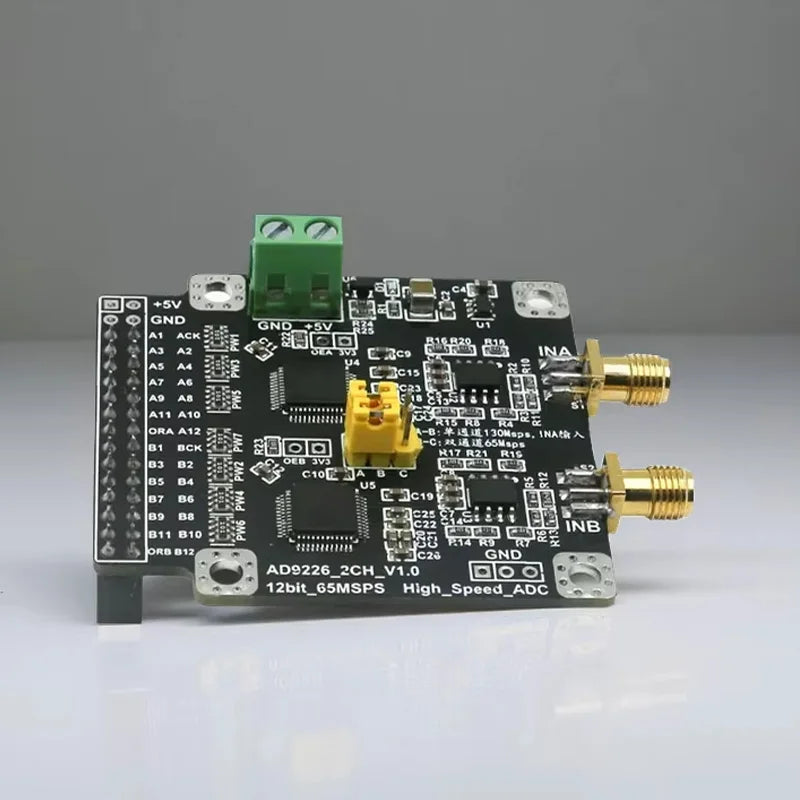

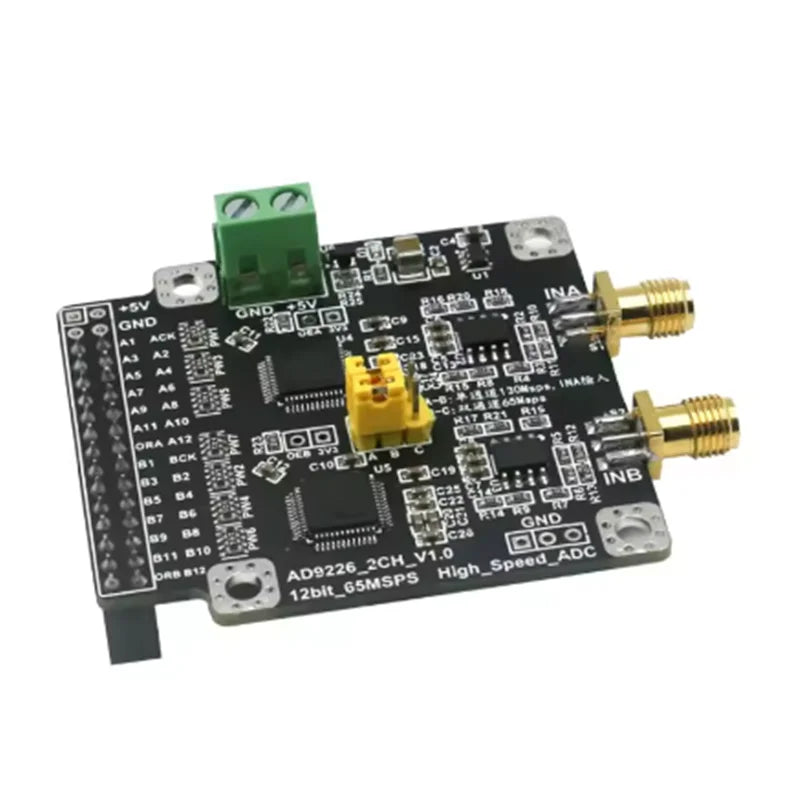

AD9226 High-Speed 12-Bit ADC Data Acquisition Module, Dual-Channel 65M Single-Channel 130M Sampling

Product Introduction:

This module is built around the AD9226 chip, a monolithic, single-supply, 12-bit, 65 MSPS analog-to-digital converter (ADC) that integrates a high-performance sample-and-hold amplifier and a voltage reference. Operating on a single +5V power supply and featuring two onboard AD9226 chips, the module supports dual-channel 65 MSPS simultaneous acquisition or can be combined for single-channel 130 MSPS high-speed sampling. With a 50Ω input impedance, a wide ±5V (10 Vpp) input range, and a 350 MHz analog bandwidth, it guarantees precise acquisition of high-speed signals even at the maximum sampling rate. This module is widely suitable for applications such as sensor signal acquisition, high-speed data logging, communications, and laboratory instrumentation.

Features:

High Speed & High Precision: 12-bit resolution with sampling rates up to 65 MSPS per channel or 130 MSPS in combined mode.

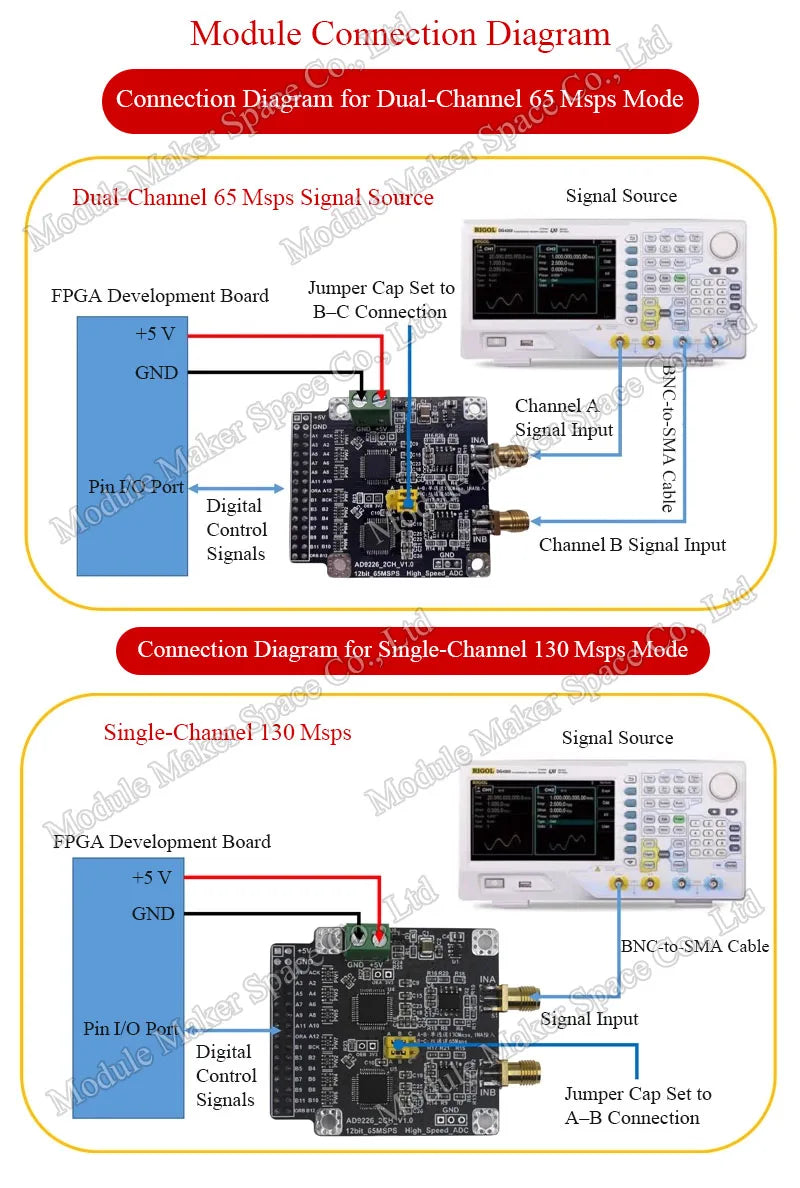

Dual Operating Modes (selectable via jumper cap):
- Dual-Channel Mode (65 MSPS per channel): Jumper set to B-C. Supports simultaneous acquisition and processing of two signal paths.
- Single-Channel Mode (130 MSPS): Jumper set to A-B. Doubles the sampling rate for capturing extremely fast transient signals on a single channel.
Excellent Signal Fidelity: A 350 MHz analog bandwidth ensures accurate digitization of high-frequency signal components.
Robust & Reliable Design: Includes reverse polarity protection for the power supply, preventing damage from accidental misconnection.
Complete Development Support: Comes with Verilog reference code and a Quartus II 13.0 project file for quick integration and evaluation on FPGA platforms.

Technical Specifications:

Core Chip: AD9226
Module Type: High-Speed Analog-to-Digital Converter (ADC) Module
Power Supply: +5V DC (Do not exceed this voltage)
Sampling Rate: 65 MSPS or 130 MSPS (depending on operating mode)
Resolution: 12-bit
Input Voltage Range: ±5V (10 Vpp)
Input Impedance: 50Ω
Analog Bandwidth: 350 MHz
Number of Channels: 2 physical channels
Operating Modes:
- Jumper A-B: Single-Channel 130 MSPS mode (uses INA input)
- Jumper B-C: Dual-Channel 65 MSPS mode
Reference Voltage: Internal 2V
Data Output Format: Straight binary code
Control Signal Level: 3.3V (compatible with most FPGAs and MCUs)
Example Code & Platform: Verilog HDL, Quartus II 13.0
Output Mode: Parallel data
Input Interface: SMA connector
Output Interface: 2.54mm pitch female header
Power Interface: 2.54mm pitch terminal block (default) / header
Module Protection: Reverse polarity protection for power supply
Typical Applications: High-speed ADC acquisition, data acquisition systems, oscilloscope front-ends, software-defined radio (SDR), industrial measurement

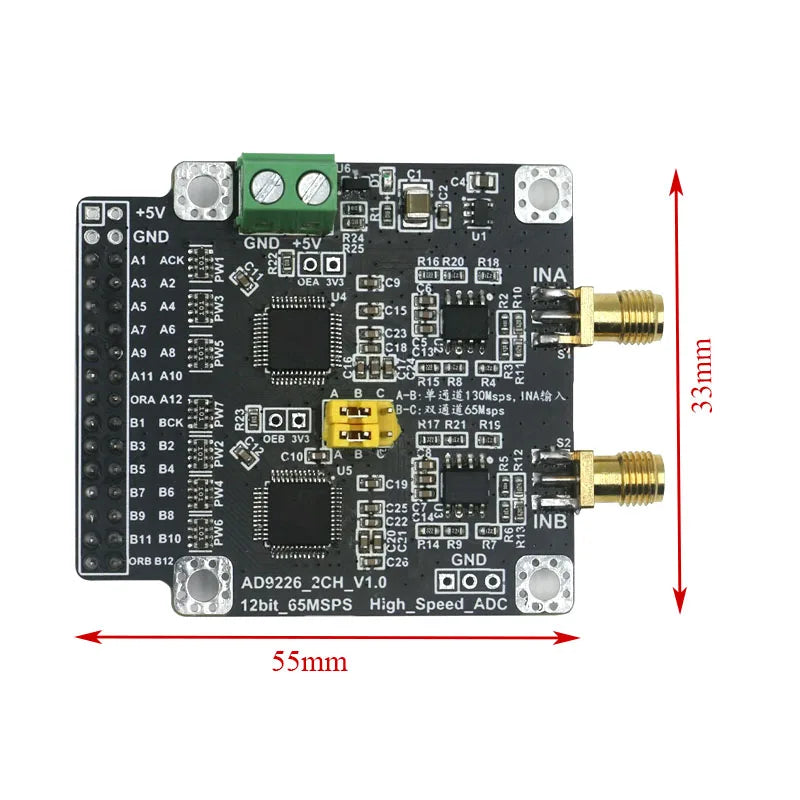

Module Dimensions: 55mm x 33mm
