SPECIFICATIONS

Brand Name: NONE

Condition: New

Dissipation Power: -

High-concerned chemical: none

Operating Temperature: -

Origin: Mainland China

Quantity: 1

Supply Voltage: -

Type: Module

is_customized: Yes



Product Introduction:

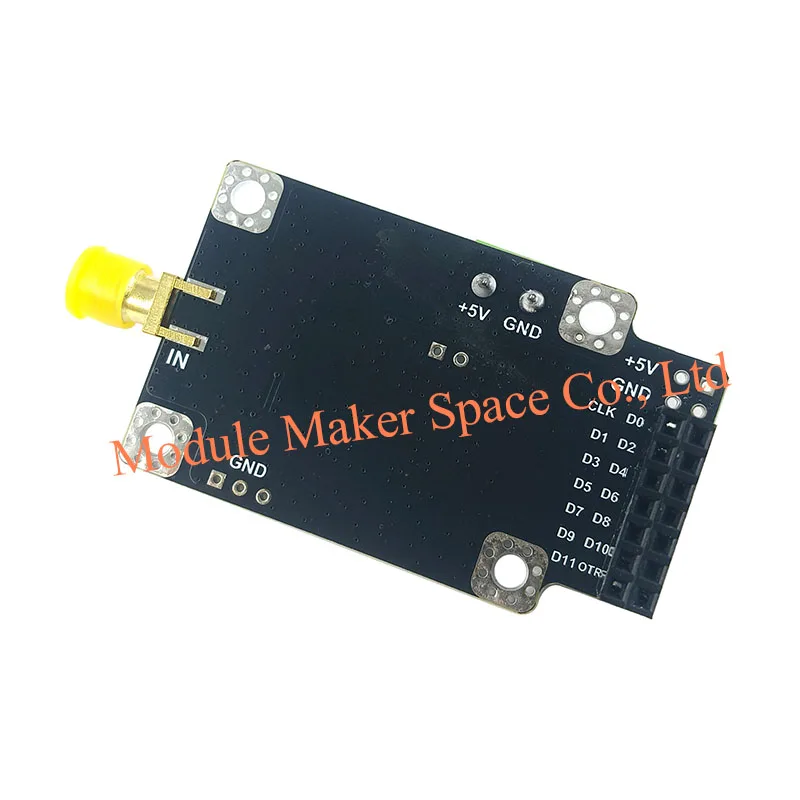

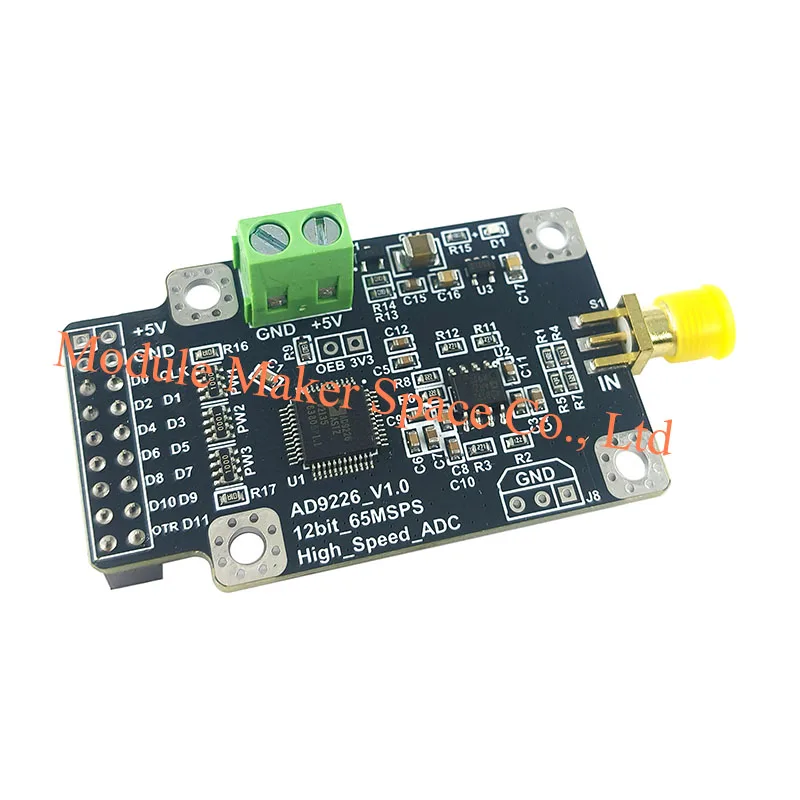

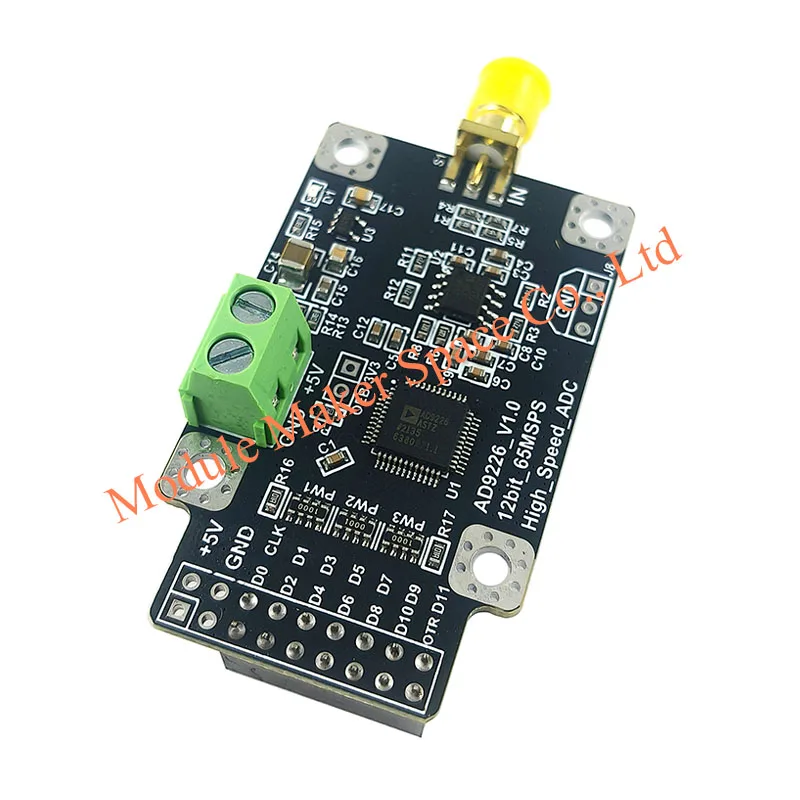

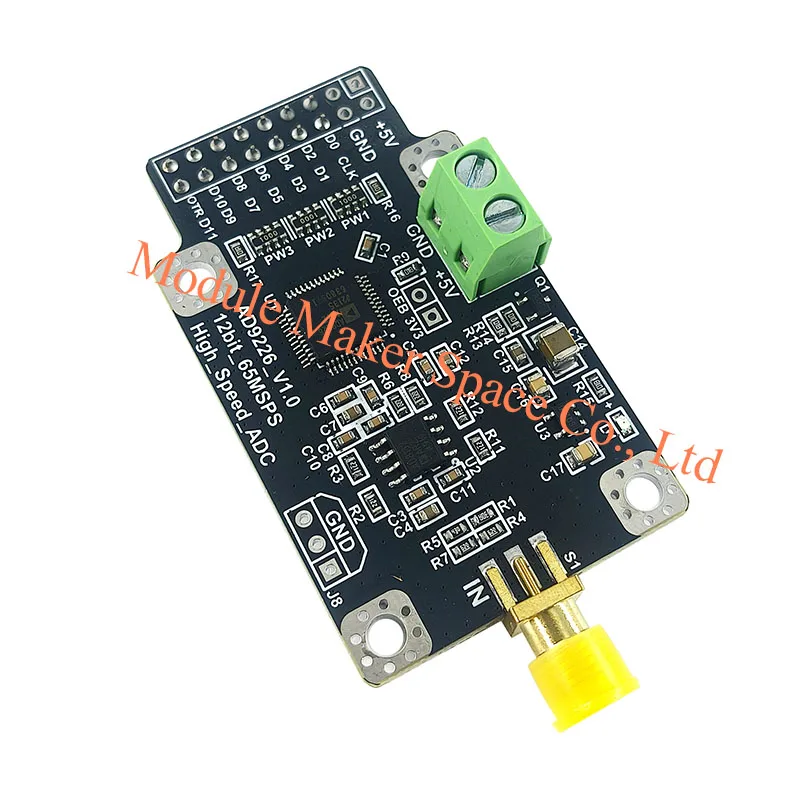

This high-performance ADC module is built around the AD9226 from Analog Devices, a monolithic, single-supply, 12-bit, 65 MSPS analog-to-digital converter featuring an on-chip sample-and-hold amplifier and voltage reference. Designed for precision and speed, it operates from a single +5V power supply and accepts high-frequency analog input signals with a wide ±5V range (10Vpp) via a 50Ω SMA interface.

Key Features & Specifications:

• Core Chip: Analog Devices AD9226

• High Sampling Rate: 65 MSPS

• Resolution: 12 Bits

• Wide Input Voltage Range: ±5V (10Vpp)

• High Analog Bandwidth: 350 MHz

• Input Impedance: 50Ω

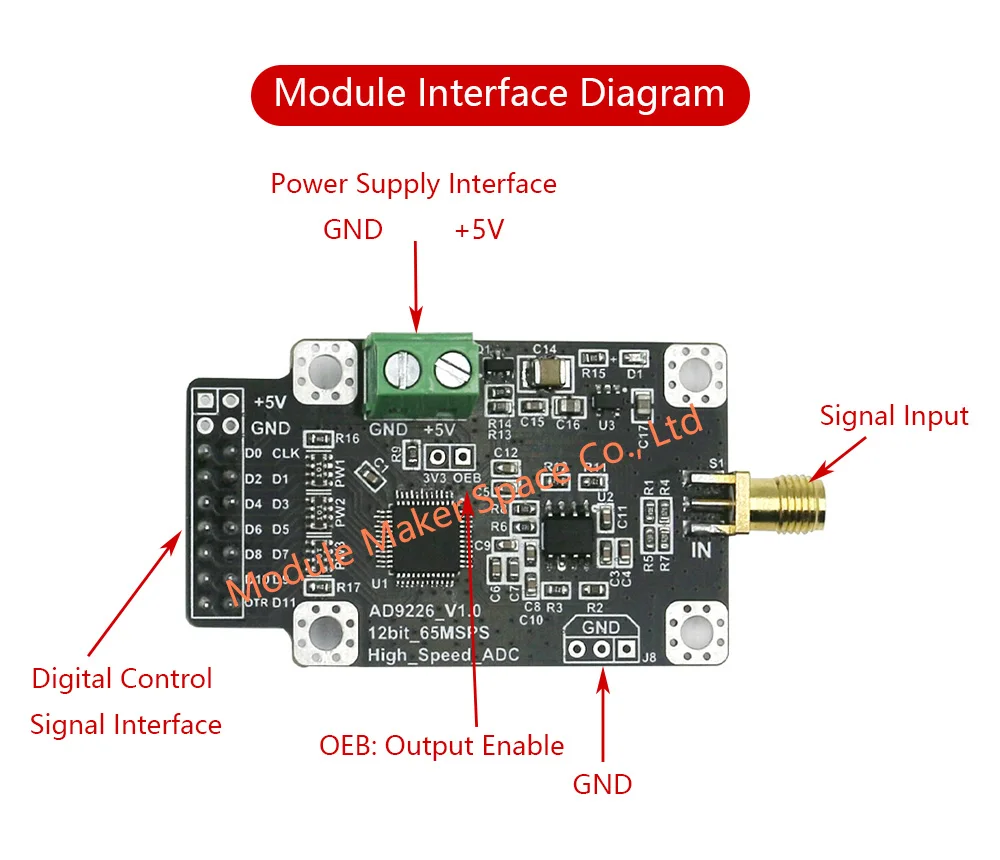

• Single-Channel Input via SMA connector

• Internal Reference Voltage: 2V

• Logic Level Compatibility: 3.3V

• Parallel Data Output for direct, high-speed reading

• Convenient Power Options: 2.54mm pin header or terminal block (terminal block pre-installed)

• Built-in Protection: Reverse polarity protection for the power supply

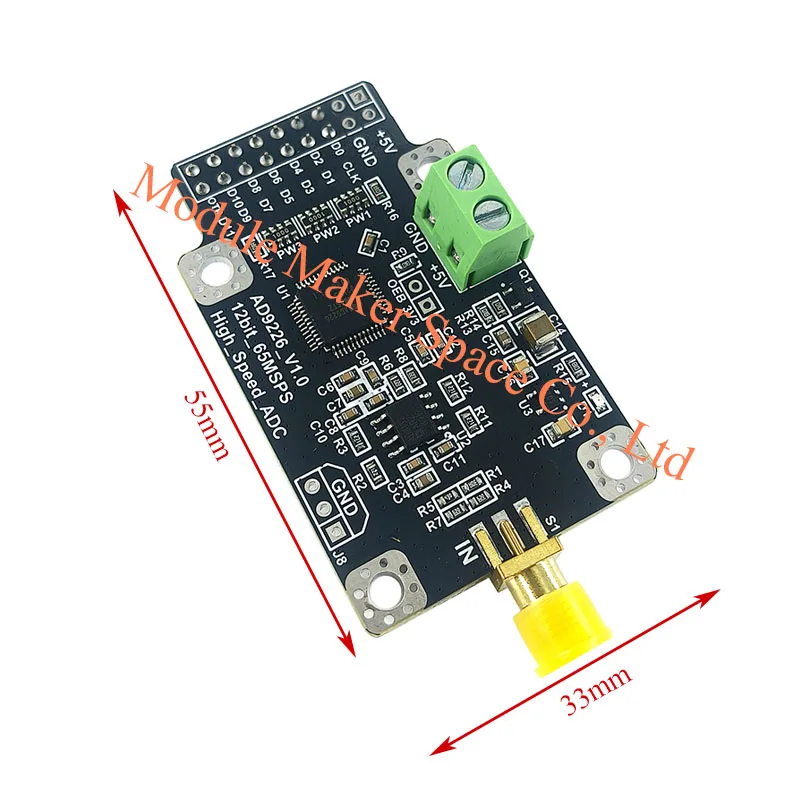

• Compact Size: 55mm x 33mm (L x W)

We deal in all kinds of lC brands world-wide.
Our products are widely applied in civilian, industrial and military fieldslE work, communication, home appliances, RF, video display, memoriesRAM development, medical instruments, power supply system, programcontrolleddevices,digital devices,industrial equipments, aviation andnavigation equipments, etc.

We also supply Amplifier board,LCD Display,Soldering iron ,Temperature controller ,mppt solar controller,charger,Active balancer,BMS,battery tester,indicator ,esp8266 and so on

We have extensive industry knowledge and sufficient inventory. This enables us to provide a complete and versatile technical supports to our customers. Our products have been exported to many countries and regions around the world, and we have a good reputation among our customers. We welcome customers, chambers of commerce, and friends from all over the world to contact us and seek mutually beneficial cooperation.

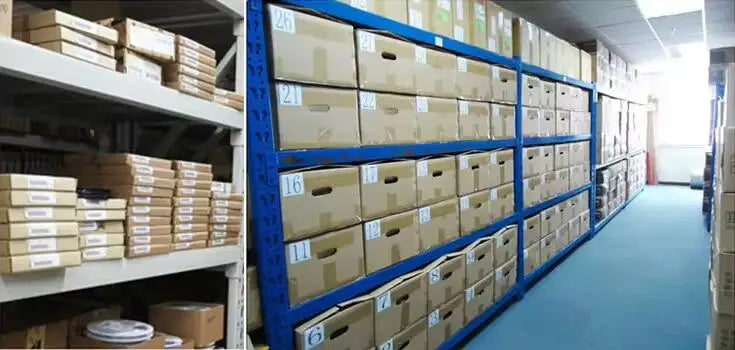

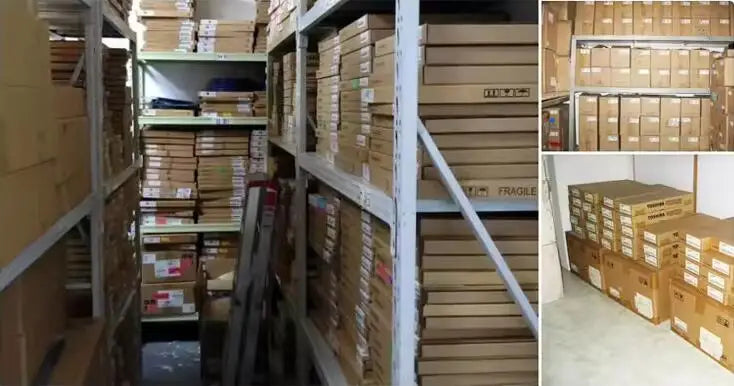

Company warehouse:
