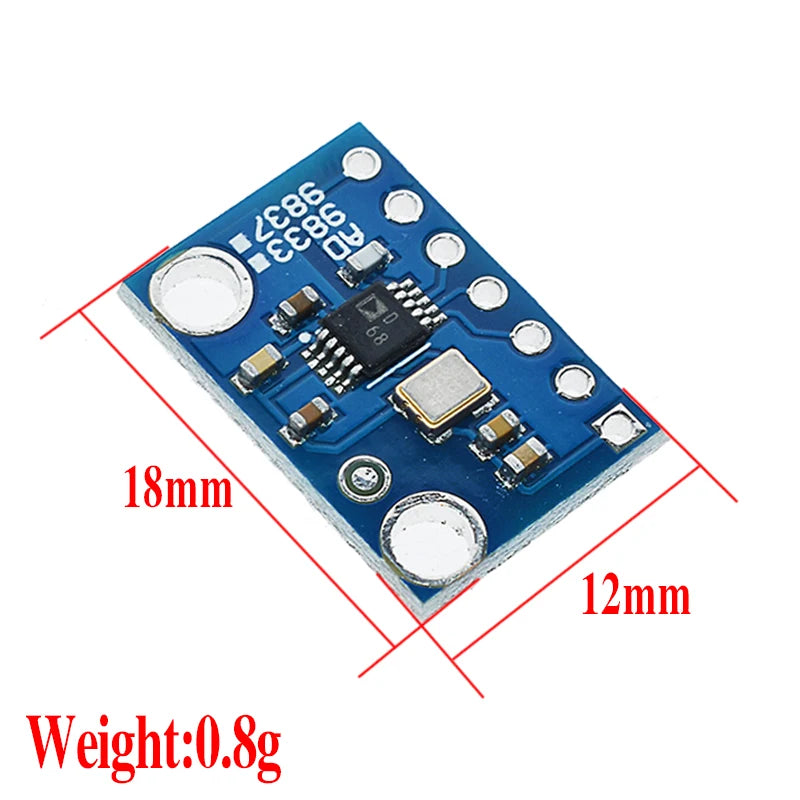

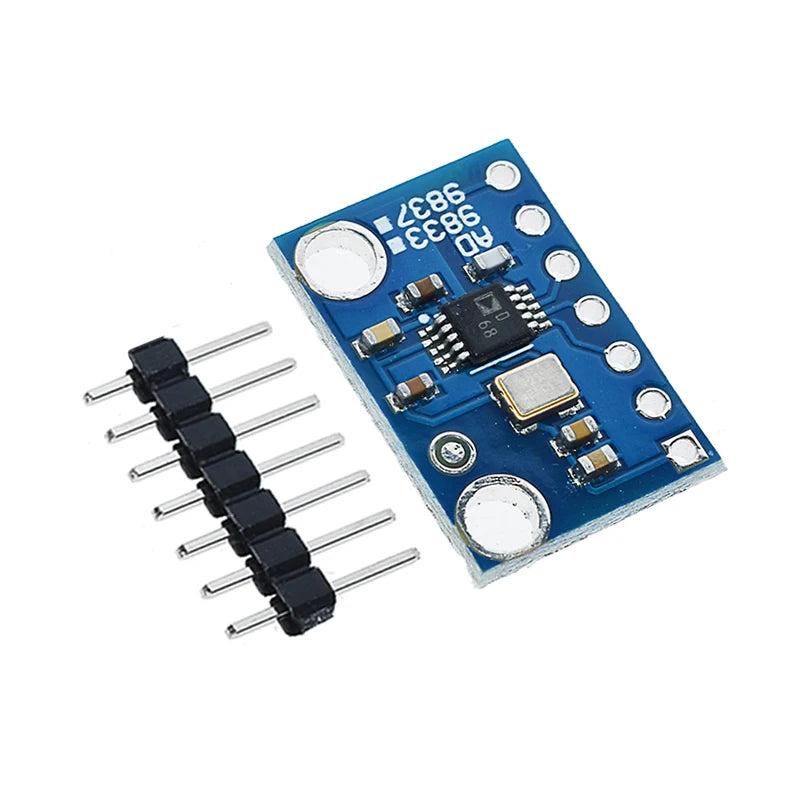

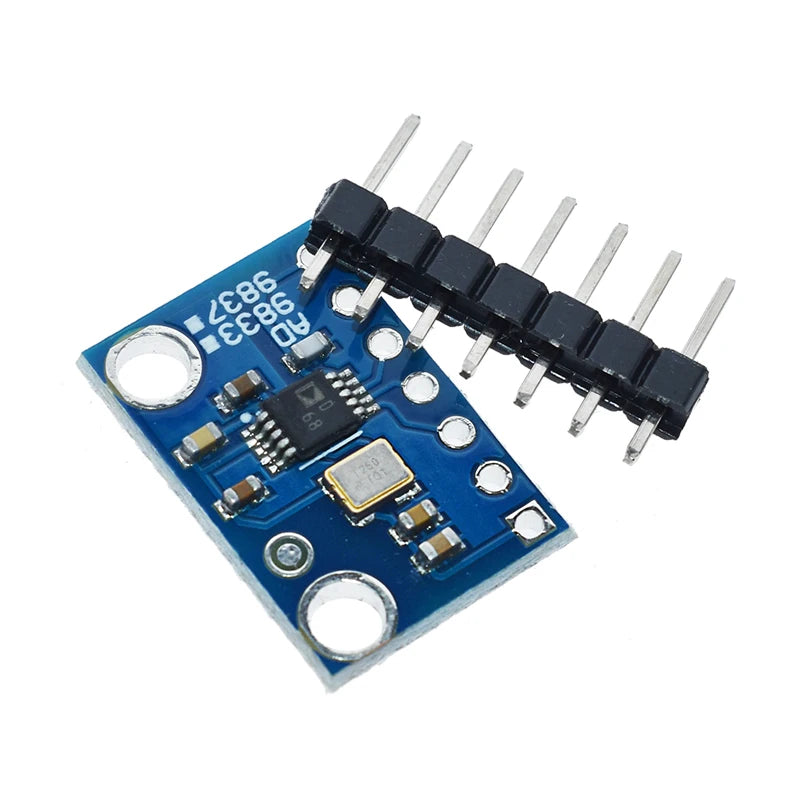

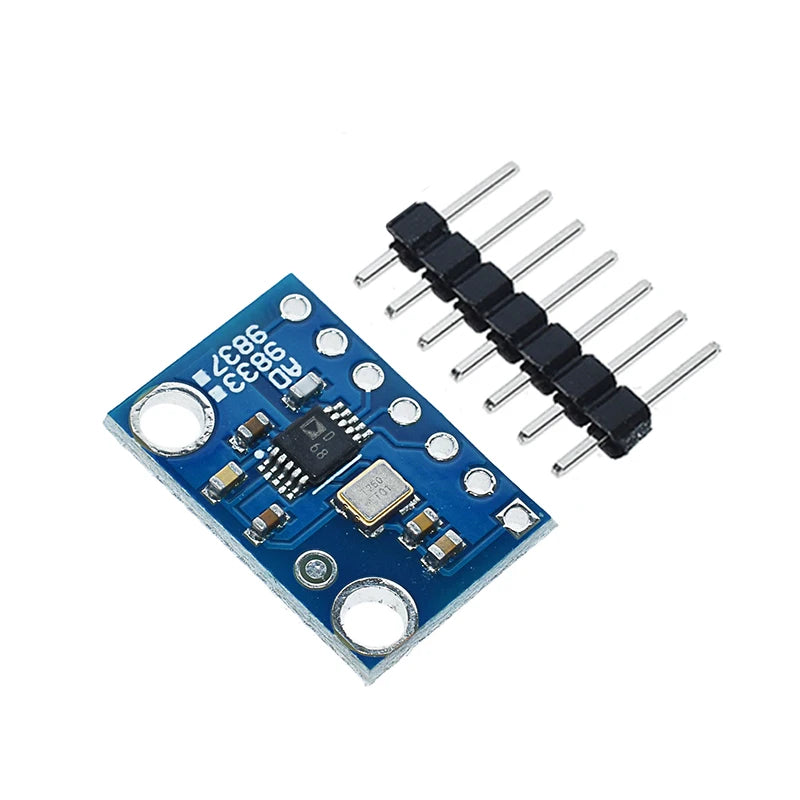

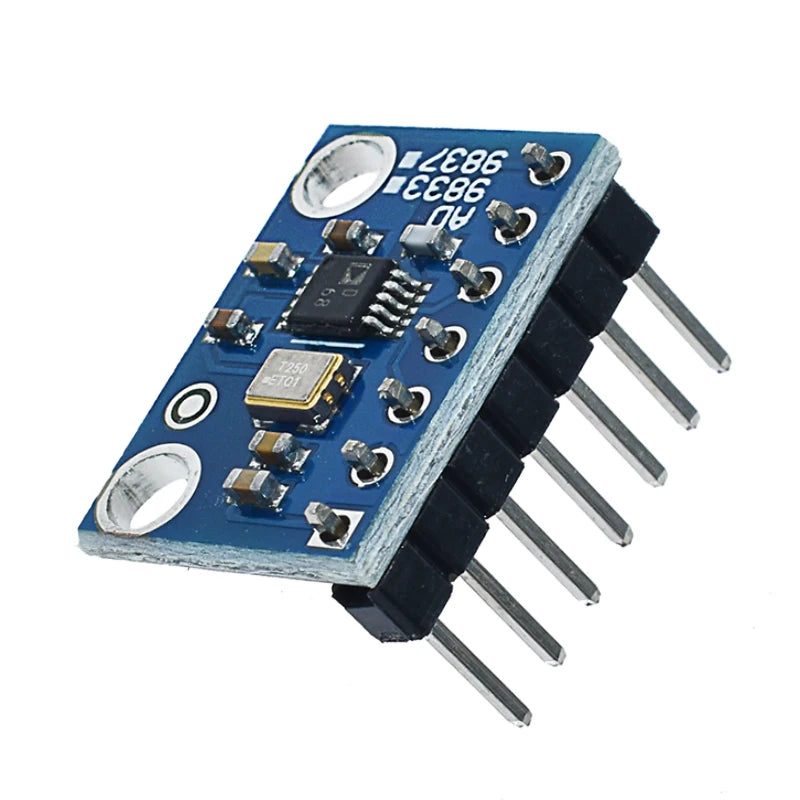

AD9833 Programmable Microprocessors Serial Interface Module Sine Square Wave DDS Signal Generator Module 9833
Default Title
$59.63
Sale price
$59.63
Regular price
$0.00
Skip to product information
AD9833 Programmable Microprocessors Serial Interface Module Sine Square Wave DDS Signal Generator Module 9833
$59.63
Sale price
$59.63
Regular price
$0.00
Description
SPECIFICATIONS
Application: experimental modules
Brand Name: WAVGAT
Condition: New
Dissipation Power: .
High-concerned chemical: none
Operating Temperature: -40°-+85°
Origin: Mainland China
Package: Module
Supply Voltage: 2.3V-5.5V
Type: Signal Generator Module
is_customized: Yes
Features:
Digitally programmable frequency and phase
12.65 mW power consumption at 3 V
0 MHz to 12.5 MHz output frequency range
28-bit resolution: 0.1 Hz at 25 MHz reference clock
Sinusoidal, triangular, and square wave outputs
2.3 V to 5.5 V power supply
No external components required

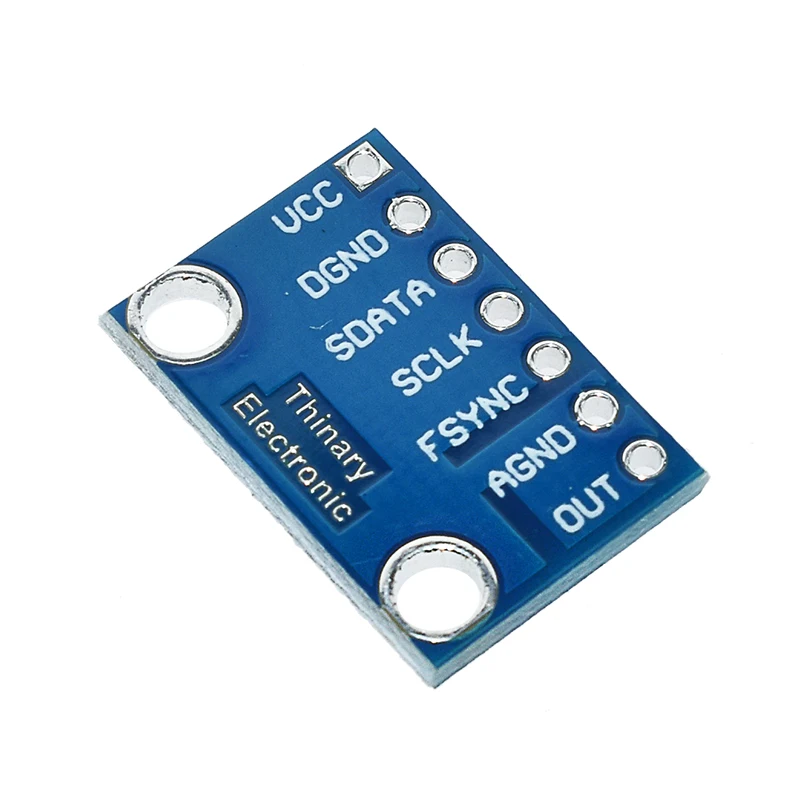

3-wire SPI interface
Extended temperature range: −40°C to +105°C
Power-down option
Update Rate: 25(max)
VOUT Maximum: 0.65V
VOUT Minimum: 38mV
VOUT Temperature Coefficient: 200°

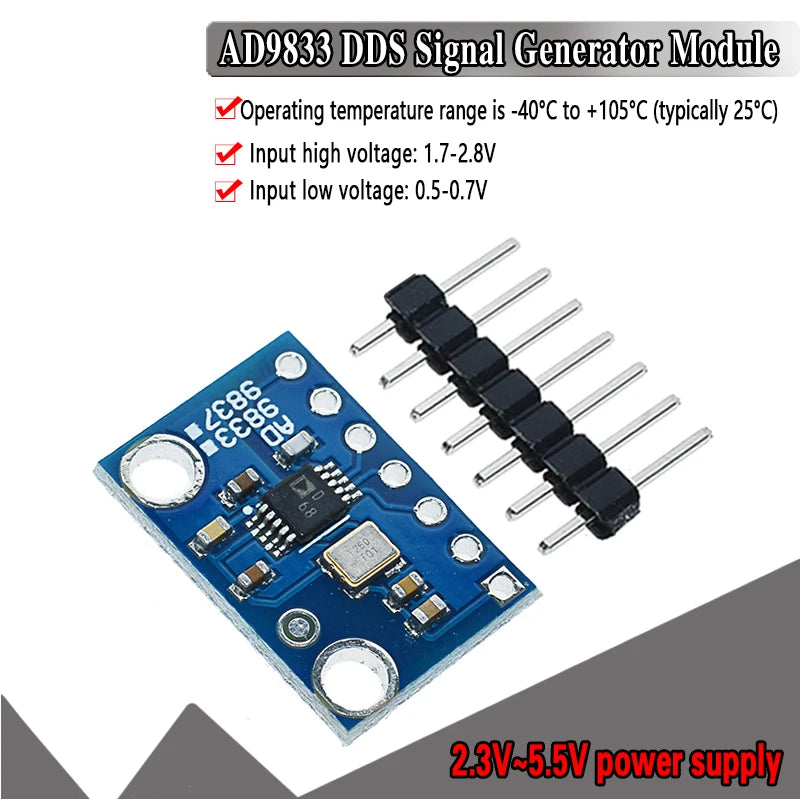

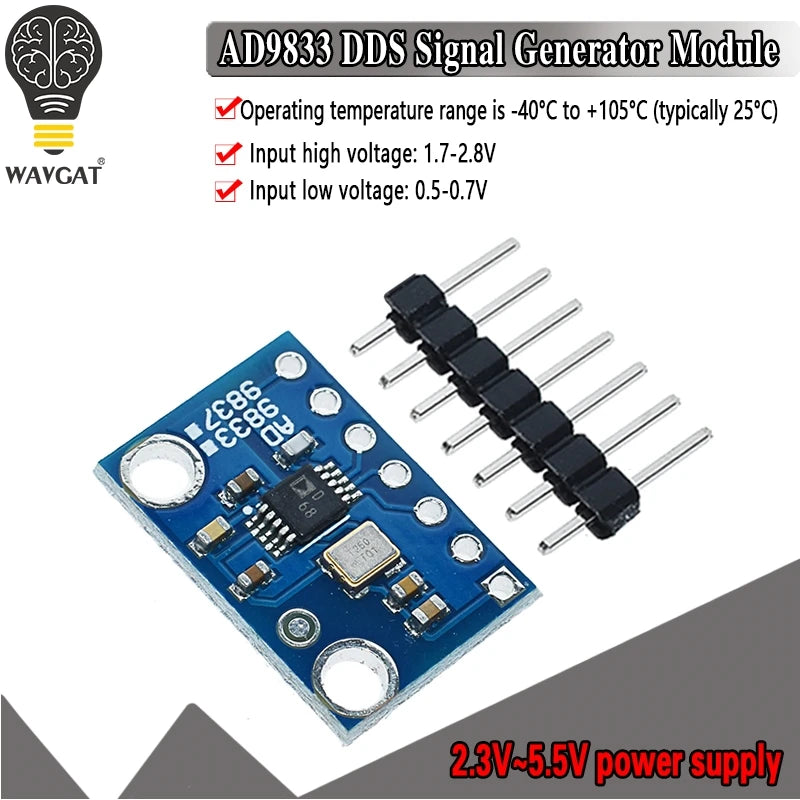

Input High Voltage: 1.7-2.8V
Input Low Voltage: 0.5-0.7V
Input Current: 10µA
Input Capacitance: 3pF
Operating temperature range is −40°C to +105°C; typical specifications are at 25°C
