ADAU1701 2.1 4.0 DSP Digital Signal Processing Preamp 2-in 4-out Tone Board Digital Crossover Adjustment With Sigmastudio
Default Title
$256.01
Sale price
$256.01
Regular price
$0.00
Skip to product information
With the powerful ADAU1701 DSP at its core, this preamp unit offers a versatile 2-in, 4-out configuration. Designed with the needs of audio enthusiasts in mind, our unit is integrated with 2-way digital crossover, ensuring precise signal distribution. To cater to a wide range of audio systems, we have carefully crafted the 4-out section, which consists of two channels (DAC0&DAC1, BANK A) dedicated to delivering exceptional bass reproduction, while the remaining two channels (DAC2&DAC3, BANK B) handle the mid-range signals. For seamless connectivity, we have equipped the rear panel with six RCA jacks, making audio input and output hassle-free.
To enhance customer convenience, we have extended the GPIO ports of the ADAU1701 DSP to various interfaces. On the front panel, you will find four potentiometers that serve as high-pass/low-pass filters and volume controls. Additionally, two switches are provided for mute and phase control functions. The power and busy LEDs provide clear indications of the system's operational status. The adjustment range of the filter and the functionality of the interfaces can be modified through SigmaStudio.
POT1 (MP3/ADC2) -----> High-pass Filter of Mid-range Output Channel, Default Adjustment Range: 3kHz-20kHz
POT2 (MP8/ADC3) -----> Low-pass Filter of Bass Output Channel, Default Adjustment Range: 210Hz-3kHz
POT3 (MP9/ADC0) -----> High-pass Filter of Bass Output Channel, Default Adjustment Range: 10Hz-310Hz
POT4 (VOL) -----> Overall Volume Control

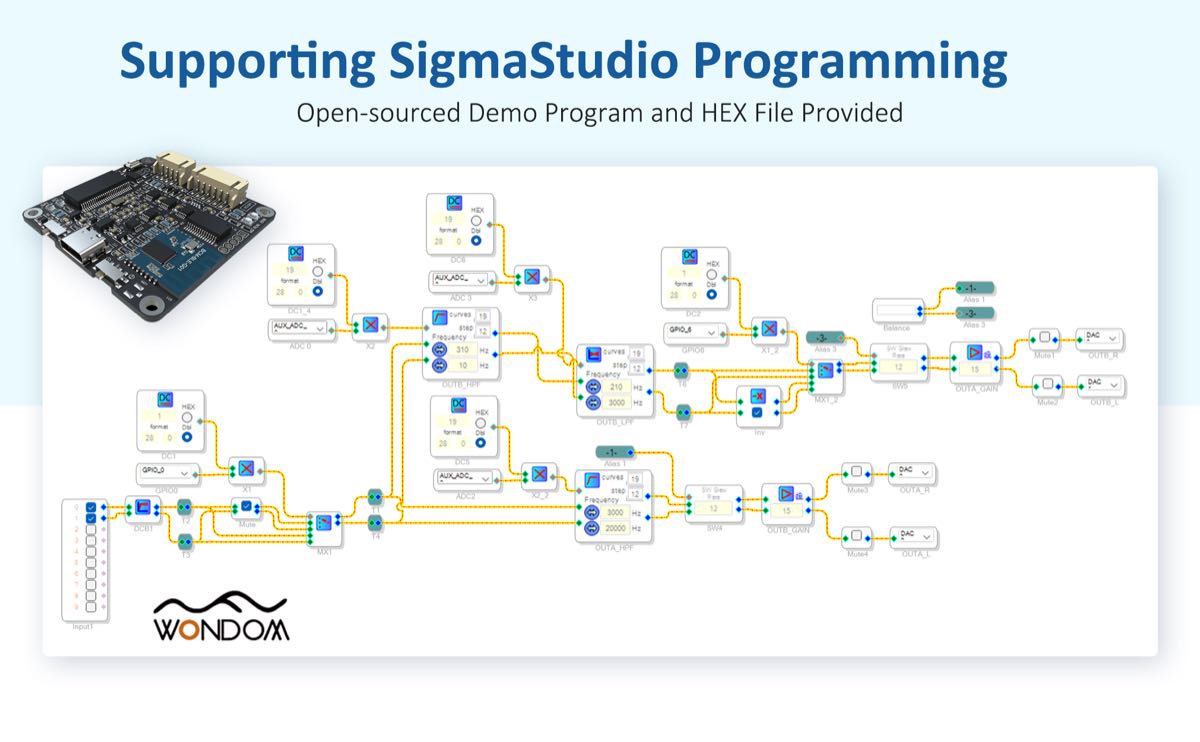

The preamp unit, equipped with the ADAU1701 DSP chip, offers support for SigmaStudio programming when connected with WONDOM ICP5. To enhance customer convenience, we have developed an open-sourced Demo program for easy operation. We highly recommend using this Demo program as a foundation for programming. In case of accidental programming errors, a HEX file is available to restore the unit to its factory settings. You can find the programming guide and demo program explanation in the "Files&Videos" section.
Open-sourced Files Download: http://files.sure-electronics.com/download/ADAU1701_2IN4OUTUNIT_OpenSource_DemoProgram&HEX.zip
To enhance the programming experience, we have implemented improvements on the silkscreen design of our preamp unit. Each interface is now labeled with its corresponding program resources, making it easier for you to locate and modify the program as needed. We have also provided several blank spaces on the unit for you to mark the functionalities according to your specific needs. Furthermore, we are committed to providing comprehensive support for SigmaStudio programming. Our support includes guidance on connecting with ICP for programming, detailed explanations of the demo program, instructions on making modifications based on the demo program, and more. We are dedicated to ensuring your programming experience is seamless and hassle-free.
This ADAU1701 preamp unit boasts a stylish and sleek aluminum housing that not only adds a touch of elegance to your desktop but also ensures exceptional durability and reliability. The carefully crafted design allows for seamless integration into any setup. With the convenient plug-n-play terminals, system integration and control become a hassle-free experience. Simply connect your devices effortlessly and enjoy the enhanced functionality of our preamp unit.
ADAU1701 2.1 4.0 DSP Digital Signal Processing Preamp 2-in 4-out Tone Board Digital Crossover Adjustment With Sigmastudio
$256.01
Sale price
$256.01
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: WONDOM
Control Method: Push button
High-concerned chemical: none
Material: Plastic,others,Metal
Maximum Power Per Channel: NO POWER
Model Number: AA-AP23123
Number of channels: 2
Origin: Mainland China
Output Power: 0
Package: Yes
Surround sound channel configuration: Others
YOU MAY NEED :
User manual
http://files.sure-electronics.com/download/ADSP1701preamp.pdf
SigmaStudio UserGuide
http://files.sure-electronics.com/download/PreampUserGuide.pdf
SigmaStudio Examples
http://files.sure-electronics.com/download/SigmaStudioGuide.pdf
Tips.If you cannot access the link on your phone, click the link on your computer's browser instead.

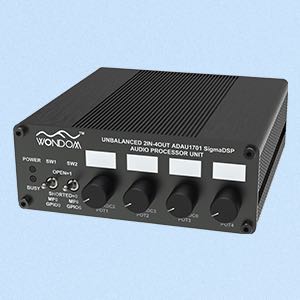

Introducing our feature-rich DSP Preamp Unit, built around the high-performance ADAU1701 DSP IC. Experience exceptional flexibility and playability with this meticulously designed device, housed in a sleek and durable aluminum enclosure.
The preamp offers a versatile 2-in, 4-out configuration, with the default output set as a digital crossover. Connecting audio inputs and outputs is effortless, thanks to the provided RCA jacks. To enhance user convenience, we have incorporated General Purpose I/O ports (GPIOs) into external interfaces. These ports enable seamless operation and control through various external components, including potentiometers, switches, and indicators.
Fine-tuning your audio experience is a breeze with the four potentiometers and the preloaded program. Easily adjust frequencies and volume to meet your specific requirements. Furthermore, we have included a programming port for seamless integration with the ICP5 programmer. For complete customization, all terminal functions can be tailored to your specific needs using SigmaStudio programming. To simplify programming, we have thoughtfully labeled the interfaces with corresponding GPIOs, ensuring a straightforward setup process.
Upgrade your audio setup with our DSP Preamp Unit, empowering you with unmatched versatility, control, and customization options.
The preamp offers a versatile 2-in, 4-out configuration, with the default output set as a digital crossover. Connecting audio inputs and outputs is effortless, thanks to the provided RCA jacks. To enhance user convenience, we have incorporated General Purpose I/O ports (GPIOs) into external interfaces. These ports enable seamless operation and control through various external components, including potentiometers, switches, and indicators.
Fine-tuning your audio experience is a breeze with the four potentiometers and the preloaded program. Easily adjust frequencies and volume to meet your specific requirements. Furthermore, we have included a programming port for seamless integration with the ICP5 programmer. For complete customization, all terminal functions can be tailored to your specific needs using SigmaStudio programming. To simplify programming, we have thoughtfully labeled the interfaces with corresponding GPIOs, ensuring a straightforward setup process.
Upgrade your audio setup with our DSP Preamp Unit, empowering you with unmatched versatility, control, and customization options.

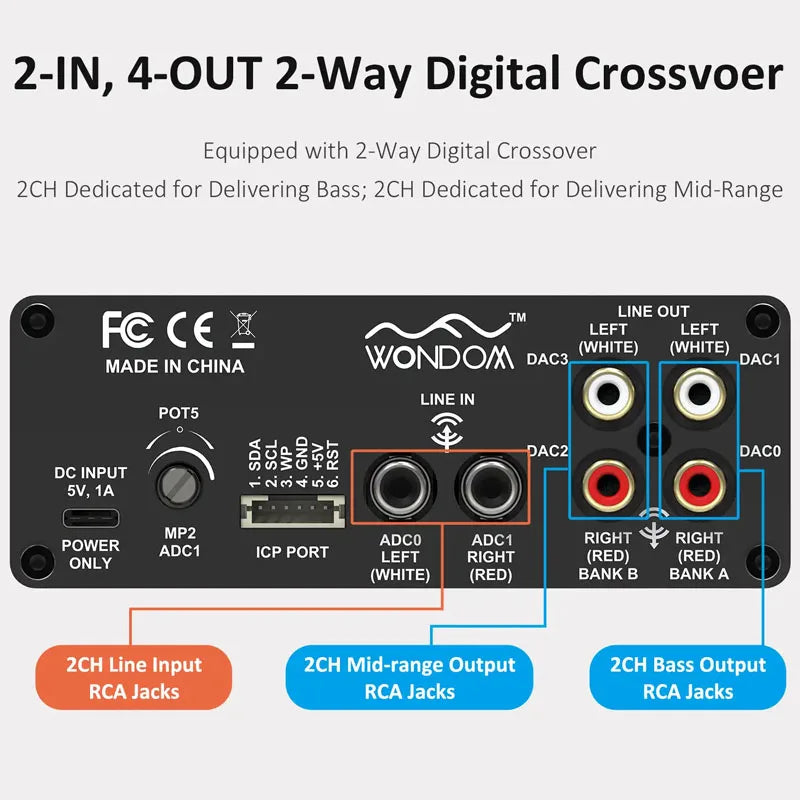

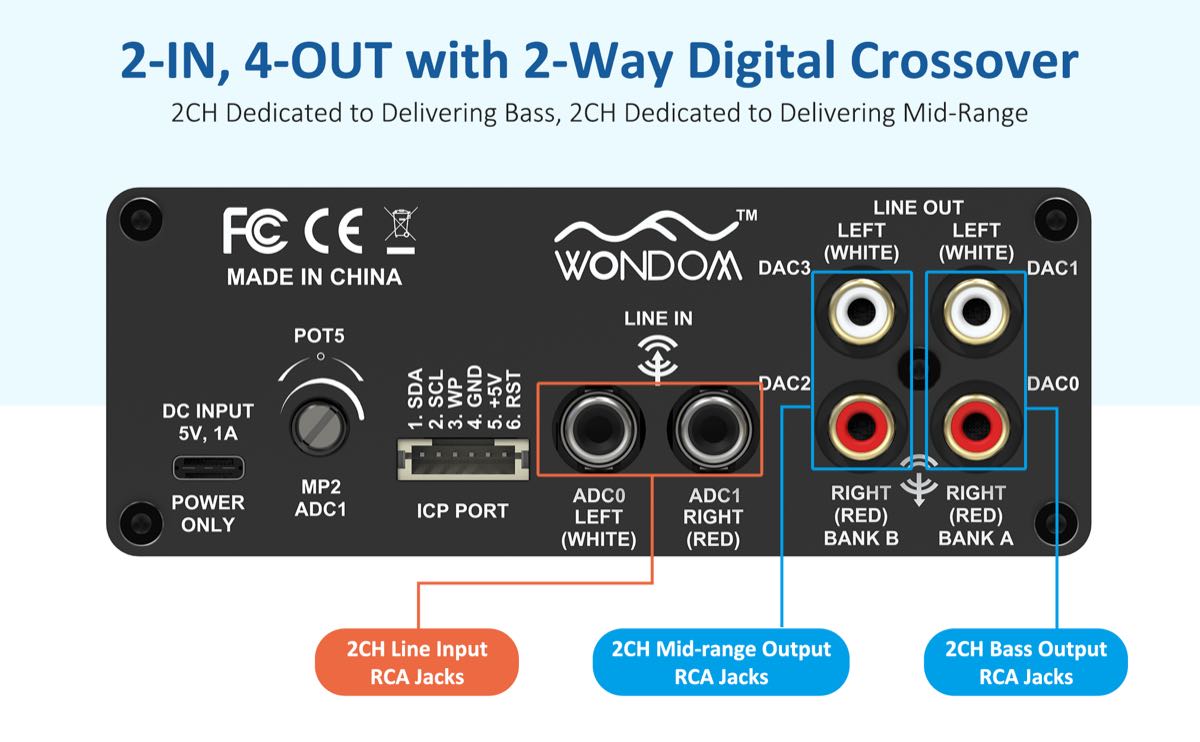

2-IN, 4-OUT with 2-way Digital Crossover
With the powerful ADAU1701 DSP at its core, this preamp unit offers a versatile 2-in, 4-out configuration. Designed with the needs of audio enthusiasts in mind, our unit is integrated with 2-way digital crossover, ensuring precise signal distribution. To cater to a wide range of audio systems, we have carefully crafted the 4-out section, which consists of two channels (DAC0&DAC1, BANK A) dedicated to delivering exceptional bass reproduction, while the remaining two channels (DAC2&DAC3, BANK B) handle the mid-range signals. For seamless connectivity, we have equipped the rear panel with six RCA jacks, making audio input and output hassle-free.

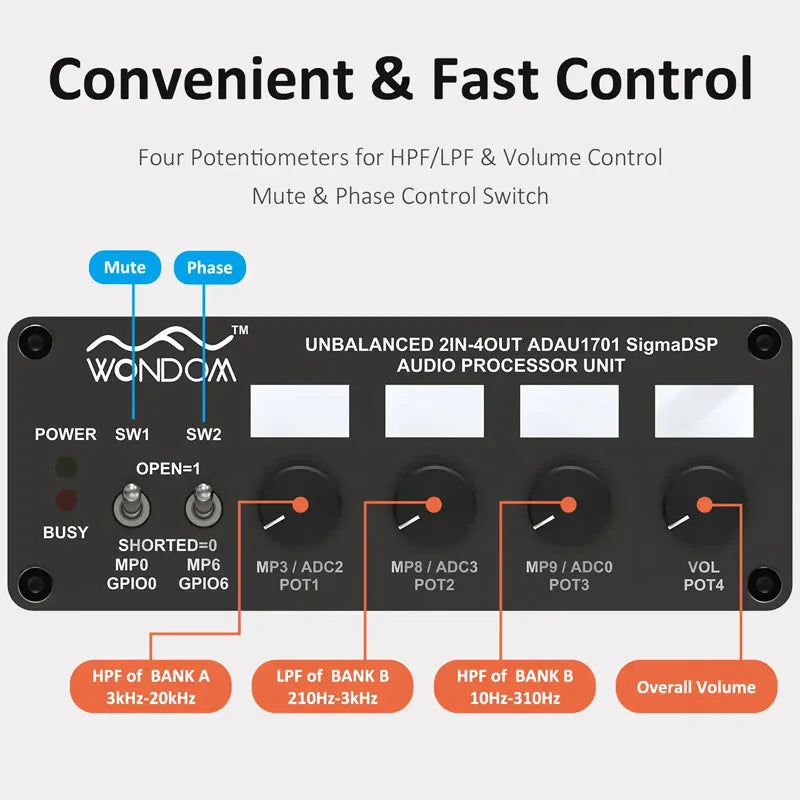

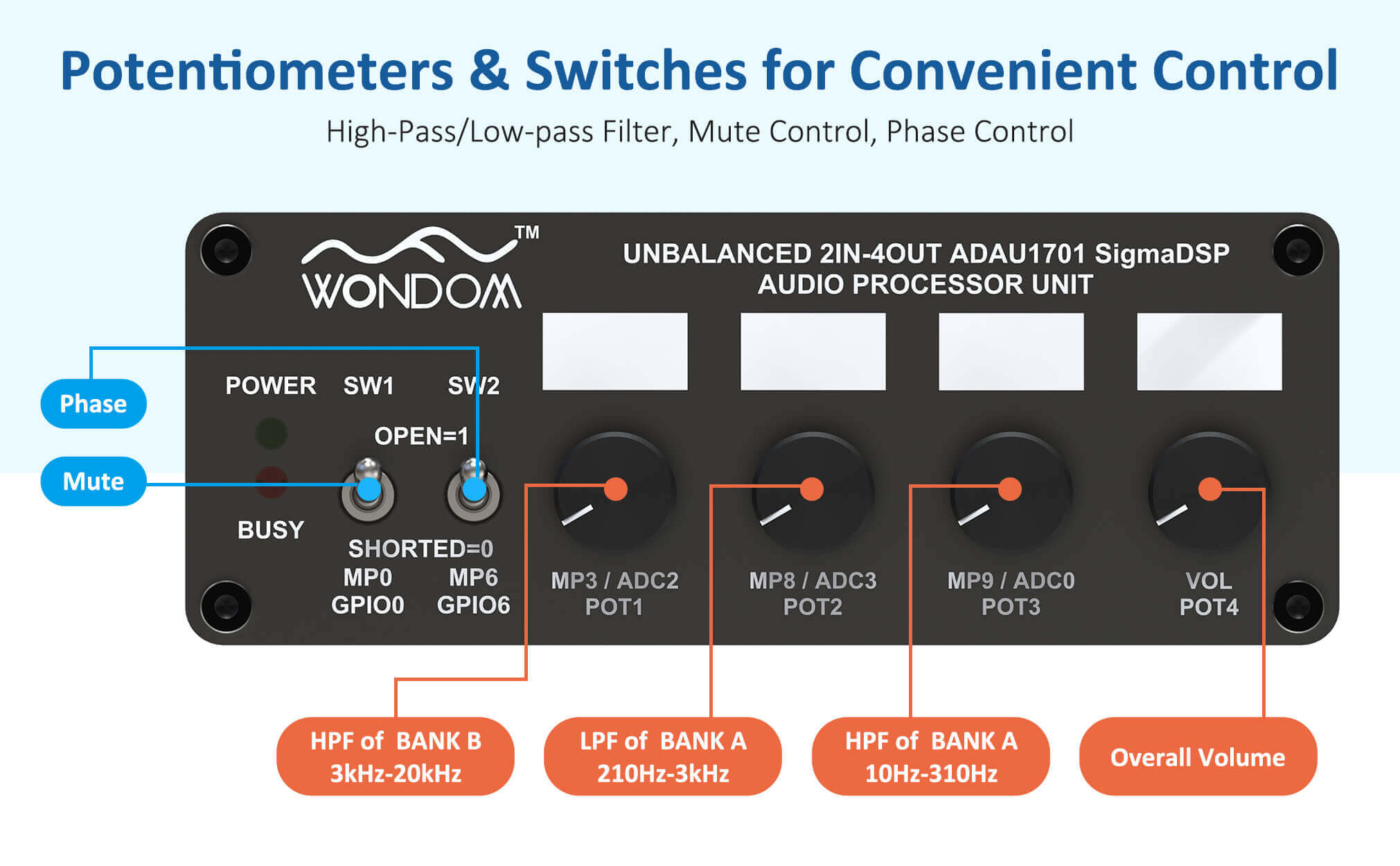

Potentiometers, Switches and LEDs for Convenient Control and Monitoring
To enhance customer convenience, we have extended the GPIO ports of the ADAU1701 DSP to various interfaces. On the front panel, you will find four potentiometers that serve as high-pass/low-pass filters and volume controls. Additionally, two switches are provided for mute and phase control functions. The power and busy LEDs provide clear indications of the system's operational status. The adjustment range of the filter and the functionality of the interfaces can be modified through SigmaStudio.
POT1 (MP3/ADC2) -----> High-pass Filter of Mid-range Output Channel, Default Adjustment Range: 3kHz-20kHz
POT2 (MP8/ADC3) -----> Low-pass Filter of Bass Output Channel, Default Adjustment Range: 210Hz-3kHz
POT3 (MP9/ADC0) -----> High-pass Filter of Bass Output Channel, Default Adjustment Range: 10Hz-310Hz
POT4 (VOL) -----> Overall Volume Control
Independent Channel Control over 10-Band EQ, Delay, Crossover with PC UI
For those who are unfamiliar with programming, we offer a user-friendly PC UI option that simplifies the process, making it accessible for users of all levels. You can achieve independent channel adjustment capabilities that include 10-band EQ, delay, and crossover settings. This advanced feature allows for highly detailed and precise tuning of your audio system, enabling you to optimize the sound output for each specific channel.
Miumax for ADAU1701 DSP Preamp:
http://files.sure-electronics.com/download/MiumaxADAU1701Preamp.zip
Demo Program & HEX File for Restoring:
http://files.sure-electronics.com/download/ADAU1701_2IN4OUTUNIT_OpenSource_DemoProgram&HEX.zip

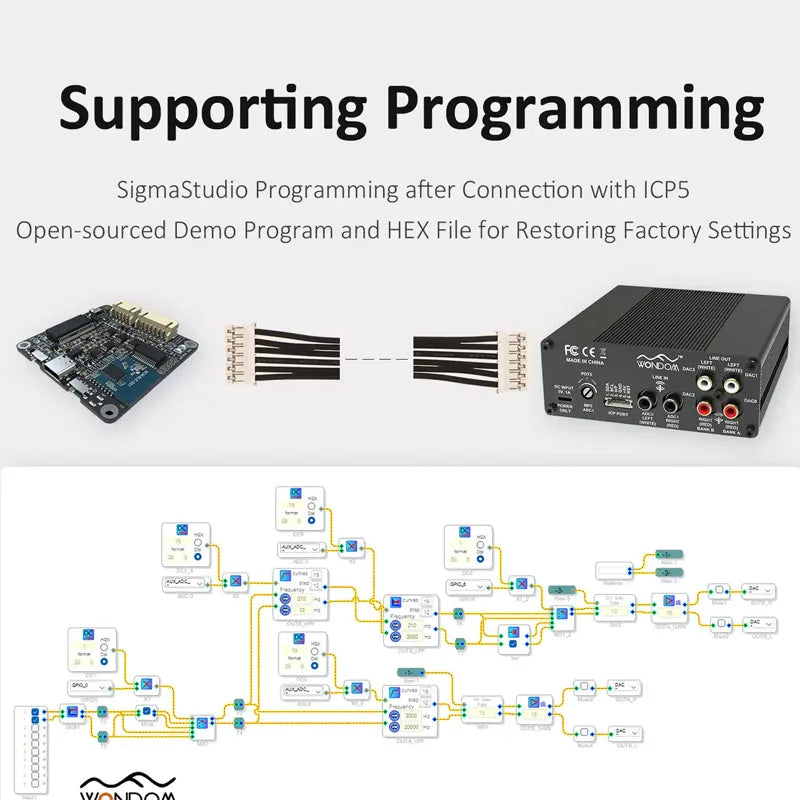

Supporting SigmaStudio Programming with Open-sourced Demo Program and HEX File
The preamp unit, equipped with the ADAU1701 DSP chip, offers support for SigmaStudio programming when connected with WONDOM ICP5. To enhance customer convenience, we have developed an open-sourced Demo program for easy operation. We highly recommend using this Demo program as a foundation for programming. In case of accidental programming errors, a HEX file is available to restore the unit to its factory settings. You can find the programming guide and demo program explanation in the "Files&Videos" section.
Open-sourced Files Download: http://files.sure-electronics.com/download/ADAU1701_2IN4OUTUNIT_OpenSource_DemoProgram&HEX.zip

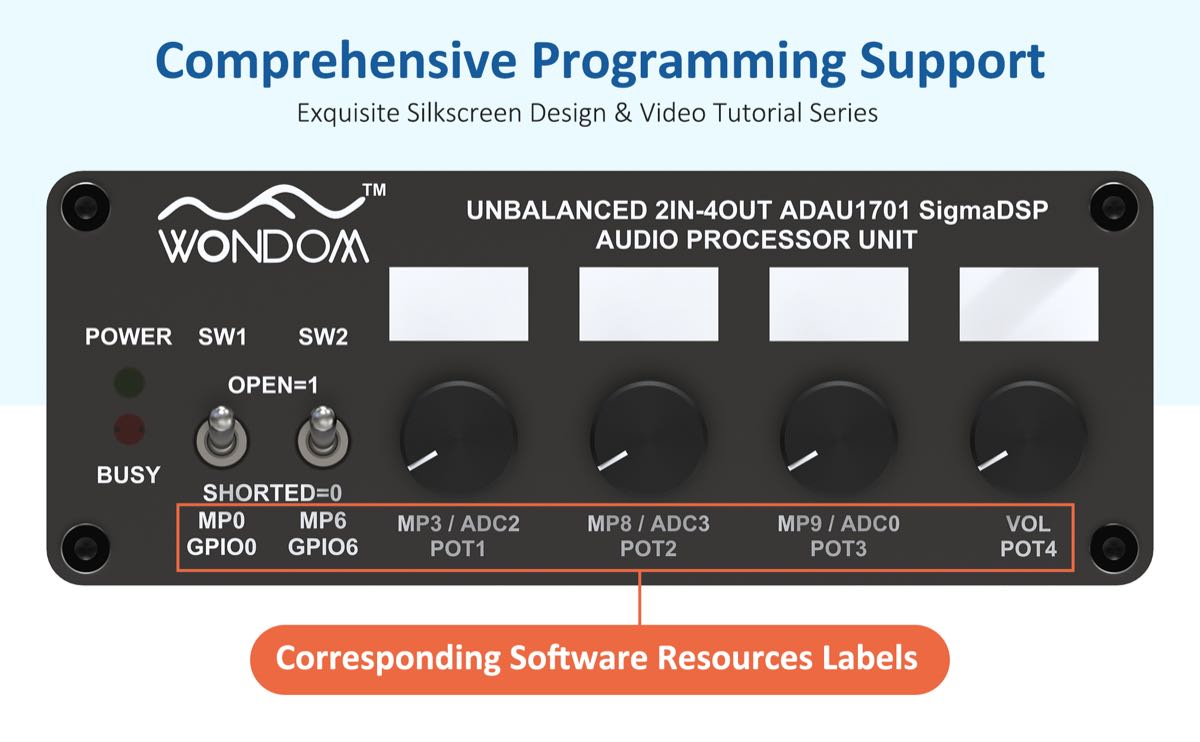

Exquisite Silkscreen Design and Comprehensive Programming Support
To enhance the programming experience, we have implemented improvements on the silkscreen design of our preamp unit. Each interface is now labeled with its corresponding program resources, making it easier for you to locate and modify the program as needed. We have also provided several blank spaces on the unit for you to mark the functionalities according to your specific needs. Furthermore, we are committed to providing comprehensive support for SigmaStudio programming. Our support includes guidance on connecting with ICP for programming, detailed explanations of the demo program, instructions on making modifications based on the demo program, and more. We are dedicated to ensuring your programming experience is seamless and hassle-free.

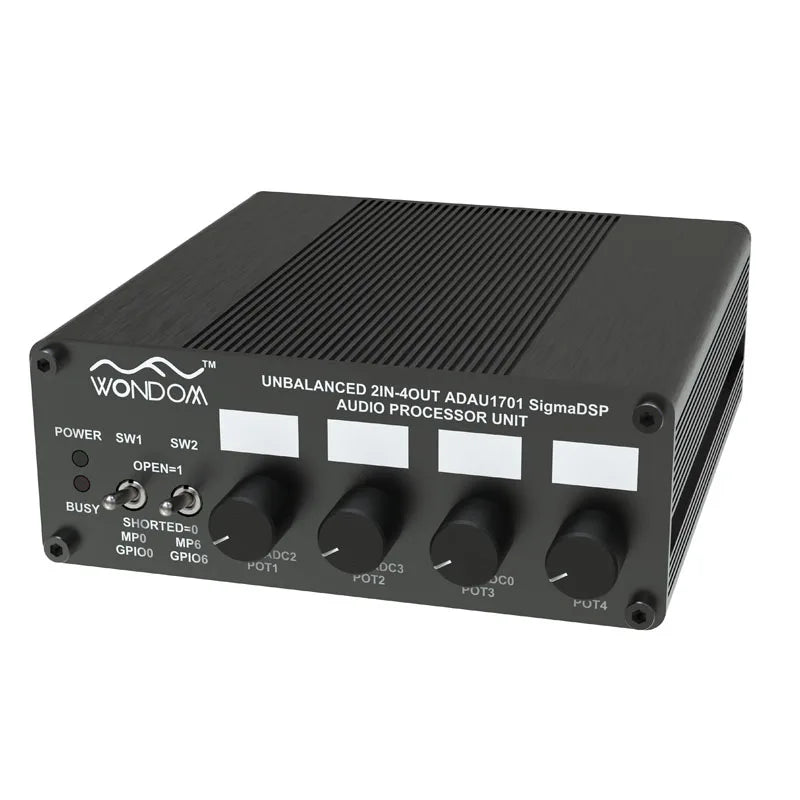

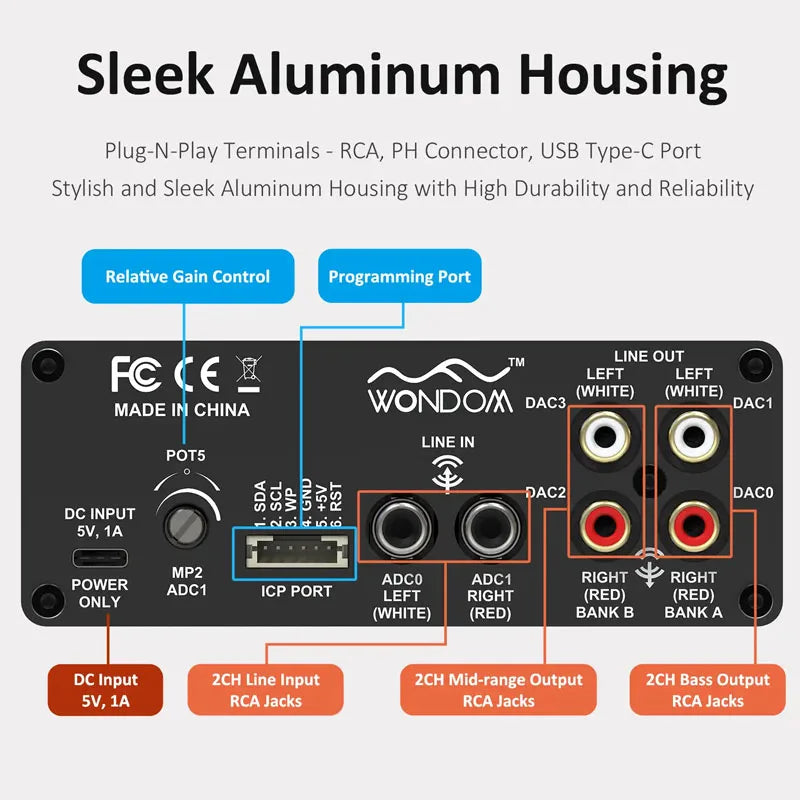

Stylish and Sleek Aluminum Housing with Plug-N-Play Terminals
This ADAU1701 preamp unit boasts a stylish and sleek aluminum housing that not only adds a touch of elegance to your desktop but also ensures exceptional durability and reliability. The carefully crafted design allows for seamless integration into any setup. With the convenient plug-n-play terminals, system integration and control become a hassle-free experience. Simply connect your devices effortlessly and enjoy the enhanced functionality of our preamp unit.
⚠️ Important Notice
Gain adjustments made in SigmaStudio take effect after ADC sampling. They cannot fix saturation or clipping distortion generated on the analog input stage when the signal exceeds the hardware maximum input level of 2 Vrms.
