SPECIFICATIONS

Battery Included: no

Brand Name: CERTEON

Connector Type: U-type terminal (default) / Optional: pin connector, yellow mini-plug, XH2.54 fast plug

Electronic: No

High-concerned chemical: none

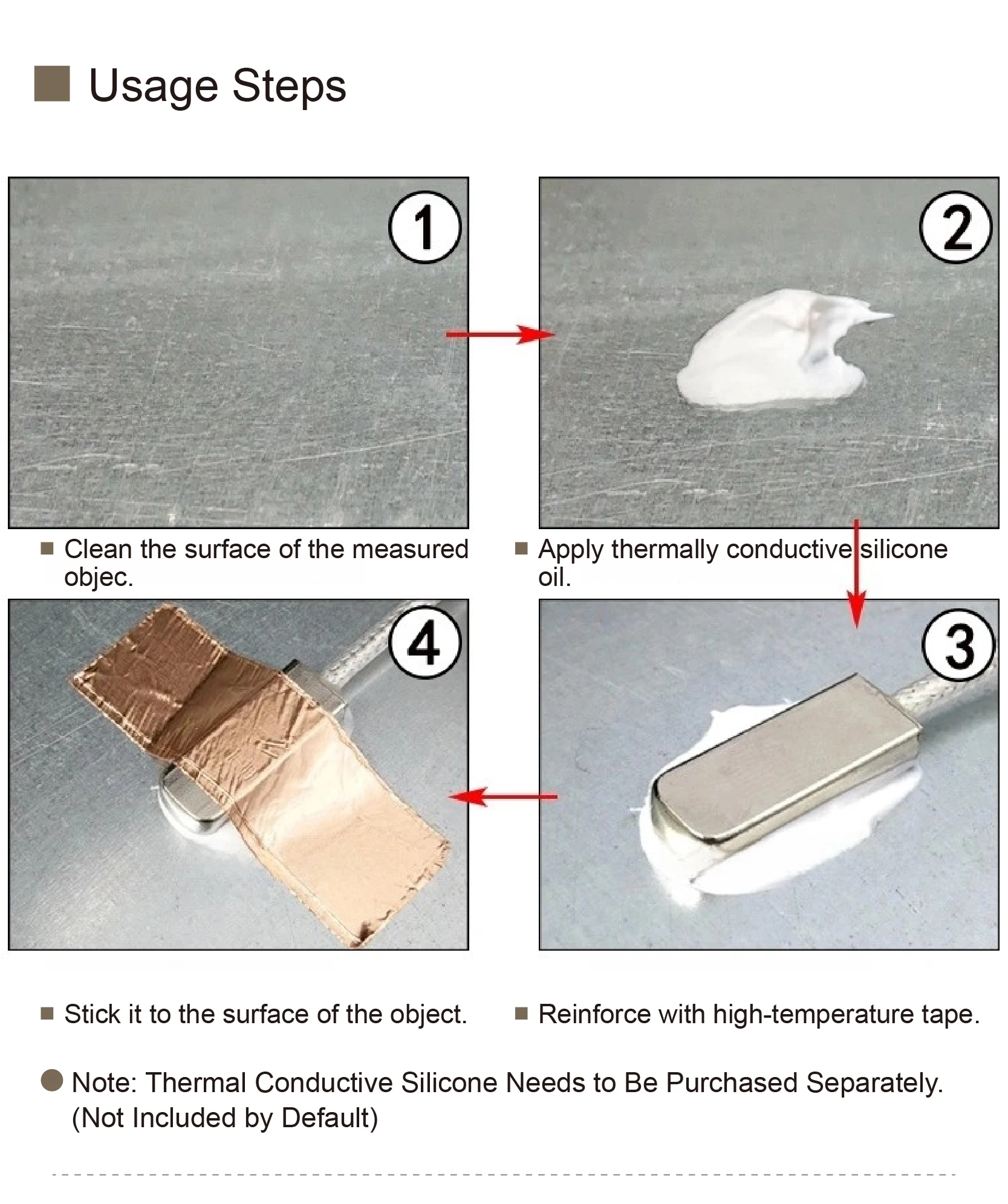

Installation: High-temperature adhesive tape for fixed placement

Lead Wire: Silver-plated PTFE wire, default: 0.5m (customizable length)

Model Number: WZTT-TP

Origin: Mainland China

Semi-finishedproduct: No

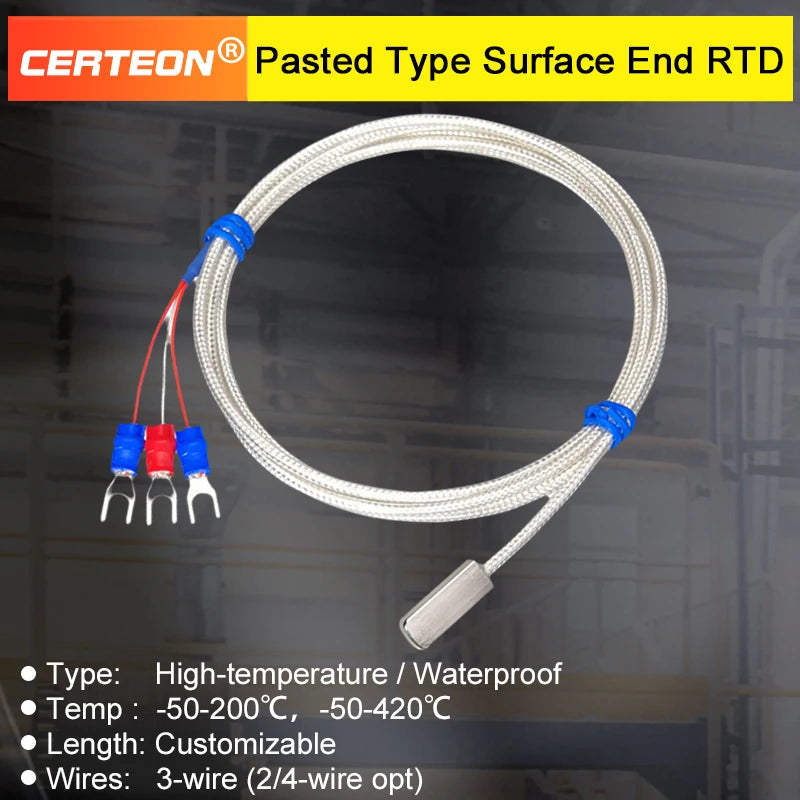

Sensor Type: PT100 (default) / customizable options: PT1000, NTC10K, NTC50K, K-type/E-type

Theory: Resistance Thermometer

1. NOTE

Due to page limitations, some configurations may not be listed. Please contact us or leave a note during checkout for special requests.

Default Configuration Includes:

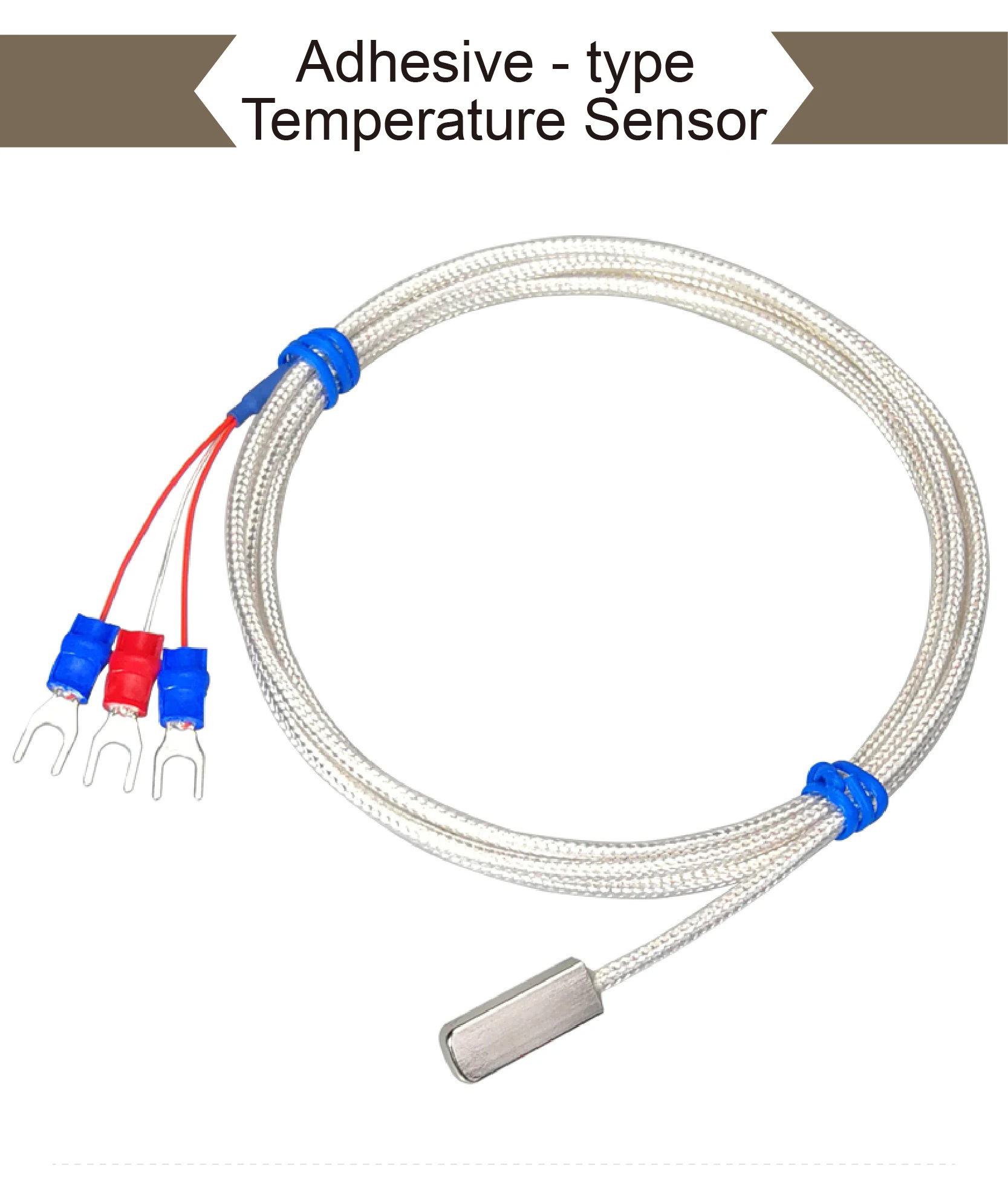

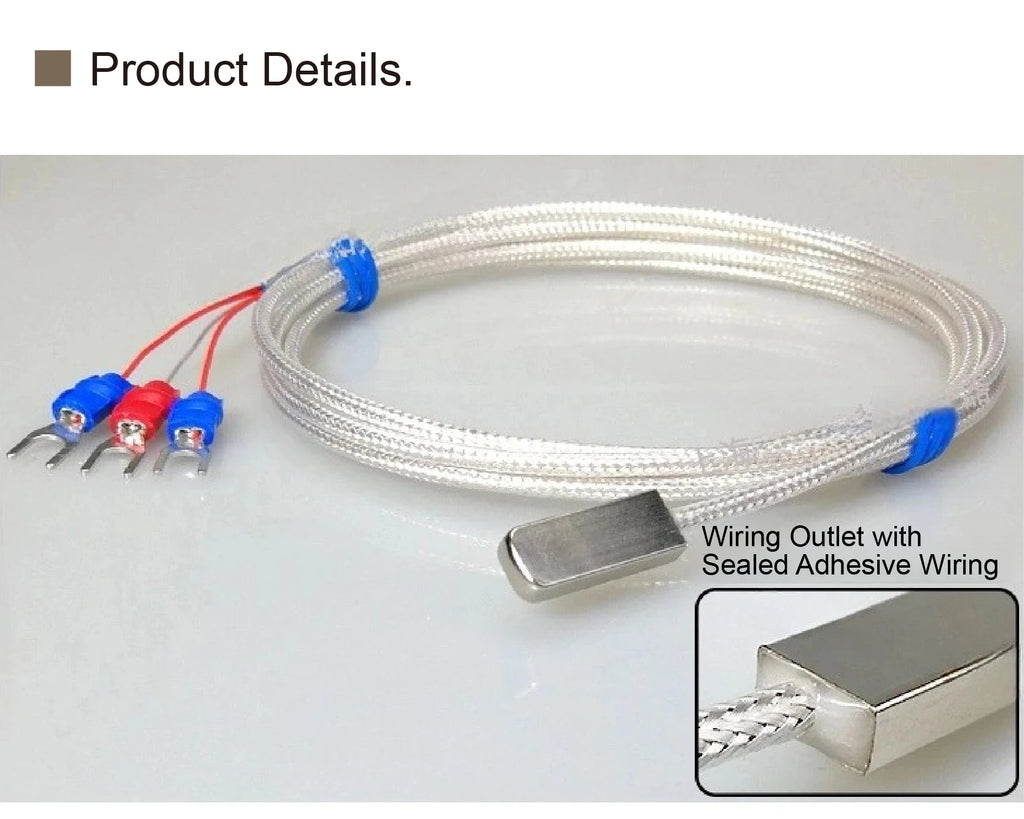

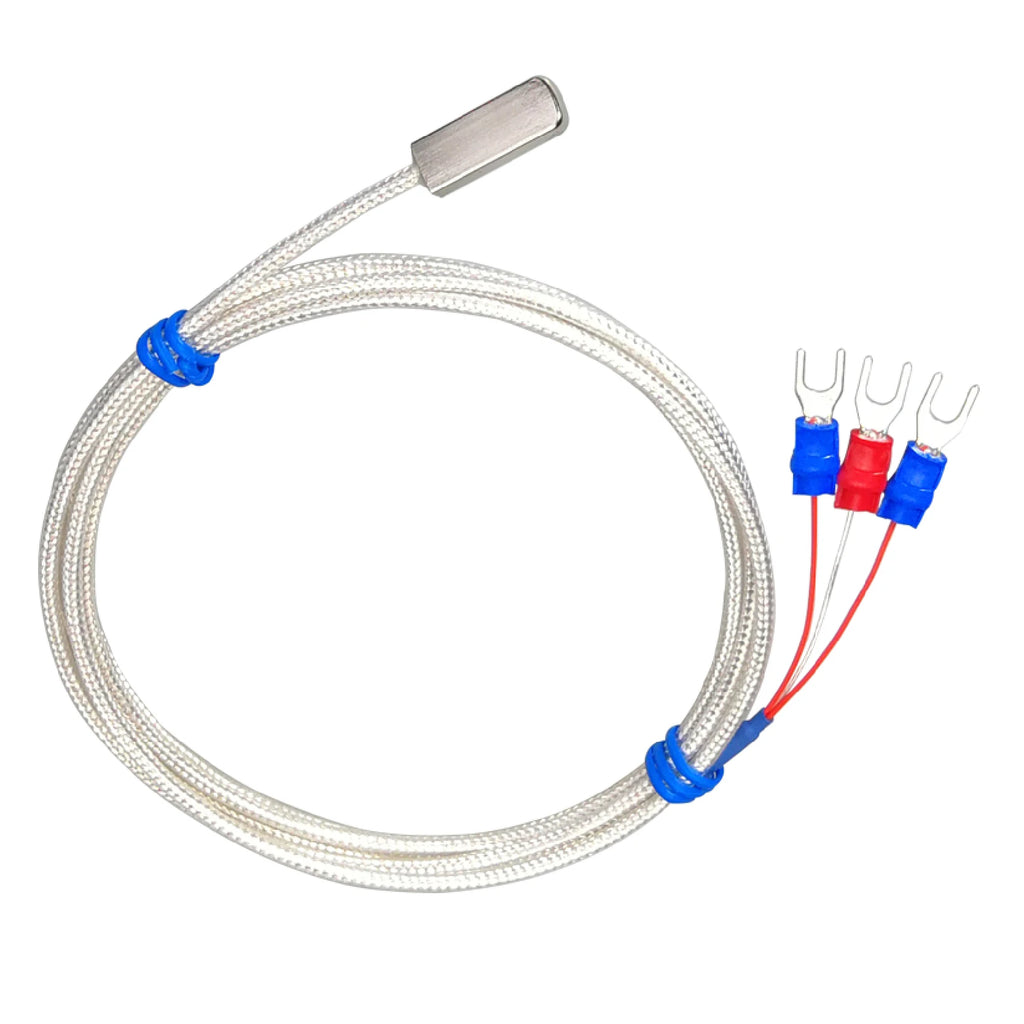

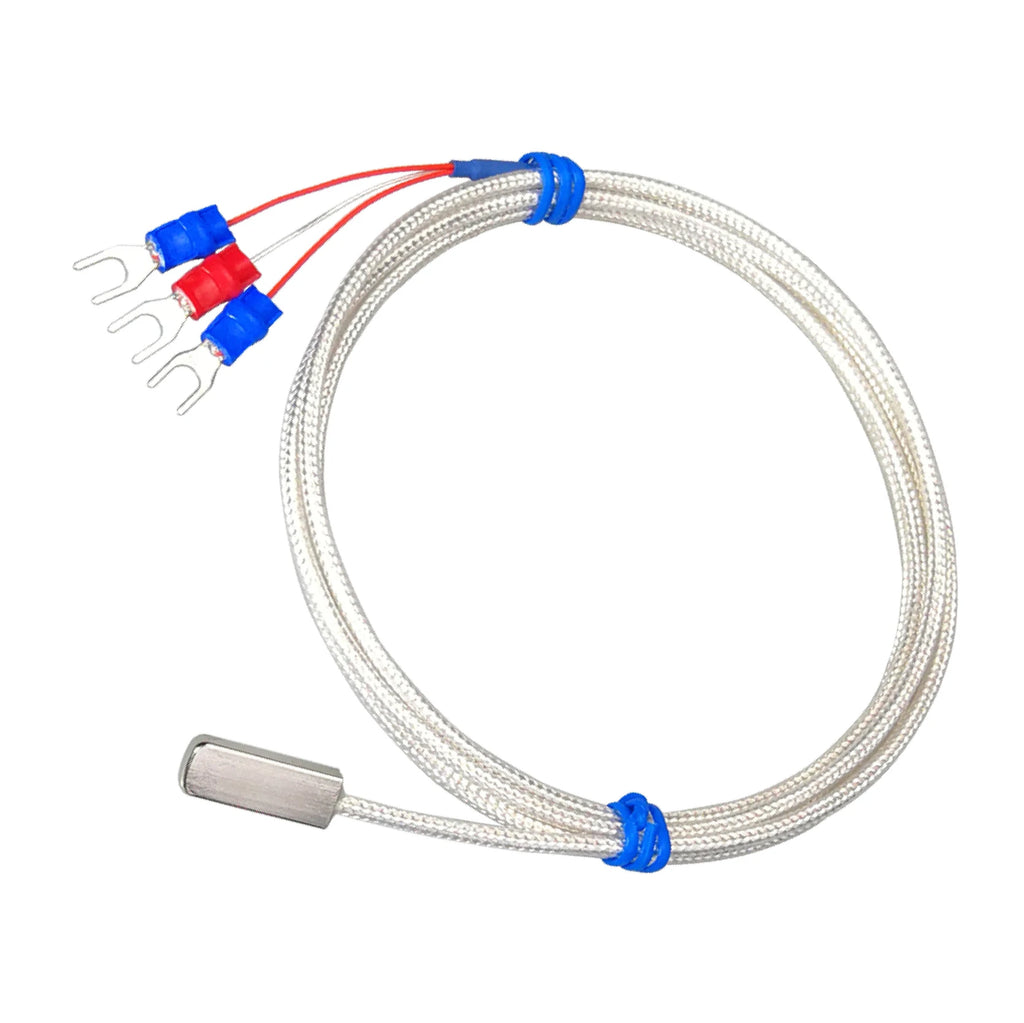

• Sensor Type: PT100 (Surface End Type)

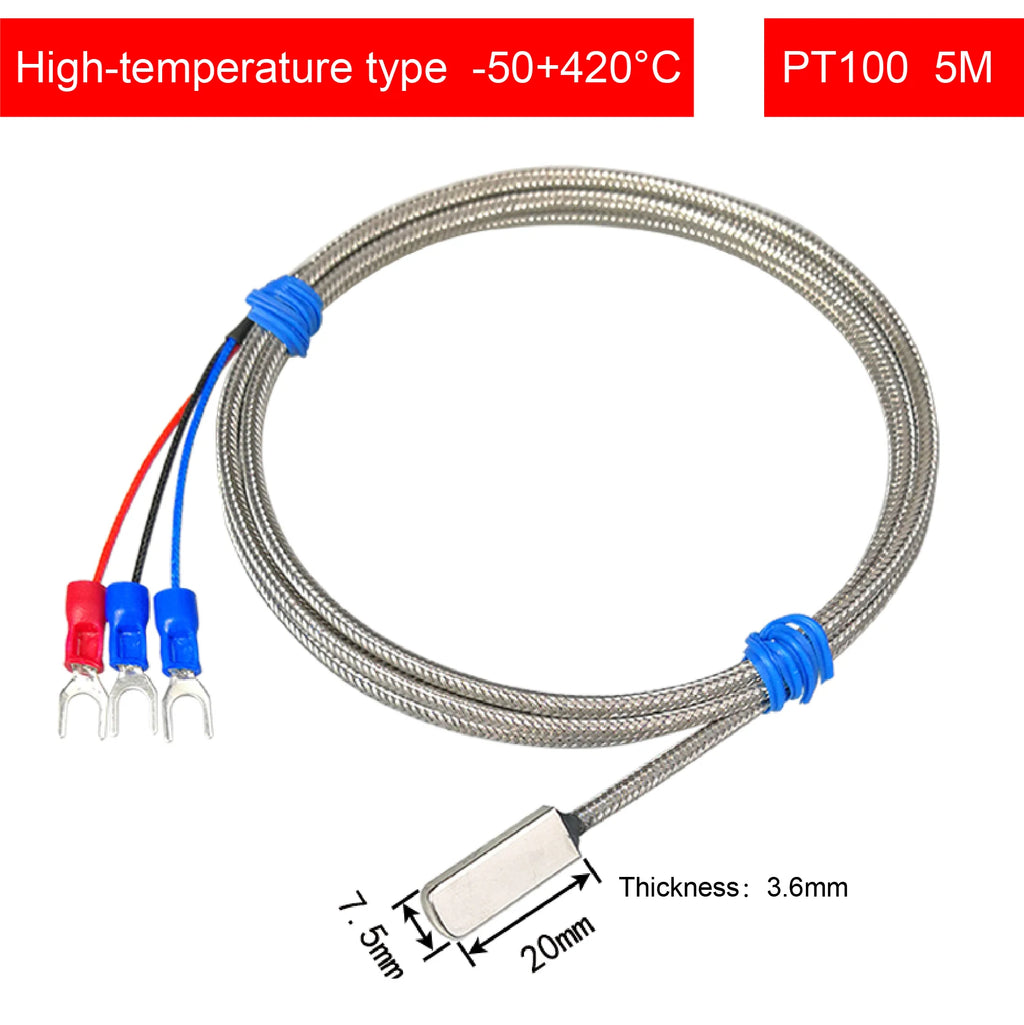

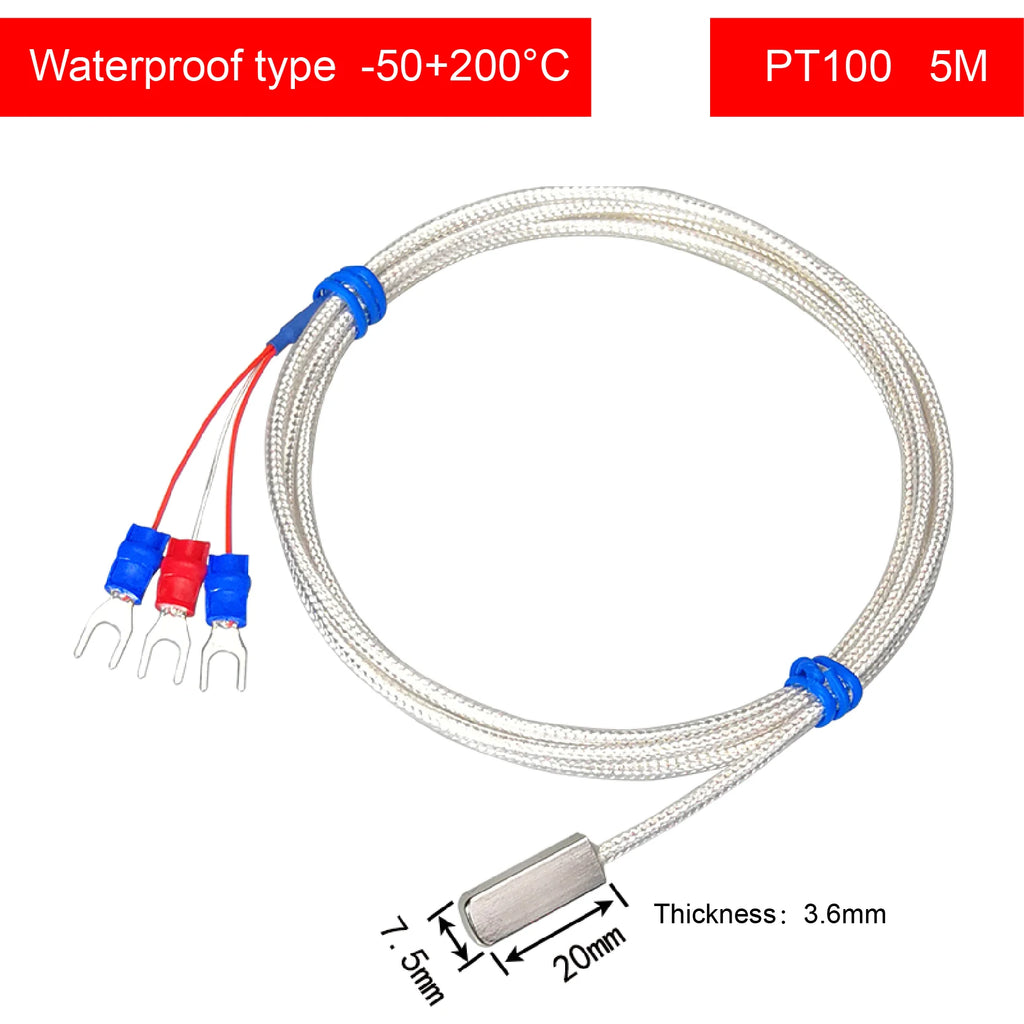

• Temperature Range: -50°C to 200°C (Waterproof) / -50°C to 420°C (High-Temperature)

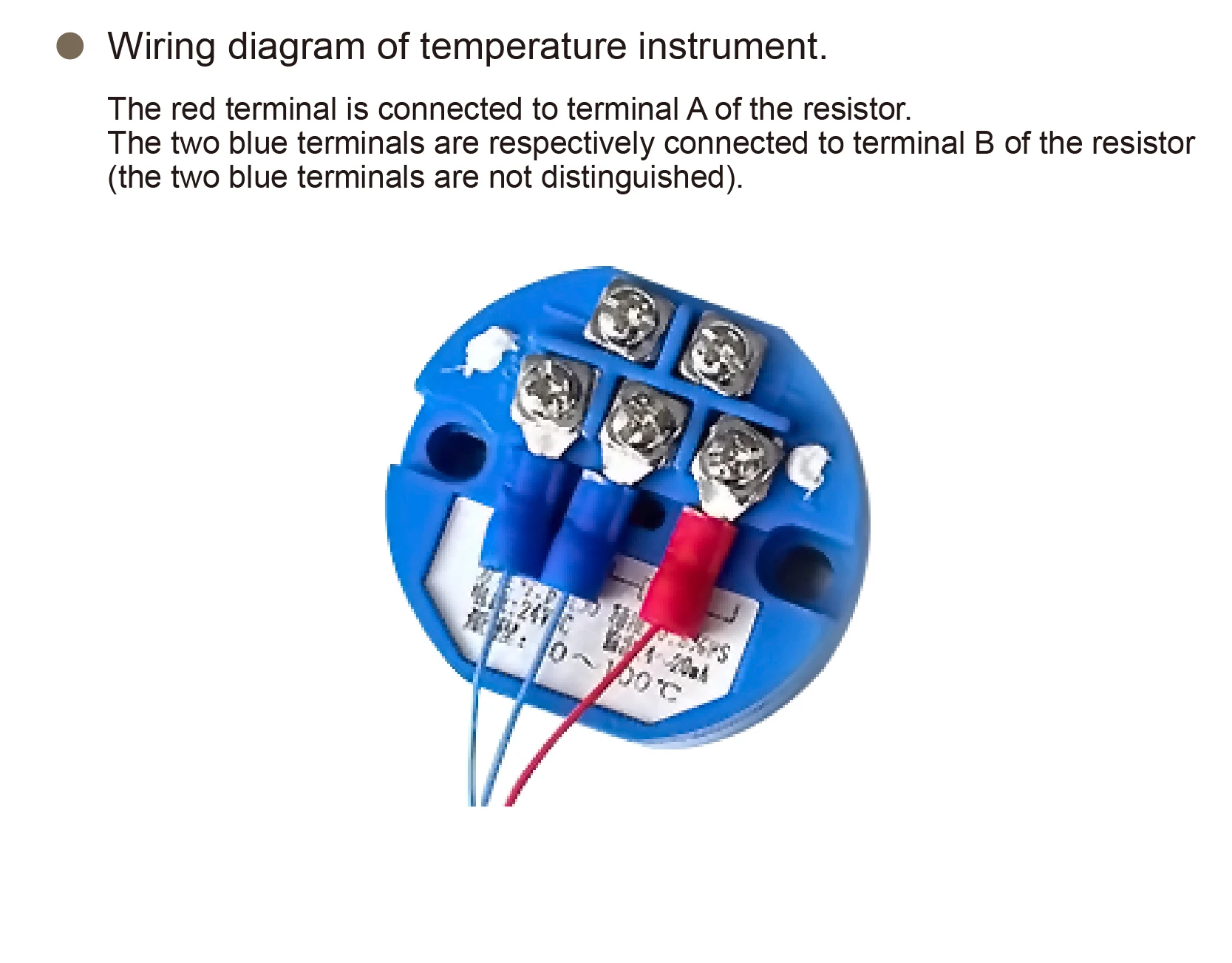

• Wiring Type: 3-wire

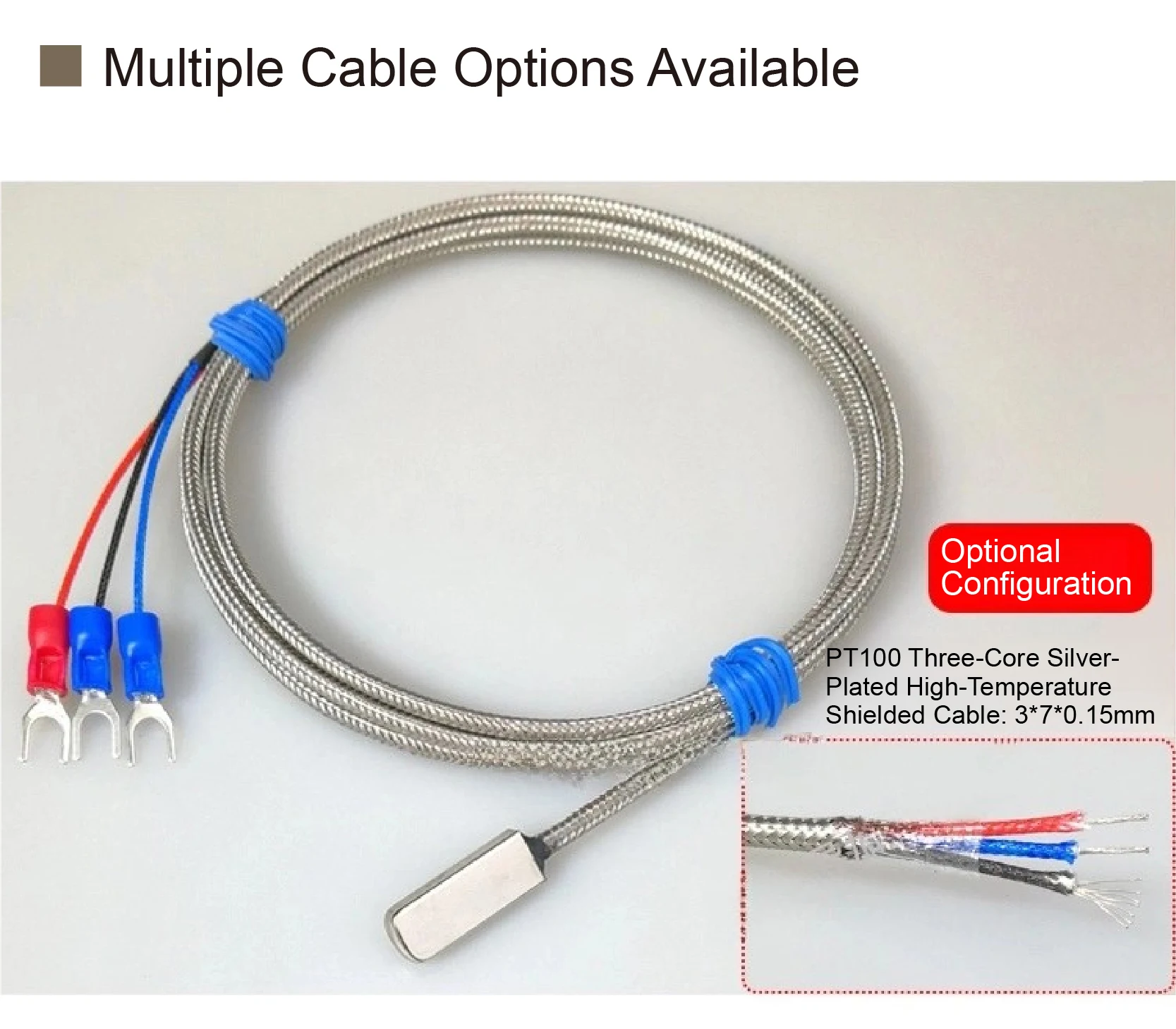

• Cable Type: PT100 3-core Silver-Plated High-Temperature Shielded Cable

• Terminal Type: U-type Terminal

• Cable Length: 0-5M

Optional Configurations Include:

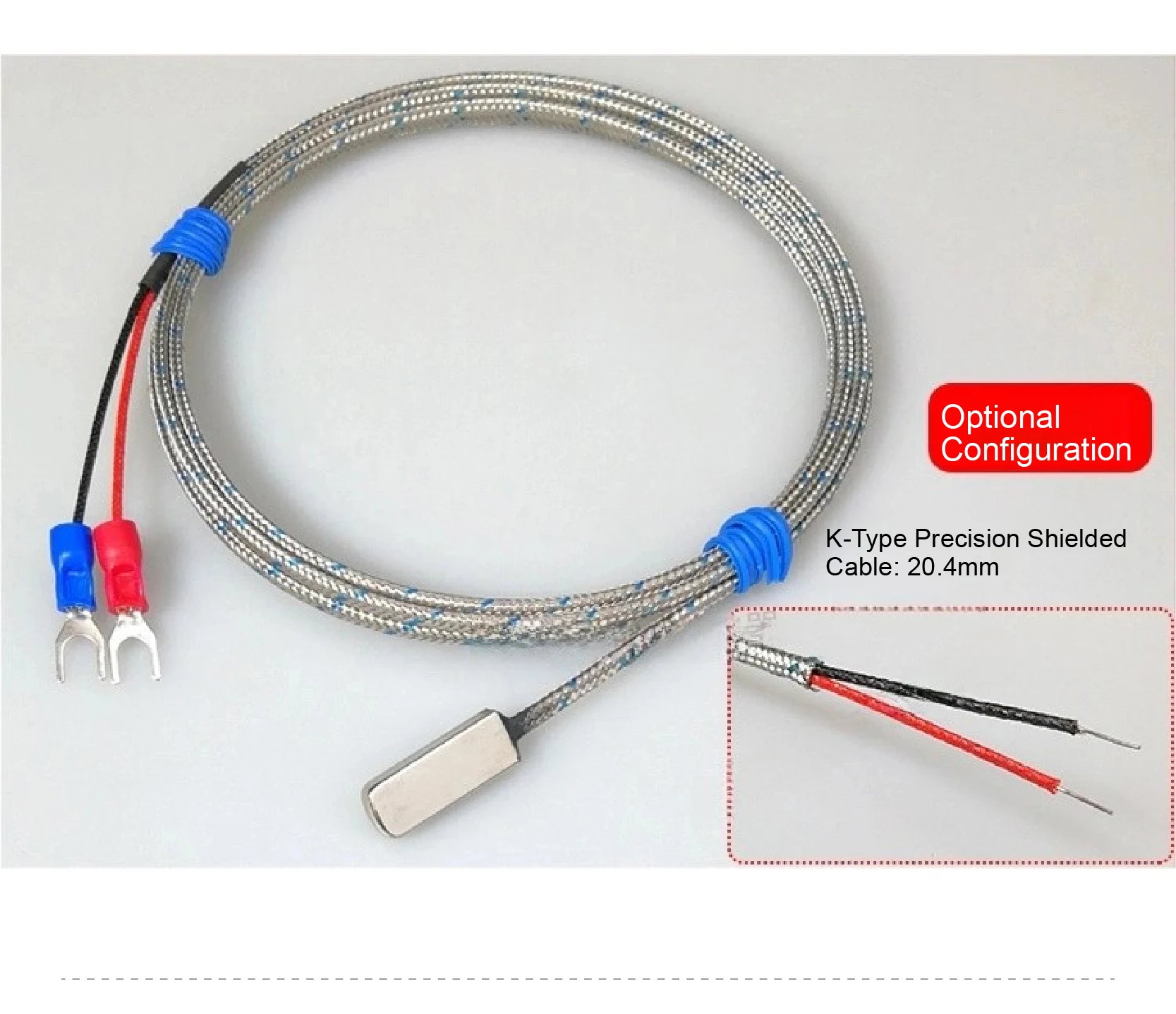

• Sensor Type:PT1000, NTC10K, NTC50K, K,E Customizable

• Temperature Range: Customizable (-50°C to 420°C)

• Wiring Options: 2-wire, 4-wire

• Terminal Connectors: U-type Terminal (Default), Pin Connector, Miniature Yellow Plug, XH2.54 Quick Plug

• Cable Length: Customizable (e.g., 1m, 5m, 10m, 20m)

Important:

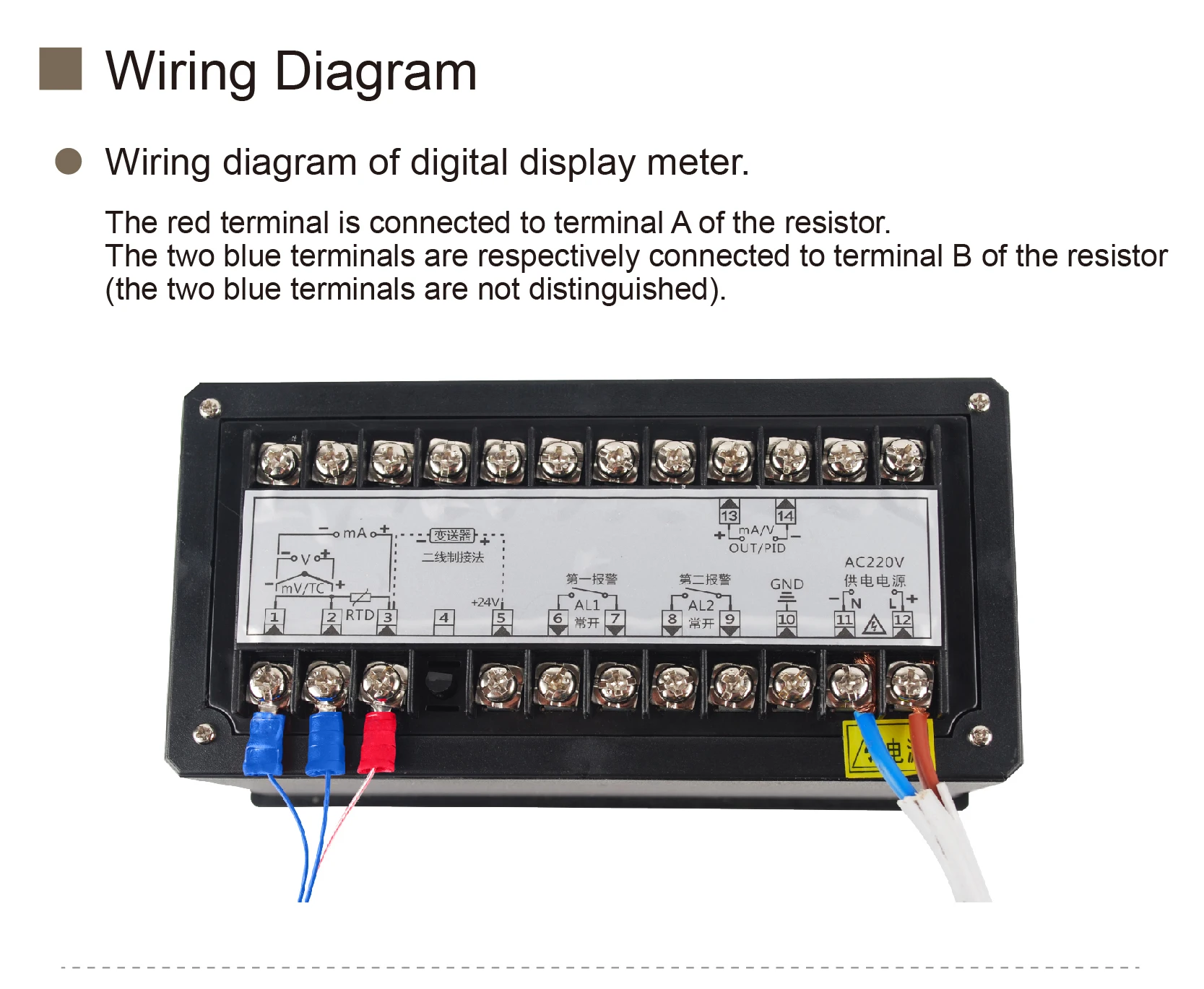

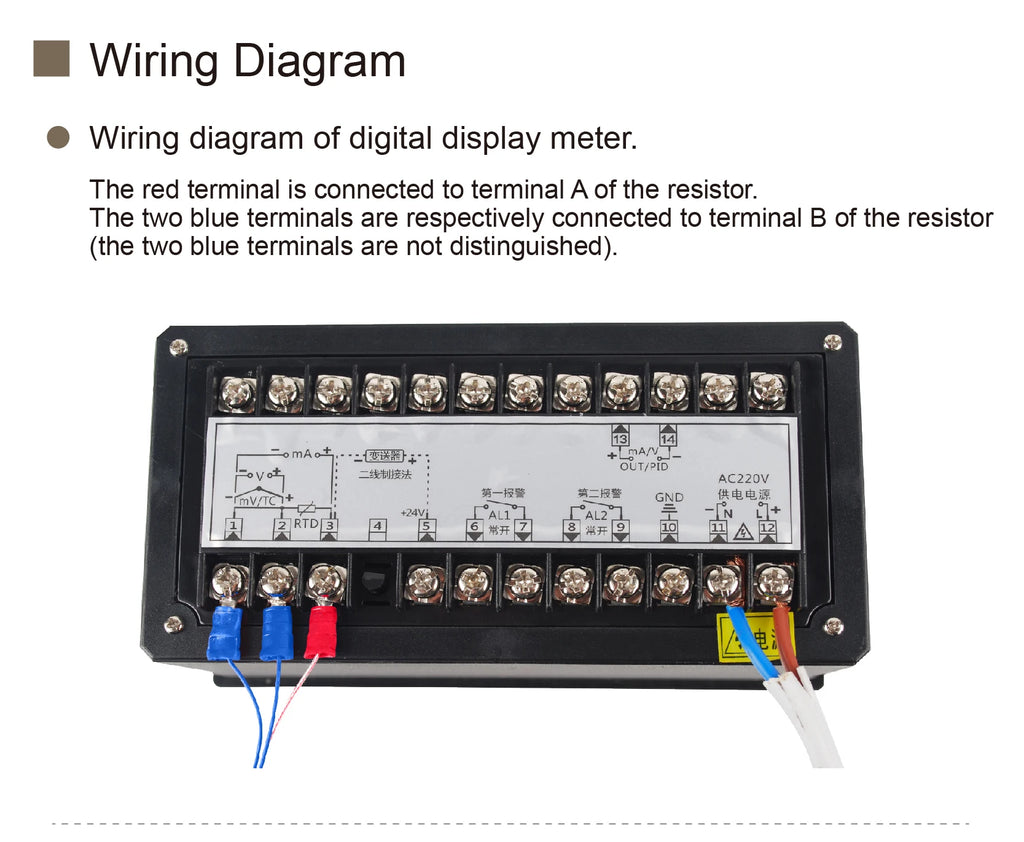

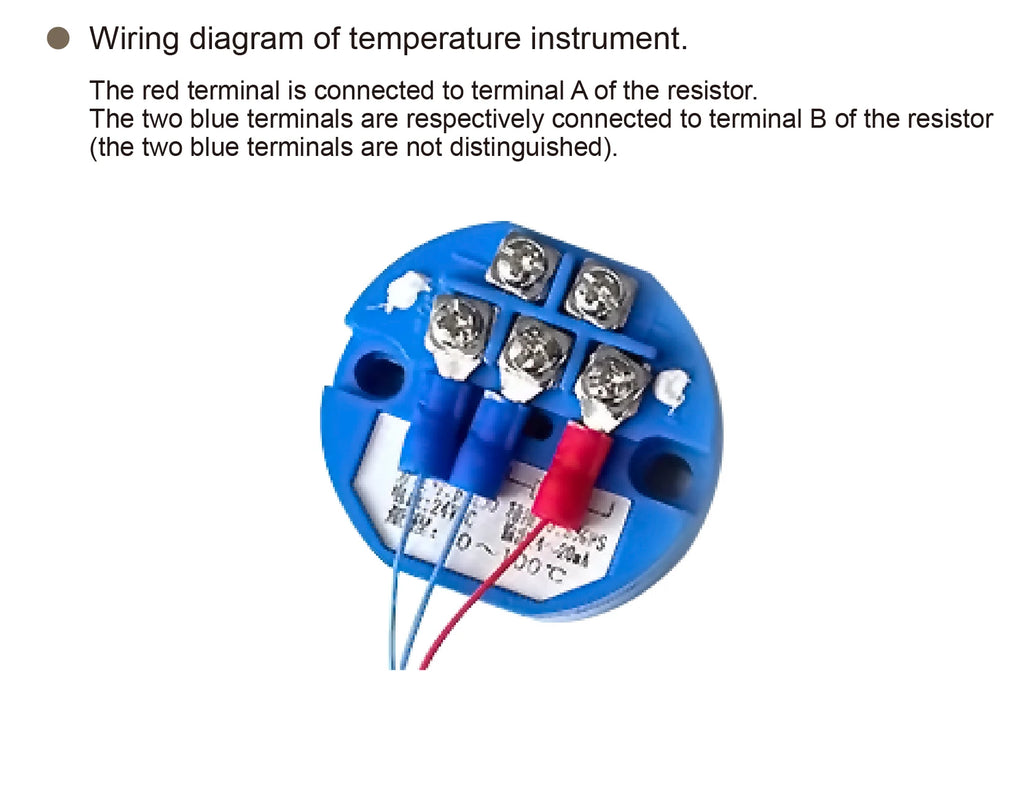

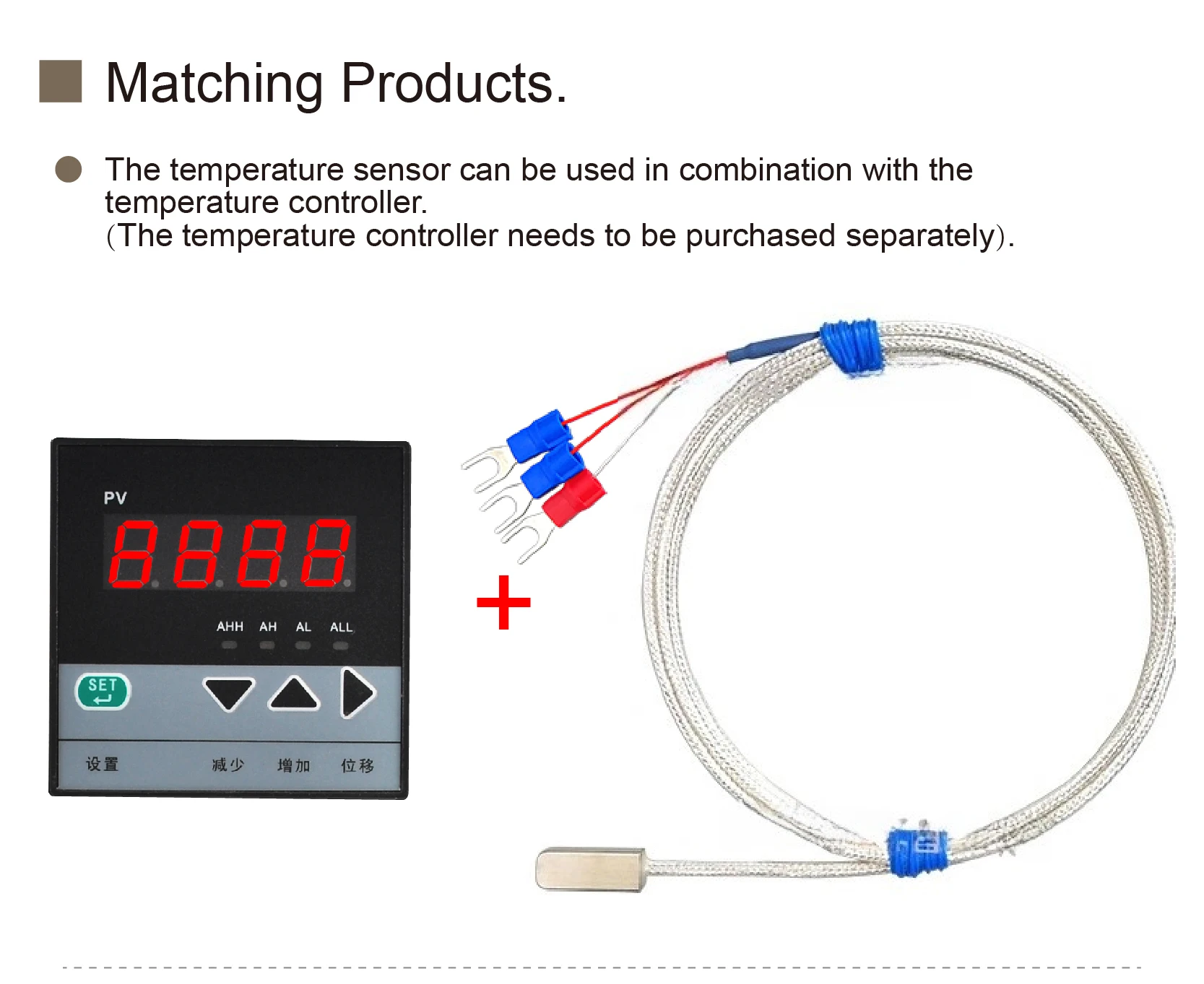

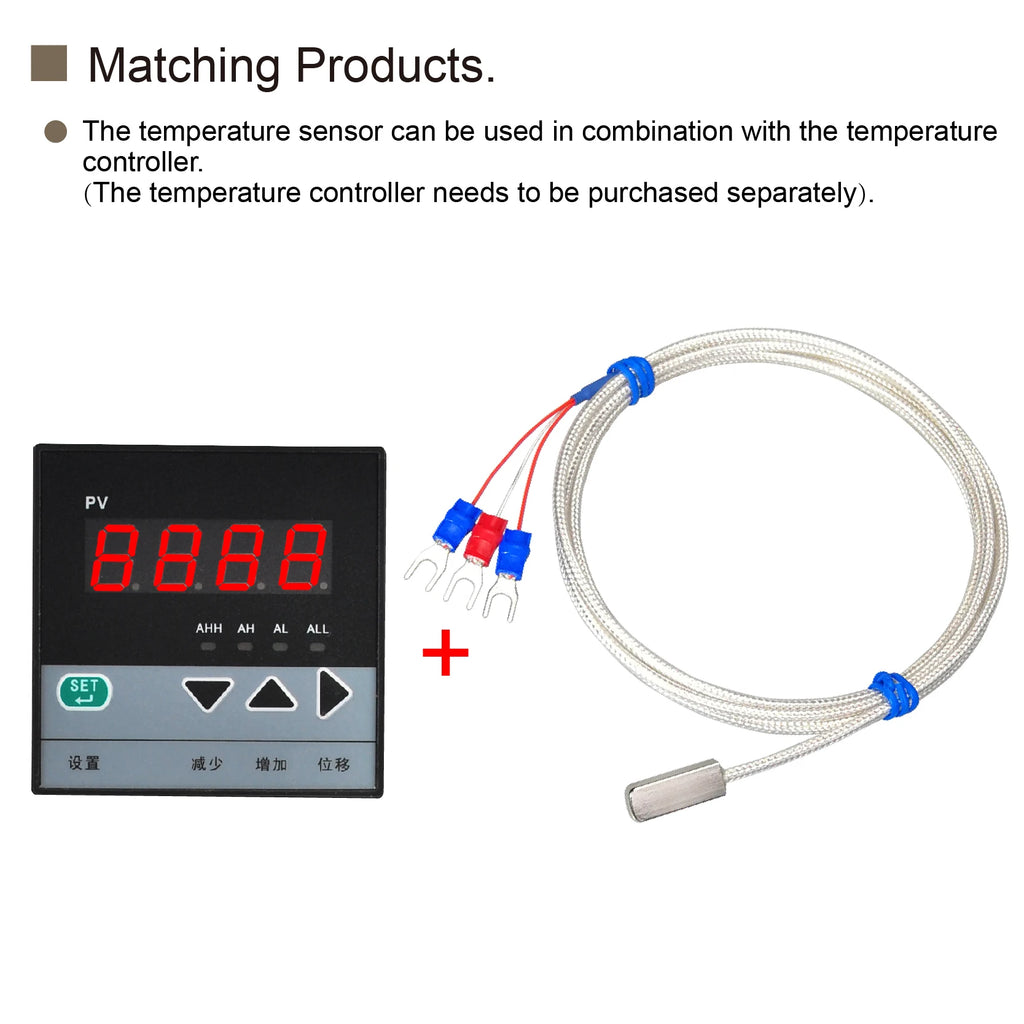

• Ensure the sensor matches the input type of your temperature controller.

• Default package includes only the sensor probe. Temperature controllers must be purchased separately.

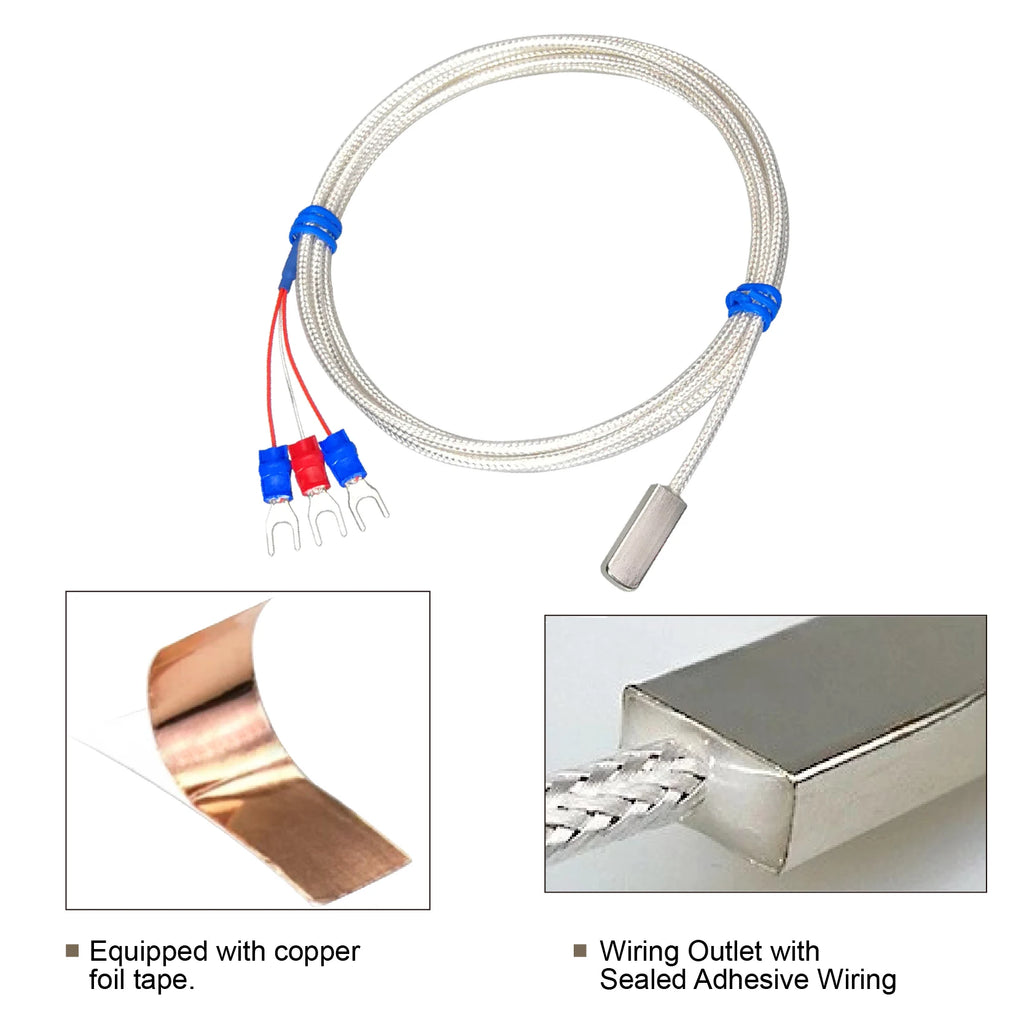

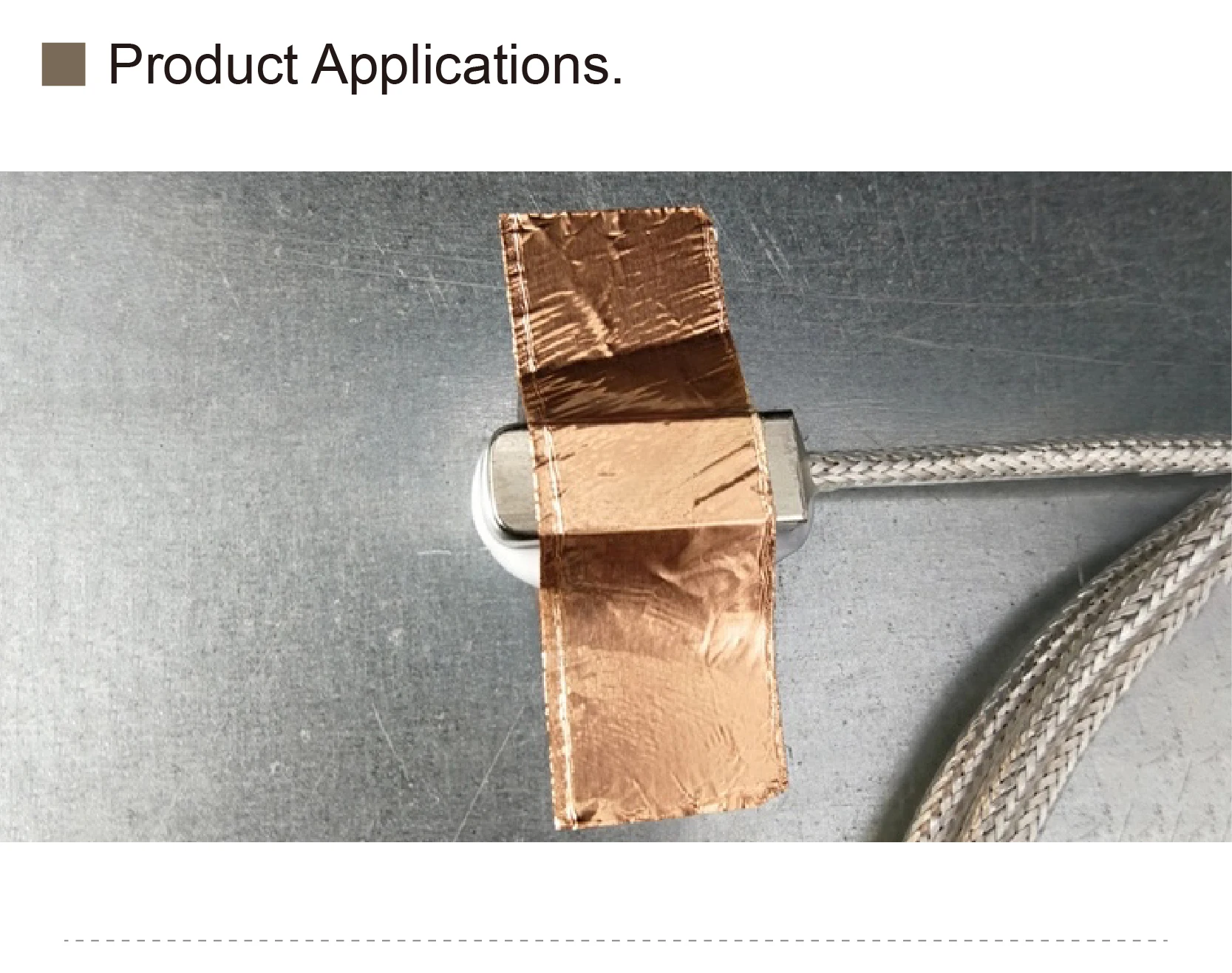

• Complimentary copper foil tape is provided for enhanced surface adhesion.

For customization, please contact us.

2. SPECIFICATIONS

3. APPLICATION

Ideal for flat surface temperature measurements in restricted spaces without drilling.

Suitable for aerospace, military, laboratories, factories, and research institutions.

Commonly used for high-precision and reliable temperature monitoring applications.

4. FEATURES

Waterproof design supports stable use up to 200°C; high-temperature variant handles short-term exposure up to 420°C.

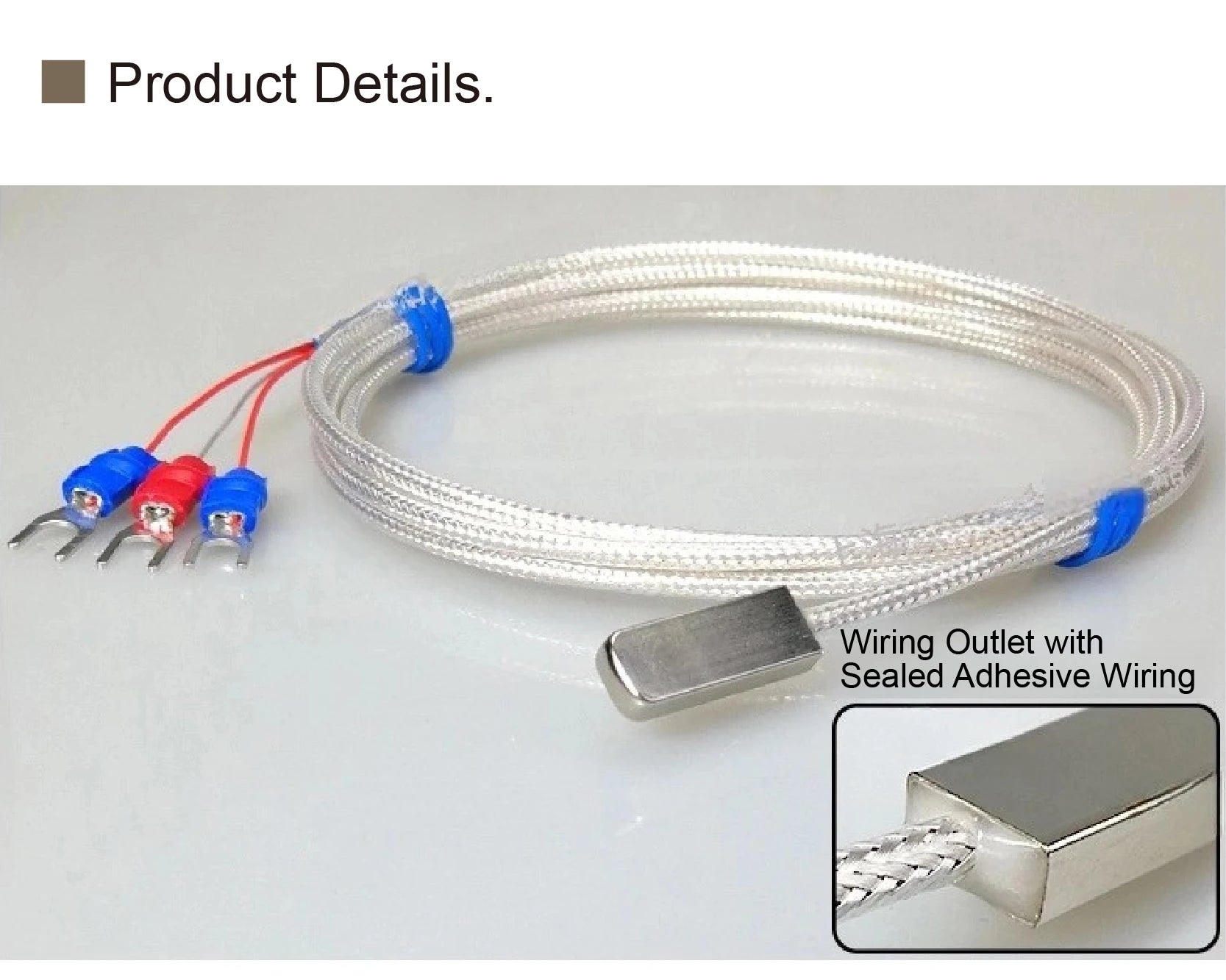

Silver-plated copper core with PTFE insulation ensures high durability and signal stability.

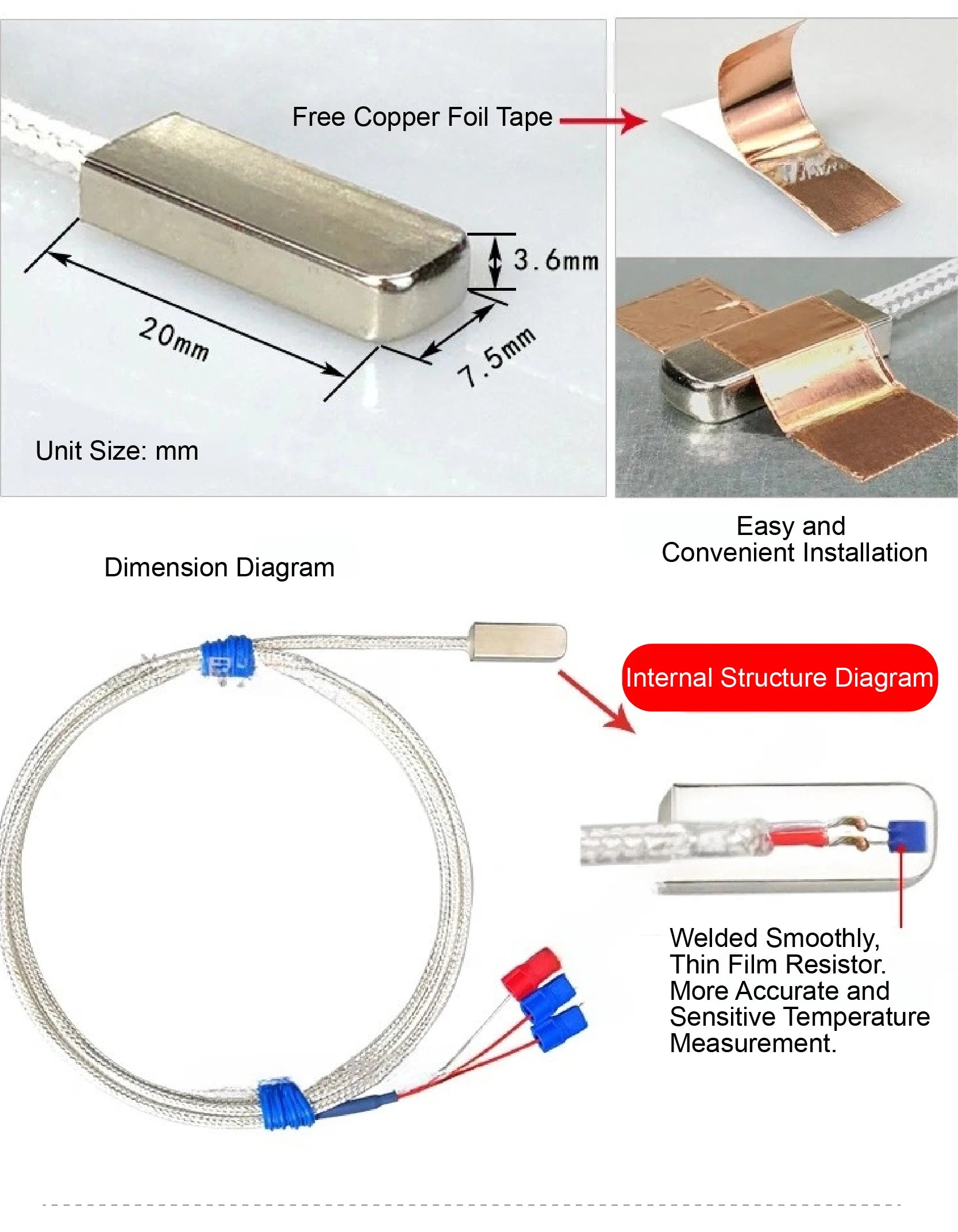

Compact dimensions and easy adhesive installation for hassle-free setup.

Dual insulation and shielding design for accurate and interference-free temperature measurement.

5. FAQ

Q: What is included in the package?
A: The package includes the sensor probe only. Additional accessories like controllers need to be purchased separately.

Q: Can the lead wire length be customized?
A: Yes, the default length is 0.5 meters, but you can request any length as per your requirements.

Q: Is the sensor compatible with all temperature controllers?
A: Ensure the sensor type (e.g., PT100) matches the input type of your temperature controller for proper functioning.
