SPECIFICATIONS

Features :

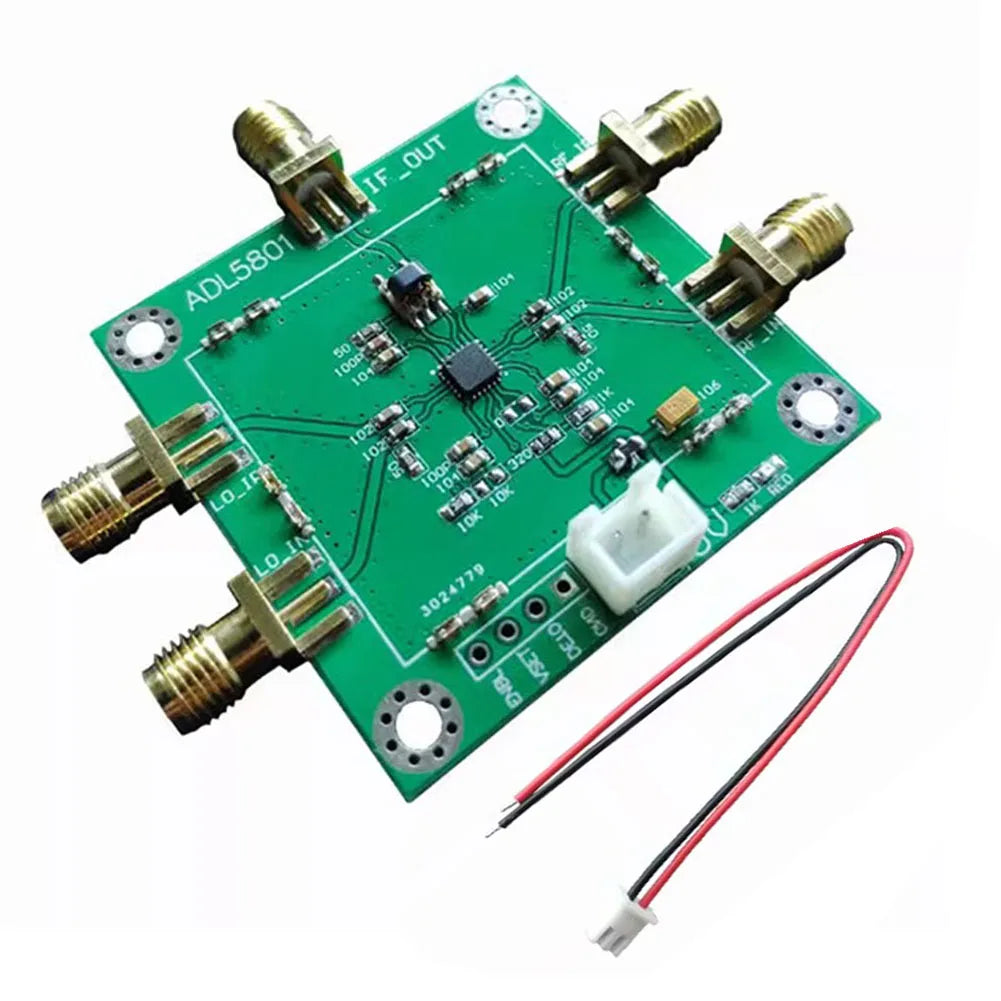

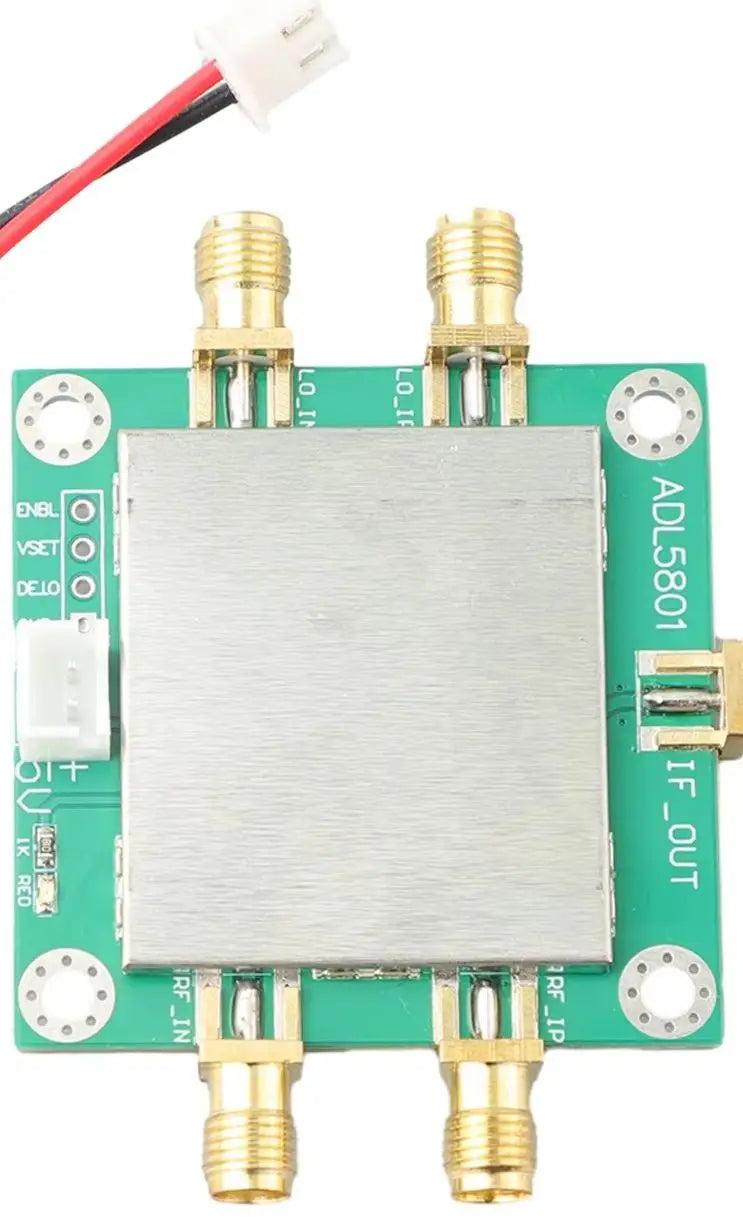

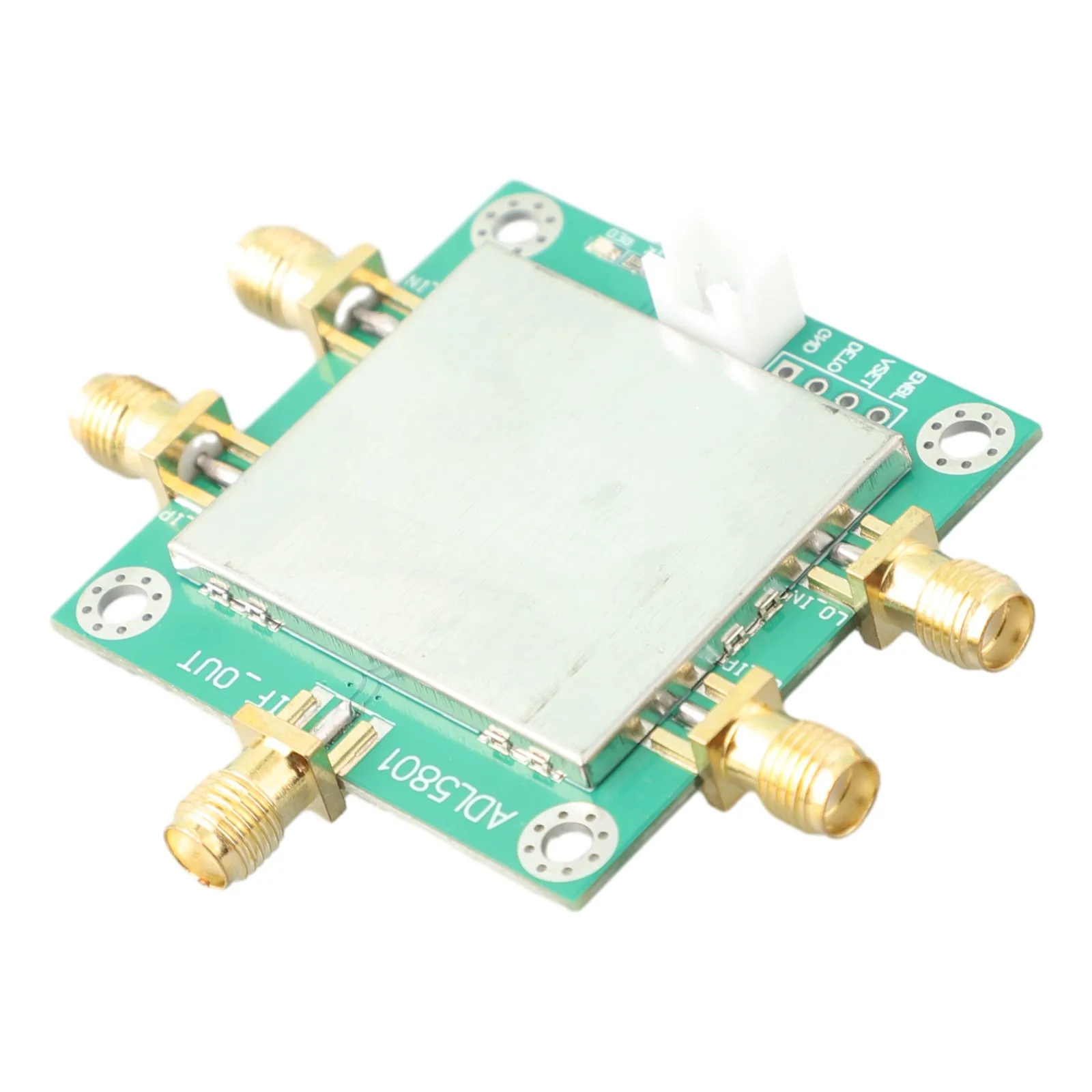

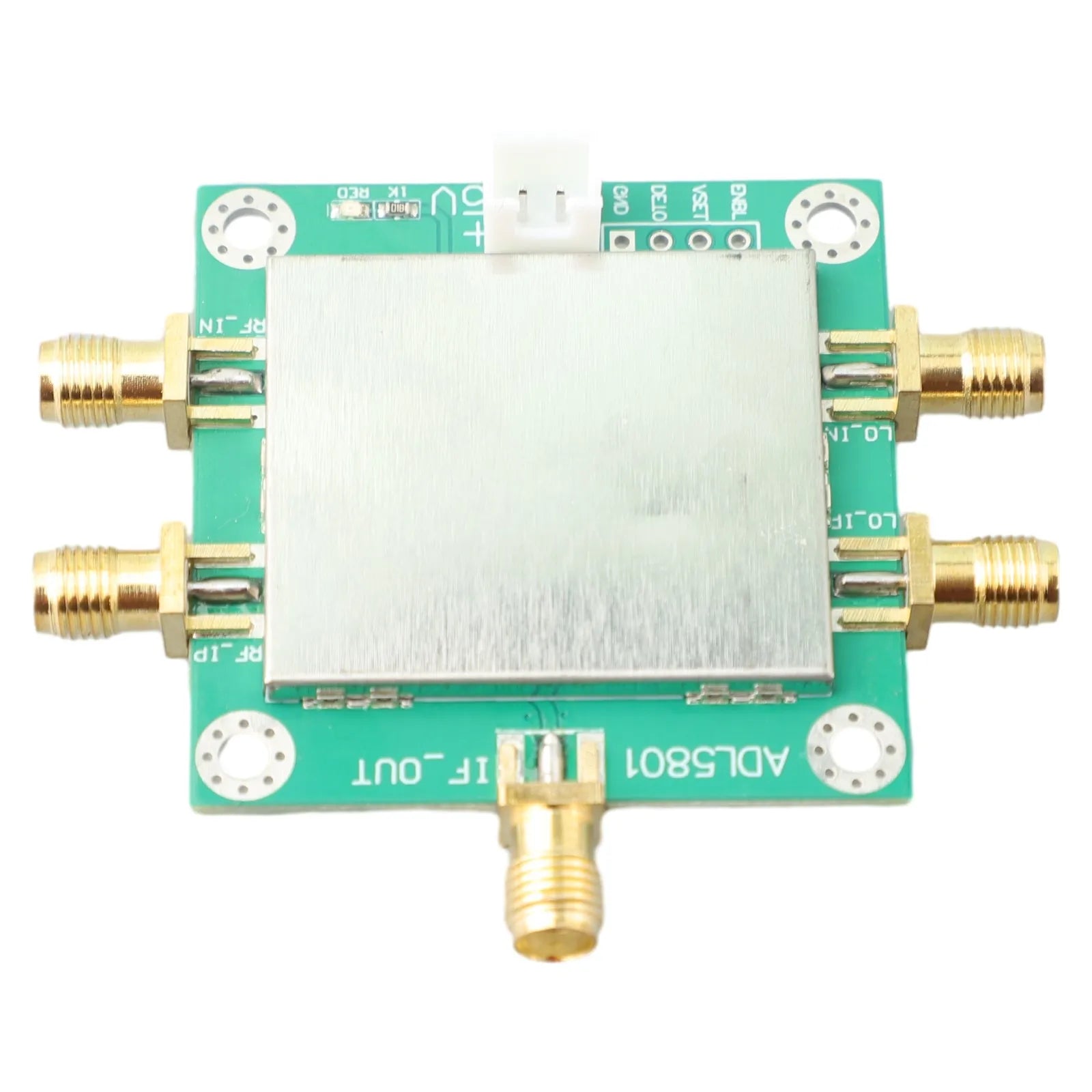

*The ADL5801 uses a high linearity, doubly balanced, active mixer core with integrated LO buffer amp lifier to provide high  for dynamic range  for frequency conversion from 10 MHz to 6 GHz.

*The mixer benefits from a proprietary linearization architecture that provides enhanced input  performance when subject to high input levels.

*A bias adjust feature allows the input linearity, SSB noise figure, and dc current to be optimized using a single control pin.

*An optional input power detector is provided for adaptive bias control.

*The high input linearity allows the device to be used in demanding cellular applications where in-band blocking signals may otherwise result in degradation in  for dynamic performance.

*The adaptive bias feature allows the part to provide high input  performance when presented with large blocking signals.

*When blockers are removed, the ADL5801 can automatically bias down to provide low noise figure and low power consumption.

*The balanced active mixer arrangement provides superb LO-to-RF and LO-to-IF leakage, typically better than −40 dBm. The IF outputs are designed to provide a typical voltage conversion gain of 7.8 dB when loaded into a 200 Ω load.

*The broad  for frequency range of the open-collector IF outputs allows the ADL5801 to be applied as an up-converter for various transmit applications.

*The ADL5801 is fabricated using a high performance IC process for SiGe.

*The device is available in a compact 4 mm x 4 mm, 24- LFCSP package and operates over a -40°C to +85°C temperature range. An evaluation board is also available.

Specifications:

*Broadband up-converter/down-converter：

Power conversion gain：1.8 dB

Broadband： RF, LO, and IF ports

SSB noise figure (NF) ： 9.75 dB

Input : 28.5 dBm

Input P1dB: 13.3 dBm

Typical LO drive: 0 dBm

Single-supply : 5 V at 130 mA

*Adjustable bias for low power ：

Exposed paddle, 4 mm x 4 mm, 24-

Exposed paddle, 4mm x 4mm, 24- LFCSP package

*Applications:

Cellular base station receivers；

Radio link down-converters；

Broadband block conversion；

Instrumentation；

*Specifications:

- RF: 10Mhz-6Ghz

- IF: LF-600MHz

- VCC=+5vdc

- Balun: TC4-1WG2

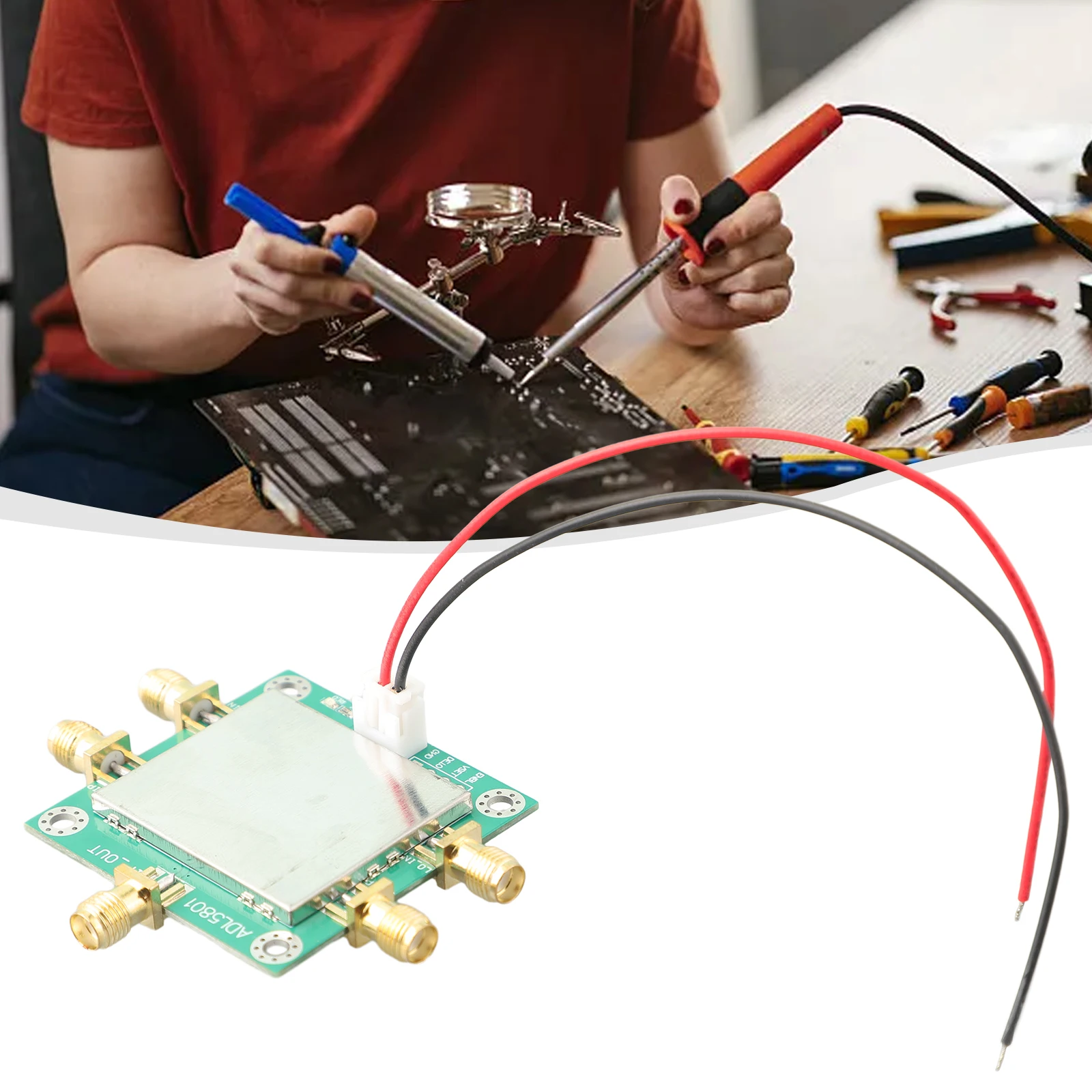

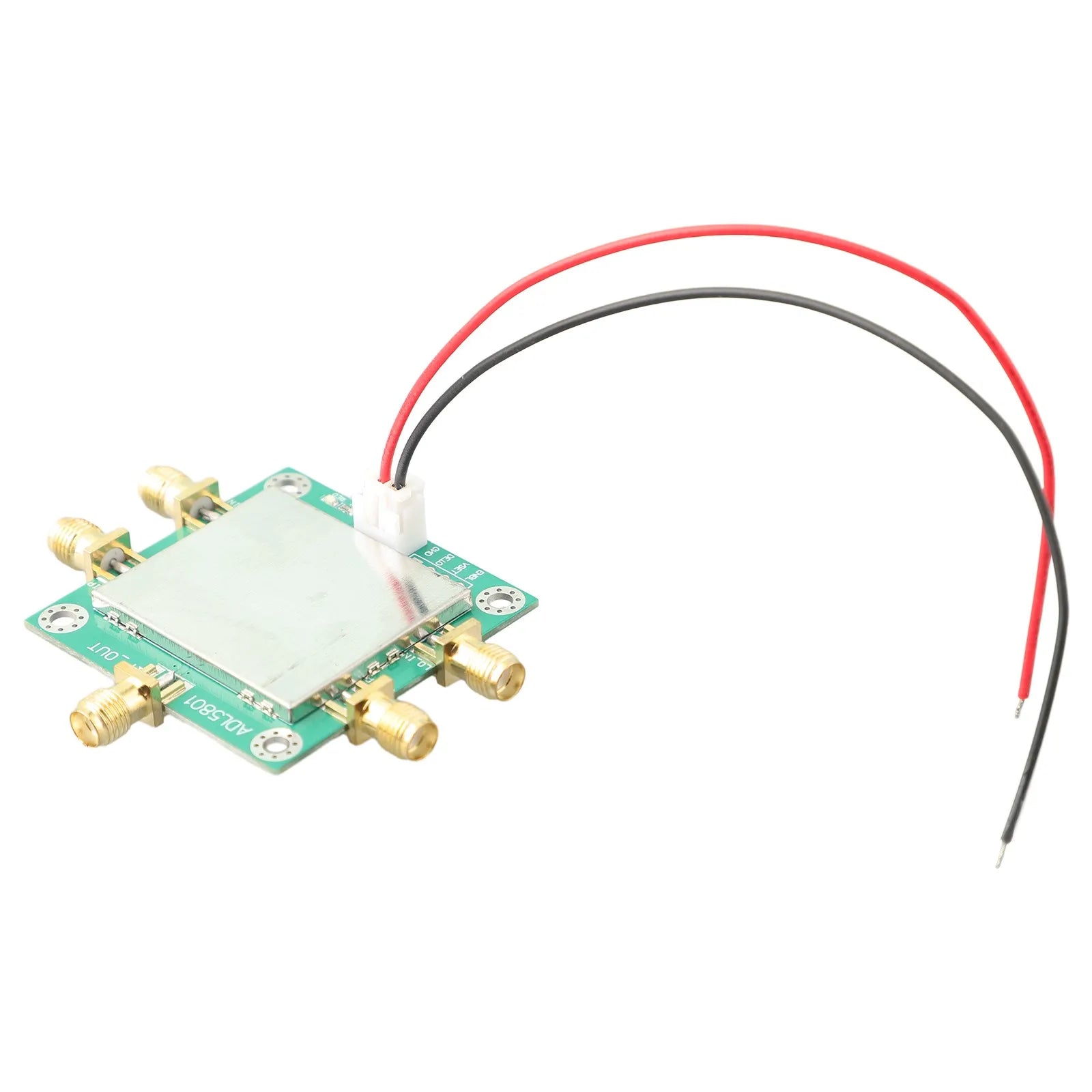

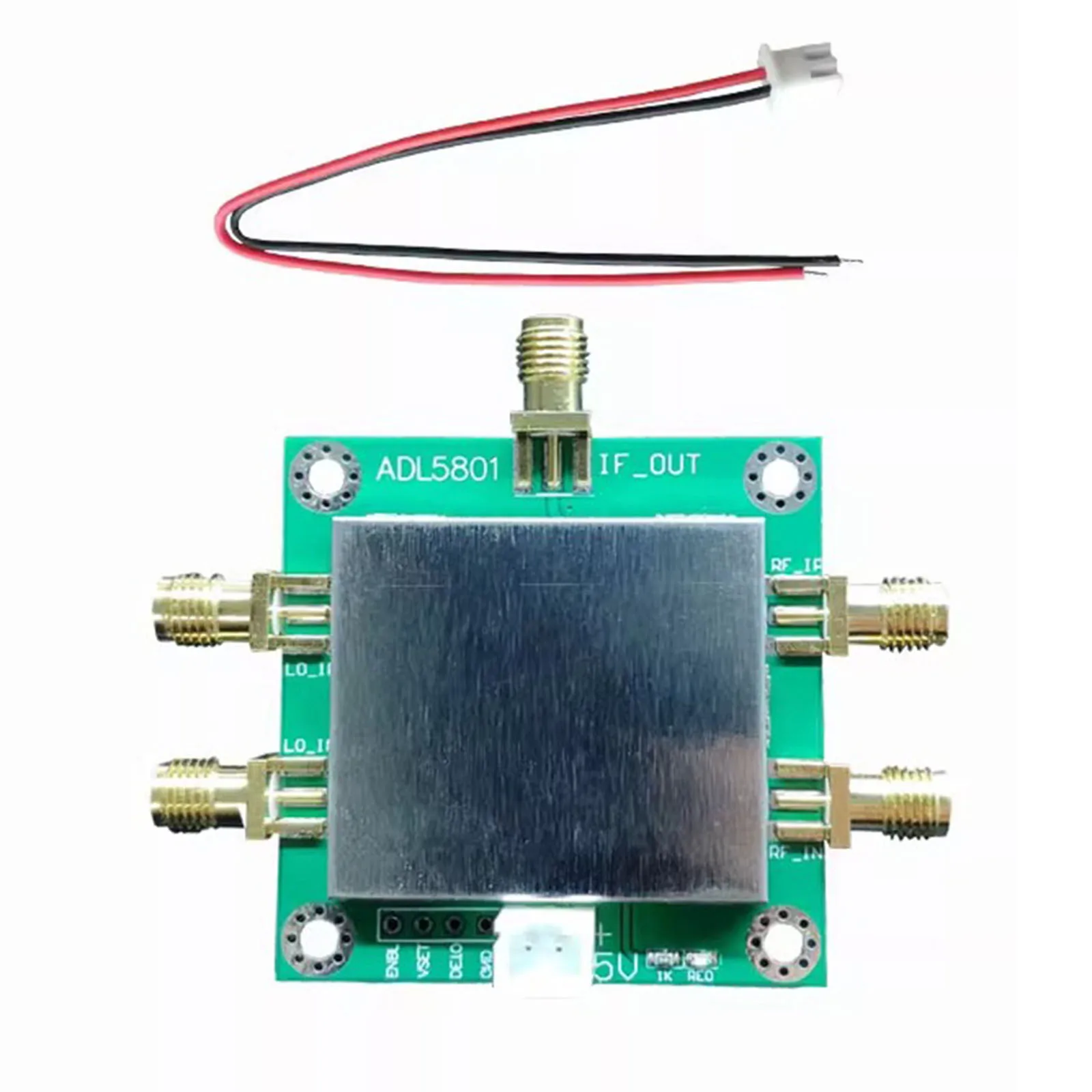

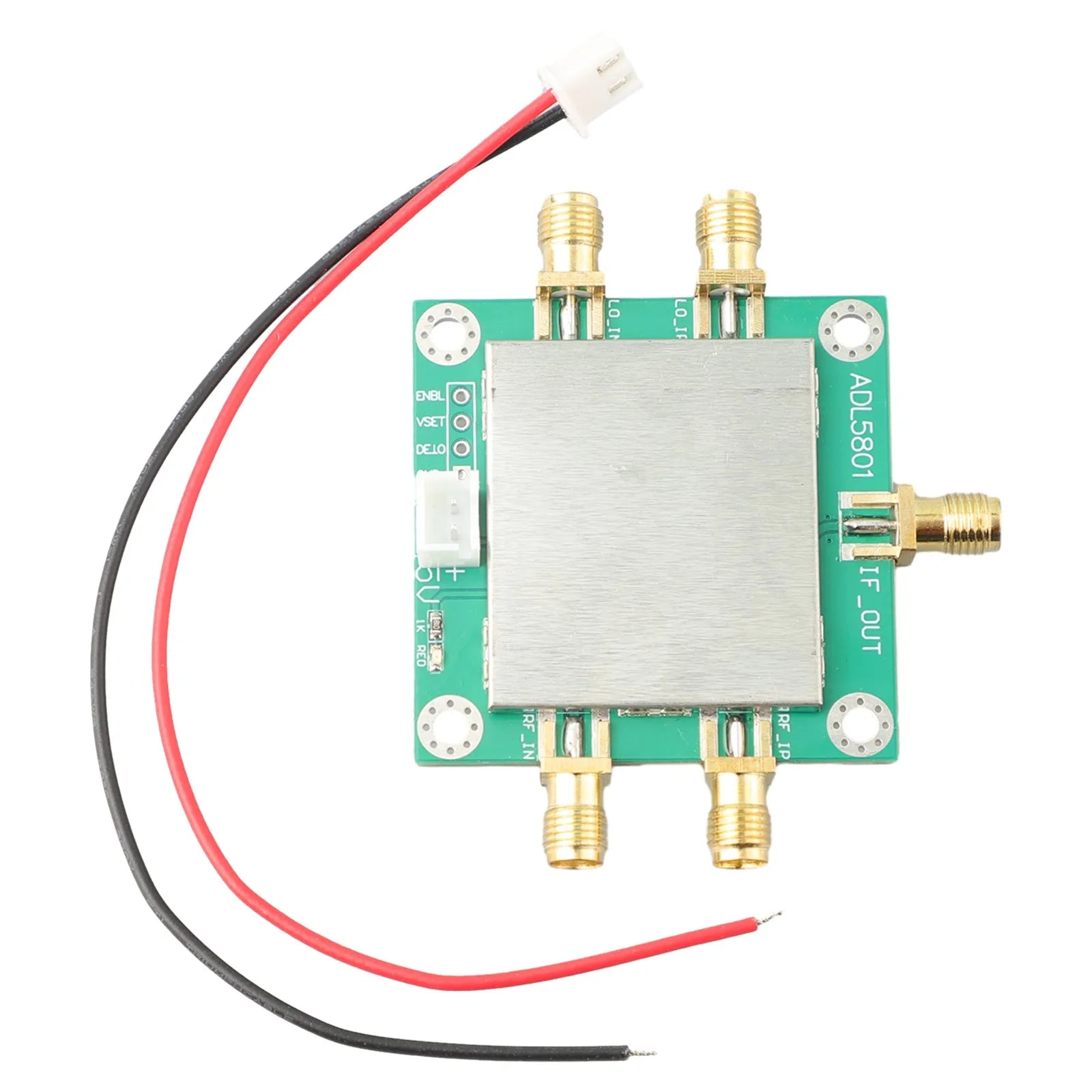

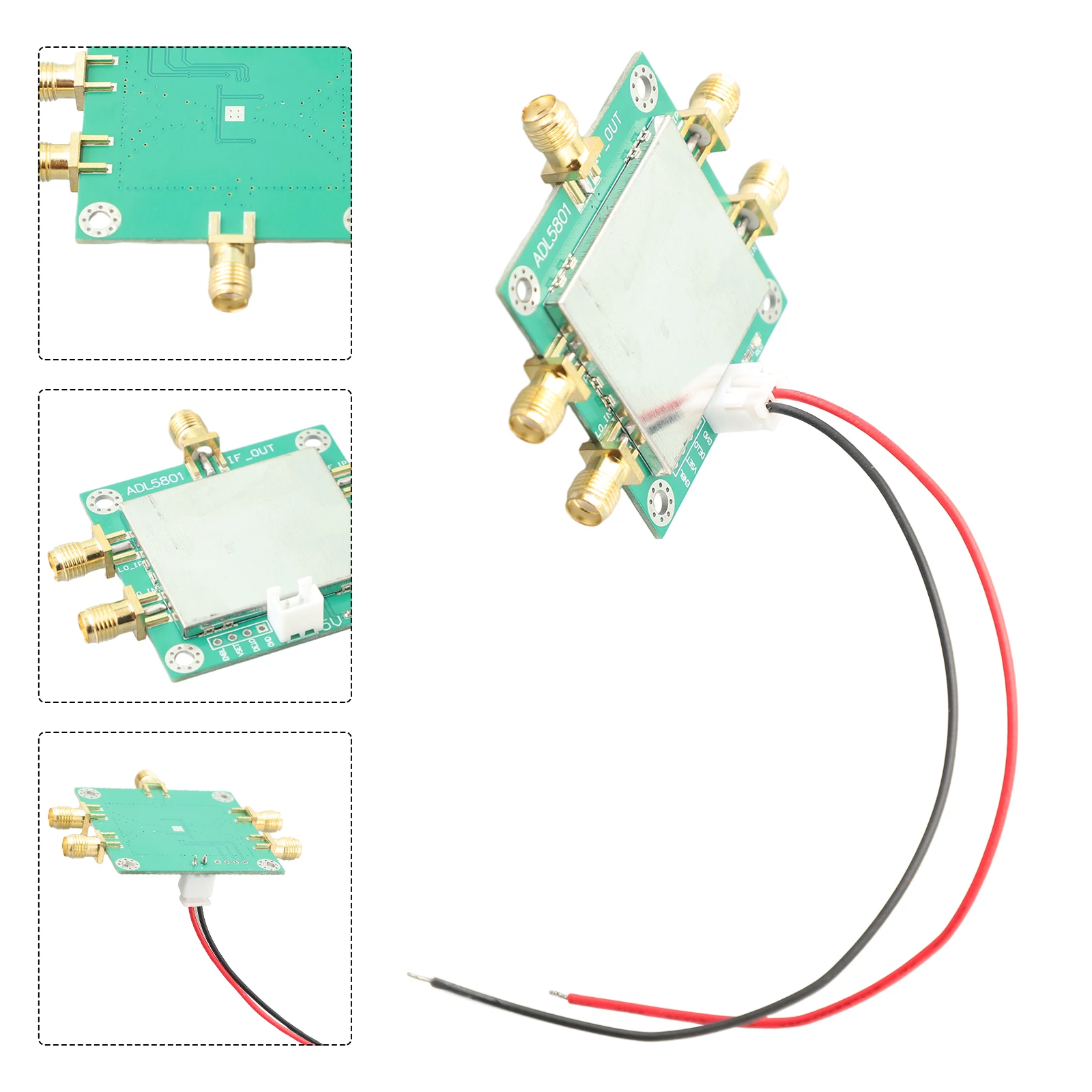

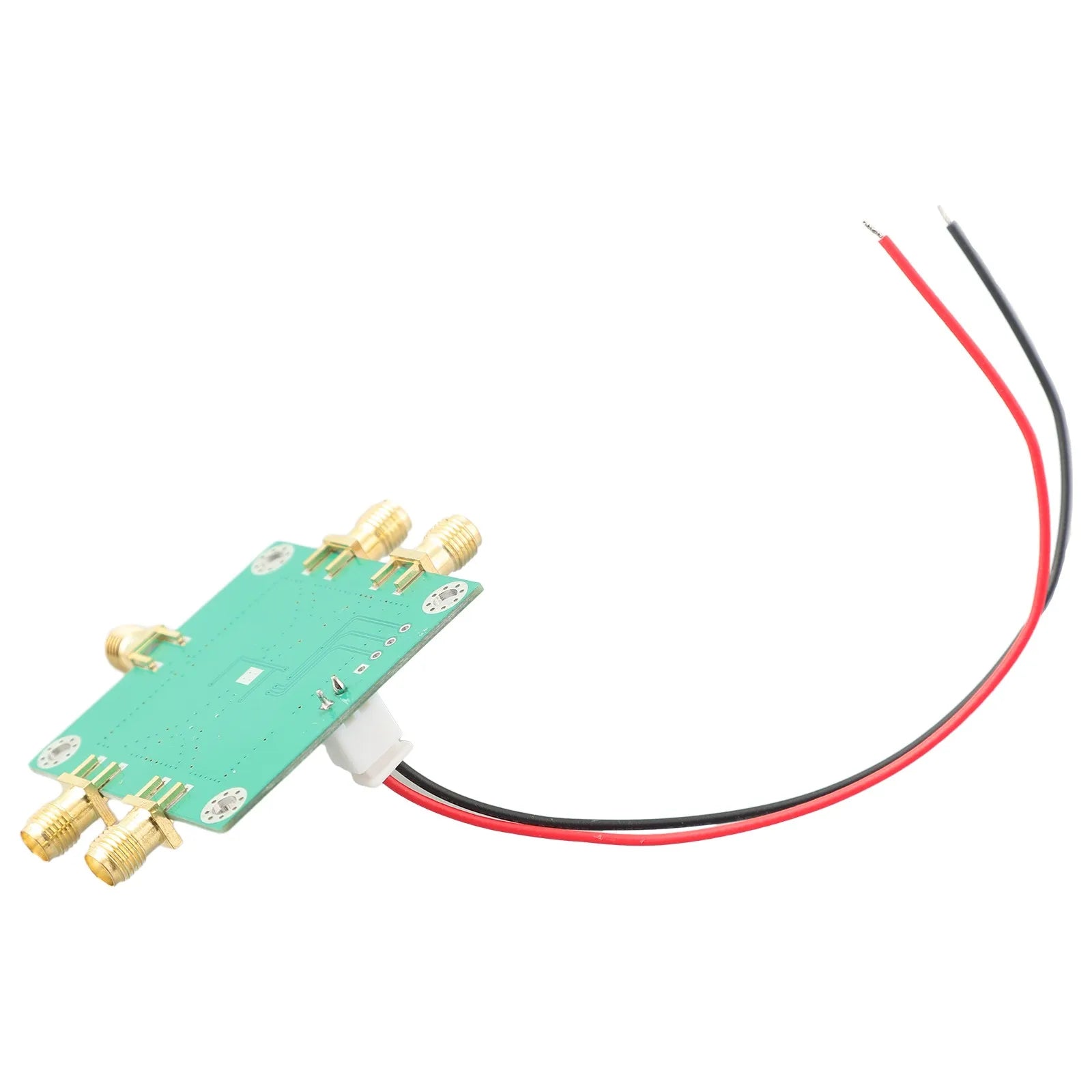

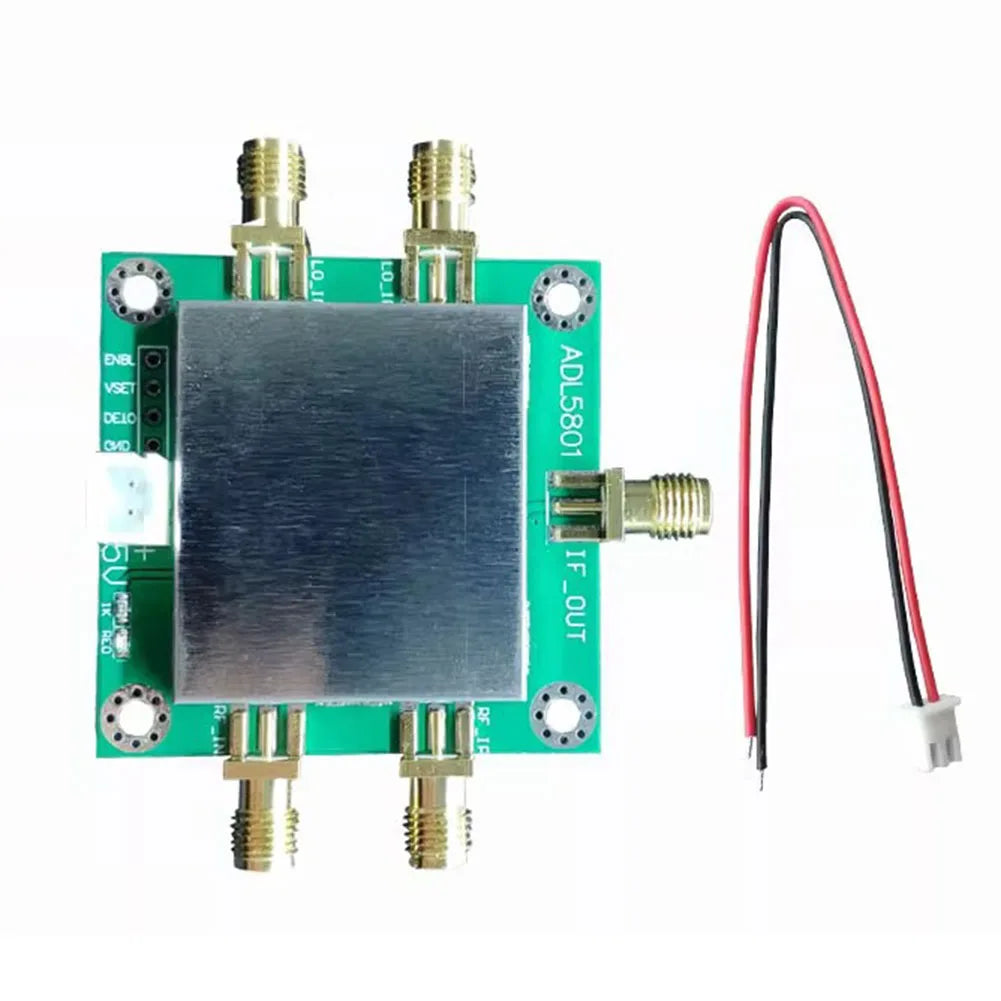

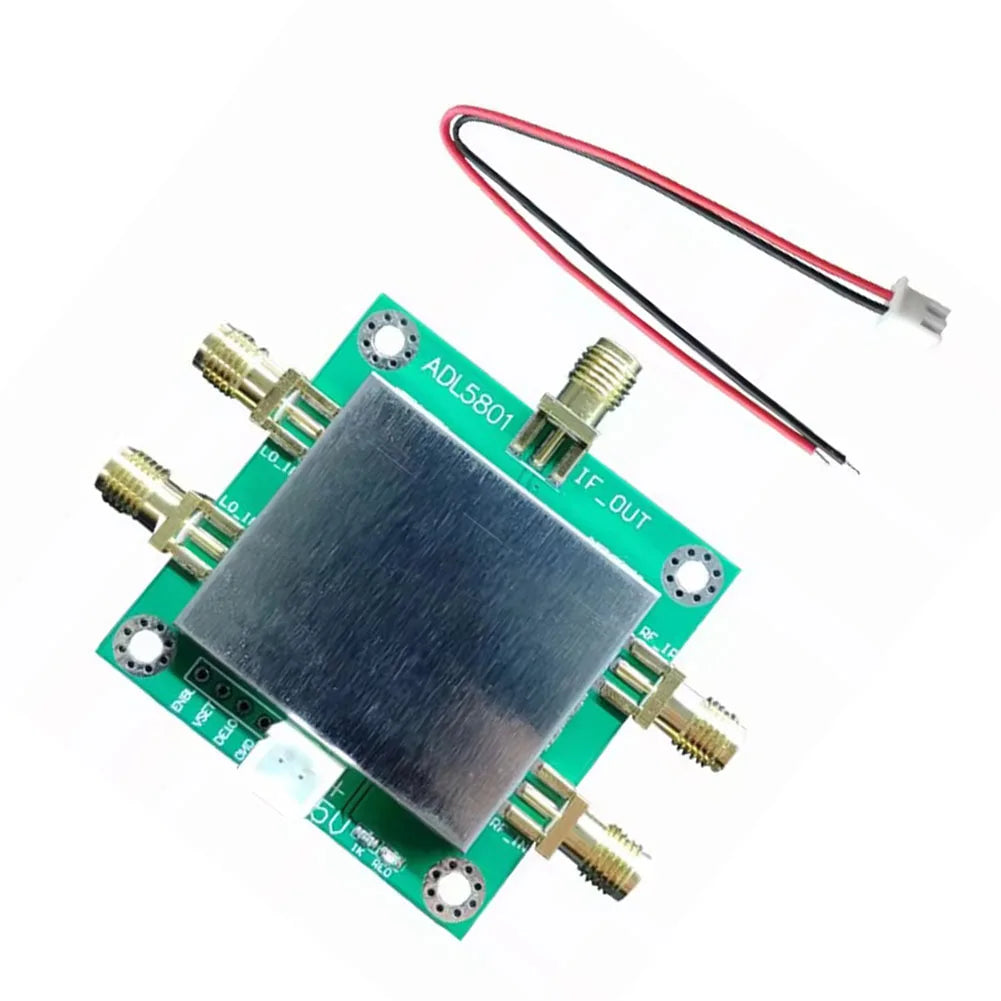

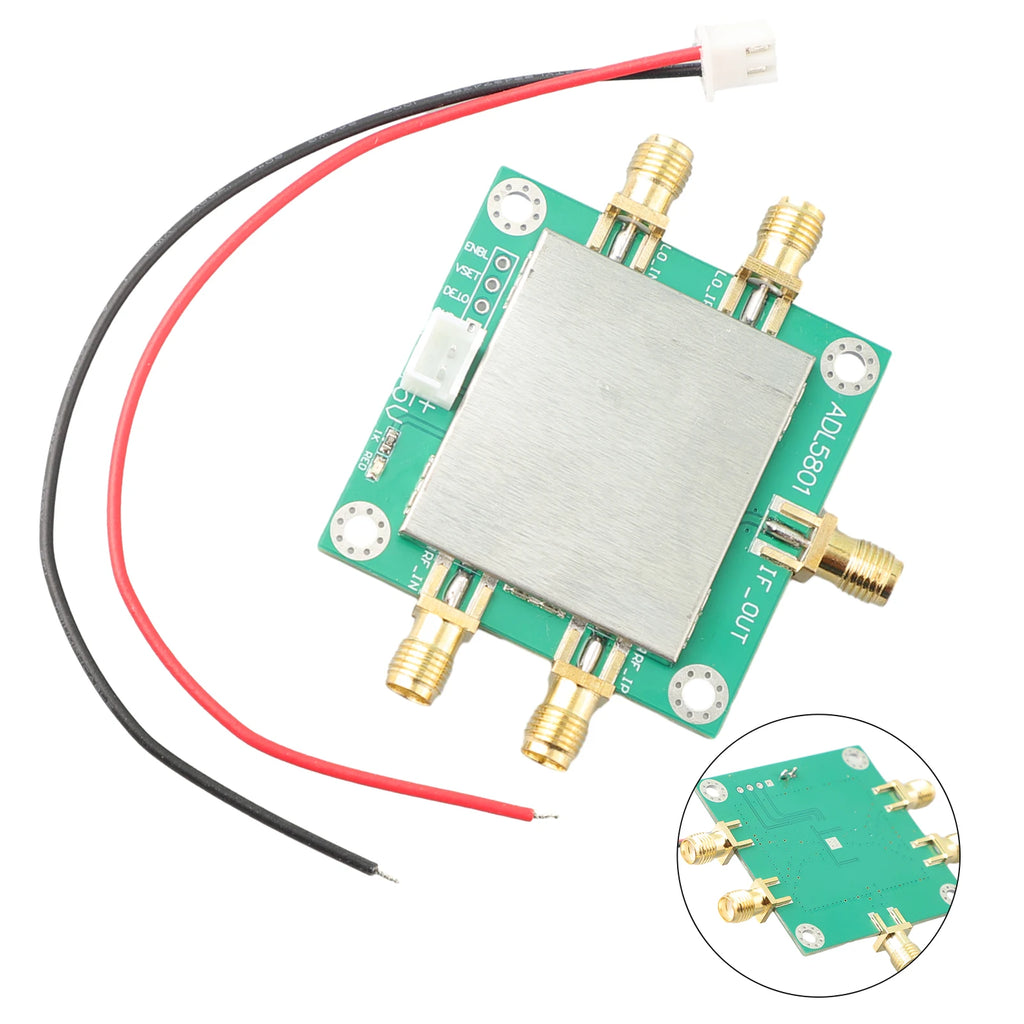

Package Included:

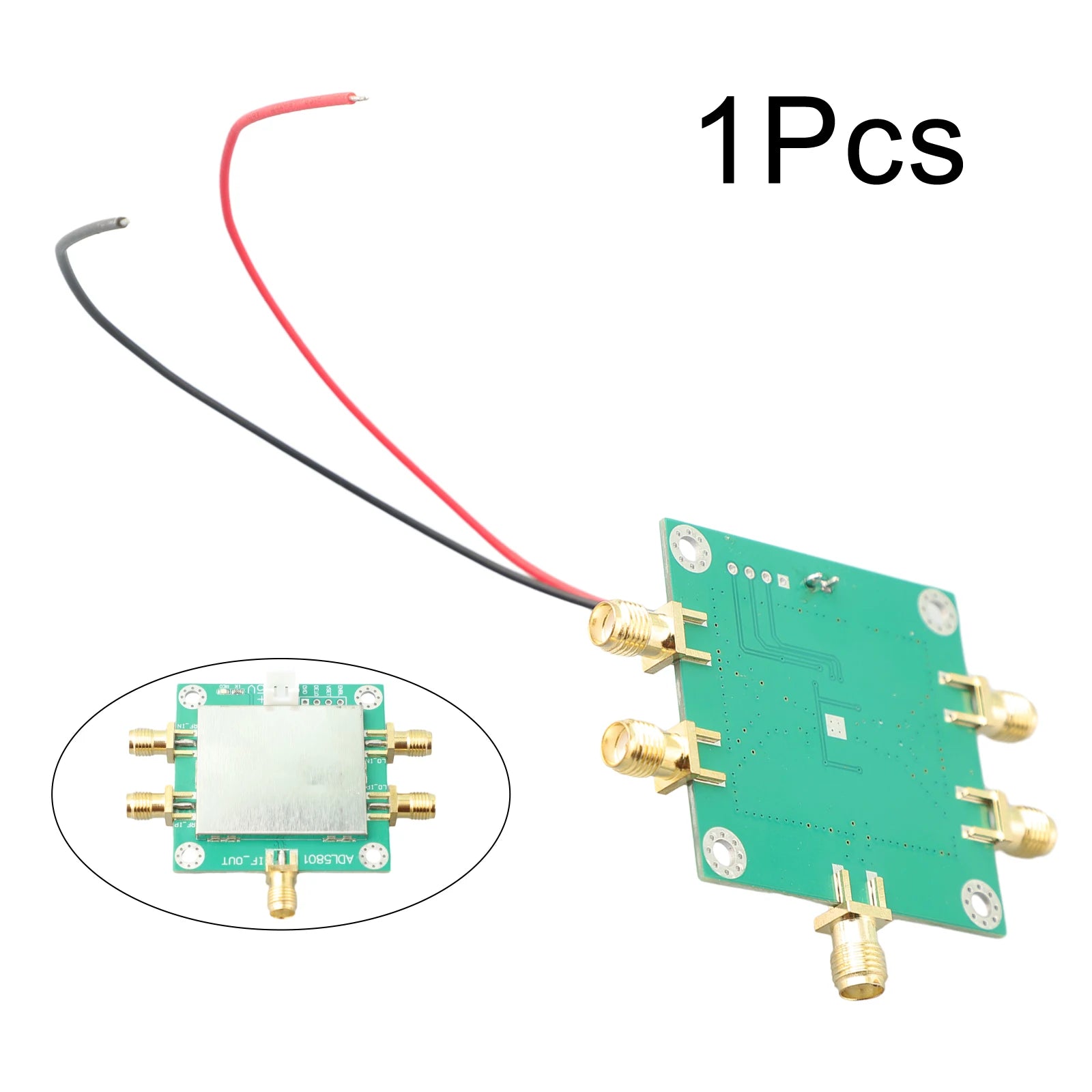

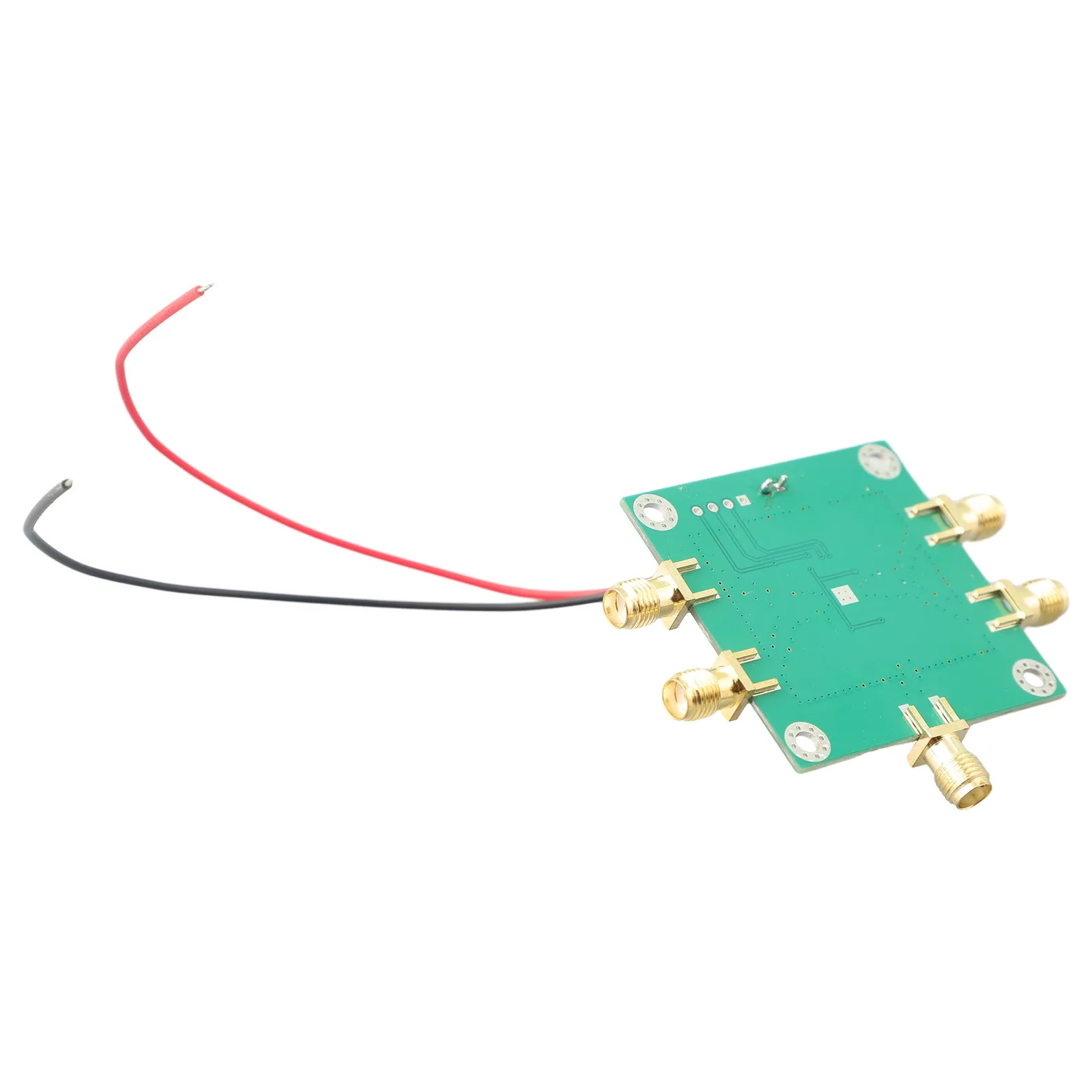

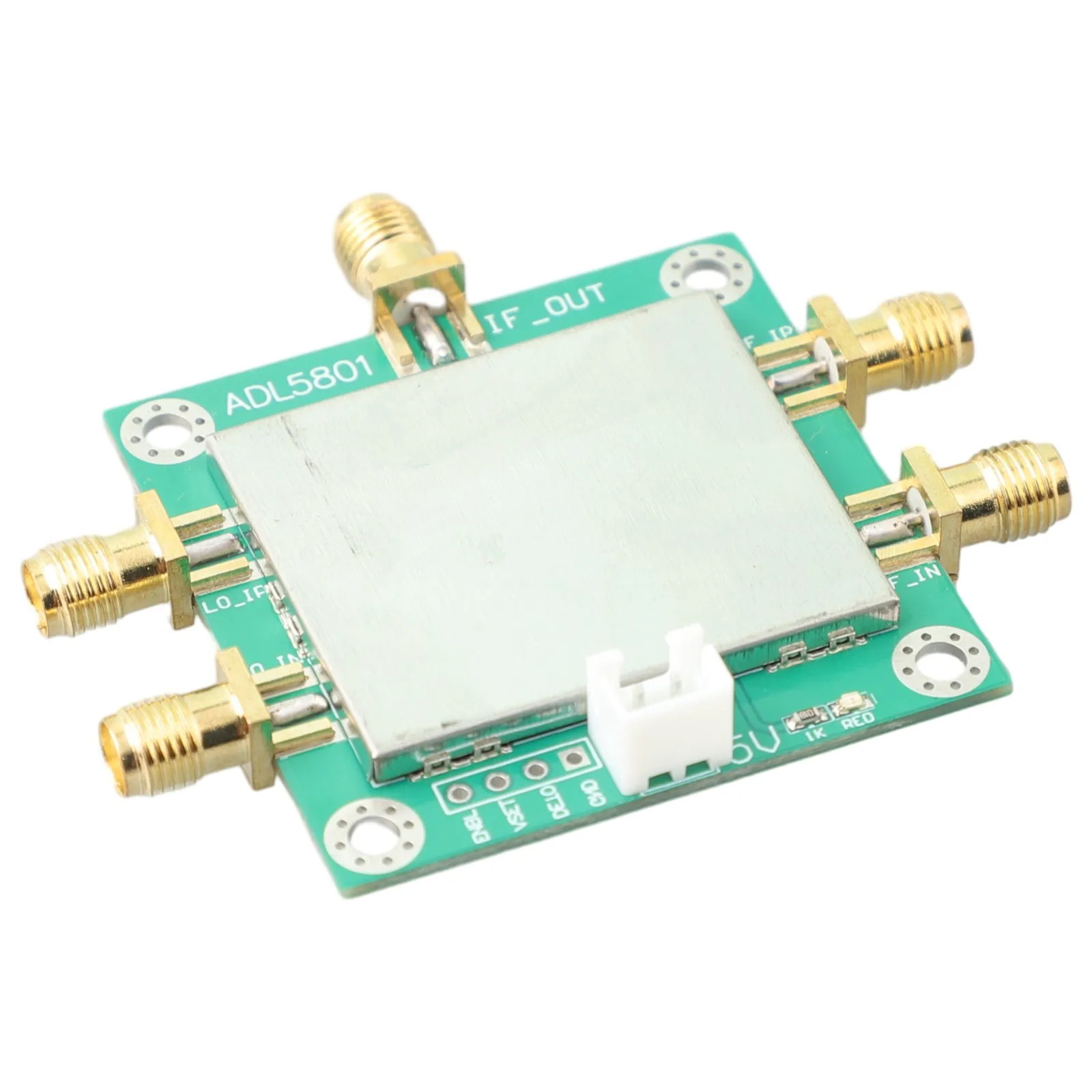

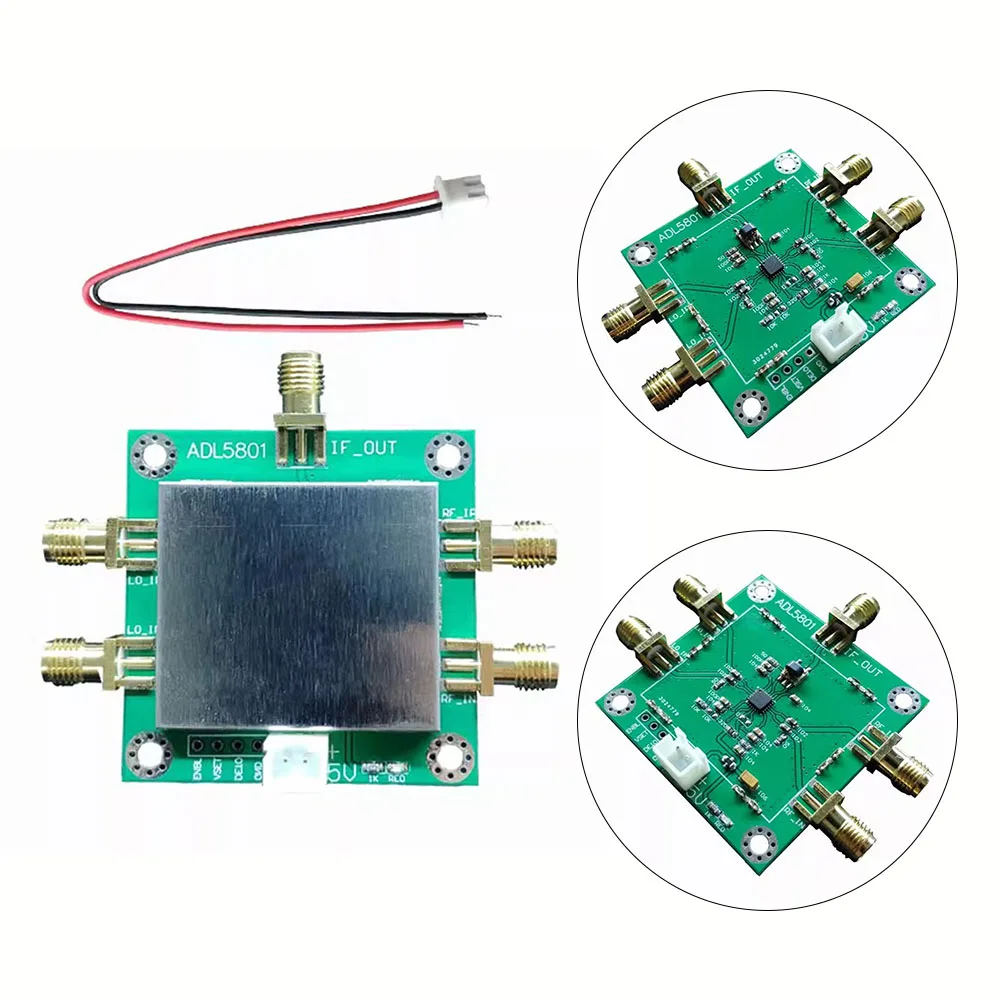

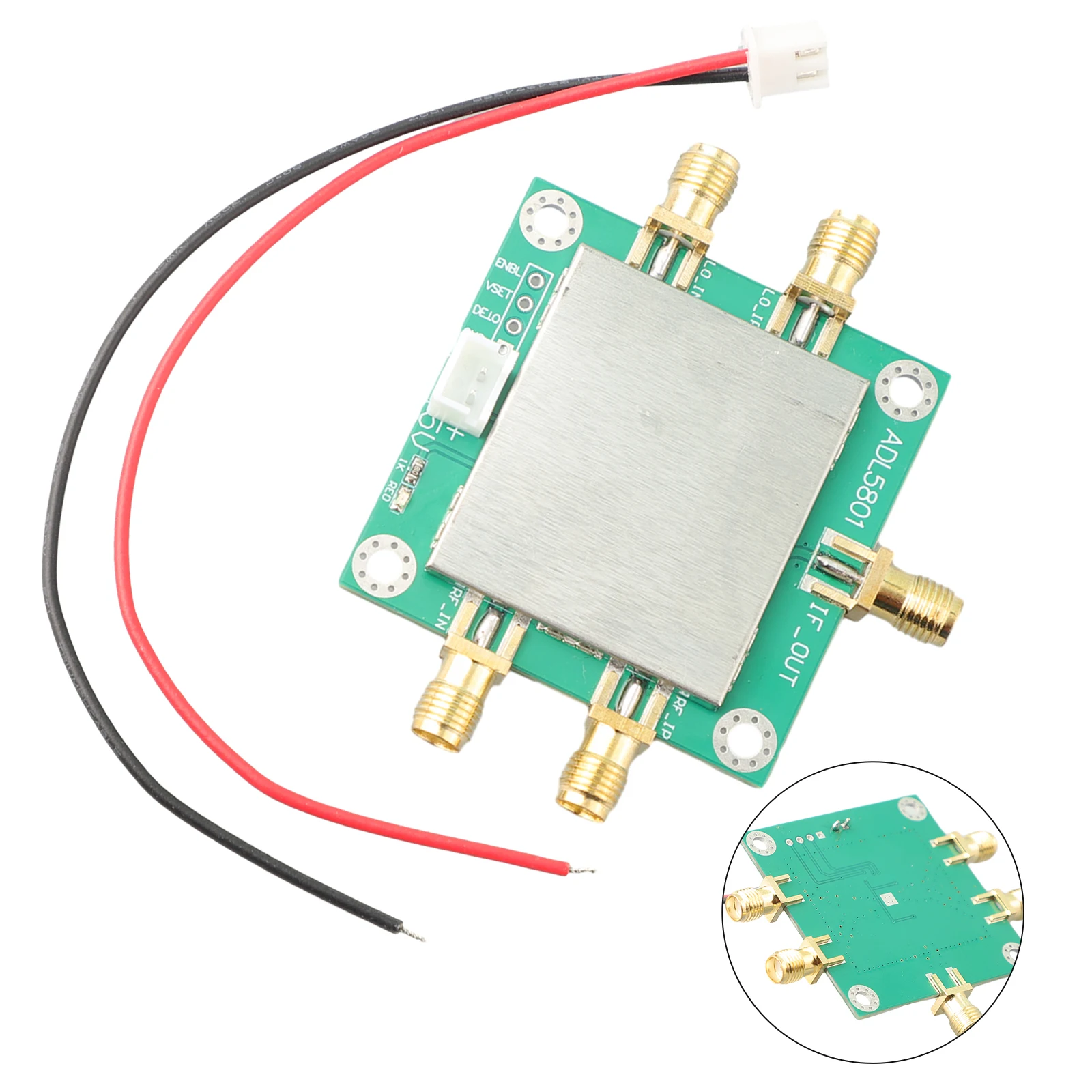

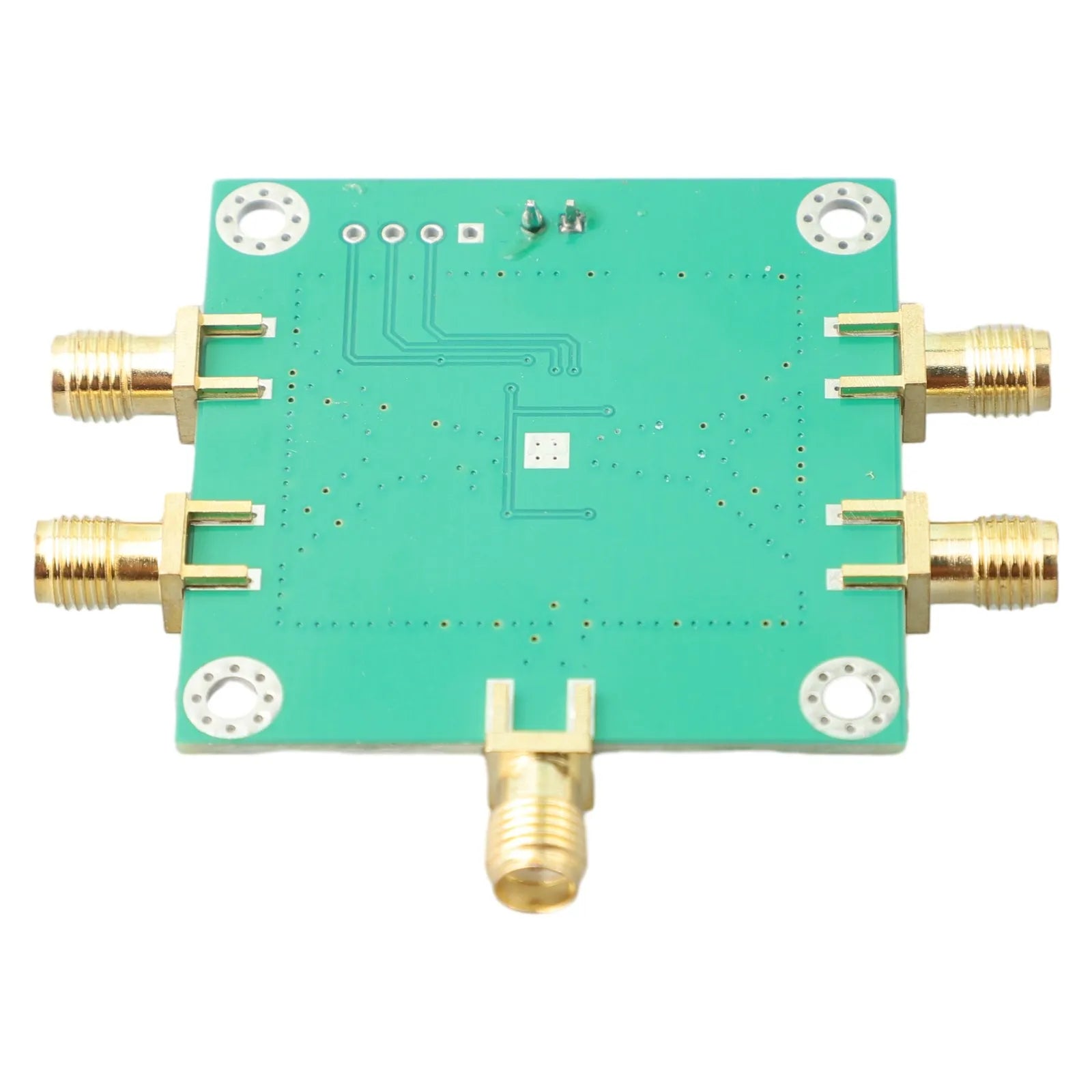

1pcs x RF Mixer

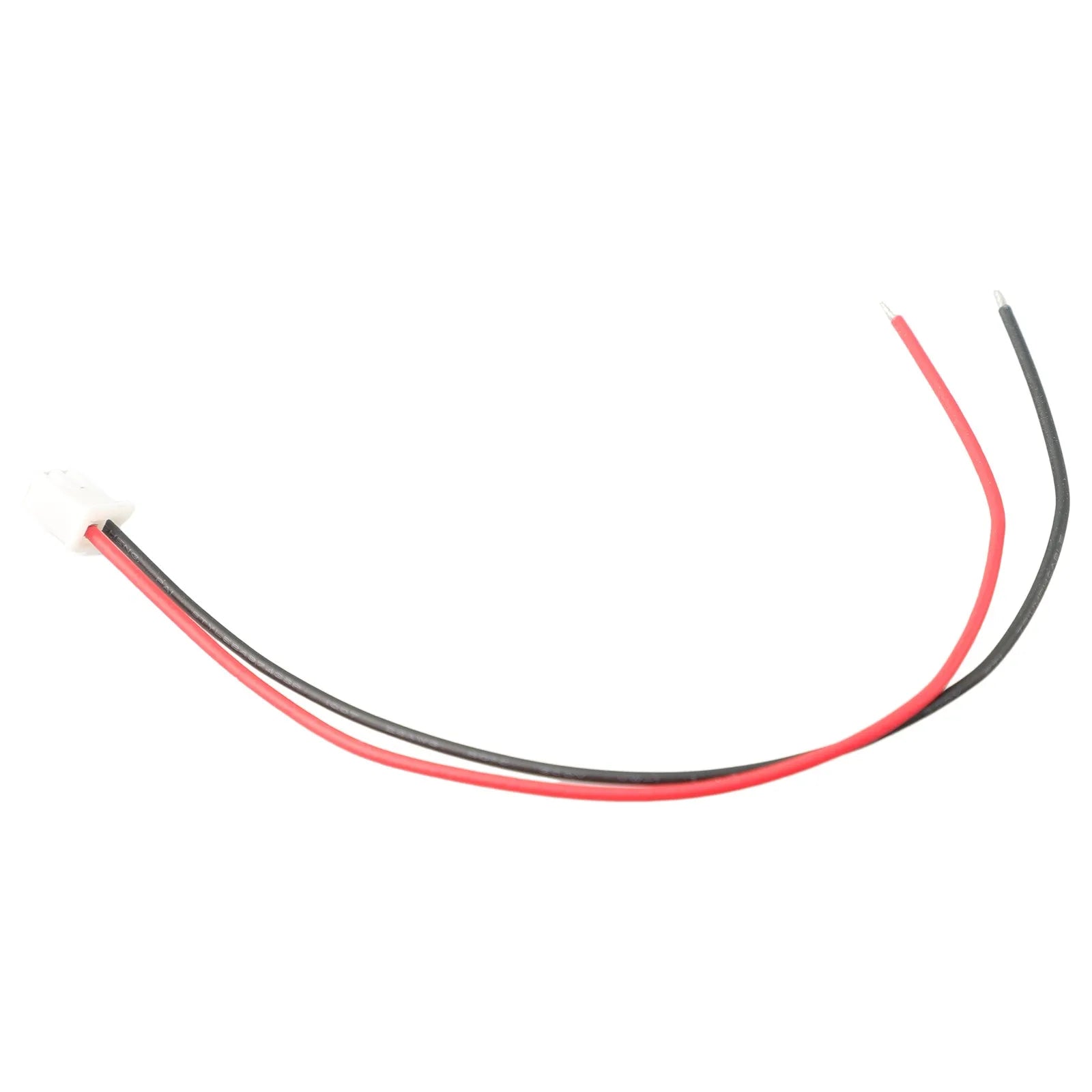

1pcs x Cable

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
