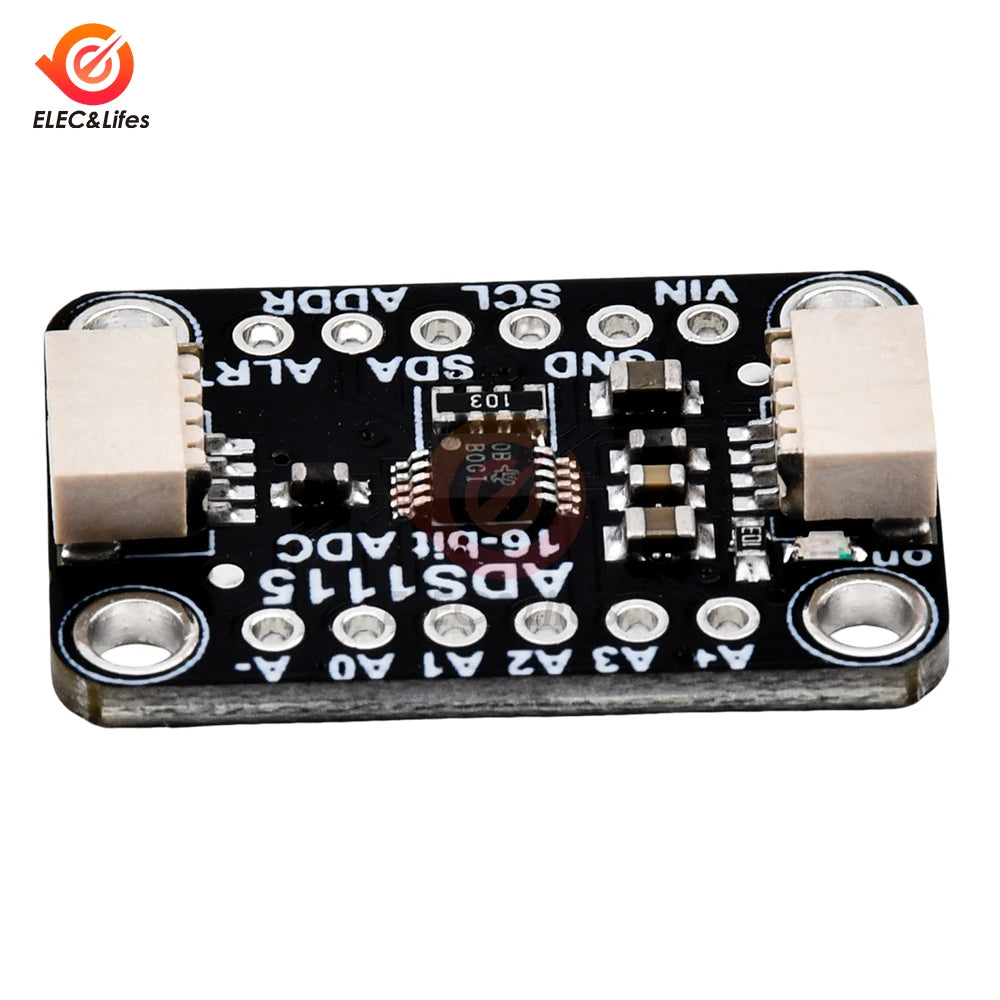

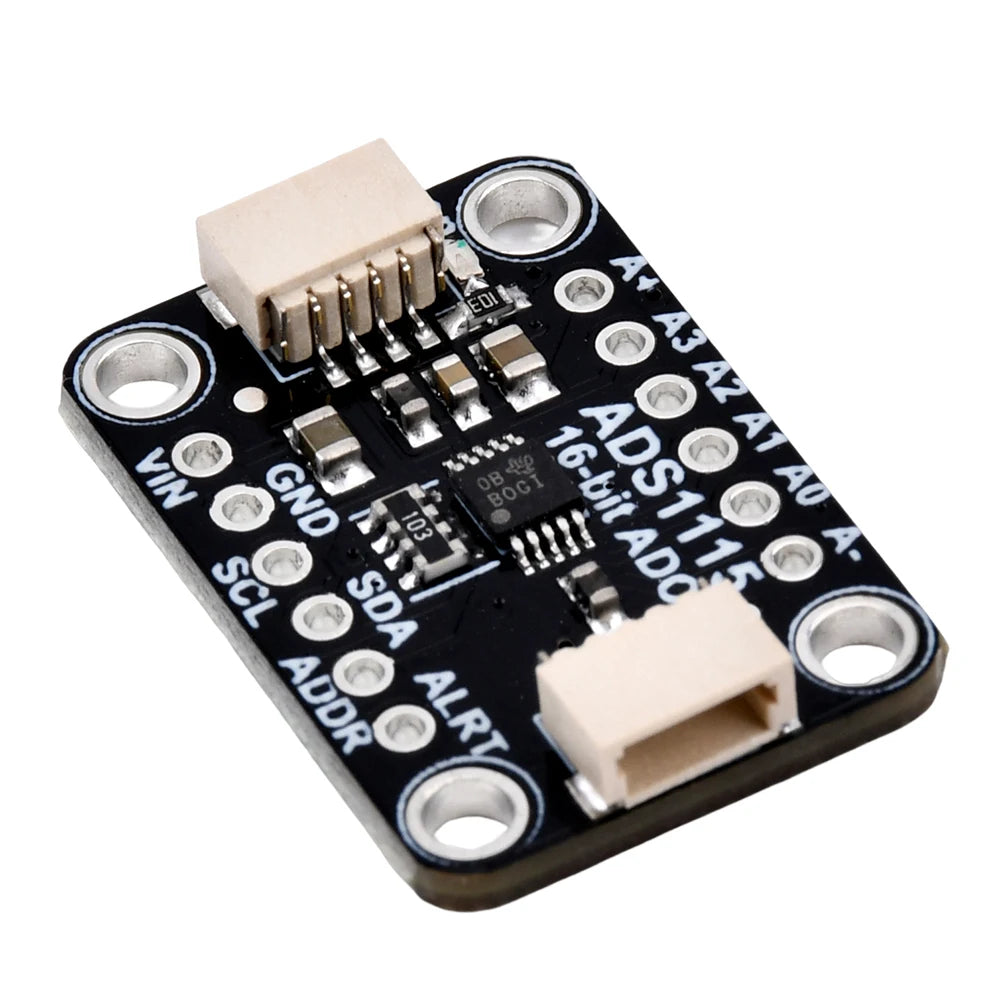

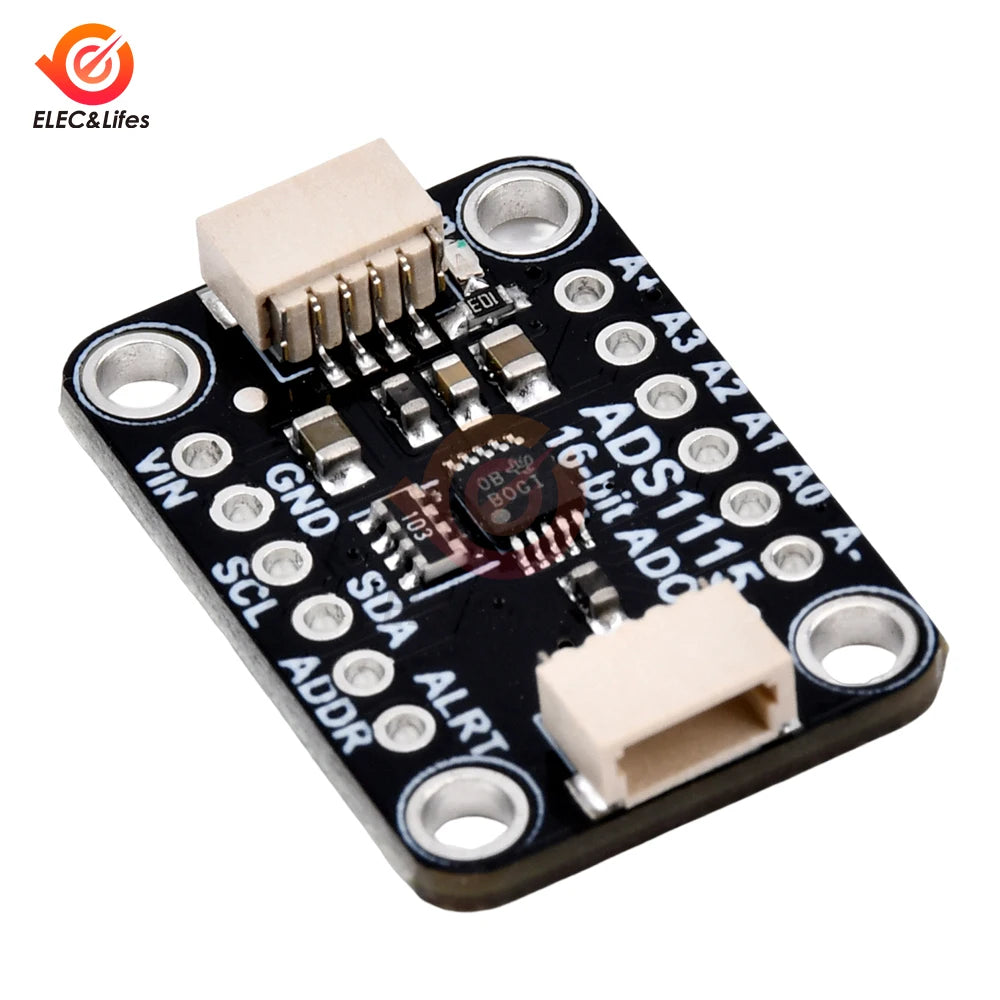

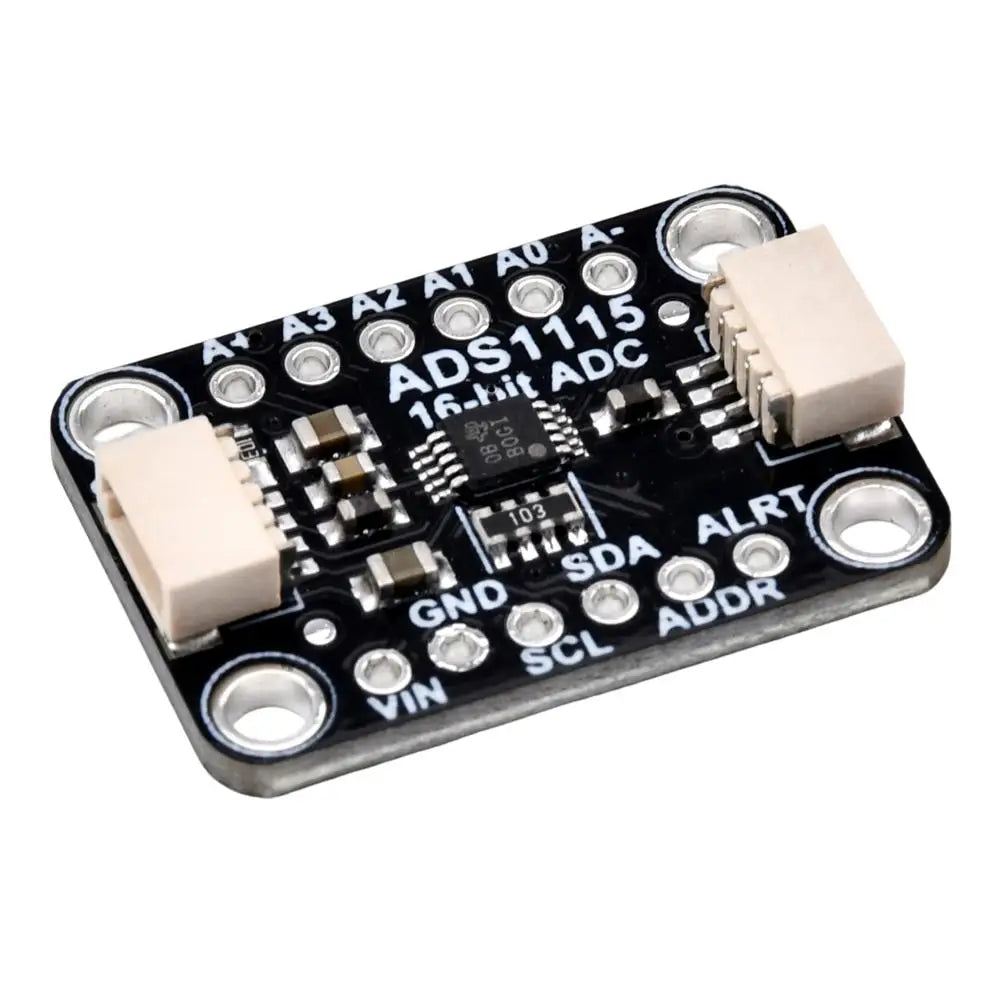

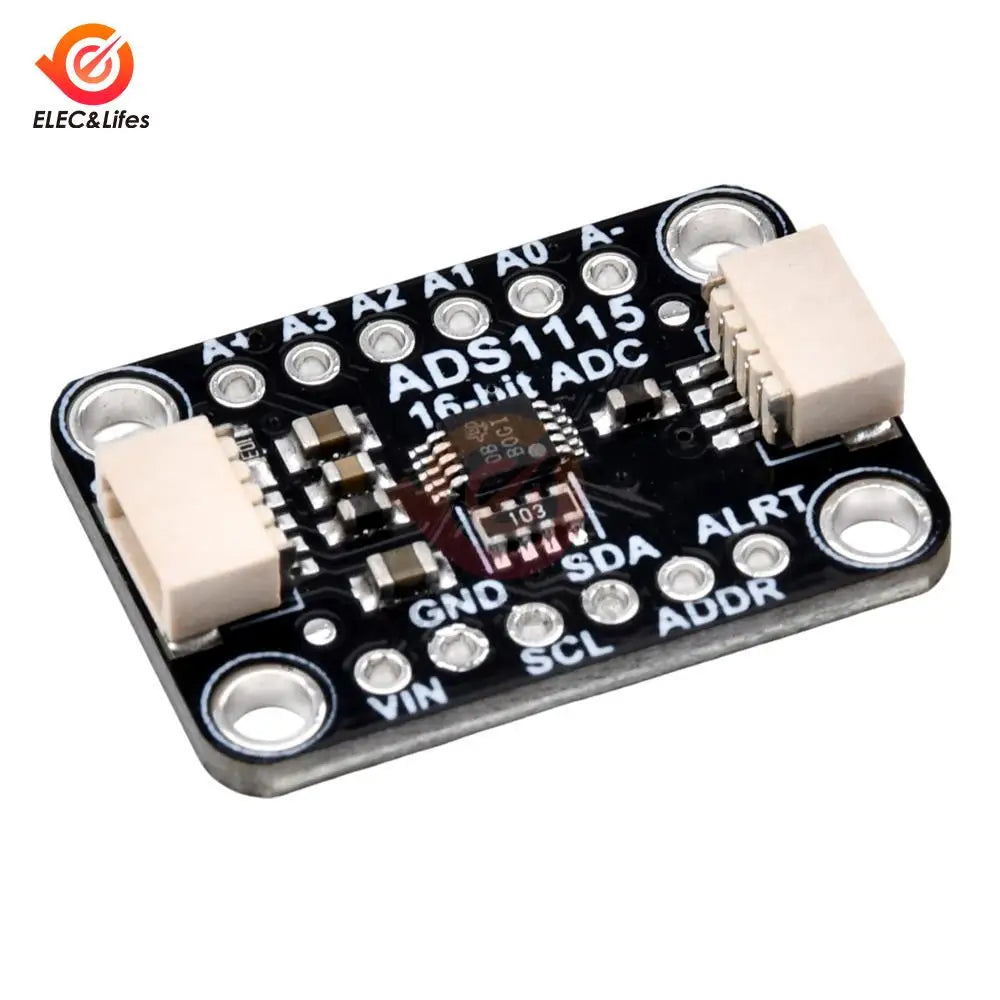

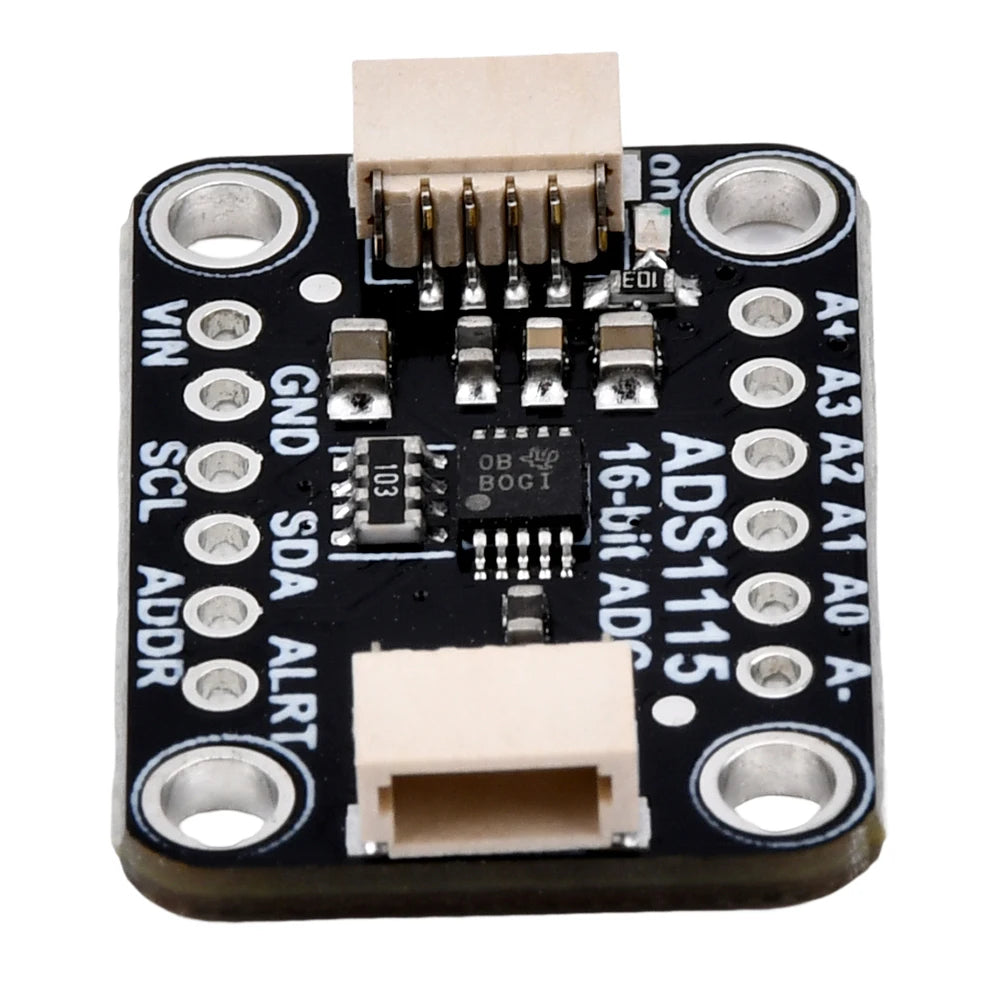

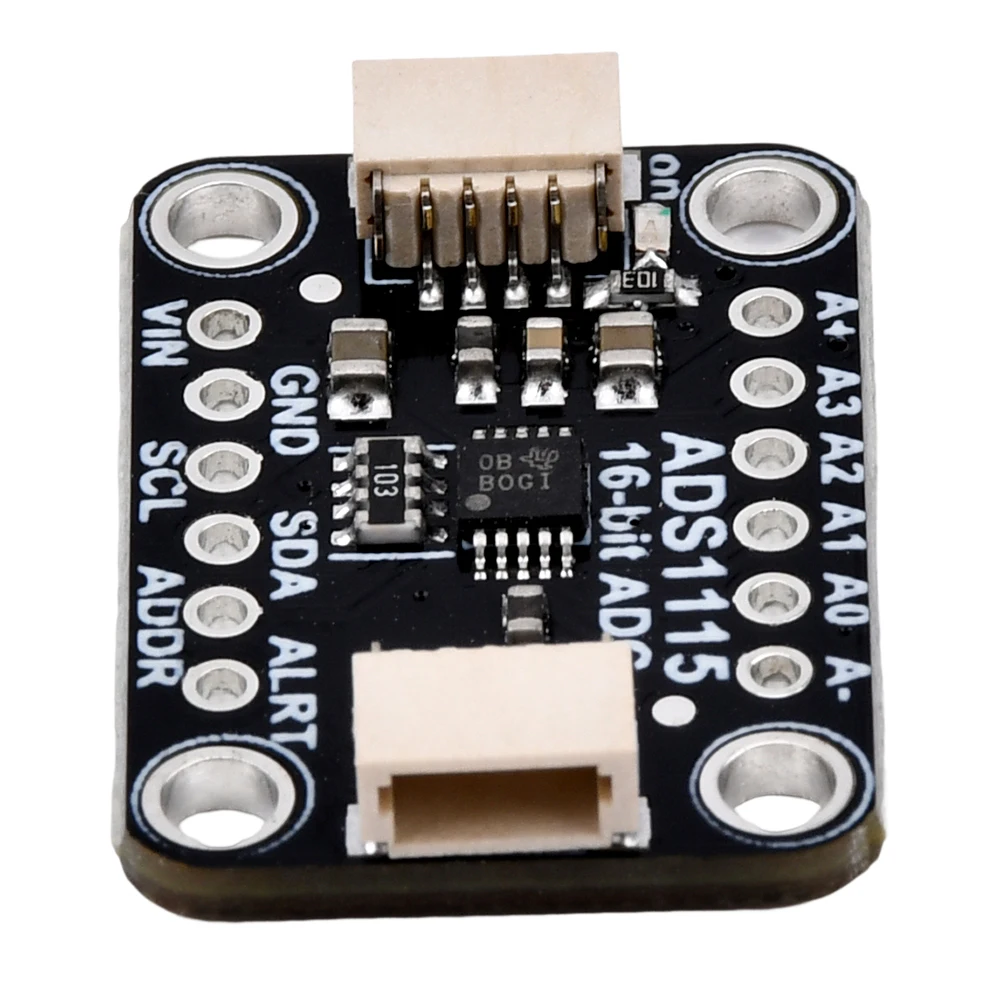

ADS1115 16 Bit I2C Module Precision ADC 4 Channel Development Board Pro Gain Amplifier 2.0V to 5.5V for Arduino Raspberry Pie

ADS1115 16 Bit I2C Module Precision ADC 4 Channel Development Board Pro Gain Amplifier 2.0V to 5.5V for Arduino Raspberry Pie

$19.13

$19.13 $0.00

Description

SPECIFICATIONS

Brand Name: Aideepen

Certification: NONE

Choice: yes

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: none

Material: Plastic

Model Number: ADS1115 16 Bit I2C Module

Origin: Mainland China

Output Voltage: 2.0-5.5V

Size: 2.50cm*1.80cm*0.50cm

Style: ADS1115 16 Bit I2C Module

Type: ADS1115 16 Bit I2C Module

semi_Choice: yes

Product features:
Easy to operate,
Widely used,
Safe and reliable,
It is very easy to use and operate;
Save operating time and effort

Product features:
The ADS1115 A/D converter provides high-precision, 16-bit accuracy through I2C at a speed of 860 samples per second.
The chip can be configured with 4 single ended input channels or 2 differential channels.
It includes a programmable gain amplifier up to x16 to help elevate smaller single/differential signals to the entire range
It can operate within the power/logic range of 2V to 5V, can measure a wide range of signals, and is very easy to use.
Product parameters:
Power supply: 2.0-5.5V
Analog channel: 4 channels
Low current consumption: 150 µ A single mode
Data rate: 8 to 860 SPS
Interface: I2C 7-bit address between 0x48-0x4B

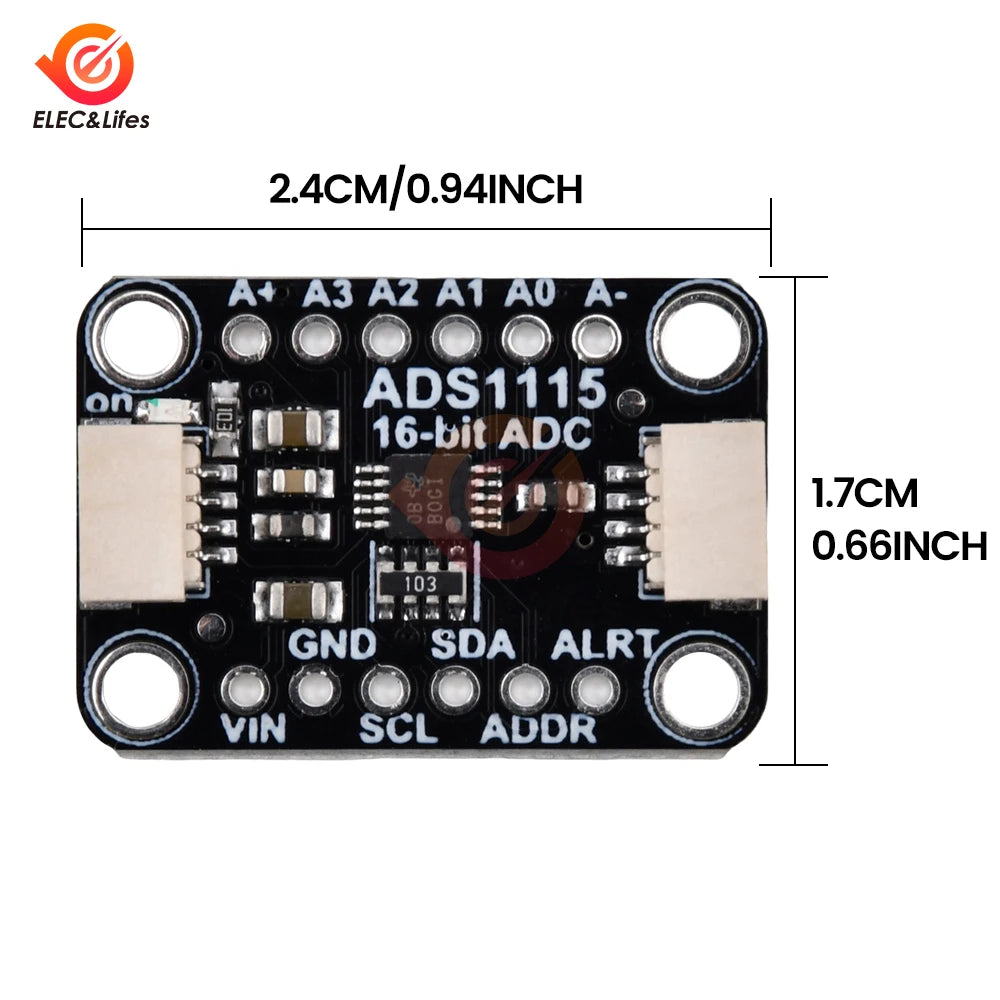

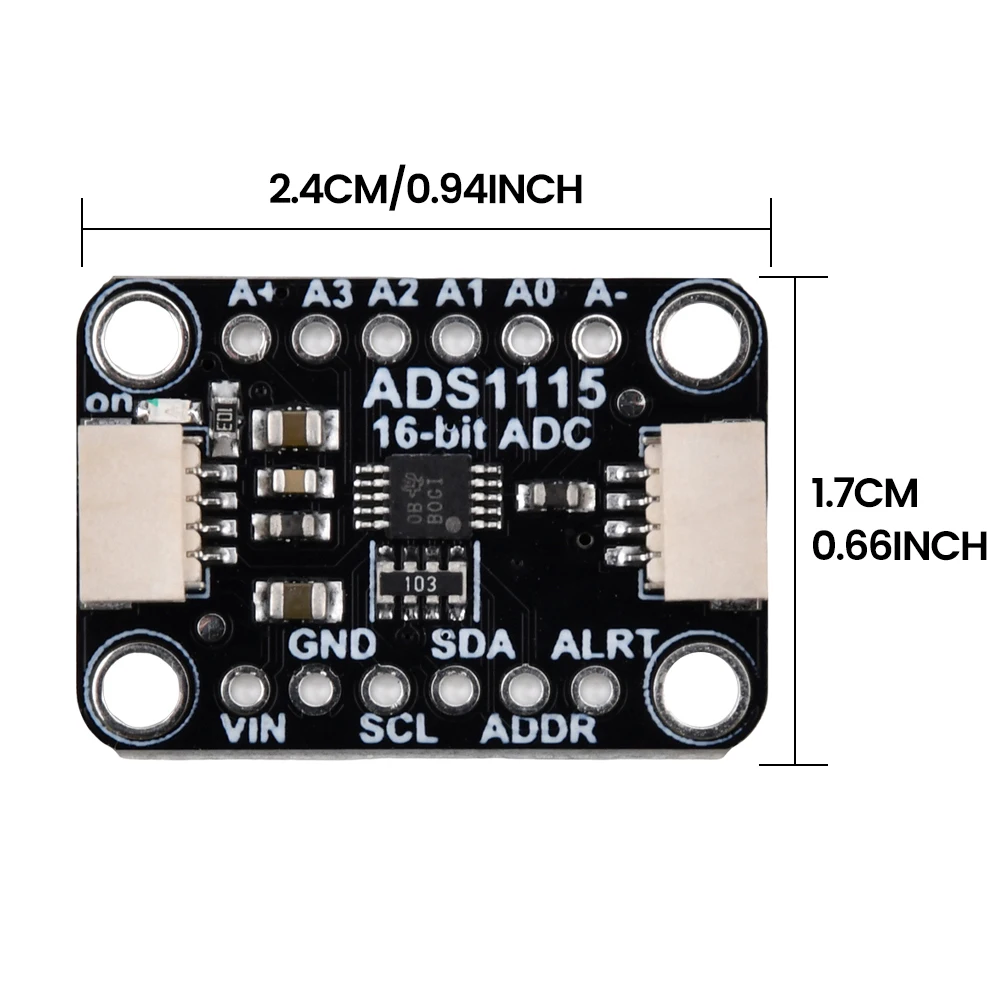

Size: 25.2 x 17.8 mm

Product Description:

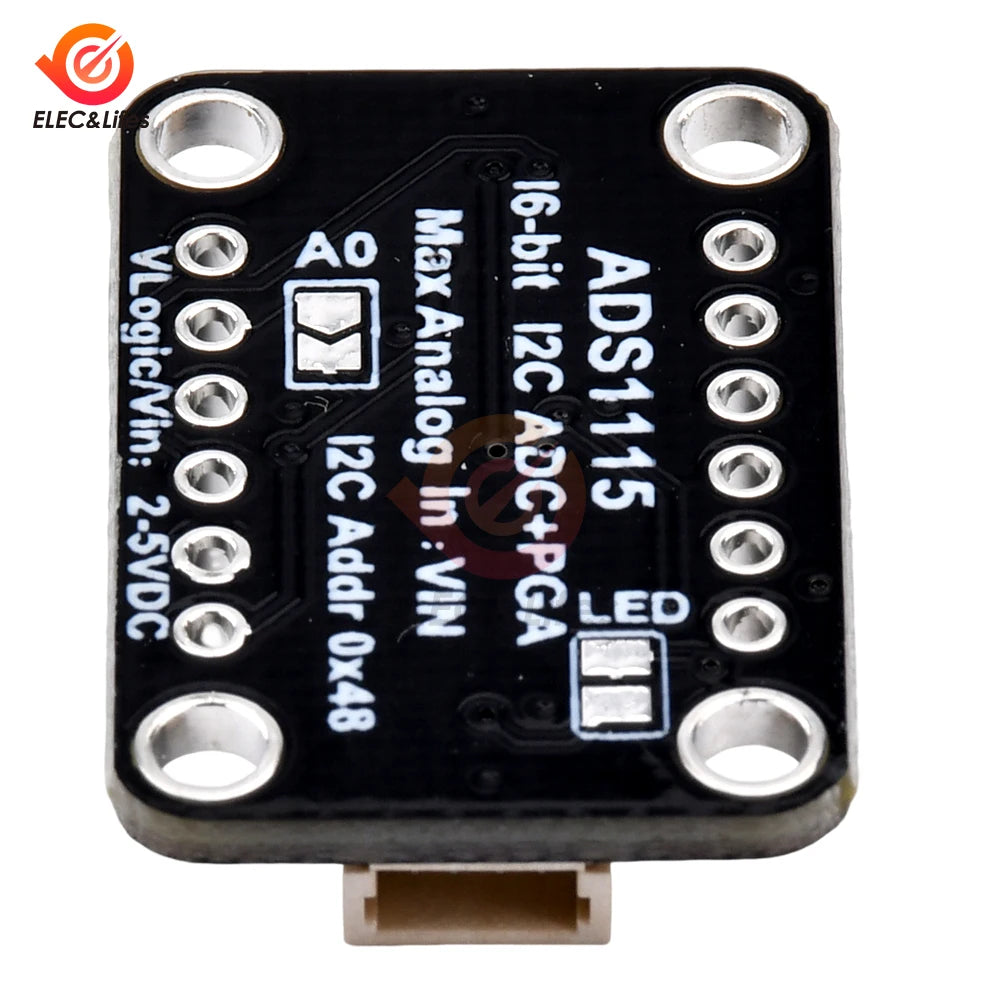

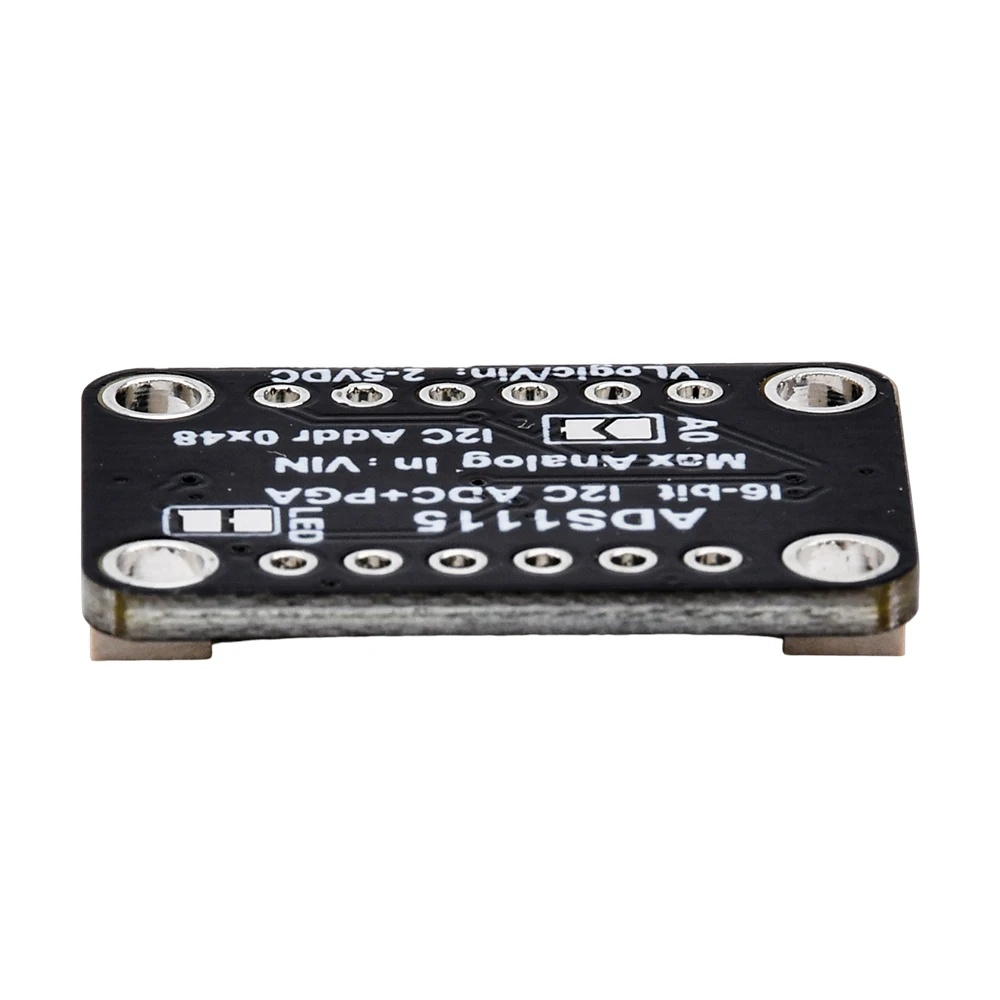

The ADS11x5 chip has a basic 7-bit I2C address 0x48 (1001000) and a clever addressing scheme that allows four different addresses to use only one address pin (called ADR for ADDress). To program the address, connect the address pins as follows:
0x48 (1001000) ADR - Ground
0x49 (1001001) ADR - VDD
0x4A (1001010) ADR-SDA
0x4B (1001011) ADR-SCL

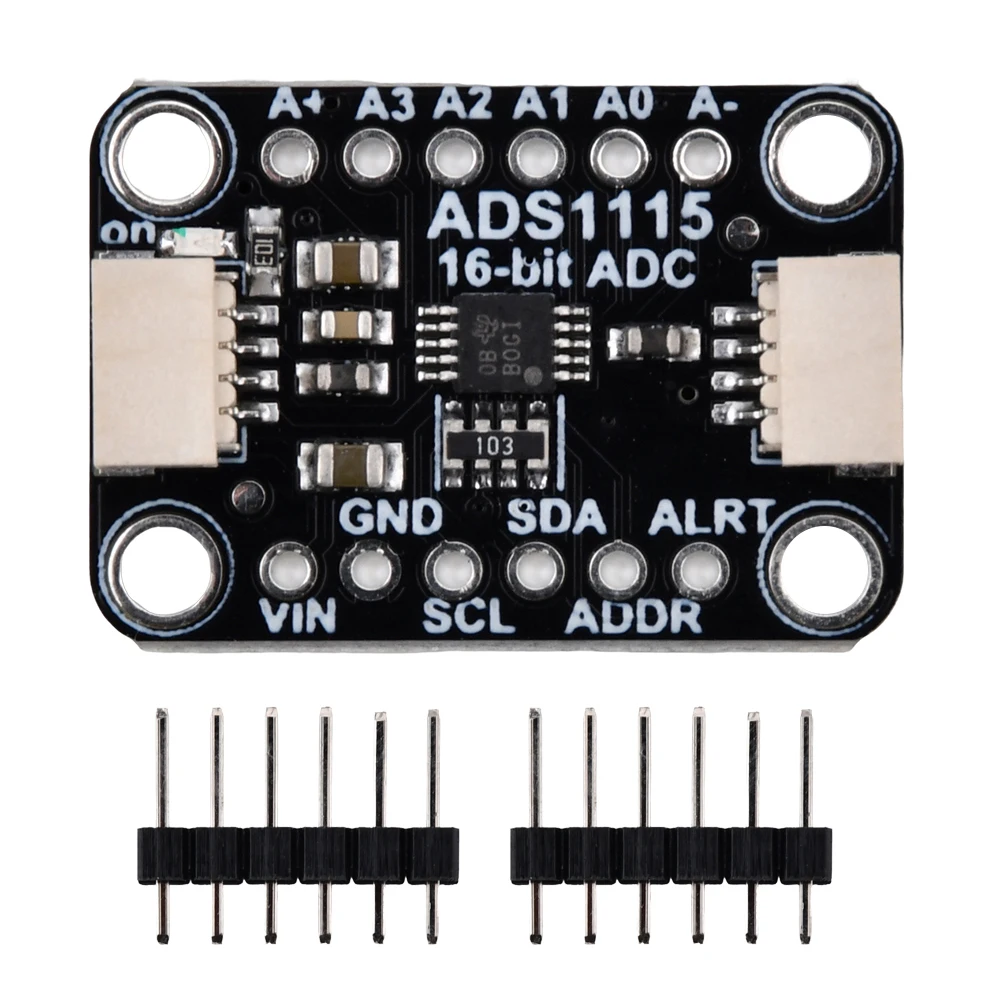

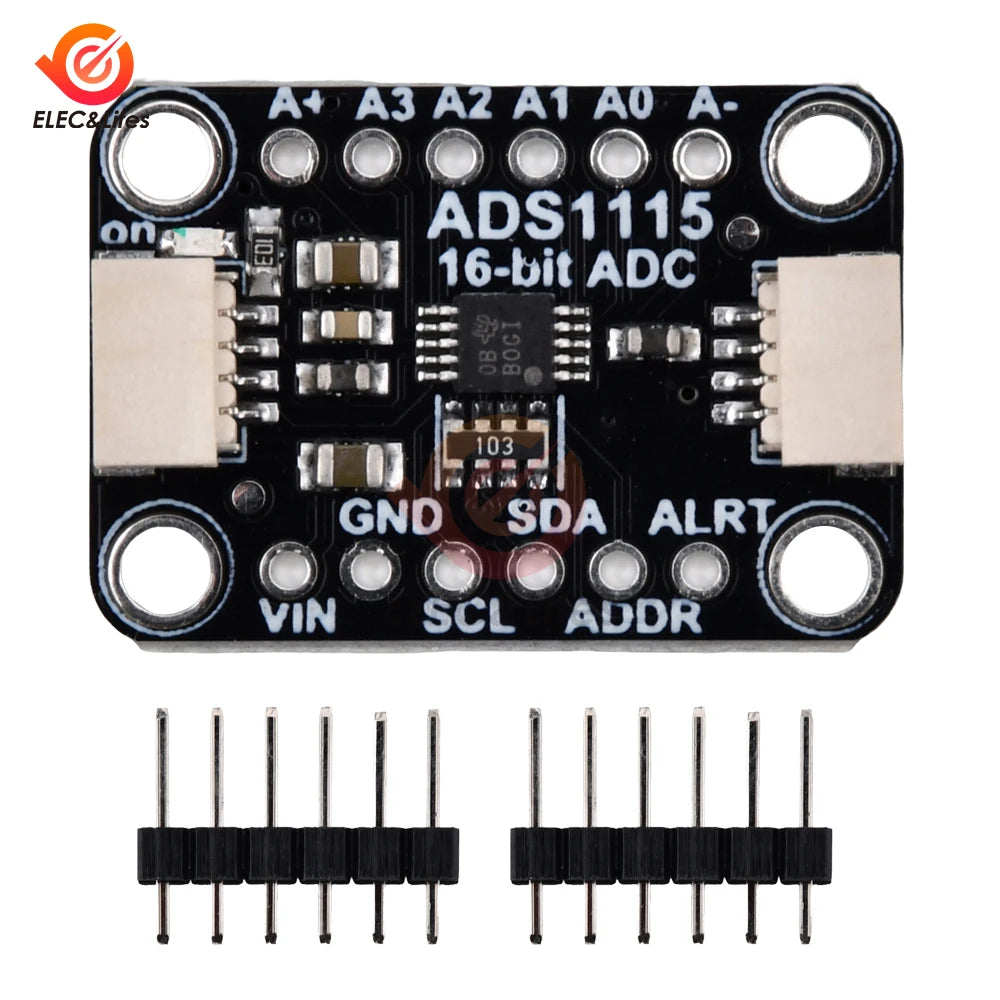

Product List:
1 x ADS1115 A/D converter

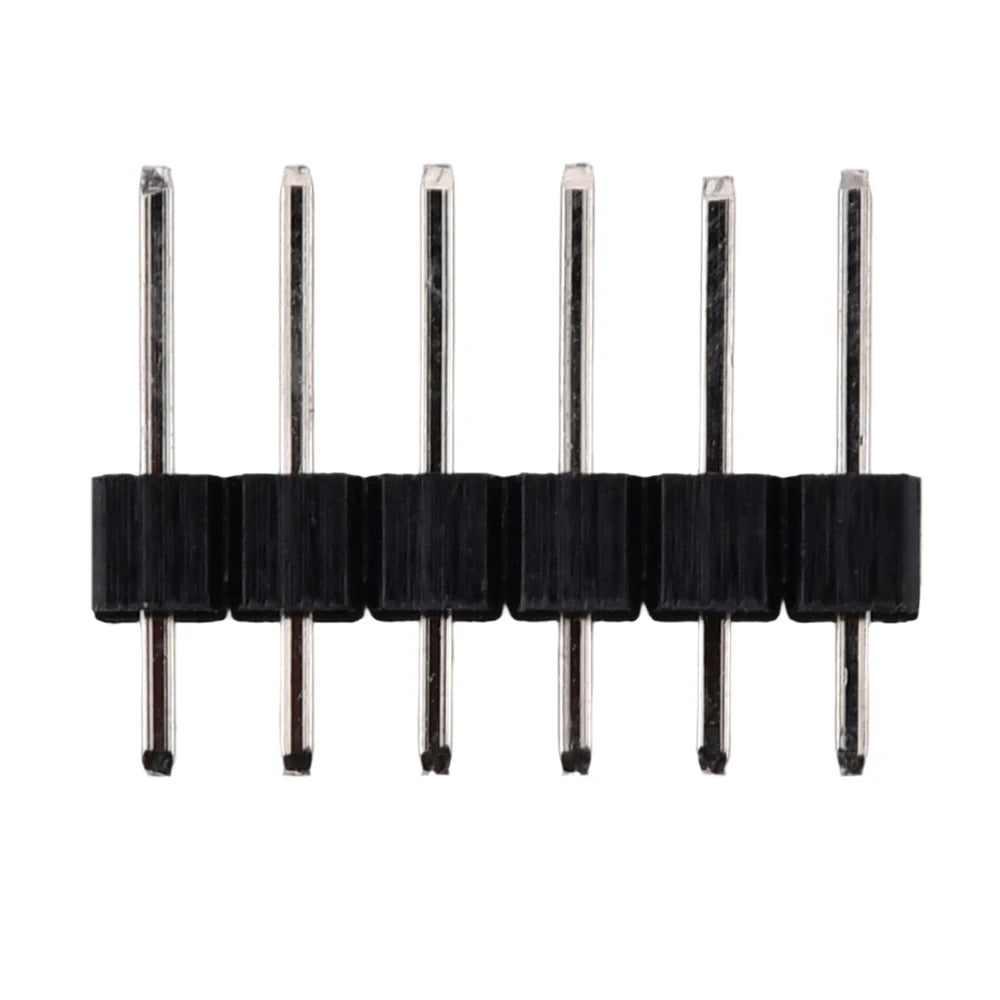

2 x 6P pin arrangement
