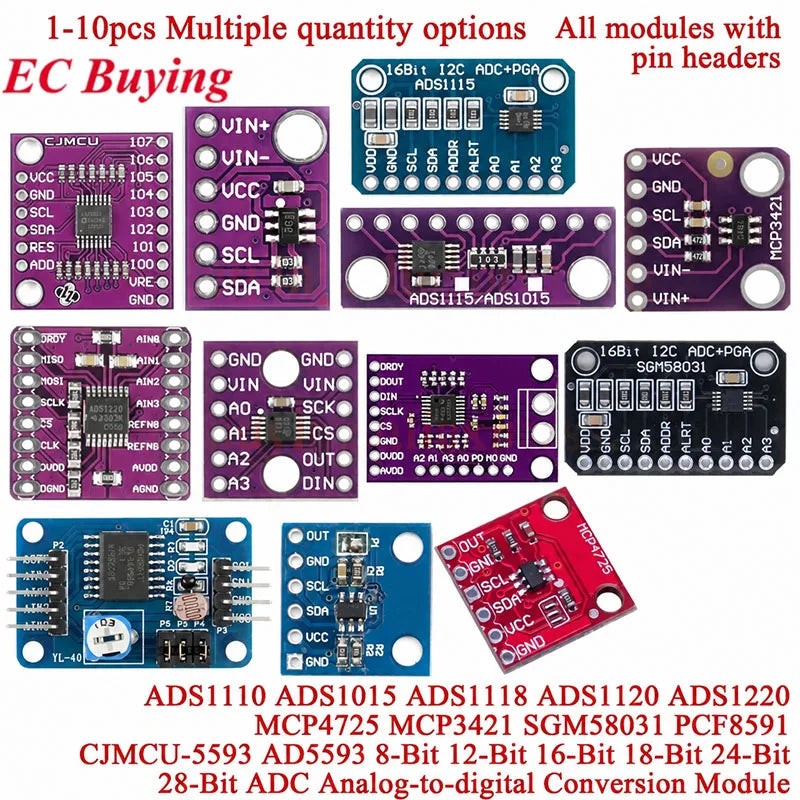

ADS1115 ADS1015 MCP4725 AD5593 ADS1110 ADS1118 ADS1120 ADS1220 MCP3421 SGM58031 PCF8591 Analog-to-Digital Breakout Board Module

ADS1115 16Bit Purple / 5pcs

$28.40

Sale price $28.40 Regular price $0.00

Skip to product information

ADS1115 ADS1015 MCP4725 AD5593 ADS1110 ADS1118 ADS1120 ADS1220 MCP3421 SGM58031 PCF8591 Analog-to-Digital Breakout Board Module

ADS1115 ADS1015 MCP4725 AD5593 ADS1110 ADS1118 ADS1120 ADS1220 MCP3421 SGM58031 PCF8591 Analog-to-Digital Breakout Board Module

$28.40

Sale price $28.40 Regular price $0.00

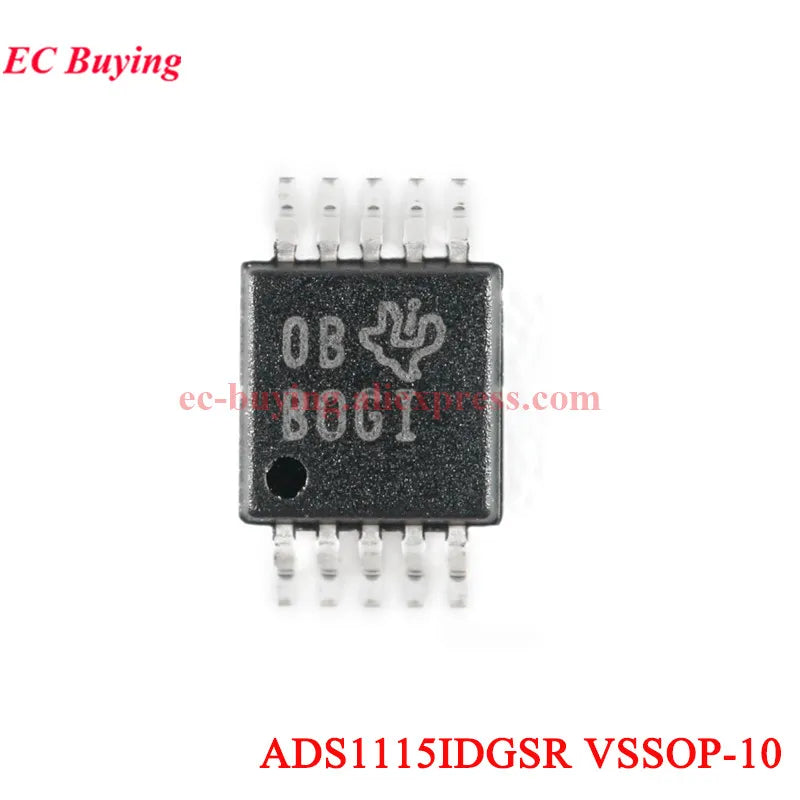

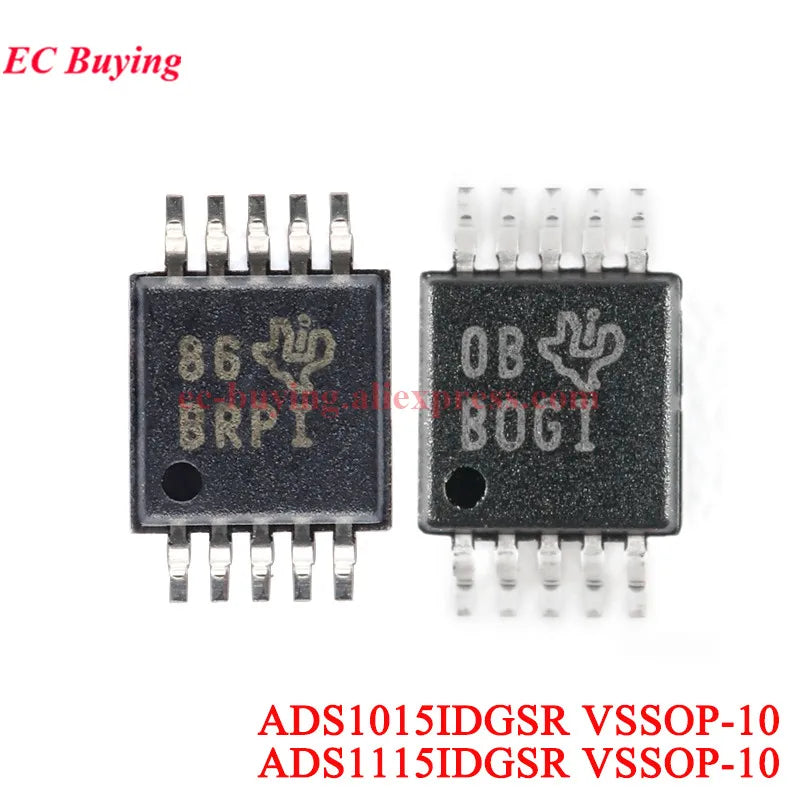

Color ADS1115 16Bit Purple PCF8591 8Bit SGM58031 16Bit ADS1015 12Bit Blue ADS1115 16Bit Blue PCF8591 8Bit Big PCB ADS1015 12Bit Purple ADS1110 16Bit MCP3421 18Bit ADS1115IDGSR IC ADS1015IDGSR IC ADS1118 16Bit ADS1120 16Bit ADS1220 24Bit MCP4725 12bit Red MCP4725 12bit Blue AD5593 12bit

Model Number 5pcs 10pcs 2pcs 1pc

Description

SPECIFICATIONS

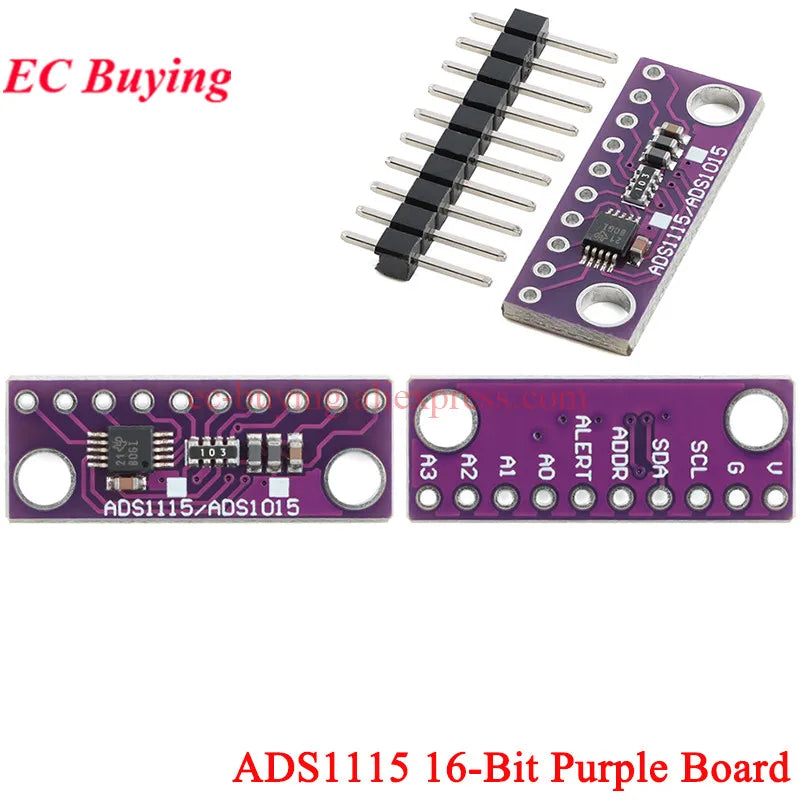

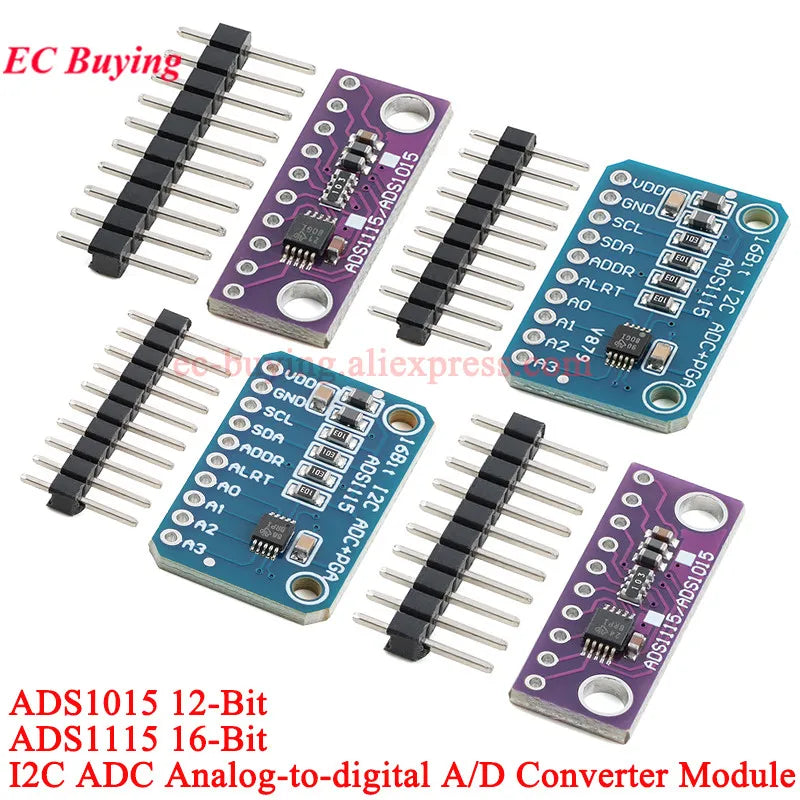

16 12 Bit I2C ADS1115 ADS1015 Module: ADC 4 channel Pro Gain Amplifier A/D Converter for Arduino RPi Development Board

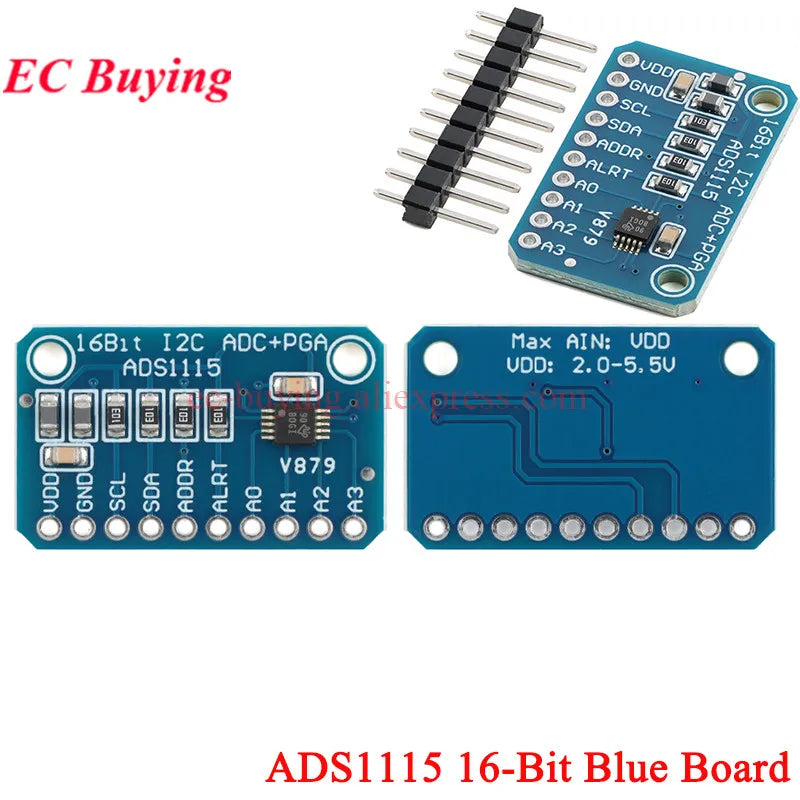

16 Bit I2C ADS1115 ADS1015 Module: ADC 4 channel with Pro Gain Amplifier 2.0V to 5.5V for Arduino RPi

4725 MCP4725 I2C DACmodule development board: MCP4725 I2C DAC Breakout Module Development Board For Arduino

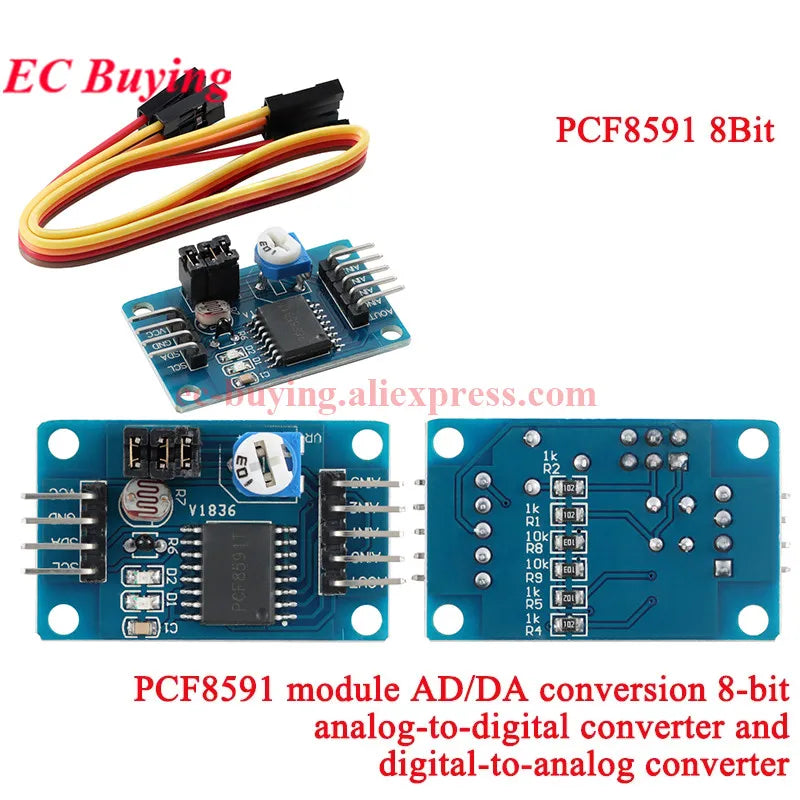

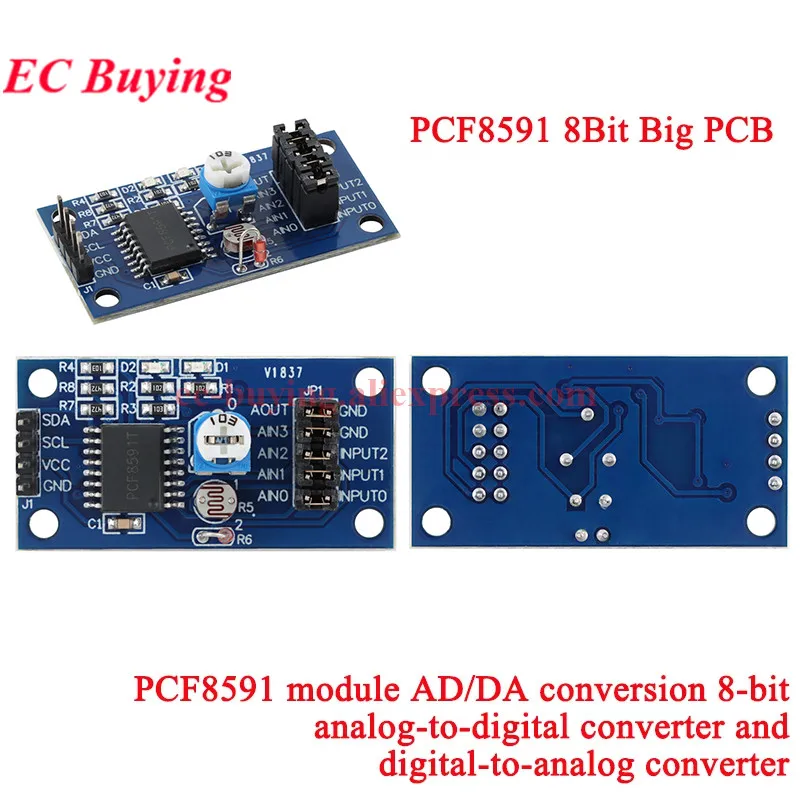

8Bit 12Bit 16Bit 18Bit 24Bit 28Bit: PCF8591 module AD/DA conversion 8-bit analog-to-digital converter and digital-to-analog converter

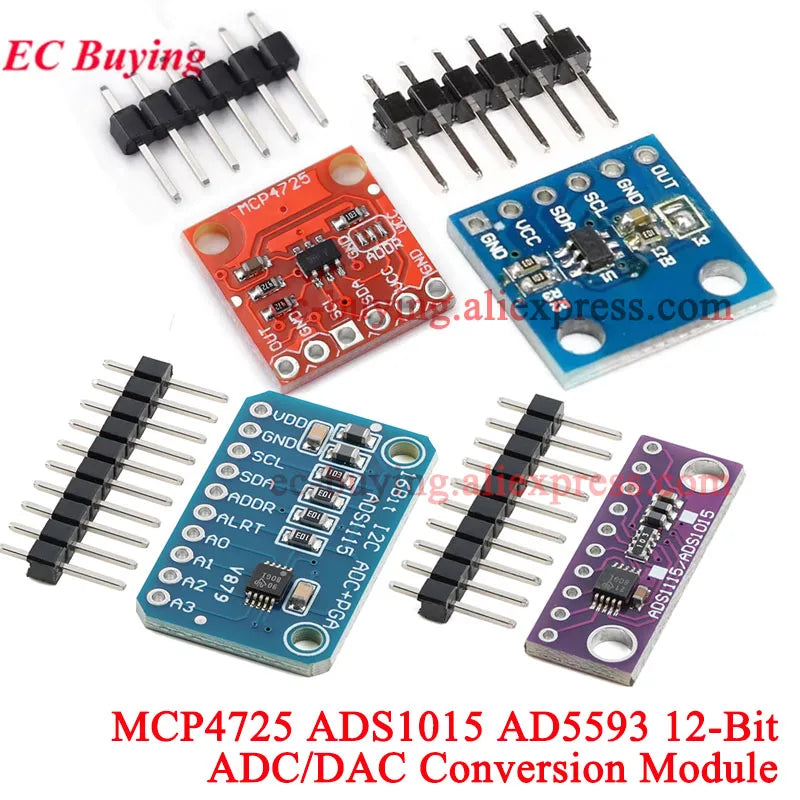

AD5593 MCP4725 ADS1015 ADC/DAC: 12-Bit Analog-to-Digital Converter Converter Board Module,12-Bit Analog to Digital Converter Converter Board Module ADS1110 ADS1120 ADS1118 16bit

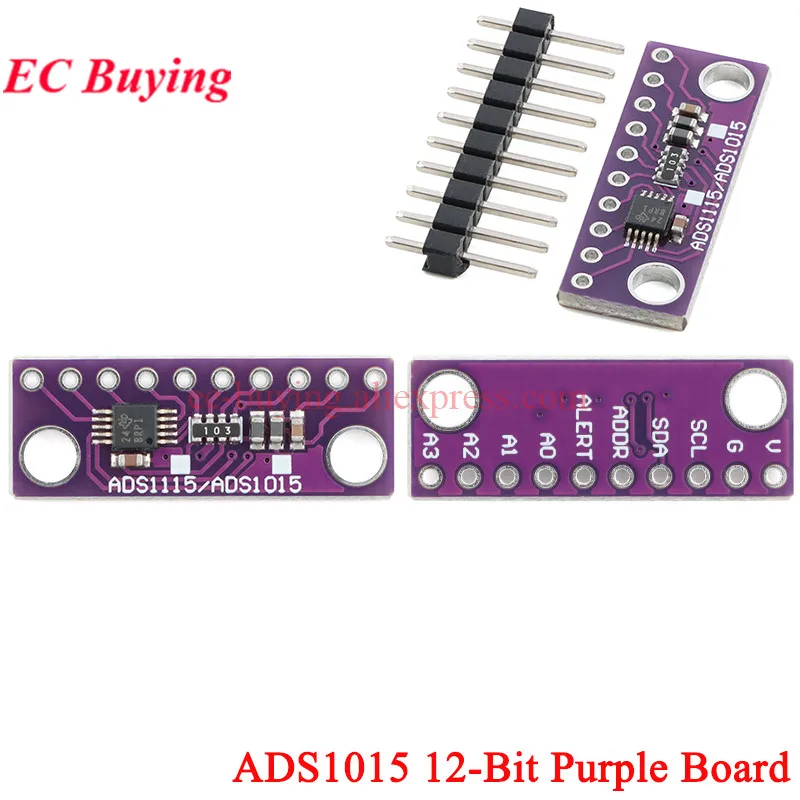

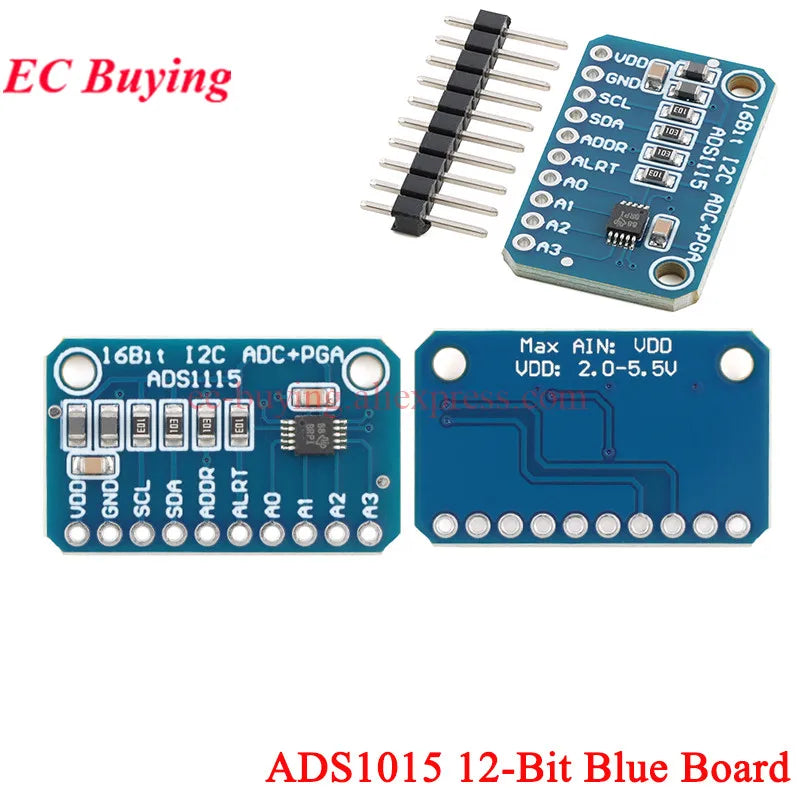

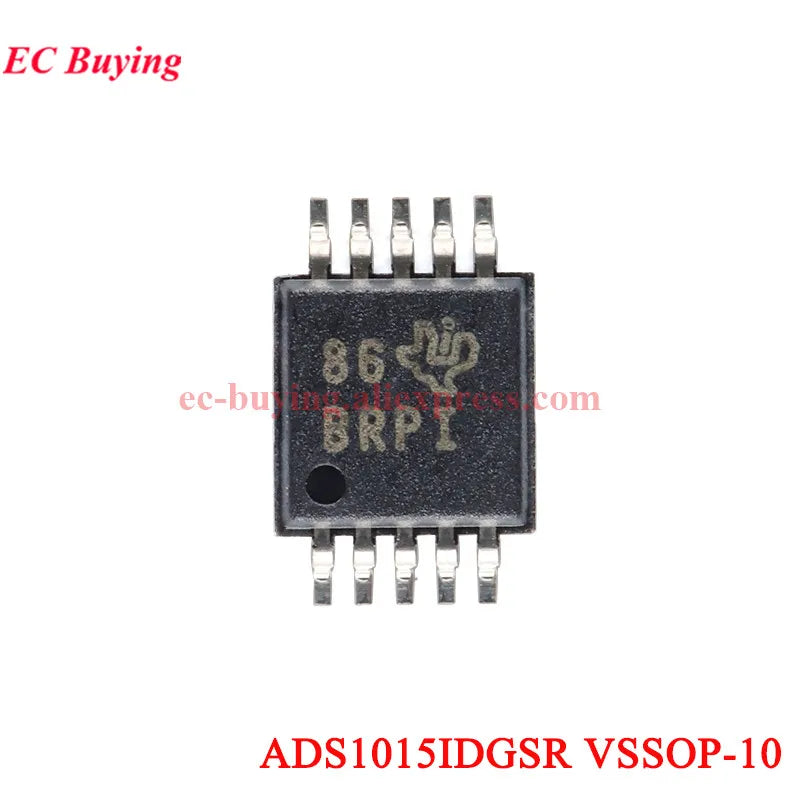

ADS1015 12-bit ADC Analog to Digital Converter: Development Board Module 2-5.5v for Arduino

ADS1015 ADC Module 12 Bit I2C IIC For Arduino: 3.3V 5V Precision Analog-to-Digital Converter Development Board

ADS1015 ADC analog-to-digital: conversion module 12-bit analog-to-digital A/D converter module

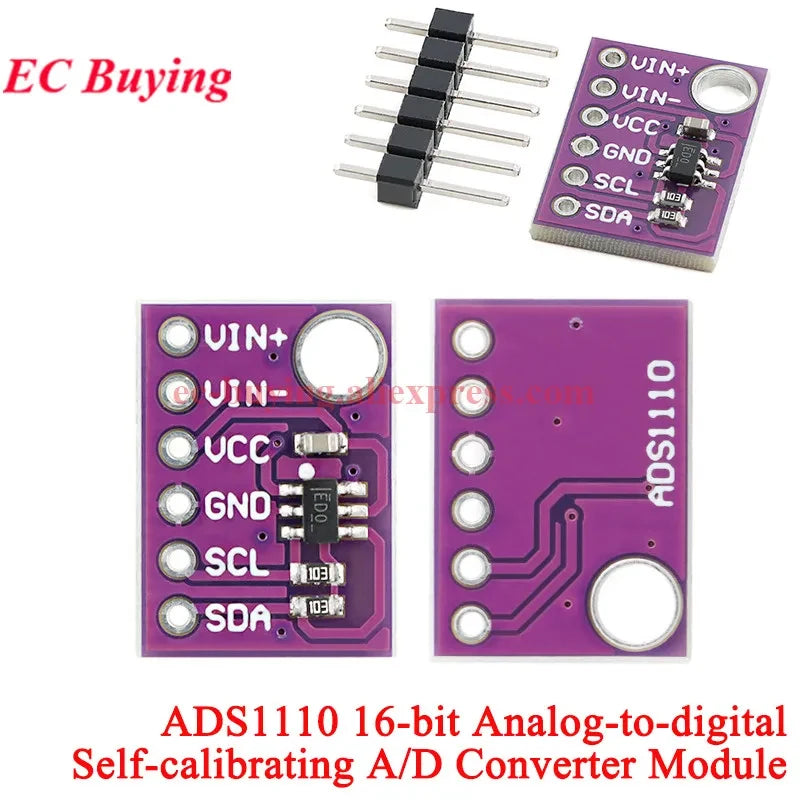

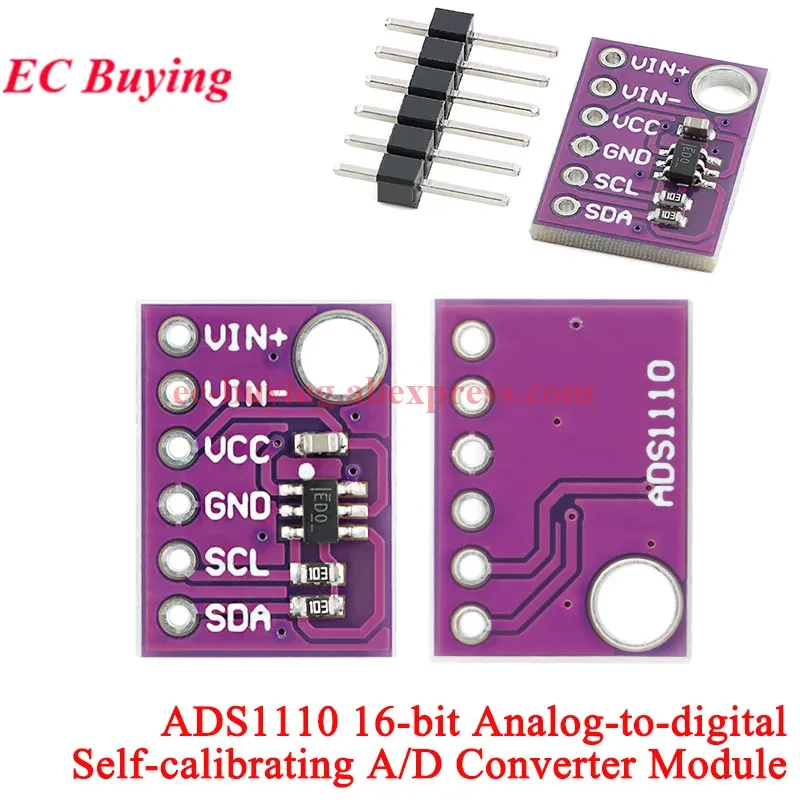

ADS1110 ADS1015 ADS1118: ADS1120 ADS1220 MCP4725 MCP3421 SGM58031 PCF8591

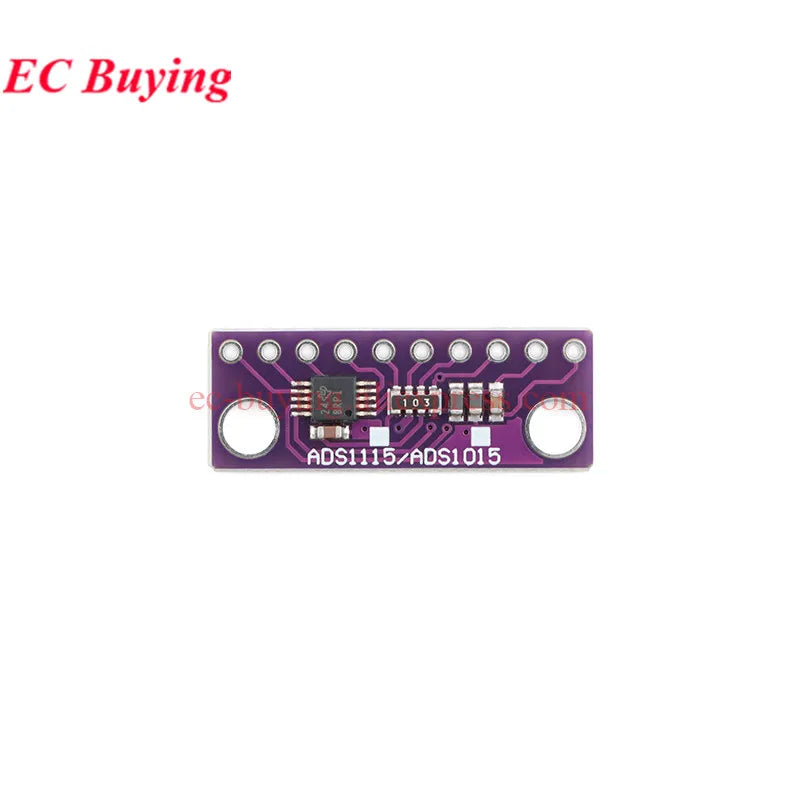

ADS1115 16-bit: 860SPS 4-channel ADC analog-to-digital conversion module

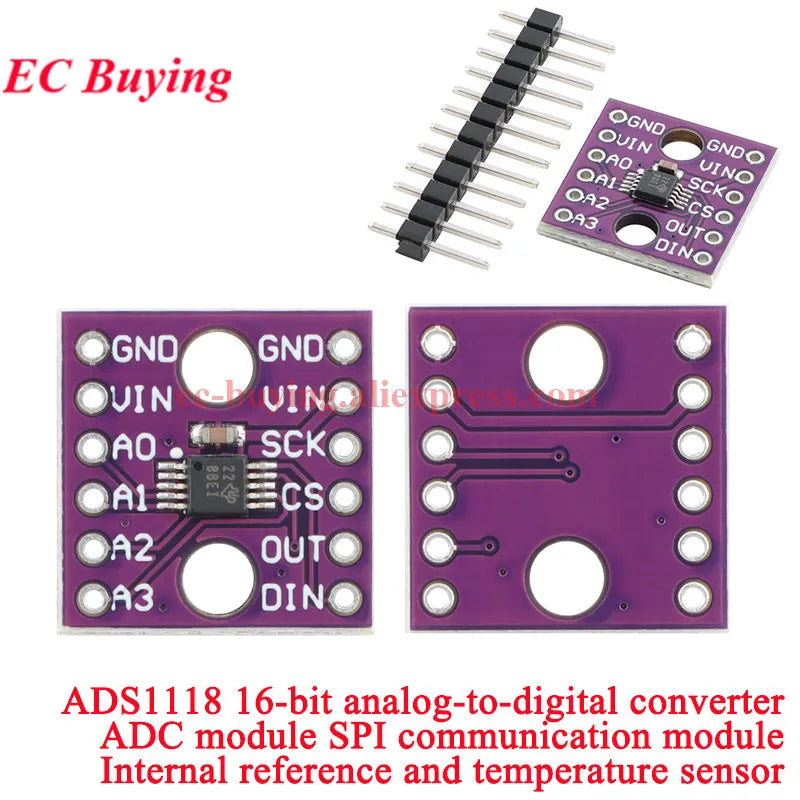

ADS1118 16-bit analog-to-digital converter: ADC module SPI communication module Internal reference and temperature sensor

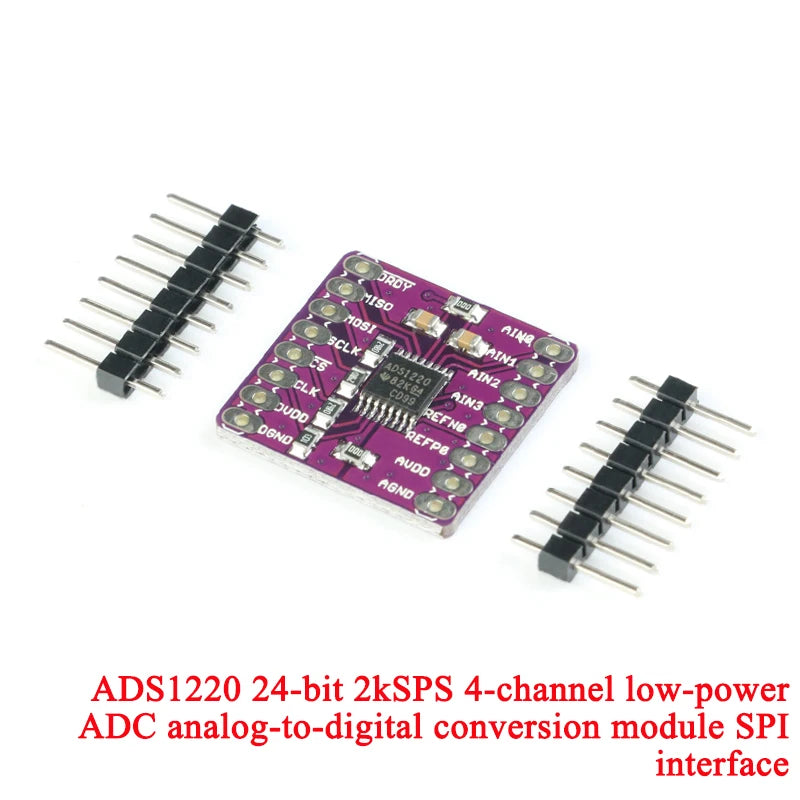

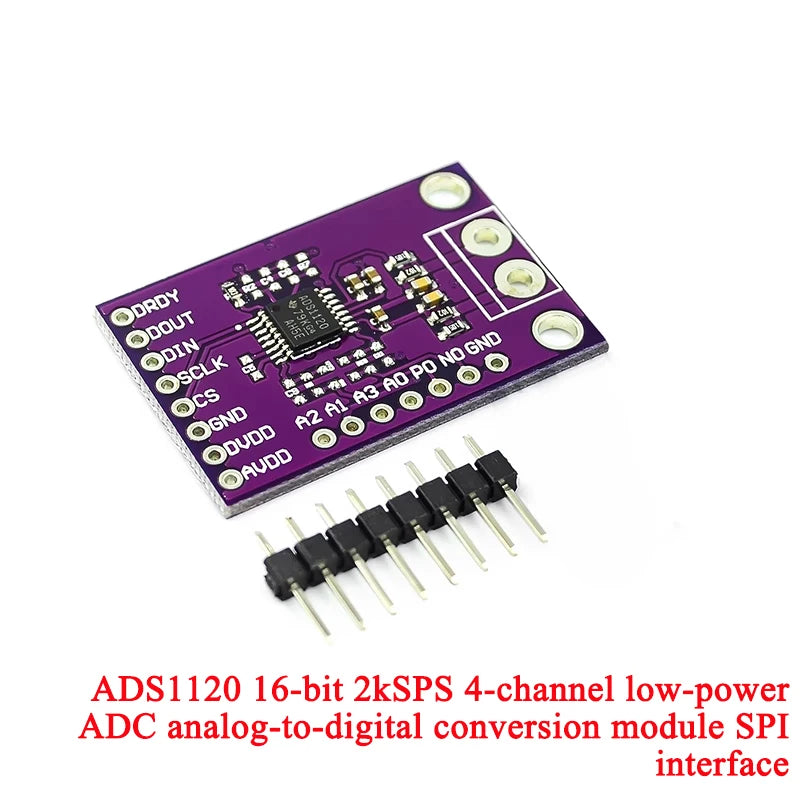

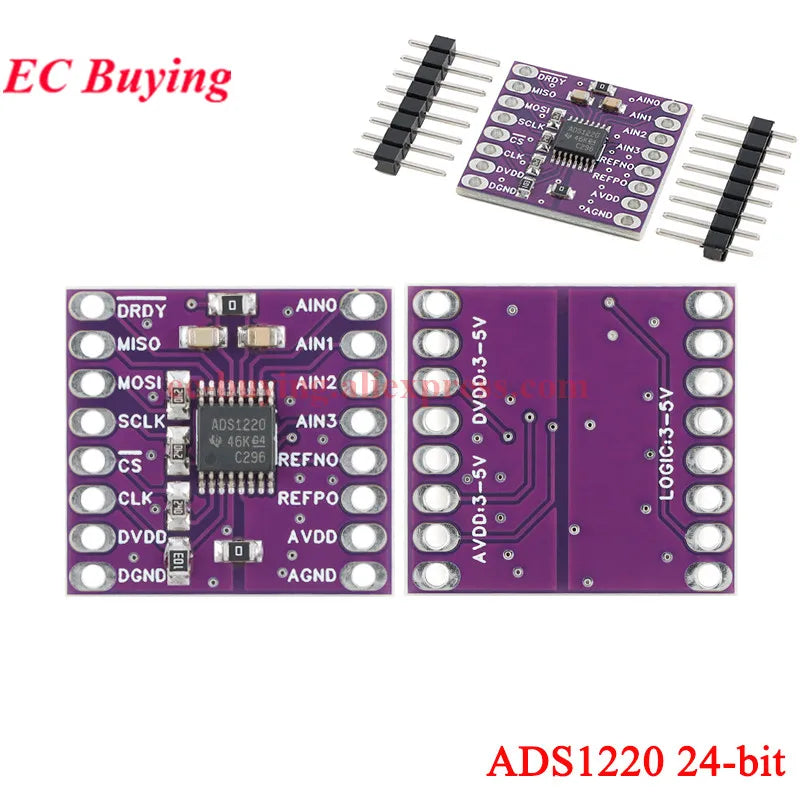

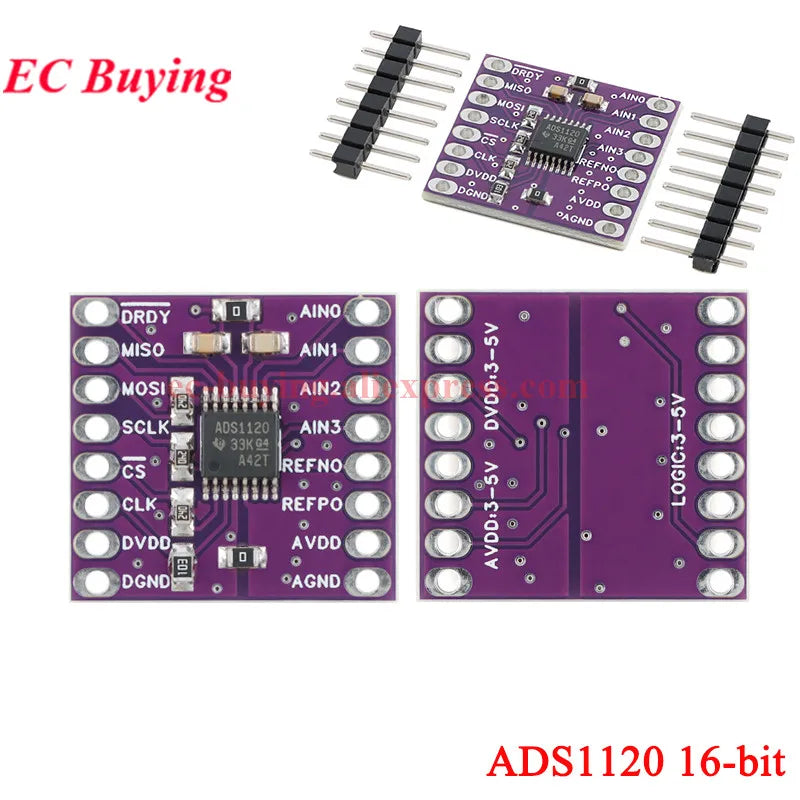

ADS1120 ADS1220 16-bit 2kSPS: 4-channel low-power ADC analog-to-digital conversion module SPI interface

Application: Computer

Brand Name: EC Buying

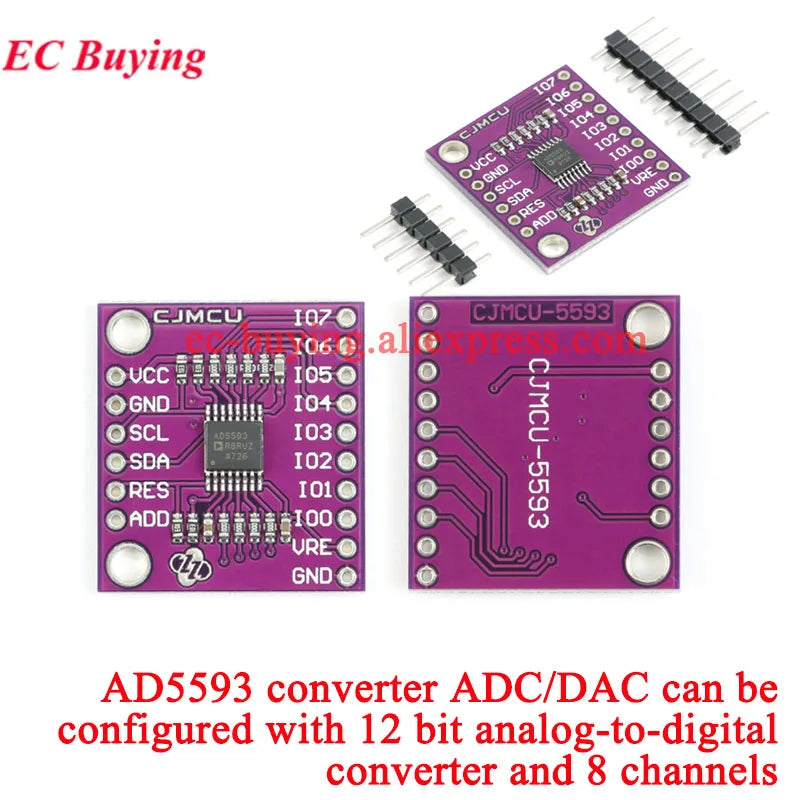

CJMCU-5593 AD5593 8-Bit 12-Bit 16-Bit: 18-Bit 24-Bit 28-Bit ADC Analog-to-digital Conversion Module

Condition: New

Dissipation Power: low

High-concerned chemical: none

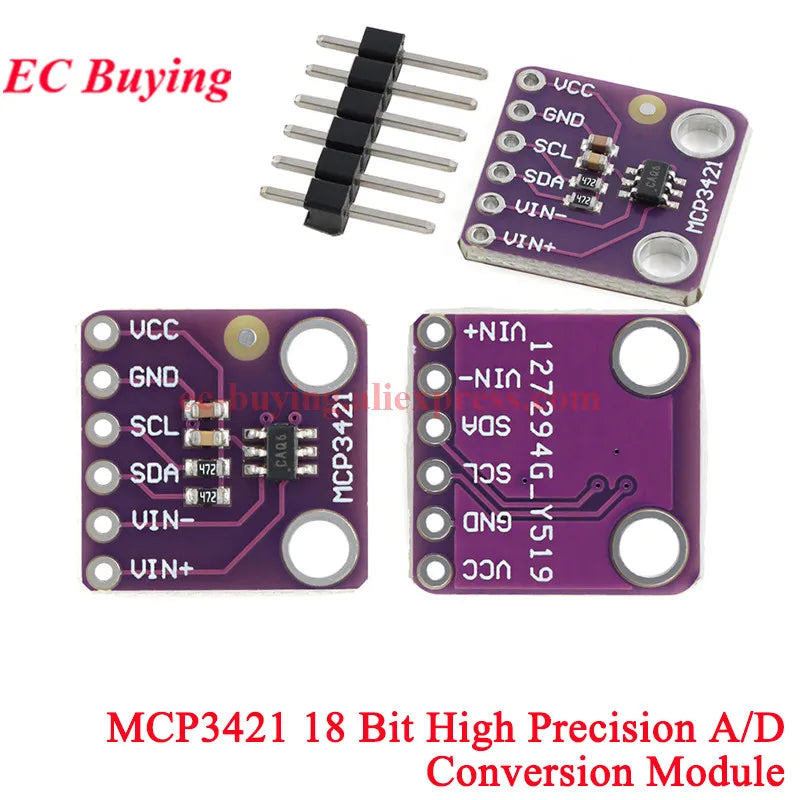

MCP3421 module 18-bit analog-to-digital: conversion ADC module I2C interface MCP3421A0T

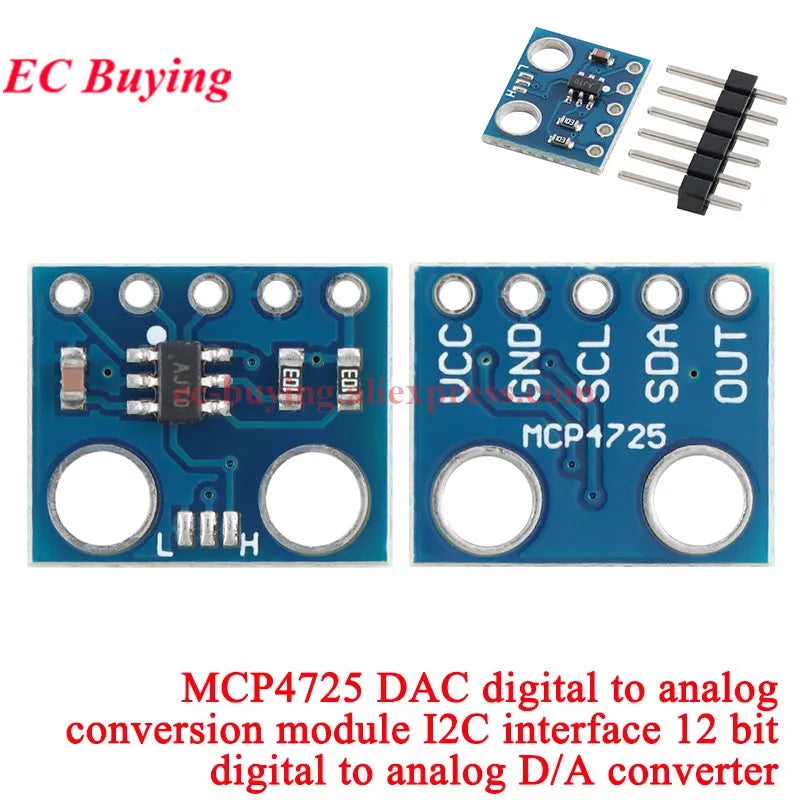

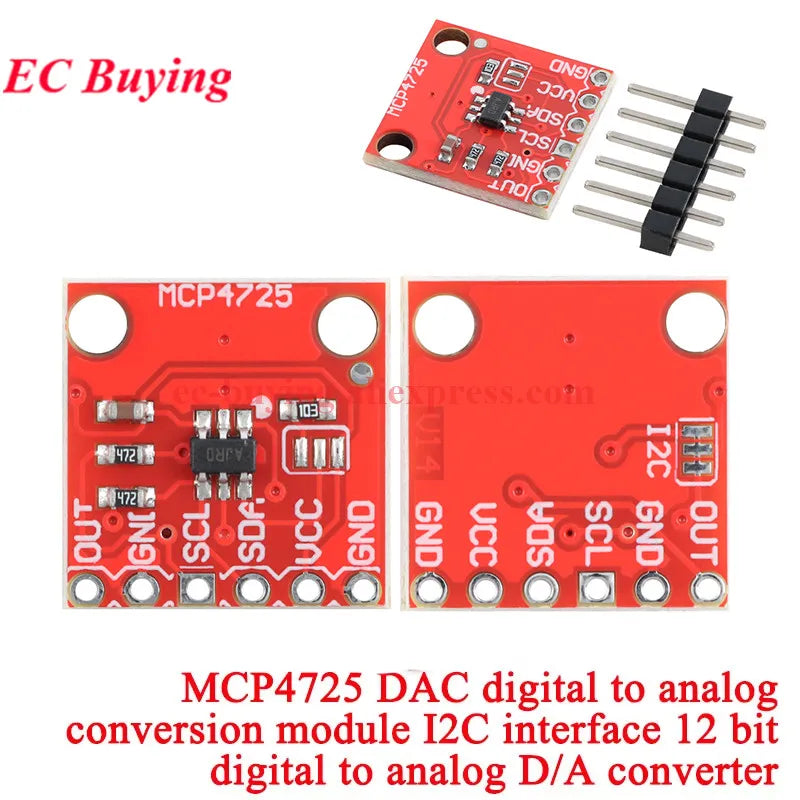

MCP4725 DAC digital-to-analog: converter module I2C interface 12-bit digital to analog D/A converter

Operating Temperature: normal

Origin: Mainland China

PCF8591 AD / DA Conversion of to Digital: Digital-to- Converter Module Temperature Illumination

Package: module

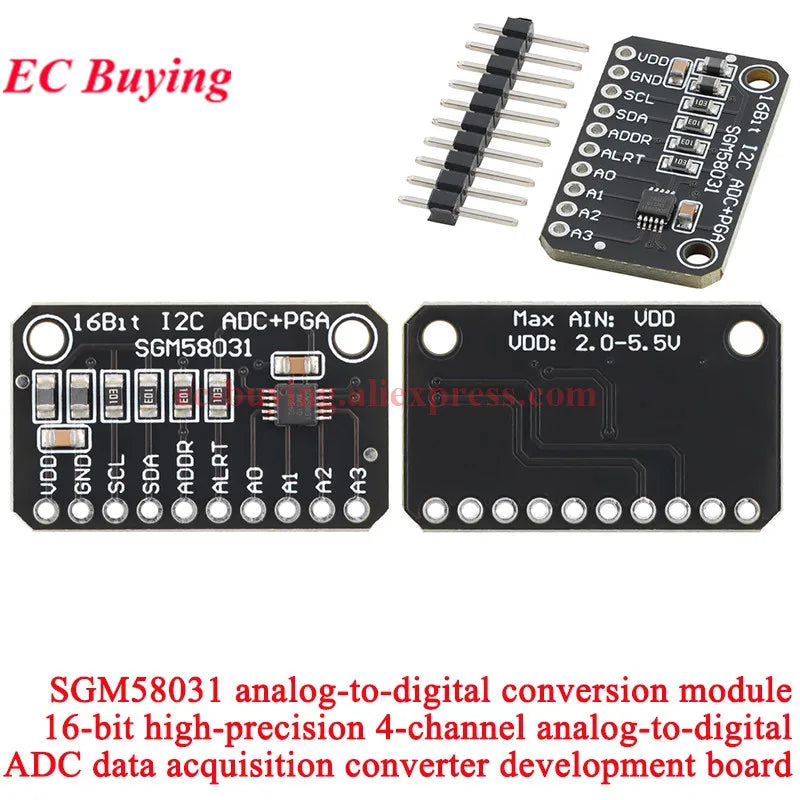

SGM58031 Development Board 16-bit High Precision: I2C Module 4 Channel ADC Data Acquisition Converter For Arduino NEW SGM580

SGM58031 analog-to-digital conversion module: 16-bit high-precision 4-channel analog-to-digital ADC data acquisition converter development board

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Supply Voltage: 2.0V to 5.5V

Type: Voltage Regulator

is_customized: Yes

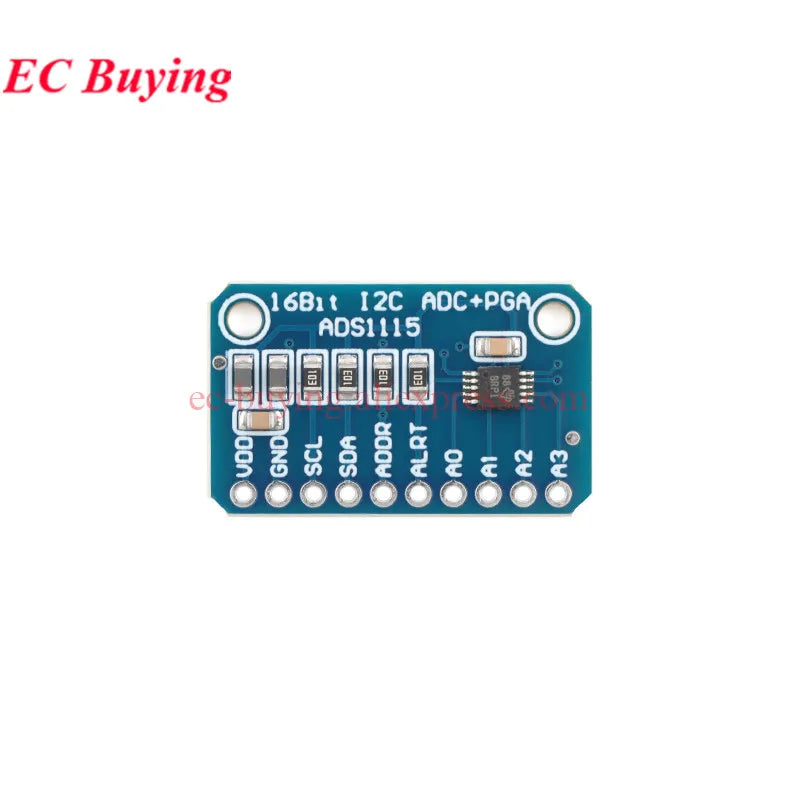

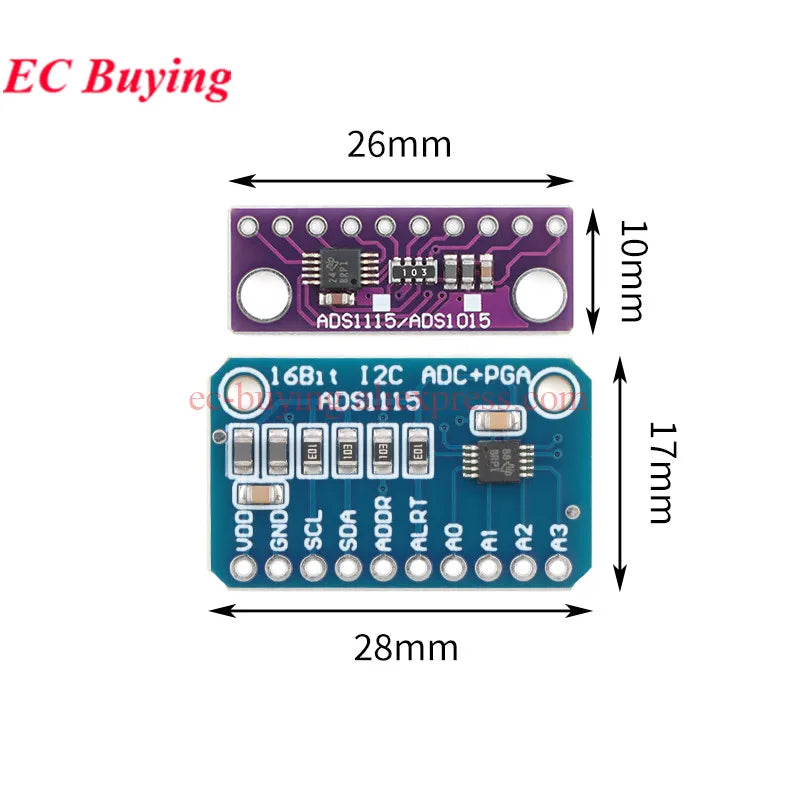

The ADS115 and ADS1015, 4-channel split version are ideal for adding high-resolution analog-to-digital conversion to any microprocessor-based project. These boards can run on power and logic signals between 2V and 5V, so they are compatible with all common 3.3V and 5V processors. Among them, 4 circuit boards can be controlled from the same 2-wire 12C bus, providing up to 16 single-ended or 8 differential channels. The programmable gain amplifier provides a gain of up to x16 for small signals. The two boards are very similar, but the resolution and speed are different. ADS1115 has a higher resolution, and ADS1015 has a higher sampling rate.

Product parameters:

Power/logic level: 2.0V to 5.5V

Low current consumption: continuous mode: only 150μA single shot mode: automatic shutdown

Resolution: 12 bits

Programmable sampling rate: 128 to 3300 samples/sec

Internal low drift voltage reference

Internal oscillator

Internal: PGX16

12C interface: 4-pin optional address

Four single-ended or 2 differential inputs

Programmable comparator

Pin description:

VDD: Positive power supply (3.3V/5V)

GND: ground, power negative

SCL: IIC clock line

SDA: llC data cable

ADDR: Determine the address of the lIC slave

ALRT: Digital comparator output or conversion ready

A0: differential channel 1, positive input or single-ended channel 1 input

A1: Differential channel 1, negative input or single-ended channel 2 input

A2: Differential channel 2, positive input or single-ended channel 3 input

A3: Differential channel 2, negative input or single-ended channel 4 input

Instructions for use:

The module IIC bus has a pull-up resistor, users do not need to pull it up, the default 7-bit IIC address of the module is 0x48 (1001000), and the chip uses a clever addressing method that allows one address pin (ADDR) to achieve four different the address of

When ADDR is grounded, the llC address is 0x48 (1001000)

When ADDR is connected to VDD, the IIC address is 0x49 (1001001)

When ADDR is connected to SDA, the IIC address is 0x4A (1001010)

When ADDR is connected to SCL, the IIC address is 0x4B (1001011)
