SPECIFICATIONS

1. Product introduction:

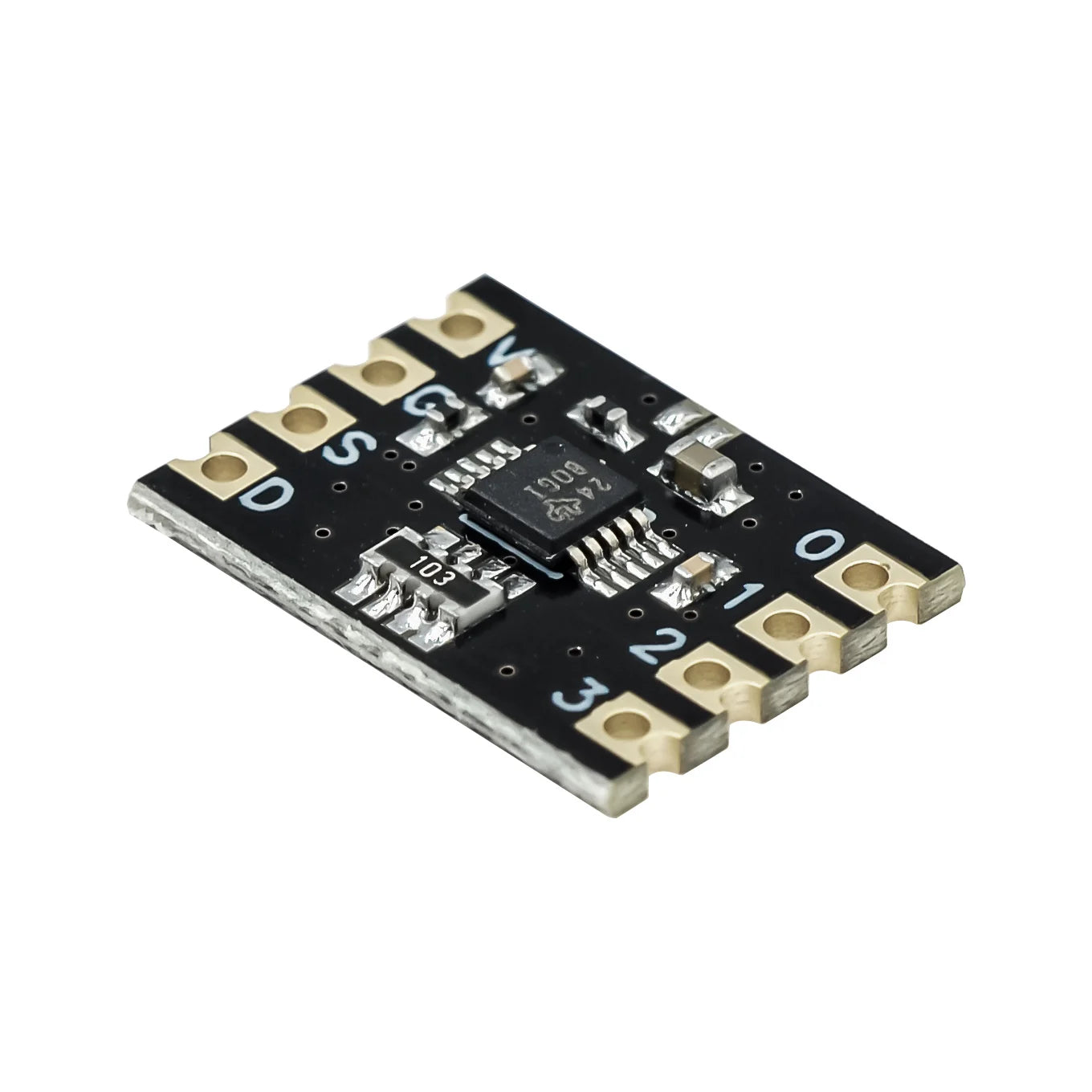

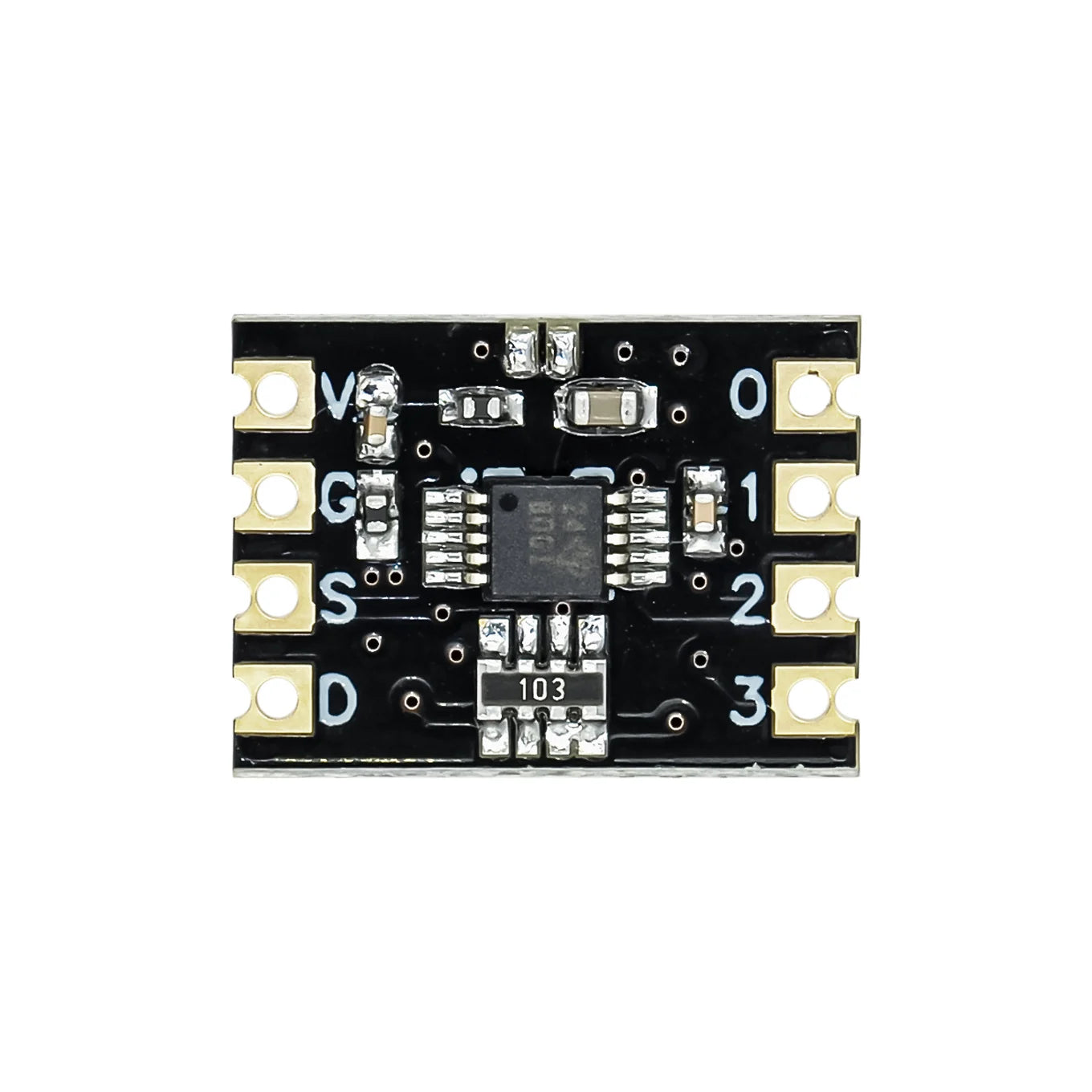

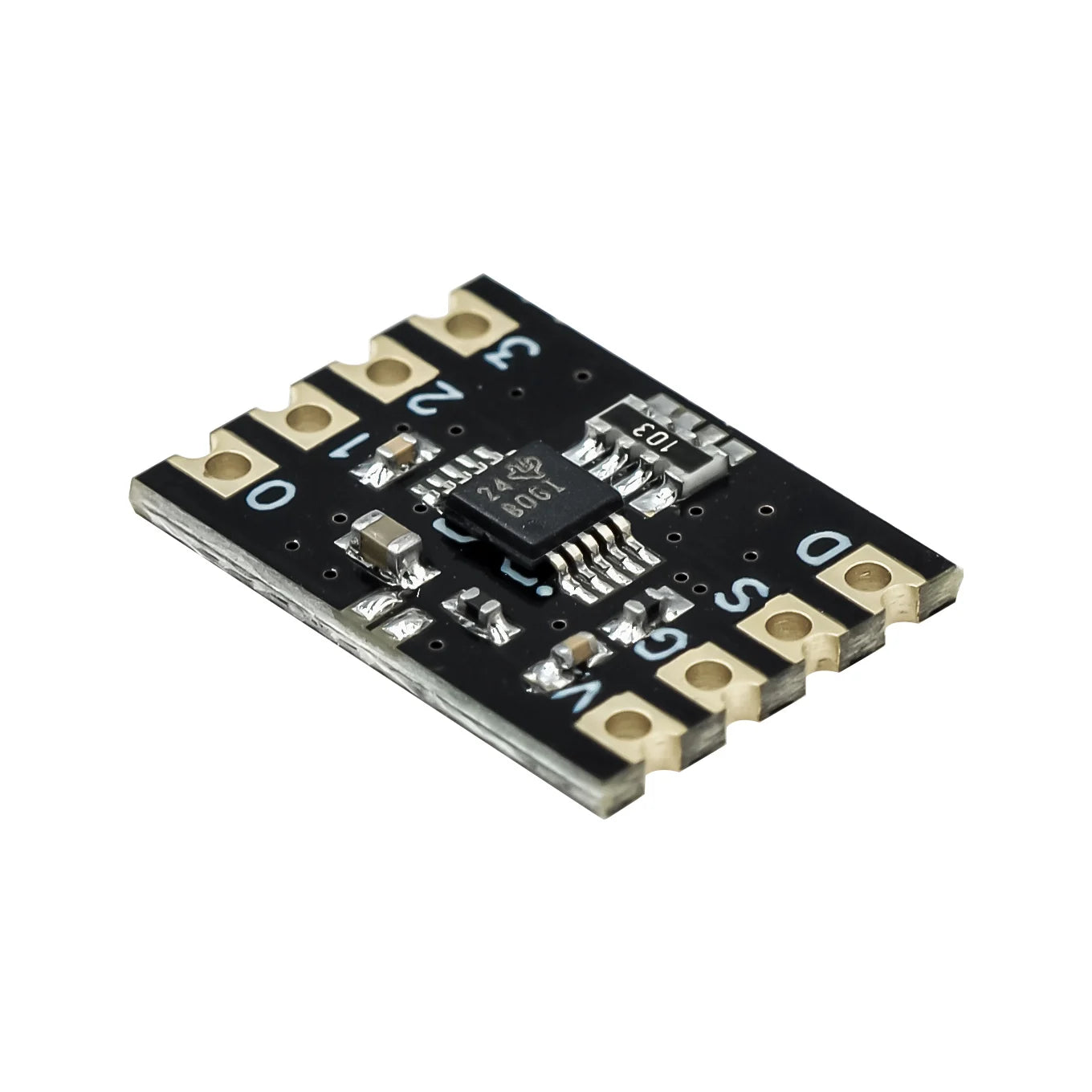

The ADS1115 four-way 16-bit ADc module is based on the ADS1115 chip integrated peripheral filter circuit, I2C pull-up resistor module, expand the double row of 2.5 DAM spacing gold row pinholes and stamp holes, easy for users to weld and expand, can also be directly attached to users' products, the module adopts 12c communication, support wide operating voltage. Use braided packing.

2. Main parameters:

Operating voltage :2.ov~5.5v

Programmable data transfer rate :8SPS to 860SPS

Built-in low temperature bleach reference voltage

I2c interface, device address can be configured

Can be configured for four single-ended inputs or two differential inputs

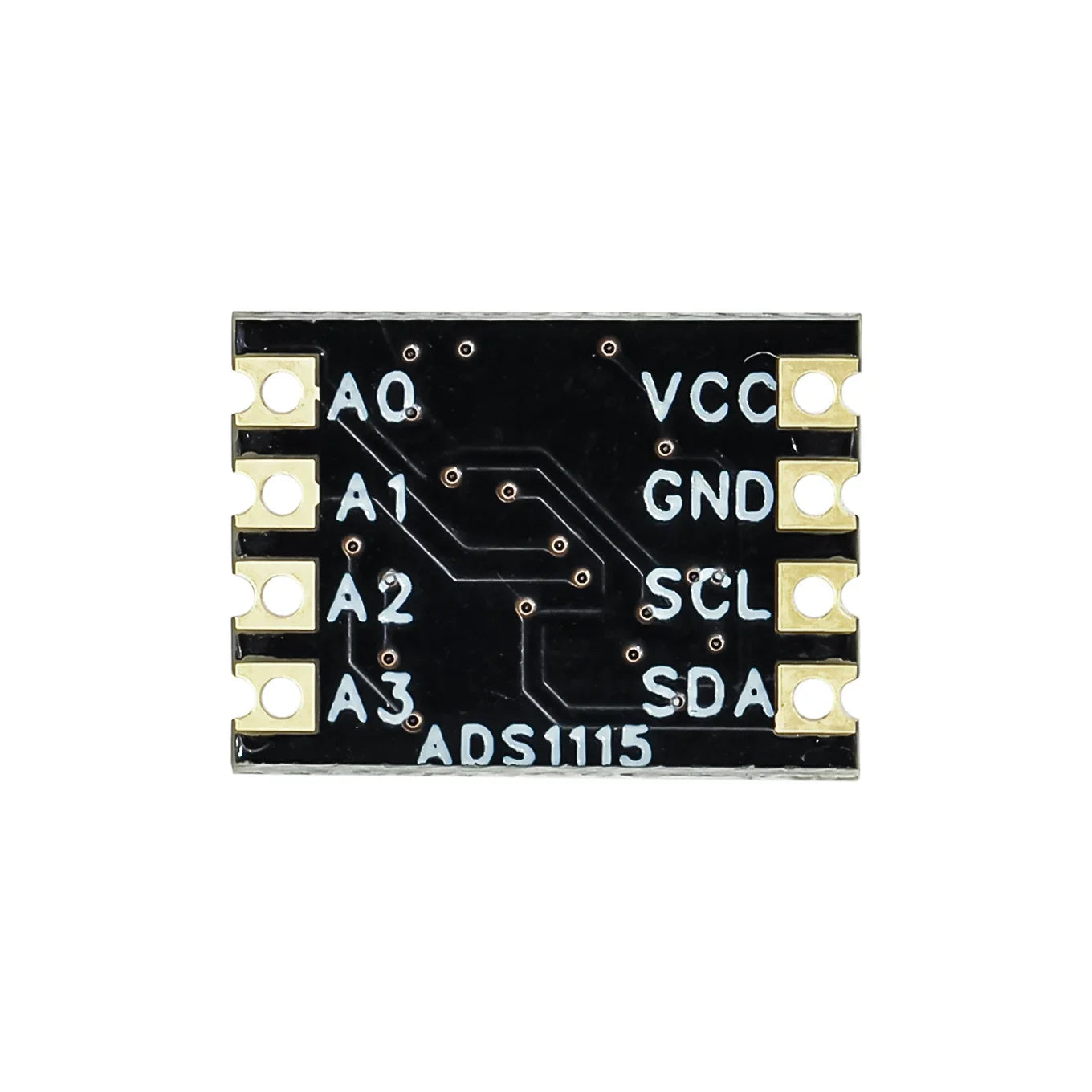

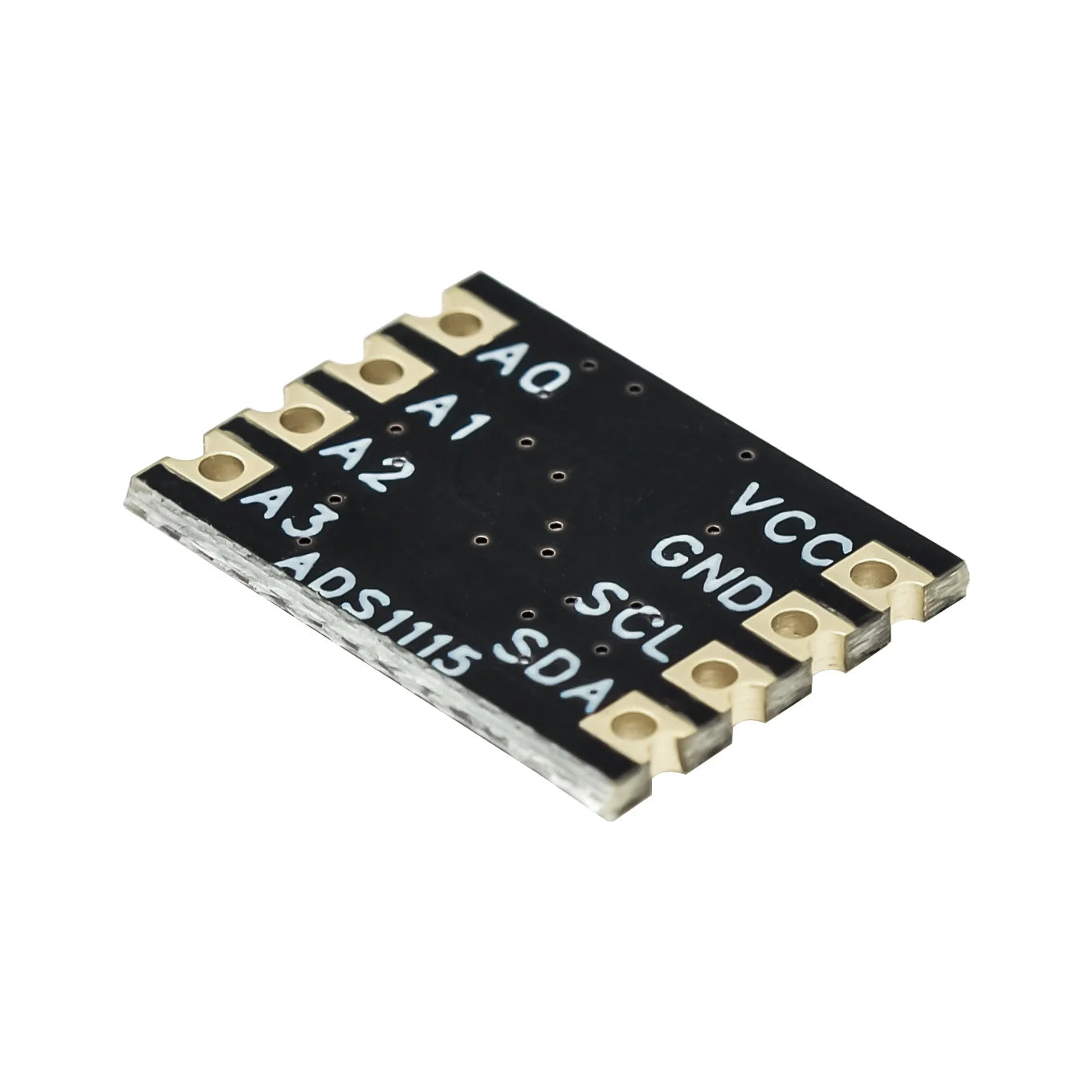

3. Foot position description:

VCC: power input (2.ov~5.5v>

GND: power source

SCL:I2 clock with built-in 10K pull-up

SDA:I2C data, internal 10K pull-up

AIN3:ADC sampling channel

AIN2:ADC sampling channel

AIN1:AIC sampling channel

AINO:AI sampling channel

4. Function introduction:

This module is used for data communication through Iac interface, the default I2c device address is b1001000x, length is 7 bits, x bit is read/write control bit. The write device address is b10010000 (oz90), and the read device address is b10010001 (ox91).

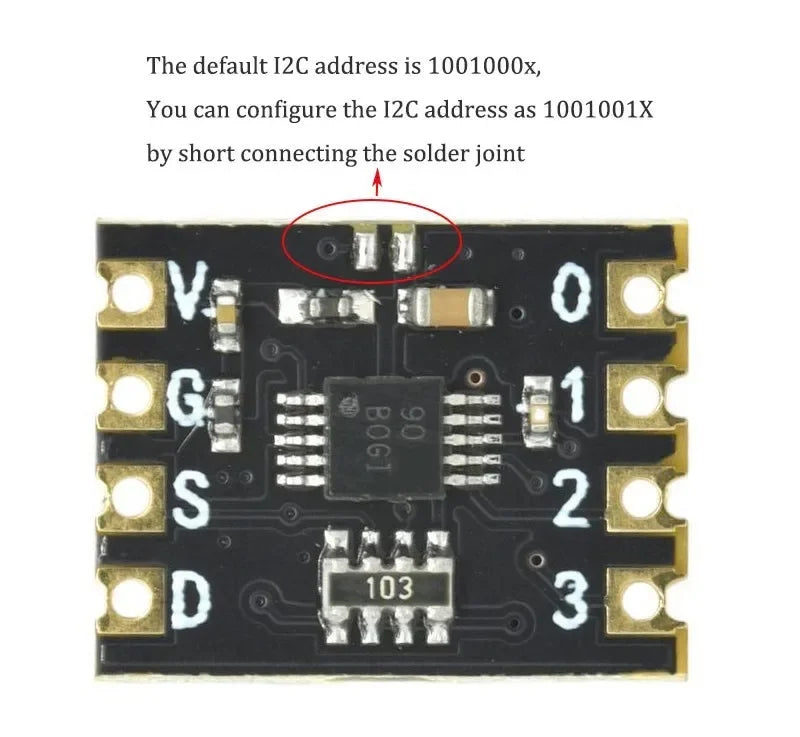

In addition, 2c address can be configured: short welding spot can be b1001001X.

The ADS1115 device is a 16-bit high precision low power analog-to-digital converter (ADC) in a subminiature vSSOP-10 package. The ADS1115 device uses a low drift voltage reference and oscillator. The ADS1115 also features a programmable gain amplifier (PGA) and a digital comparator. These features, combined with a wide range of working power supply voltages, make the ADS1115 ideal for EMIRR +IN OPAx189 at specific frequencies often encountered in power-constrained and space-constrained sensor measurement applications. The ADS1115 can perform conversions at data rates up to 860 samples per second (SPS). PGA offers an input range from ±256mV to ±6.144 for accurate size signal measurement. The ADS1115 has an input multiplexer (MUx) that enables two differential input measurements or four single-ended input measurements. Undervoltage and overvoltage detection can be performed using a digital comparator in the ADS1115. The ADS1115 can operate in both continuous transfer mode and single flush mode. In single-flush mode, these devices can be automatically powered off after a single conversion; Thus, the power consumption during idle periods is significantly reduced.

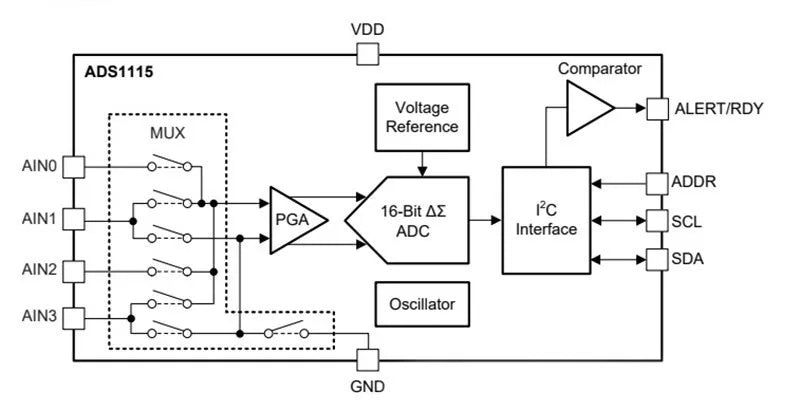

5.Conceptual diagram of the ADS1115:

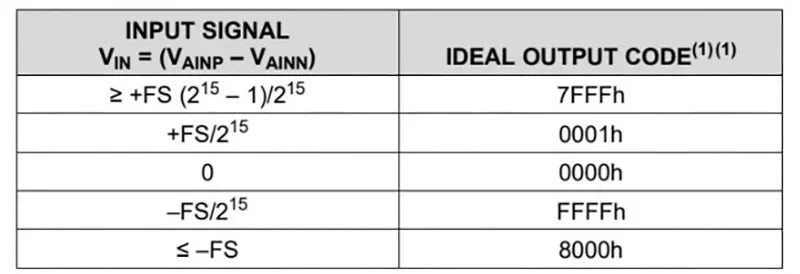

6. Data relationship between input signal and conversion:

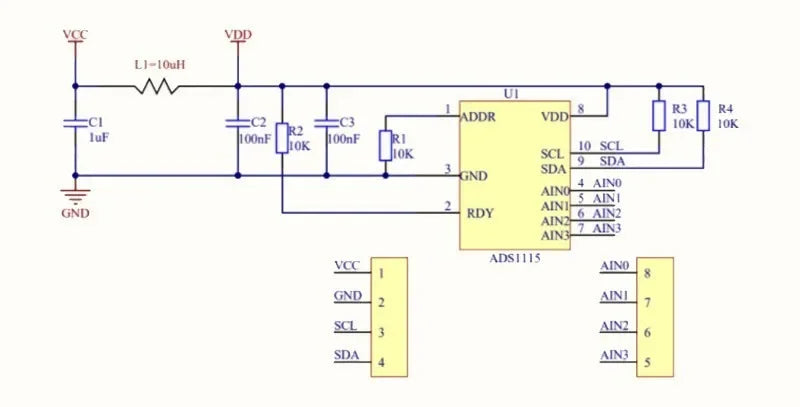

7. Application schematic diagram:

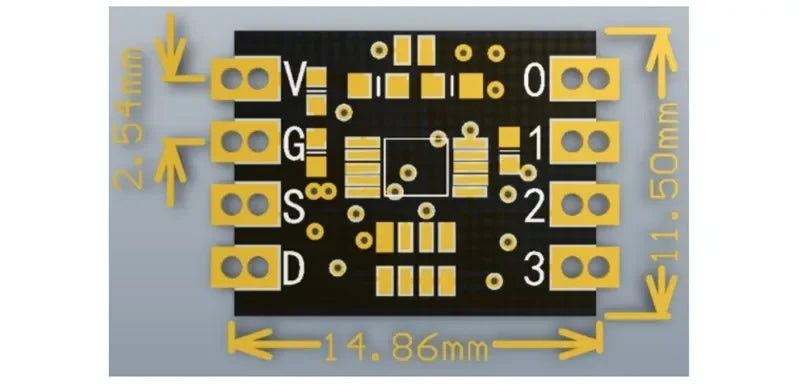

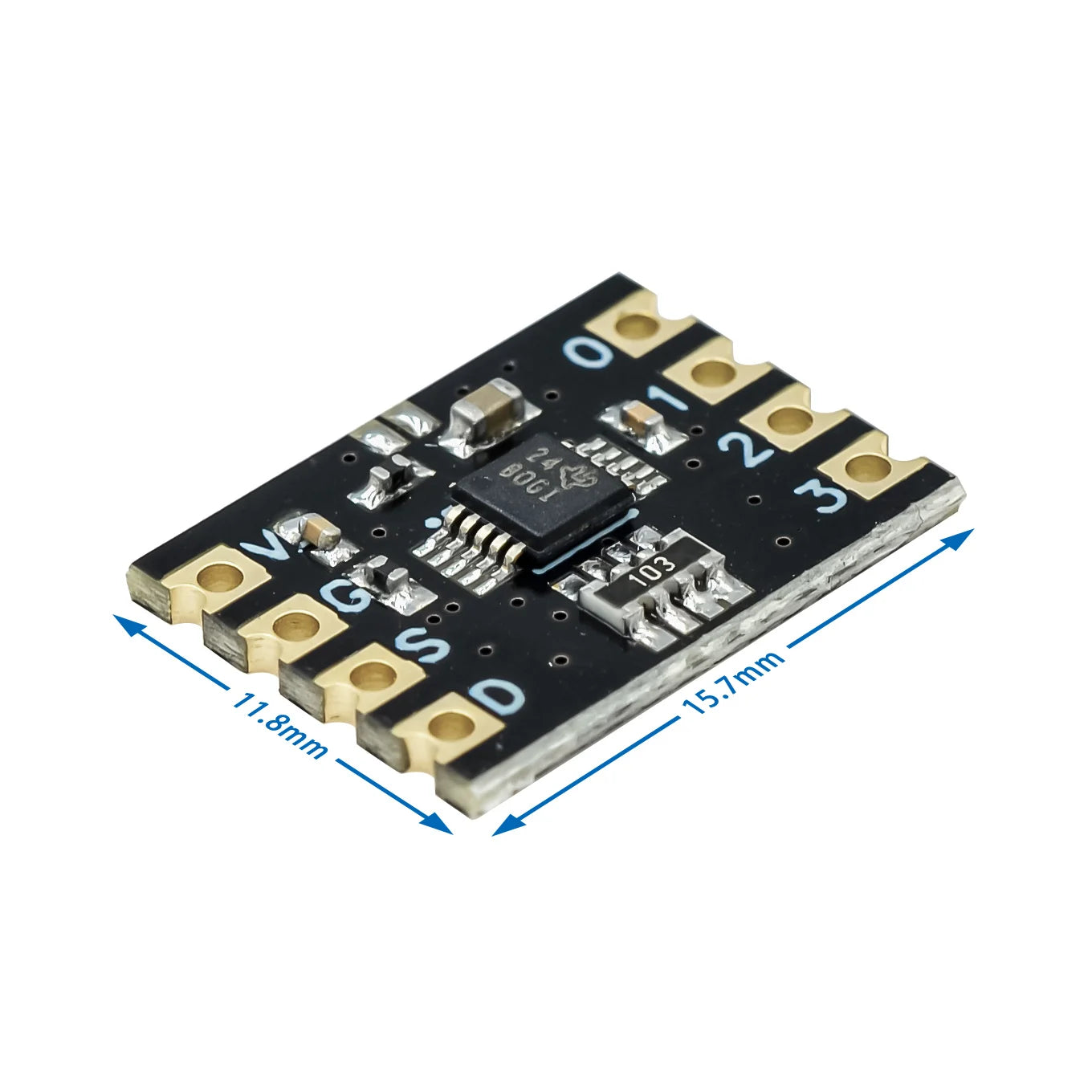

8. Product size：
