SPECIFICATIONS

ADT factory direct sales, excellent product performance, ex.cellent reputation, 100% full inspection, power-on test delivery company.

Brand:ADT-Link

Product model:UTT3-MM-20P range

Product Name:USB3.2 Type C Adapter Extension Cable

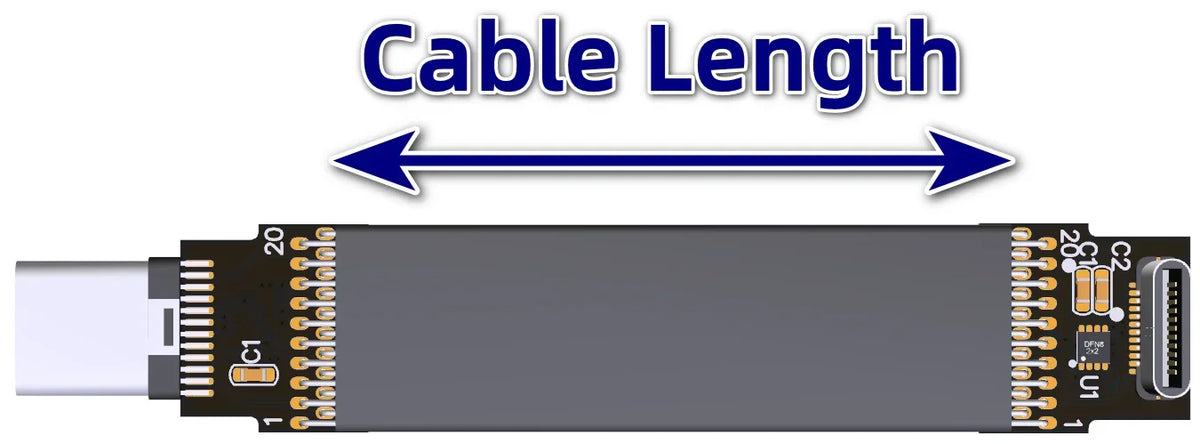

Wire Length:0.03m-3m(Support Custom)

Adaptive range:USB3.2 USB-C to USB-C

Bandwidth:USB 3.2 Gen2x2 20G/bps(0.5m support Gen2,3m support Gen1)

Current Capability:Supports 1. 5A within 0.5m, 0. 9A within 1m

Product Applications:Mobile phone,PC,GPS, Storage Device, ROCK Pi4 Development Board

NOTE: Built-in USB devices are applicable, normal external connections are not applicable.
NOTE: Buy one or two samples and then purchase them in batches.

NOTE

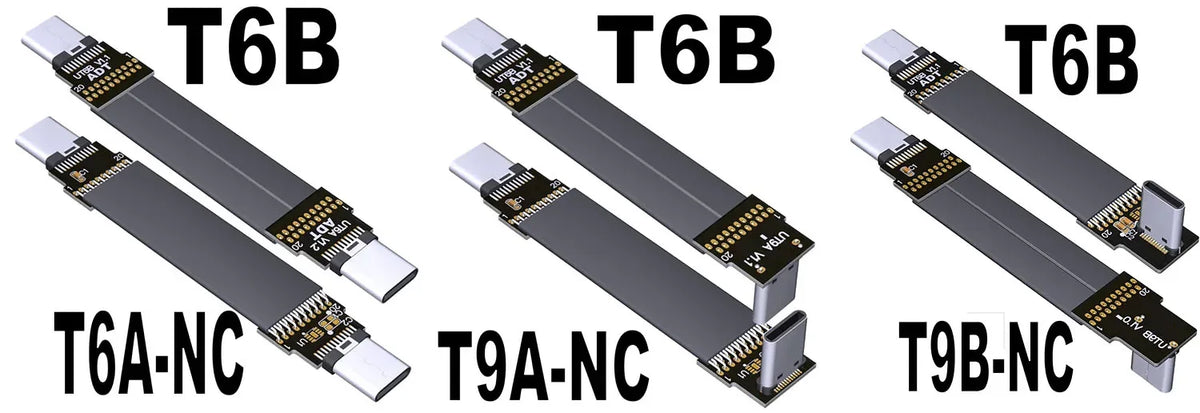

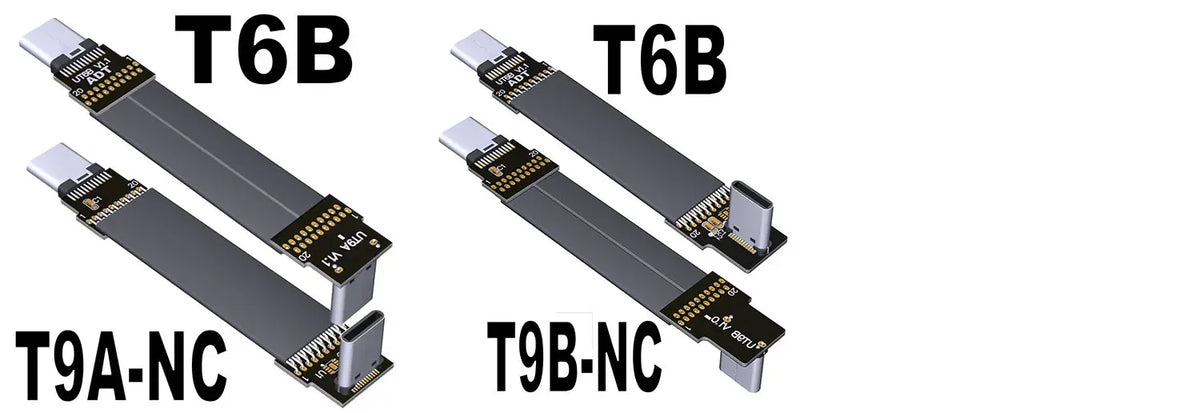

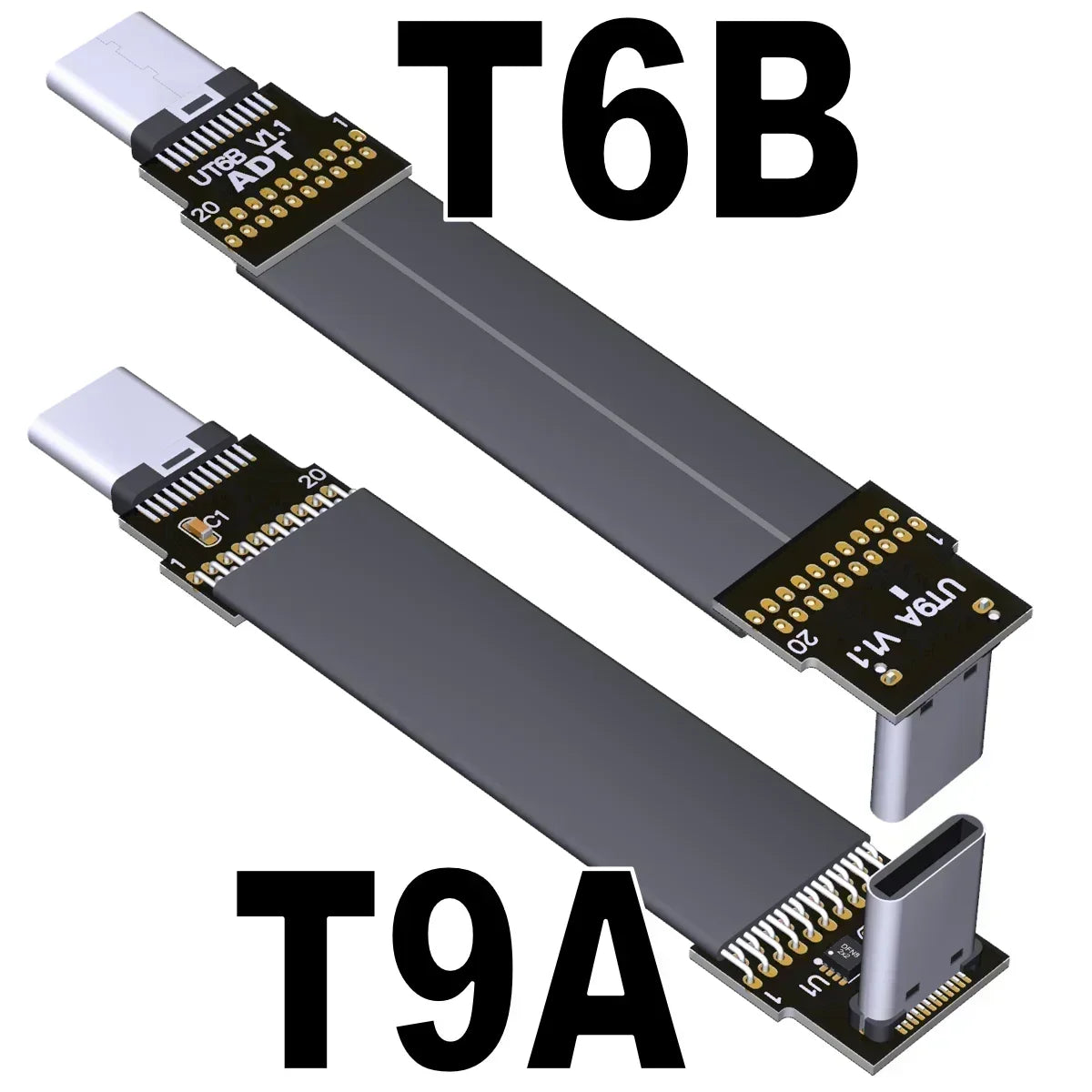

1.T6A/T6B is a flat type-C male connector.

2.T7B is a flat type-C female connector.
3.T8T is an angled type-C female connector with 2 locating holes.
4.T9A is an angled type-C male connector.
5.Model with NC means without e-mark chip, model with BK means with PCI baffle.

Product Model Specification:

offerings:

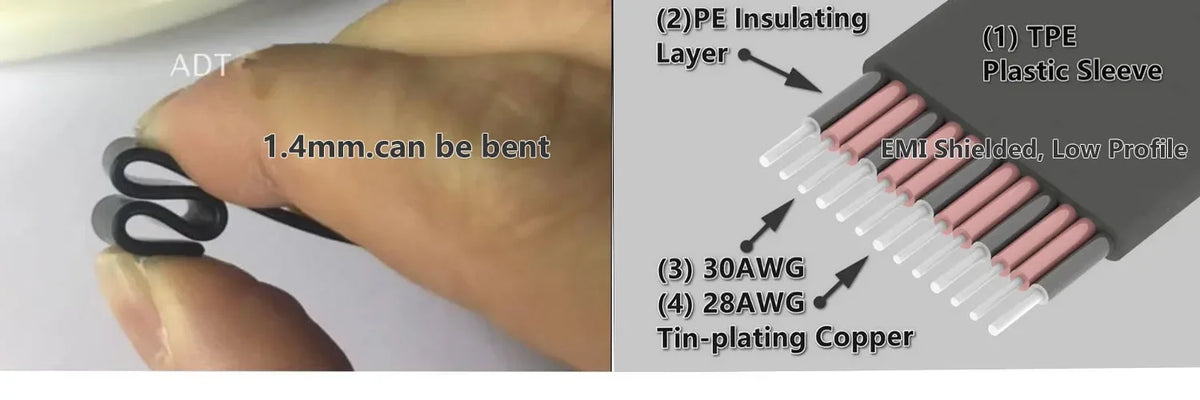

1.High quality wire, can be bent.
2.From 0.03m-3m can accept customisation.
3. Differential signal without over-hole design, there is no signal attenuation interference problems.
4.PCB high frequency and low resistance, using high TG plate, copper thickness 1oz, using two 5V power lines, support 3A.

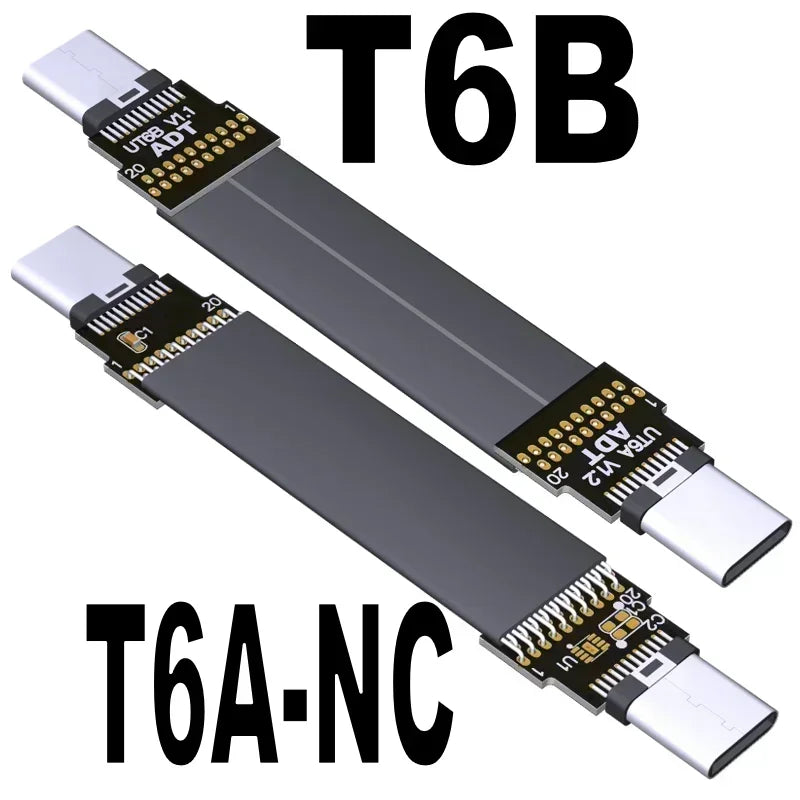

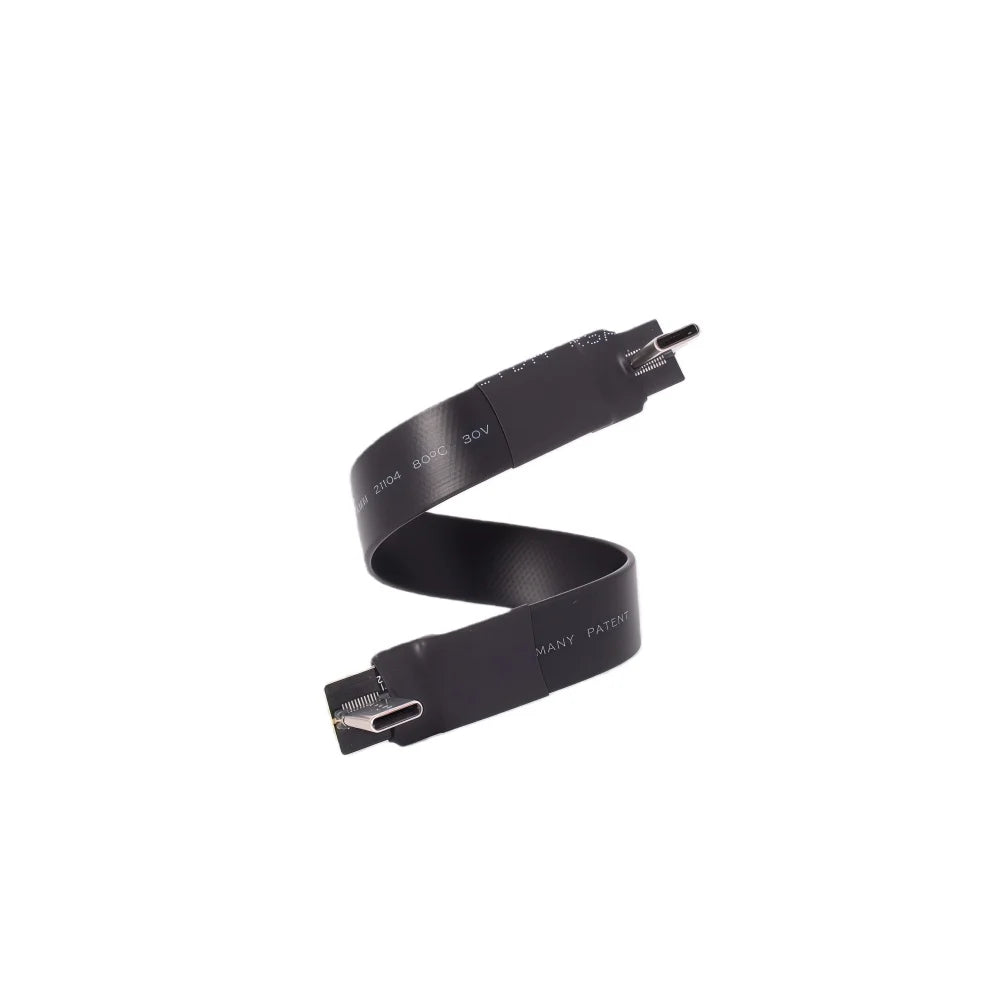

Product Picture:

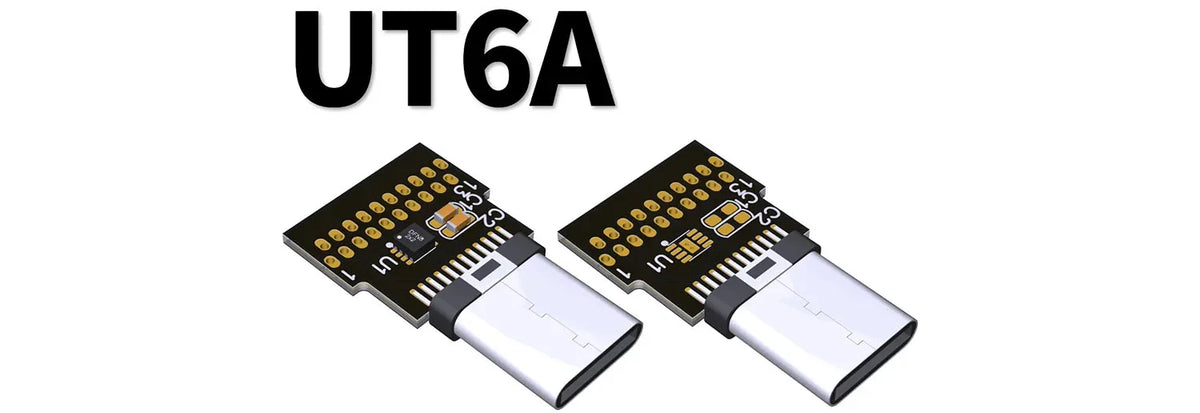

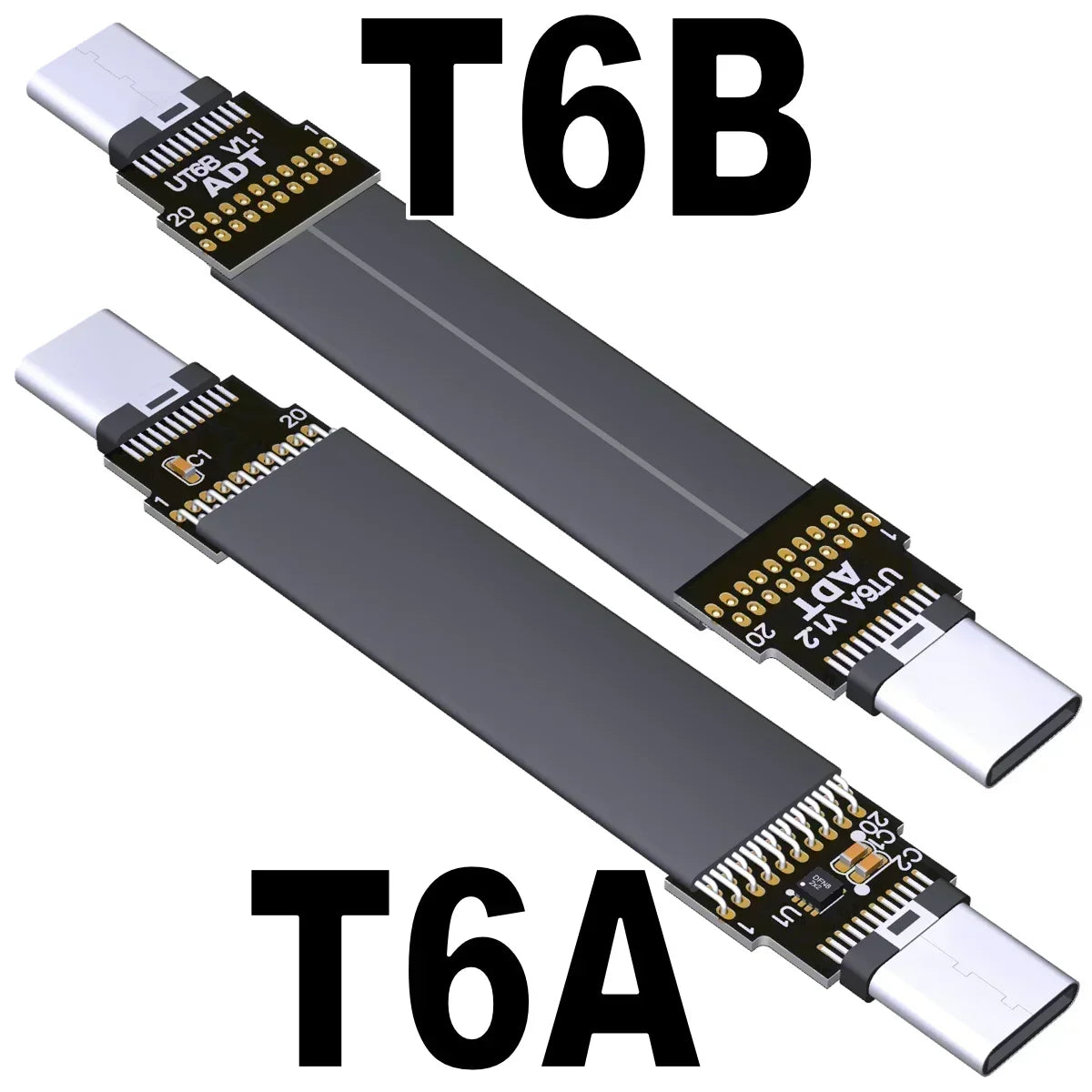

T6A with chip means PCB has soldered RT1710 e-mark chip, support high current 3A, up to 5A.
T6A-NC without chip is only suitable for general purpose, does not support high current, USB data transfer function is normally applicable.

1.Pay attention to the direction when plugging in cables, don't plug in the opposite way or plug in the wrong way.
2.Possible signal loss when connecting extension cables.
3.Will age over time, not supported by older devices.

Download:

To open 3D PDF files. Please useAdobe Reader DCsoftware.

FTP: Los Angeles

Schematic file download:http://www.adt.link/download/schematic_usb.pdf

3D model STEP & PDF files download:http://www.adt.link/download/UTT3-MM-20P.ZIP

FTP: Hong Kong

Schematic file download:http://www.adtlink.cn/download/schematic_usb.pdf

3D model STEP & PDF filesdownload:http://www.adtlink.cn/download/UTT3-MM-20P.ZIP
