Advantech MIO-3360 Intel Pentium N4200 X86 Industrial Pico-ITX SBC Linux Single Board Computer

Advantech MIO-3360 Intel Pentium N4200 X86 Industrial Pico-ITX SBC Linux Single Board Computer

$2,848.19

$2,848.19 $0.00

Description

SPECIFICATIONS

BIOS: AMI EFI 64 Mbit

Brand Name: NONE

CPU: Pentium N4200

DIY Supplies: Electrical

Dimensions (L x H): 100 x 72 mm (3.9" x 2.8")

Electronic: No

Frequency: 2.50 GHz

High-concerned chemical: none

Max. Capacity: 8G

Non-Operational Temperature: -40° C ~ 85° C

Operating Temperature: 0 ~ 60° C (32 ~ 140° F)

Origin: Mainland China

Semi-finishedproduct: No

Speed: 10/100/1000Mbps

Technology: DDR3L 1866 MHz

Weight: 0.39 kg (0.85 lb),

brand name: advantech

place of origin: Beijing, China

products status: Stock

type: Industrial Computer Accessories

Dear friends, welcome to my store. Our store operates with integrity. Please rest assured to place your order. If you need to inquire about products or other matters, please contact (WhatsApp+86 18376810301), (WeChat: 18376810301). （mail：jionter720@163.com）Due to the time difference, I will reply to you within 12 hours at the latest. Thank you.

Products Description

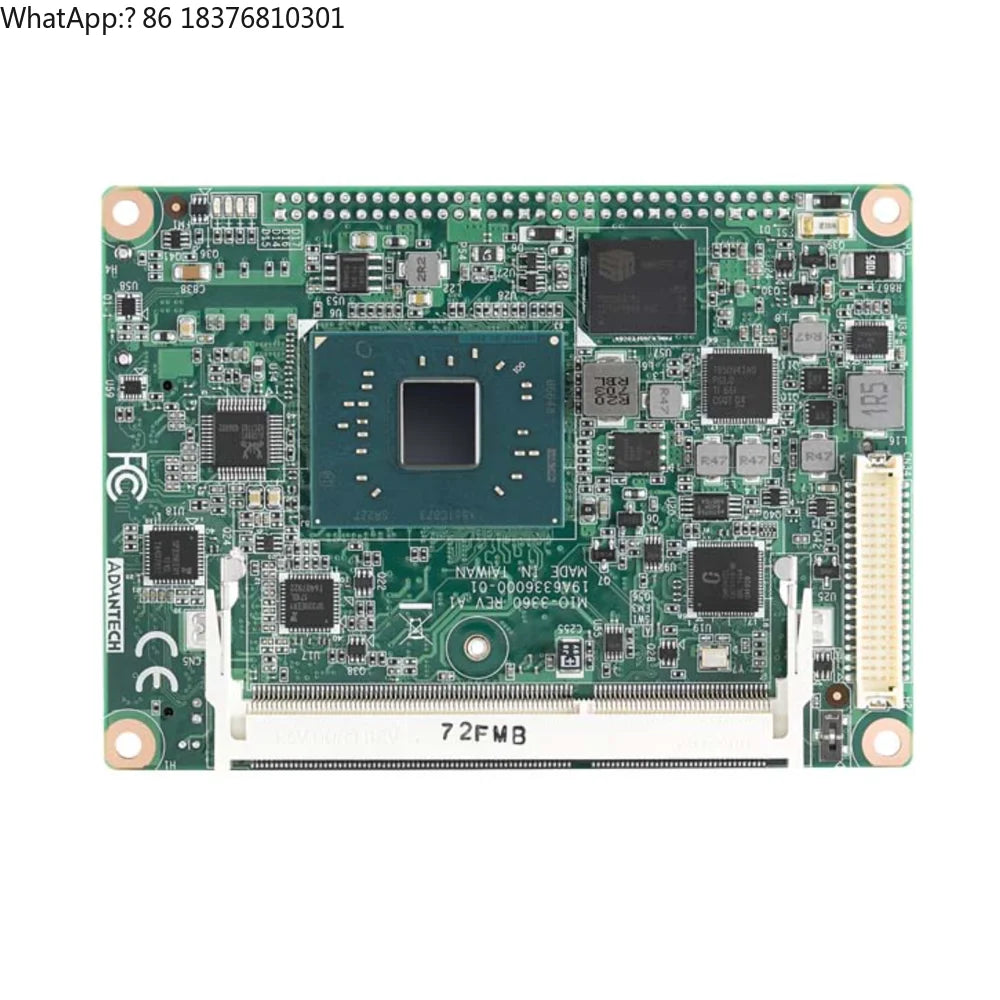

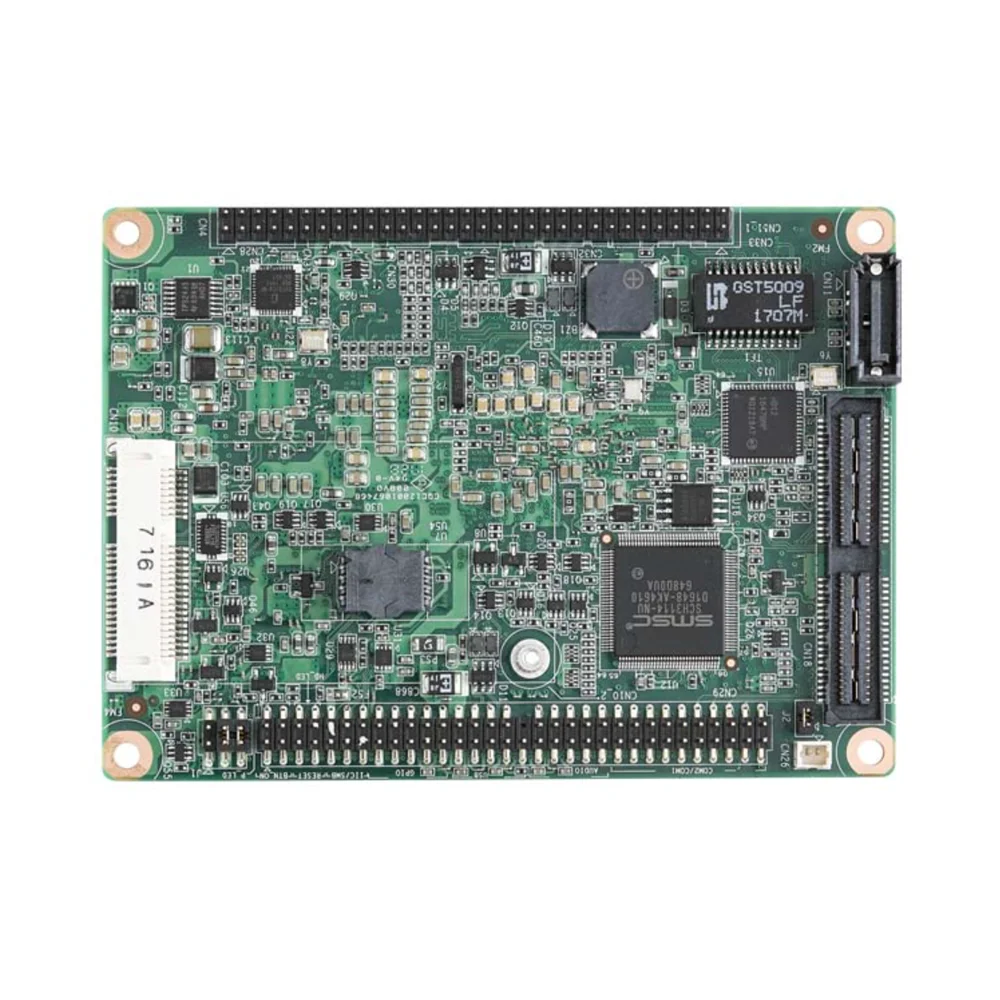

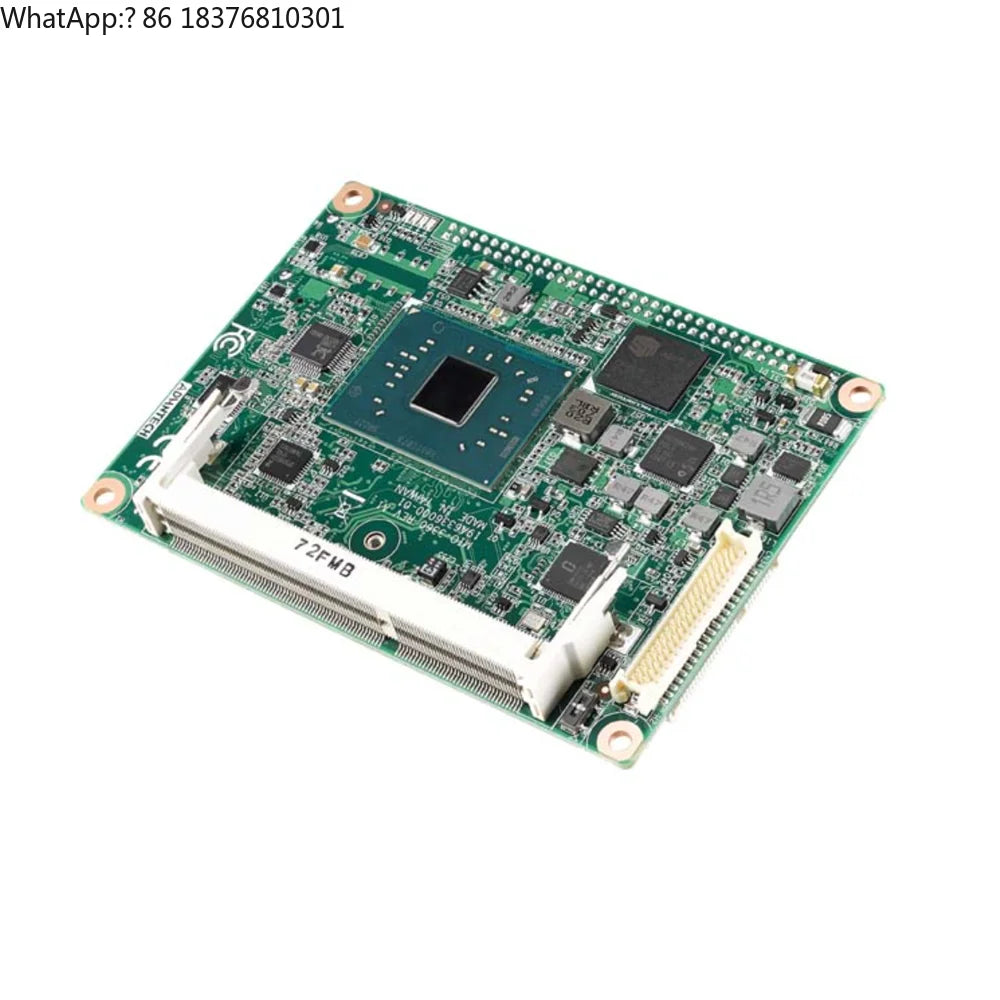

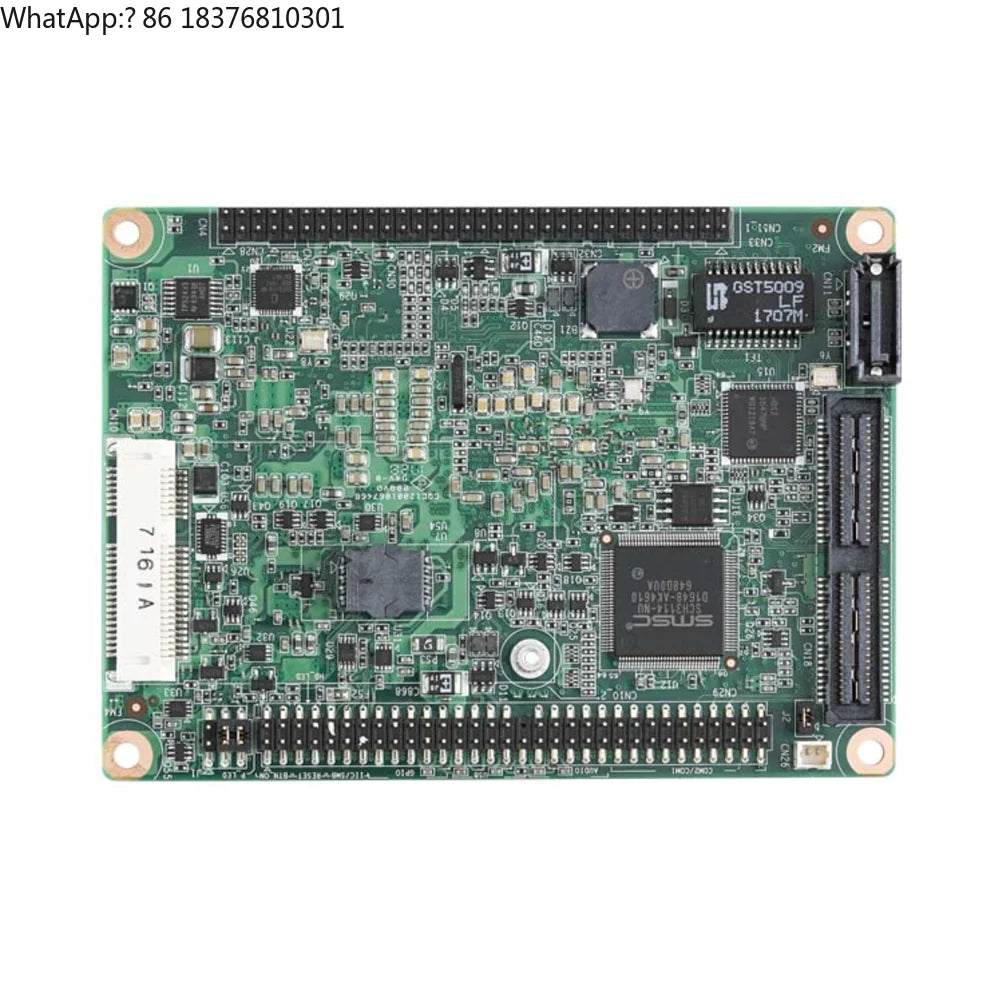

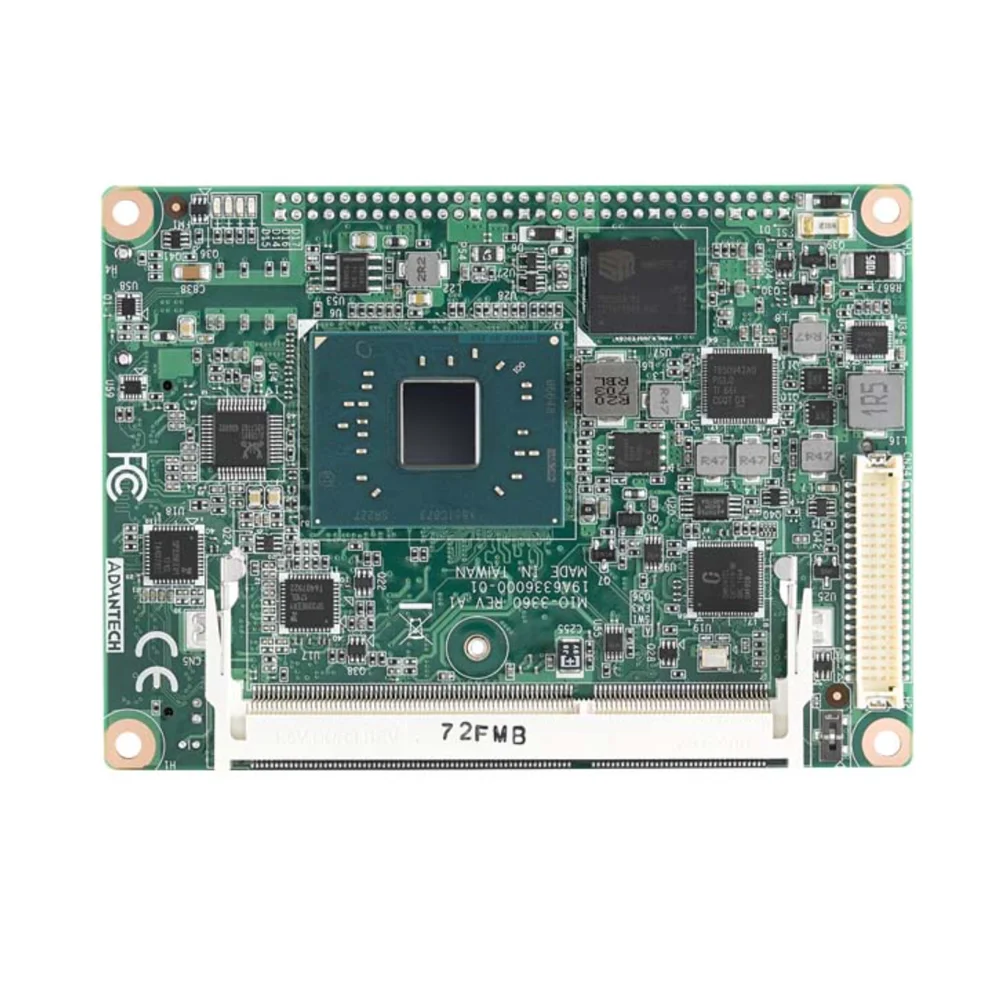

Advantech MIO-3360 Intel Pentium N4200 X86 Industrial Pico-ITX SBC Linux Single Board Computer

Features

* Embedded Intel® Pentium N4200/Celeron N3350

* DDR3L 1866MHz support up to 8BG Intel Gen 7 DirectX®11.1 support

* Dual Independent display: 48-bit LVDS, VGA, DP/HDMI

* Expansion: Full-size Mini PCIe, eMMC, mSATA*

* Rich I/O interface: 2 COM, 1 SATA, 4 USB 2.0, MIOe expansion

* Supports WISE-PaaS/RMM and Embedded Software APIs

Introduction

Advantech MIO-3360 full pin embedded single board computer, based on Intel Atom's sixth generation Pentium N4200/N3350, DDR3L up to 8G, independent three displays: 48bit LVDS, VGA, DP/HDMI, 1 GbE, full size Mini PCIe, 4USB, 2COM, SMBus, mSATA, and MIOe, with flexible expansion, widely used in the medical and automation industries.

Specification

* Part Number	* MIO-3360
Processor
* CPU	* Pentium N4200
* Frequency	* 2.5 GHz (Quad-Core)
* L2 Cache	* 2 MB
* Chipset	* Intel Celeron / Atom SoC processor integrated
* BIOS	* AMI EFI 64 Mbit
Memory
* Technology	* DDR3L 1333 MHz for J1900/DDR3L 1066 MHz for E3825
* Max. Capacity	* 8GB
* Socket	* 1 x 204-pin SODIMM (Support 1.35V DDR3L)
Display
* Chipset	* Intel® Celeron/Atom SoC integrated
* LVDS	* Supports dual channel 24-bit LVDS Resolution: 1440 x 900 at 60Hz
* VGA	* Up to 1920 x 1200 at 60Hz
* Dual Display	* Yes (LVDS+VGA or LVDS+DP/HDMI or VGA+DP/HDMI)
Ethernet
* Speed	* 10/100/1000Mbps
* Controller	* Intel i210
Audio
* Chipset	* Realtek, High Definition Audio (HD), Line-in, Line out, Mic-in
Watchdog Timer
* Watchdog Timer	* Output system reset, programmable counter from 1~255 minutes/ seconds
Storage
* mSATA	* 1 x half size mini PCIe slot
* SATA	* 1, up to 3Gb/s (300MB/s)
* eMMC	* 32G

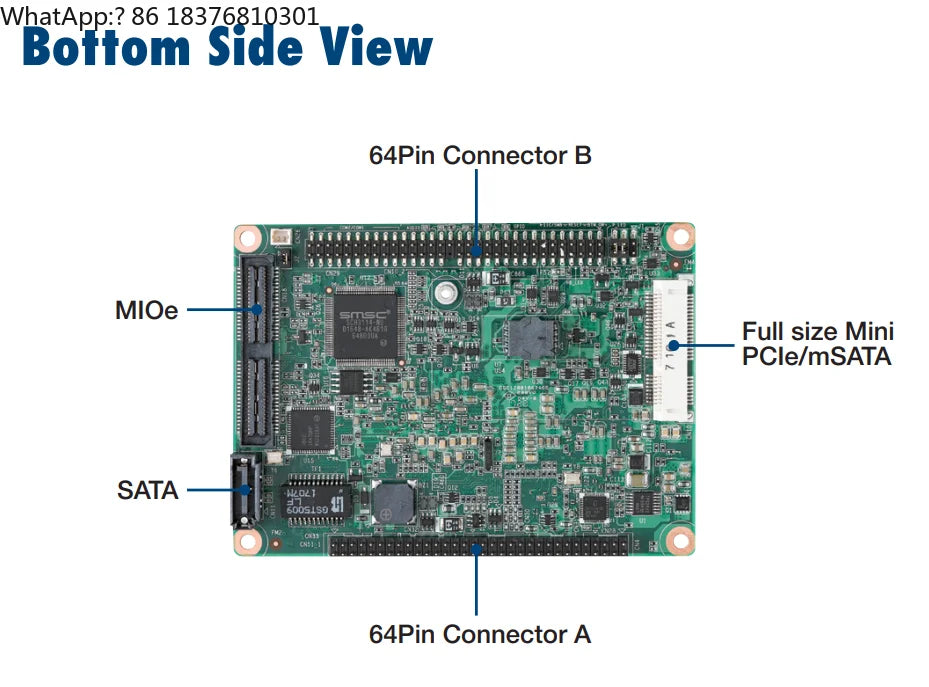

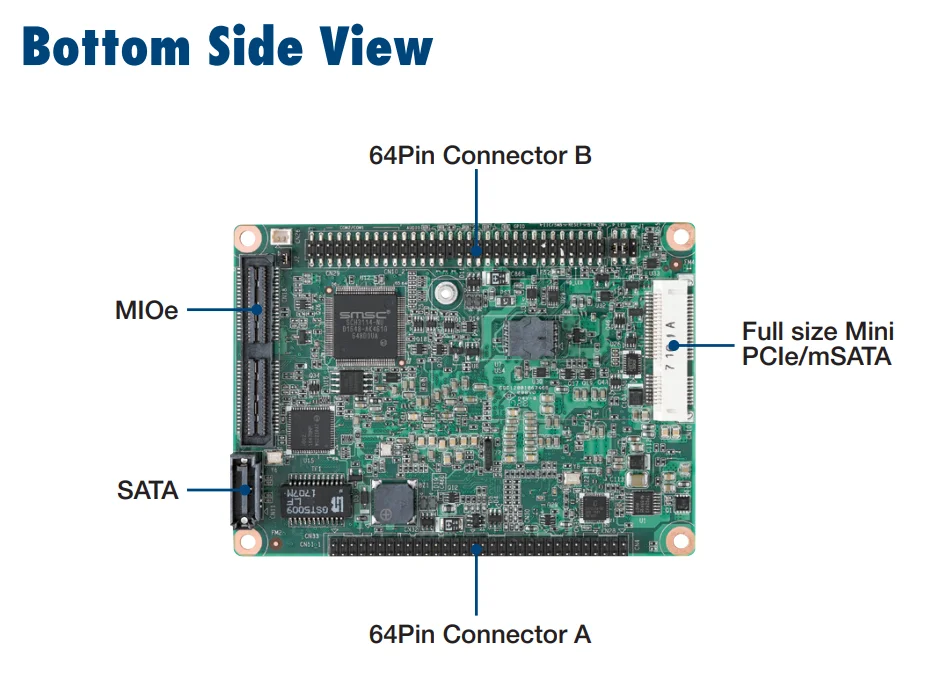

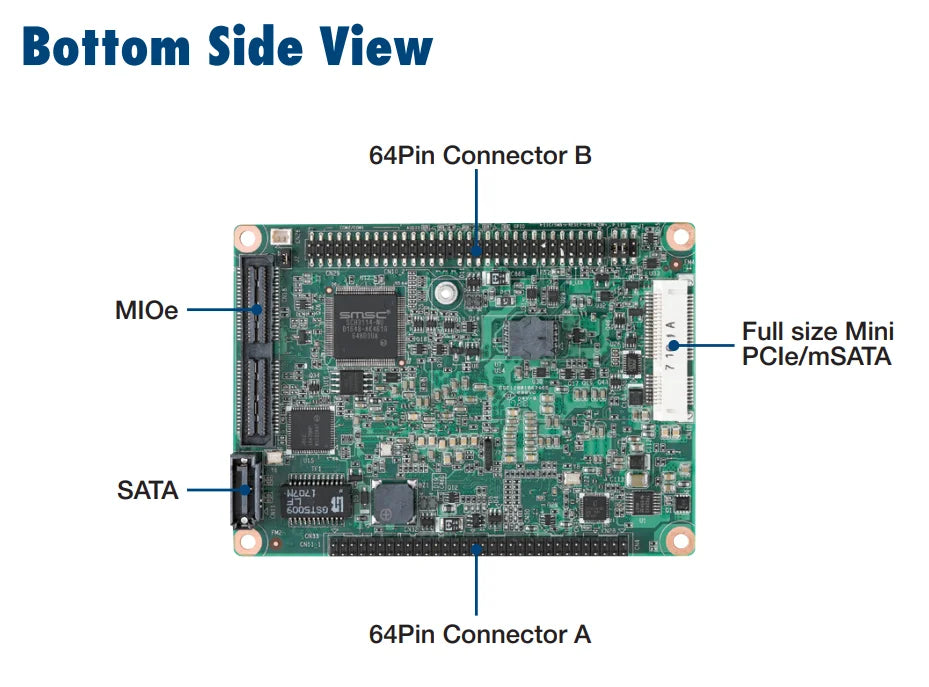

Expansion
* Mini PCIe	* 1 x Half-size
* MIOe	* SMBus, 2 x USB2.0, LPC, 2 x PCIe x1, line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power, Power On, Reset
* 64-pin connector A	* 12V DC input, Inverter, VGA, 2 x USB2.0, 1GbE w/ LED
* 64-pin connector B	* SMBus, I2 C, Power/Reset button, HDD/Power LED, 2 x USB2.0, 8-bit GPIO, HD Audio Line-in, Line out, Mic-in, 2 x RS-232/422/485
Power
* Power Type	* Single 12V DC power input (Supports DC power hot plug)
* Power Supply Voltage	* Supports single 12V input, ±10%
* Power Management	* ACPI
* Battery	* Lithium 3 V / 210 mAH
Environment
* Operational Temperature	* 0 ~ 60° C with air flow 0.7m/s (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
* Non-Operational Temperature	* -40° C ~ 85° C and 60° C @ 95% RH non-condensing
Physical
* Dimension (mm)	* 100 x 72 mm (3.9" x 2.8")
* Weight	* 0.39 kg (0.85 lb), weight of total package
