SPECIFICATIONS

1. Product Parameters

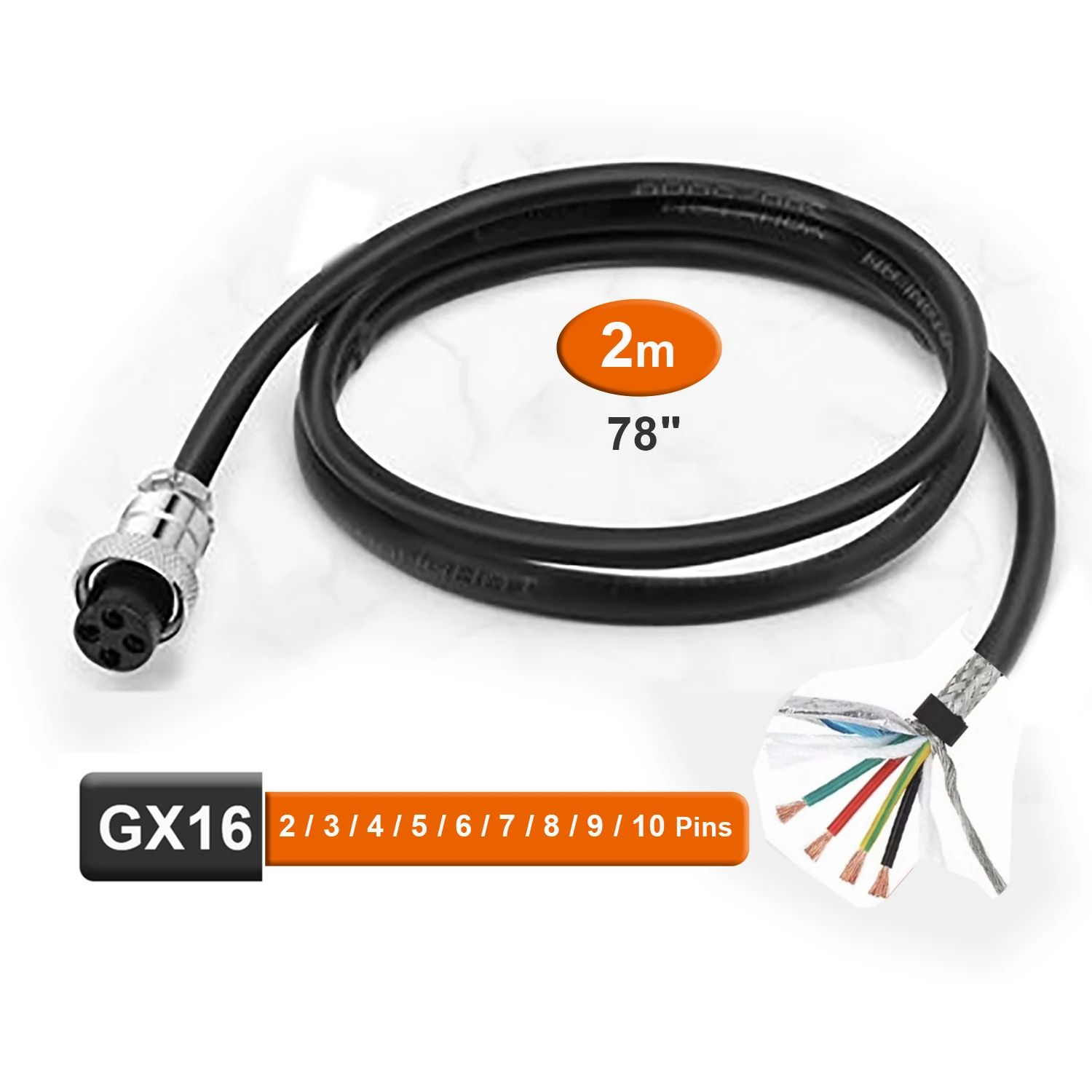

⭐Product Name: GX16 Female Connector with Shielded Cable
⭐Model No.: GX16

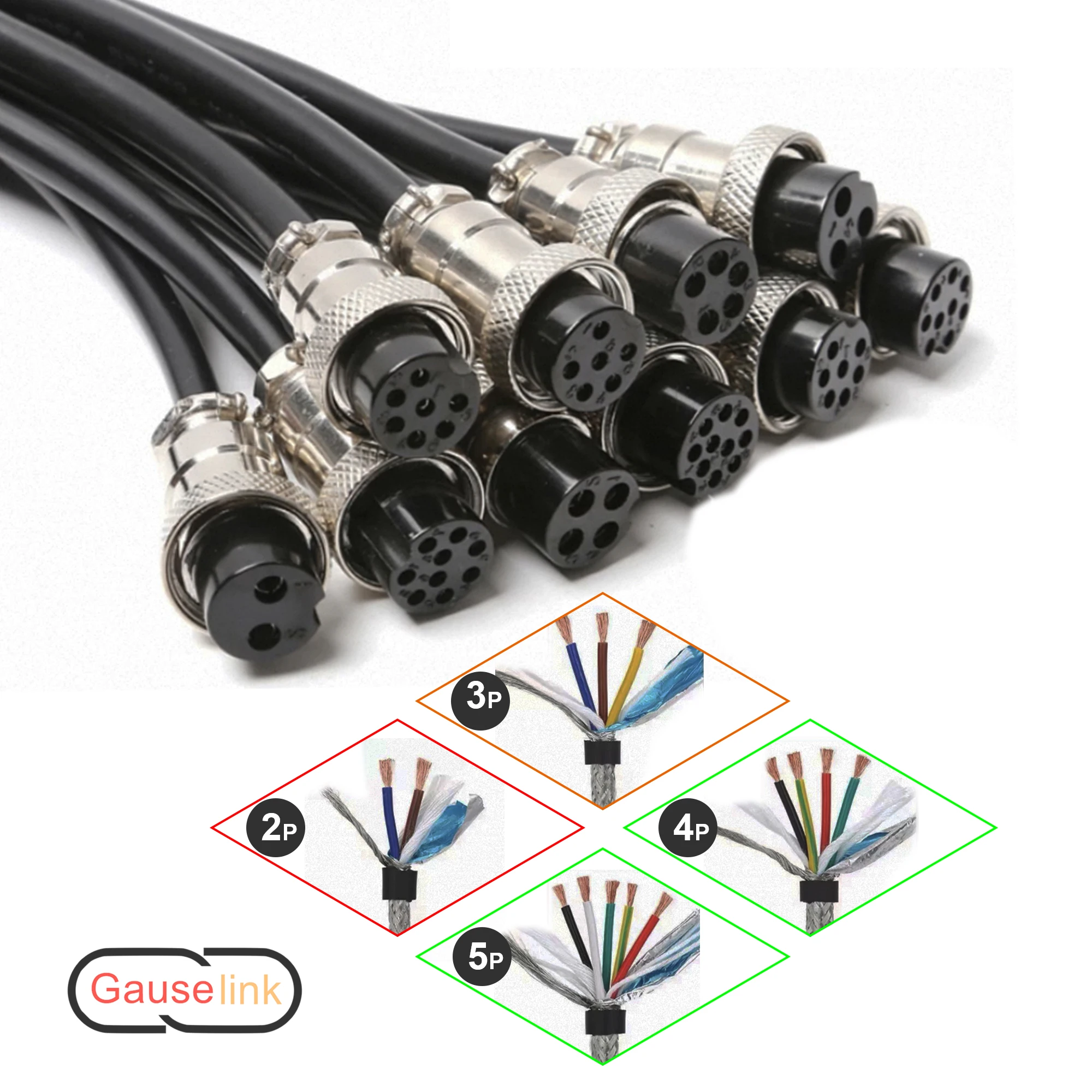

⭐Number of Pins: 2/3/4/5/6/7/8
⭐Size of Installation Hole: Diameter 16mm
⭐Working Ambient Temp.: -50 ~ 70℃
⭐Cross-section of wire: 1) 0.3mm² for 2~4 pins cable; 2) 0.12~0.15mm² for 5~7 pins cable.

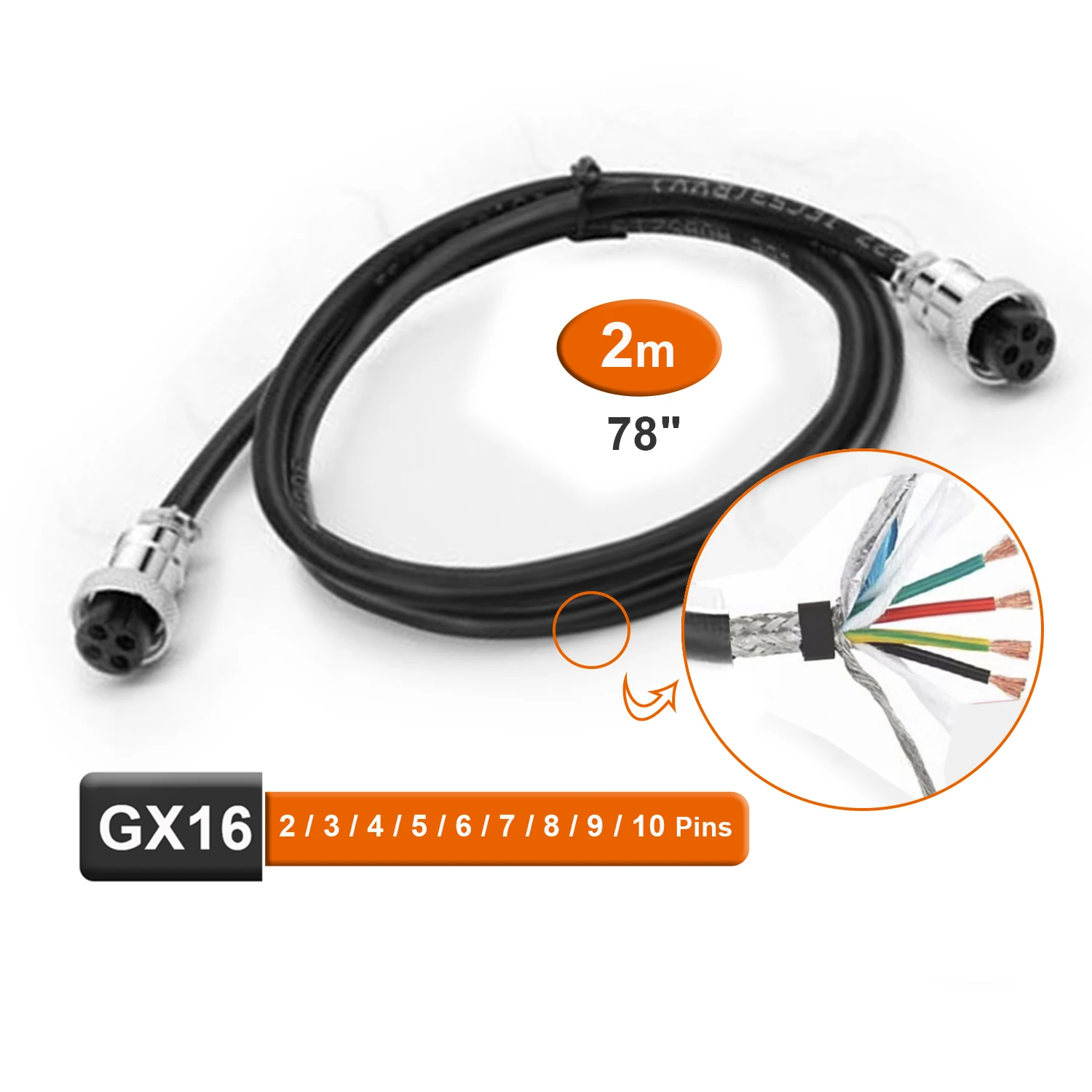

* Length of Cable: 2m (78 inches)

2. Product Dimensions

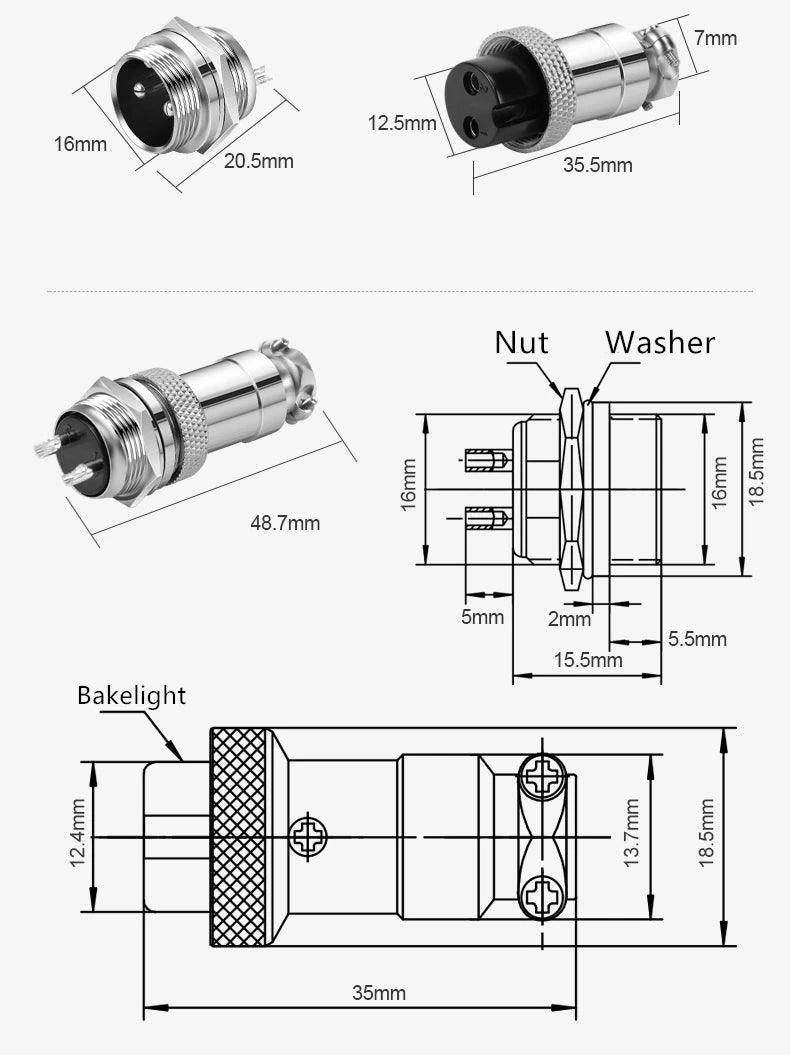

Refer to the drawings below for the Dimensions of Female Socket and Male Plug.

Note: As different molds are used in mass production, the surface patterns/details can slightly vary from those on the picture.

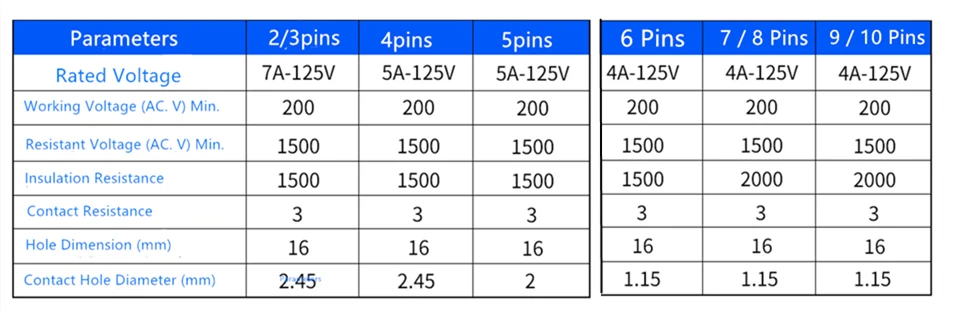

3. Product Parameters

4. Product Features

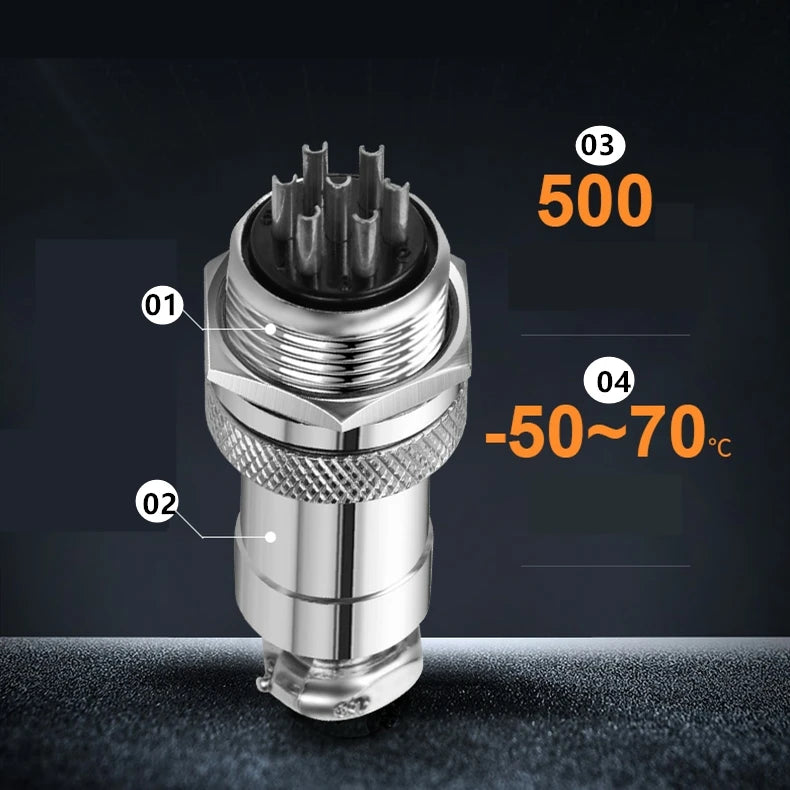

4.1 Refer to the picture below.

01 - Male Socket
02 - Female Plug
03 - Normal plug/unplug test 500 times without damage
04 - Resistant to low/high temperature and high pressure.

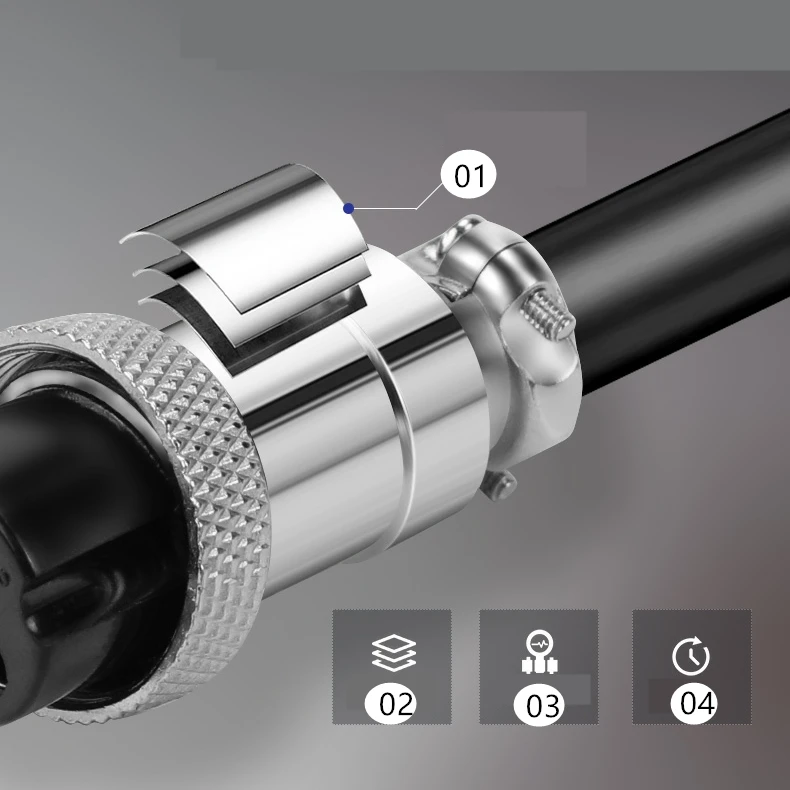

4.2 Look at the picture below.

01 & 02 - Shiny multi-layer nickle plated surface.
03 - Resistant to compression
04 - Long life

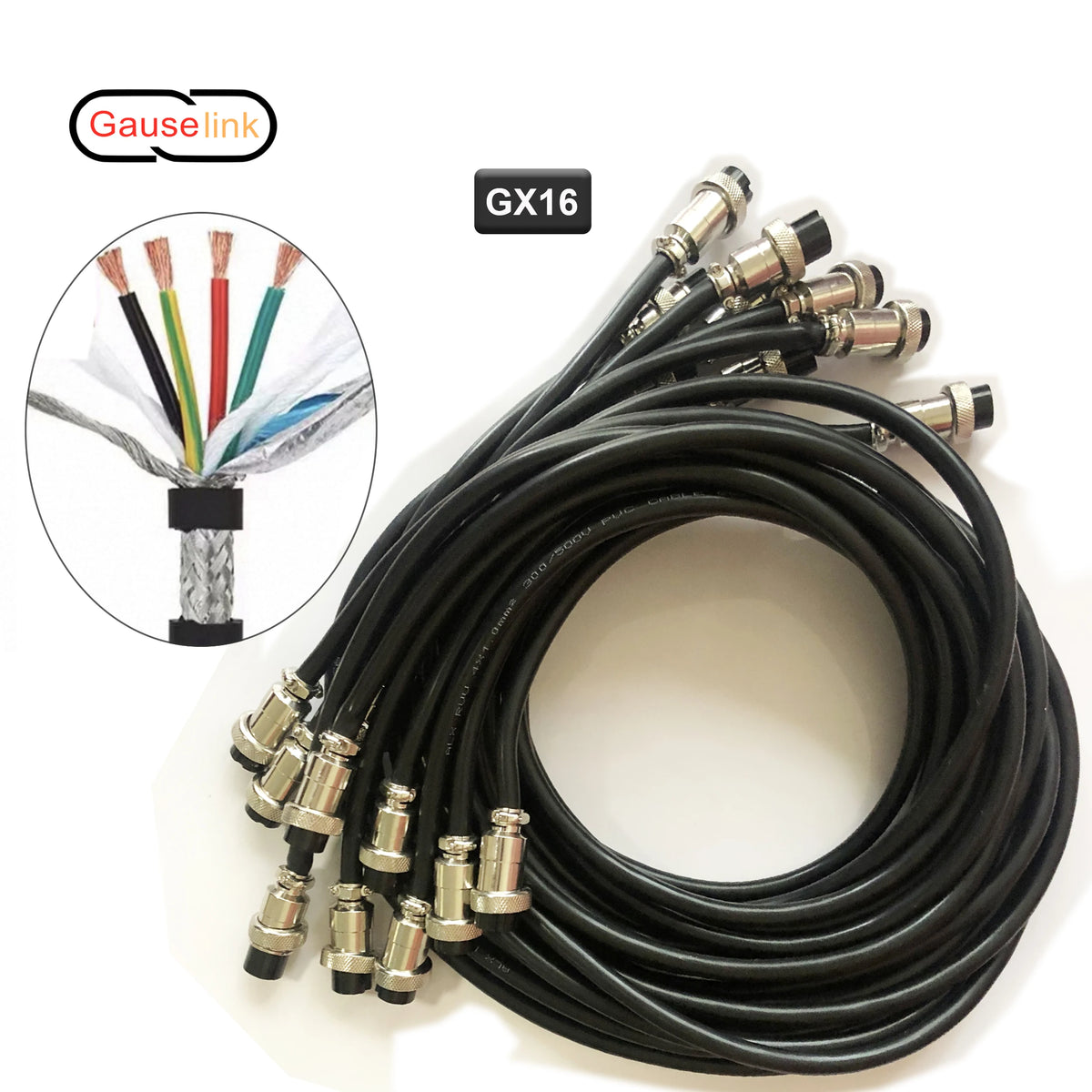

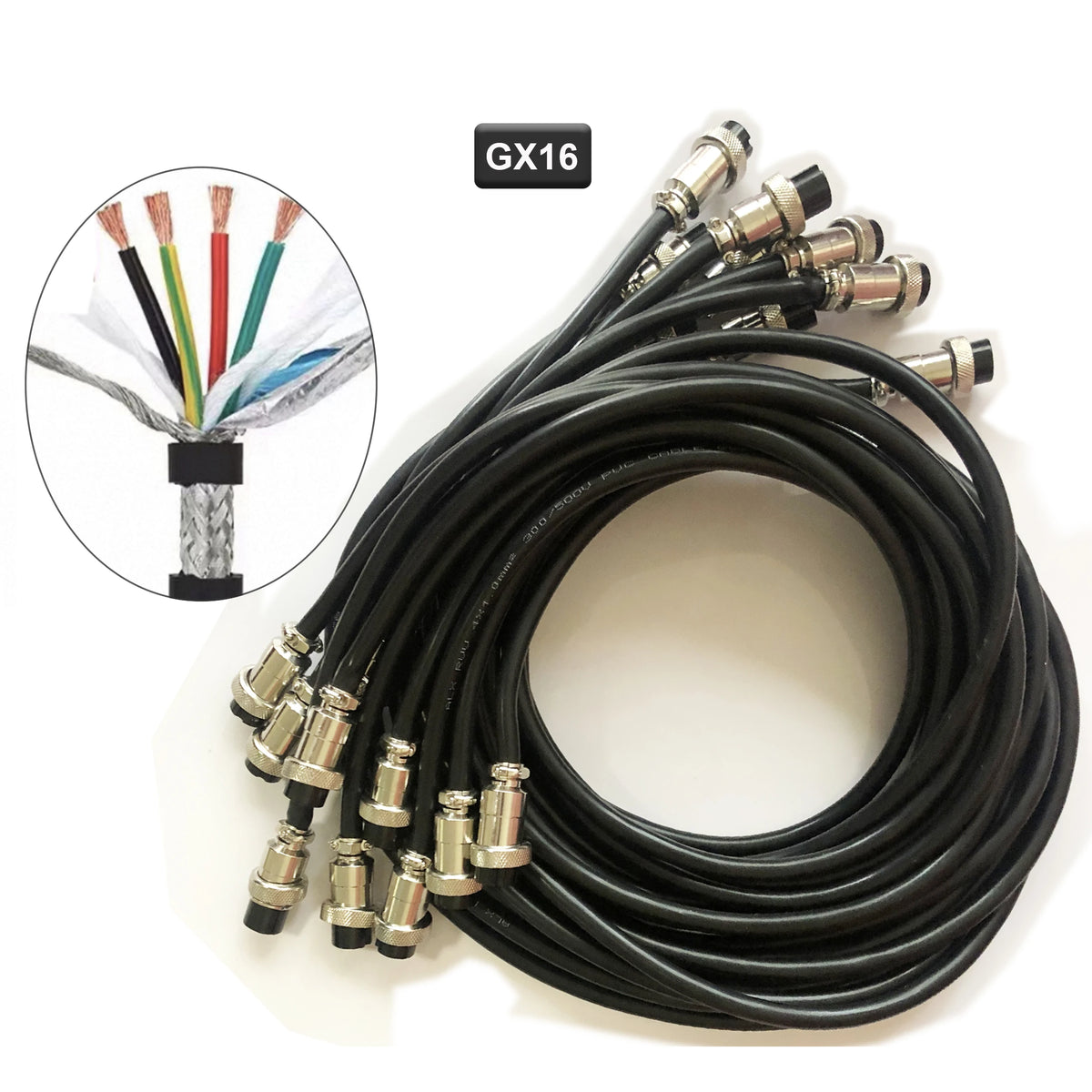

4.3 Shielded Cable

4.4 Durable and Long Lifespan

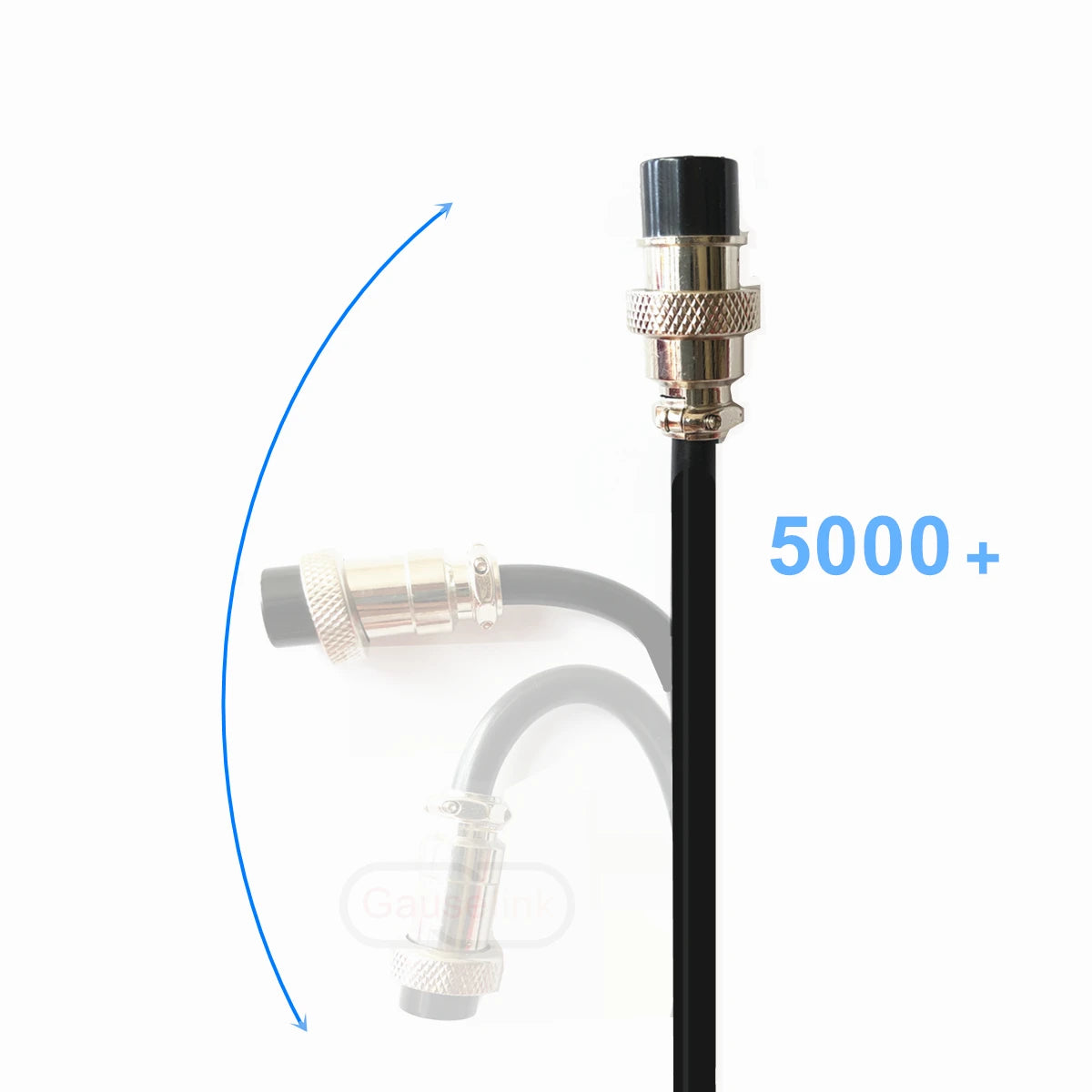

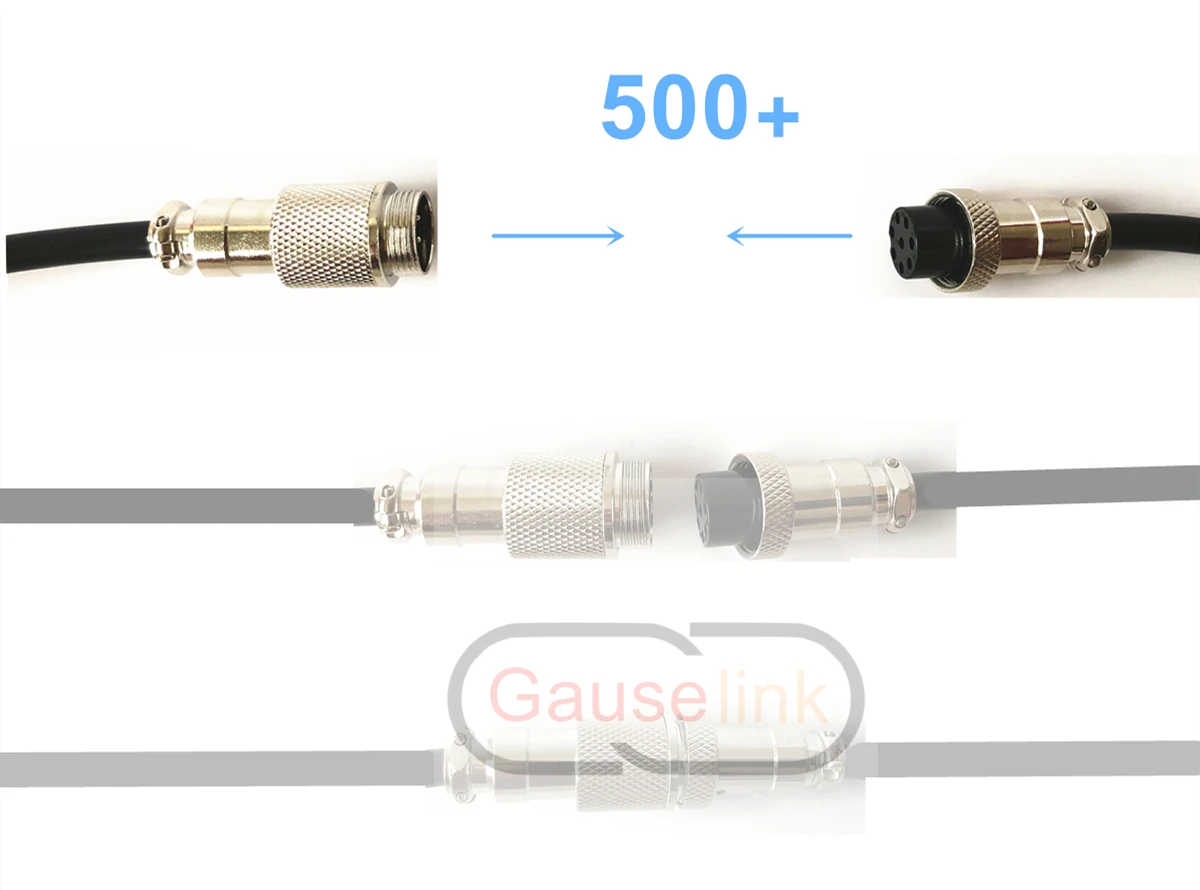

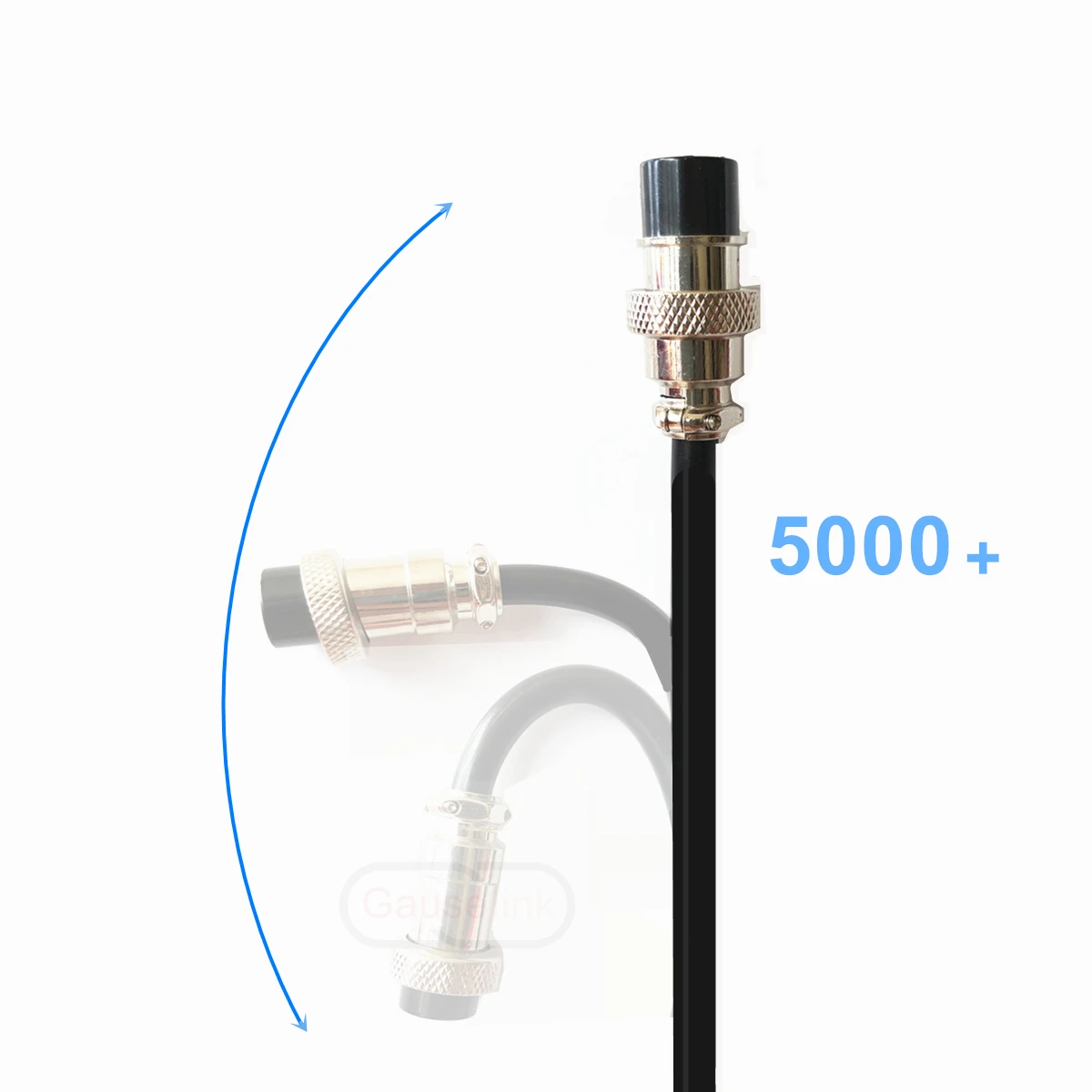

The connector can withstand 500+ times of plug/unplug test and connection between the cable and connector can withstand 5000+ times of bending test.

Note: Data based on Hilinktec Internal Lab.

5. Cable Used

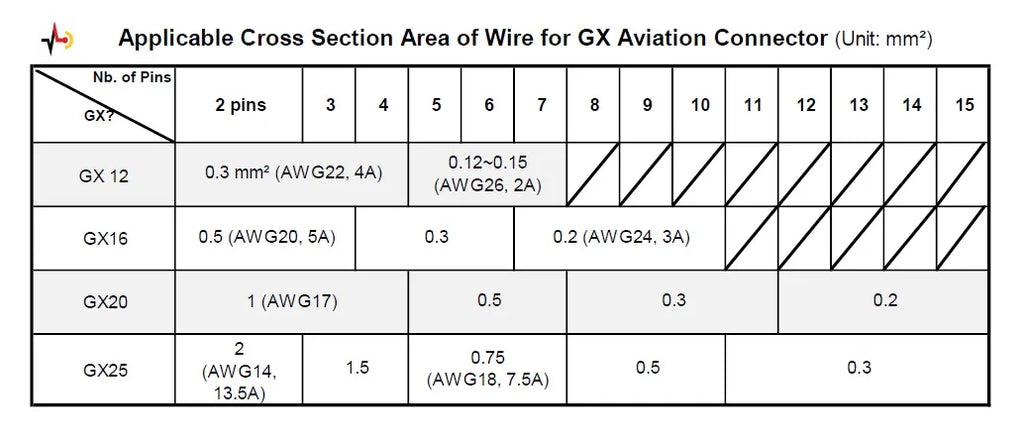

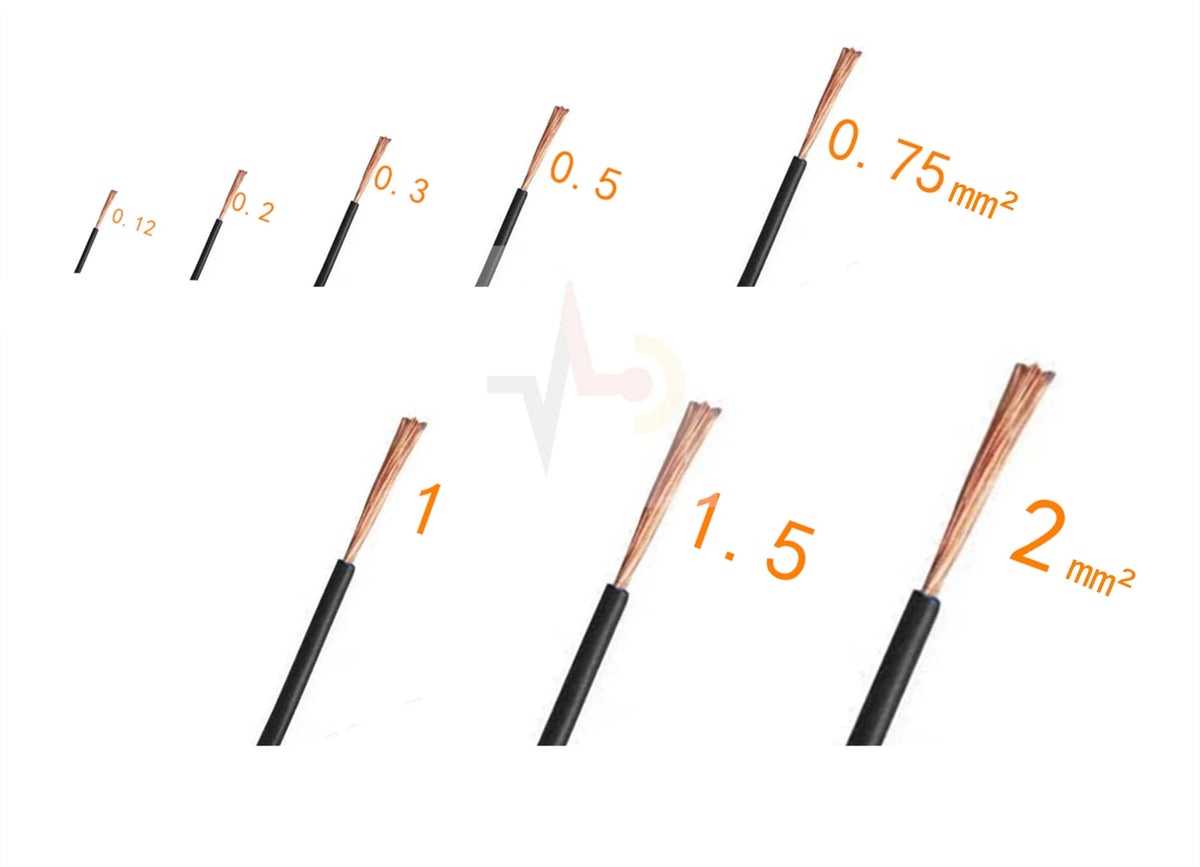

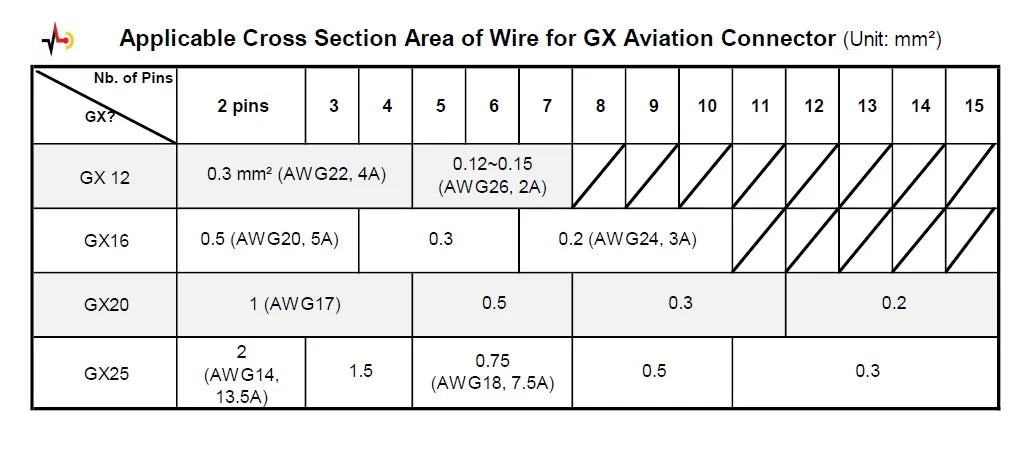

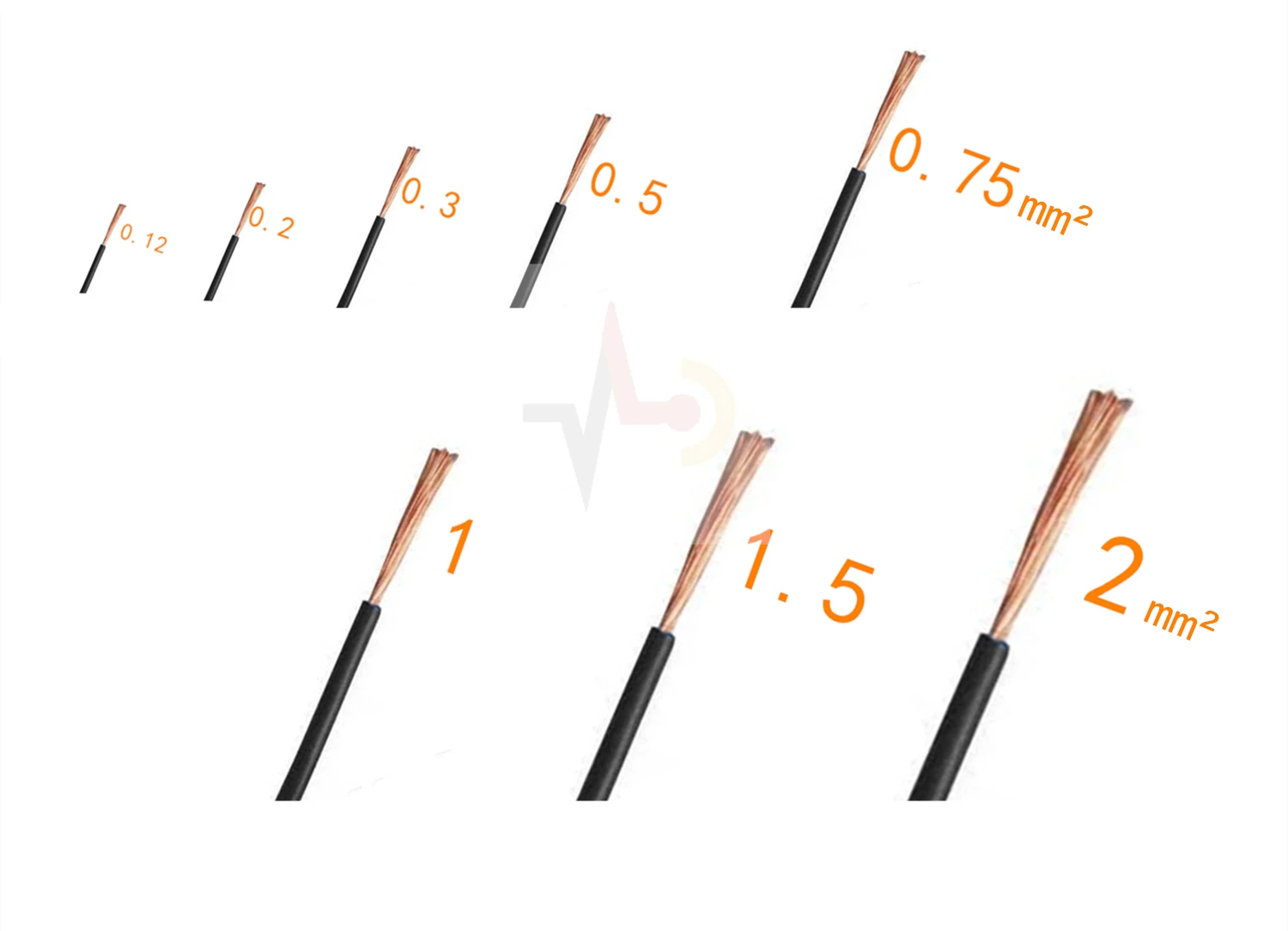

The cable selected has the wires with cross section area according to the reference table below. Data may slightly vary.

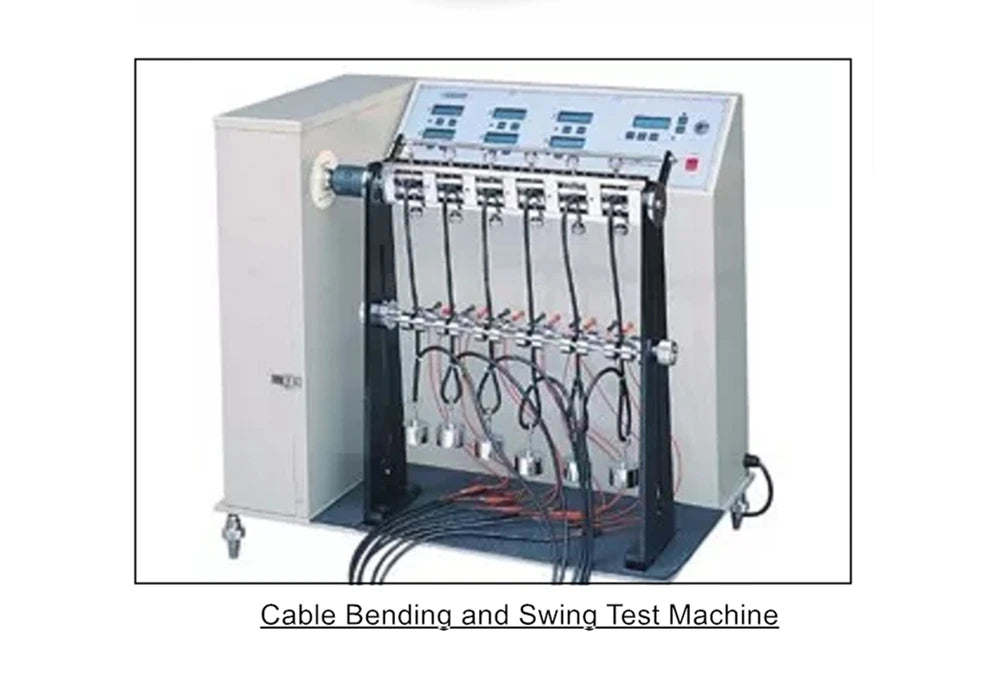

The cable conforms to requirements of UL, CE and RoHS and passed bending and swing test at laboratory.

6. Product Applicable Fields

Aviation, Railway, Ship, Factory Automation, Machine, etc.

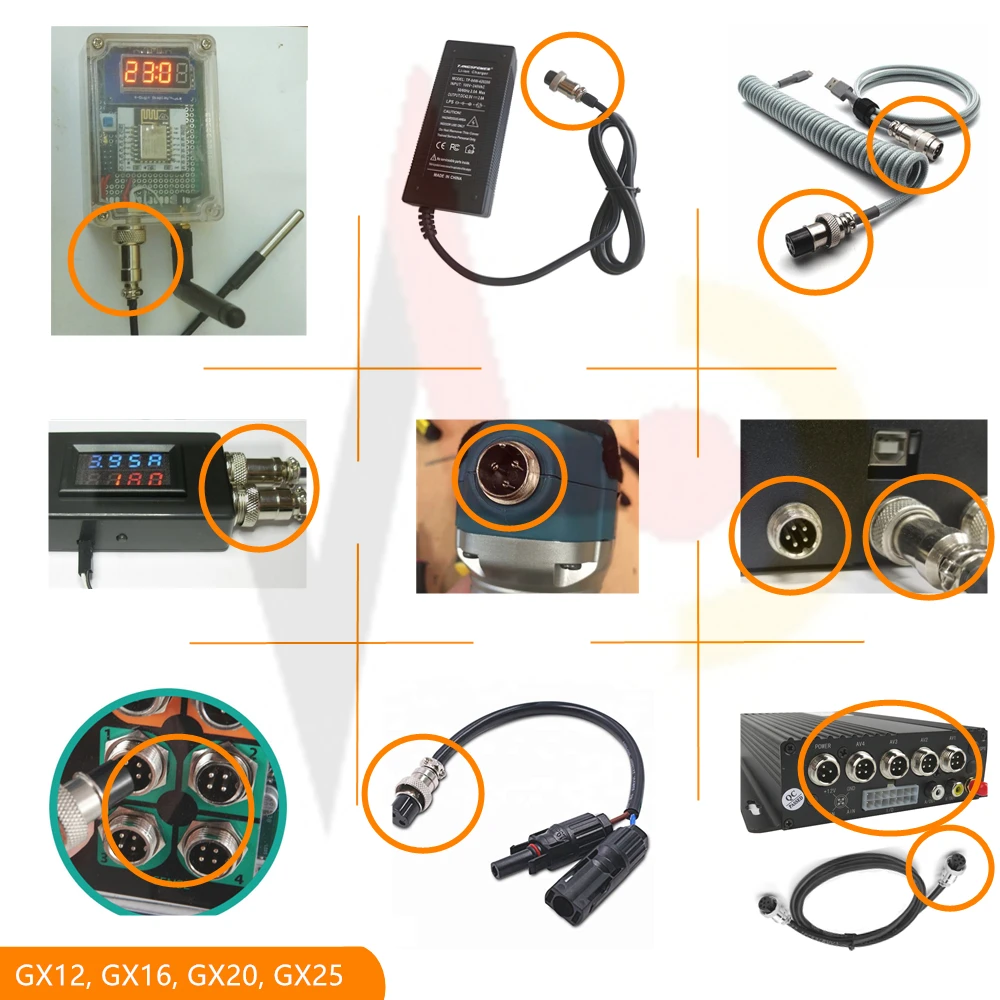

Customer Application Examples

7. Customization

We'd love to help customer customize the aviation connectors and cables. If the quantity needed is big, please contact Customer Service or send email to detail your need.

Some of customers' customization cases:
