Description

SPECIFICATIONS

Brand Name: AFU

Certification: CE,FCC,RoHS

Data Transmission: no

Display screen: No

High-concerned chemical: none

Intelligent Charge: Yes

Model Number: AF500-8405R

Origin: Mainland China

Output Power: 150-500（include500）

Package: Yes

Power Source: AC&DC

Quick charge: No

Type: Electric

Use: Standard Battery

Voltage range: High voltage (50-1000V DC, 75-1000V AC)

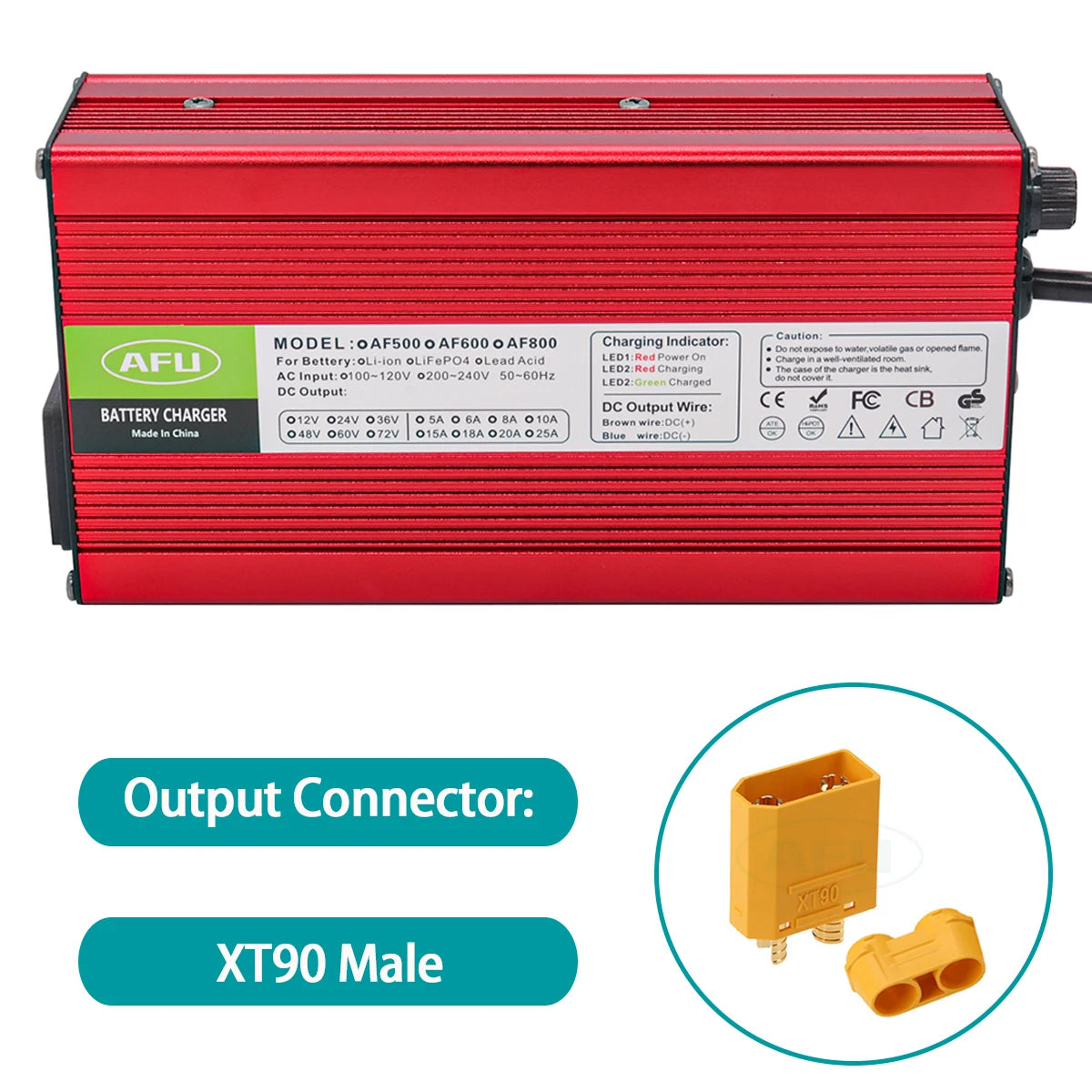

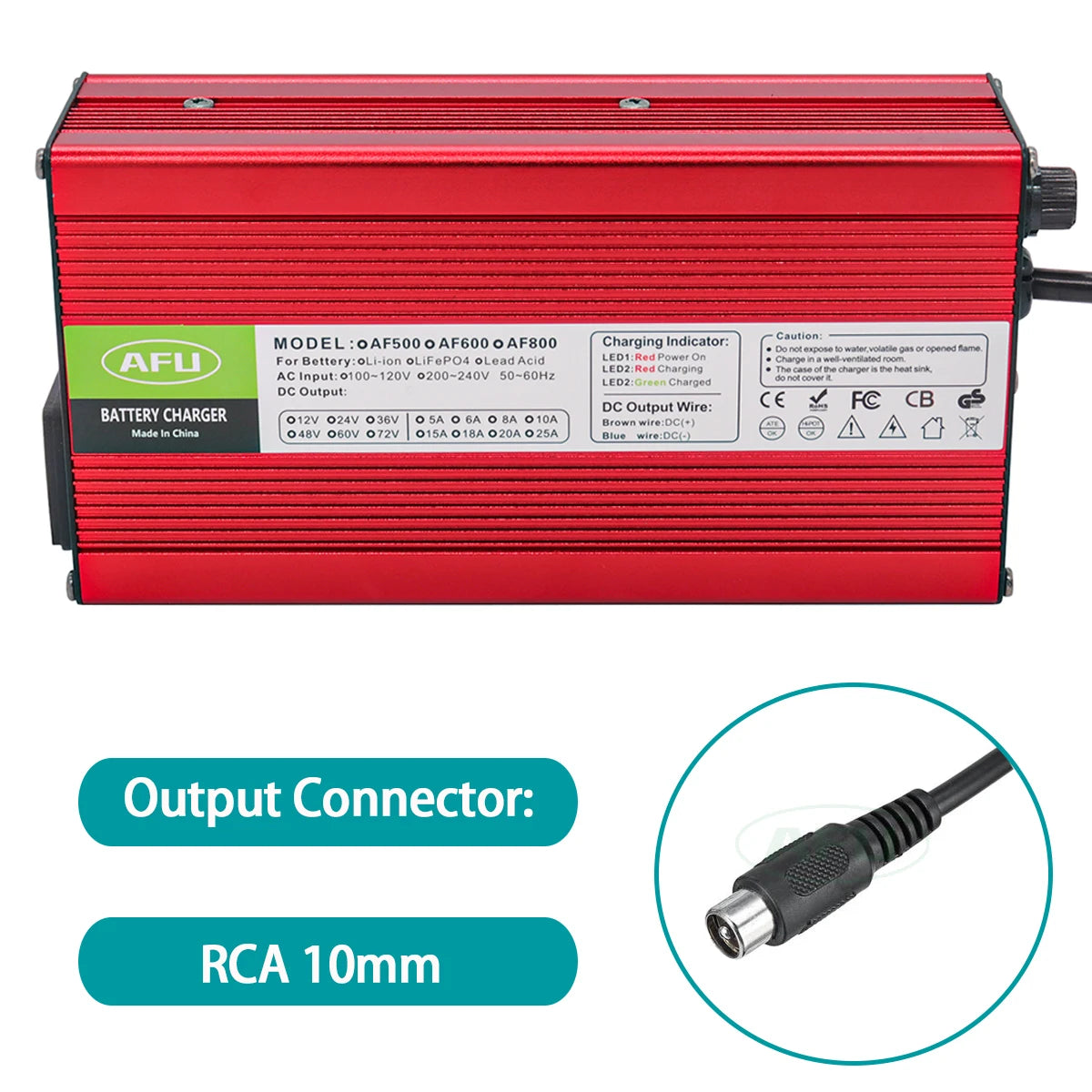

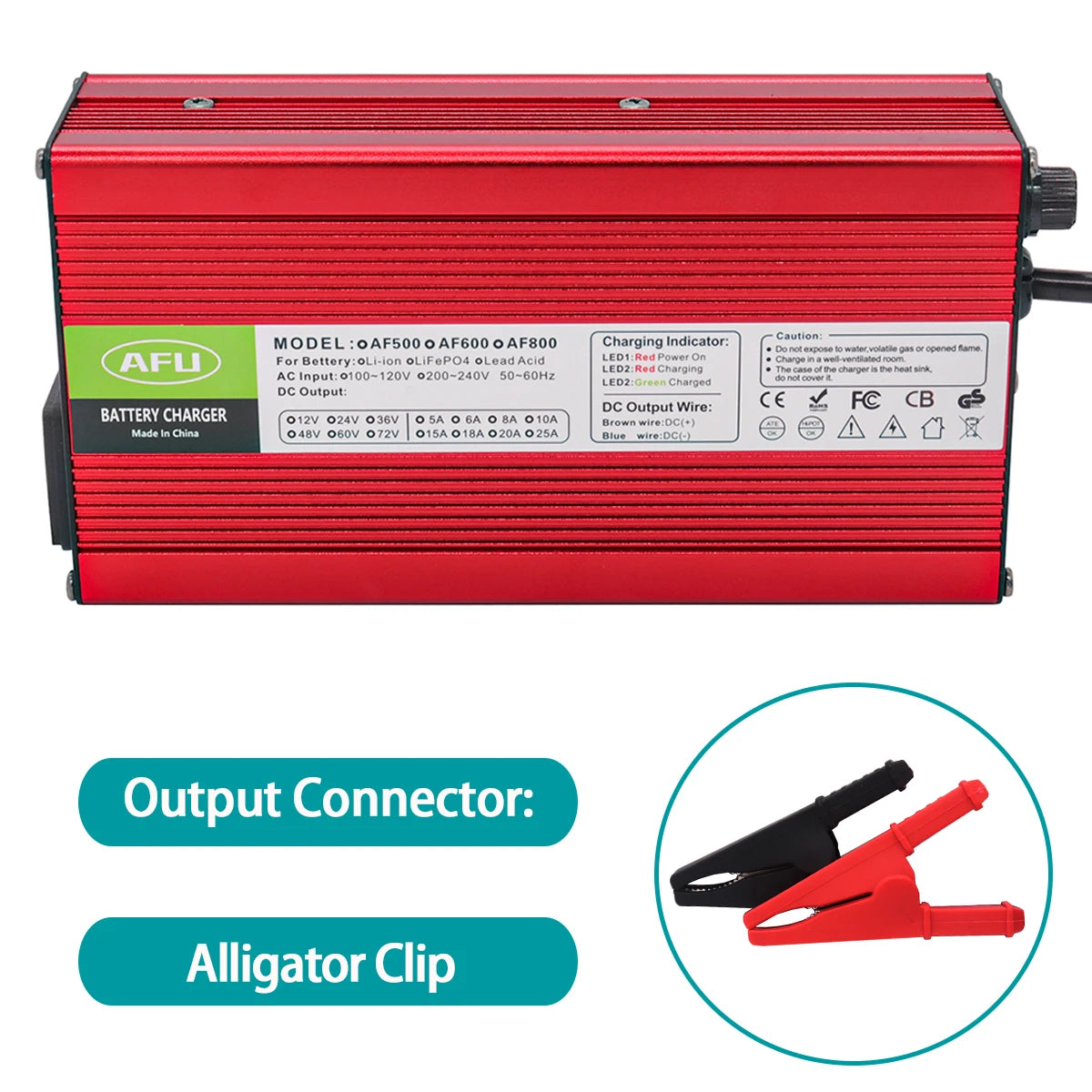

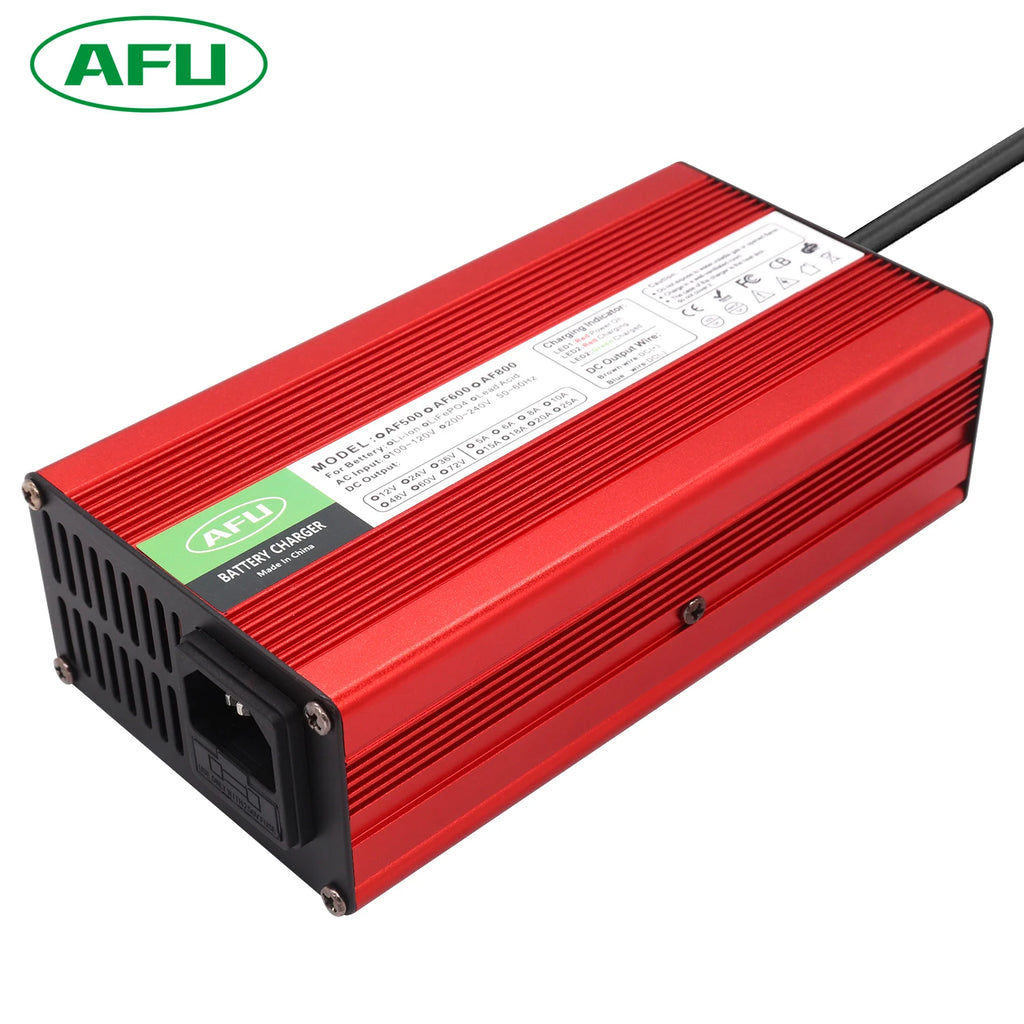

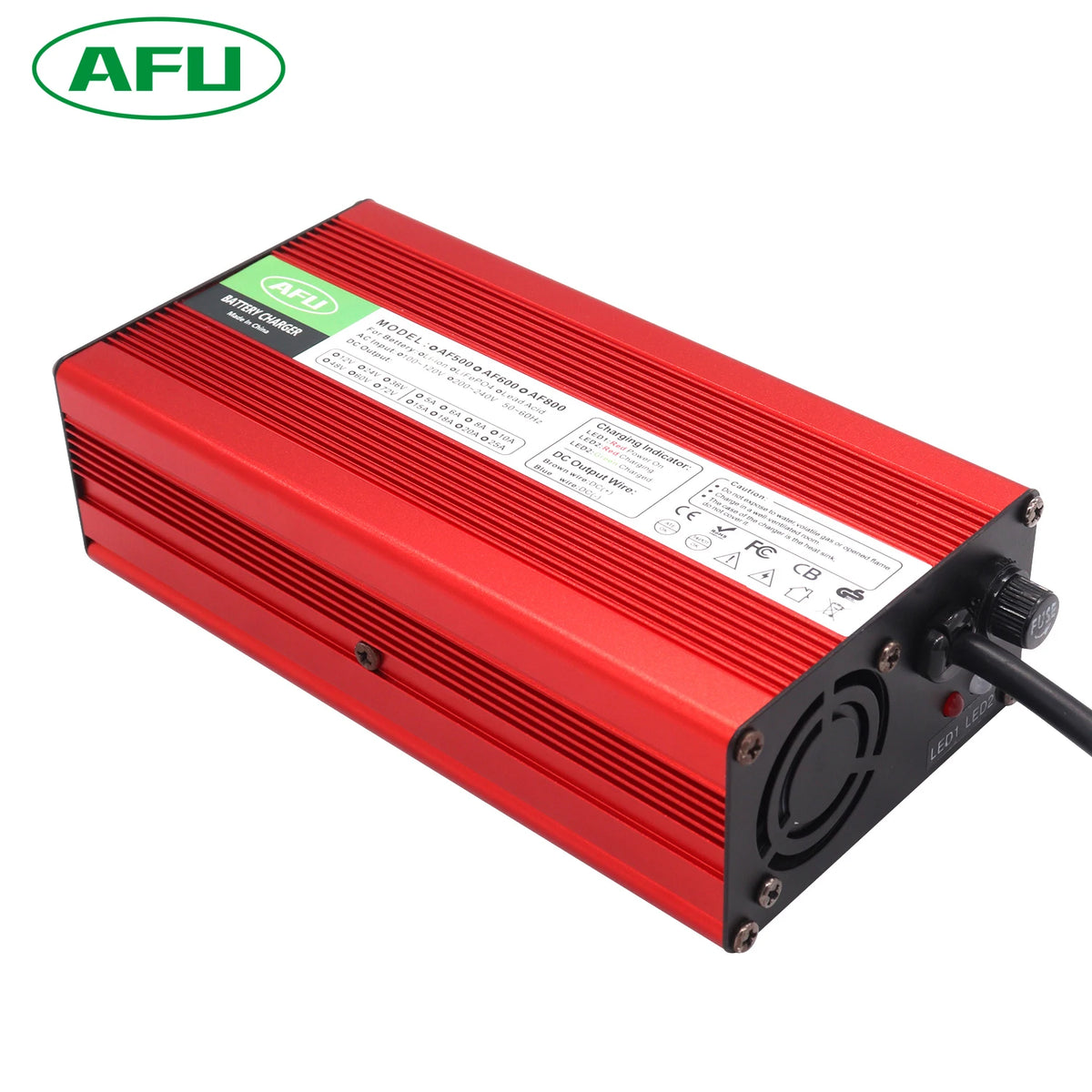

Product Name	AF500 BATTERY CHARGER
Brand Name	AFU	Model Number	AF500-8405R
AC Input Voltage	100~120V/200~240Vac	Frequency	50~60HZ
DC Output Voltage	84 Volt	DC Output Current	5 Amp

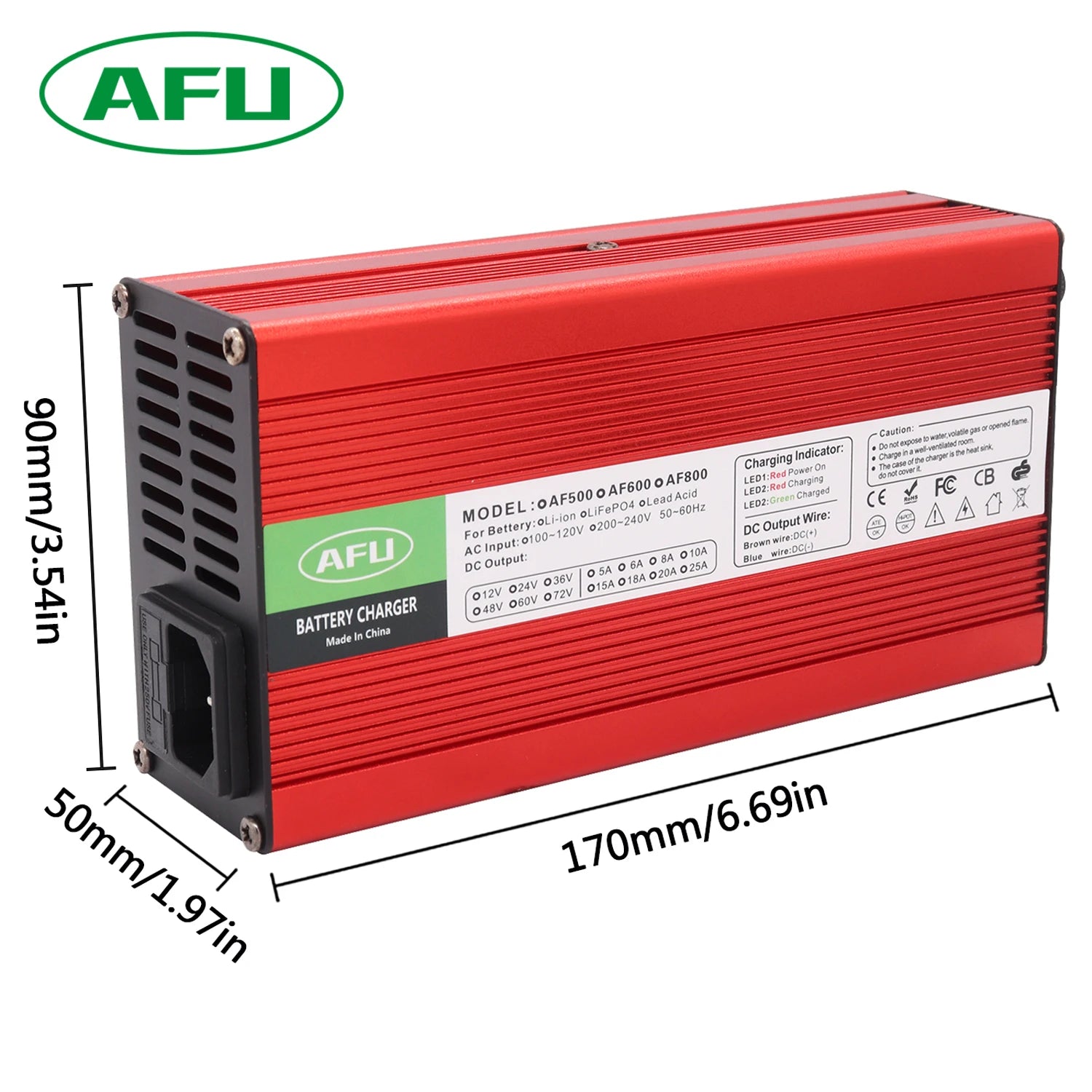

Dimension	1709050mm	Net Weight	1.2KG

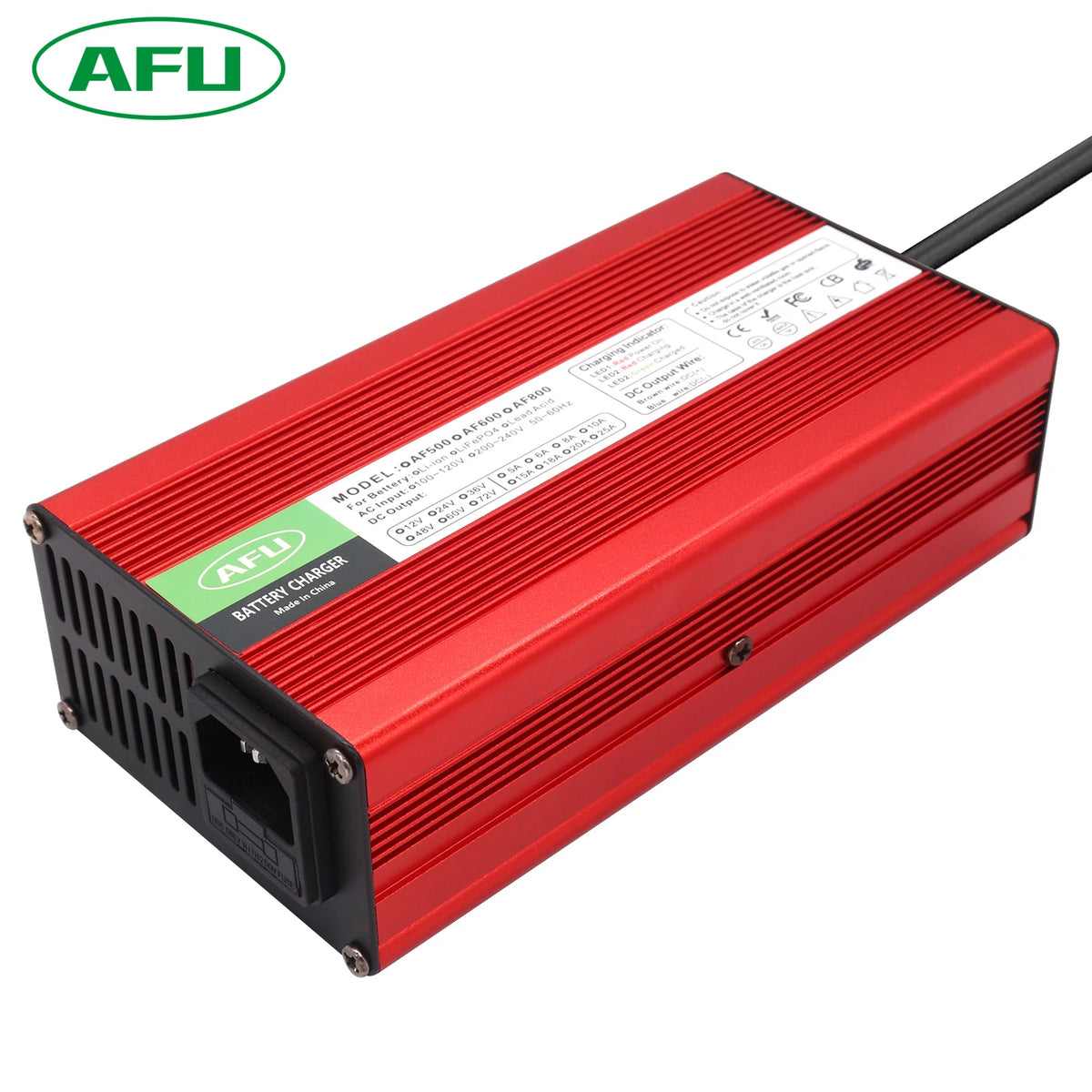

Case Color	Red	Case Material	Aluminum case
Suitable Battery Type	20S 72V 74V Li-ion Lipo Battery (S=Series Connection)	Efficiency	≥85%

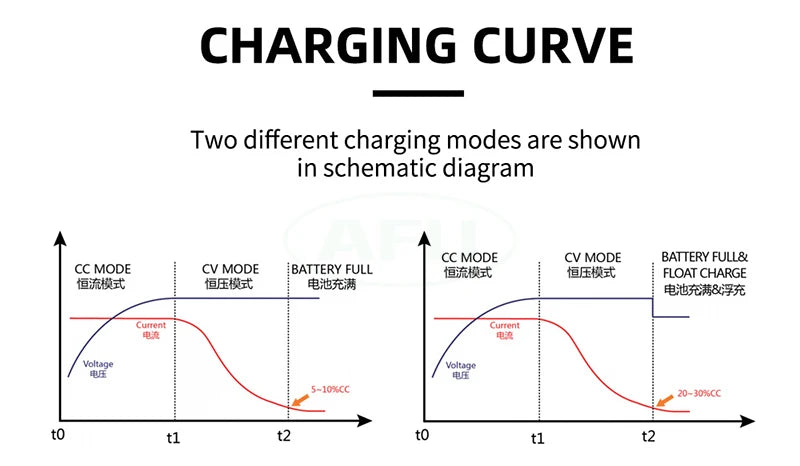

Charging Mode	Three-stage Intelligent Charging Mode: Constant Current~Constant Voltage~Trickle(Floating Charge) to Ensure Battery Fully Charged (Floating Charge is when Lead Acid charger)
Charging Indicator	Red and Green, double color instructions, Red logo charging, Green logo finished or standby
Operating/Storage Conditions	Operating:Ambient temperature: -20~+40℃; RH: 5~95%; Max. altitude: 10000 meter
Operating/Storage Conditions	Storage:Ambient temperature: -40~+70℃; RH: 0~95%; Max. altitude: 20000 meters

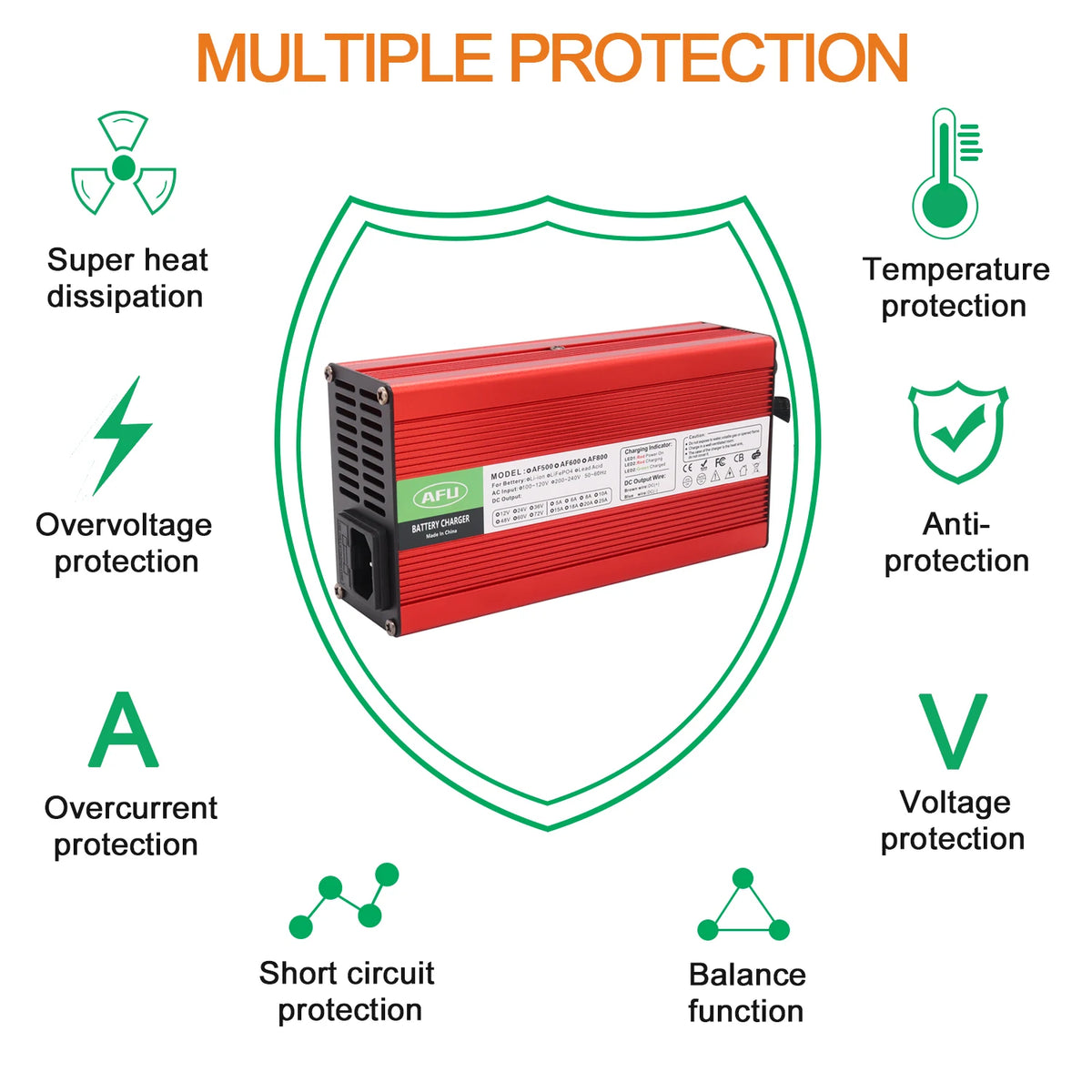

Various Protection	Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge
Our Advantage	Safety certifications CE, RoHS, FCC Directive-compliant, Intelligent IC control ,full automatic transition of CC,CV and Float/Cut-off rickle, meet the demands for different Curve.
Our Advantage	Aluminum case, Robust, Elegant, Safe, Stable, Reliable
Package Contents	1xbattery charger 1xInput Wire *1xUser Manual This battery charger is your affordable necessity without sacrificing performance. It features an integrated MCU and PWM for power control.
