SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: standard

High-concerned chemical: none

Origin: Mainland China

Supply Voltage: standard

Type: Module

is_customized: Yes

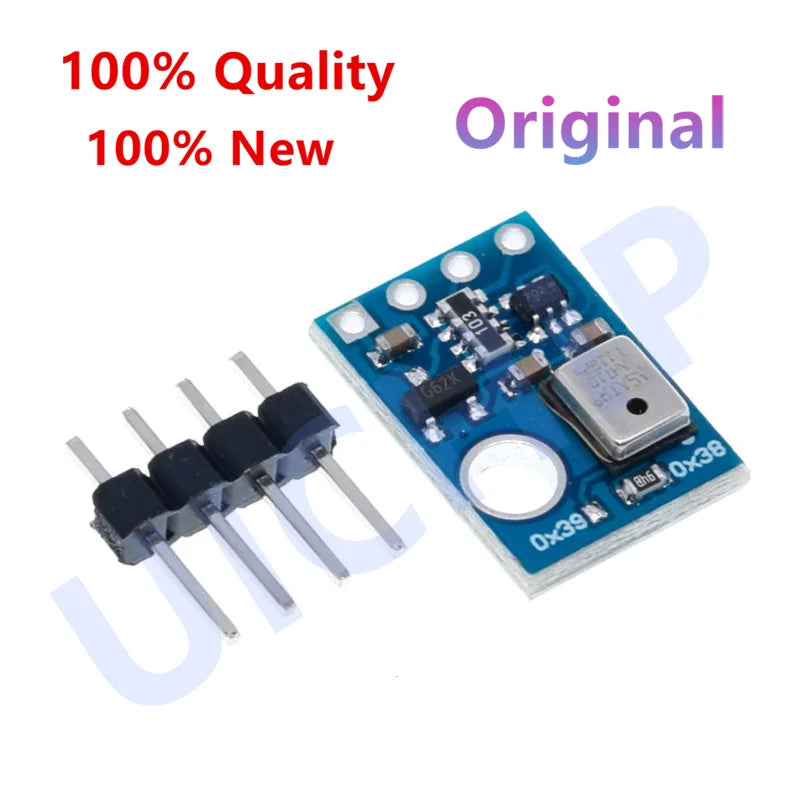

AHT10 is a new generation temperature and humidity sensor, which is embedded in a dual-row flat no-lead SMD package suitable for reflow soldering, with a bottom surface of 4×5mm and a height of 1.6mm. The sensor outputs a calibrated digital signal in a standard I2C format. AHT10 is equipped with a newly designed ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity sensing element and a standard on-chip temperature sensing element. Its performance has been greatly improved or even exceeded the reliability level of the previous generation of sensors. A generation of temperature and humidity sensors have been improved to make their performance more stable in harsh environments.

Characteristic:

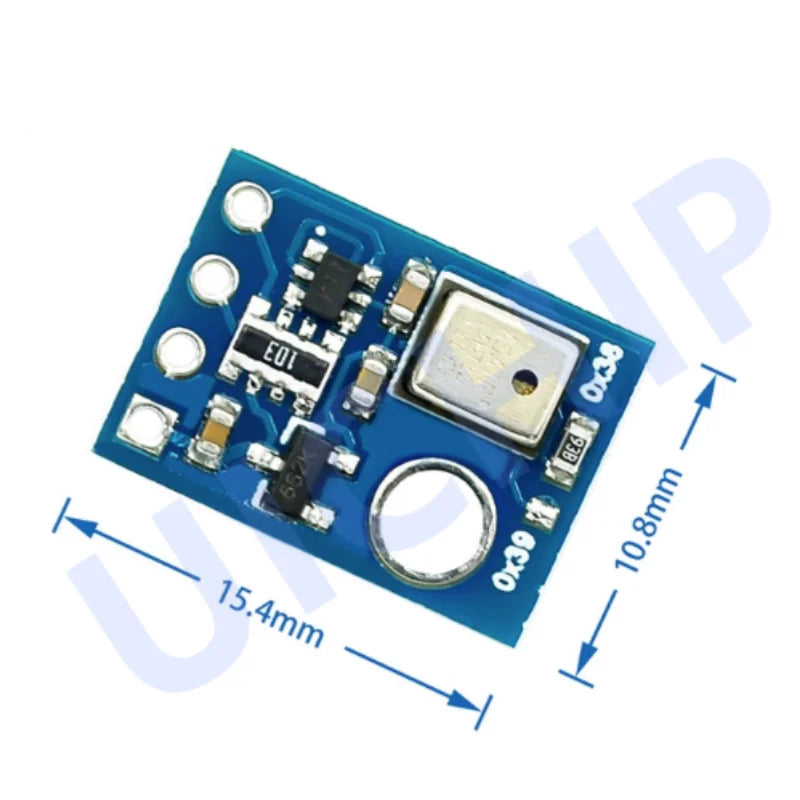

1. Module size: 16*11 mm

2. Interface type: I2C

3. Working voltage: 1.8-6.0 V

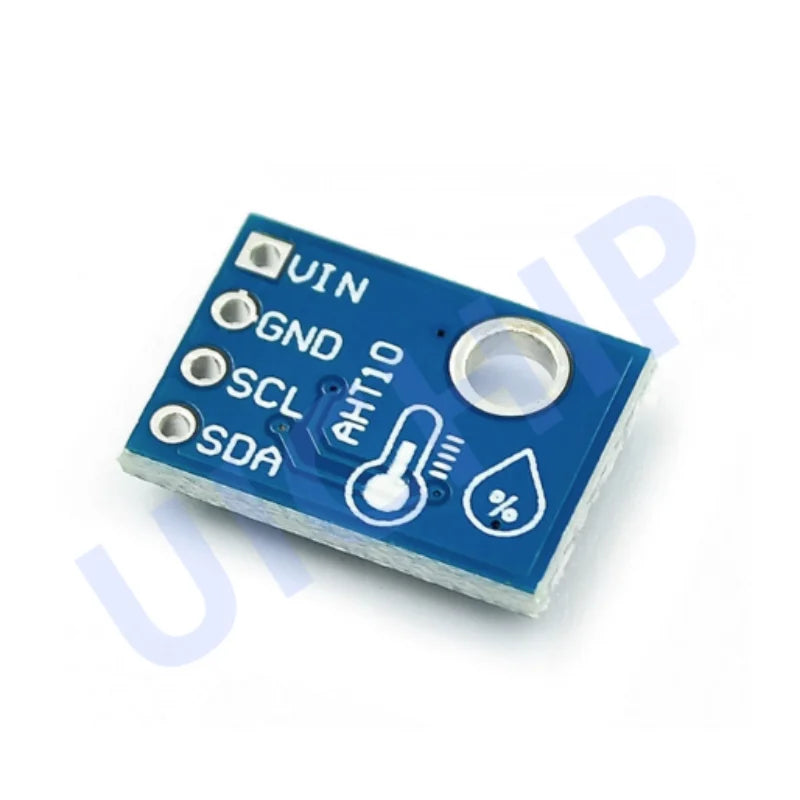

4. Interface size: 4*2.54mm pitch

5. Humidity accuracy: typical ± 2%

6. Humidity resolution: 0.024%

7. Temperature accuracy: typical ± 0.3 ° C

8. Temperature resolution: Typical 0.01 °C

9. Working temperature: -40°C-85°C
