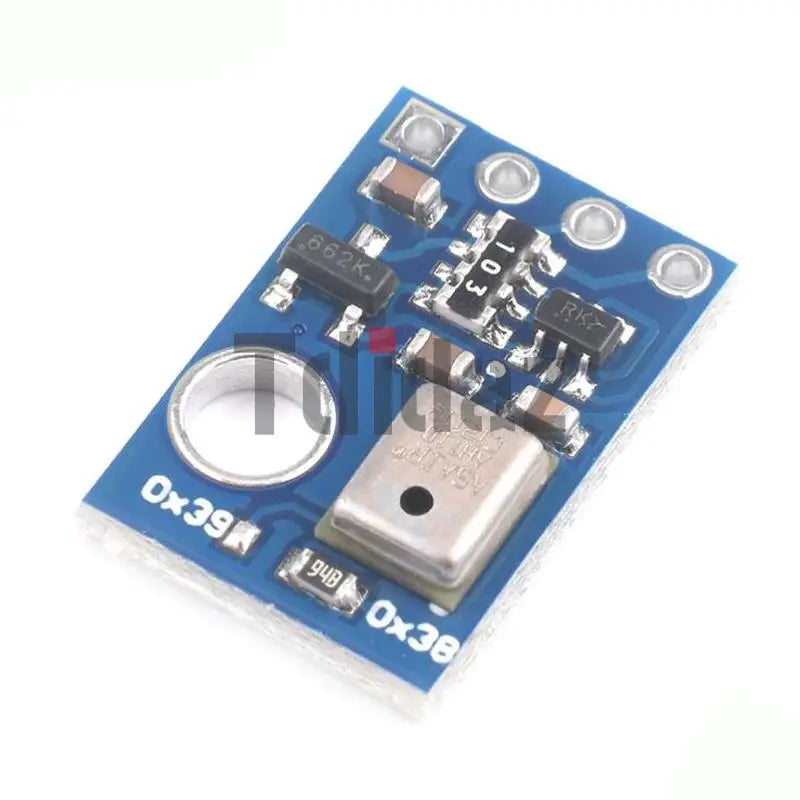

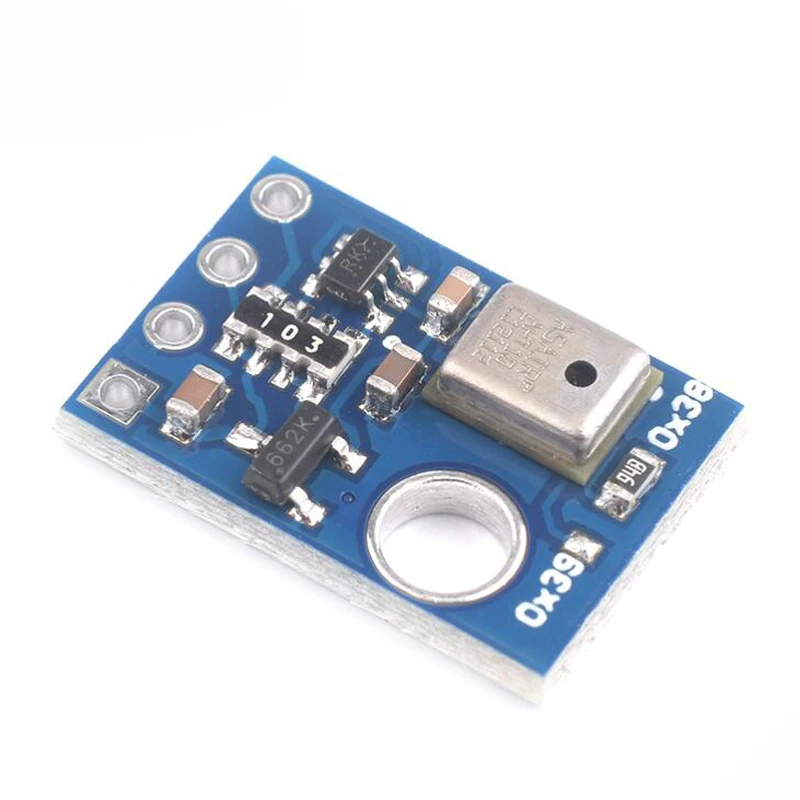

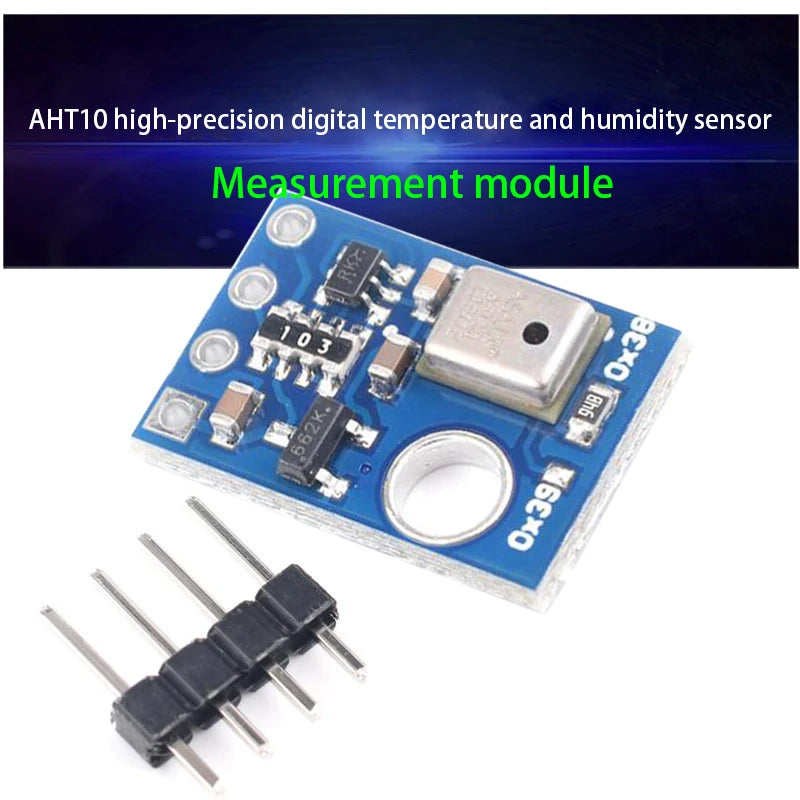

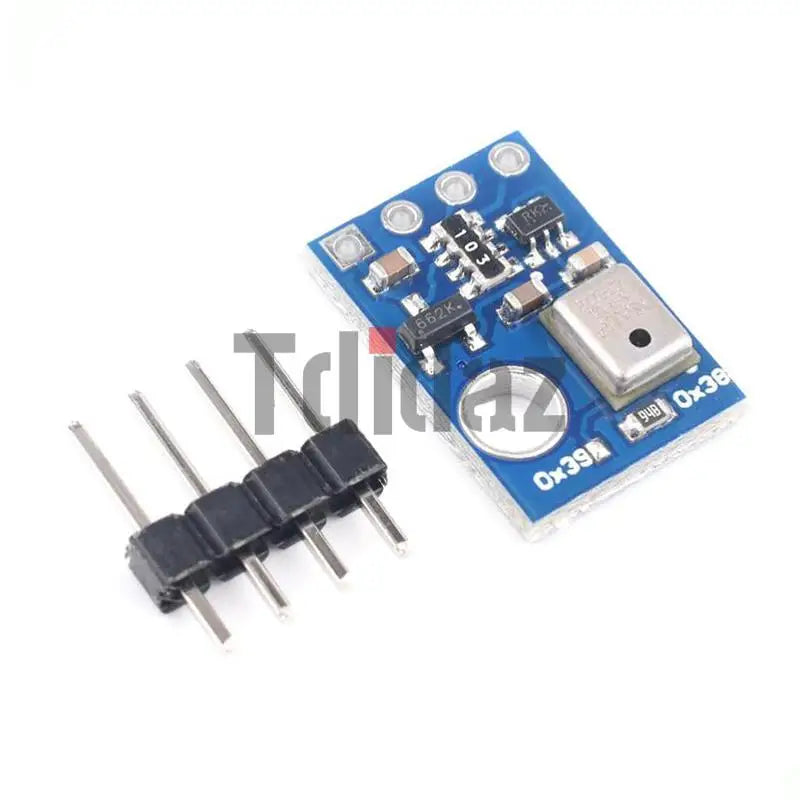

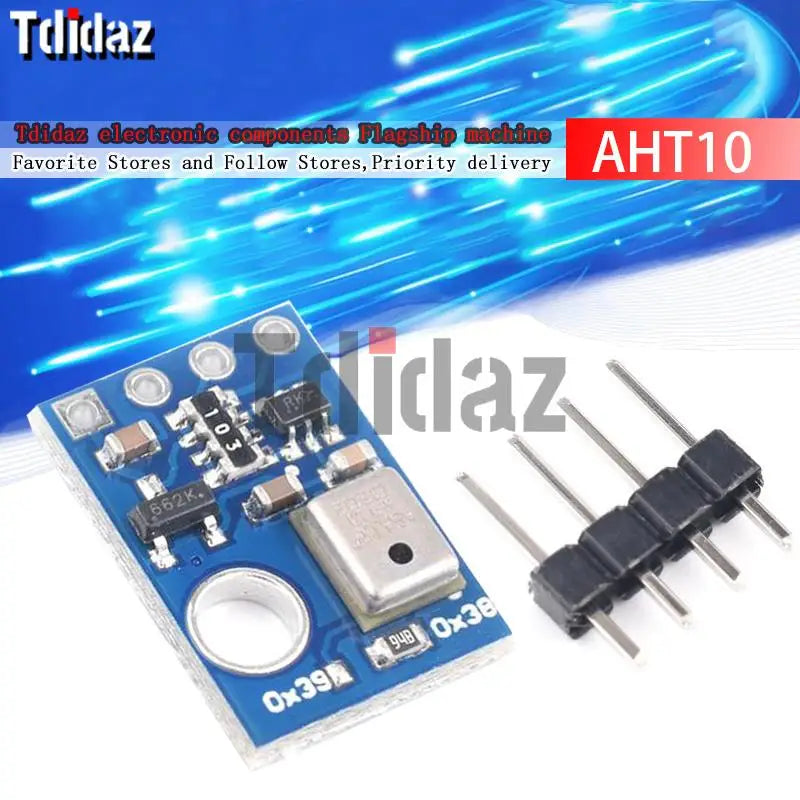

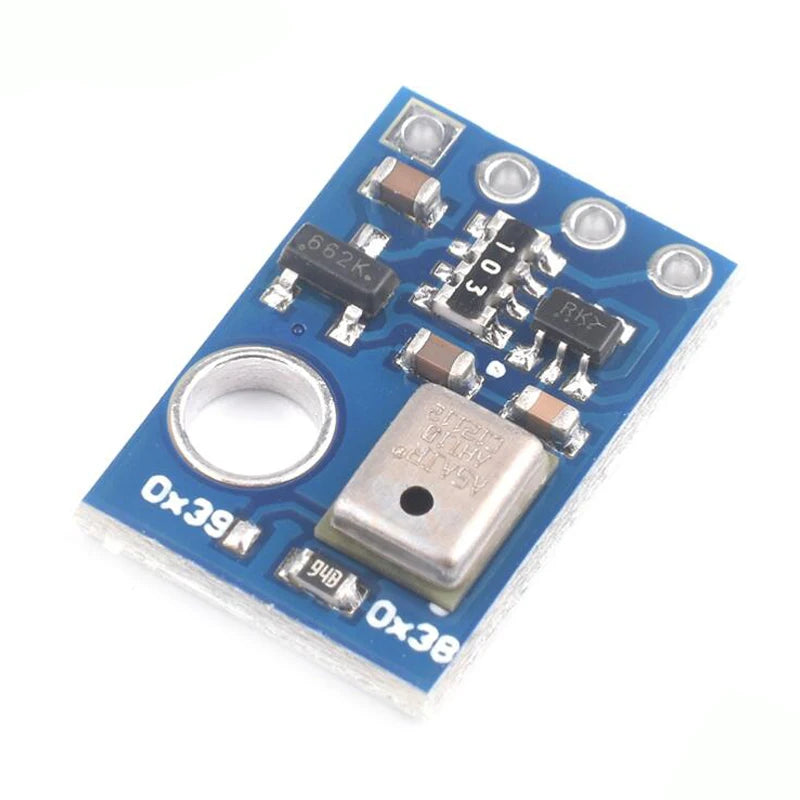

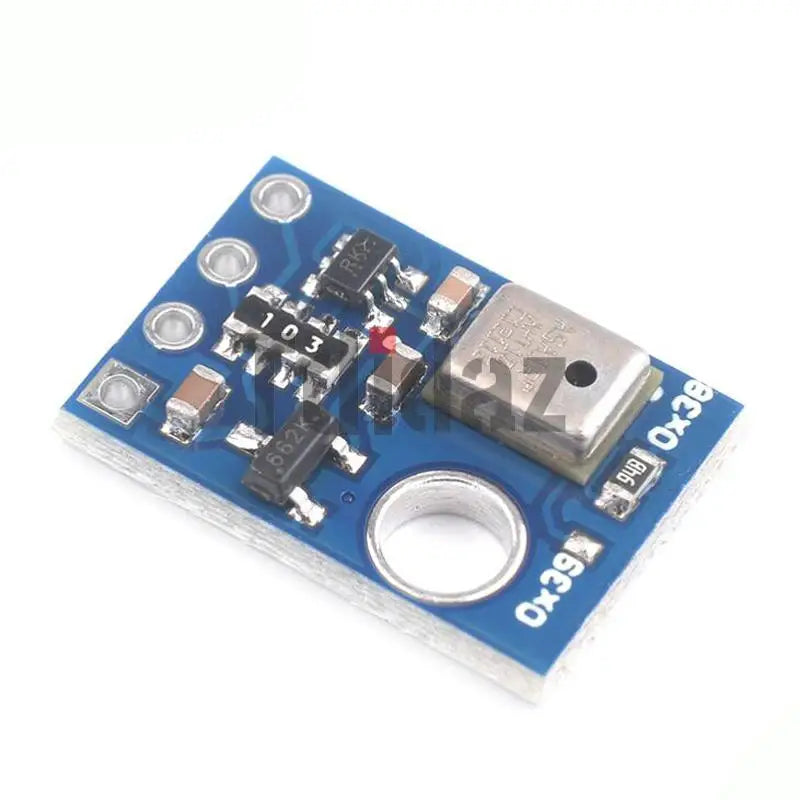

AHT10 High Precision Digital Temperature and Humidity Sensor Measurement Module I2C Communication Replace DHT11 SHT20 AM2302

AHT10 High Precision Digital Temperature and Humidity Sensor Measurement Module I2C Communication Replace DHT11 SHT20 AM2302

$5.49

$5.49 $0.00

Description

SPECIFICATIONS

Brand Name: Tdi daz

High-concerned chemical: none

Material: Mixture

Origin: Mainland China

Output: Digital Sensor

Theory: Current Sensor

Type: Temperature Sensor

Use: Humidity Sensor

is_customized: Yes

AHT10, a new generation of temperature and humidity sensor, has established a new standard in terms of size and intelligence: it is embedded in a dual-row flat no-lead SMD package suitable for reflow soldering, with a bottom surface of 4 x 5mm and a height of 1.6mm. The sensor outputs a calibrated digital signal in a standard I 2C format. AHT10 is equipped with a newly designed ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity sensor element and a standard on-chip temperature sensor element. Its performance has been greatly improved or even exceeded the reliability level of the previous generation of sensors. A generation of temperature and humidity sensors have been improved to make their performance in harsh environments more stable.

characteristic:

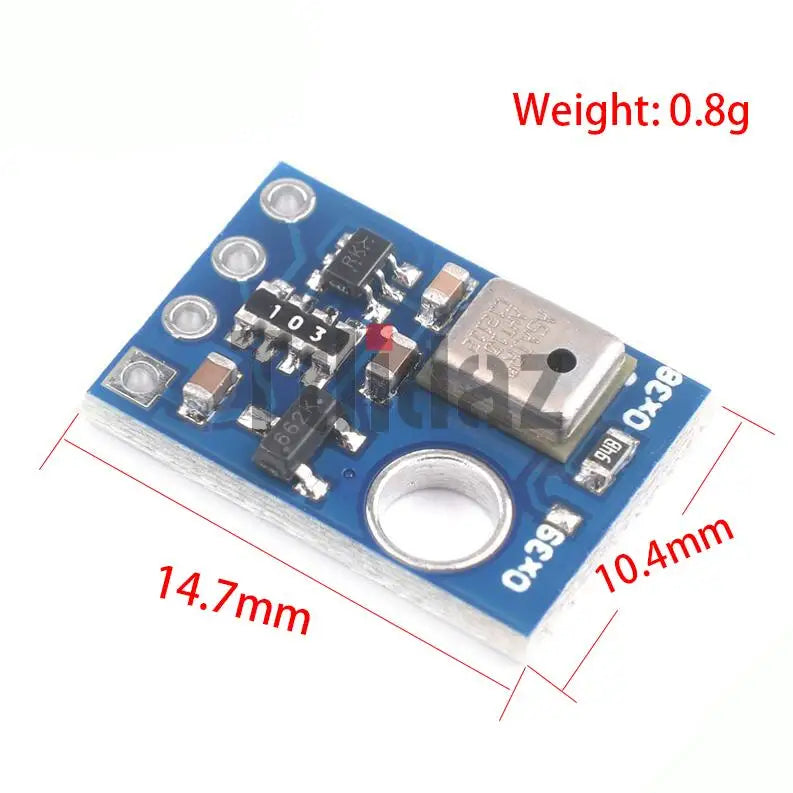

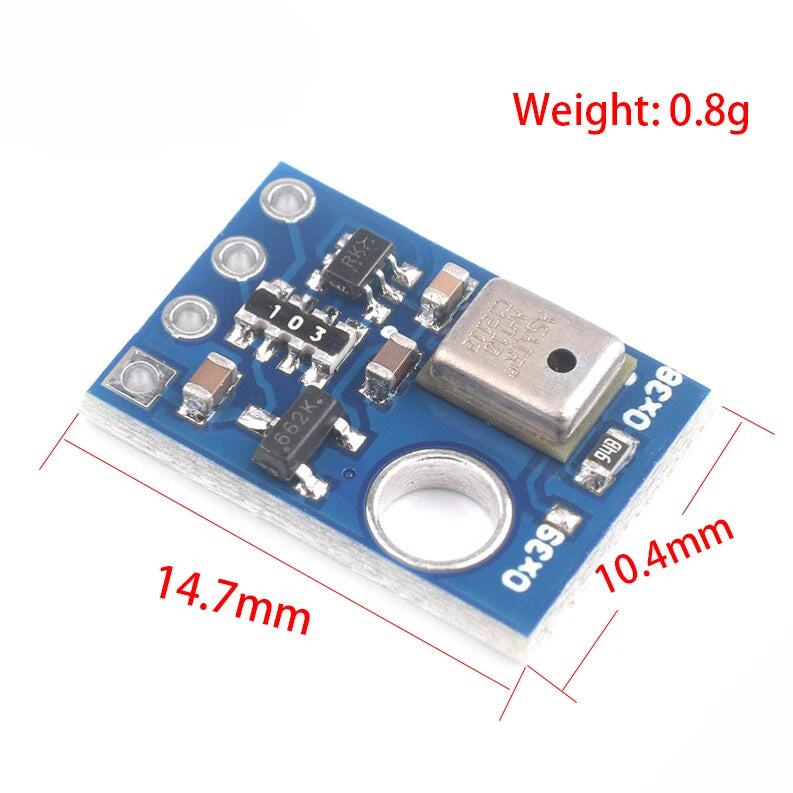

1. Module size: 16*11 mm

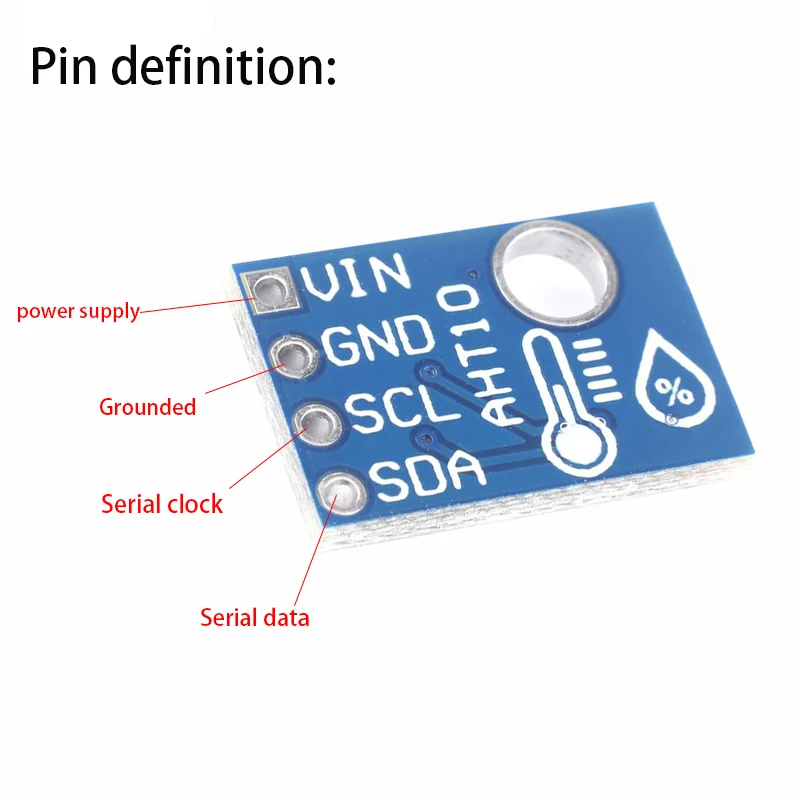

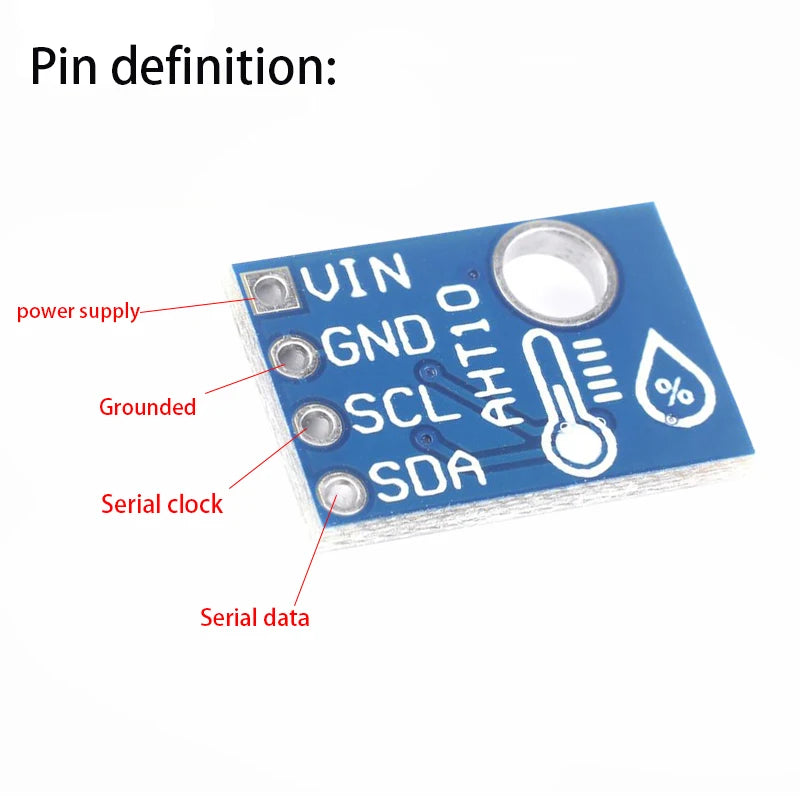

2. Interface type: I2C
3. Working voltage: 1.8-6.0 V
4. Interface size: 4*2.54mm pitch
5. Humidity accuracy: typical ±2%
6. Humidity resolution: 0.024%
7. Temperature accuracy: typical ±0.3��
8. Temperature resolution: 0.01�� typical
9. Working temperature: -40��--85��
