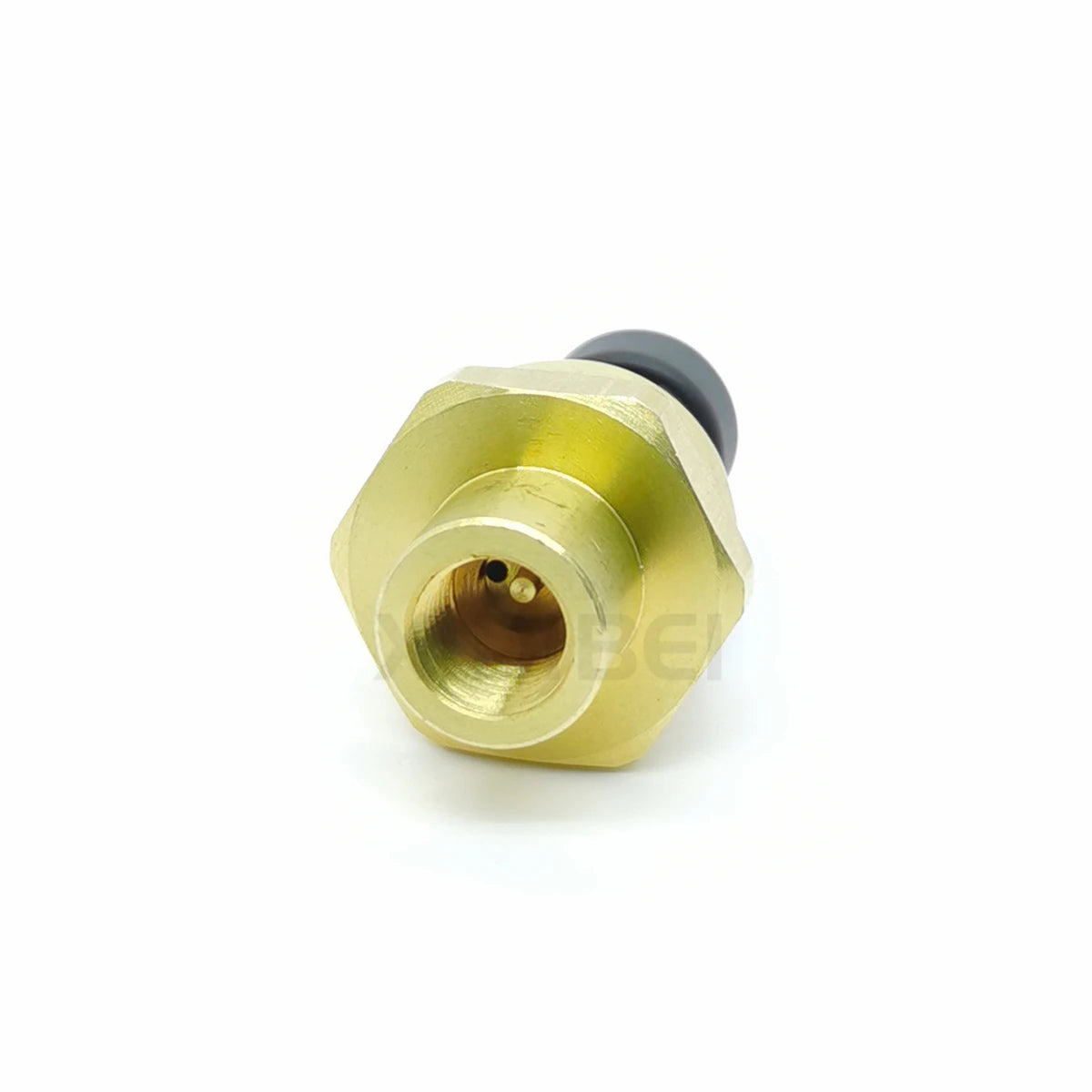

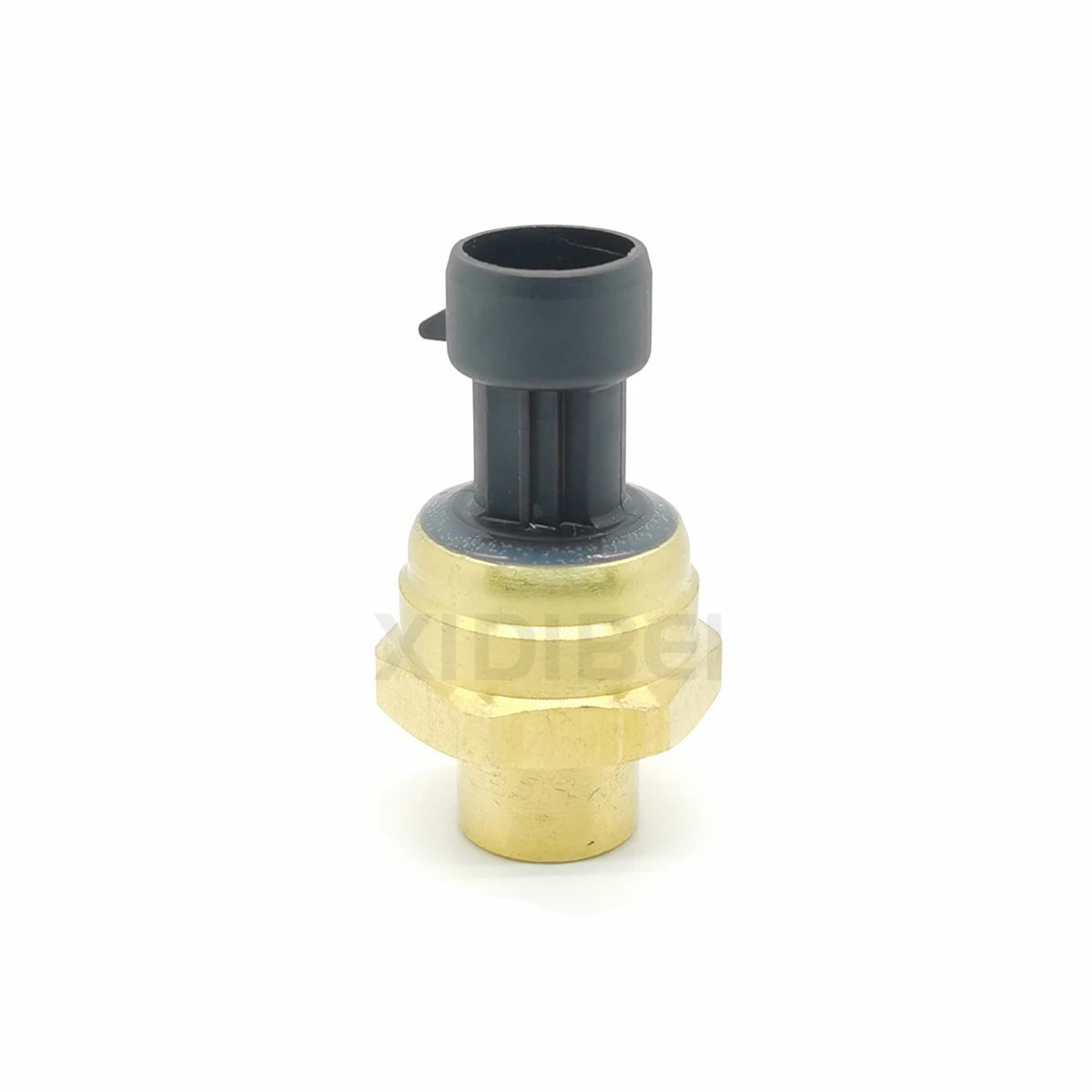

Air Conditioning Refrigeration Pressure Transmitter Refrigerant Pressure Sensor Heat Pump Heat 5-12V 0.5-4.5V 7/16-20UNF Copper
China Mainland / -1-30bar
$86.31
Sale price
$86.31
Regular price
$0.00
Skip to product information
Air Conditioning Refrigeration Pressure Transmitter Refrigerant Pressure Sensor Heat Pump Heat 5-12V 0.5-4.5V 7/16-20UNF Copper
$86.31
Sale price
$86.31
Regular price
$0.00
Description
SPECIFICATIONS
Accuracy: ≤±1.0%FS
Battery Included: no
Brand Name: XIDIBEI
Certification: CE
Electrical connection: Direct cable
Electromagnetism Compatibility: EN50051-1
Explosion-proof class: Exia2CT6
High-concerned chemical: none
Housing material: Copper shell
Max Measuring Range: 59 Bar & Under
Measuring range: -1-100bar gauge pressure
Model Number: XDB307-3
Operating temperature: -40-85℃
Origin: Mainland China
Output signal: 0.5-4.5V
Paired cable: 0.5m
Pressure connection: 7/16-20UNF
Protection class: IP65
Supply voltage: 5-12VDC
Refrigerants notice
If any refrigerants that may be used, please contact us or leave a note in the order.
For example: R410A.
At present, R134 and R32 are most compatible with sensors.
Related products
Descriptions
XDB307B series refrigeration dedicated pressure transmitters use ceramic piezoresistive sensing cores, copper housings. The product has a small appearance and is easy to install. It has a special valve needle for the pressure port design, which has good electrical performance and long-term stability. The requirements for the application of refrigeration compressors are designed and manufactured, which are suitable for various types of refrigerants and are widely used in the air conditioning and refrigeration industry.
Features
◆ CE conformity
◆ Low cost and high quality
◆ All stainless steel integrated structure
◆ Small size, convenient to install and operate
◆ Various signal output: 4-20mA, 0-10V, 0.5-4.5V, 0-5V, I²C, etc
◆ Complete surge voltage protection function
◆ For applications such as air, water, oil
◆ Provide OEM, flexible customization
Applications
◆ Refrigeration or HVAC system
◆ Air-conditioning unit and refrigeration equipment
◆ Process monitoring of hydraulic system
◆ Agricultural chemical equipment
◆ Gas container pressure monitoring
◆ Coolant pressure monitoring
Parameters
Measuring range: -1～100Bar
Accuracy: ±1.0%FS
Output signal: 0.5-4.5V(others are on request)
Supply voltage: 5-12VDC
Operating temperature: -40～85℃
Compensation temperature: -20～80℃
Operating current: ≤3mA
Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
Long-term stability: ≤±0.2%FS/year
Response time: ≤3ms
Overload pressure: 150%FS
Burst pressure: 300%FS
Cycle life: 500,000 times
Pressure medium: Non-corrosive liquid or gas
Pressure connection: 7/16-20UNF (others are on request)
Electrical connection: Packard connection
Housing material: Copper shell
Protection class: IP65
Explosion-proof class: ExiaⅡCT6
Weight: ≈0.08kg
Cable length: 0.5m (others are on request)

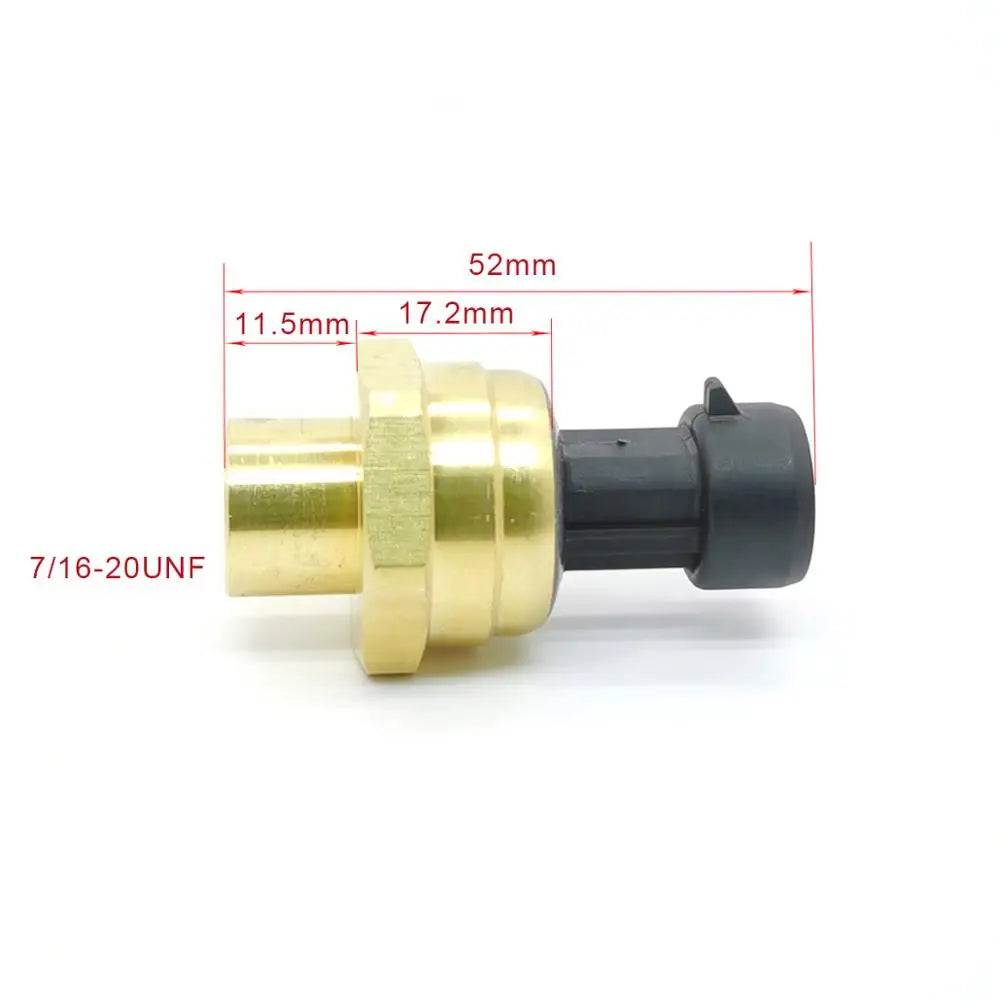

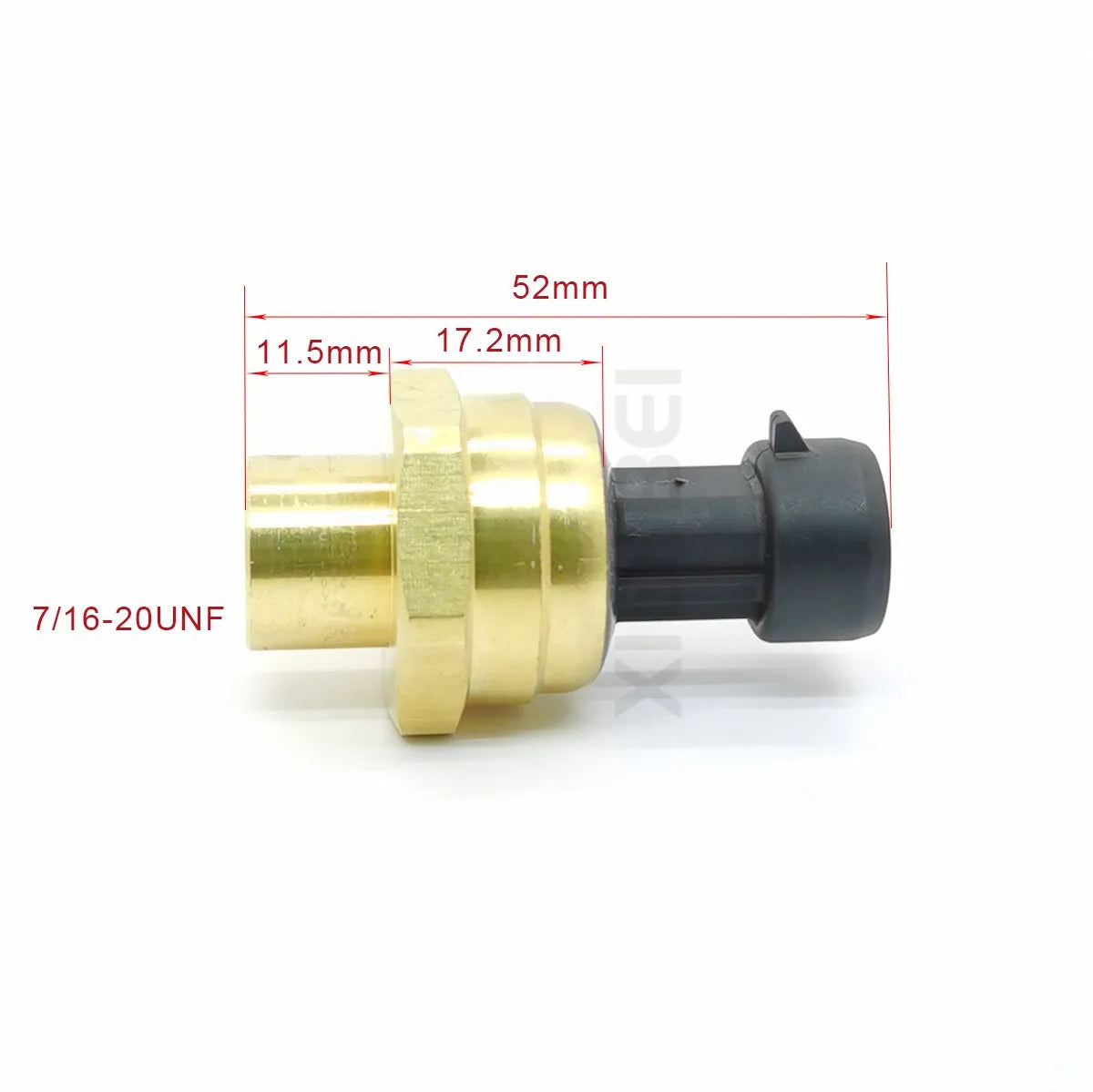

Dimension(unit:mm)

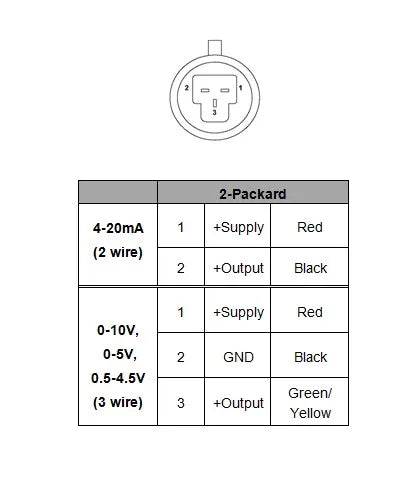

Electrical connection
Pin1: Supply + (Red)
Pin2: GND (Black)
Pin3: Output +(Green/Yellow)
