SPECIFICATIONS

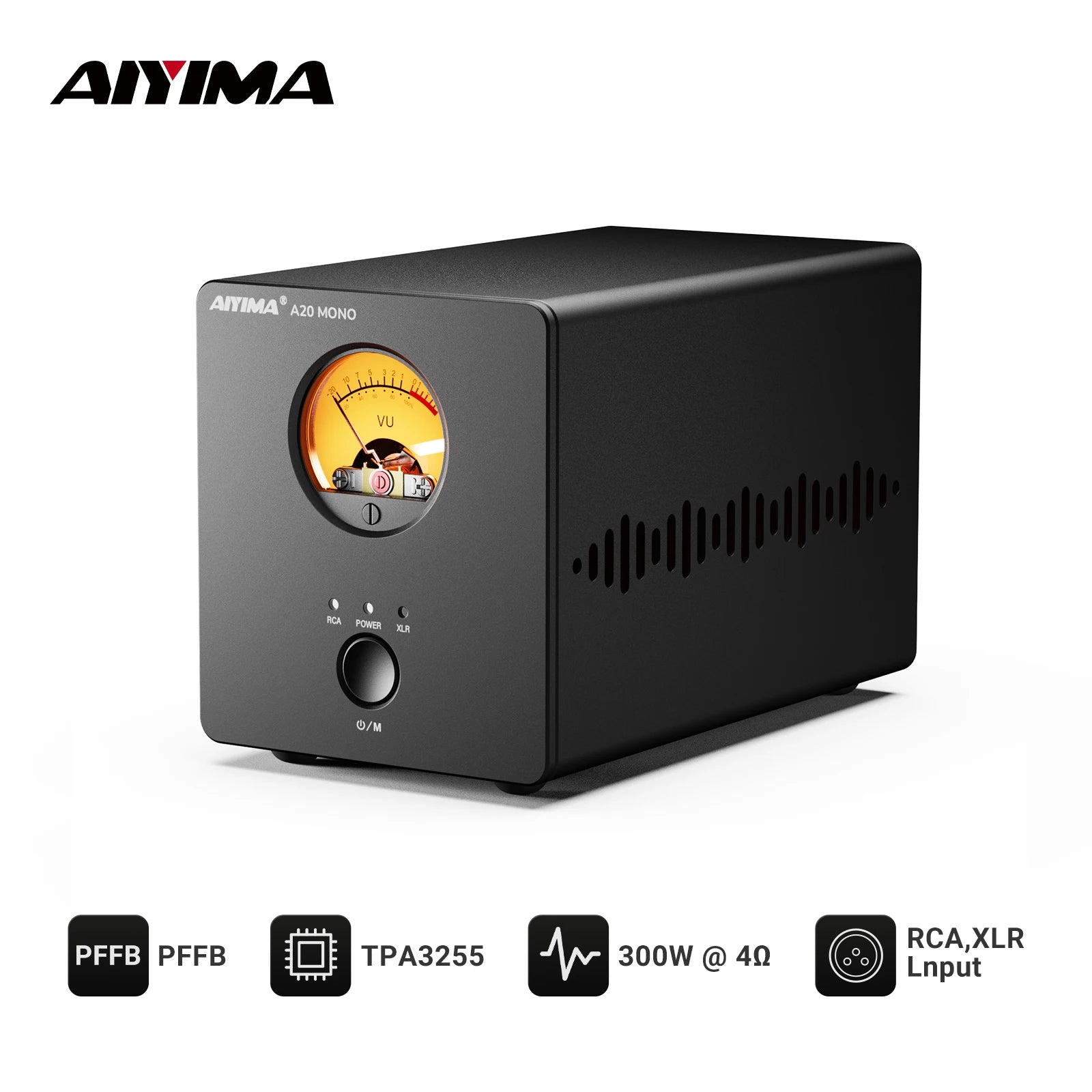

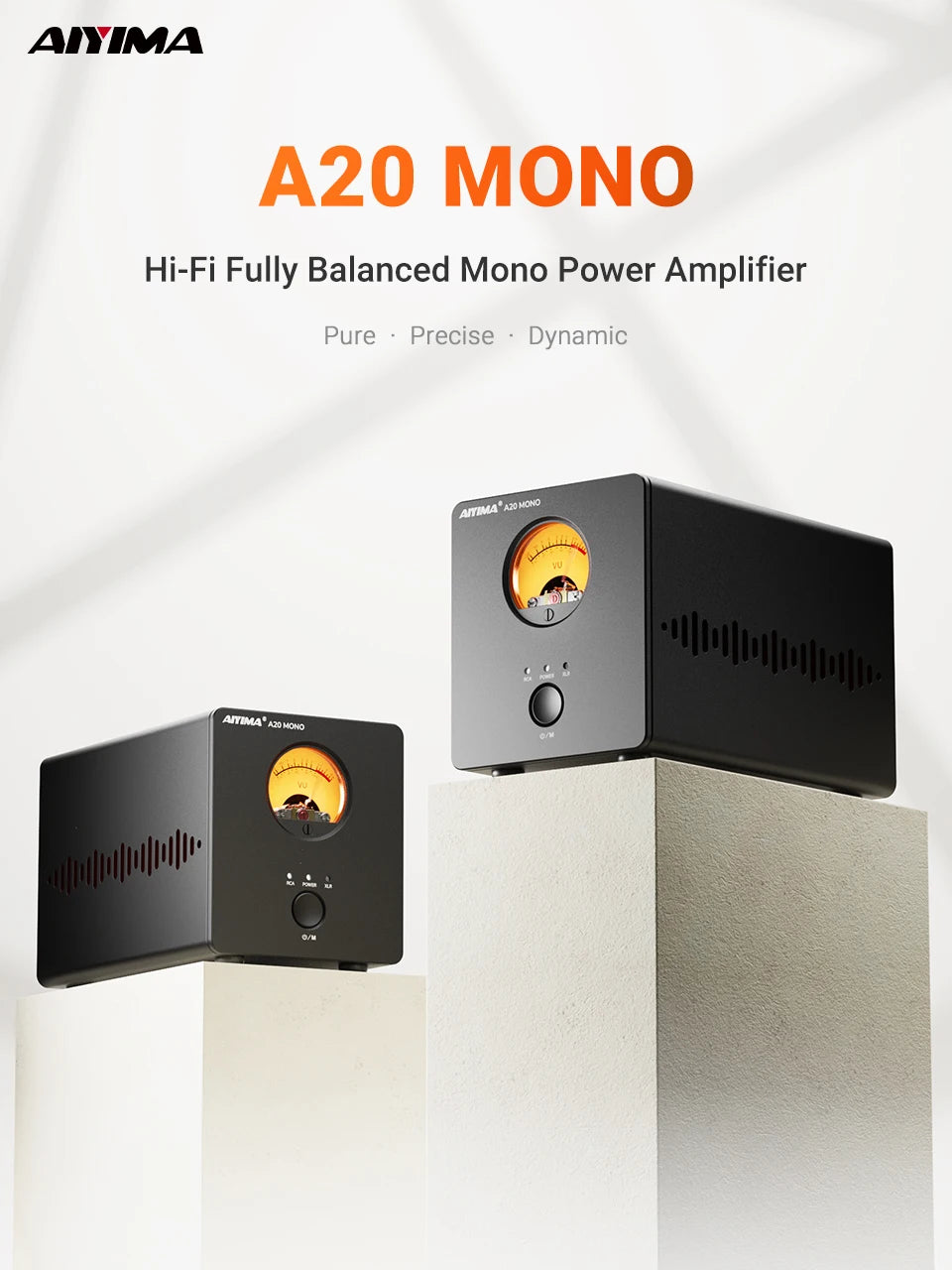

AIYIMA Model: A20 MONO

Brand Name: Aiyima

Certification: CE,KC,RoHS

Channels: 1

Control Method: Push button

High-concerned chemical: none

Material: Metal

Maximum Power Per Channel: Above 200W

Model Number: AIYIMA A20 MONO

Number of channels: 1

Origin: Mainland China

Output Power: 300W

Package: Yes

Surround sound channel configuration: Others

Features:

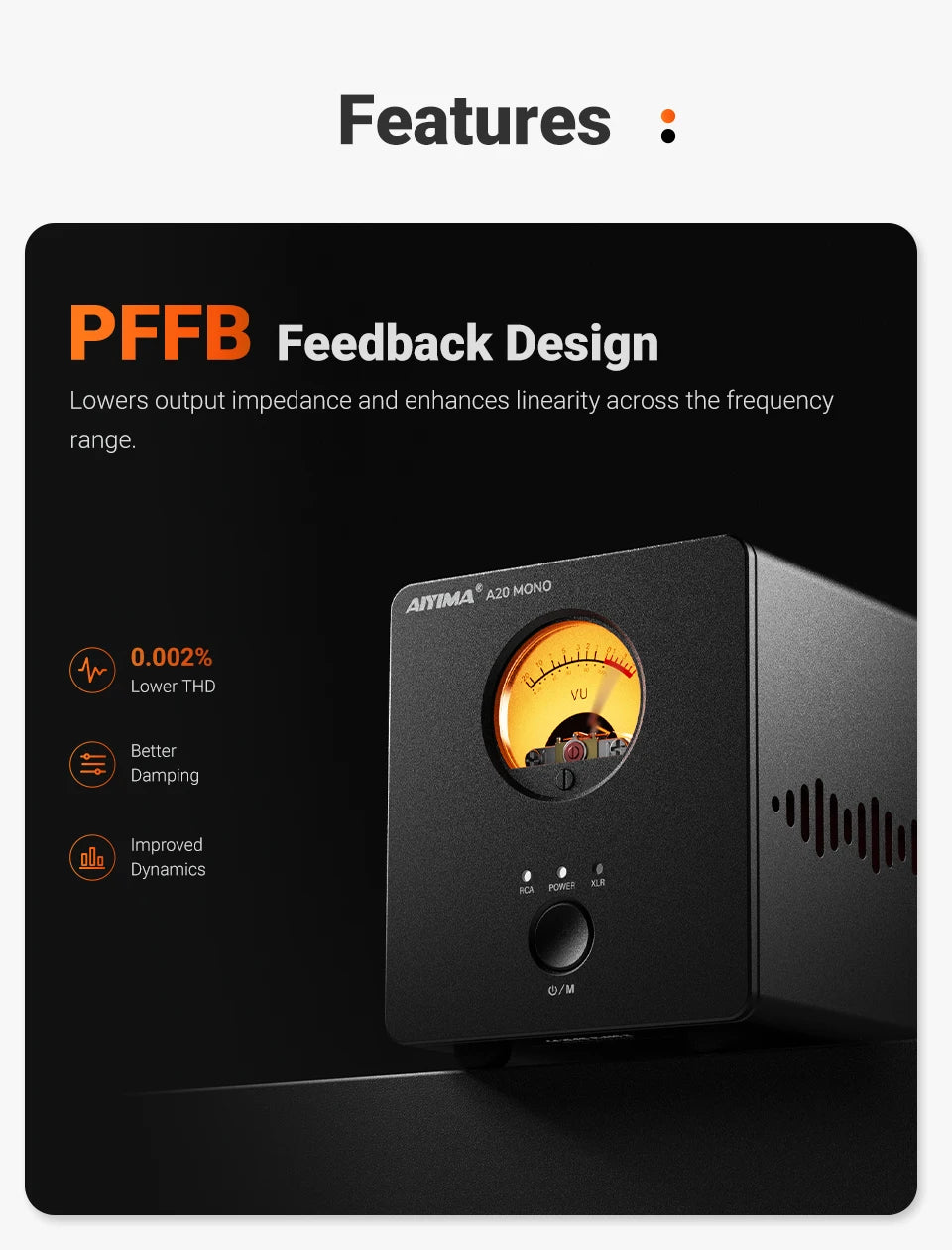

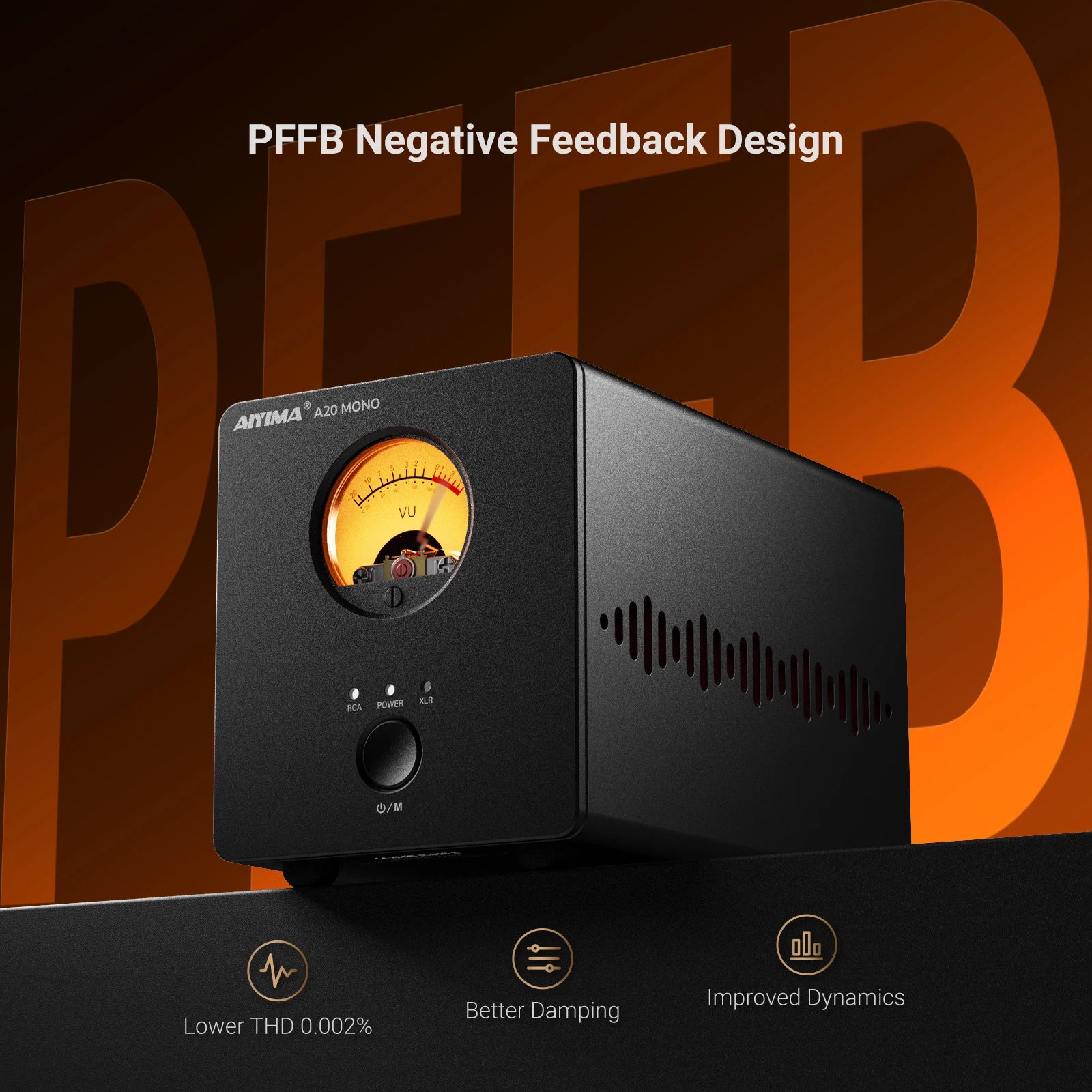

1. Advanced PFFB Technology for Consistent Sound Quality:

Equipped with the latest PFFB (Post Filter Feedback) design, the A20 MONO significantly reduces load-dependent distortion and frequency response variations, delivering accurate and stable sound performance with different speaker loads.

2. Powerful TPA3255 Mono Amplifier:

Featuring the renowned TPA3255 Class D amplifier chip, the A20 MONO delivers up to 620W @ 2Ω, 300W @ 4Ω, and 170W @ 8Ω, providing ample power for bookshelf, floor-standing, and high-performance speakers.

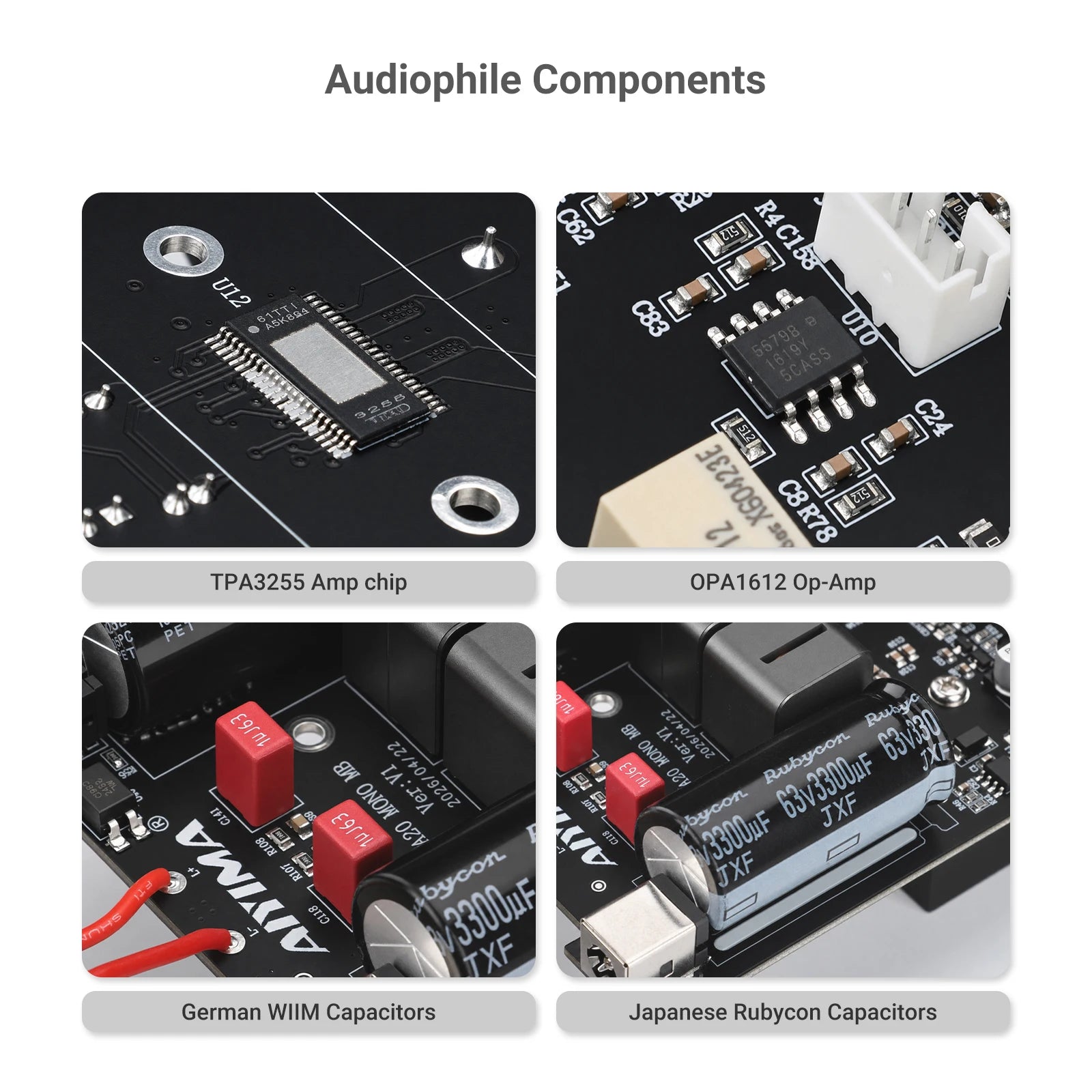

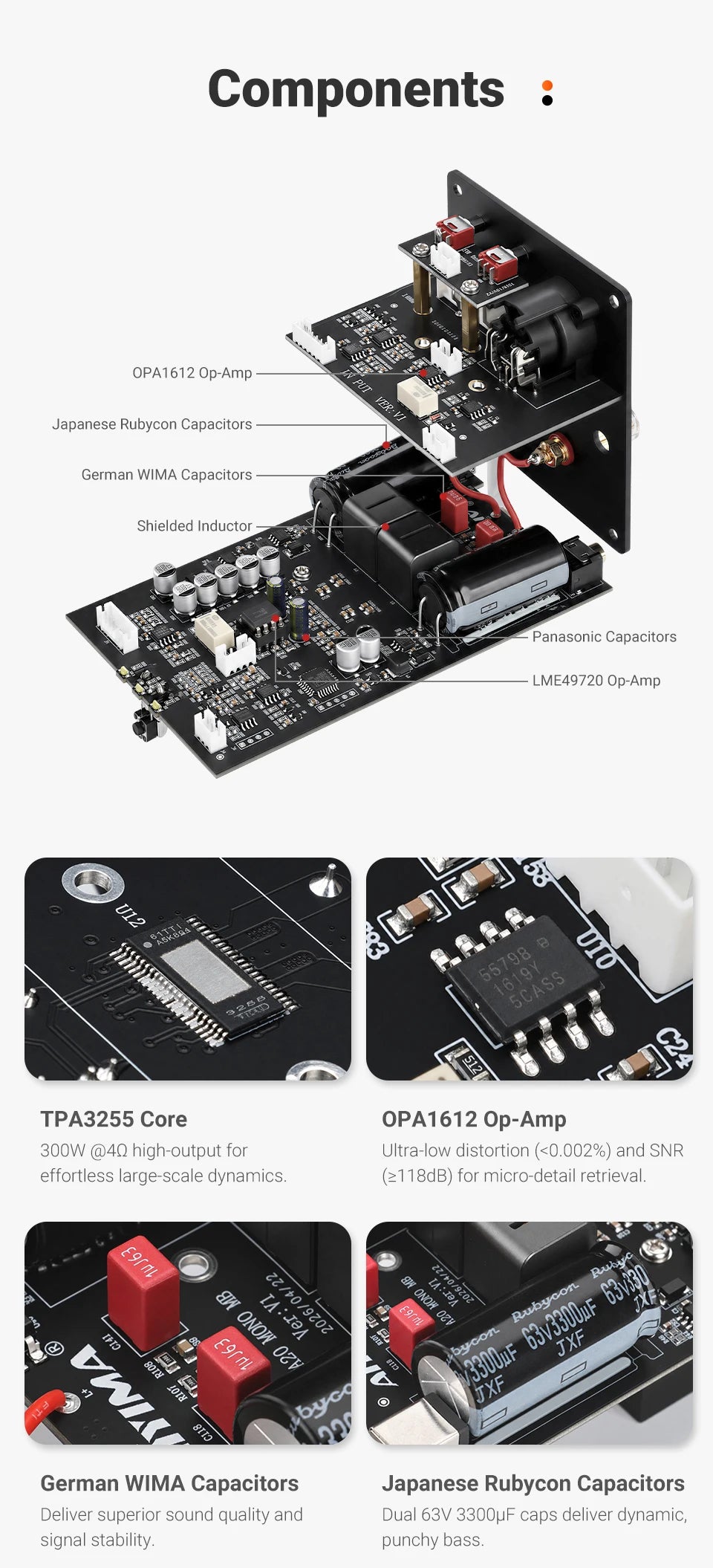

3. Audiophile-Grade Components:

Built with premium OPA1612, replaceable LME49720 op-amp, WIMA capacitors, and Rubycon 63V 3300μF capacitors, ensuring exceptional clarity, dynamics, and musical detail.

4. Balanced & Versatile Connectivity:

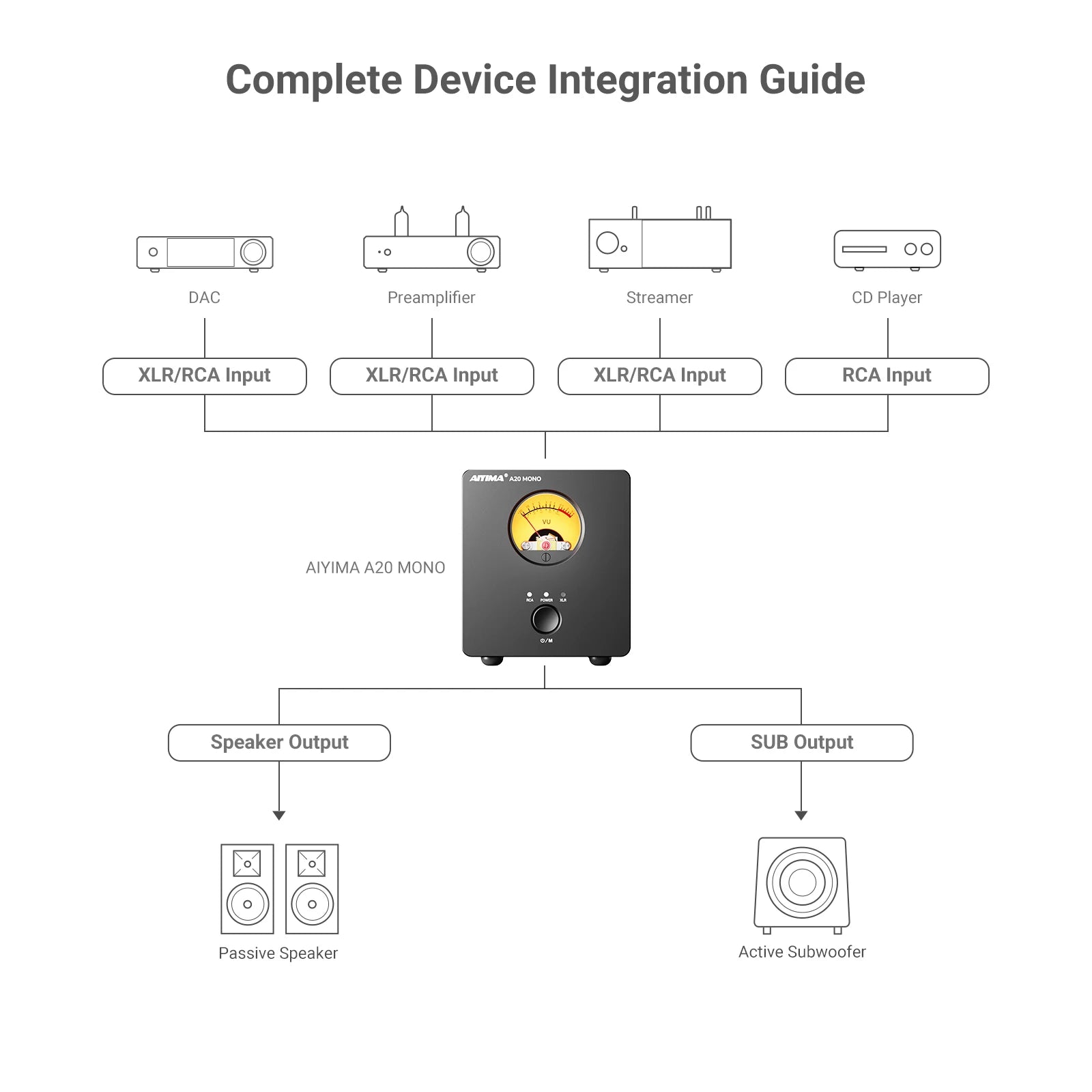

Supports XLR, RCA, and TRS inputs, making it easy to connect DACs, preamps, mixers, PCs, CD players, and professional audio equipment for both home and studio applications

NOTE:

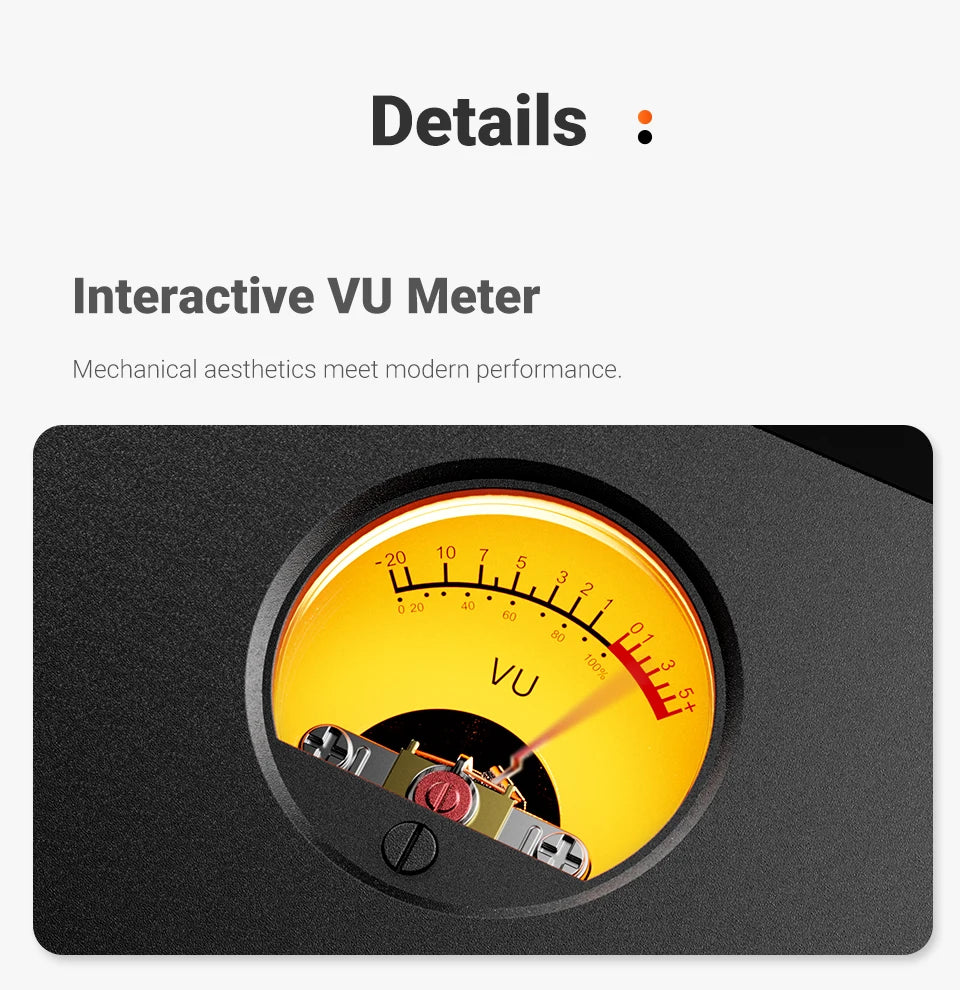

The VU meter features auto-gain adjustment to adapt to varying volumes; readings are for reference only. If an offset occurs, turn the frame screw for zero-point calibration.

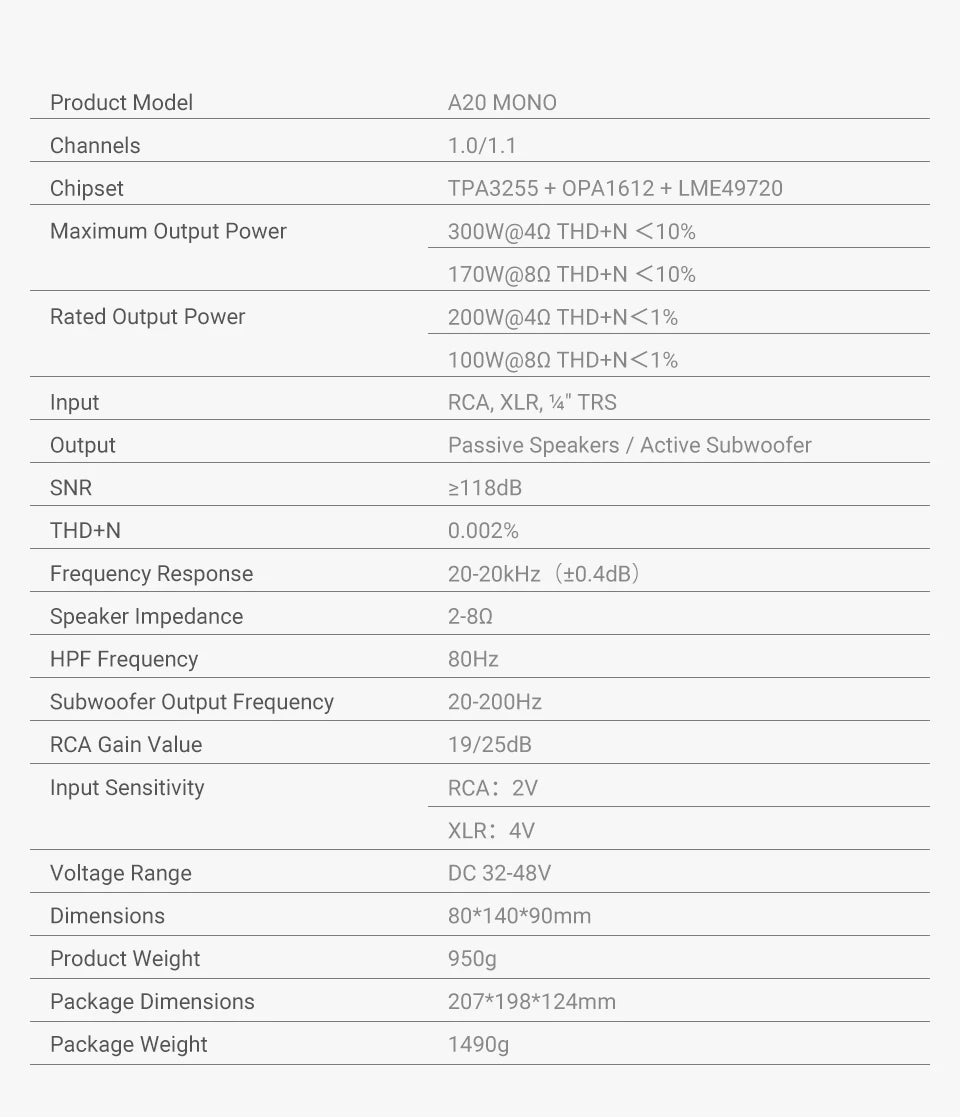

Product Specification:

Amplifier Chip: TPA3255

OP AMP Chip: OPA1612 (Non-Replaceable) + LME49720 (1 Replaceable)

Key Components: WIMA Capacitors + Rubycon 63V 3300μF Capacitors

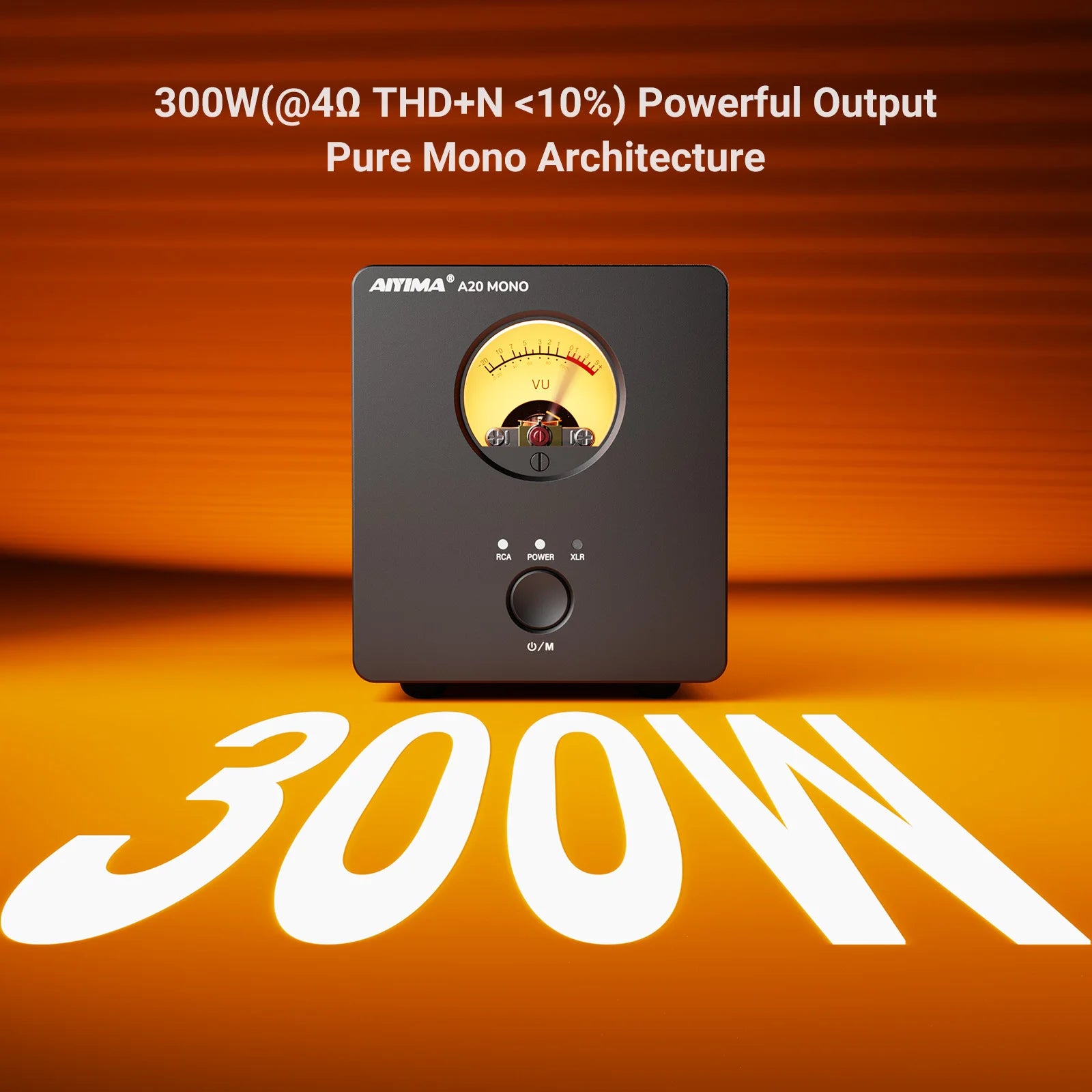

Maximum Output Power:
300W @ 4Ω THD+N < 10%
170W @ 8Ω THD+N < 10%
620W @ 2Ω THD+N < 10%

Rated Output Power:
200W @ 4Ω THD+N < 1%
100W @ 8Ω THD+N < 1%
400W @ 2Ω THD+N < 1%

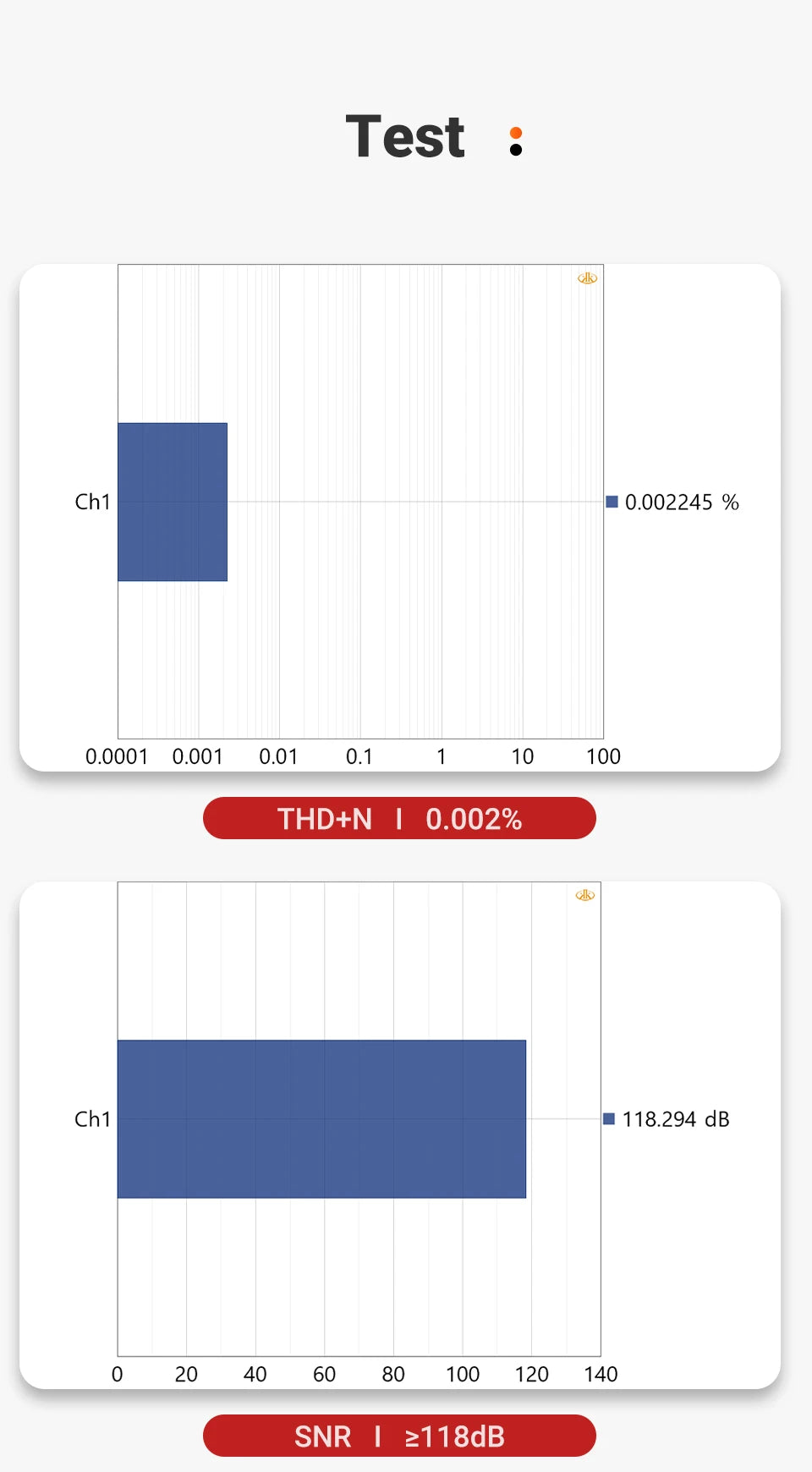

SNR: ≥118dB

THD+N: 0.002%

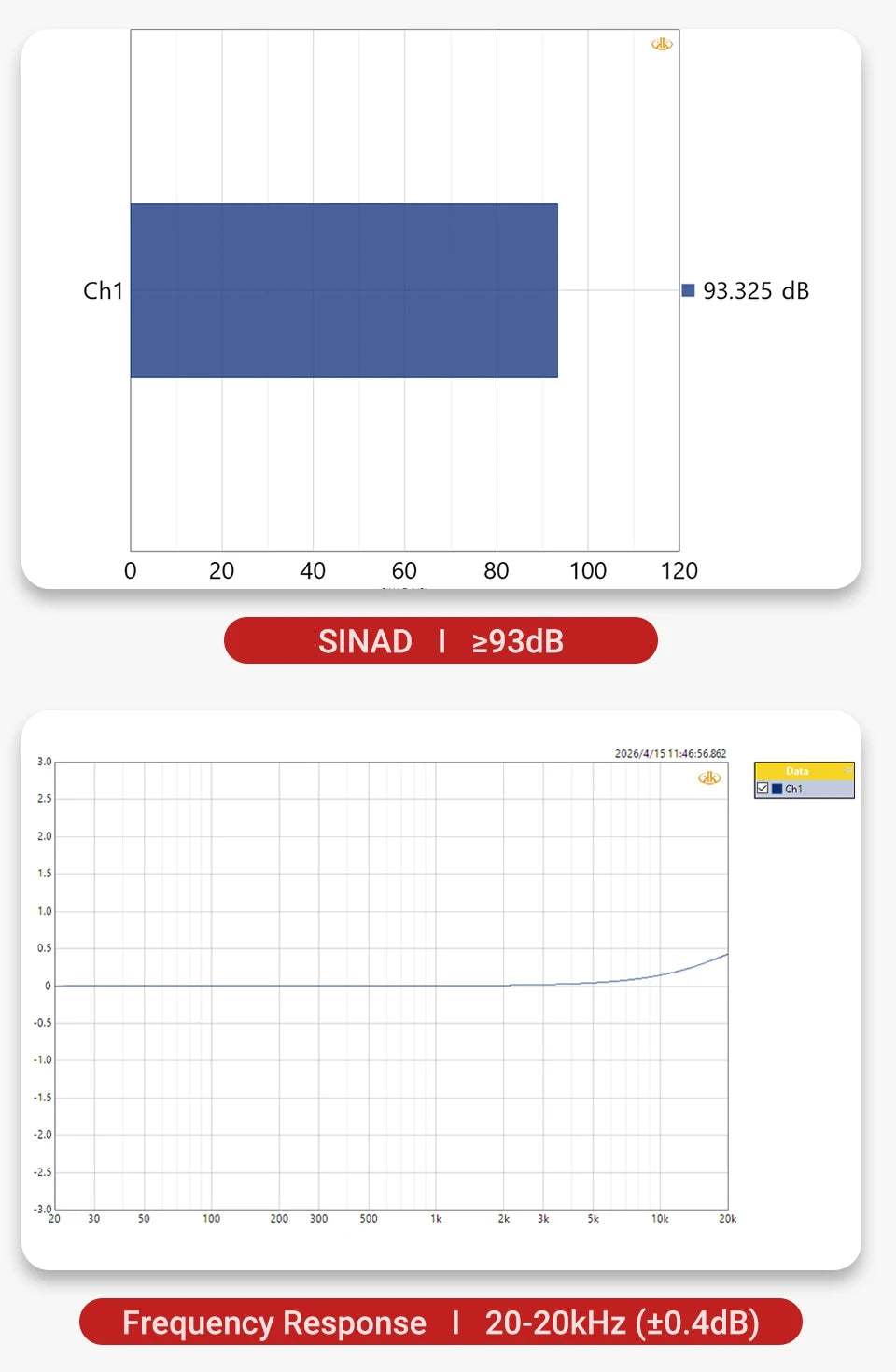

Frequency Response: 20Hz-20kHz (+0.4dB)

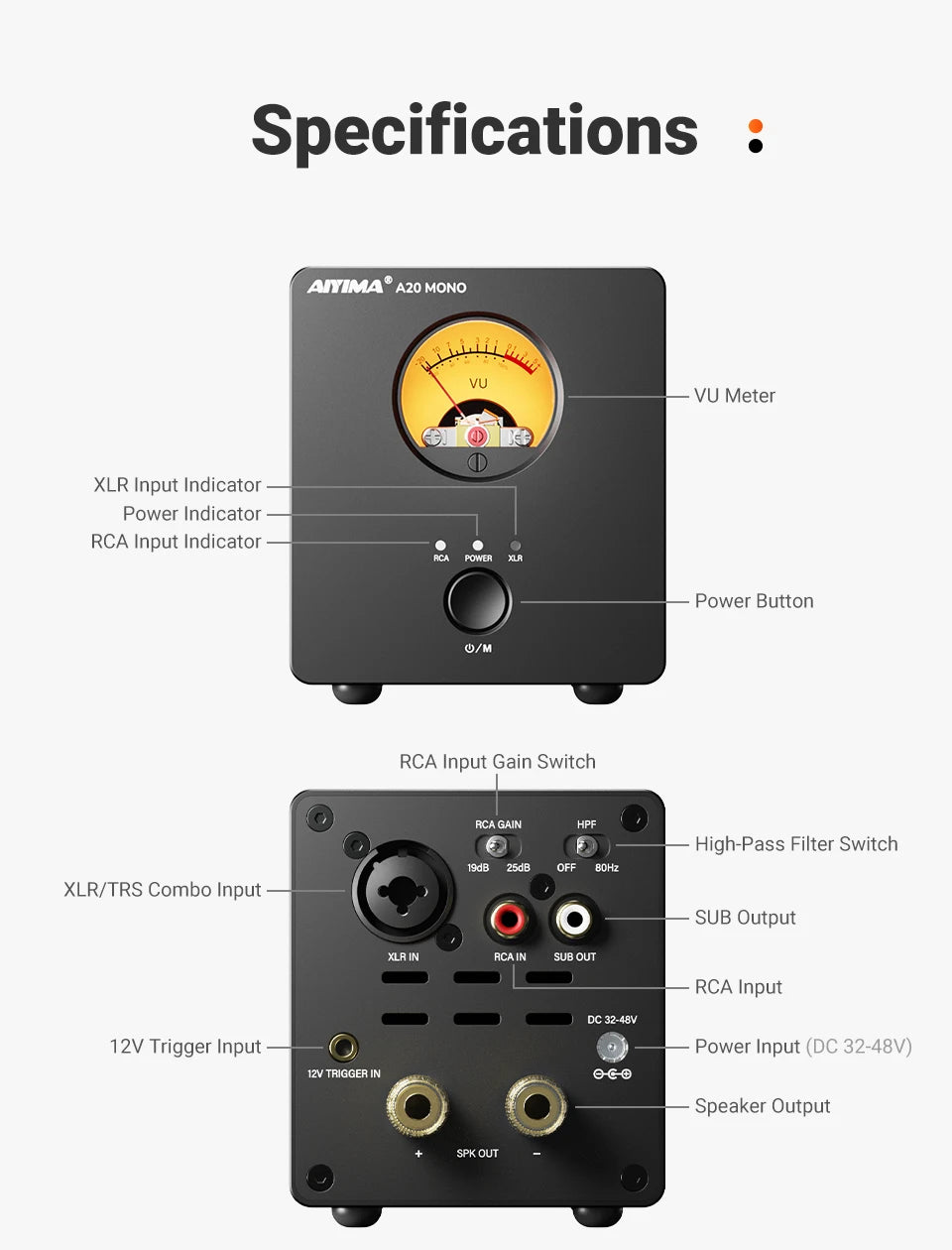

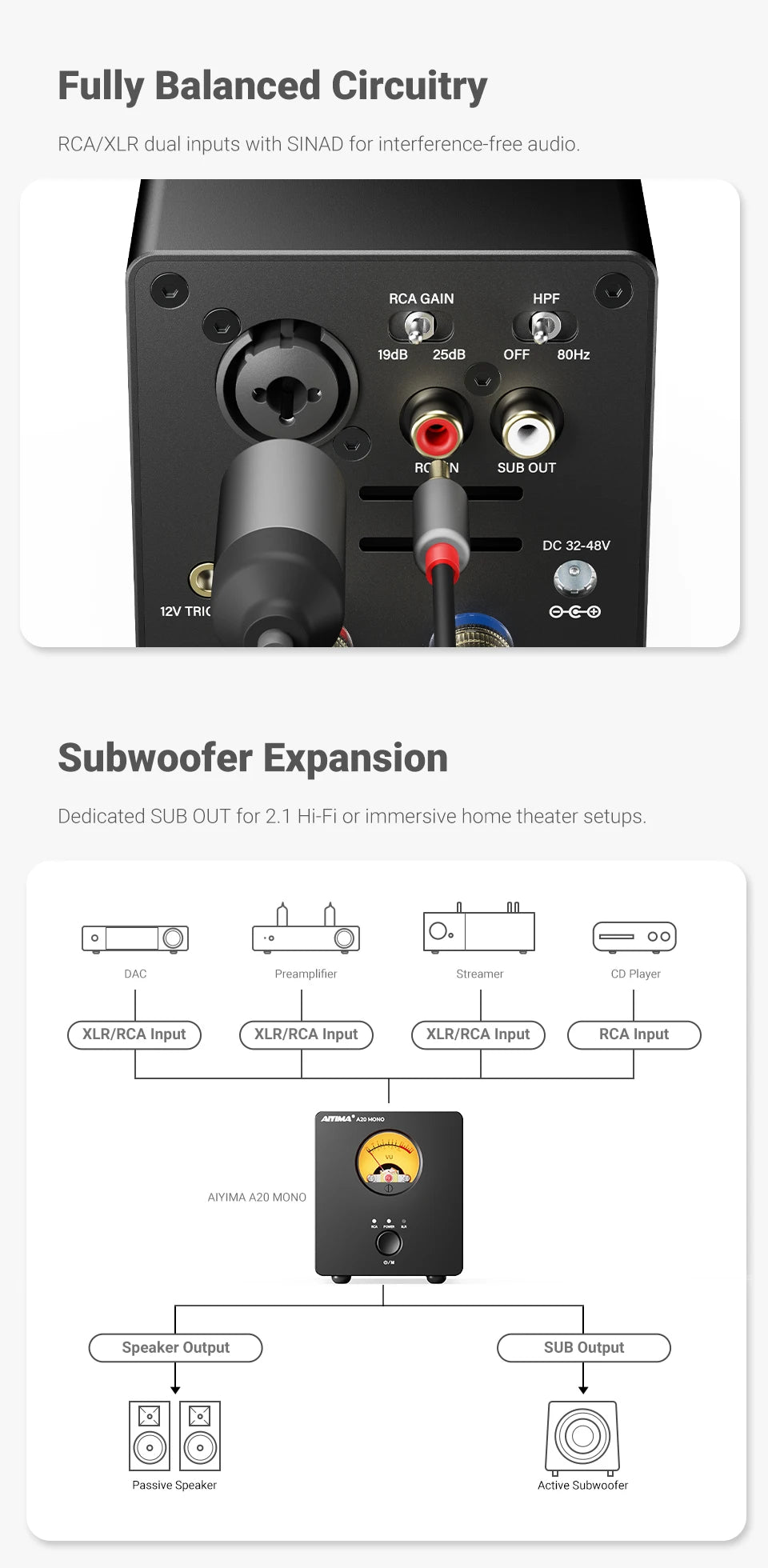

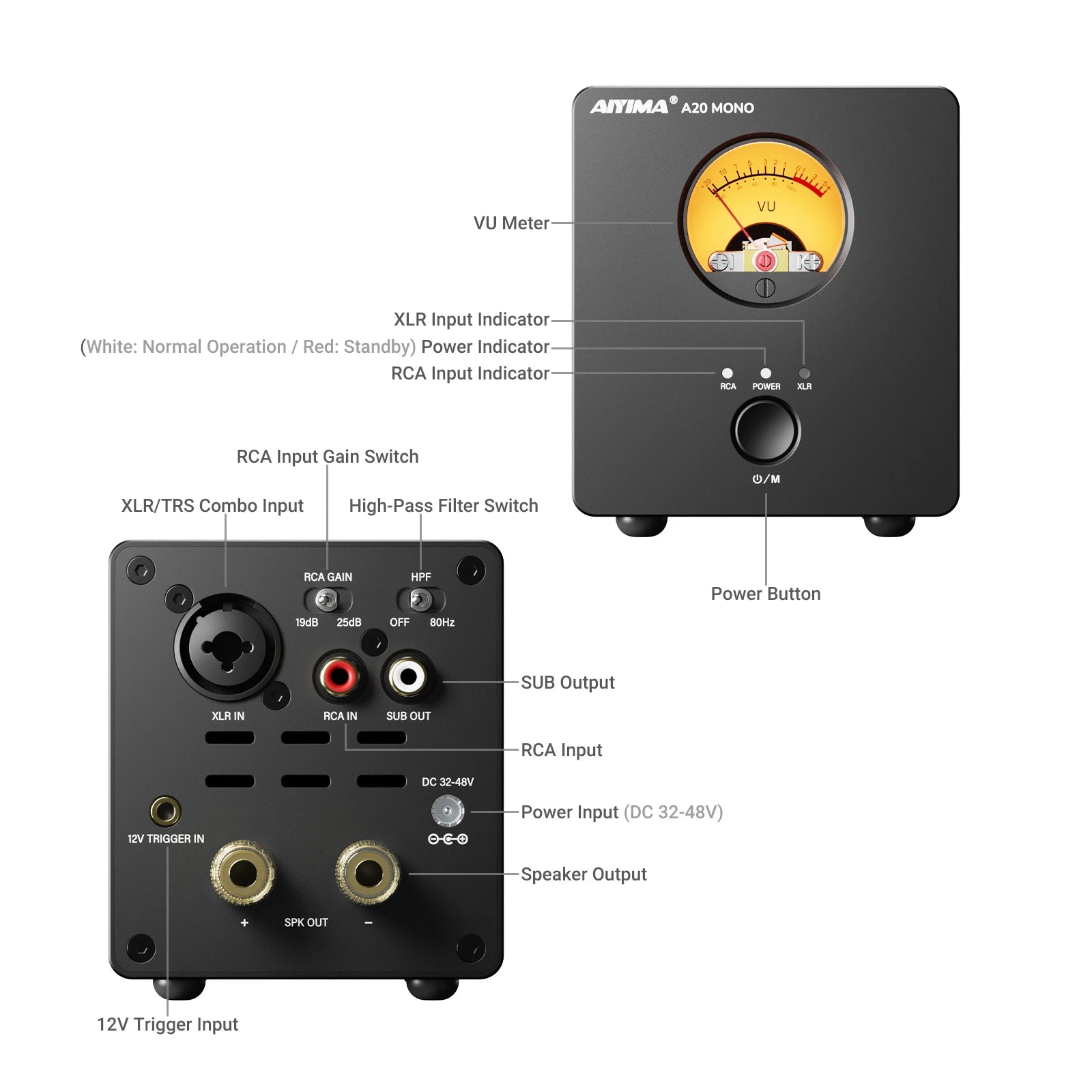

Input Interfaces: RCA, XLR, TRS

Output Interfaces: Passive Speaker Output + Active Subwoofer Output

Supported Devices: DAC, Preamplifier, PC, CD Player and More

SUB Output Level: 2V

SUB Output Frequency: 20Hz-200Hz (Can Follow HPF Cutoff to 80Hz)

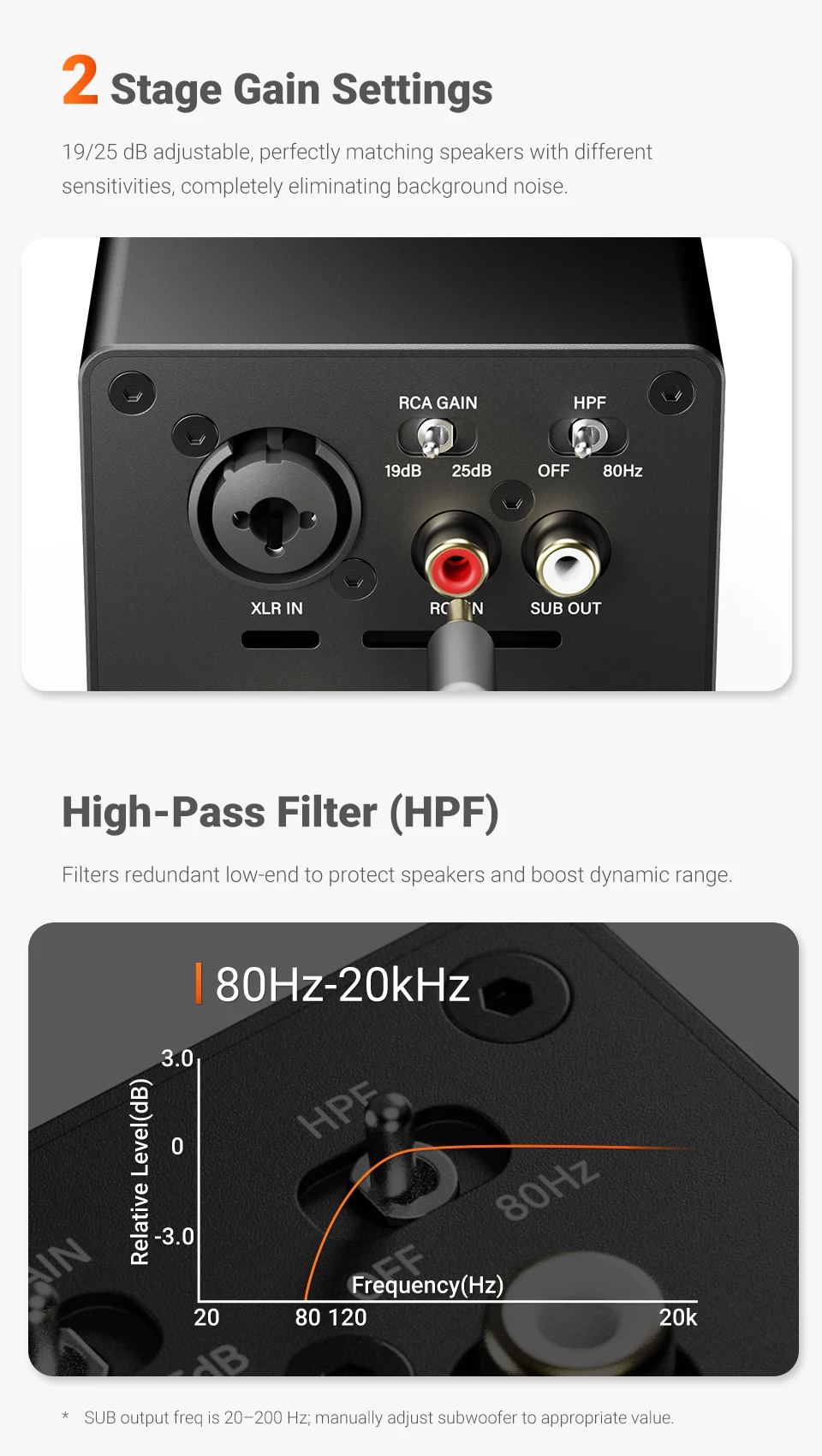

High-Pass Filter Frequency: 80Hz

High-Pass Filter Slope: 12dB

RCA Gain: 19dB / 25dB

XLR Gain: 20dB

Speaker Impedance: 2-8Ω

Power Supply: DC 32-48V

Product size: 80 × 140 × 90mm

Package size: 207 × 198 × 124mm

Net Weight: 950g

Package Weight: 1490g

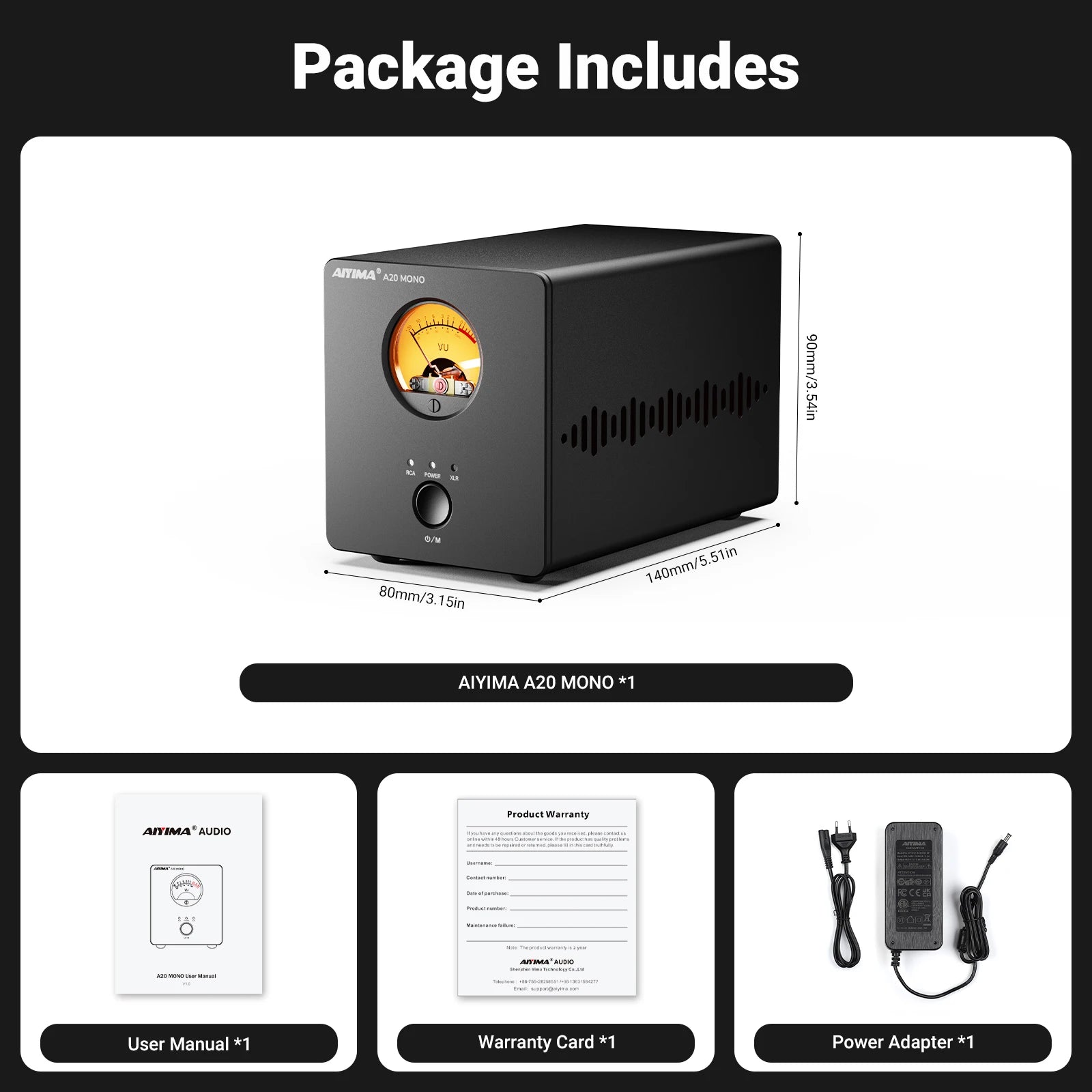

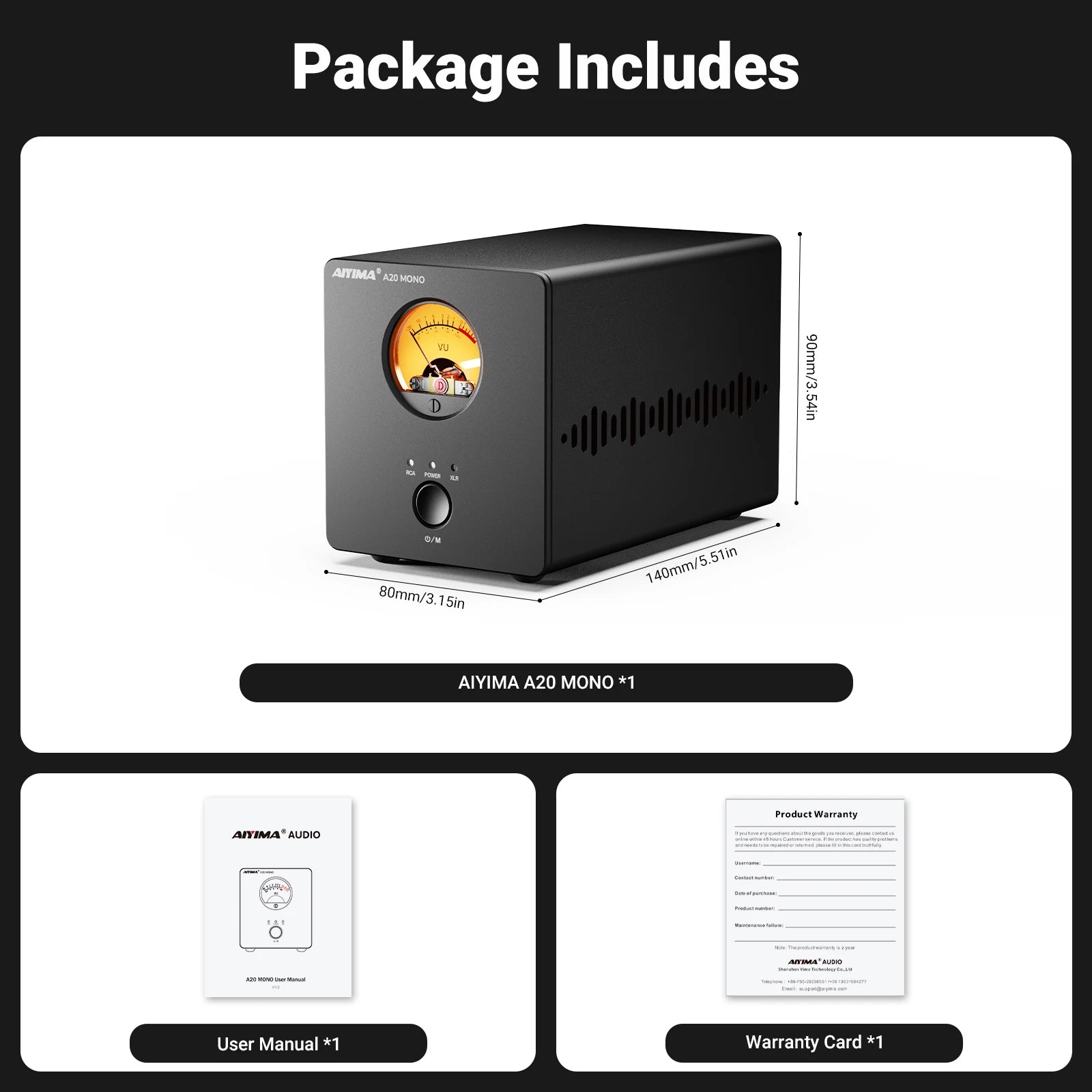

Package Include:

• A20 mono Amplifier x1

• User Manual x1

  • • Warranty Card x1

    • 48V 5A Power supply(option)





    FAQ

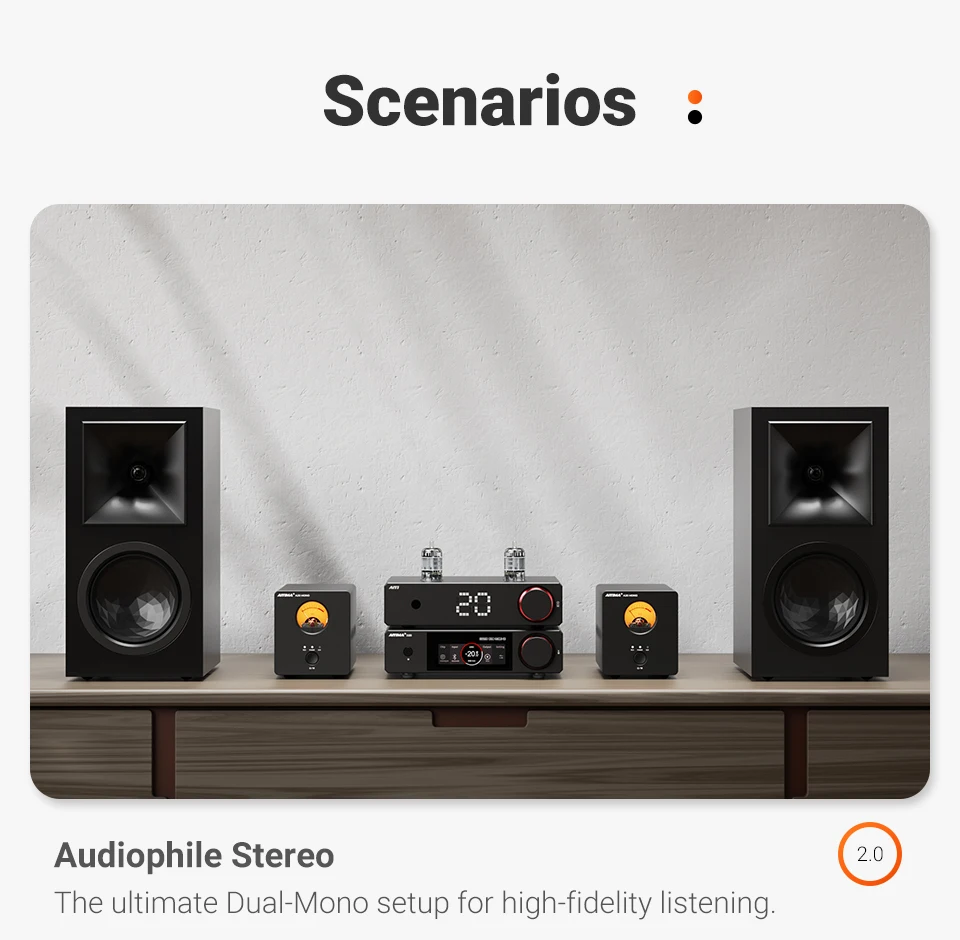

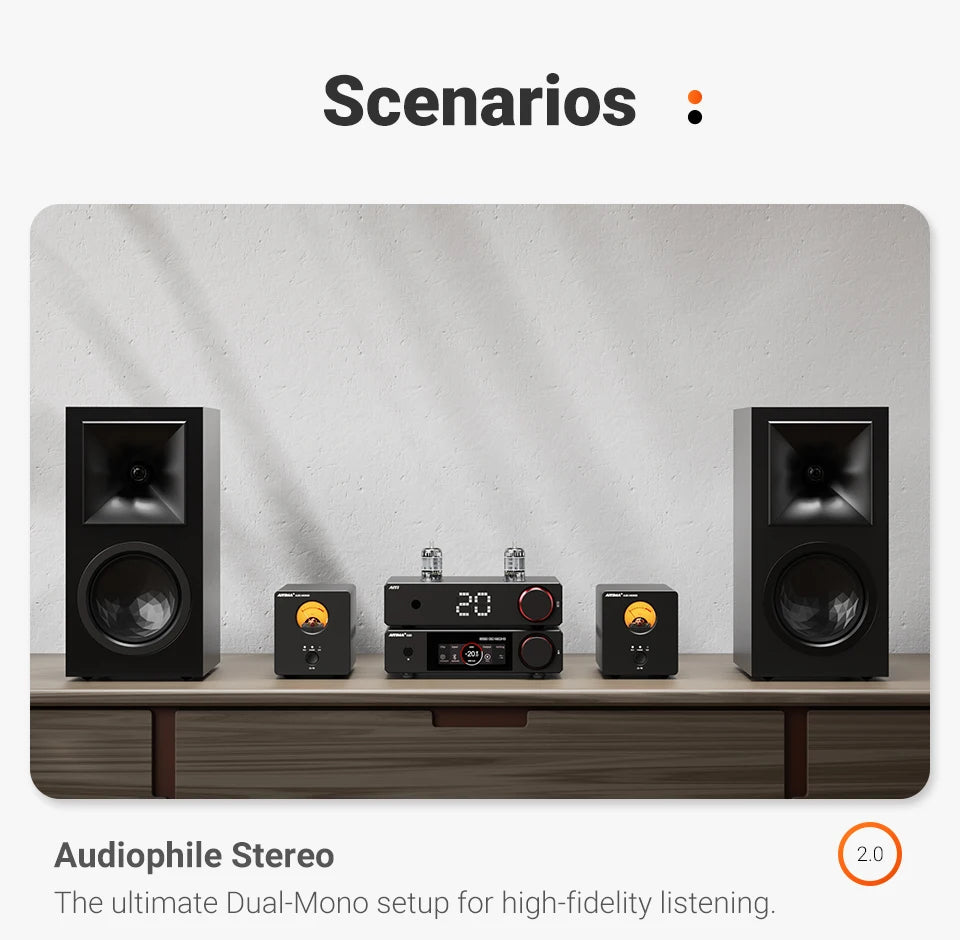

    Q: Do I need two A20 MONO amplifiers for stereo sound?

    A: Yes. One A20 MONO drives one speaker channel. For stereo playback, two units are required—one for the left speaker and one for the right speaker.




    Q: Will the A20 MONO sound harsh like typical Class D amplifiers?

    A: No. With advanced PFFB technology, the A20 MONO delivers a smoother, more natural sound while maintaining the clarity and efficiency of a Class D amplifier.




    Q: Which gain setting should I choose, 19dB or 25dB?

    A:

    19dB: Best for high-output sources such as balanced XLR DACs or preamps.

    25dB: Best for lower-output sources such as RCA devices, providing higher sensitivity and output level.




    Q: Does the amplifier get hot? Is it safe for long-term use?

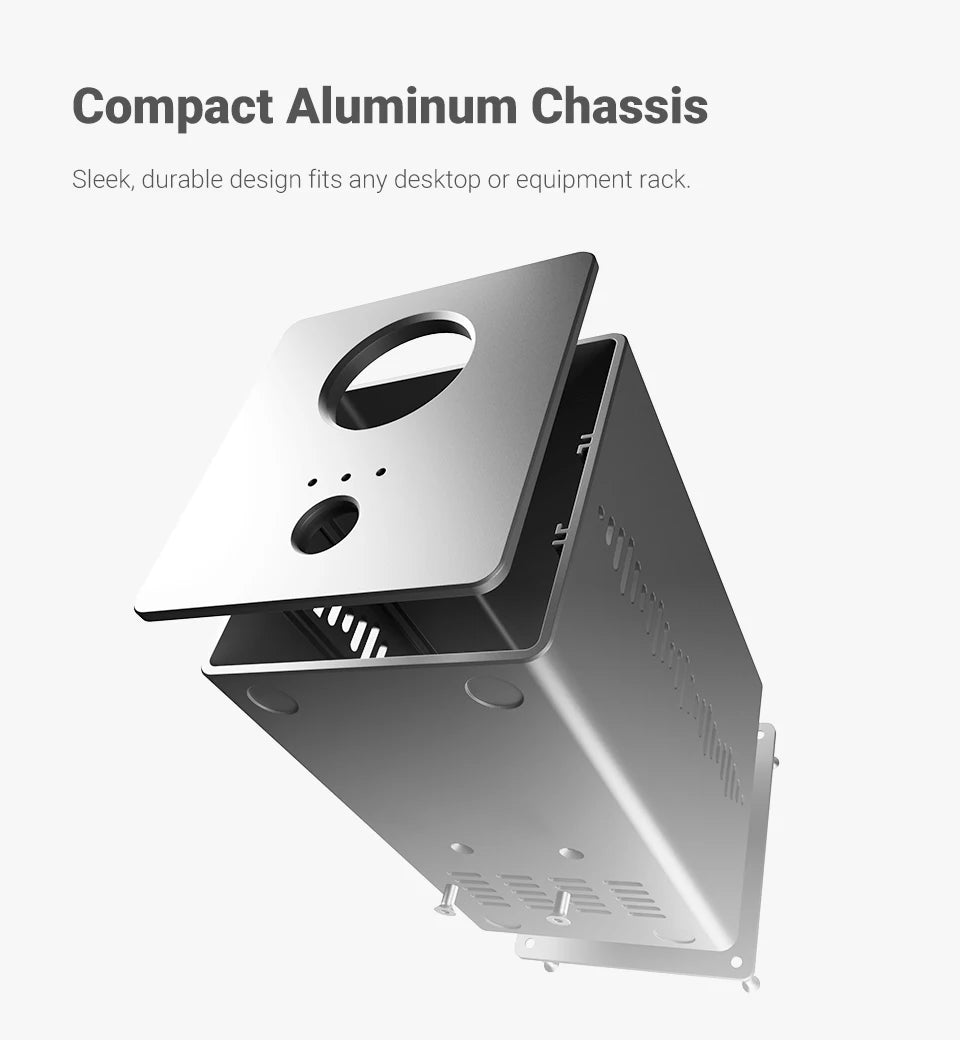

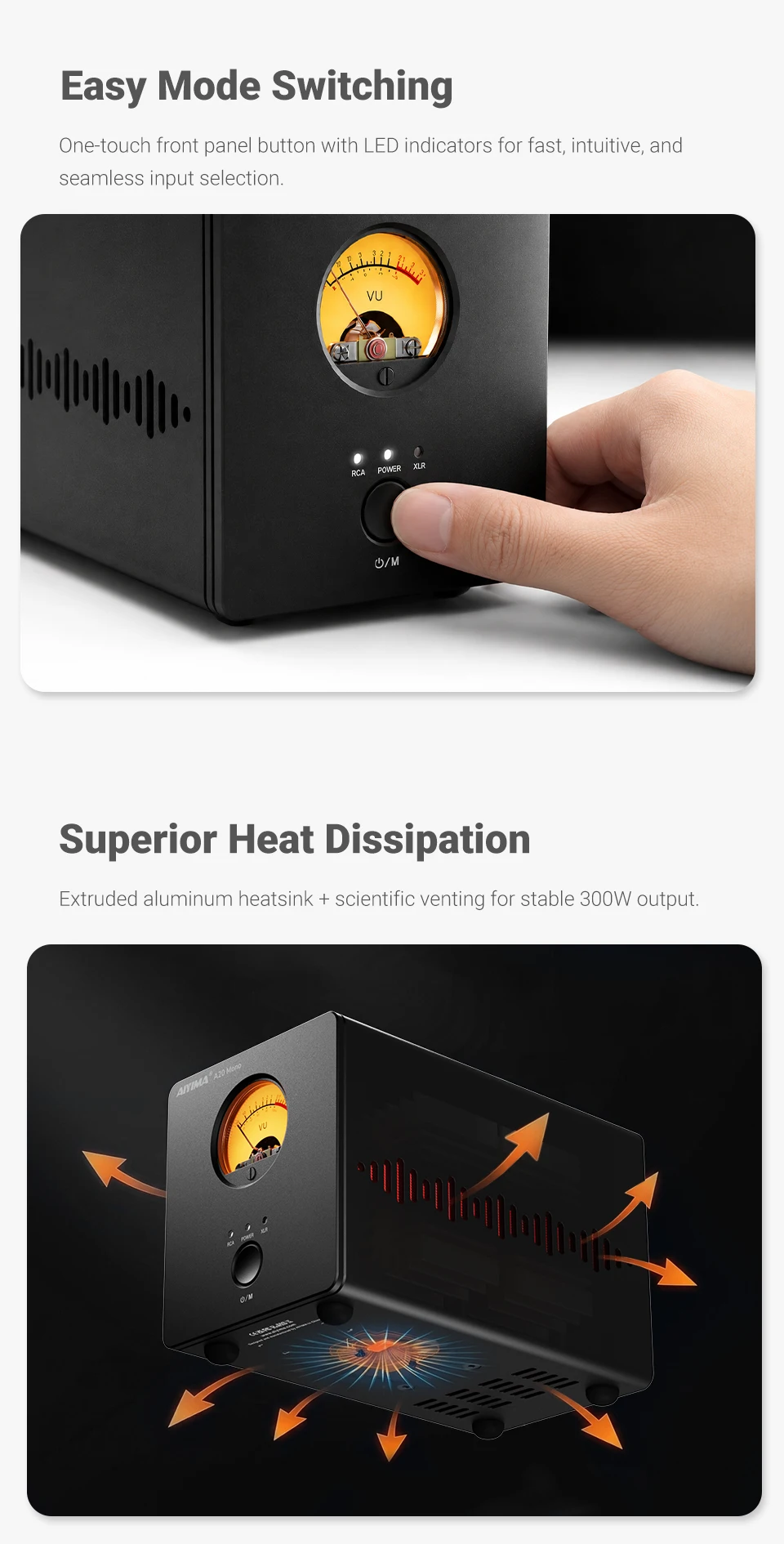

    A: The A20 MONO uses a highly efficient Class D design with an aluminum alloy chassis for heat dissipation. It remains warm during operation and is suitable for extended listening sessions.

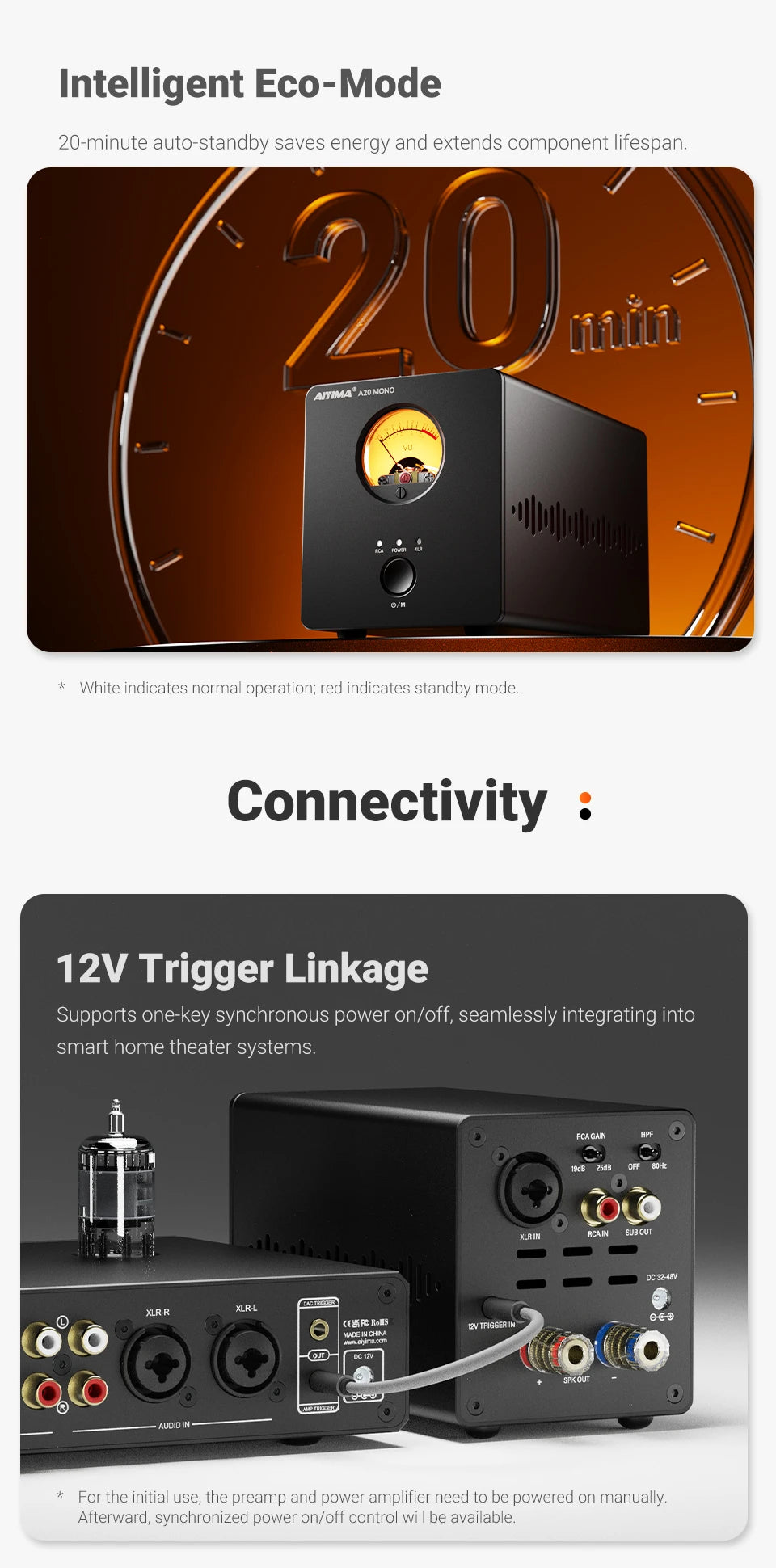

    Q: What cable is required for the 12V Trigger input?

    A: Use a standard 3.5mm trigger cable. The 12V Trigger input allows synchronized power on/off with compatible audio equipment.




    Q: How does the 20-minute auto standby function work?

    A: If no audio signal is detected for 20 minutes, the amplifier automatically enters standby mode. Playback will automatically resume when an audio signal is detected.




    Q: Does the VU meter stay illuminated in standby mode?

    A: YES.




    Q: Will there be a "pop" sound from the speakers when powering on or off?

    A: No. The A20 MONO features a built-in soft-start protection circuit to prevent power-on and power-off noise, helping protect your speakers and drivers.




    Q: The VU meter needle barely moves. Is it defective?

    A: No. The VU meter responds to output power. At low volume levels or with less dynamic music, needle movement may be minimal. Increasing the volume or playing more dynamic content will result in more noticeable movement.




    Q: How should I match the input sensitivity with my preamp?

    A: The input sensitivity is 2.0V for RCA and 4.0V for XLR, matching most DACs and preamplifiers. For high-output sources, use the 19dB gain setting to avoid input overload.




    Q: Why do my bookshelf speakers sound thinner when HPF is enabled?

    A: This is normal. Enabling HPF filters out frequencies below 80Hz. For full-range sound, connect an active subwoofer to the SUB OUT output.

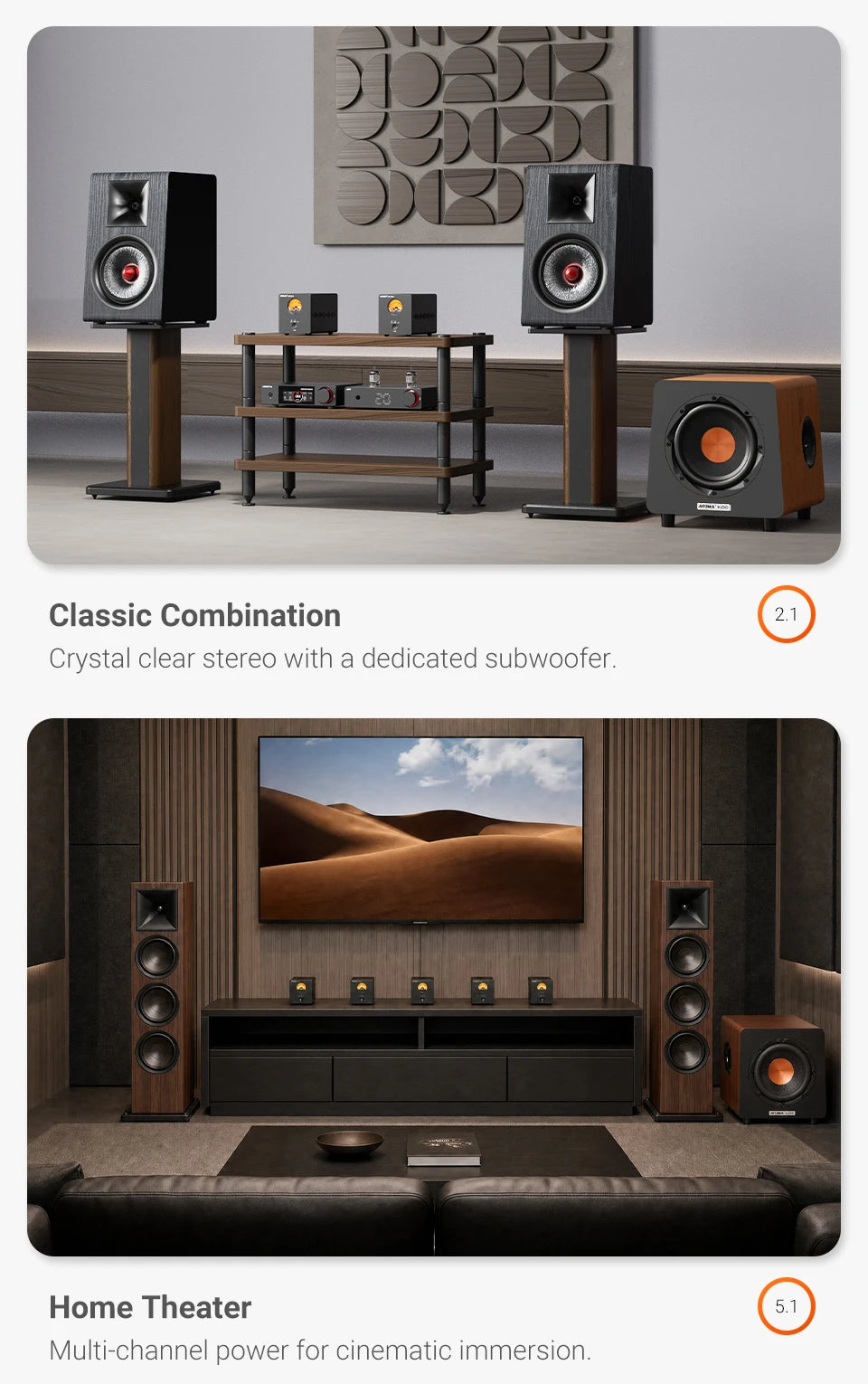

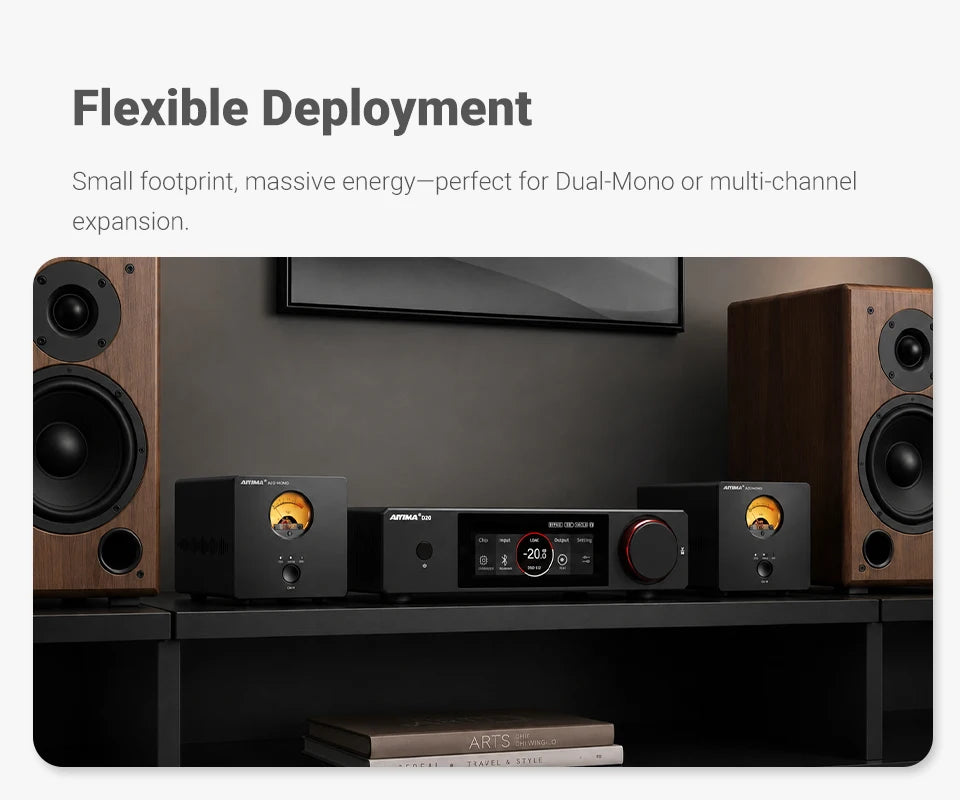

    Q: Can I build a 5.1 or 7.1 system with A20 MONO amplifiers?

    A: Yes. Multiple A20 MONO amplifiers can be used to build multi-channel systems, providing dedicated power for each speaker channel.




    Q: Why does the SUB OUT frequency change when HPF is enabled?

    A: When HPF is enabled, the SUB OUT crossover frequency automatically follows the 80Hz HPF setting to ensure smooth integration between the speakers and subwoofer. This helps achieve a more balanced 2.1 audio system.
