Description

SPECIFICATIONS

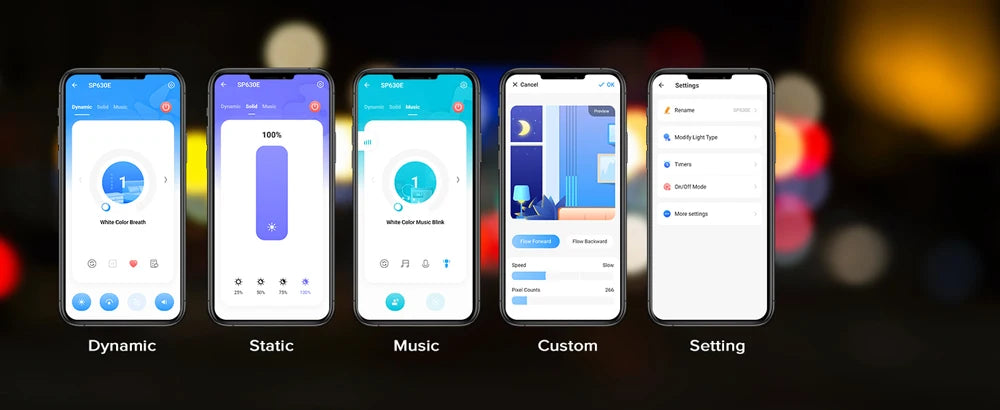

APP Name: BanlanX

All In One BT 10: SPI RGB, 600 IC max

All In One BT 11: SPI RGBW, 450 IC max

All In One BT 12: SPI RGBCCT, 300 IC max

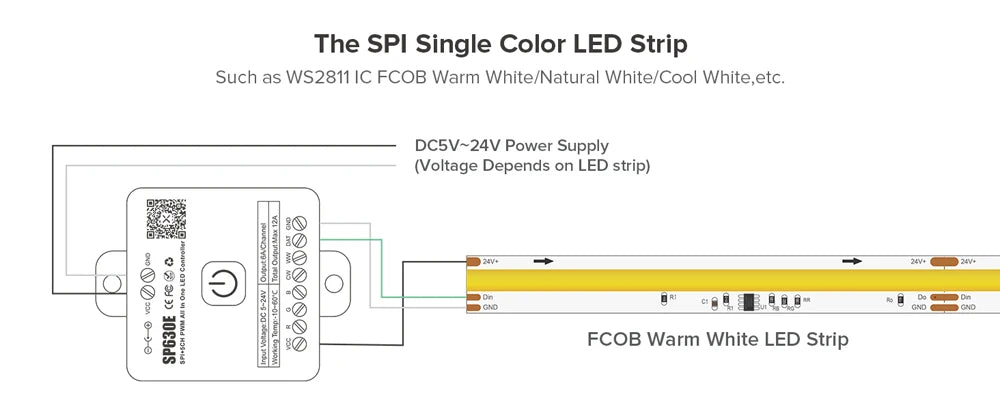

All In One BT 8: SPI Single Color, 600 IC max

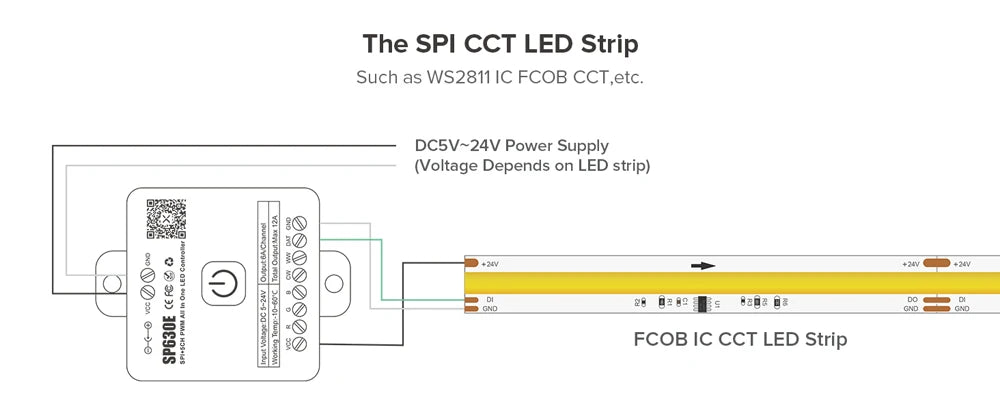

All In One BT 9: SPI CCT, 600 IC max

All In One WiFi BT 10: SPI RGB, 1200 IC max

All In One WiFi BT 11: SPI RGBW, 900 IC max

All In One WiFi BT 12: SPI RGBCCT, 600 IC max

All In One WiFi BT 8: SPI Single Color, 1800 IC max

All In One WiFi BT 9: SPI CCT, 600 IC max

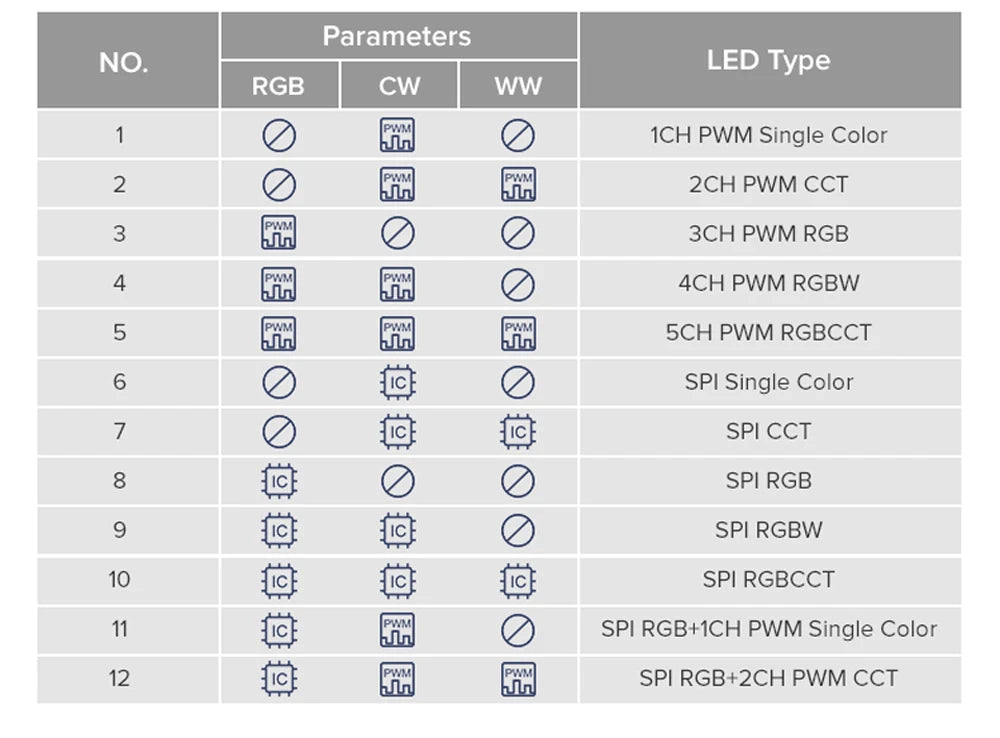

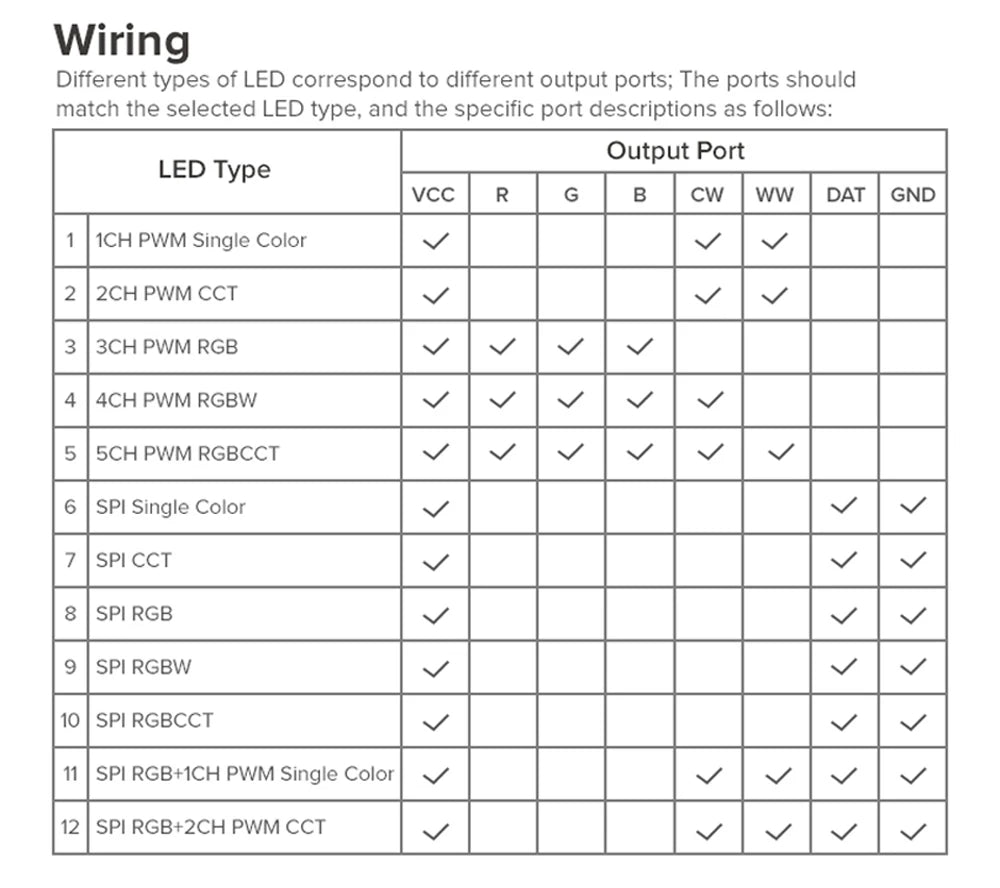

Applicable Lights: Most PWM or SPI LED Lights

Applicable Lights 1: 1CH PWM Single Color

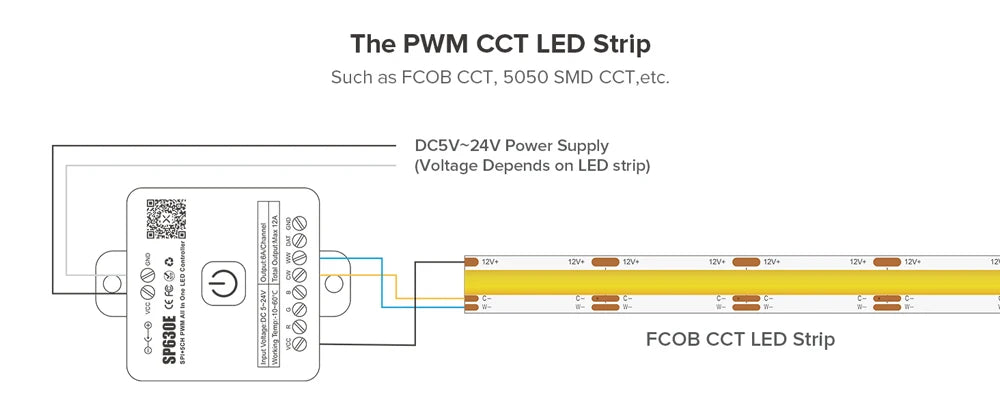

Applicable Lights 2: 2CH PWM CCT

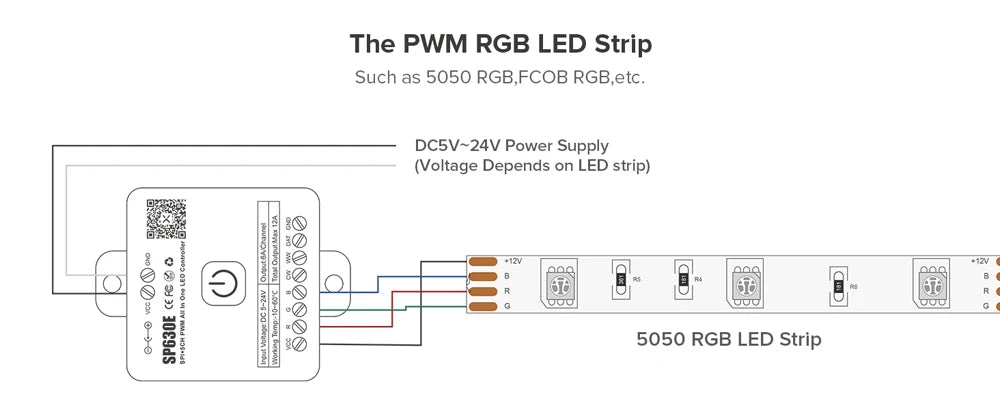

Applicable Lights 3: 3CH PWM RGB

Applicable Lights 4: 4CH PWM RGBW

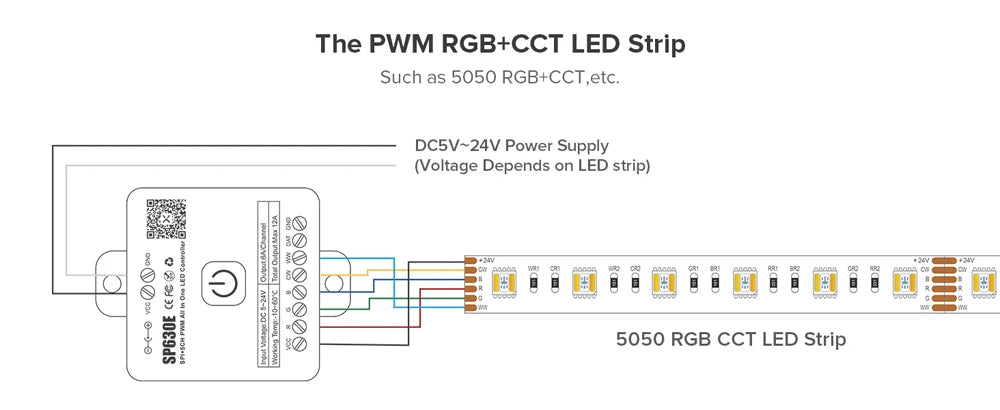

Applicable Lights 5: 5CH PWM RGBCCT

Applicable Lights 6: SPI RGB+1CH PWM Single Color

Applicable Lights 7: SPI RGB+2CH PWM CCT

Brand Name: BTF-LIGHTING

Certification: ce,FCC,ROHS,UL

Connection Mode: Wifi / Bluetooth / 2.4Ghz

Controled Method: Wifi / Bluetooth / Remote

Features: All In One LED Controller

High-concerned chemical: none

Is Smart Device: Yes

Item Type: RGB controler

Material: Plastic, Metal

Max. Load Power: PWM 288W

Model Number: SP530E/SP630E/RB/RC

Origin: Mainland China

Power Source: DC

Remote Distance: Max 20m

Voltage: 5-24V

Warranty: 3 Years

All In One LED Controller, Wifi Alexa Google Home Bluetooth, 5CH PWM or SPI Pixels LED Strip Light 5V-24V

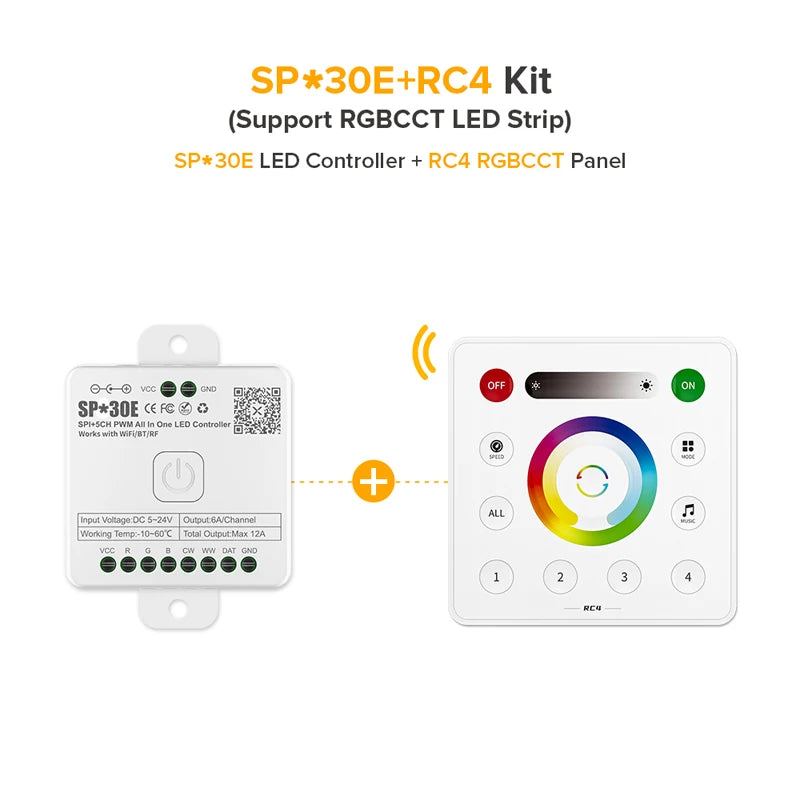

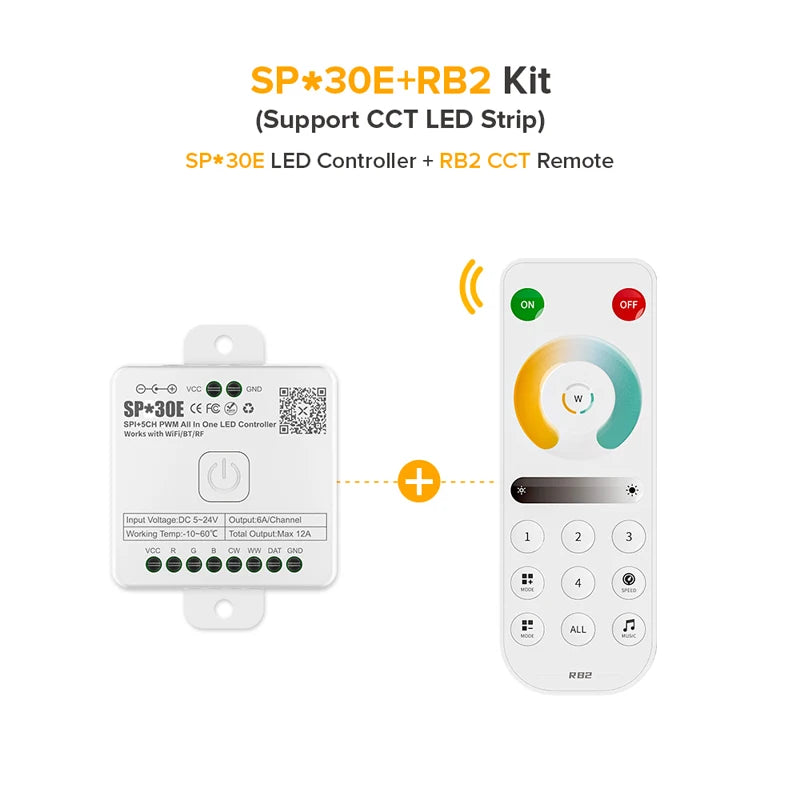

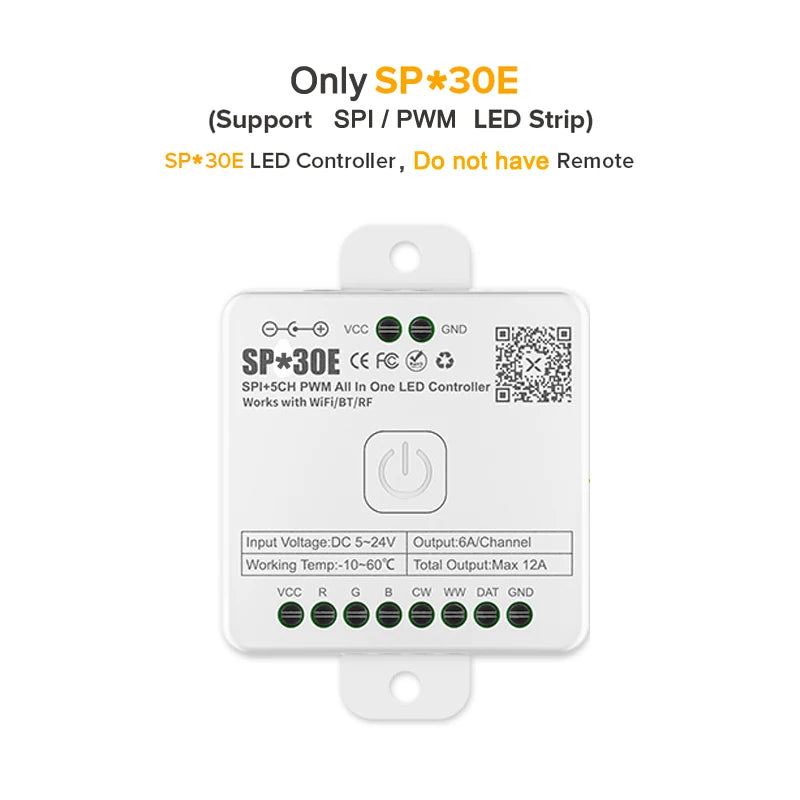

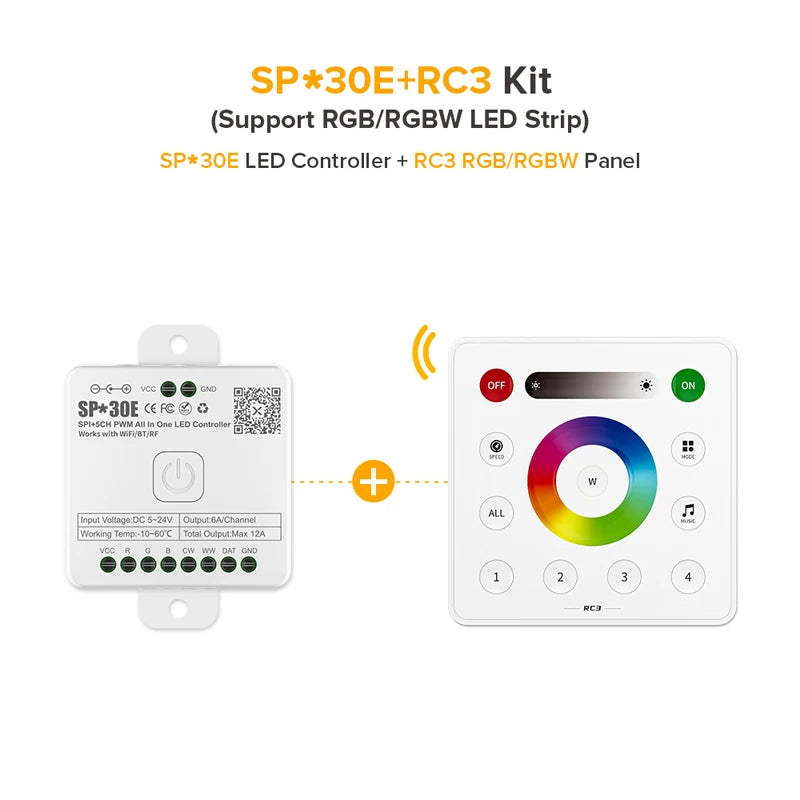

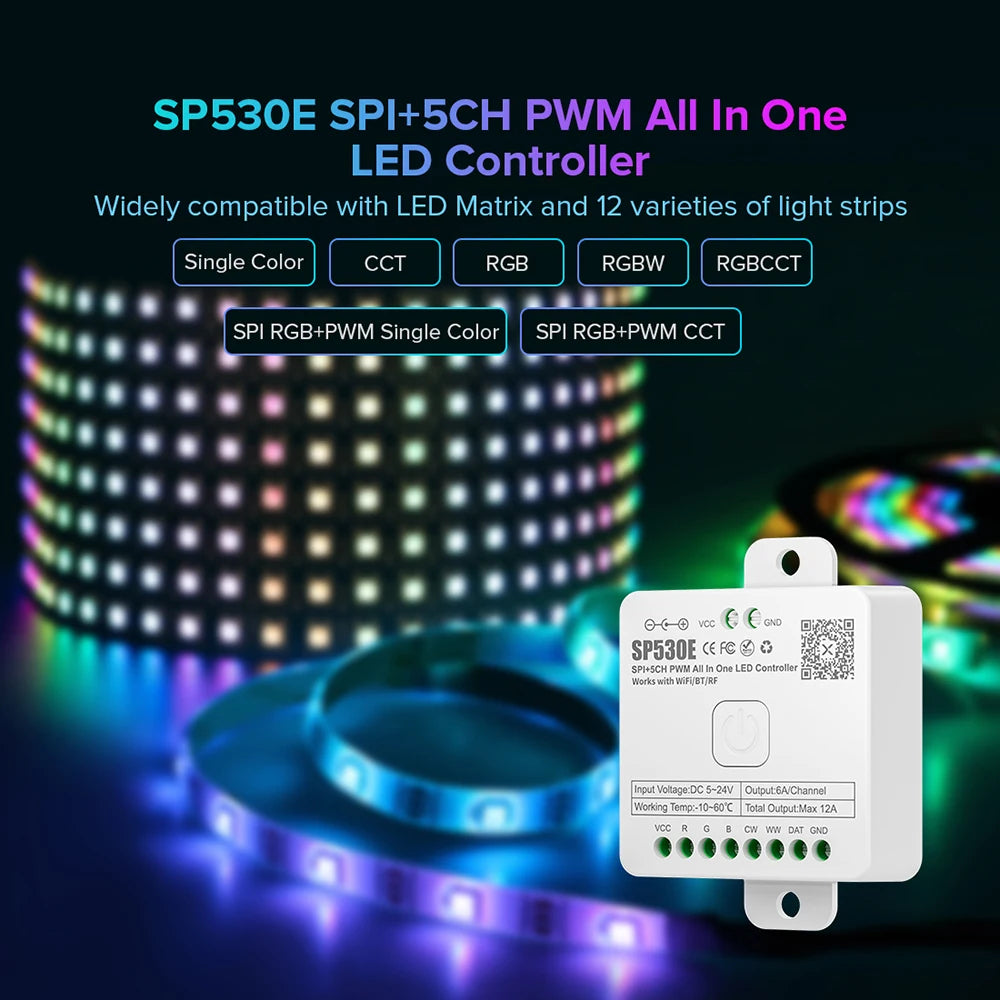

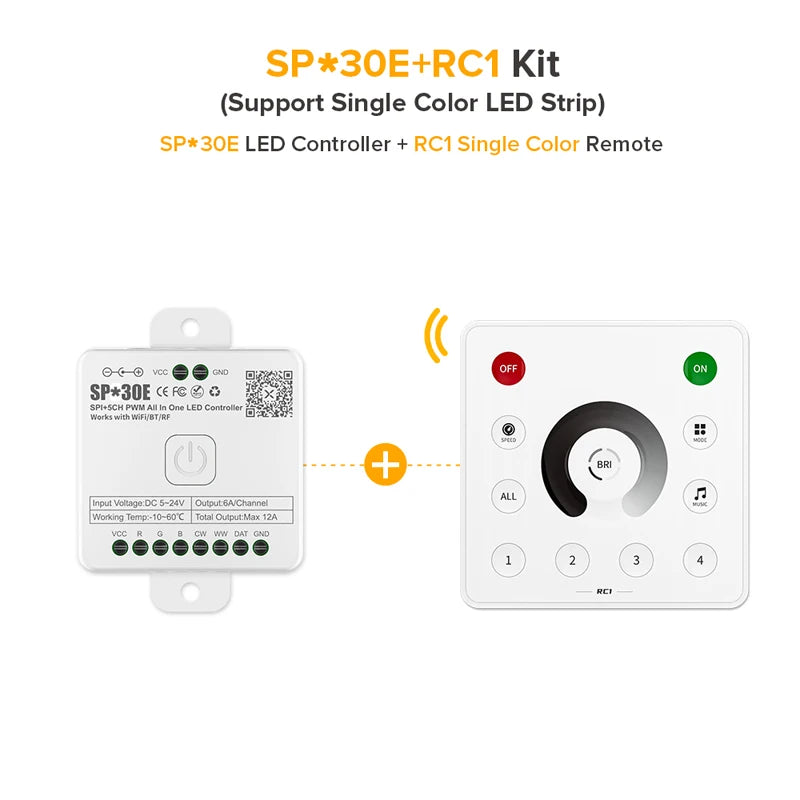

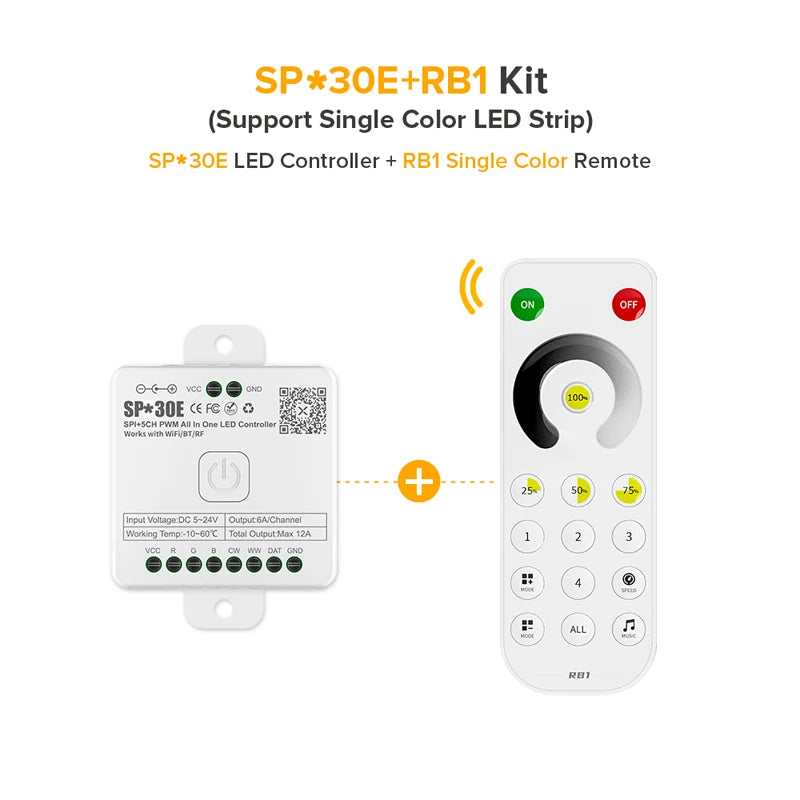

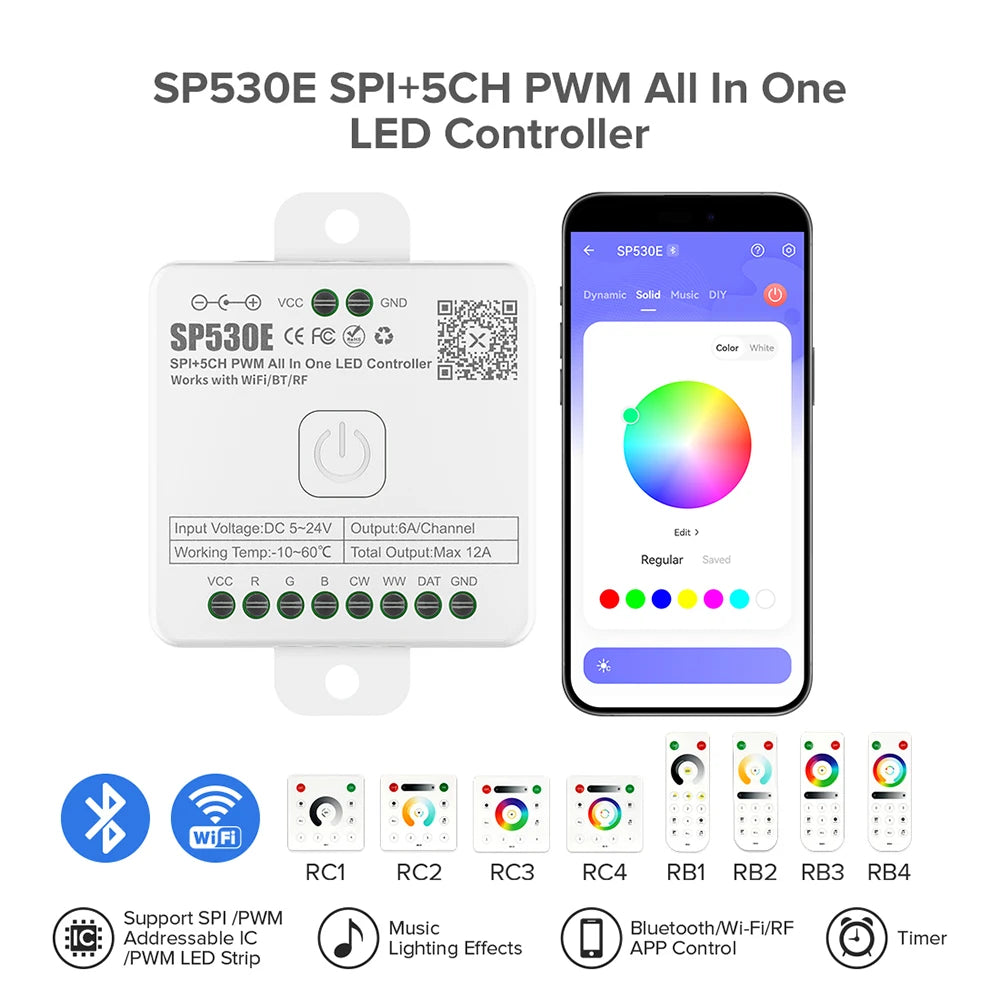

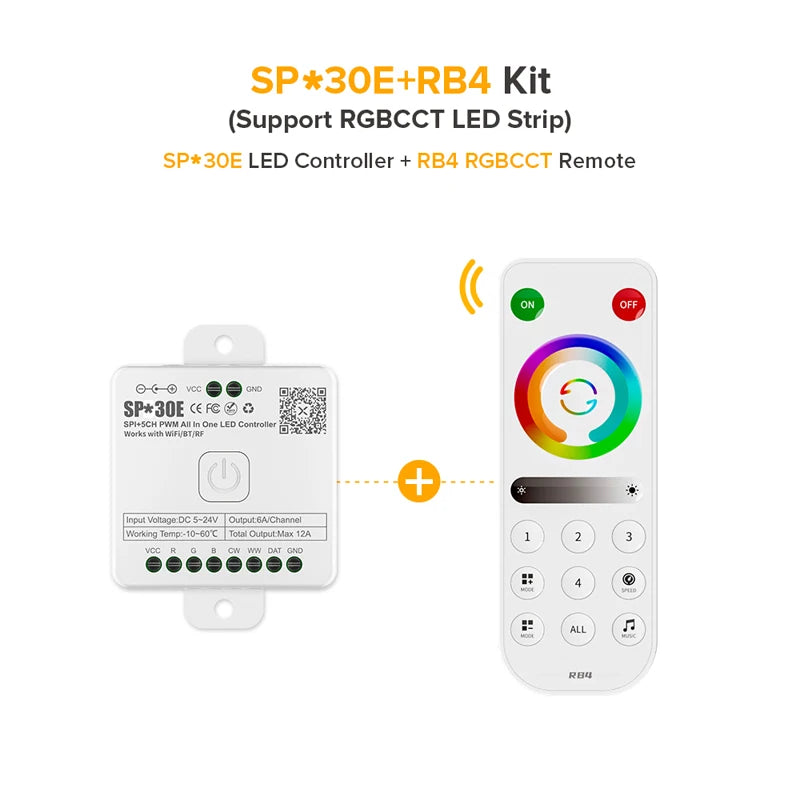

SP530E/SP630E are versatile loT LED controller designed specifically for controlling various types of LED. Both of them supports RF remote control.

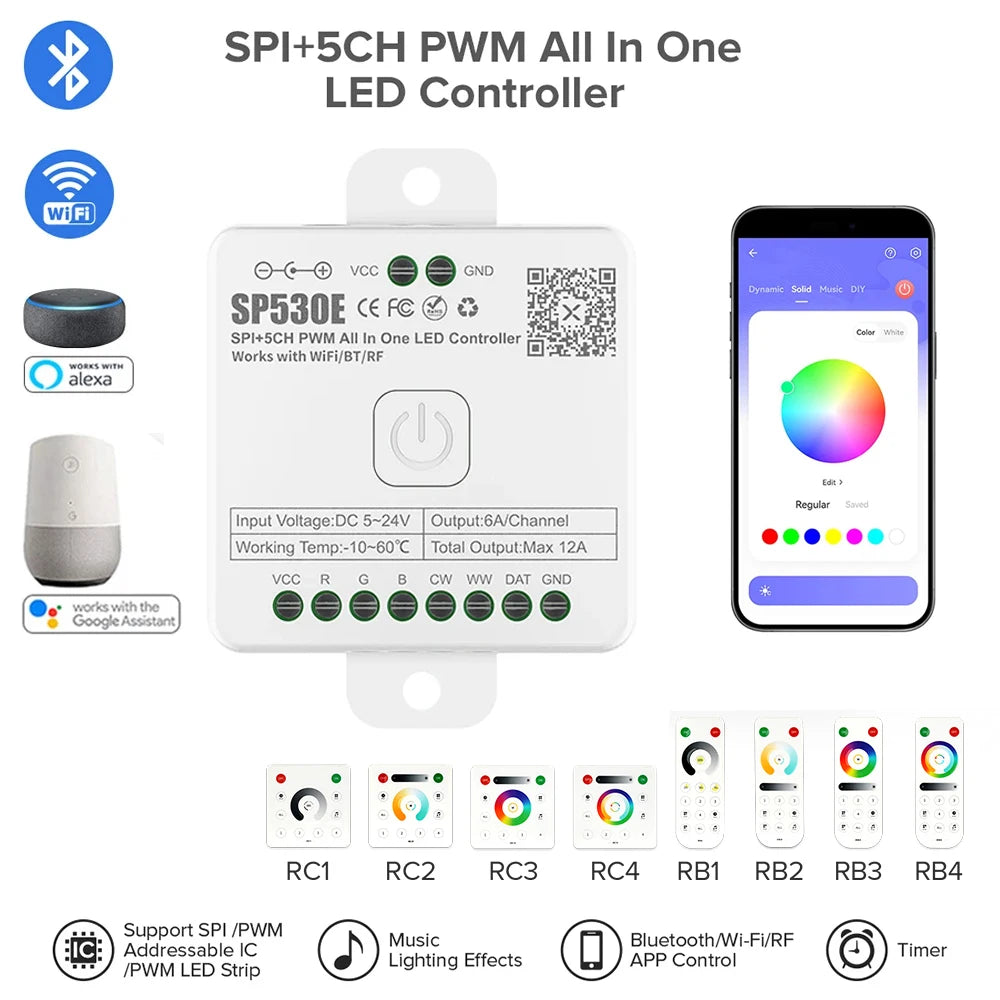

SP530E utilizes a dual-mode(2.4GHz WiFi and Bluetooth LE5.0) chip, enabling Bluetooth, WiFi, local network, or cloud connection via an App.

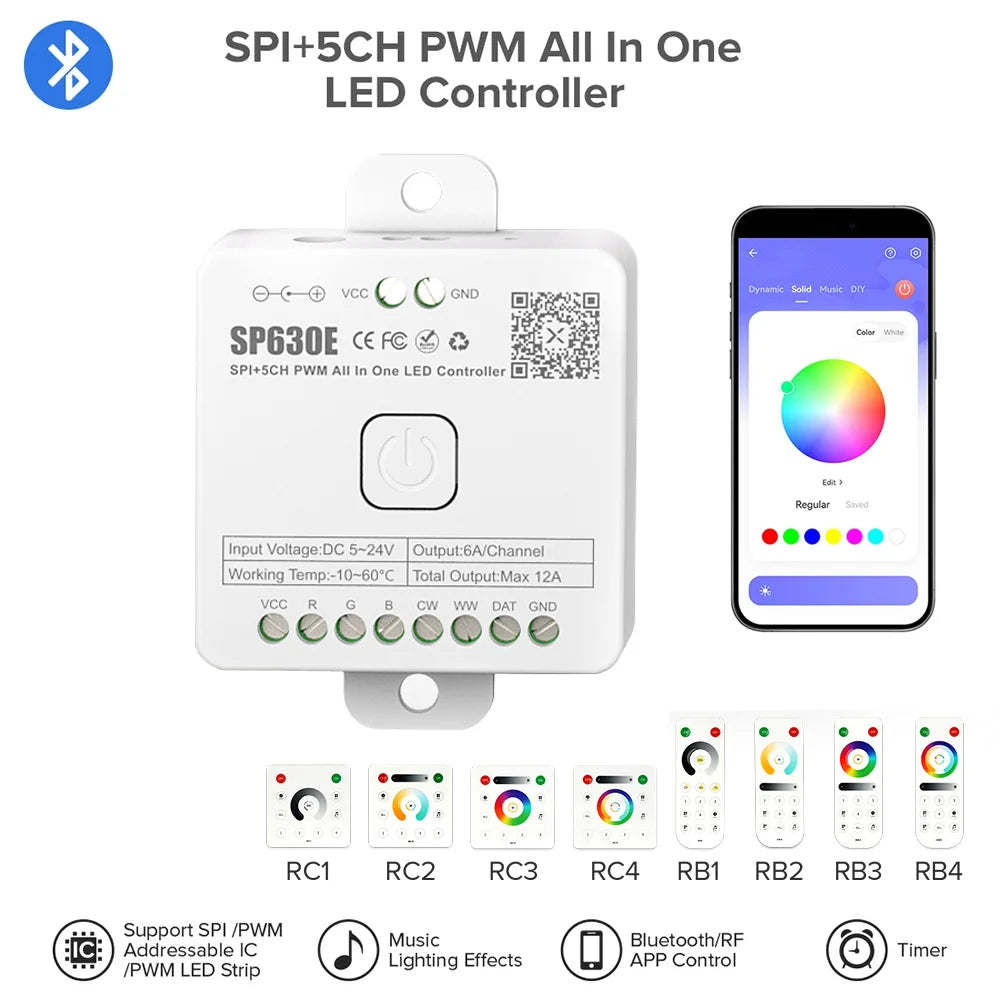

SP630E utilizes a single-mode(Bluetooth LE5.0) chip, enabling Bluetooth connection via an App.

Parameter Table:
LED Type: SPI IC chip LED strip+PWM LED strip.
Input Voltage: DC5V-DC24V Controller voltage depends on LED strip.
Ways of Working: Match with Wifi Alexa Google Home/ RF remote/Bluetooth APP BalanX.

SP530E Support IC QTY:
SPI DIM: 1800 IC max.
SPI CCT: 600 IC max.
SPI RGB: 1200 IC max.
SPI RGBW: 900 IC max.
SPI RGBCCT: 600 IC max.

SP630E Support IC QTY:
SPI DIM: 600 IC max.
SPI CCT: 600 IC max.
SPI RGB: 600 IC max.
SPI RGBW: 450 IC max.
SPI RGBCCT: 300 IC max.

Support IC Chip SPI: WS2811,WS2812,WS2813,WS2814,WS2815,TM1804,TM1812,UCS1903,UCS1909,UCS1912, UCS2903,UCS2909,UCS2912,TM1829,TM1914A,GW6205,GS8206,GS8208 etc.

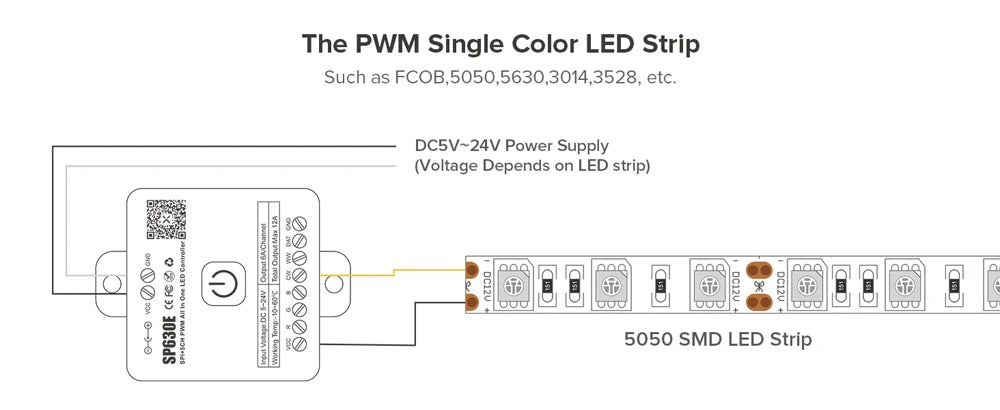

Support PWM Chip No IC: FCOB ,SMD5050,3014,3528,5730,5630 etc 2pin(V+ V-) 3pin CCT(V+ CW WW) 4pin RGB(V+ R G B) 5pin RGBW(V+ R G B W) 6pin RGBCCT(V+ R G B CW WW).

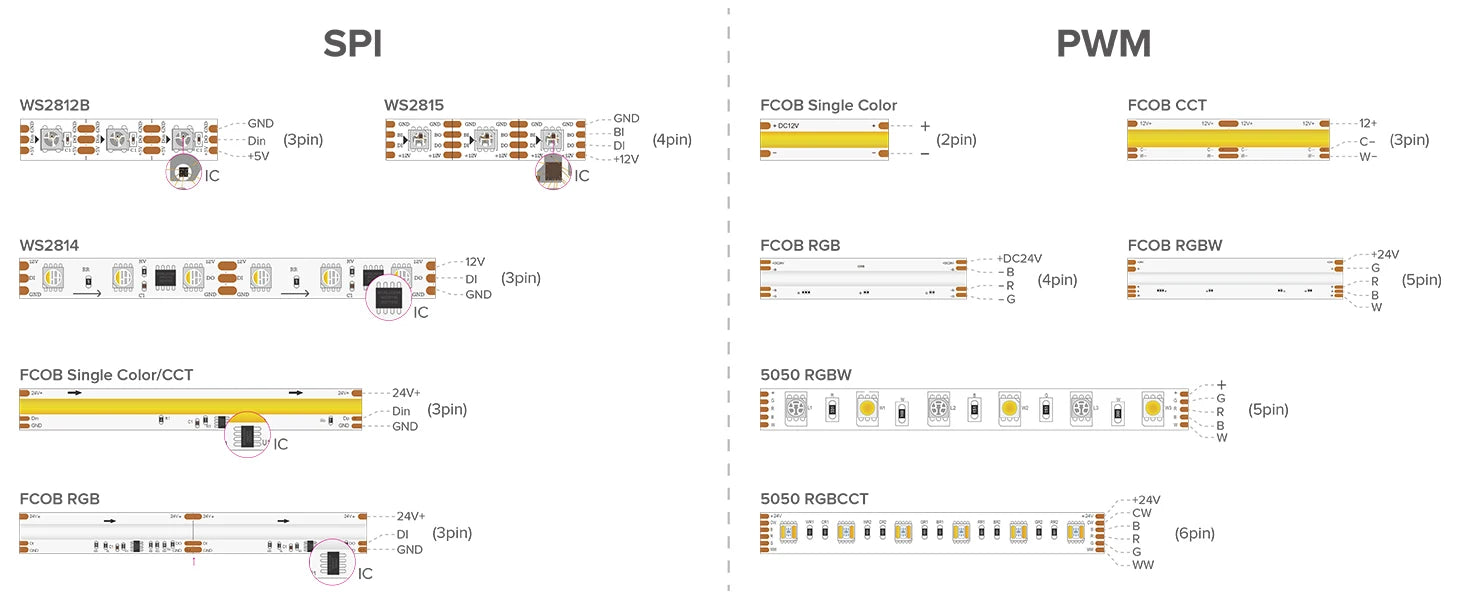

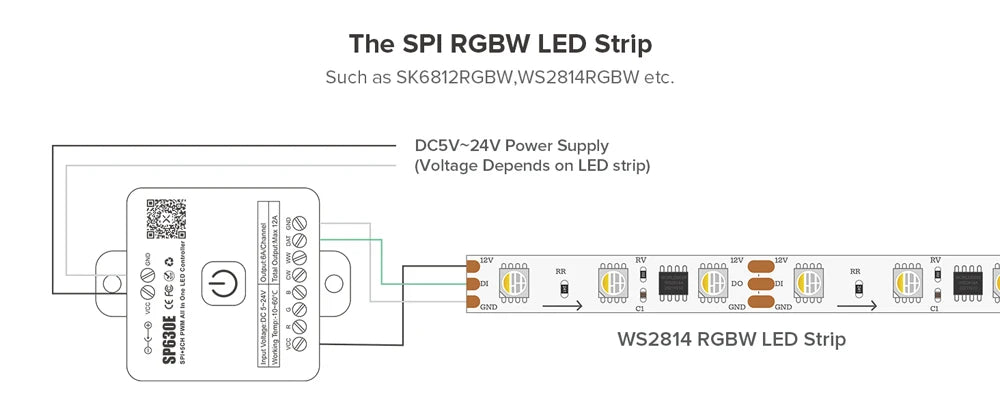

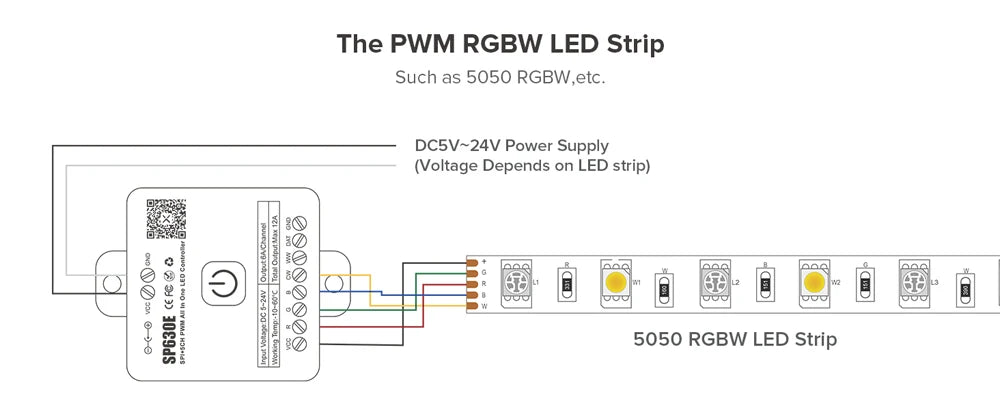

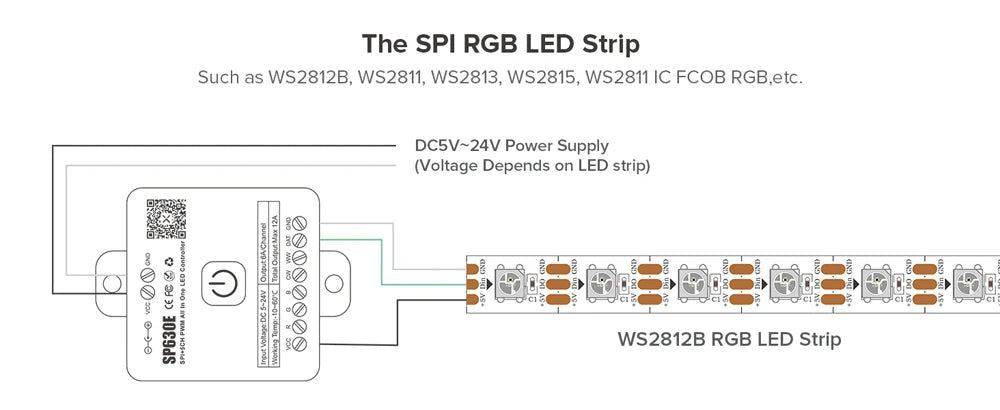

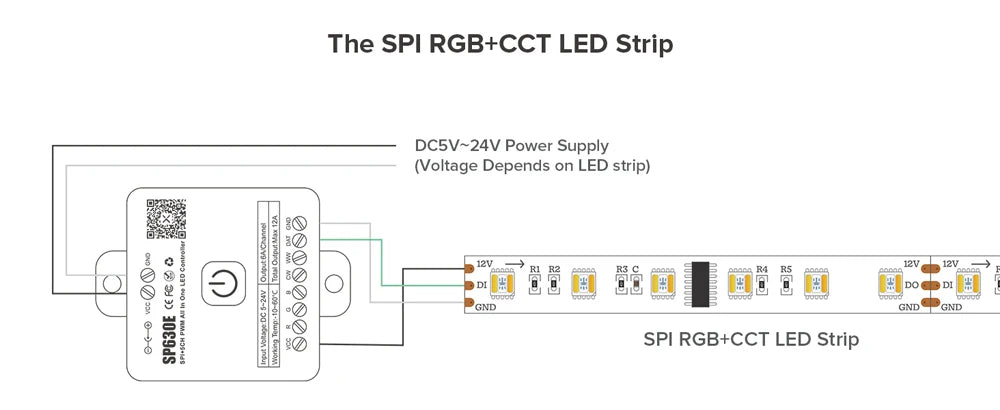

Difference between SPI (with IC) strips and PWM (without IC) strips.

Features of SPI and PWM:
IC : SPI--- With IC; PWM---Without IC.
PIN : SPI---3PIN/4PIN (with DATA wire) ; PWM---2PIN/3PIN/4PIN/5PIN/6PIN ( Similar to +,R,G,B,W ).
Controller : SPI---ESP8622,Rasp Pi,Arduino,SP611E,SP105E,SP107E,SP108 etc. ; PWM---WIFI WB5, Zigbee LM052, Bluetooth LM053.
