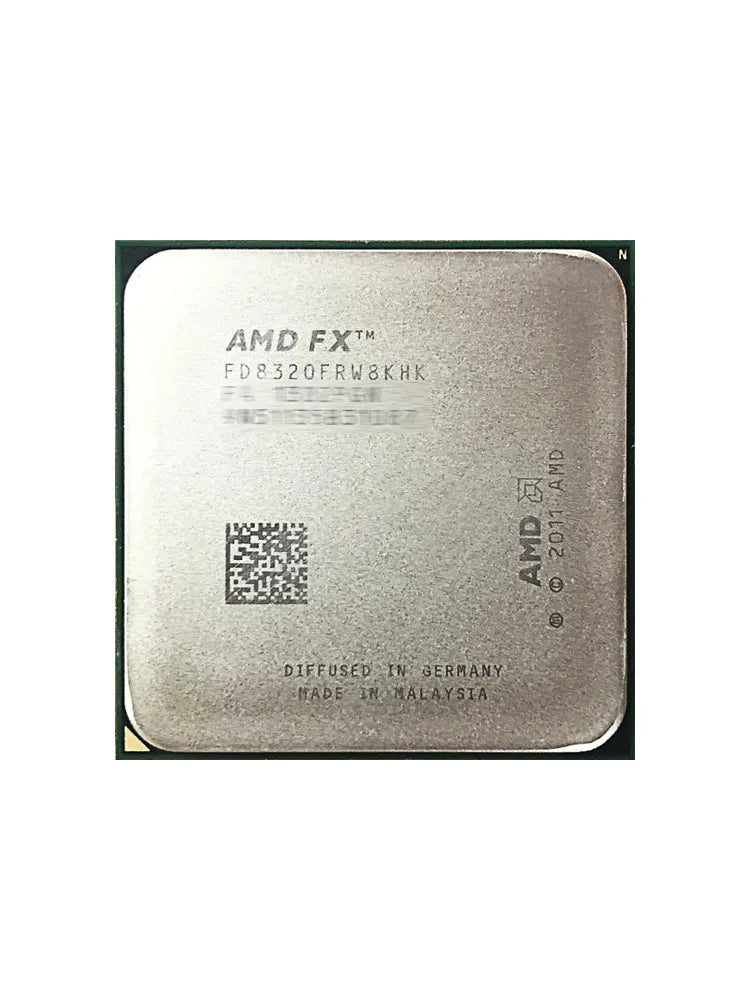

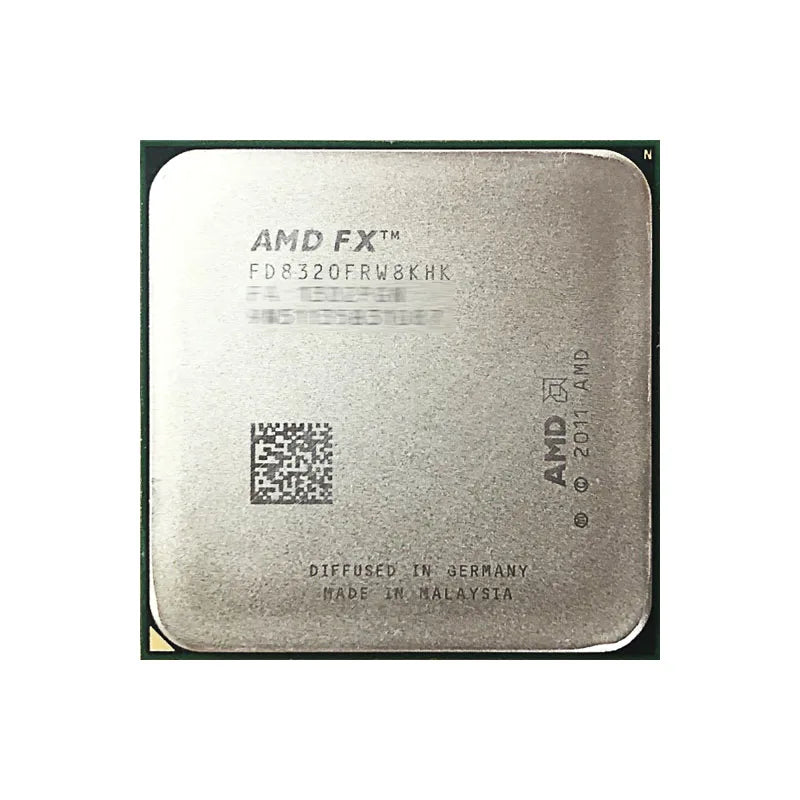

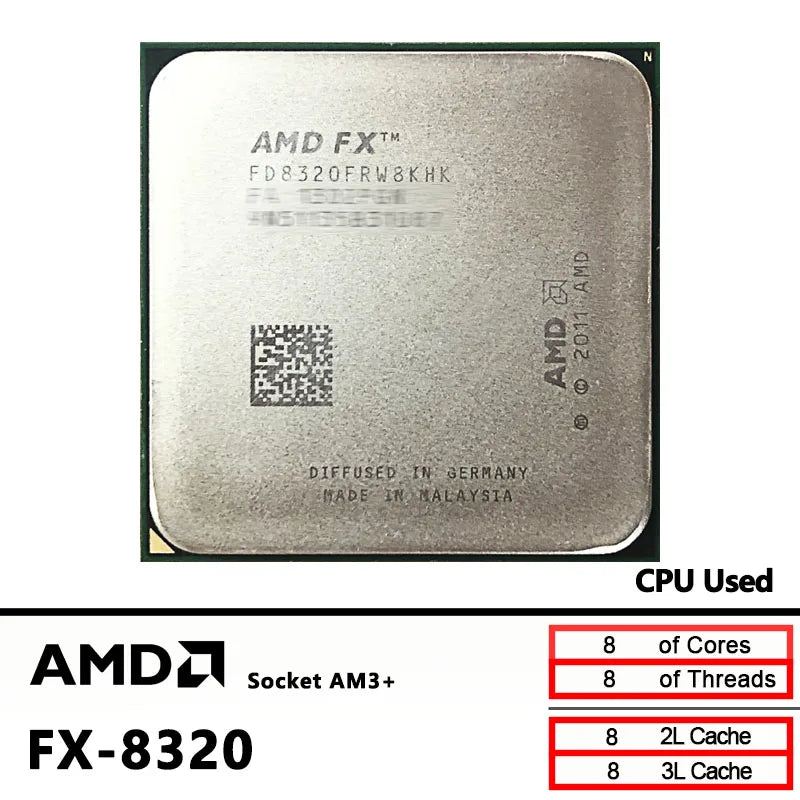

AMD FX-Series FX-8320 FX 8320 3.5 GHz Used Eight-Core CPU FD8320FRW8KHK Socket AM3+
Default Title
$138.33
Sale price
$138.33
Regular price
$0.00
Skip to product information
AMD FX-Series FX-8320 FX 8320 3.5 GHz Used Eight-Core CPU FD8320FRW8KHK Socket AM3+
$138.33
Sale price
$138.33
Regular price
$0.00
Description
SPECIFICATIONS
AMD Model: FX 8320
Application: Desktop
Brand Name: AMD
Chip Process: 32 Nanometers
Cooling system: no
Default TDP / TDP: 125
GPU-built: no
High-concerned chemical: none
L2 Cache Capacity: 8
L3 Cache Capacity: 8
Launch Date: 2012
Number OF Therads: 8
Origin: MY(Origin)
PCIe VERSION: PCIe 2.0
Package: No
Processor Type: FX-Series
Socket Type: Socket AM3 +
Support Chipset Models: AMD Others
Support Memory Channels: 2
Support Memory Type: DDR3
Type: Octa Core
Unlocked: no
Usage Scenario: others
Warranty: One year warranty
1、 Basic specifications (Piledriver pile driver, released in 2012), AM3+）
Architecture and Core
32nm SOI， 4 modules, 8 cores, and 8 threads (2 integer cores per module, sharing 1 floating-point unit)
Black box does not lock doubling, supports significant overclocking
Basic 3.5GHz, Turbo up to 4.0GHz
cache
L1：384KB
L2: 8MB (2MB per module)
L3: 8MB shared
Power consumption and heat dissipation
TDP 125W， The original radiator cannot hold the full load, at least four heat pipes should be air-cooled, and overclocking is recommended to be water-cooled
Temperature wall 61.1 ℃, high temperature will reduce frequency
Memory and Expansion
Dual channel DDR3, up to DDR3-1866, does not support DDR4
No core display, must be paired with a dedicated display to power on
PCIe 2.0， Old motherboard without native M.2 solid-state
2、 Motherboard compatibility
Only Socket AM3+motherboard available:
Perfect: 970/990X/990FX
Old AM3 motherboards (870/880G), even with physical slots, mostly do not support FX octa core
Type |
|
Market segment |
Desktop |
Family |
|
Model number? |
FX-8320 |
CPU part numbers |
|
Frequency? |
3500 MHz |
Turbo frequency |
3700 MHz (more than 4 cores)[1] |
Boosted P states[2] |
#1: 4000 MHz, 1.425V |
Bus speed? |
One 2600 MHz 16-bit HyperTransport link |
Package |
940-pin organic micro Pin Grid Array (UOC940) |
Socket |
Socket AM3+ |
Weight[2] |
1.4oz / 38.4g (CPU) |
Fan/heatsink |
AV-Z7UH40Q001 |
Introduction date |
|
Price at introduction |
$169 |
Architecture / Microarchitecture | |
Microarchitecture |
Piledriver |
Platform |
Volan |
Processor core? |
Vishera |
Core stepping? |
OR-C0 |
CPUID |
600F20 |
Manufacturing process |
0.032 micron |
Data width |
64 bit |
The number of CPU cores |
8 |
The number of threads |
8 |
Floating Point Unit |
Integrated |
Level 1 cache size? |
4 x 64 KB 2-way set associative shared instruction caches |
Level 2 cache size? |
4 x 2 MB 16-way set associative shared exclusive caches |
Level 3 cache size |
8 MB 64-way set associative shared cache |
Multiprocessing |
Uniprocessor |
Features |
|
Low power features |
PowerNow! |
Low power P states[2] |
#1: 2900 MHz, 1.3V |
Integrated peripherals / components | |
Integrated graphics |
None |
Memory controller |
The number of controllers: 1 |
Other peripherals |
HyperTransport technology? |
Electrical / Thermal parameters | |
Maximum operating temperature? |
61.1°C |
Thermal Design Power? |
125 Watt |
Notes on AMD FX-8320 | |
[1] - Information is not confirmed
[2] - These characteristics were measured on a single CPU, and they can vary slightly for other processors with the same model number
| |
