SPECIFICATIONS

Description

1. NON PASS-THRU DESIGN - Wide Compatibility. Works with all standard RJ45 crimping tools. No need to purchase a specialized pass-through crimper.
2. APPLICATION SCOPE - Multi-stranded and single-stranded cables: CAT5E (24–28 AWG). The wire OD of network cables with the same AWG specifications may vary depending on the manufacturer. Please ensure AWG and OD BOTH meet the requirements.
3. HIGH PERFORMANCE - 3μ gold-plated pass-through connectors with 3-prong blades ensure a closer combination between the contacts and the wire core than 2-prong blades, providing higher data transfer speeds.

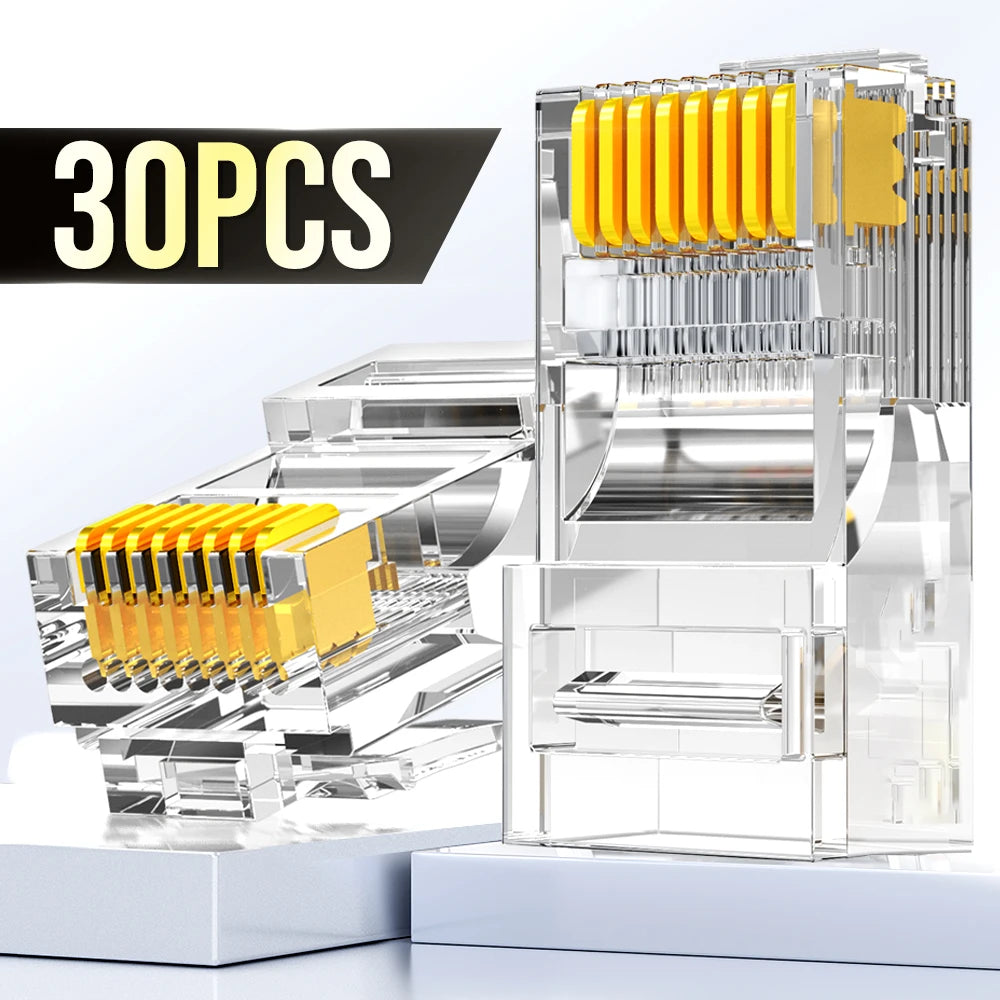

4. PACKAGE INCLUDES-30/100 pcs Non-Pass through UTP RJ45 Connectors

CAT5E:

Outside Dianeter: 1.0±0.02mm

Condutor OD: max 0.512mm

Wire OD: 24-28AWG

Speed: 1000Mbps

Bandwidth: 100Mhz

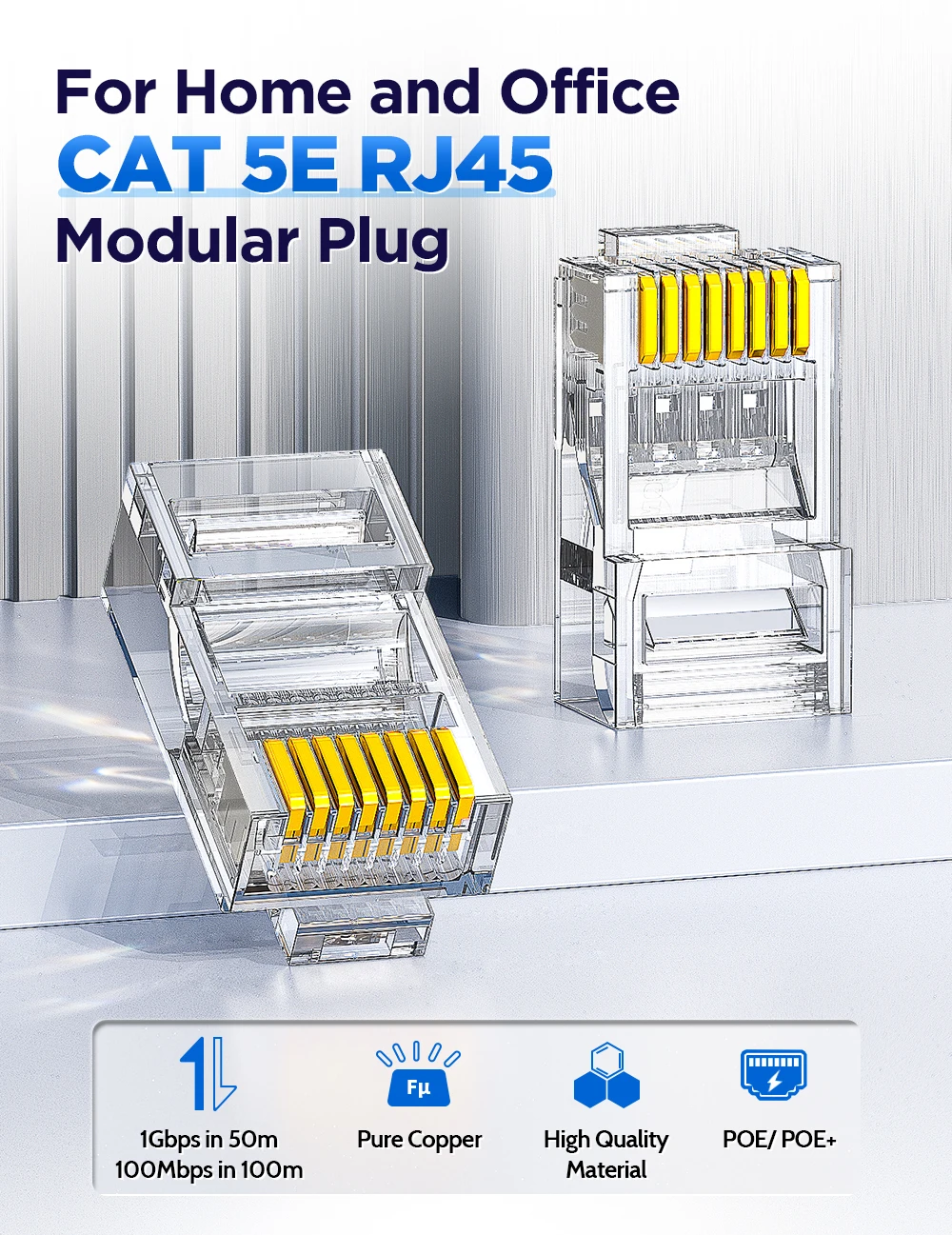

For Home and Office

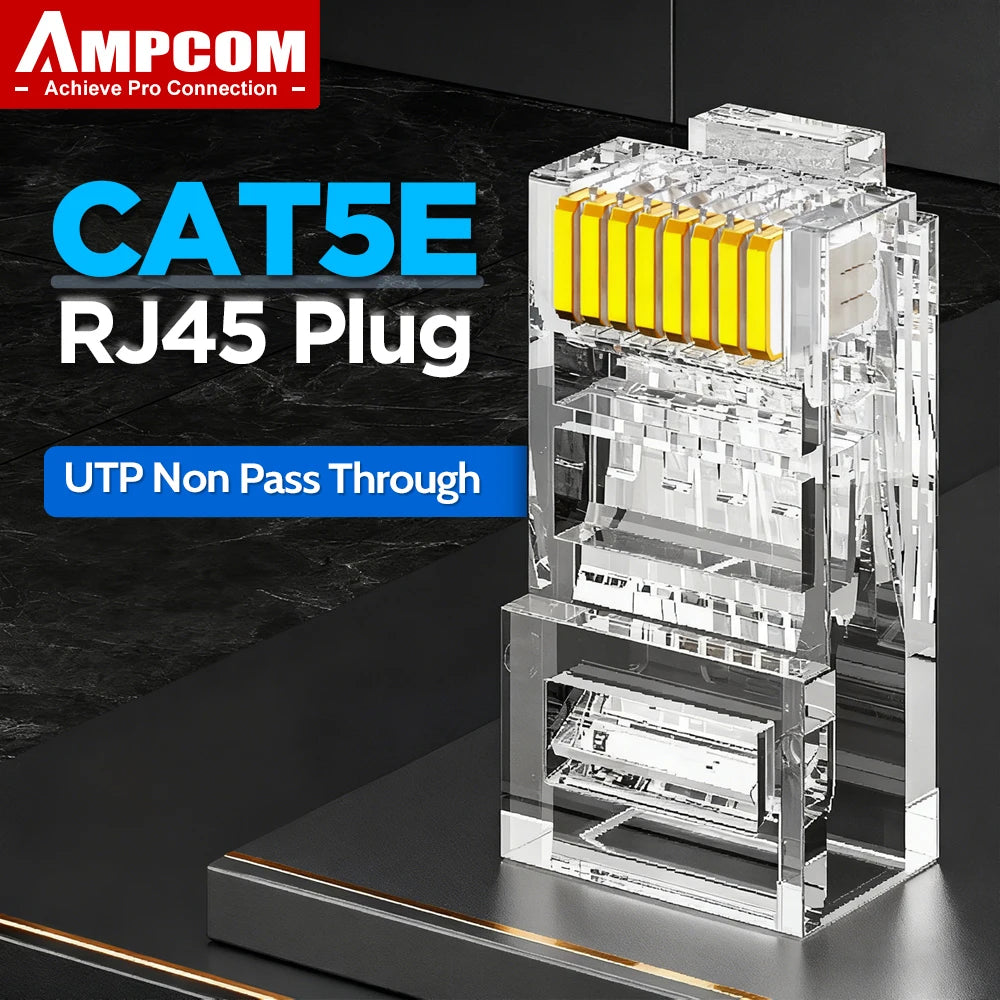

CAT5E RJ45 Modular Plug

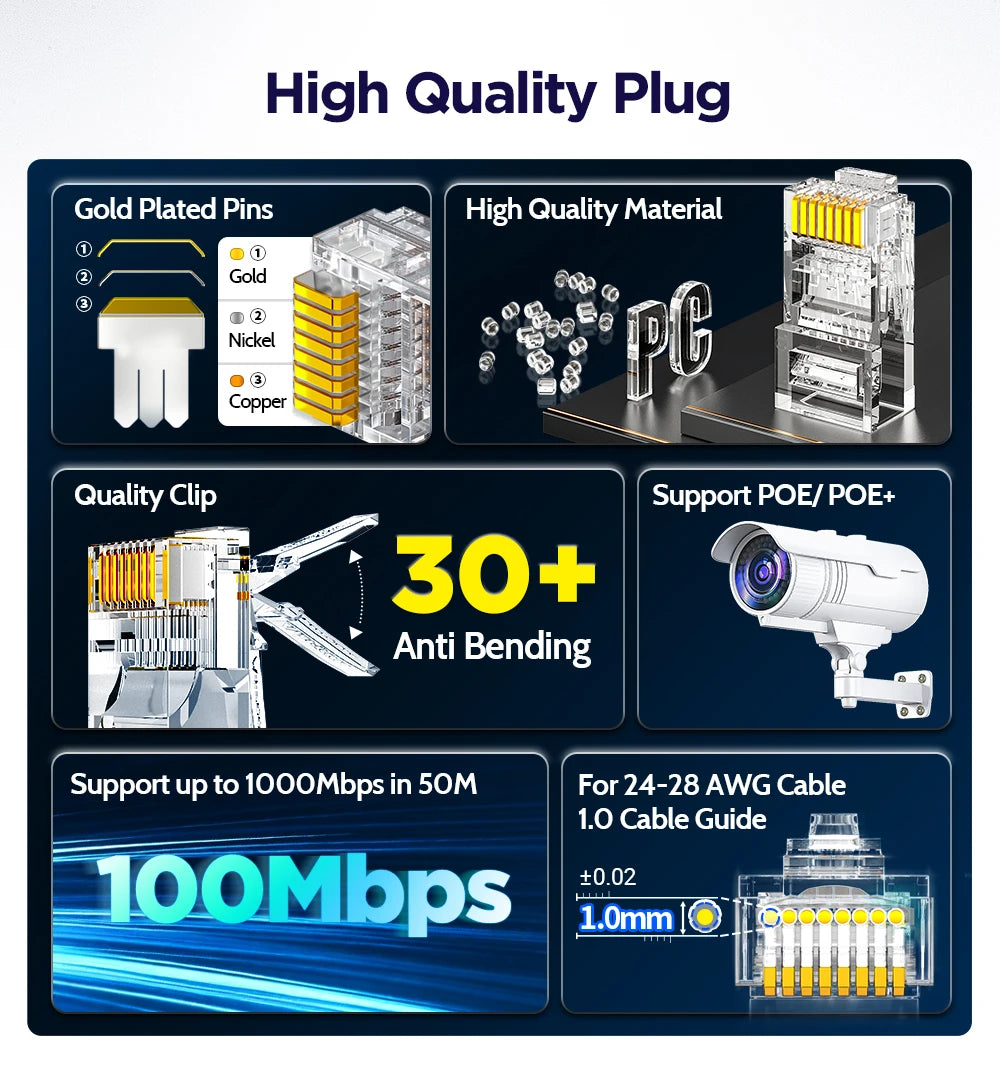

High Quality Plug

Low-priced, versatile, and high-quality — ideal for low-intensity use (home, office).

Supports POE power supply, meeting home surveillance and security wiring needs.

CAT5E Stable Transmission

Support up to100Mbps for lengths between 51 and 100 meters; maximum speed up to 1000Mbps/1Gpbs over short distances (≤50meters)

30W Power Max Load

It supports POE and POE+ power supply, and is ideal for scenarios requiring power, such as surveillance devices, POE phones, and POE  displays

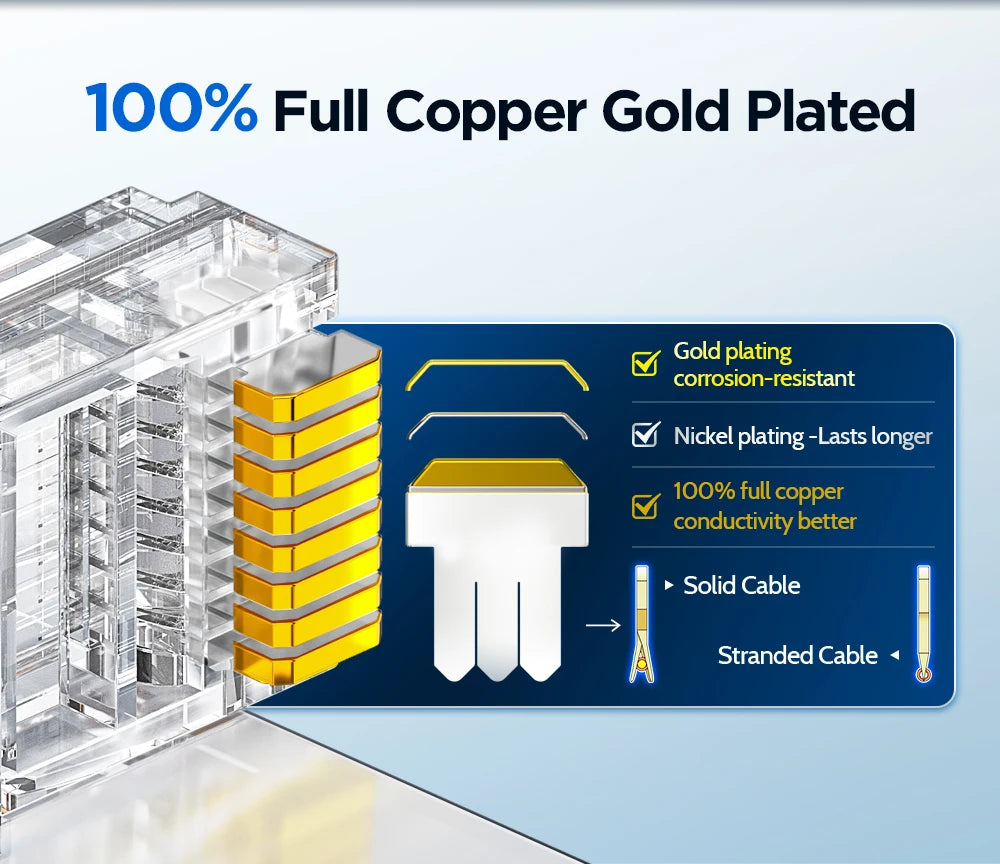

100% Full Copper Gold Plated

1U gold plating: Suitable for home/office use, anti-oxidation, and enhanced conductivity

15U nickel plating layer: Anti-oxidation, corrosion-resistant, and durable for long-term outdoor use

High Quality Raw Material

It features flame-retardant material, a crystal-clear appearance, and excellent electrical continuity.

The spring contacts remain functional even after being bent more than 30 times.

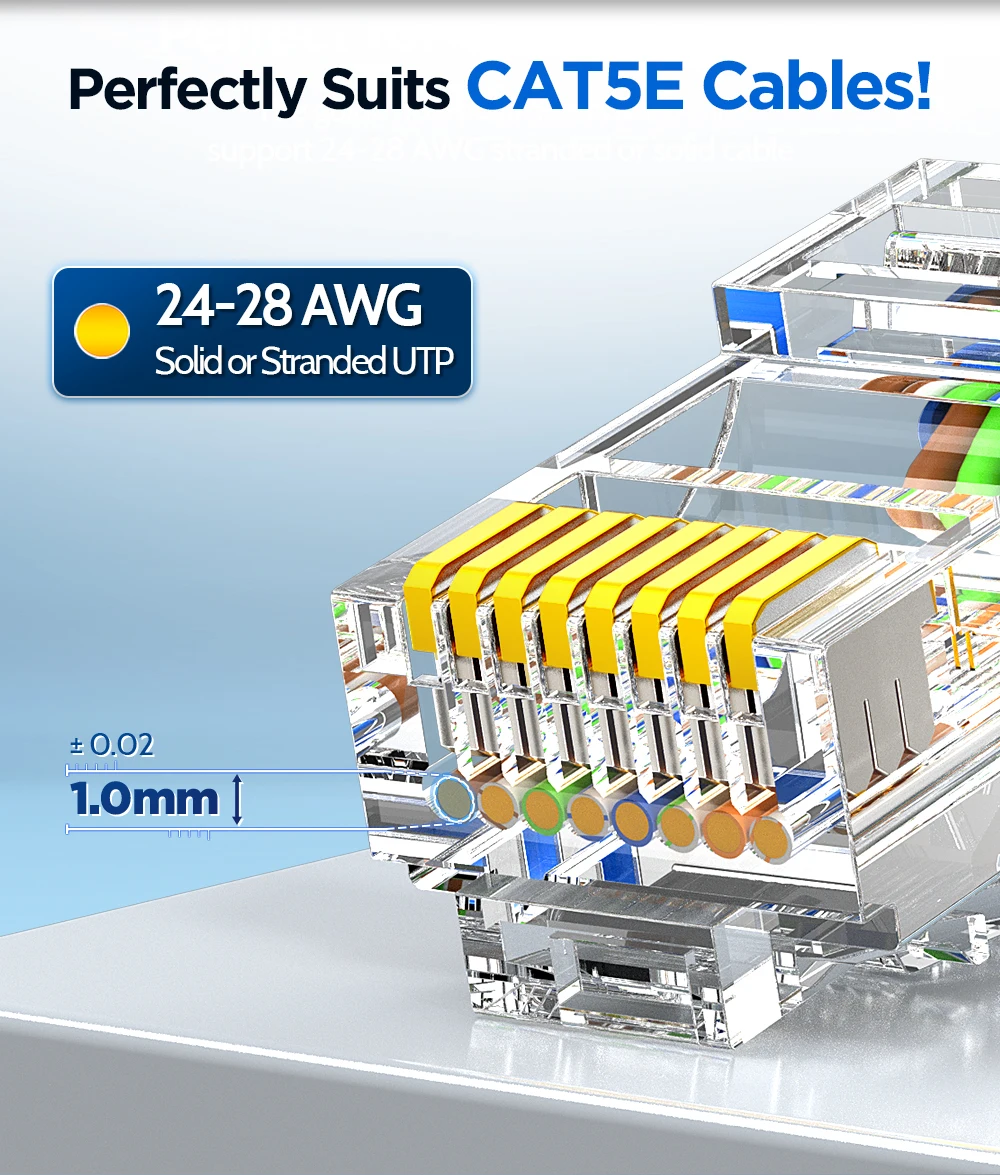

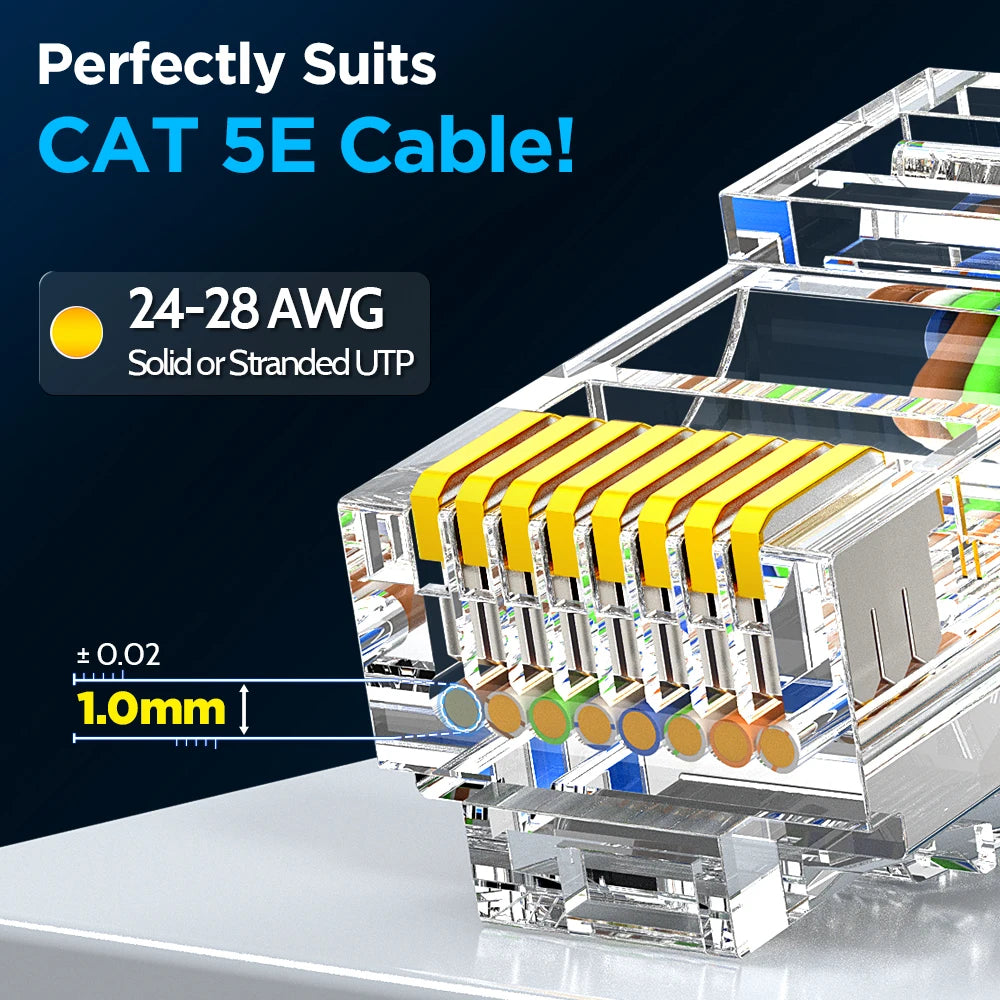

Perfect for CAT5E Cable

The guide holes diameters is 1.0 mm. support 24-28 AWG stranded or solid cable. support flat and round cable,

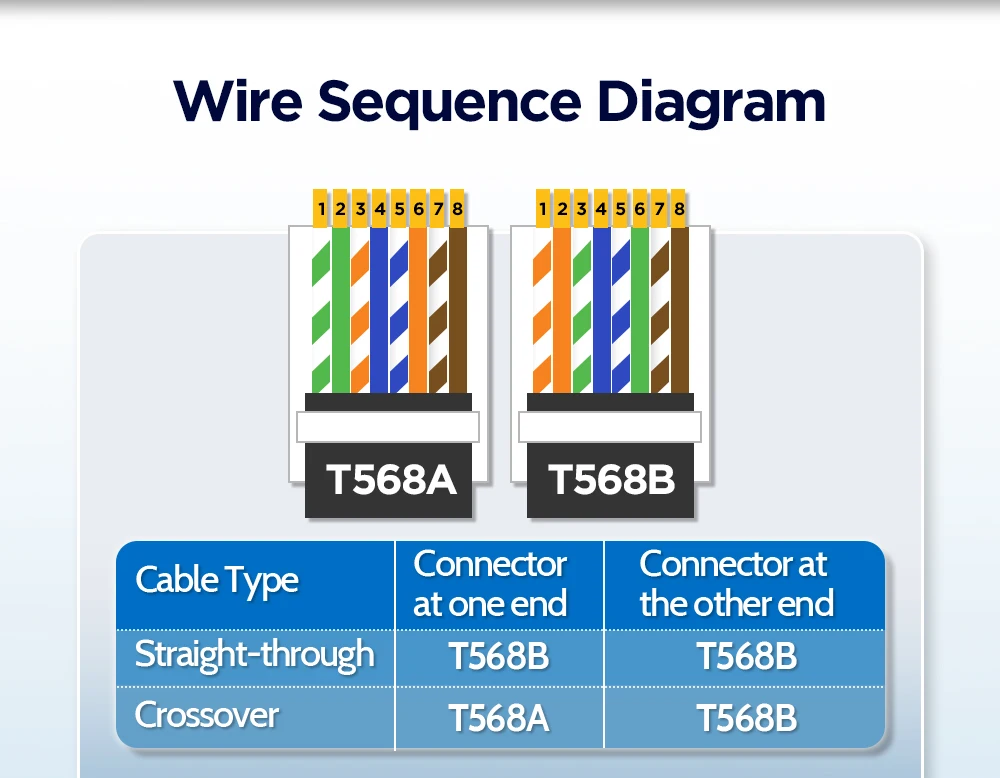

Wire Structure Inside

Support 568B&568A wire sequence

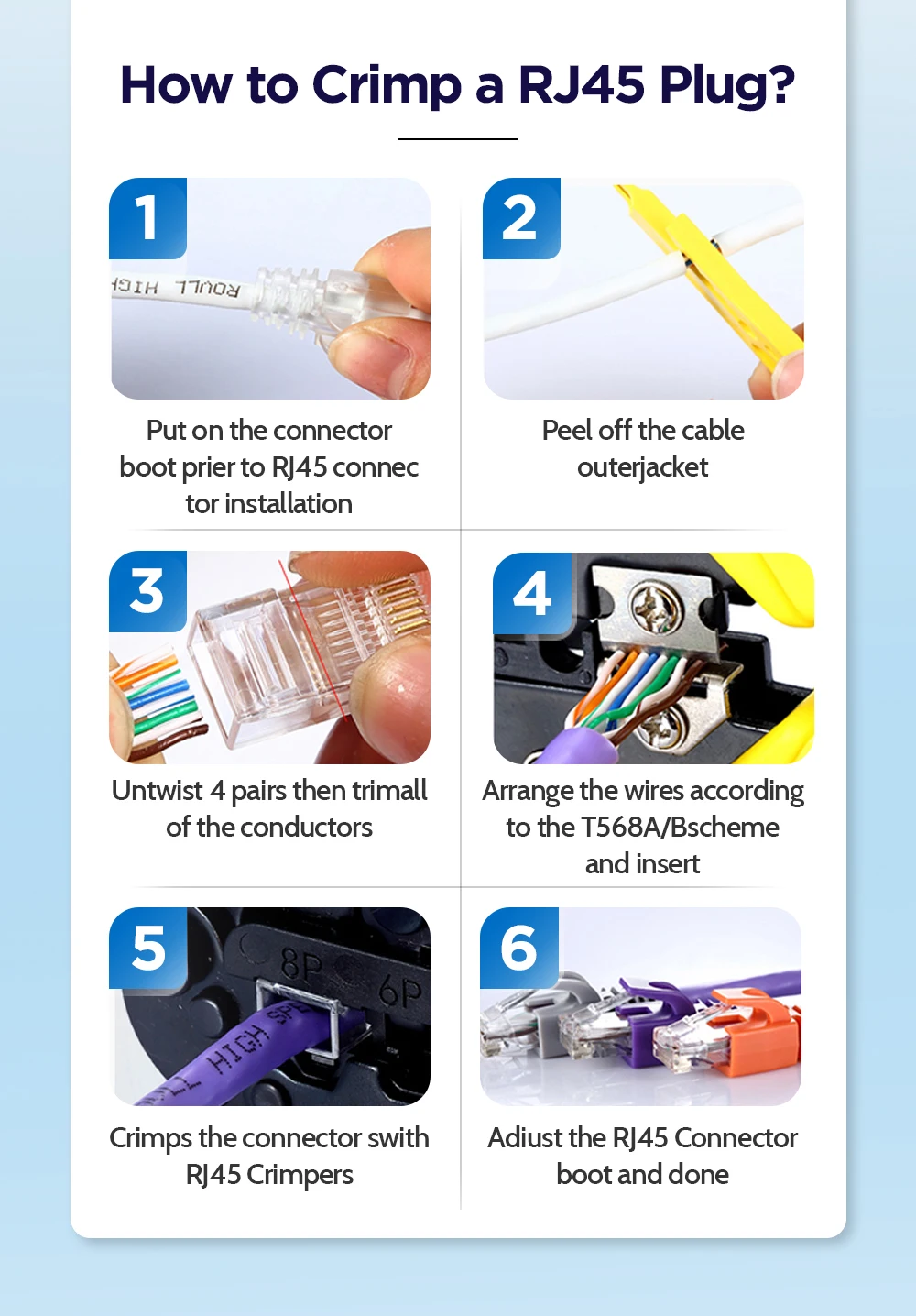

How to Crimp a RJ45 Plug?

Step 1: Put on the connector boot prier to RJ45 Connector installation

Step 2: Peel off the cable outerjacket

Step 3: Untwist 4 pairs then trimall of the conductors

Step 4: Arrange the wires according to the T568A/Bscheme and insert

Step 5: Crimps the connectors switch Rj45 crimpers

Step 6: Adjust the RJ45 connector boot and done
