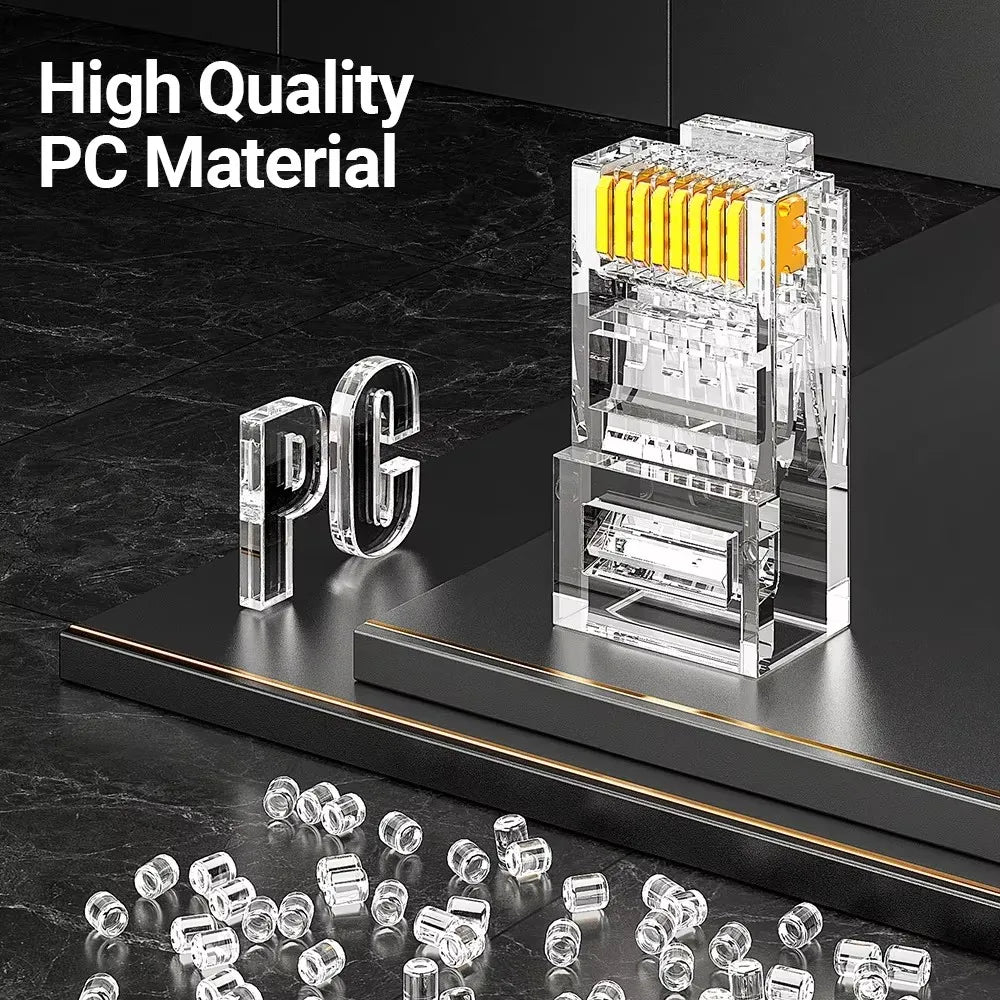

AMPCOM CAT6 CAT5E Pass Through RJ45 Modular Plug Network Connectors UTP 3/50μ Gold-Plated 8P8C Crimp End for Ethernet Cable

AMPCOM CAT6 CAT5E Pass Through RJ45 Modular Plug Network Connectors UTP 3/50μ Gold-Plated 8P8C Crimp End for Ethernet Cable

$48.76

$48.76 $0.00

Color CAT5E 50U CAT5E 3U CAT6 50U CAT6 3U

Cable length 100pcs 30pcs 10pcs

Description

SPECIFICATIONS

Assembly Required: no

Brand Name: AMPCOM

Certification: RoHS

Choice: yes

High-concerned chemical: none

Origin: Mainland China

Package: No

Type: Connectors

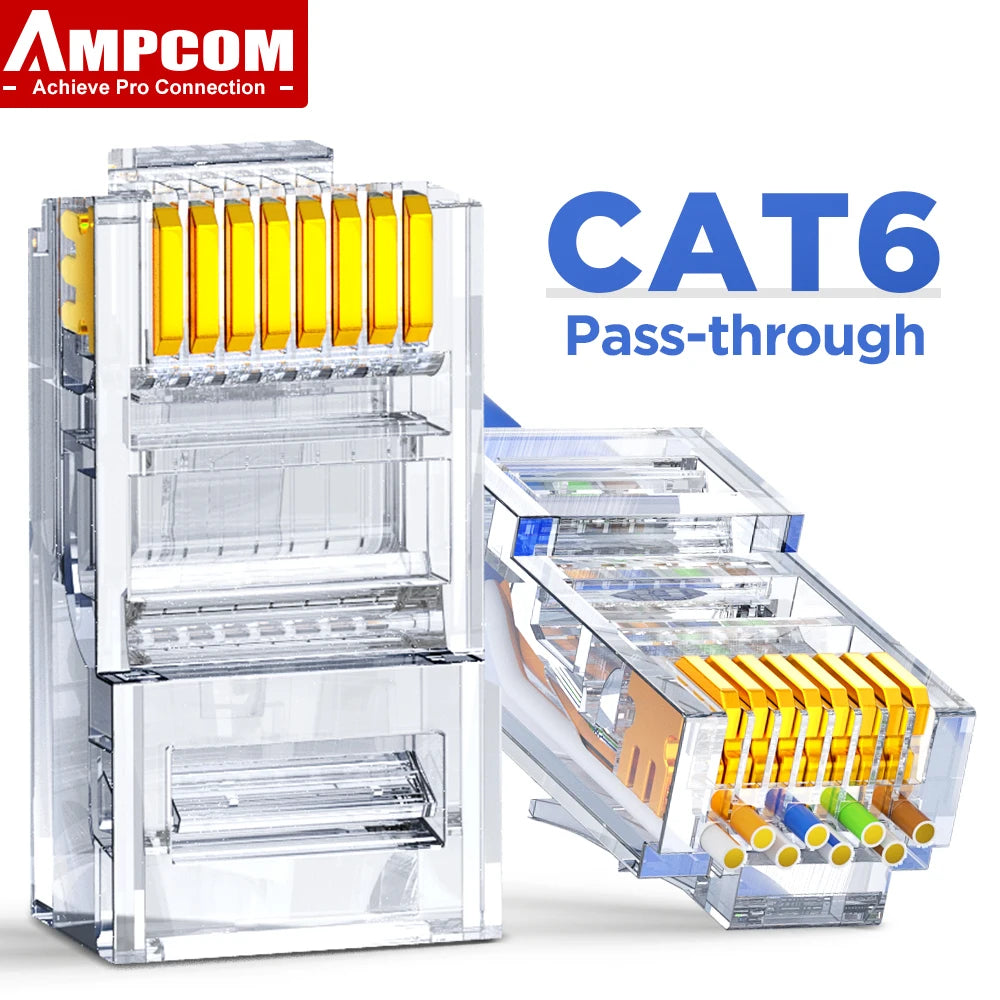

AMPCOM CAT5E/CAT6 EZ UTP RJ45 Connectors

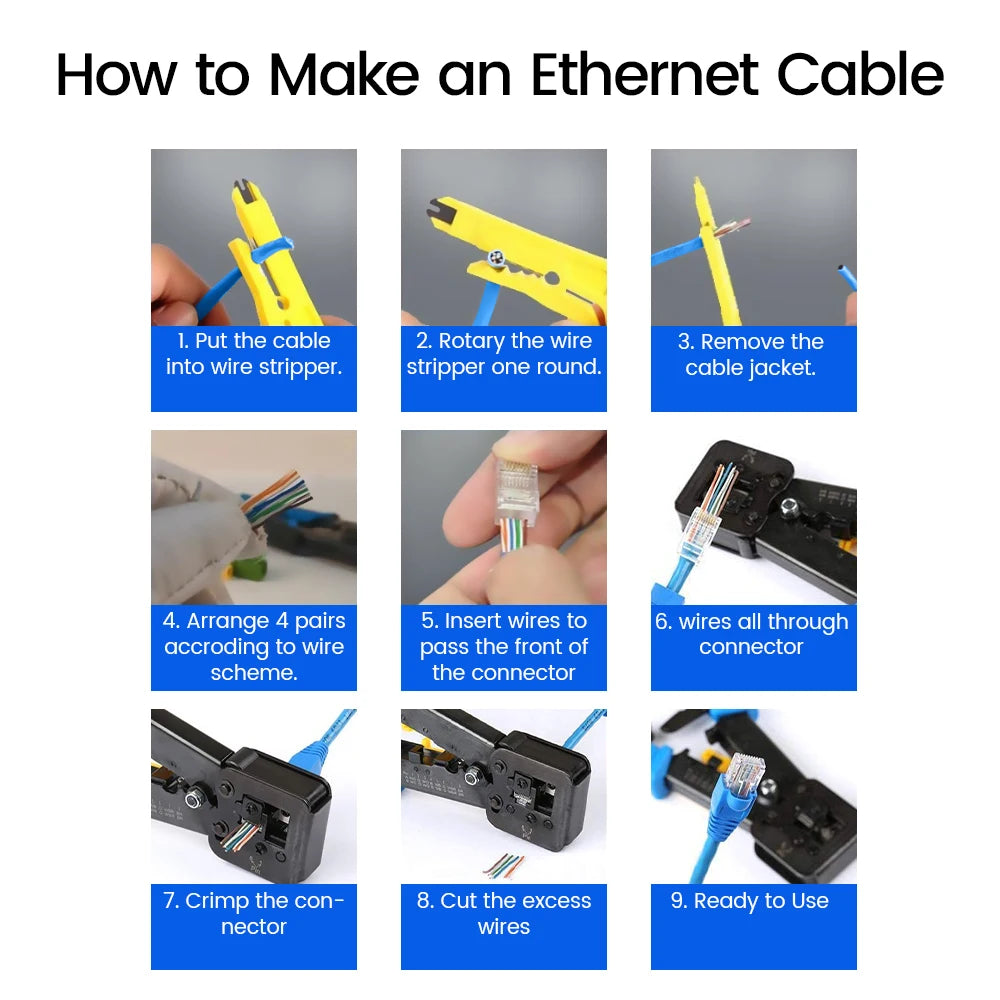

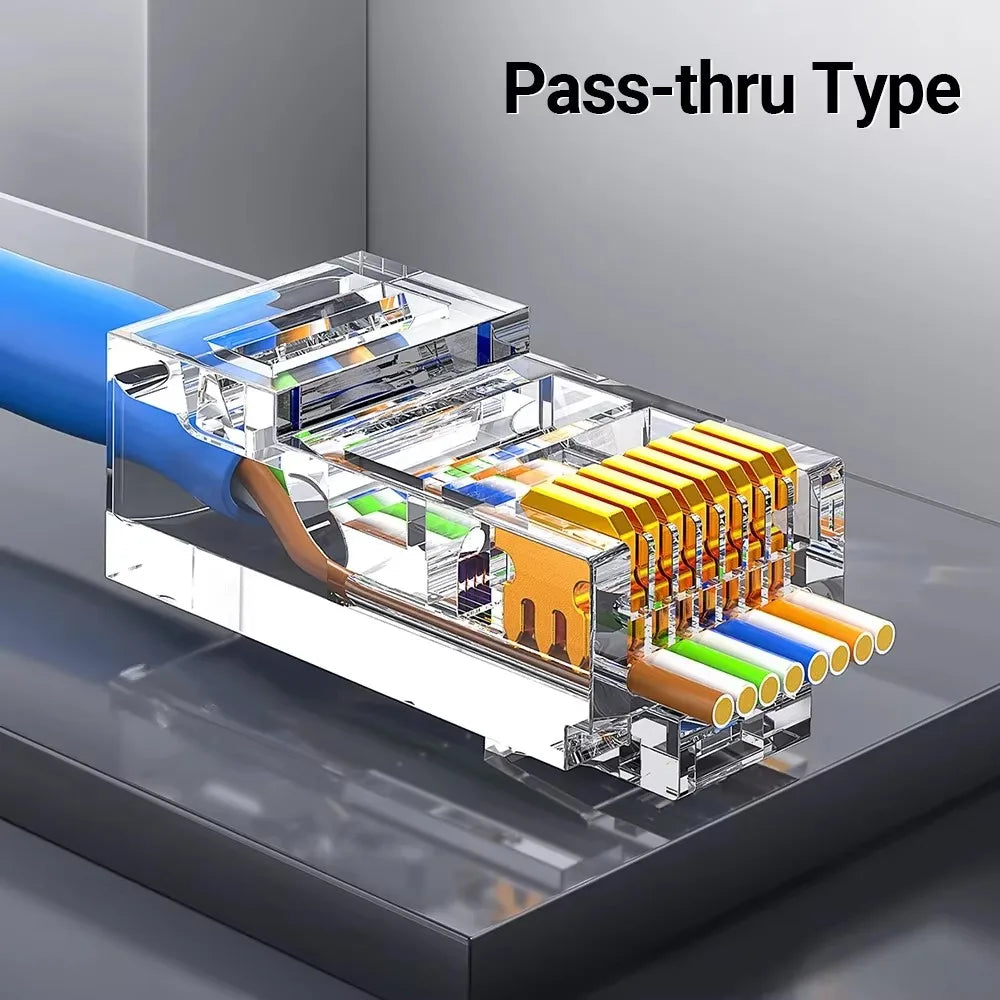

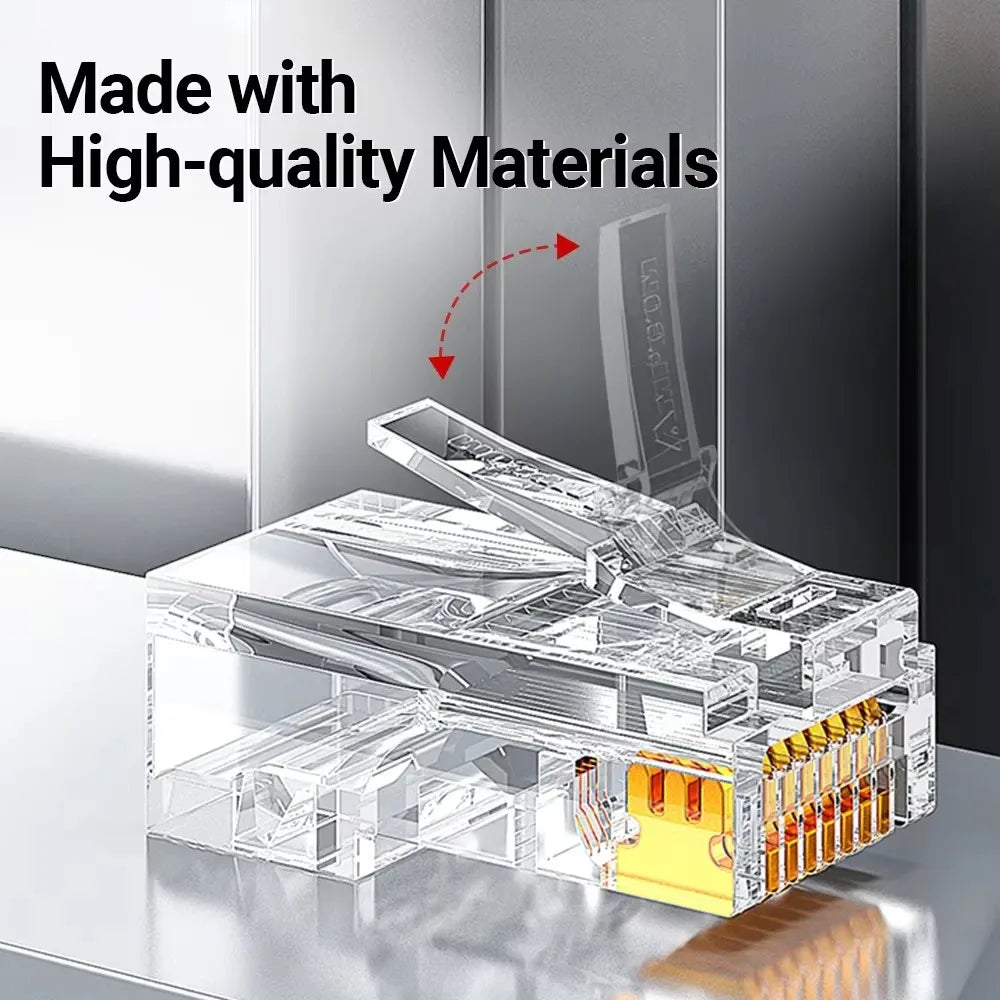

PASS-THRU DESIGN - Easy to use, and with the unshielded clear connectors you can easily idetify wiring order before crimping, even if it’s your first time. Wires can pass through the slot.
APPLICATION SCOPE - multi-stranded and single-stranded cables: CAT6(23-26AWG) CAT5E(24-28AWG). The wire OD of network cables with the same AWG specifications may vary depending on the manufacturer. Please ensure AWG and OD MUST BOTH meet the requirements.

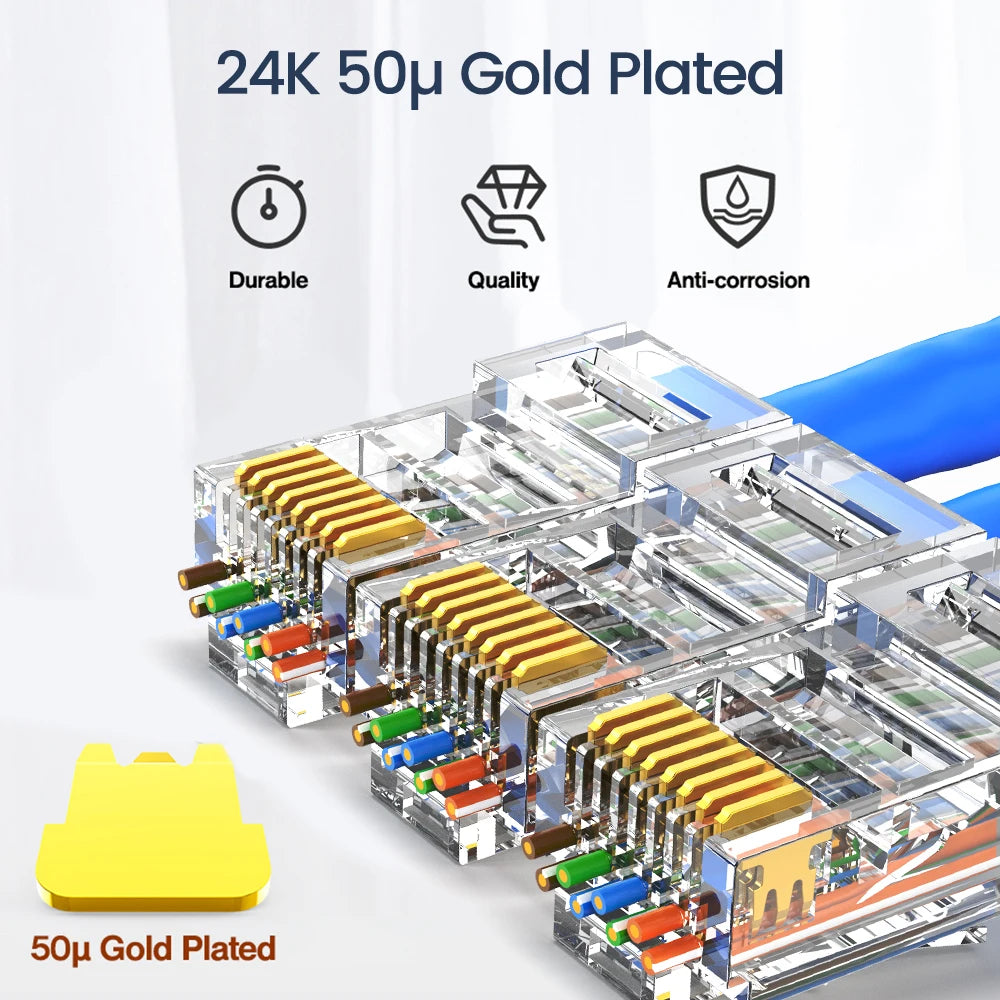

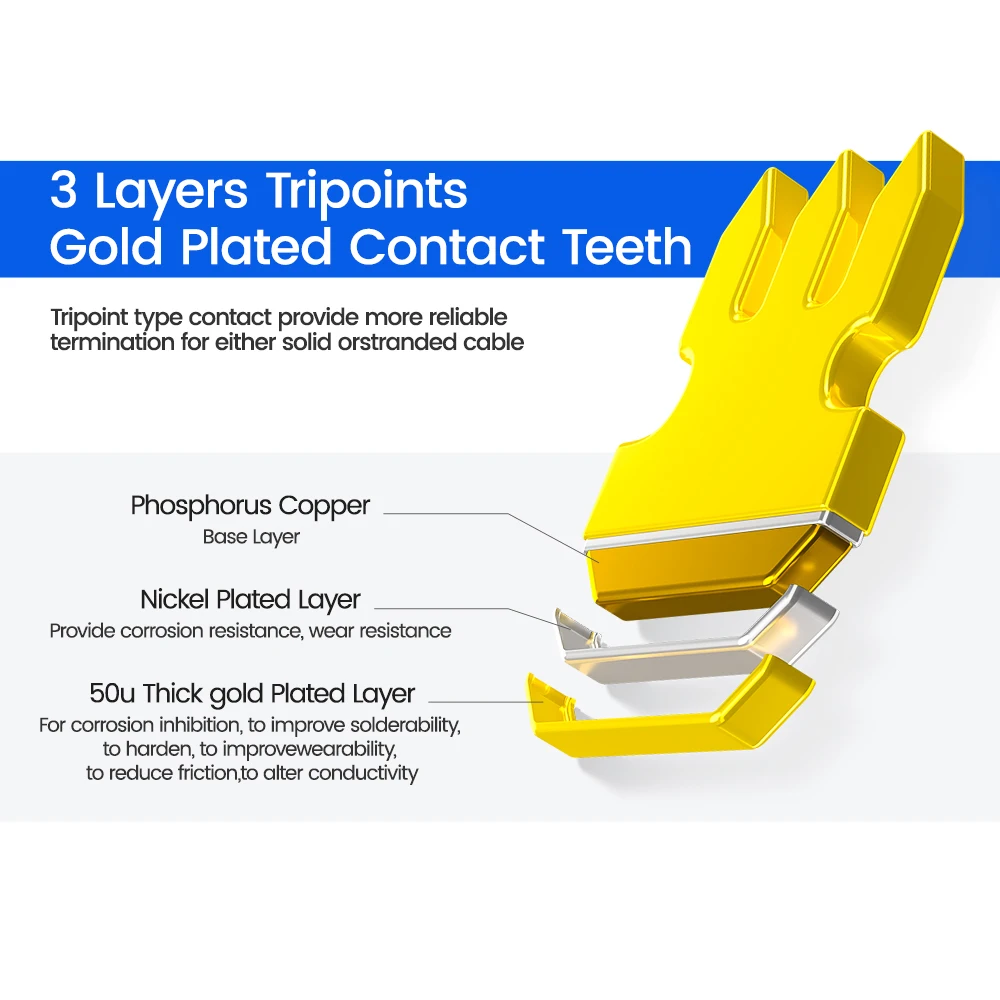

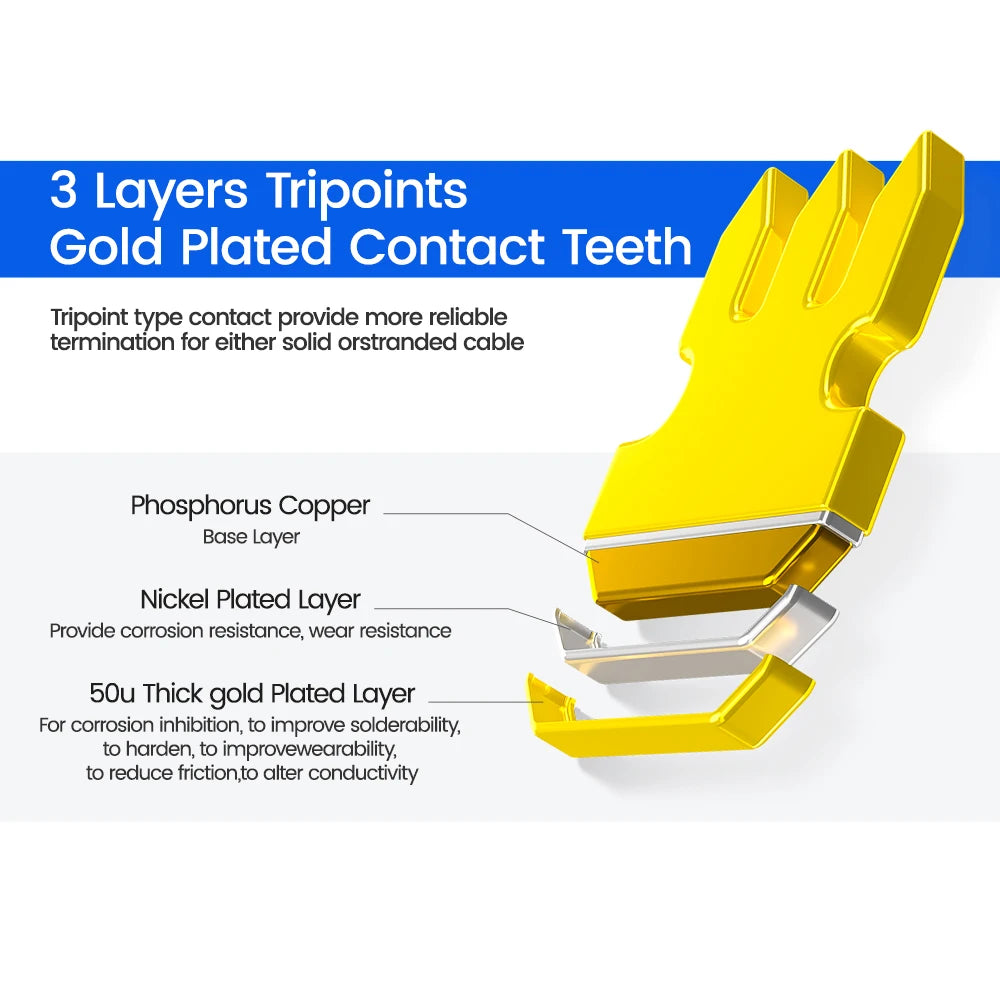

High Perfomance - 3/50μ Gold plated pass through connectors with 3-prong blade ensures closer combination between the contacts and the wire core than 2-prong blade, and it can provide higher data transfer speeds
PACKAGE INCLUDES-10/30/100 pcs Pass through UTP RJ45 Connectors

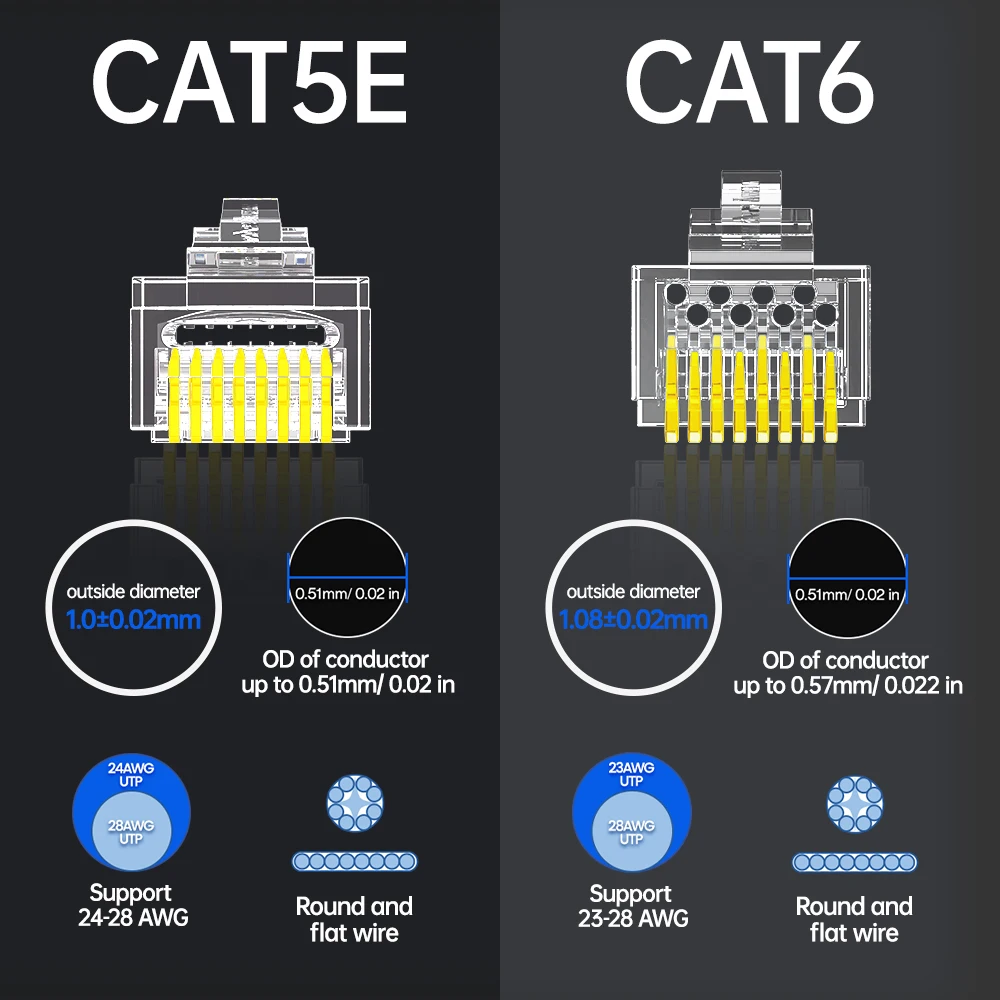

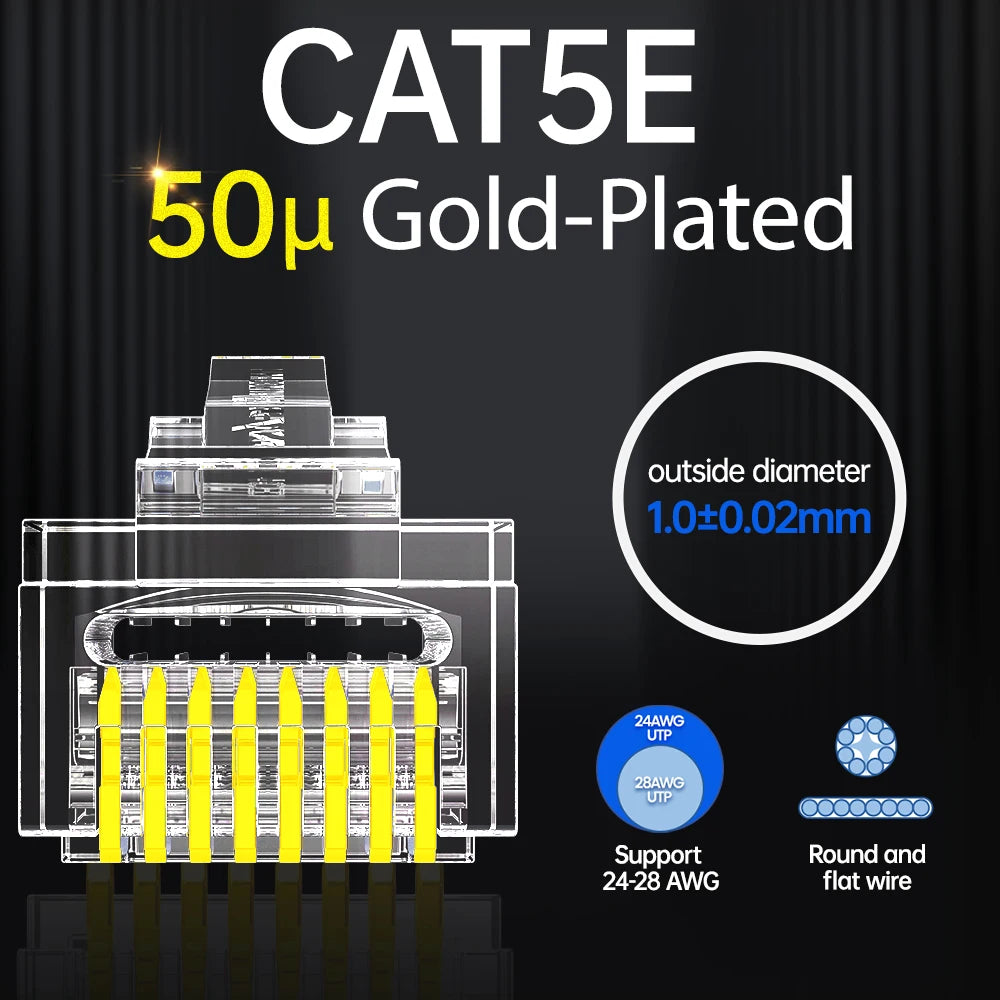

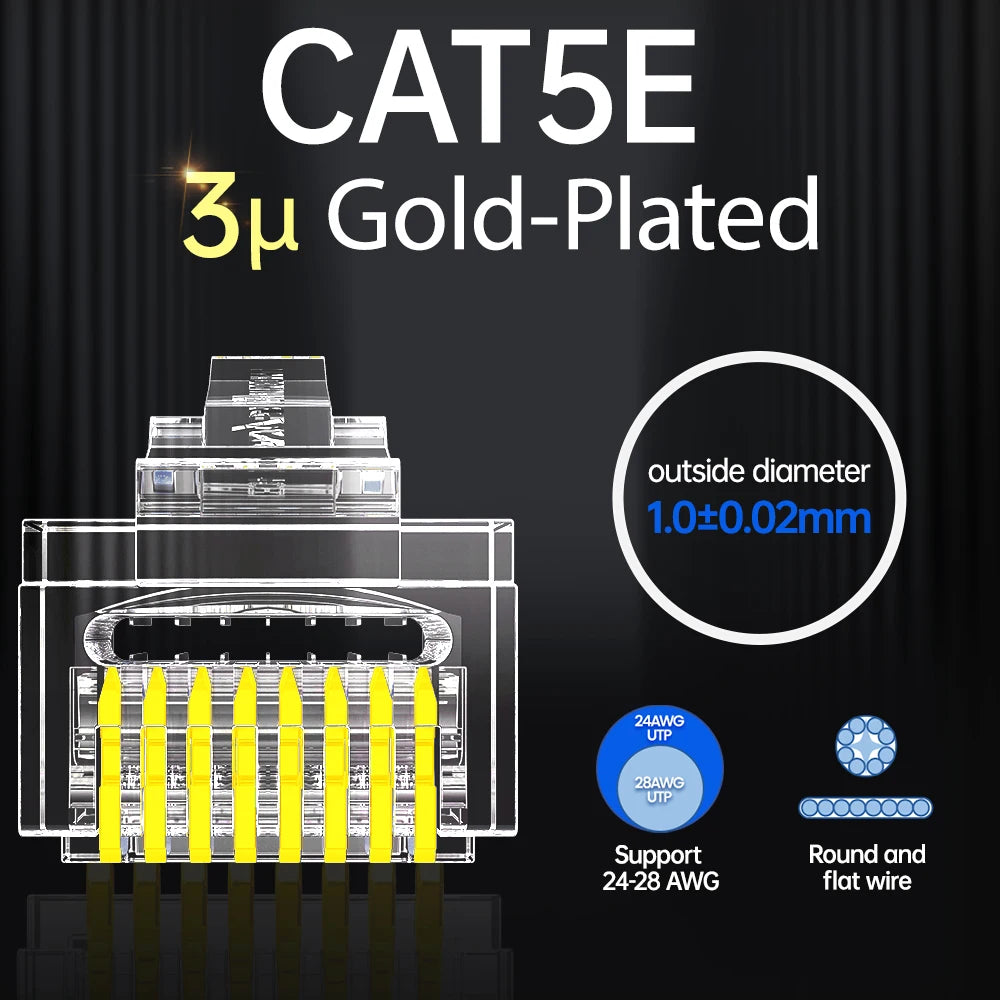

CAT5E:
Outside Dianeter: 1.0±0.02mm
Condutor OD: max 0.512mm
Wire OD: 24-28AWG
Speed: 1000Mbps
Bandwidth: 100Mhz

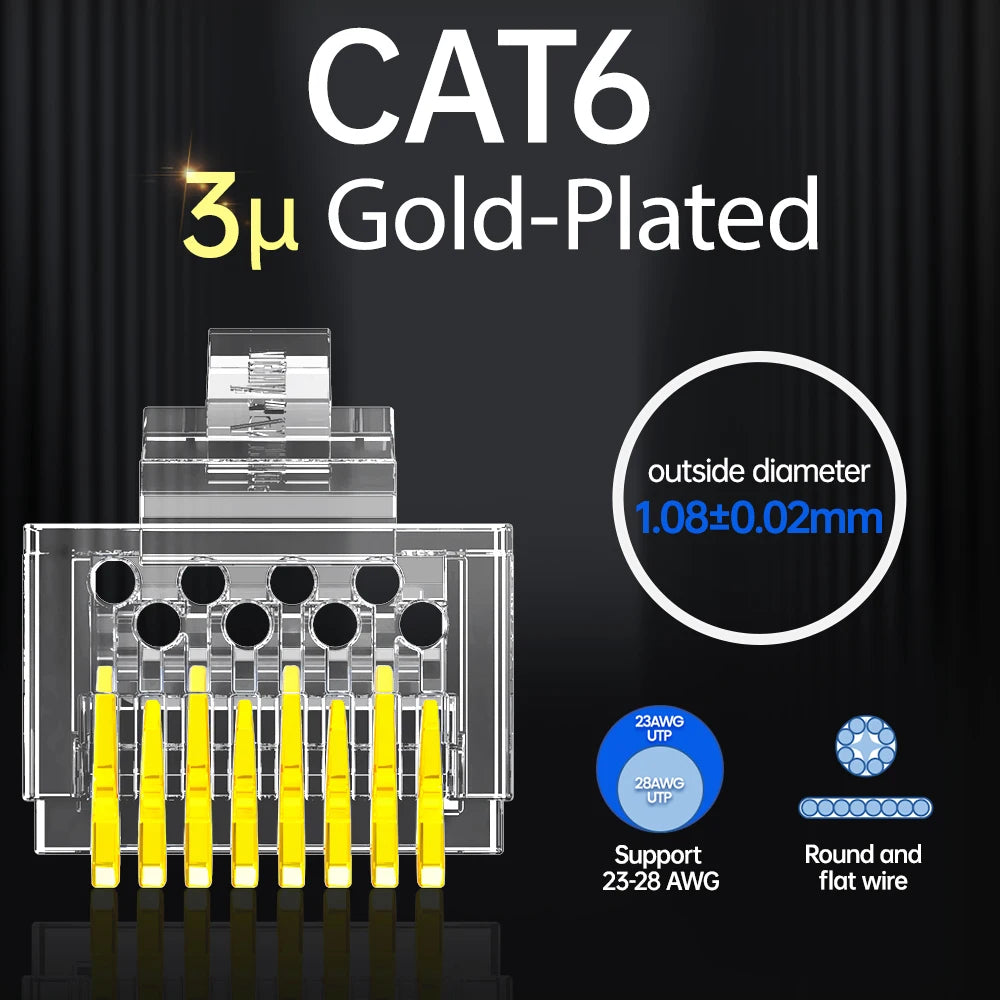

CAT6:
Outside Dianeter: 1.08±0.02mm
Condutor OD: max 0.57mm
Wire OD: 23-26AWG
Speed: 1000Mbps
Bandwidth: 250Mhz

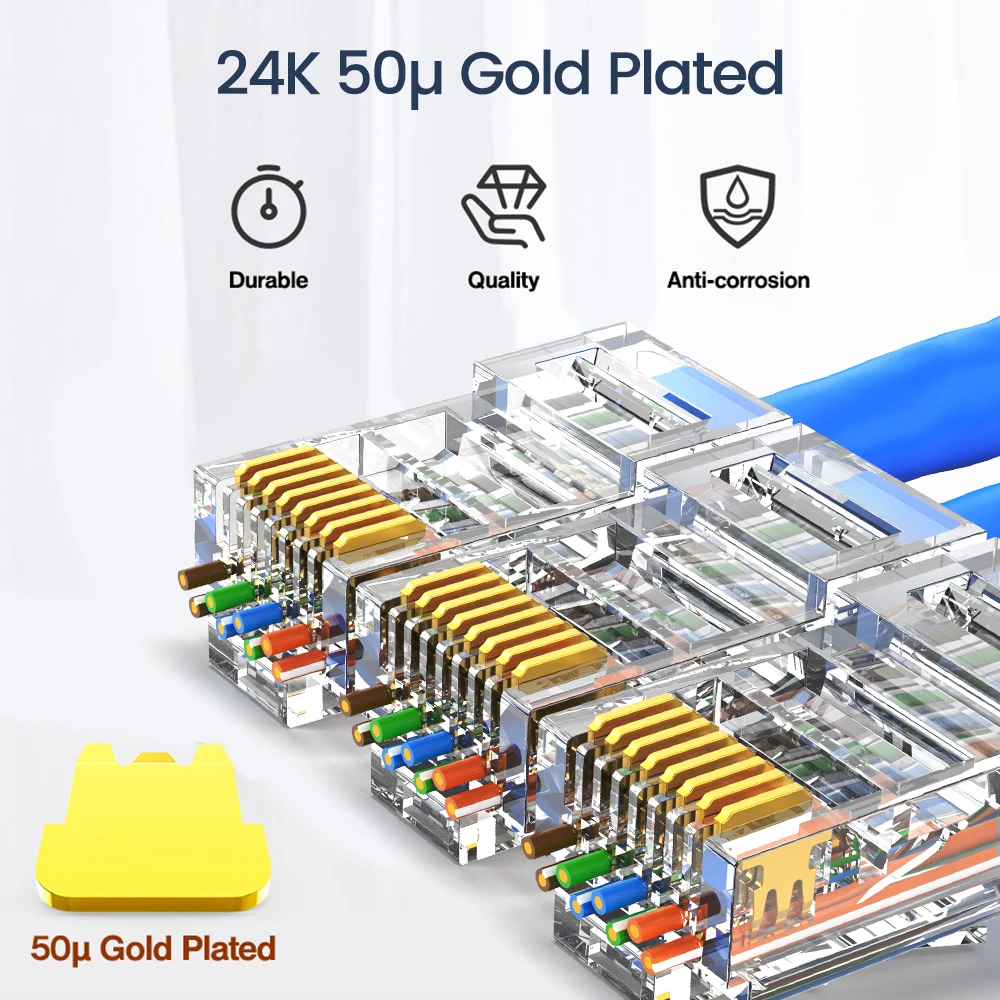

We have 3μ and 50μ gold plated conductor, their difference is the different thickness of the gold plating layer, the rest is the same, you can choose according to your needs.
