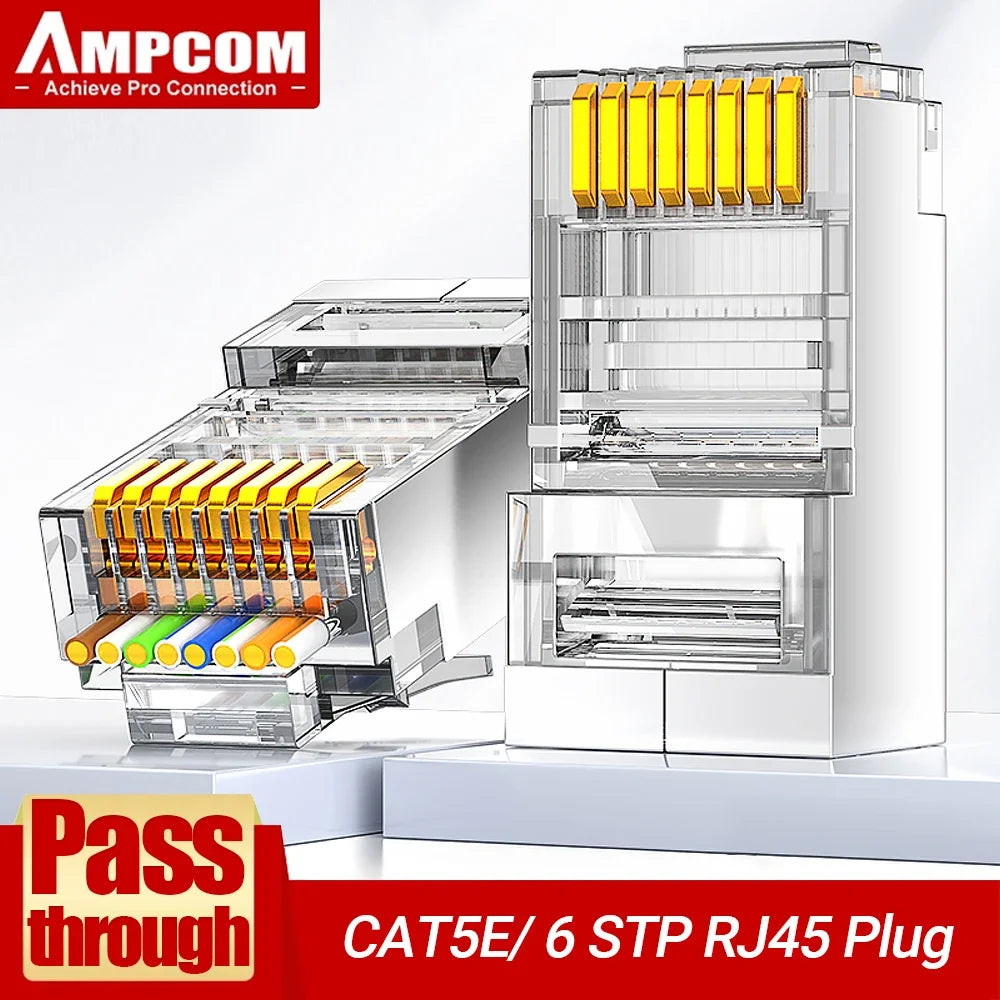

AMPCOM Pass Through STP RJ45 Connectors, CAT6 CAT5E Shielded 3/50μ Gold-Plated 8P8C Modular Plugs Crimp End for Ethernet Cable
CAT6 50U / 10pcs / China Mainland
$15.84
Sale price
$15.84
Regular price
$0.00
Skip to product information
AMPCOM Pass Through STP RJ45 Connectors, CAT6 CAT5E Shielded 3/50μ Gold-Plated 8P8C Modular Plugs Crimp End for Ethernet Cable
$15.84
Sale price
$15.84
Regular price
$0.00
Description
SPECIFICATIONS
Assembly Required: no
Brand Name: AMPCOM
Certification: RoHS
Choice: yes
Feature 1: pass thru connector
Feature 2: cat6 stp connector
Feature 3: cat5e stp connector
Feature 4: 3/50U gold-plated
Feature 5: rj45 pass through connector
Feature 6: shielded modular plug
High-concerned chemical: none
Model Number: WAM179290
Origin: Mainland China
Package: Yes
Type: Connectors
semi_Choice: yes
AMPCOM CAT5E/CAT6 EZ STP RJ45 Connectors
PASS-THRU DESIGN - Easy to use, and with the shielded connectors you can easily idetify wiring order before crimping, even if it's your first time. Wires can pass through the slot.
APPLICATION SCOPE - multi-stranded and single-stranded cables: CAT6(23-26AWG) CAT5E(24-28AWG). The wire OD of network cables with the same AWG specifications may vary depending on the manufacturer. Please ensure AWG and OD MUST BOTH meet the requirements.
High Perfomance - 3/50μ Gold plated pass through connectors with 3-prong blade ensures closer combination between the contacts and the wire core than 2-prong blade, and it can provide higher data transfer speeds
PACKAGE INCLUDES-10/30/100 pcs Pass through STP RJ45 Connectors

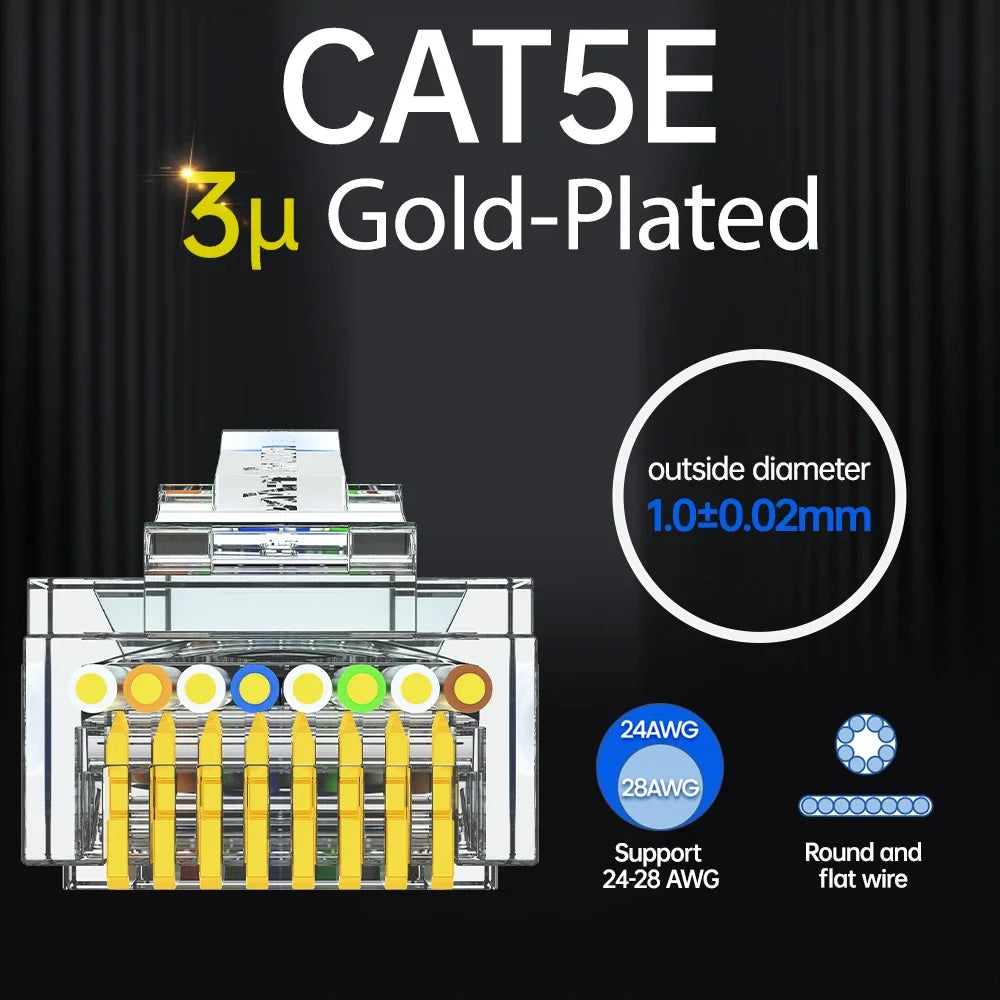

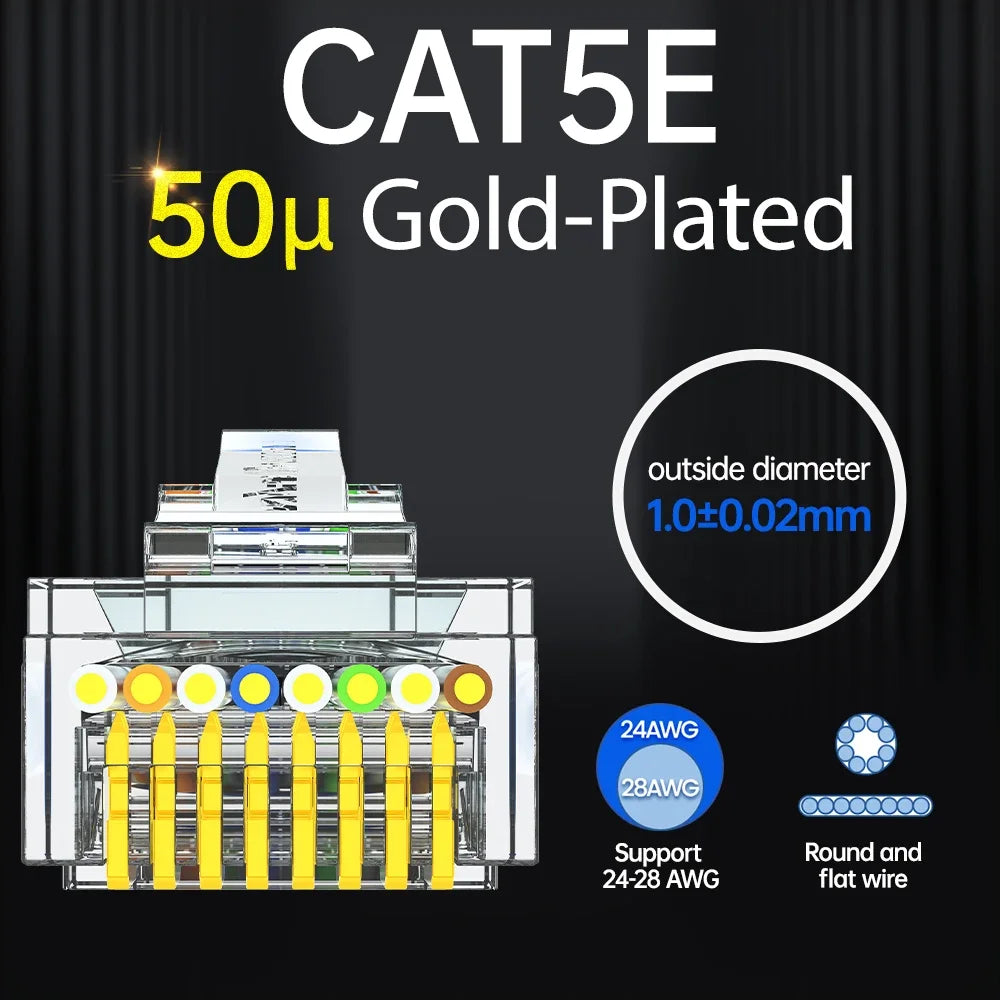

CAT5E:
Outside Dianeter: 1.0±0.02mm
Condutor OD: max 0.512mm
Wire OD: 24-28AWG
Speed: 1000Mbps
Bandwidth: 100Mhz
CAT6:
Outside Dianeter: 1.08±0.02mm
Condutor OD: max 0.57mm
Wire OD: 23-26AWG
Speed: 1000Mbps
Bandwidth: 250Mhz

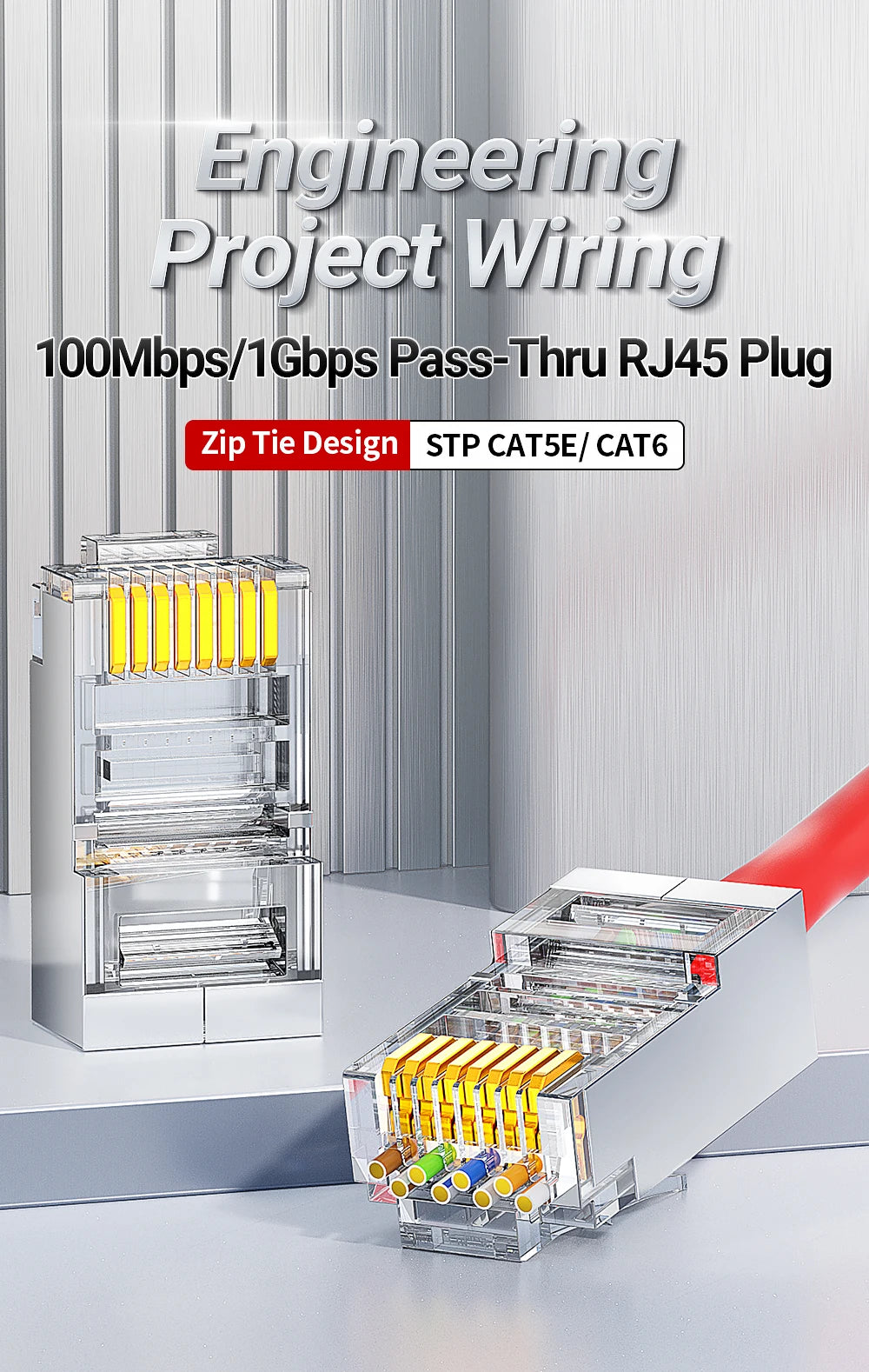

Engineering Project Wiring
100Mbps/ 1Gbps Pass-Thru RJ45 Plug
Bulletpoint
Thick Gold Plated/ Tri-point Pins/ Feed-thru/ High Quality PC Case/ Elastic Clip/ Authoritative Certification

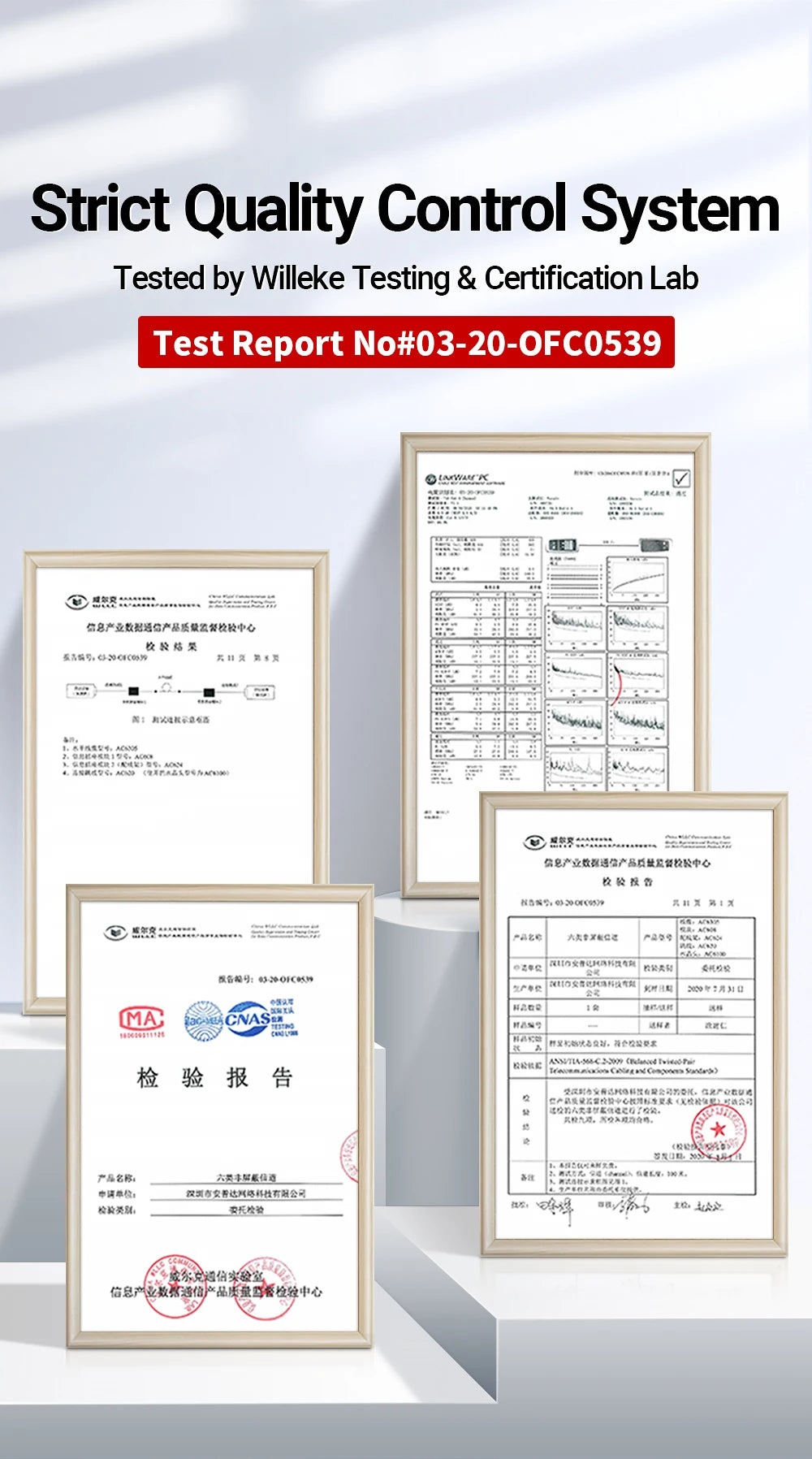

Strict Quality Control System
Tested by Willeke/ CTTL Lab Testing & Certification Lad

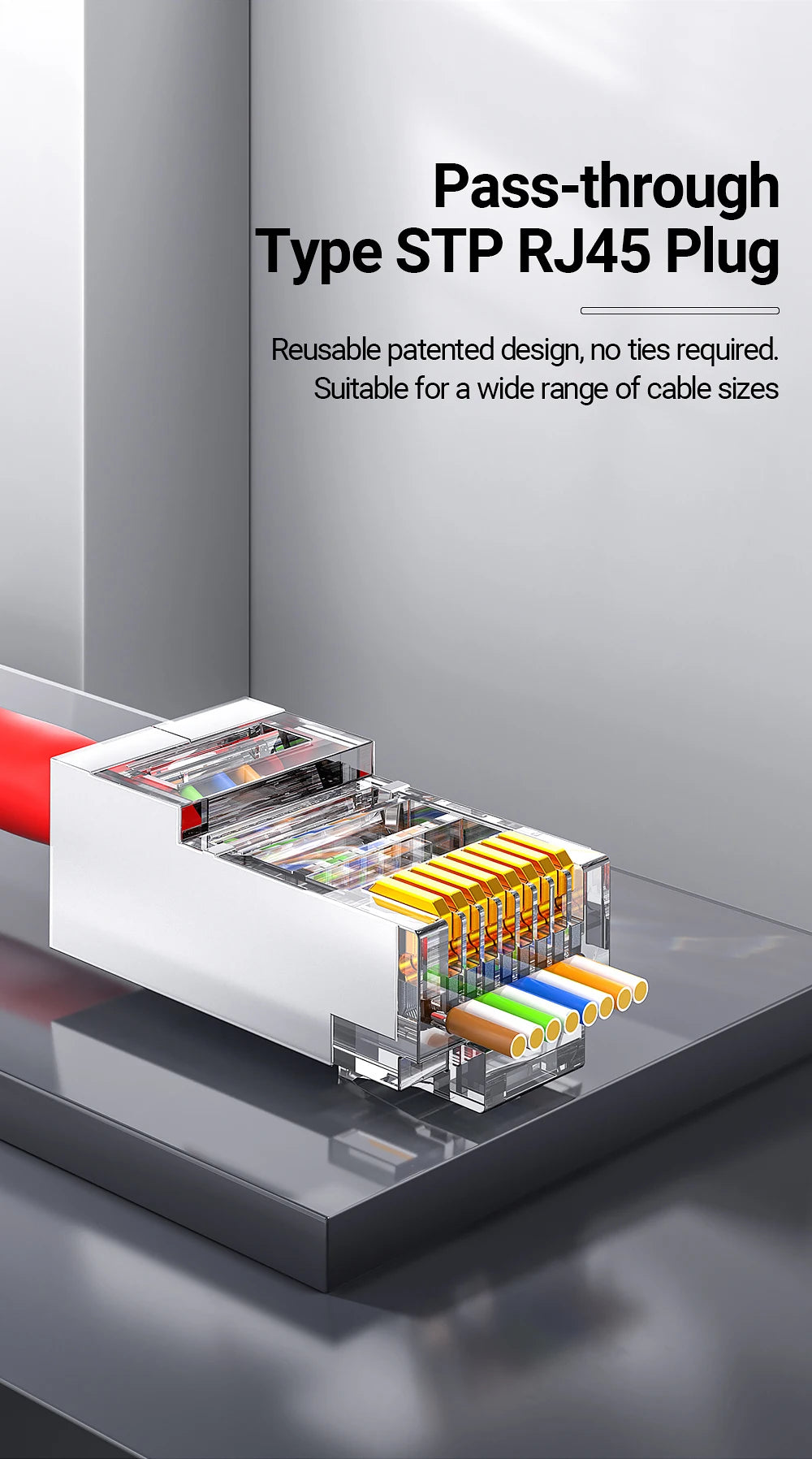

Pass-through Type STP RJ45 Plug
Reusable patented design, no ties required .
Suitable for a wide range of cable sizes.

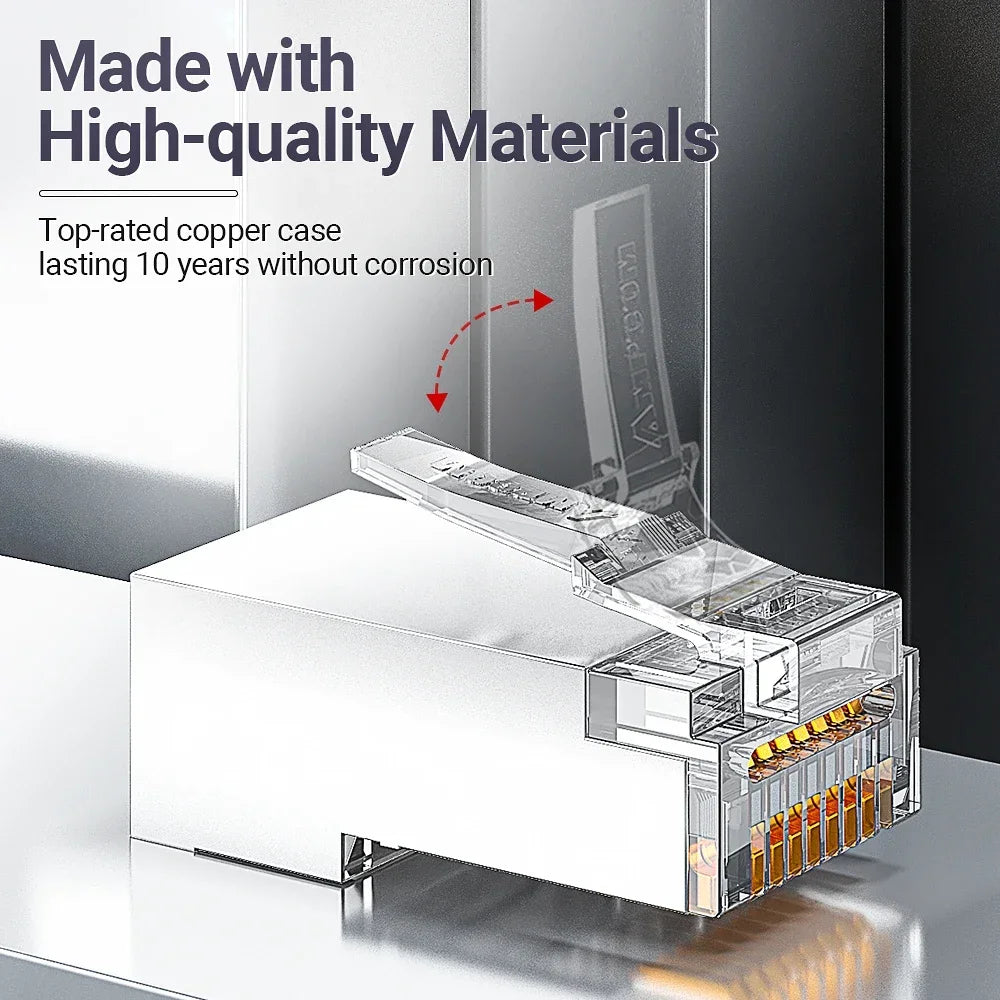

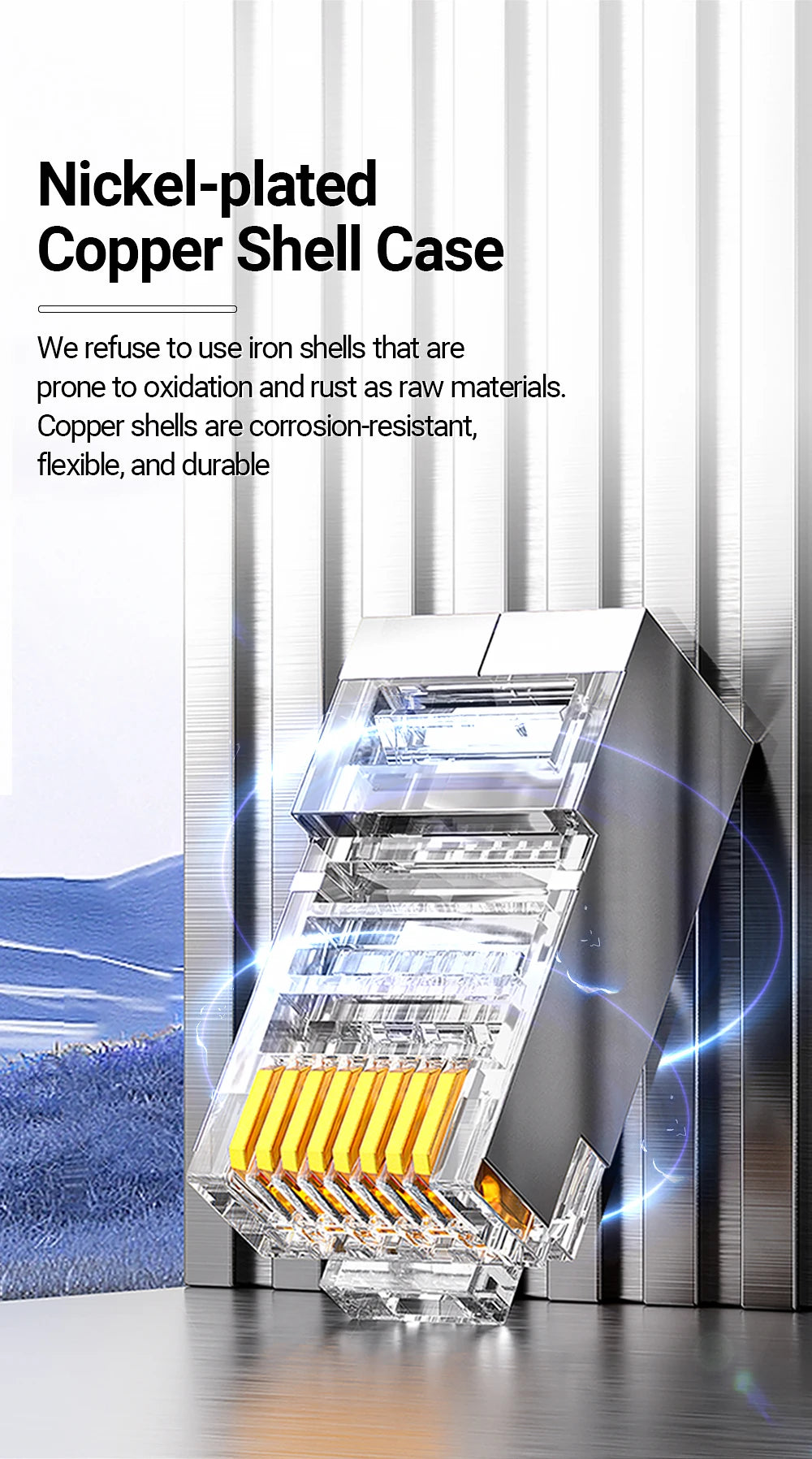

Nickel-plated Copper Shell Case
We refuse to use iron shells that are prone to oxidation and rust as raw materials.
Copper shells are corrosion-resistant, flexible, and durable.

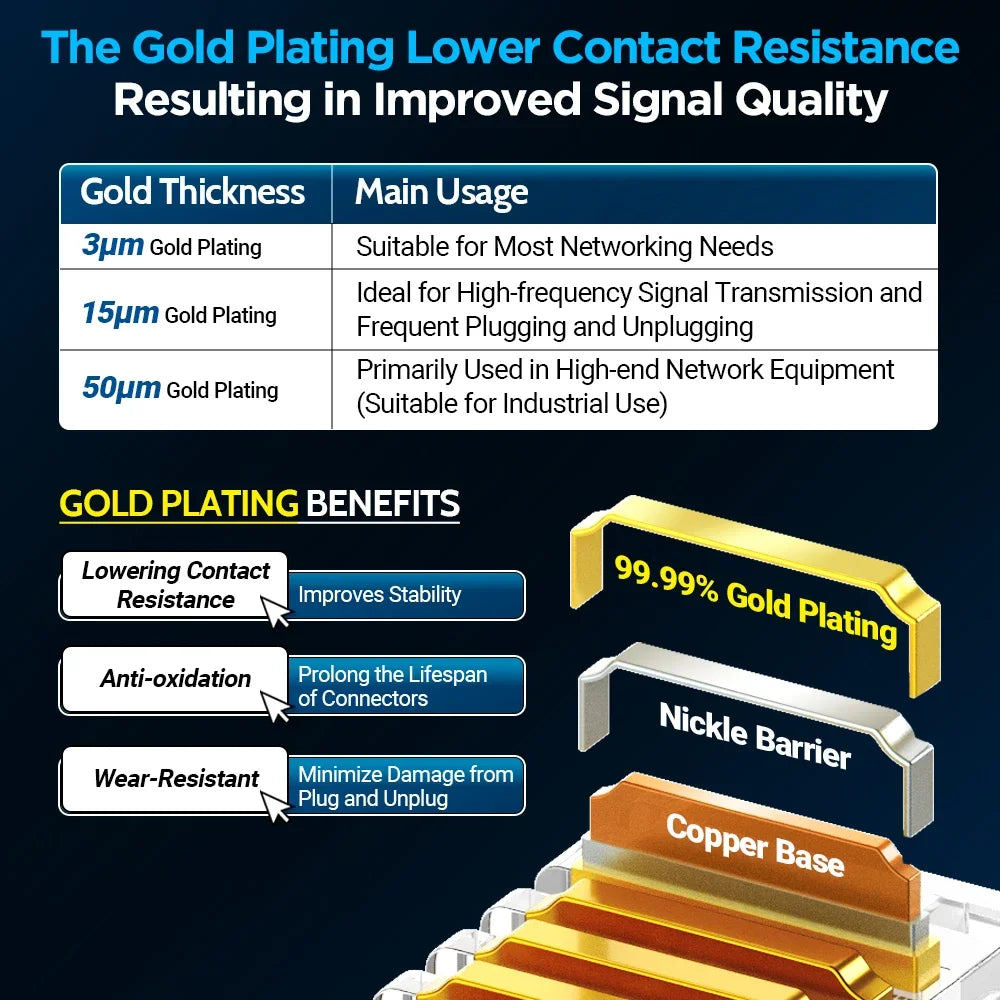

3/50u Gold Plated Pins
Thickened gold plating for better conductivity, long -lasting performance, and stable stransmission.

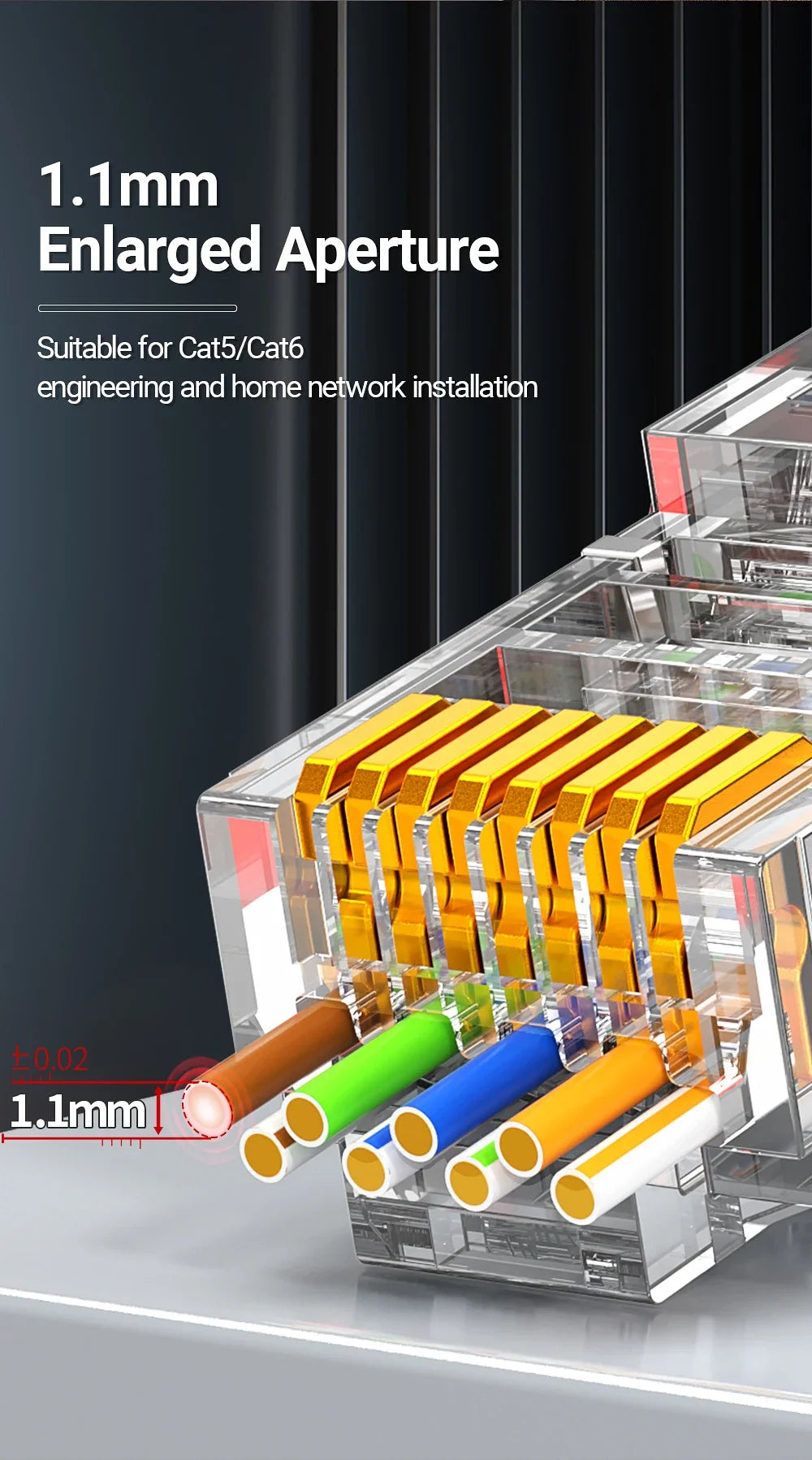

1.1mm Enlarged Aperture
Suitable for Cat5/Cat6 engineering and home network installation

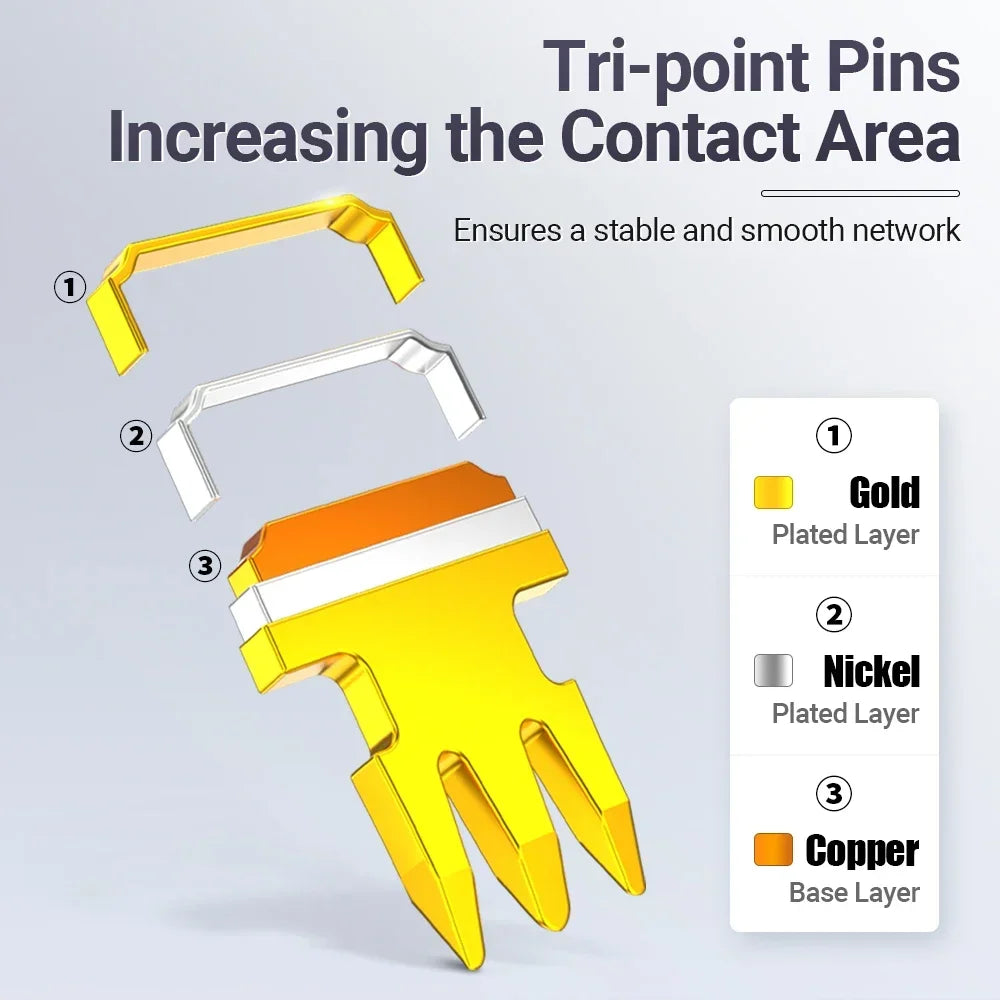

Tri-point Pins Increasing the Contact Area
Ensures a stable and smooth network

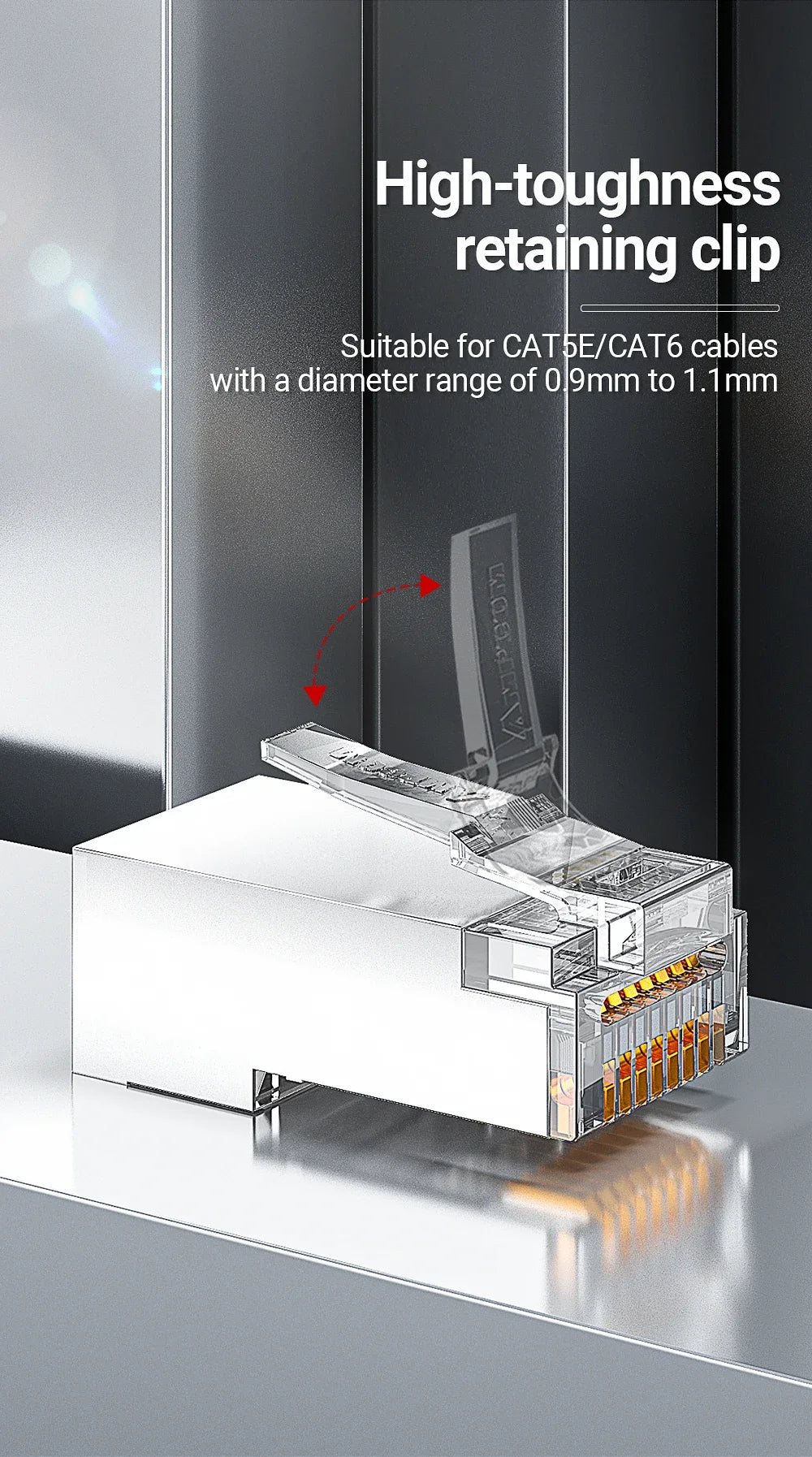

High-toughness Retaining Clip
Suitable for CAT5E/CAT6 cables with a diameter range of 0.9mm to 1.1mm
Easy to Complete Crimping High Success Rate
No professional skills required, can be completed without extensive experience
Support Data Center Cabling End to End Soution

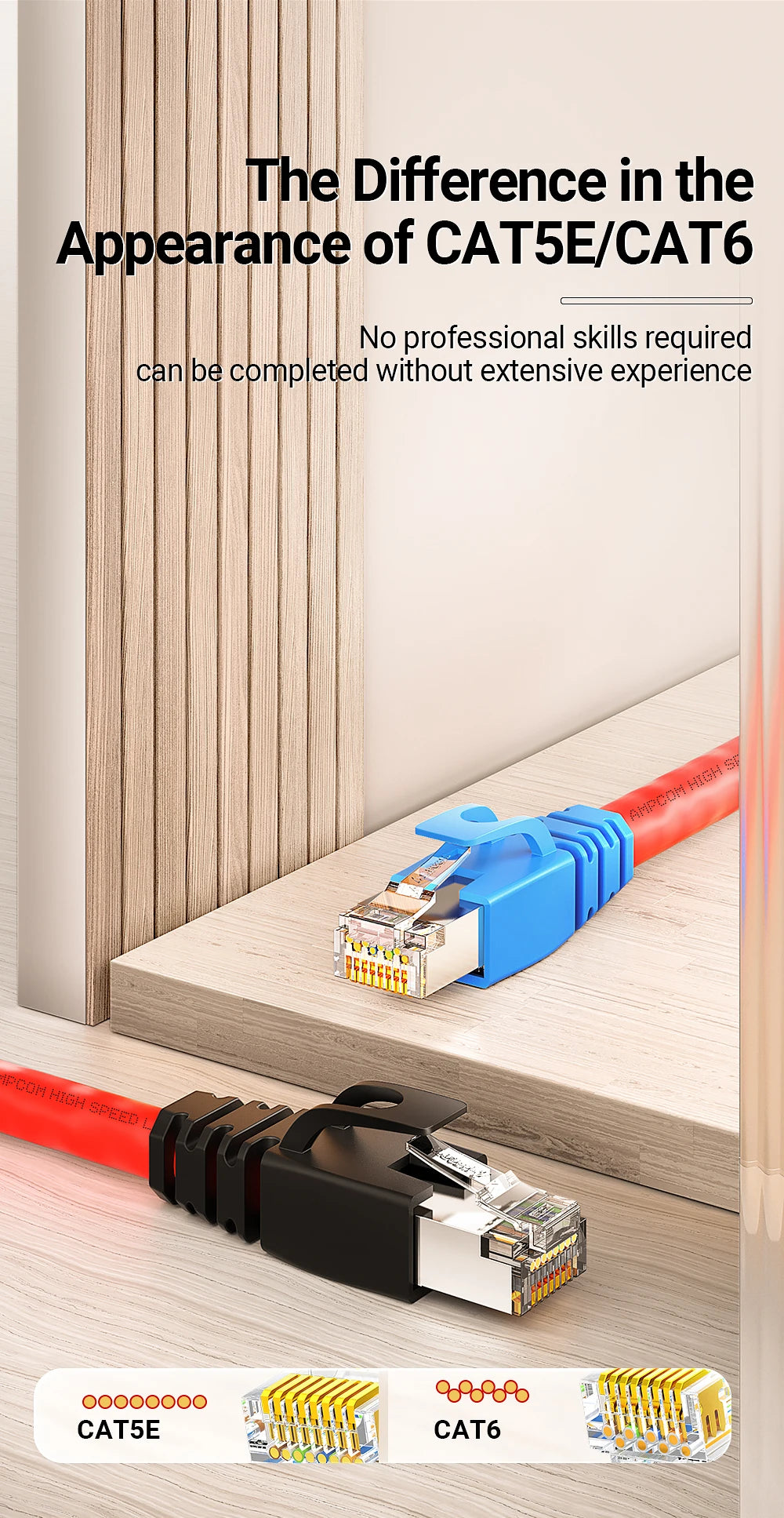

The Difference in the Appearance of CAT5E/CAT6
No professional skills required can be completed without extensive experience
Support POE, POE+, POE++

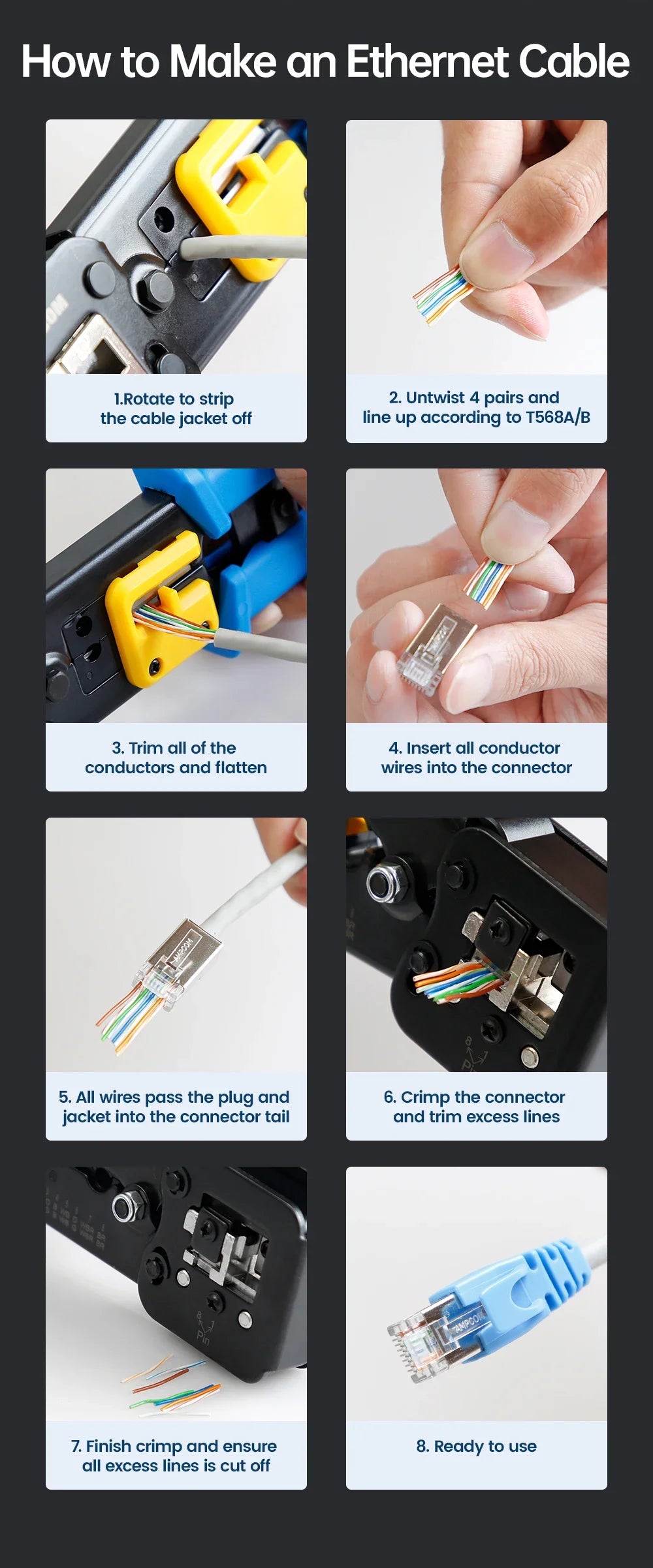

How to Make an Ethernet Cable
1.Rotate to strip the cable jacket off.
2.Untwist 4 pairs and line up according to T568A/B.
3.Trim all of the conductors and flatten.
4.Insert all conductor wires into the connector.
5.All wires pass the plug and jacket into the connector tail.
6.Crimp the connector and trim excess lines.
7.Finish crimp and ensure all excess lines is cut off.
8.Ready to use.
