SPECIFICATIONS

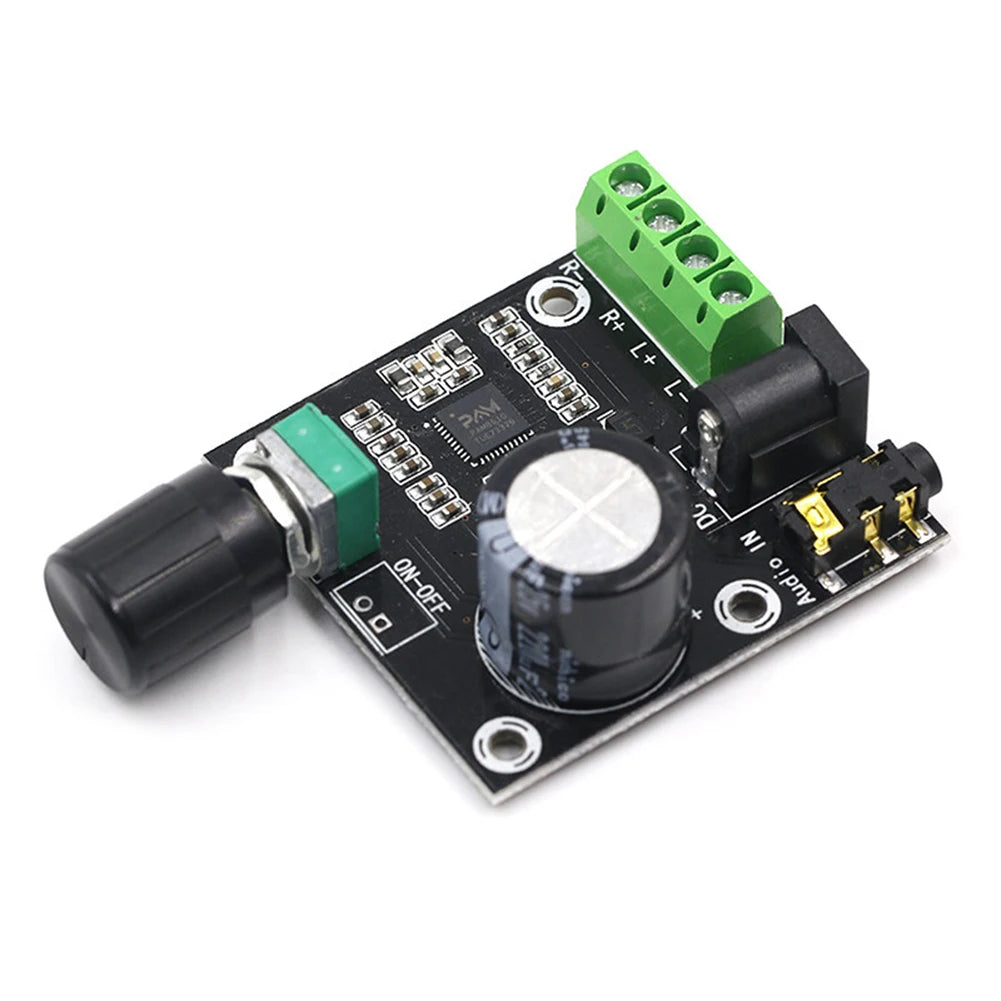

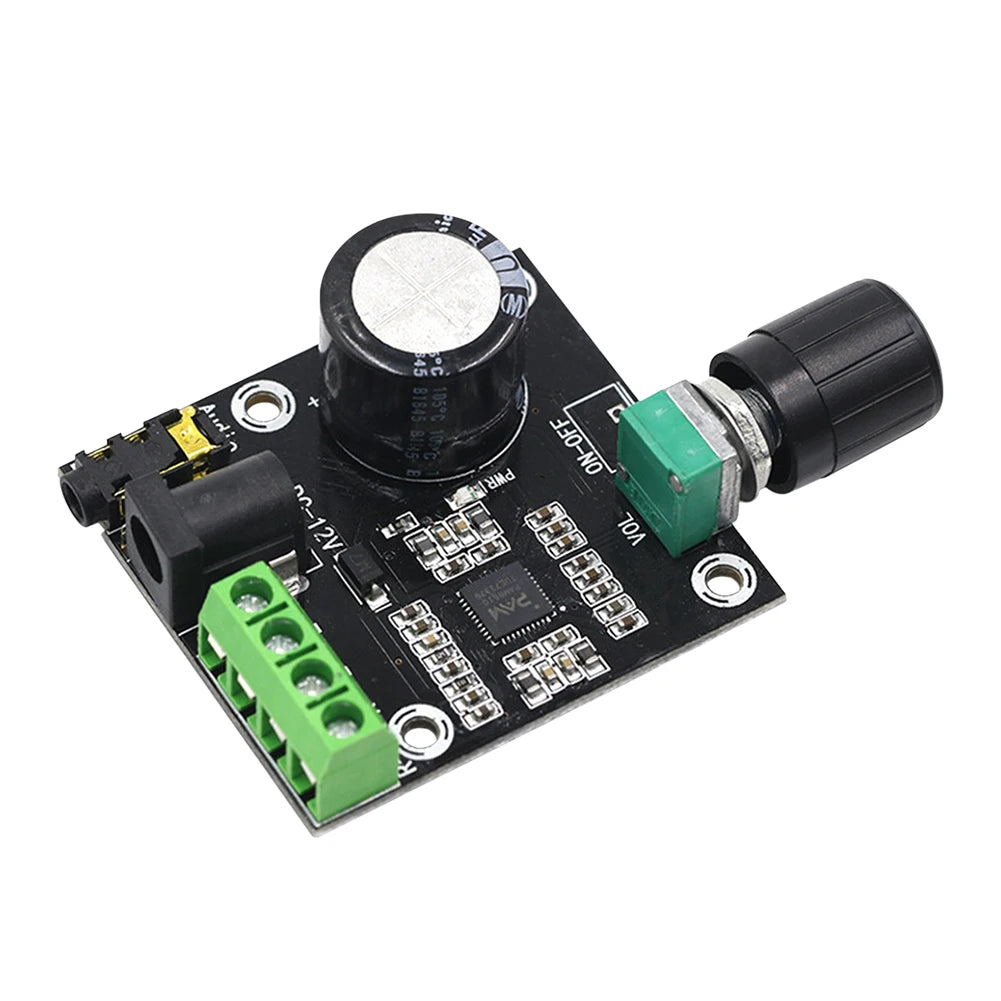

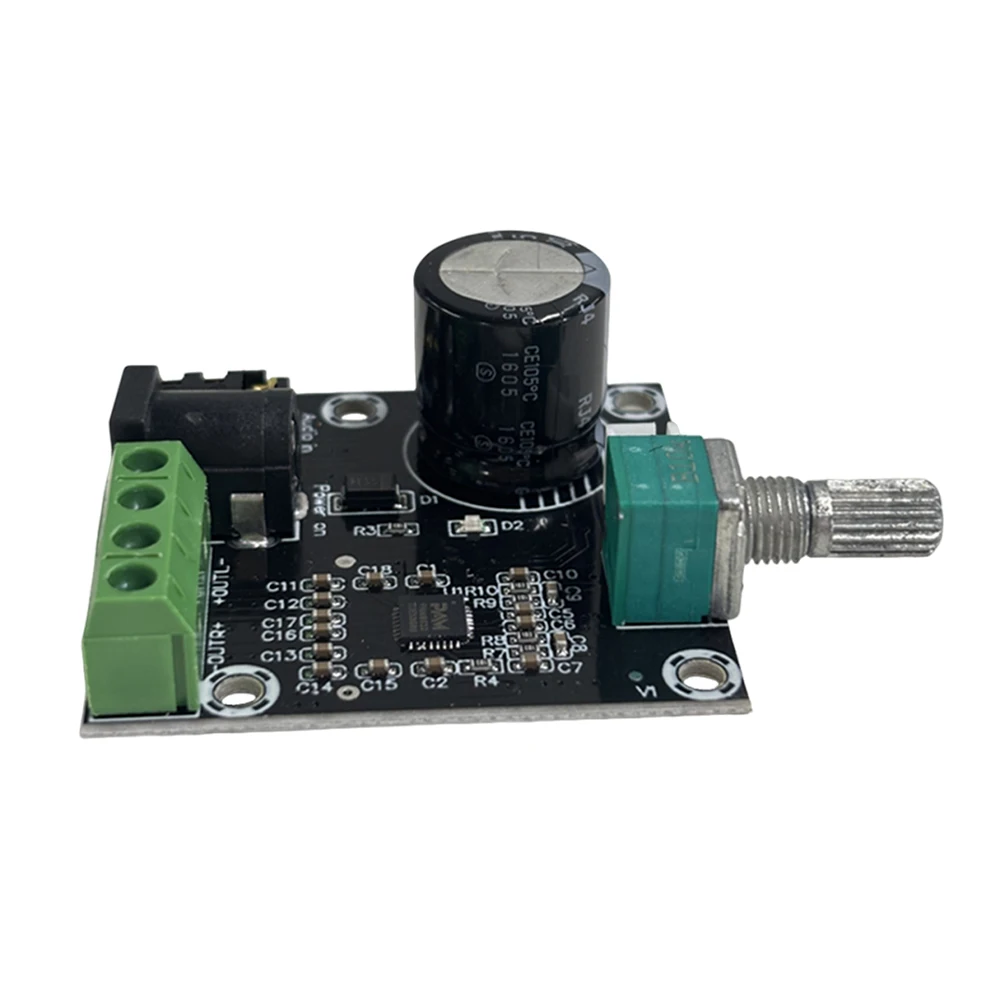

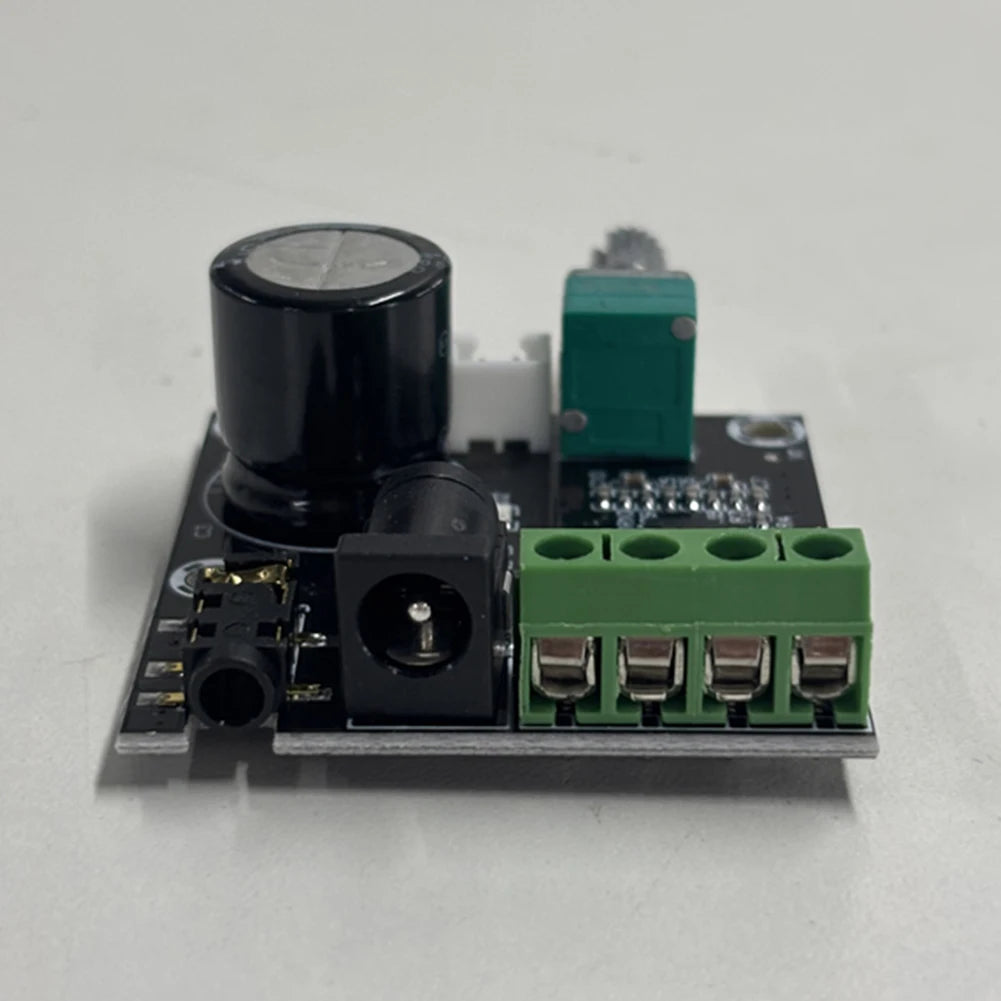

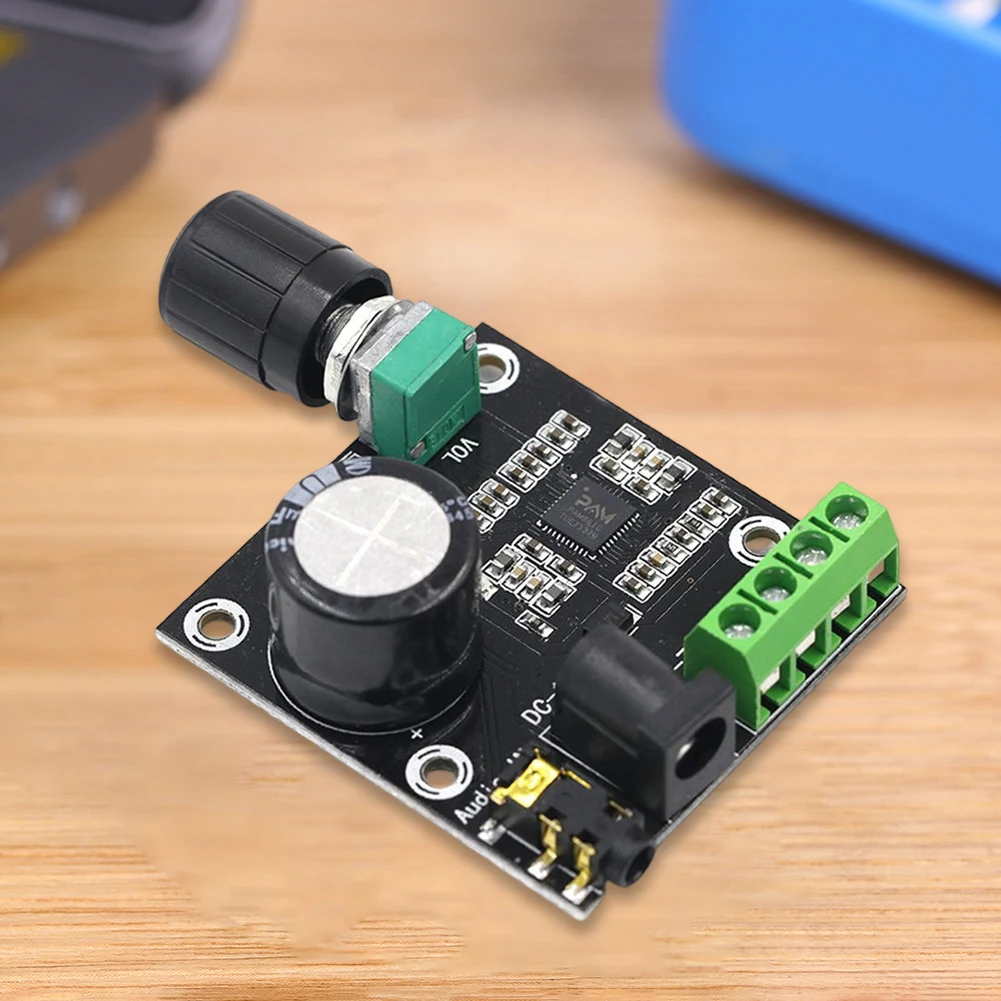

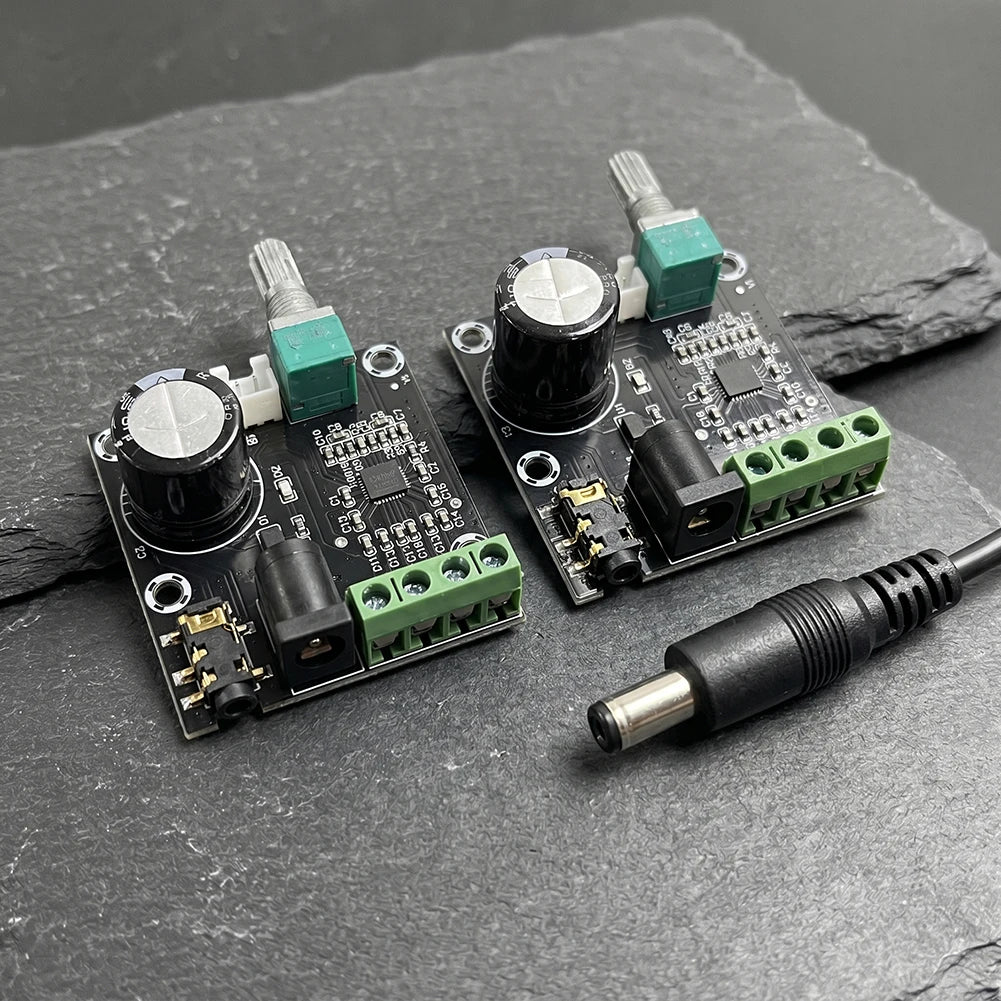

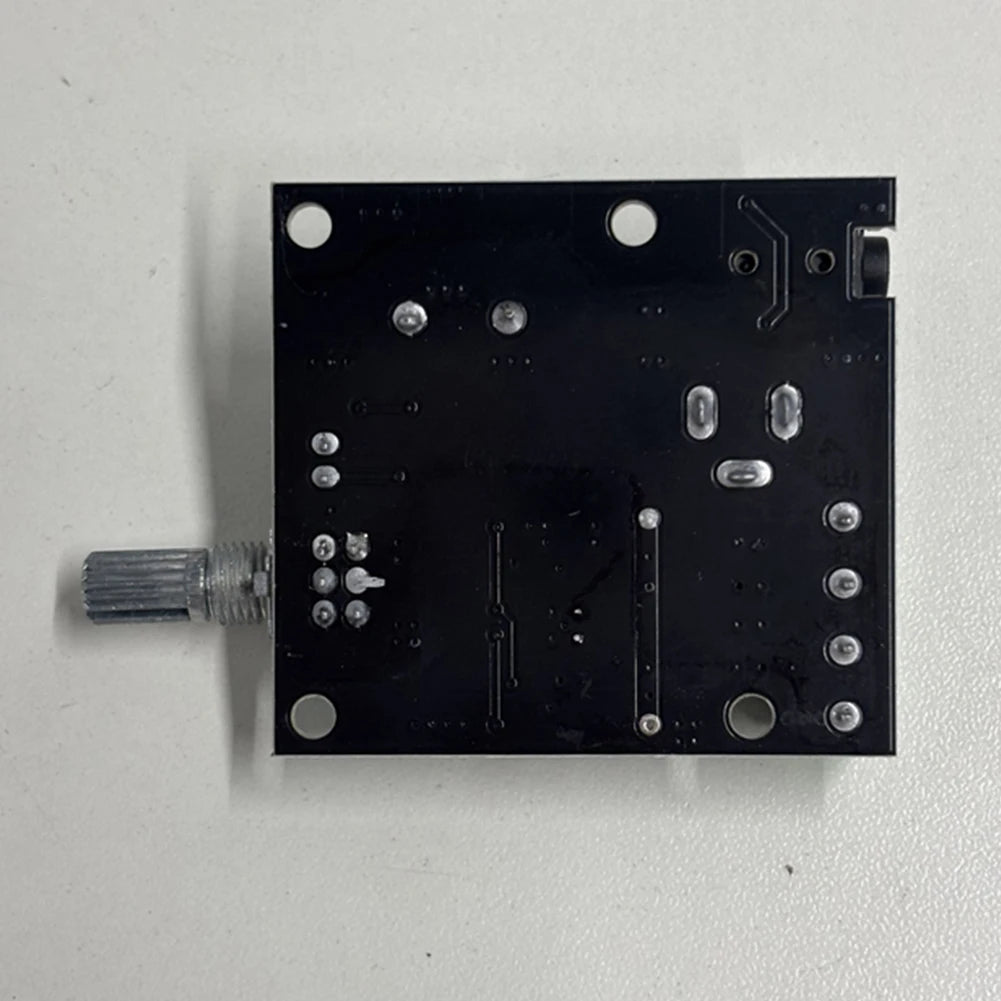

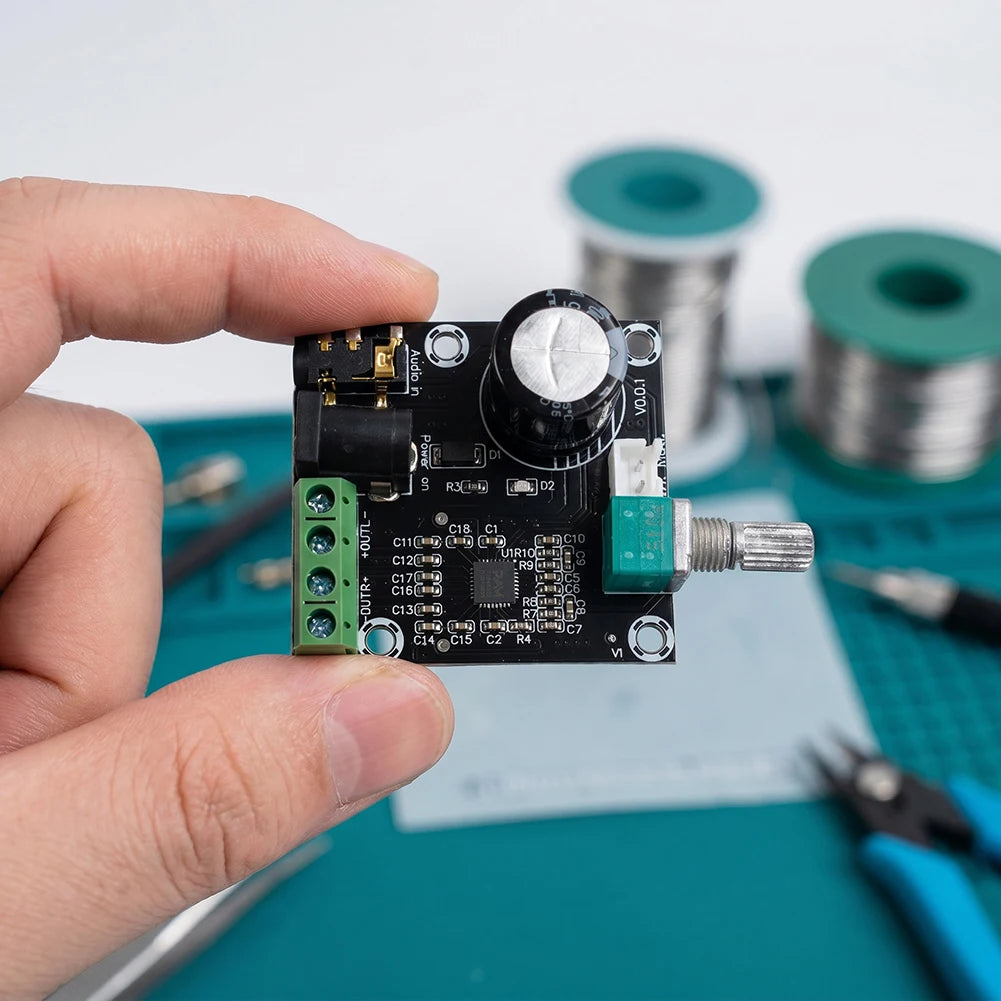

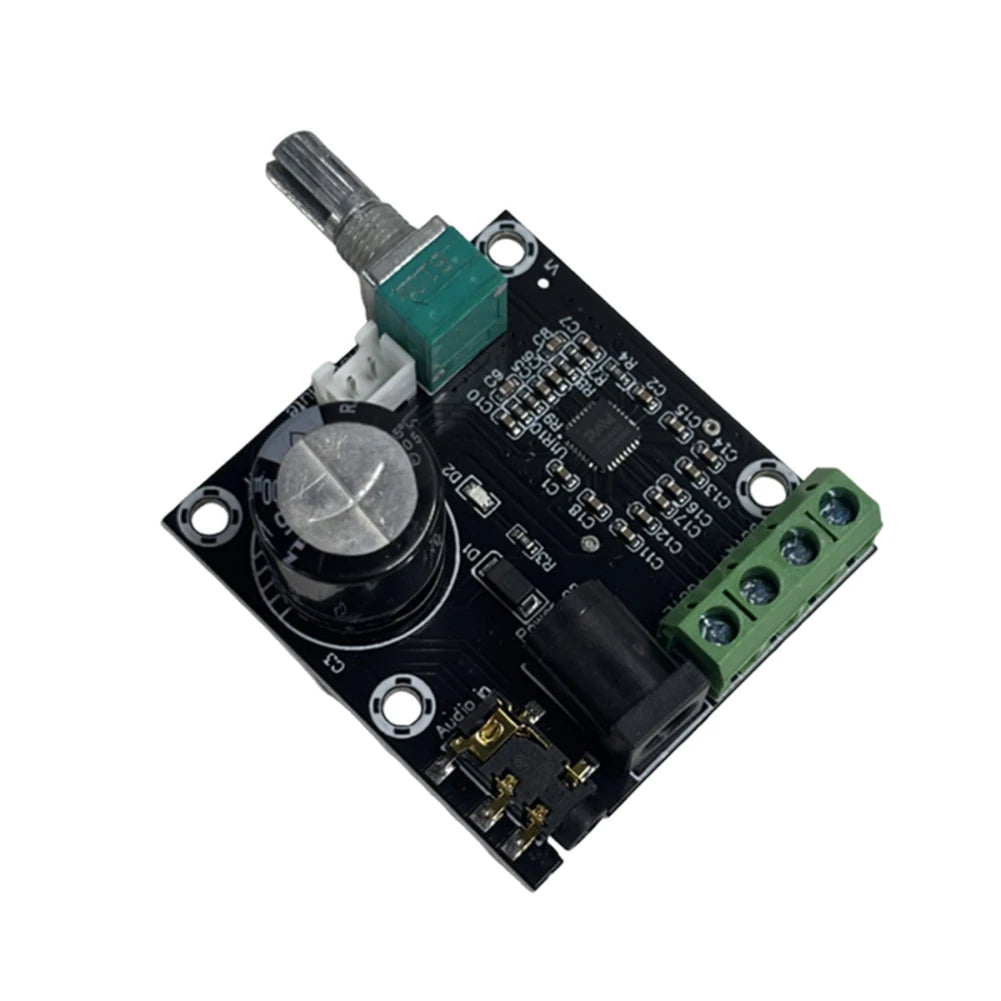

PAM8610 Digital Audio Amplifier Board Class D Audio Power Amplifier Board 15W X 2 with Delay Dual Channel Multiple Protection
Feature:
1. Multiple Protections for Safe Use: This digital audio amplifier board features over-current, temperature, and short-circuit protection, ensuring safe and reliable use. The multiple protections ensure that the amplifier board operates safely and protects your equipment from damage.
2. Noise-Free Operation: This audio power amplifier board is designed with a reasonable circuit layout, ensuring noise-free operation without requiring external speakers. The board produces high-quality audio output without any distortion or external noise interference.
3. LC Filter for Clean Power Supply: This digital amplifier board module utilizes an LC filter to provide a pure and clean power supply, reducing ripple and minimizing interference. The filter helps remove unwanted noise, providing a clear and undistorted audio signal.
4. Delayed Start-up and DC12V Power Supply: This dual power audio amplifier board module features a DC12V power supply, with a delayed start-up function to prevent any impact sound or speaker damage. The delayed start-up function ensures that the amplifier board powers up gradually, preventing any sudden surges that might damage your equipment. The DC12V power supply ensures stable and reliable performance without causing any interference or noise.
5. 100% Original Electronic Components: This Class-D digital power HD amp board uses only 100% original electronic components, ensuring high-quality and long-lasting performance. The use of original components ensures superior audio quality, reliability, and durability.


Specification:
Compatible Audio & Video Equipment Style: Amplifier
Model Number: Digital Audio Amplifier Board
Product Name: Digital Audio Amplifier Board
Working mode: Class D (PWM modulation)
Chip selection: PAM8610
Power supply range: DC6~15V (protection)
Recommended voltage: DC6~12V
Frequency response: 20Hz-15KHz
Channel type: two-channel
Static current: 20MA (at DC12V)
Signal-to-noise ratio: 90%
Recommended speakers: 10~100W
Input impedance: 20M lossless
Output impedance: 4~8Ω
Harmonic distortion: <0.1%

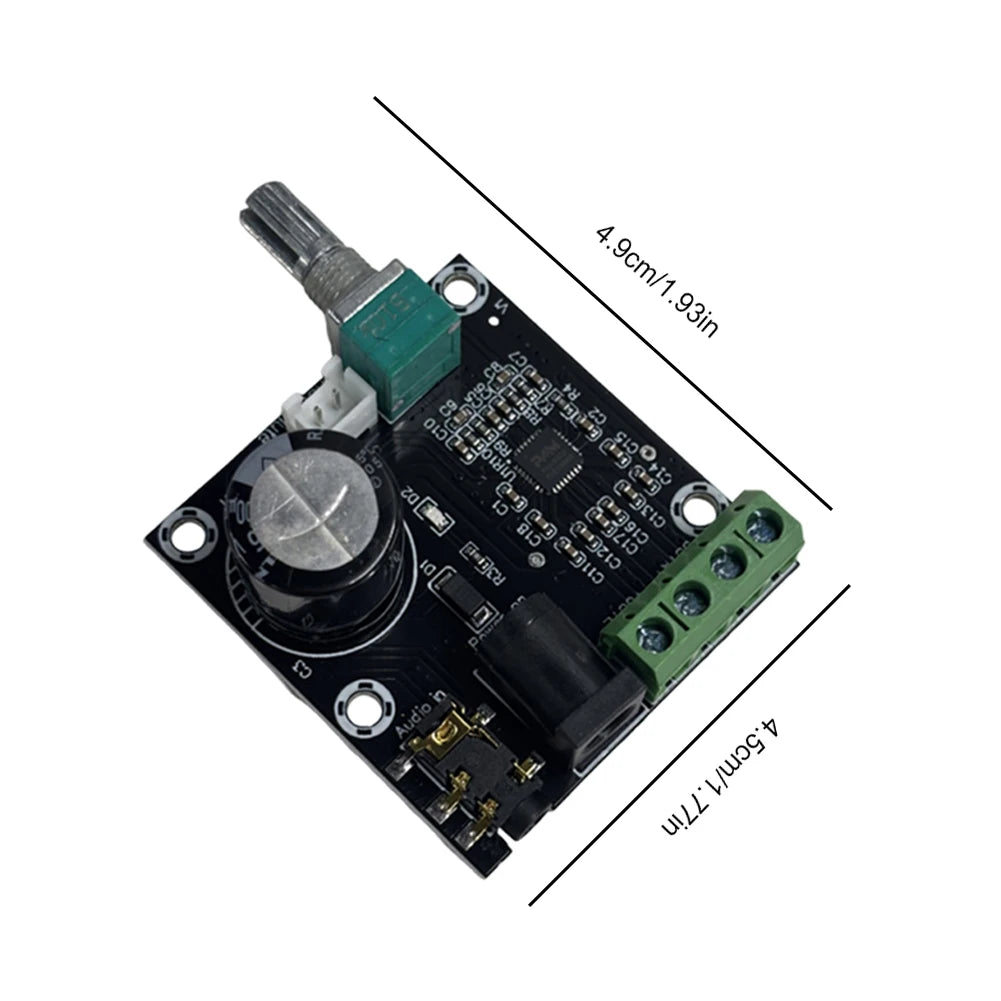

Product size: About 49x45mm/1.93x1.77in

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



1 x Amplifier Board Board
