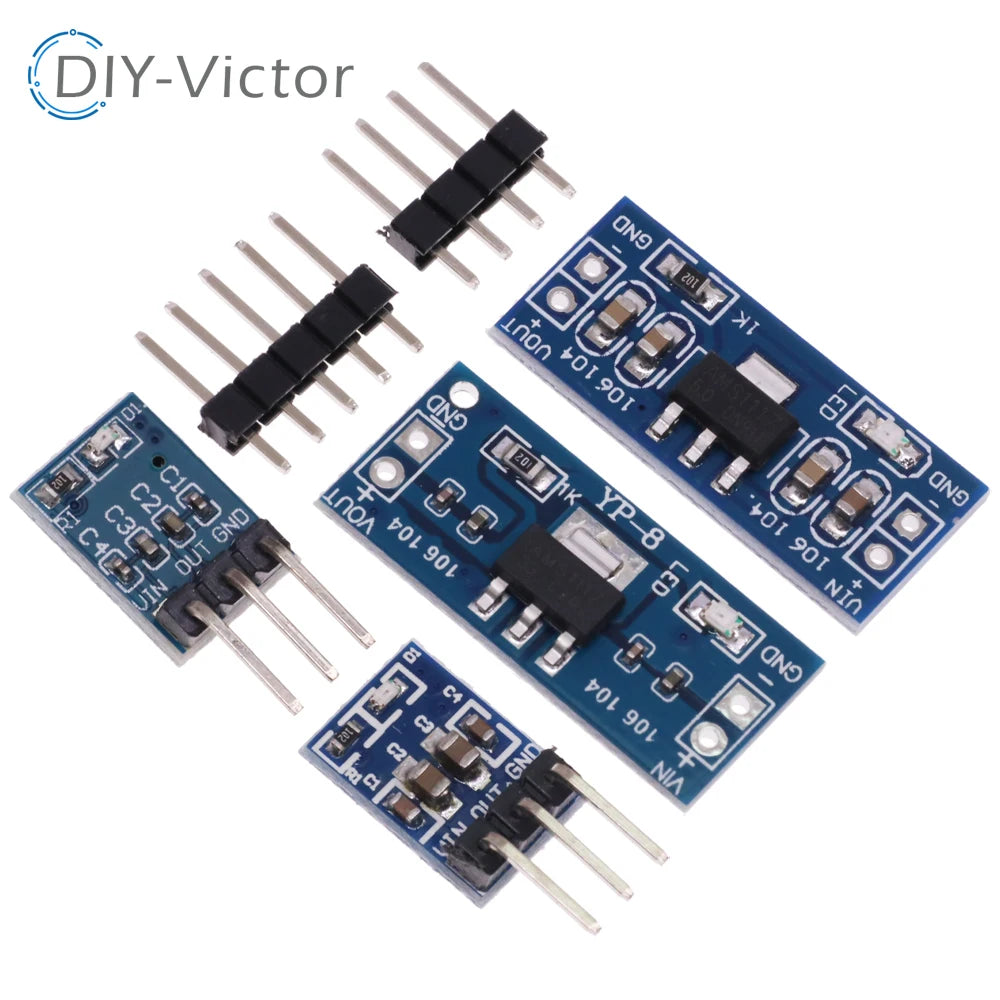

AMS1117 3.3V 5V DC-DC Step-Down Power Supply Module AMS1117-5.0V Power Buck module AMS1117-3.3V LDO 800MA

AMS1117 3.3V 5V DC-DC Step-Down Power Supply Module AMS1117-5.0V Power Buck module AMS1117-3.3V LDO 800MA

$4.80

$4.80 $0.00

Color 3.3V MINI 5V MINI 3.3V 5V

Description

SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: W

High-concerned chemical: none

Operating Temperature: -40-80

Origin: Mainland China

Supply Voltage: V

Type: Voltage Regulator

DIY-Victor Hot Sale

We still have a lot of inventory not uploaded to AliExpress,

If there are other suppliers and any other requirements that we do not show in AliExpress, please contact us by creating a new link for you so that you can purchase.

< In practice, we found that a single order of AliExpress cannot purchase more than 999 pieces. If you purchase more than 999 pieces, please contact us to add the option of purchasing one piece=1000 pieces of commodity card for you >

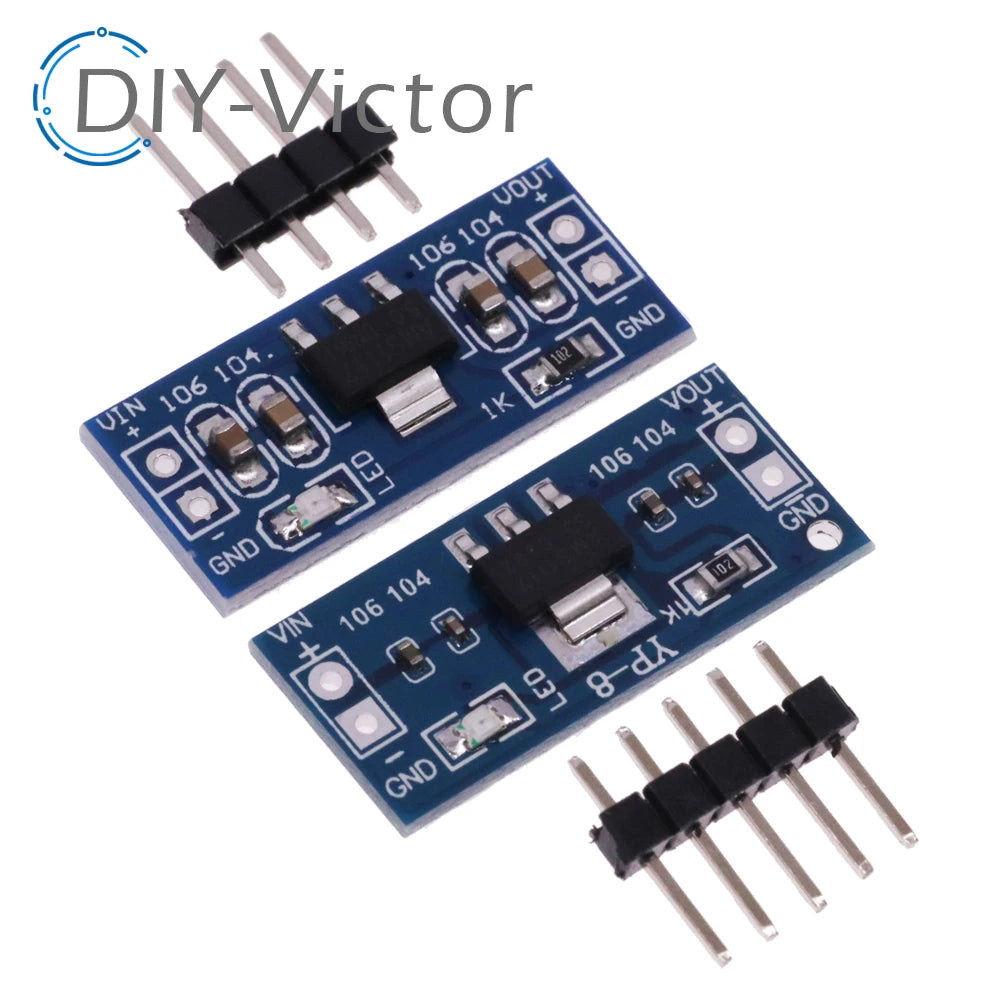

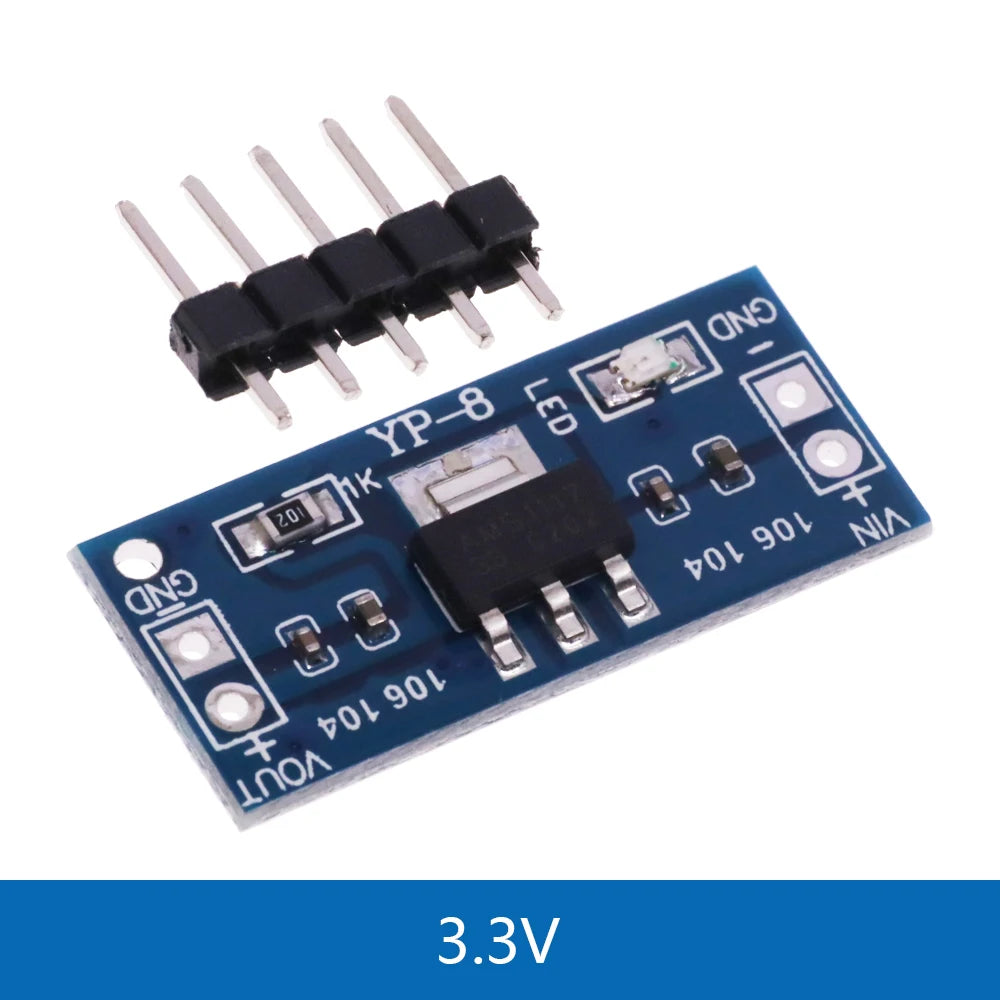

3.3V Design Background:

As electronics enthusiasts , you are not 'll find a 3.3V power supply and tangled, is not the will to power is not enough to expand the number of interfaces and distress ? Such experience , I believe that people will engage in electronic design often encountered . To facilitate that we can find a safe high performance , ease of use , power regulator rich expansion interface module , shop designed in such a transfer 3.3v 5v power regulator module, which applies to single-chip design project requires 3.3V power supply electronic equipment. Meanwhile , some of the electrons can be designed to facilitate the expansion of power .

A description of the baby

1 Input : DC 4.5V--7V ( input voltage must be higher than the output voltage to 1V or more. )

2 Output : 3.3V, 800mA ( load current must not exceed 800ma)

3 pairs of panel design, layout nice ;

4 specially designed two pin mounting holes , can be directly fixed on hole board for extended experiments ;

5 input and output using 2P single row pin for easy connection ;

6 PCB board size : 2.5cm * 1.1cm

7 with power indicator light ( red )

8 tablet weight about : 1.6g

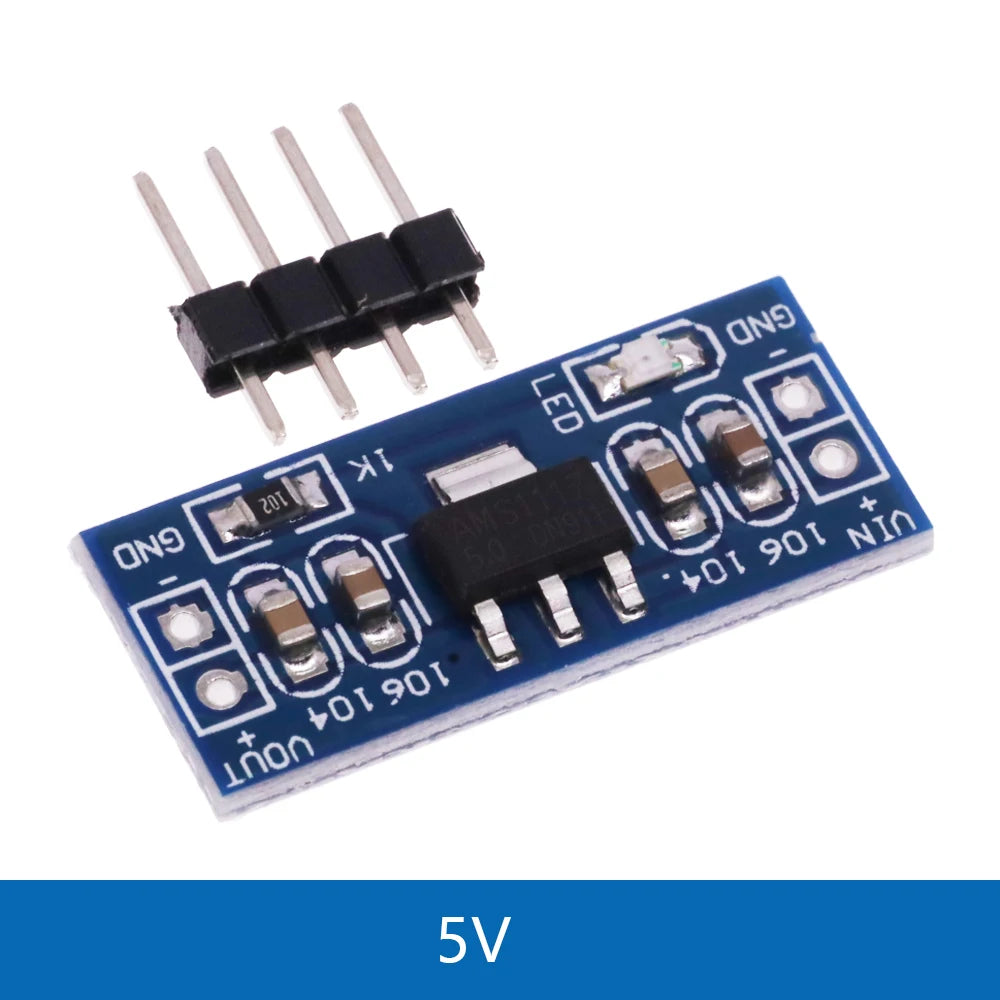

5V Design Background:

As electronics enthusiasts , you are not 'll find a 5.0V power supply and tangled, is not the will to power is not enough to expand the number of interfaces and distress ? Such experience , I believe that people will engage in electronic design often encountered . To facilitate that we can find a safe high performance , ease of use , power regulator rich expansion interface module , shop designed in such a 5v power regulator module, which applies to single-chip design projects that require electronic equipment 5V supply . Meanwhile , some of the electrons can be designed to facilitate the expansion of power .

A description of the baby

1 Input : DC 6V - 12V ( input voltage must be higher than the output voltage to 1V or more. )

2 Output : 5.0V (+-0.05v error ), 800mA ( load current must not exceed 800ma)

Three pairs of panel design, layout nice ;

4 specially designed two pin mounting holes , can be directly fixed on hole board for extended experiments ;

5 input and output using 2P single row pin for easy connection ;

6 PCB board size : 2.5cm * 1.1cm

7 with power indicator light ( red )

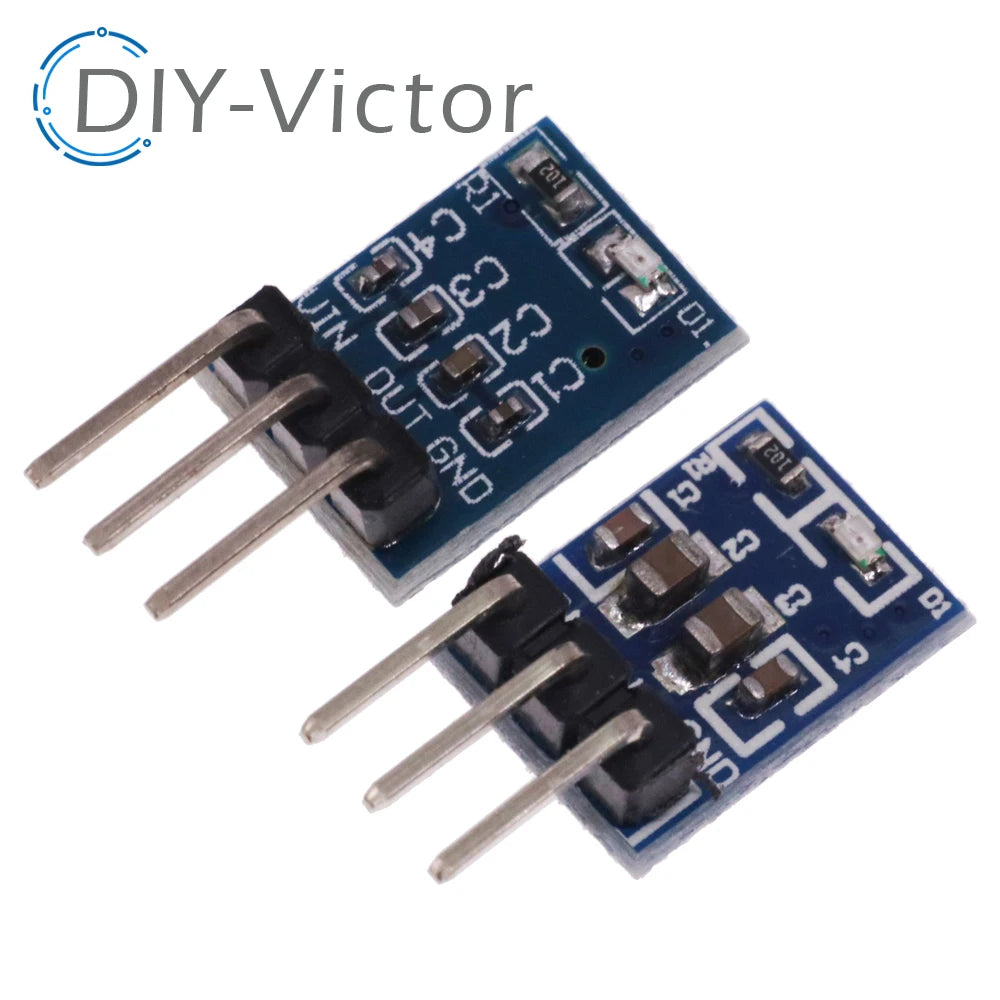

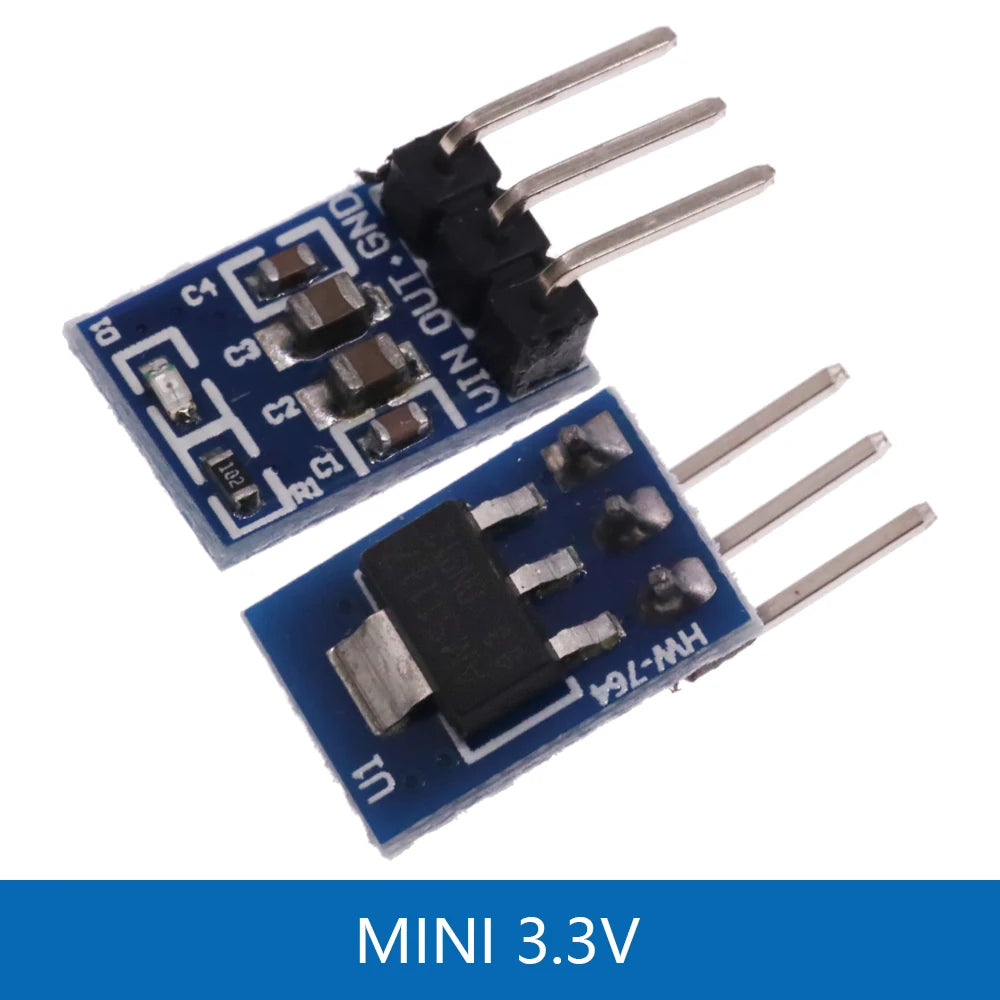

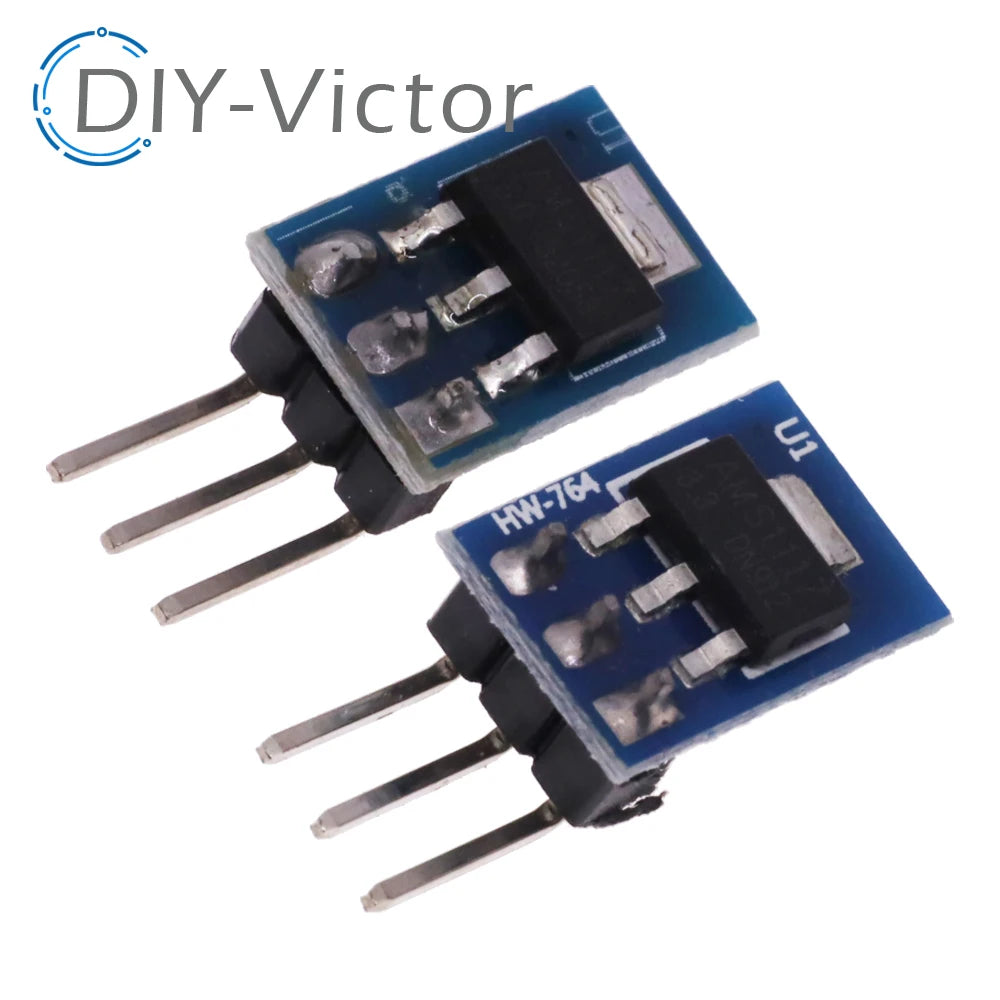

MINI 3.3V Features:

Size:8.6mm x 12.33mm
Input voltage: For DC 4.2 V-10 V
Output: 3.3 V, 800 mA

Kindly note:

1.Boost modules or buck module indicate the operating voltage, Please donot exceed operating voltage , or it will be damaged easily !
2.Boost module output voltage can only be greater than or equal to input voltage, cannot be less than the input voltage!
3.Buck module input voltage must be higher than output voltage of 1.5V or 2V, otherwise it can not output enough power!
4.Automatic Adjustable Boost or Buck module has start voltage and limit working voltage, Please donot exceed them , or it will be damaged easily !
5.Cannot reverse polarity , or it will be short circuit, or will be born easily !
