SPECIFICATIONS

Accuracy: ±(2% of reading+0.2 m/s)

Battery: AAA*4 PCS or 9V DC Adaptor

Battery Included: no

Brand Name: az

Certification: CE

High-concerned chemical: none

Model Number: AZ8902

Origin: Taiwan (China)

Range: 0.6~32 m/s

Semi-finishedproduct: No

Size Meter: 175(L) * 70(W) * 33(H) mm, Vane: 170(L) * 77(W) * 40(H) mm

Type: Anemometer

Weight: about 170g

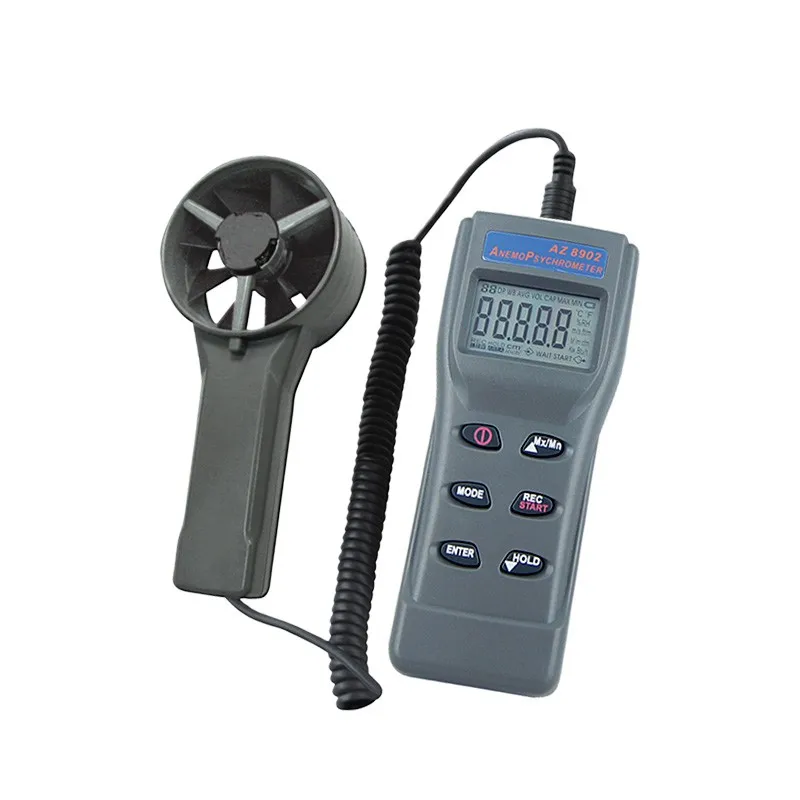

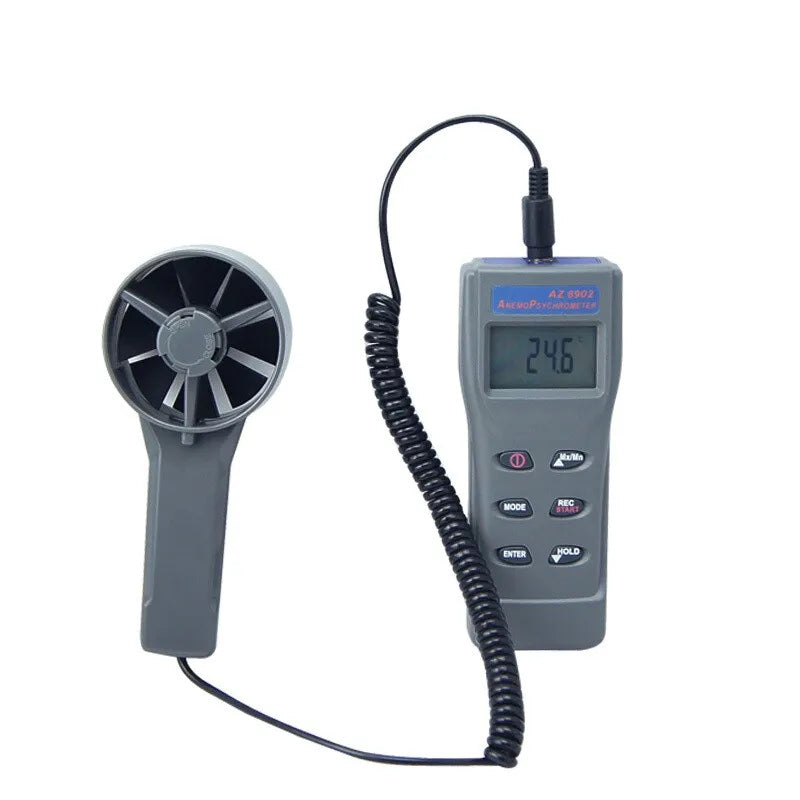

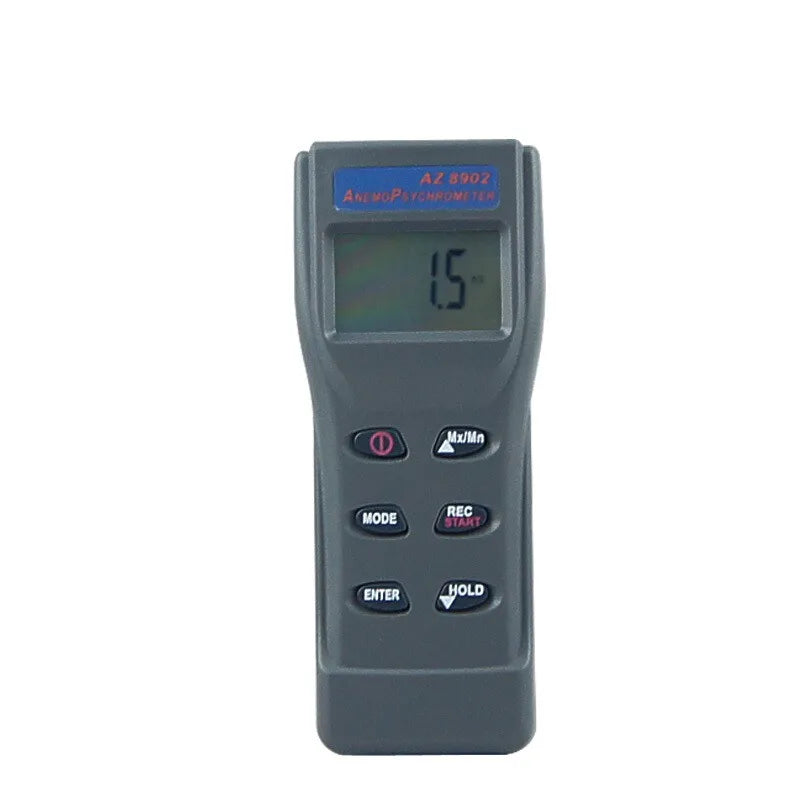

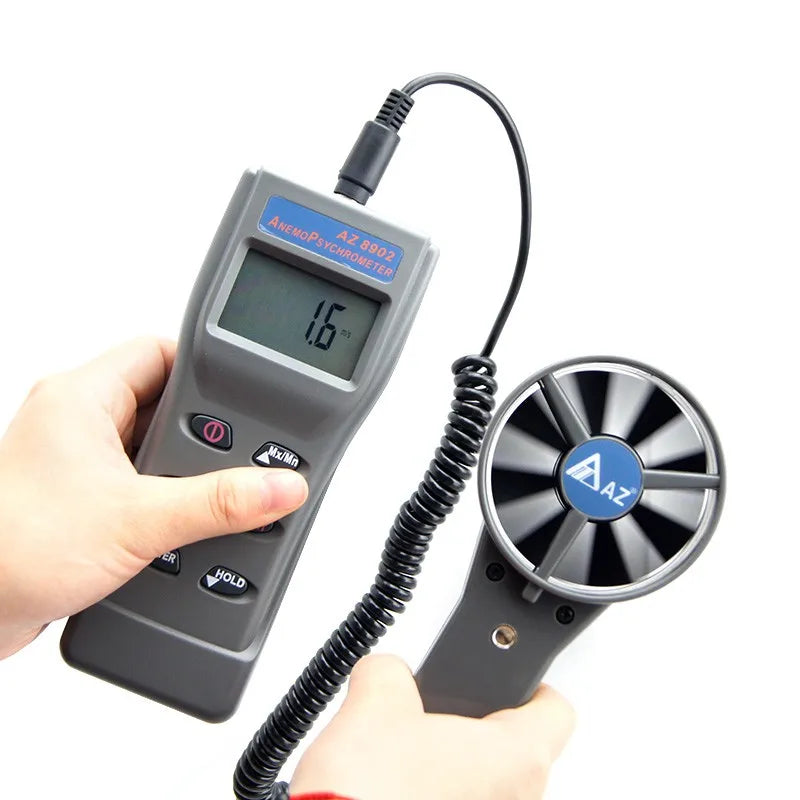

Anemometer AZ8902 Temperature and Relative Humidity Fan Air Flow Meter

Barometric Pressure Meter Wind Speed Meter 0.6~32 M/S

Features:

AZ 8902 Temperature and Relative Humidity Wind Speed Meter features:
* Remote vane with built-in sensor
* Temp. / Dew Point / RH% / Wet Bulb / Air Velocity / Air volume
* Quick to get Dew Point & Wet Bulb in seconds

Application:

Application of 8902 AZ air flow measuring devices:
The 8902 AZ wind speed meterhas the remote fan to measure the Air Speed, Air Velocity, Air Volume, Temp., Humidity, dew point and wet bulb

temperature.

The sensor is built in the remote fan and is specially protected by rotate cap. User could turn on the cap before operation, and then get the accurate

temperature and humidity reading.
The8902 AZ Anemo Psychrometeris the best choice as the wind speed monitoring device in HVAC (Heating, Ventilation , Refrigerating and Air

Conditioning) or industrial related application.

Specification:

Specification of AZ 8902 Temperature and Relative Humidity Anemometer :

Model	8902
Wind Speed Range	0.6~32 m/s
Wind Speed Accuracy	±(2% of reading+0.2 m/s)
Air Temperature Range	-20~60℃
Air Temperature Resolution	0.1℃, 0.1℉
Air Temperature Accuracy	±0.6℃
Air RH% Range	0%~100%RH
Air RH% Resolution	0.1%RH
Air RH% Accuracy	±3%RH (at 25℃. 10~90%RH, others ±5%RH)
Temperature Response Time	60 seconds (typical)
Air RH% Response Time	60 seconds (typical)
LCD Update	Every second
Wet Bulb Temp. Display	-22~70℃
Dew Point Temp. Display	-68~70℃
Air Volume Display	0~99999 m3/minute
Air Volume Resolution	0.1 (0~9999.9) or 1 (10000~99999)
LCD Size	44(L) * 26(W) mm
Operating Temperature	0~50℃
Operating RH%	Humidity ＜80%
Storage Temperature	-10~50℃
Storage RH%	Humidity ＜90%
Size	Meter: 175(L) * 70(W) * 33(H) mm Vane: 170(L) * 77(W) * 40(H) mm
Weight	~170g
Battery	AAA*4 PCS or 9V DC Adaptor
Optional Accessory	Replacement Vane Probe / Software Kit

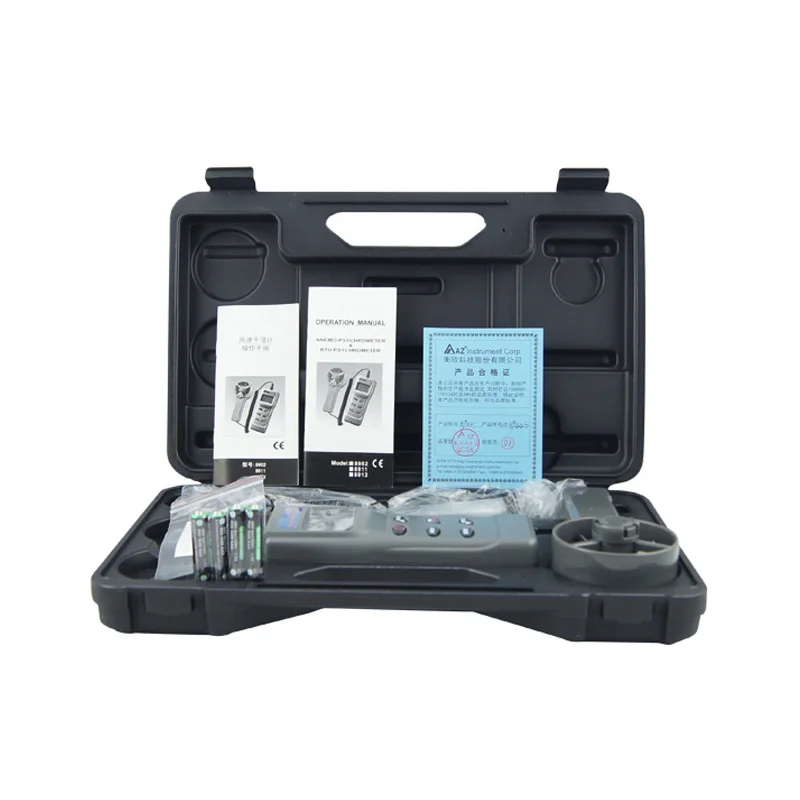

Standard Package	Meter, Vane Probe, Batteries, Manual, Hard Carry Case
