ANENG 613 3-in-1 Digital Multimeter 4000 Counts AC/DC Voltage Current Resistance Capacitance Frequency Tester Thermohygrometer Perpetual Calendar Alarm LCD Backlight Auto Power Off Multitester

ANENG 613 3-in-1 Digital Multimeter 4000 Counts AC/DC Voltage Current Resistance Capacitance Frequency Tester Thermohygrometer Perpetual Calendar Alarm LCD Backlight Auto Power Off Multitester

$95.96

$95.96 $0.00

Description

SPECIFICATIONS

AC Current: 0mA-10A

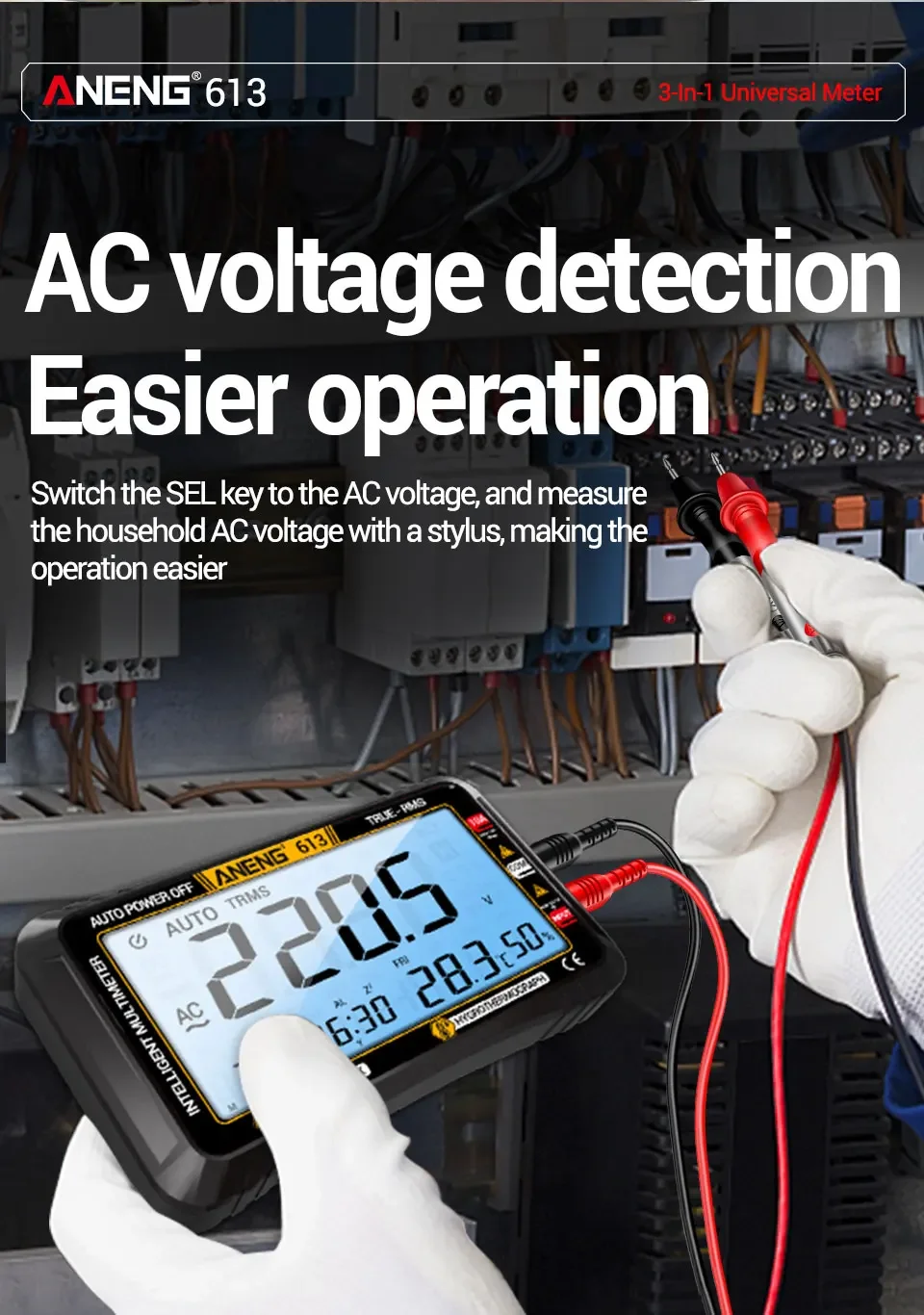

AC Voltage: 0mV-600V

Battery Included: no

Brand Name: ANENG

Certification: NONE

DC Current: 0mA-10A

DC Voltage: 0V-600V

DIY Supplies: Electrical

Dimensions: /

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Measuring Capacitance Range: /

Measuring Inductance Range: /

Measuring Resistance Range: /

Model Number: ANENG 613 Multimeter

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

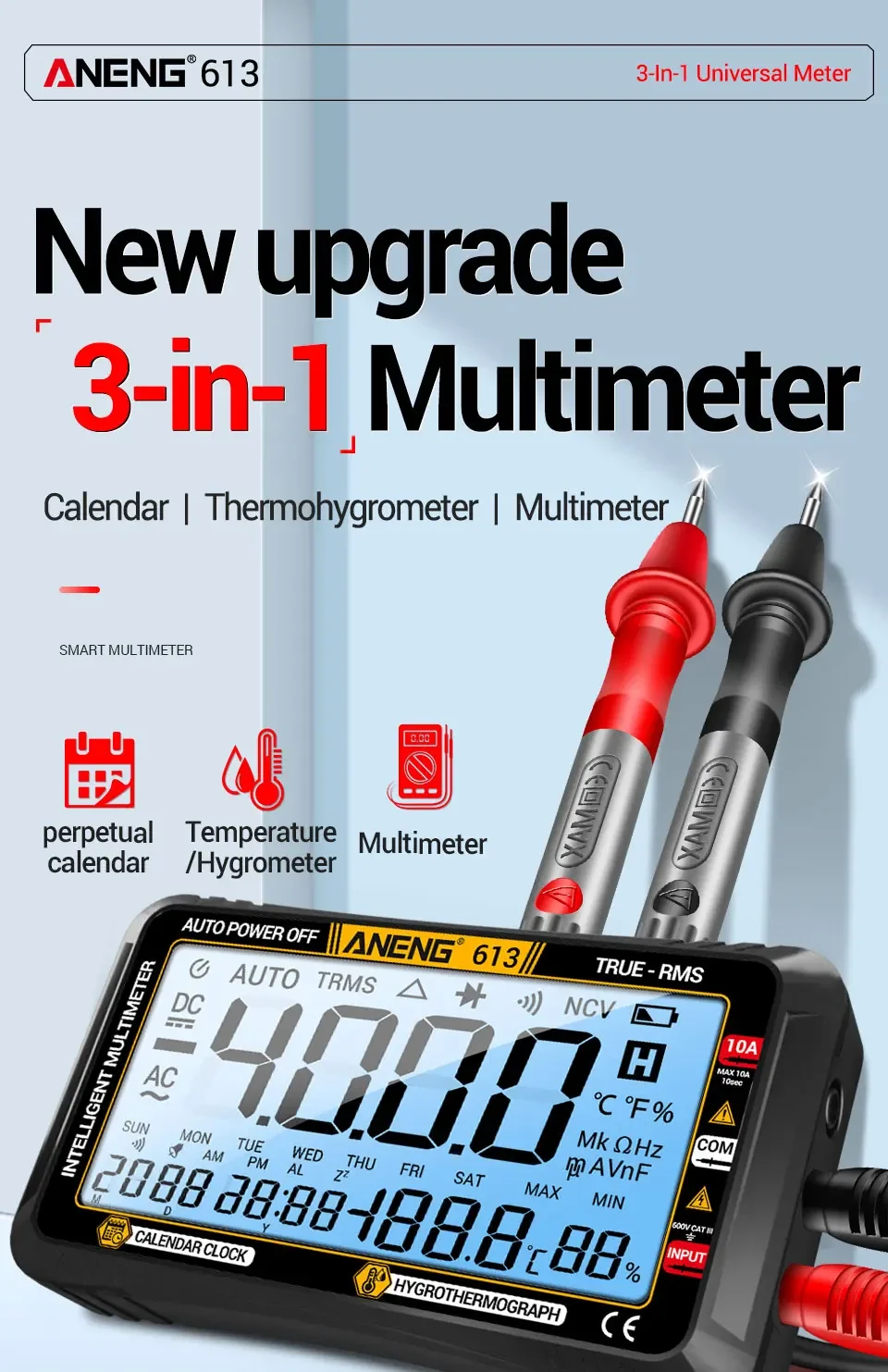

ANENG 613 Smart Multimeter

4000 Counts Digital AC/DC Curent Voltage Resistor Measurement 3 in 1 Professional Test Tools

Description:

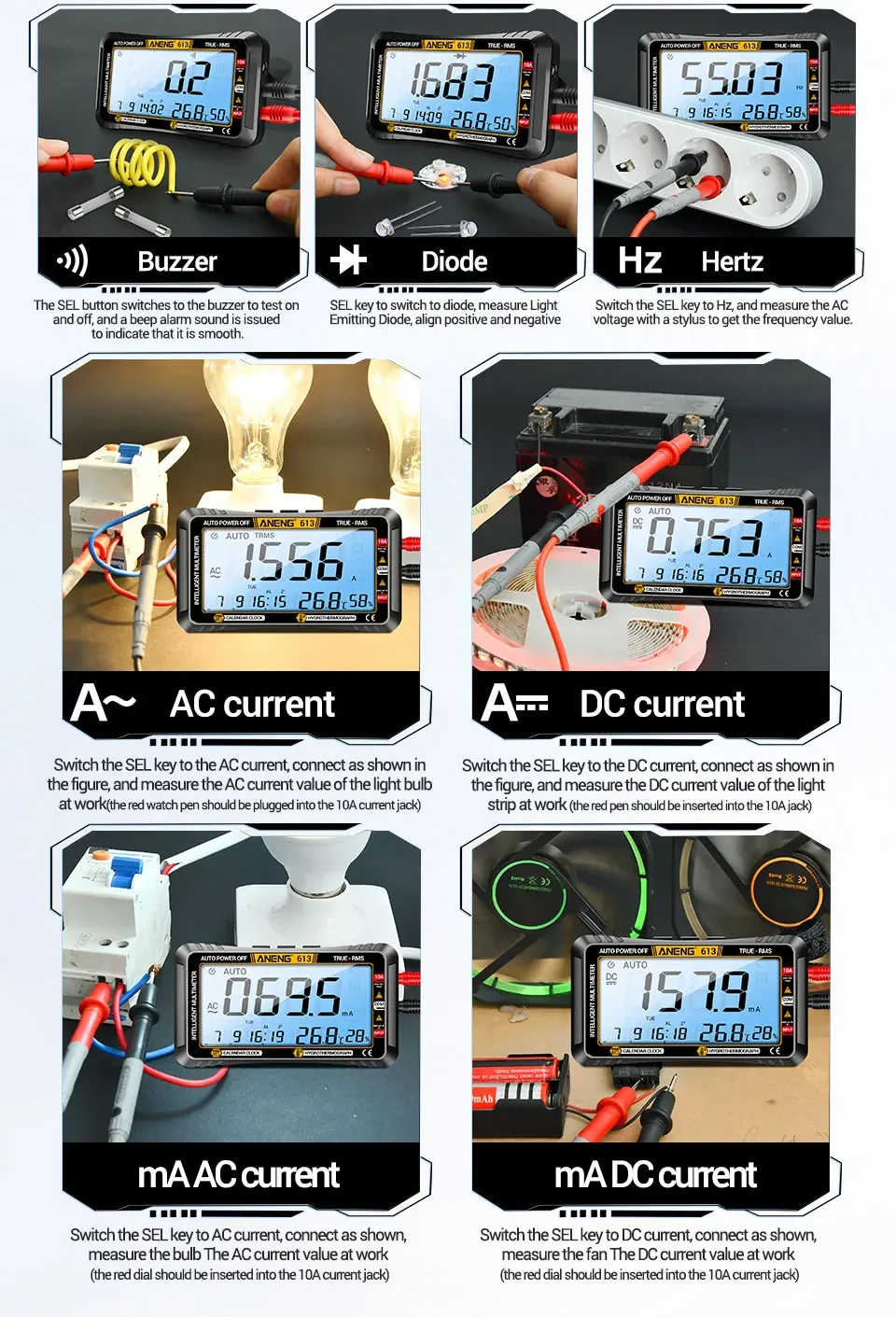

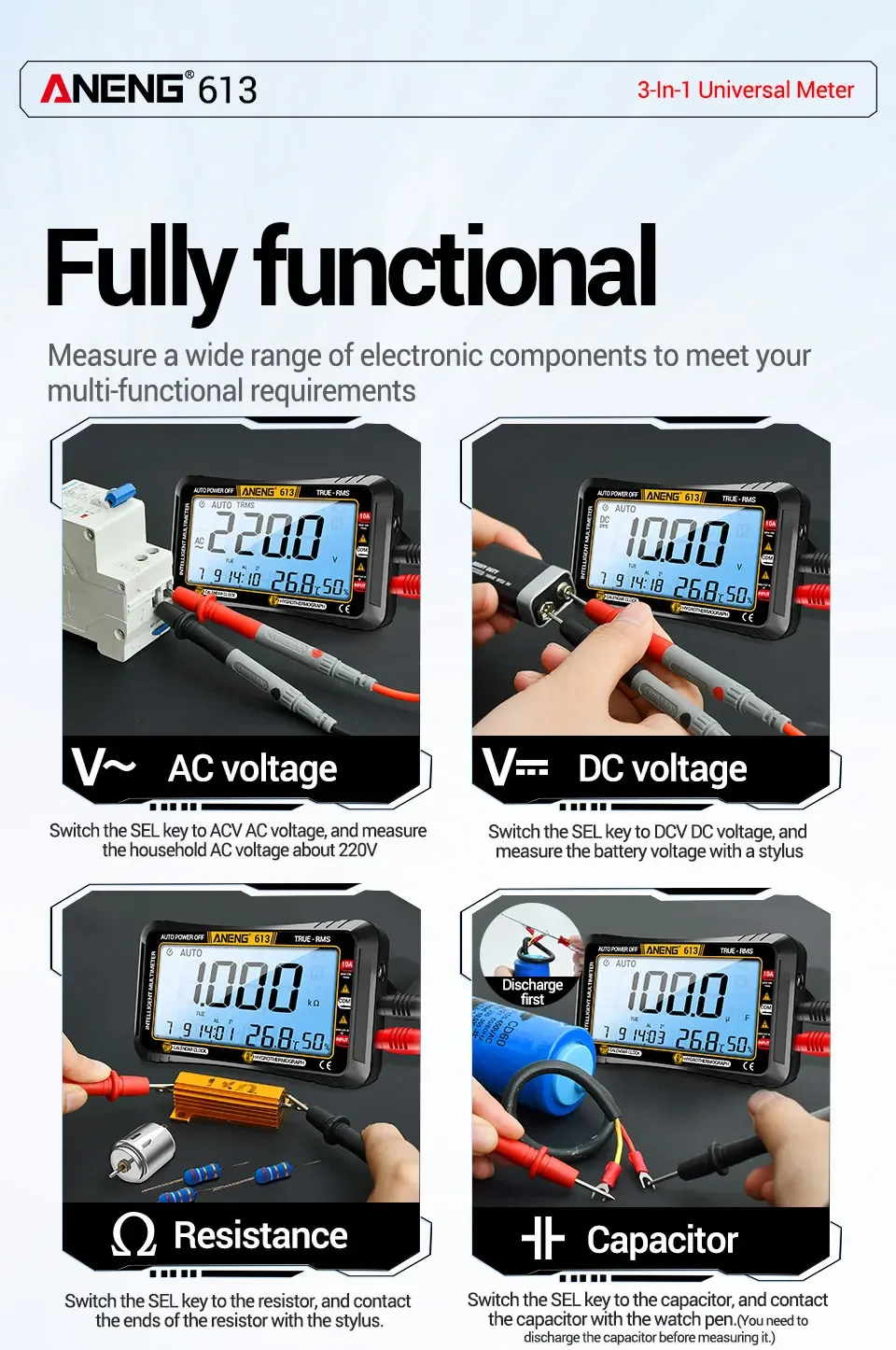

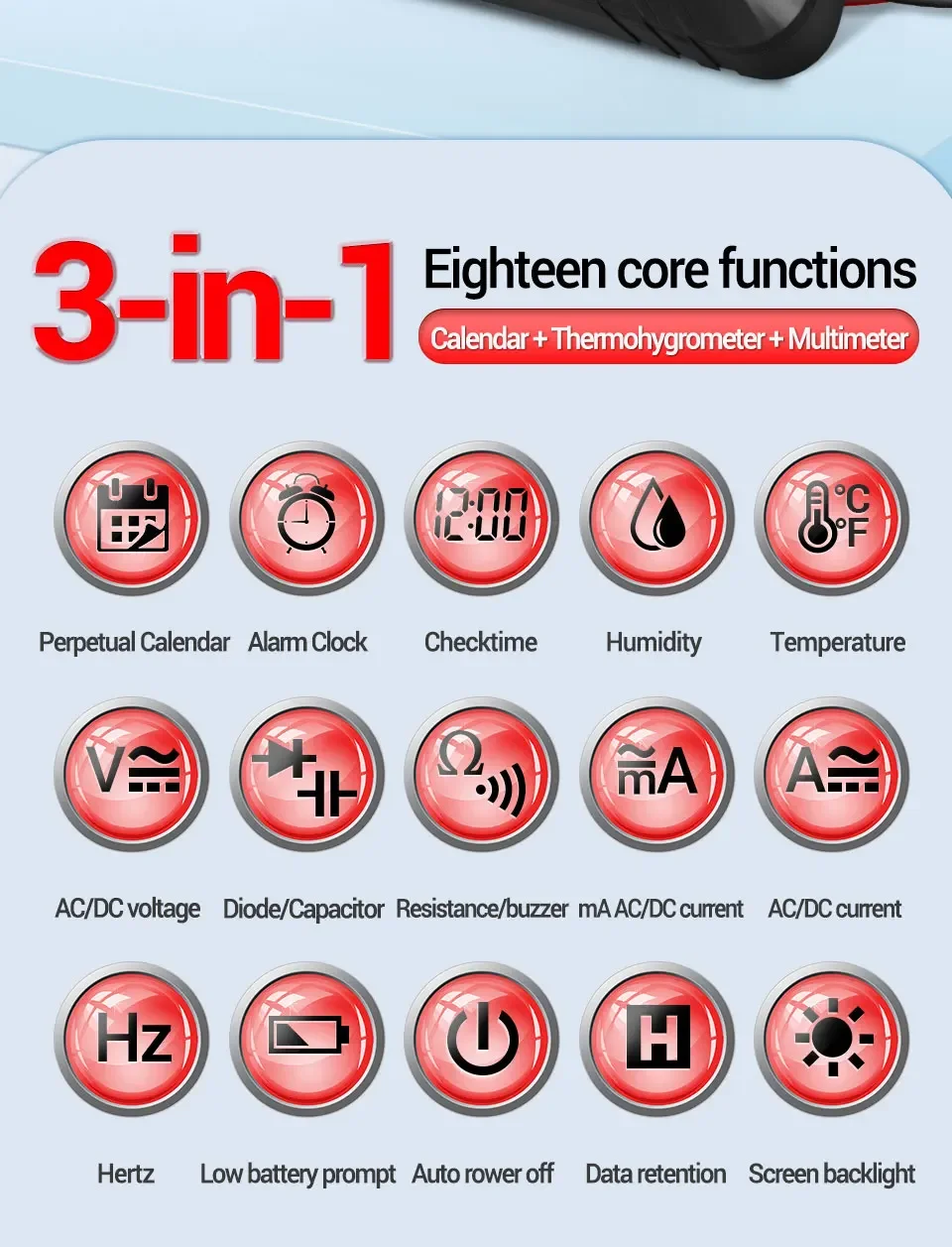

This instrument performs AC/DC voltage, AC/DC Current, Resistance, Audible Continuity, Diode, Frequency and Temperature measurements;
it is a 3 3/4 digits, 4000 counts auto ranging DMM. It has the functions of polarity indication, data hold, over range indication and automatic power-off.
lt can be operated easily and is an ideal instrument tool.

Specification :

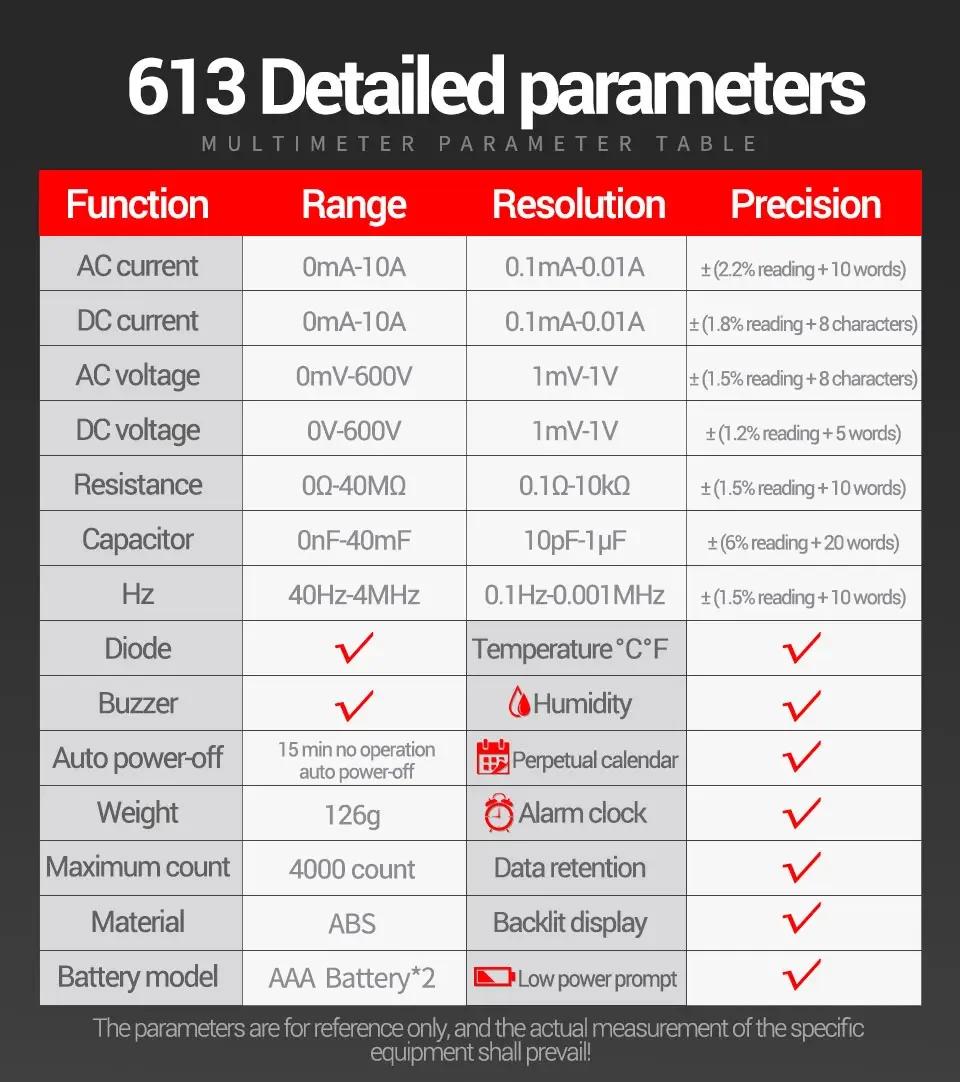

Function	Range	Resolution	Precision
AC current	0mA-10A	0.1mA-0.01A	±(2.2% reading + 10 words)
DC current	0mA-10A	0.1mA-0.01A	±(1 .8% reading + 8 characters)
AC voltage	0mV-600V	1mV-1V	± (1.5% reading + 8 characters)
DC voltage	0V-600V	1mV-1V	±(1.2% reading + 5 words)
Resistance	0Ω-40MΩ	0.1Ω-10kΩ	±(1.5% reading + 10 words)
Capacitor	0nF-40mF	10pF-1μF	±(6% reading+ 20 words)
Hz	40Hz-4MHz	0.1HZ-0.001MHZ	±(1.5% reading + 10 words)
Diode	√	Temperature°C°F	√
Buzzer	√	Humidity	√
Auto power-off	15 min no operation auto power-off	perpetual calendar	√

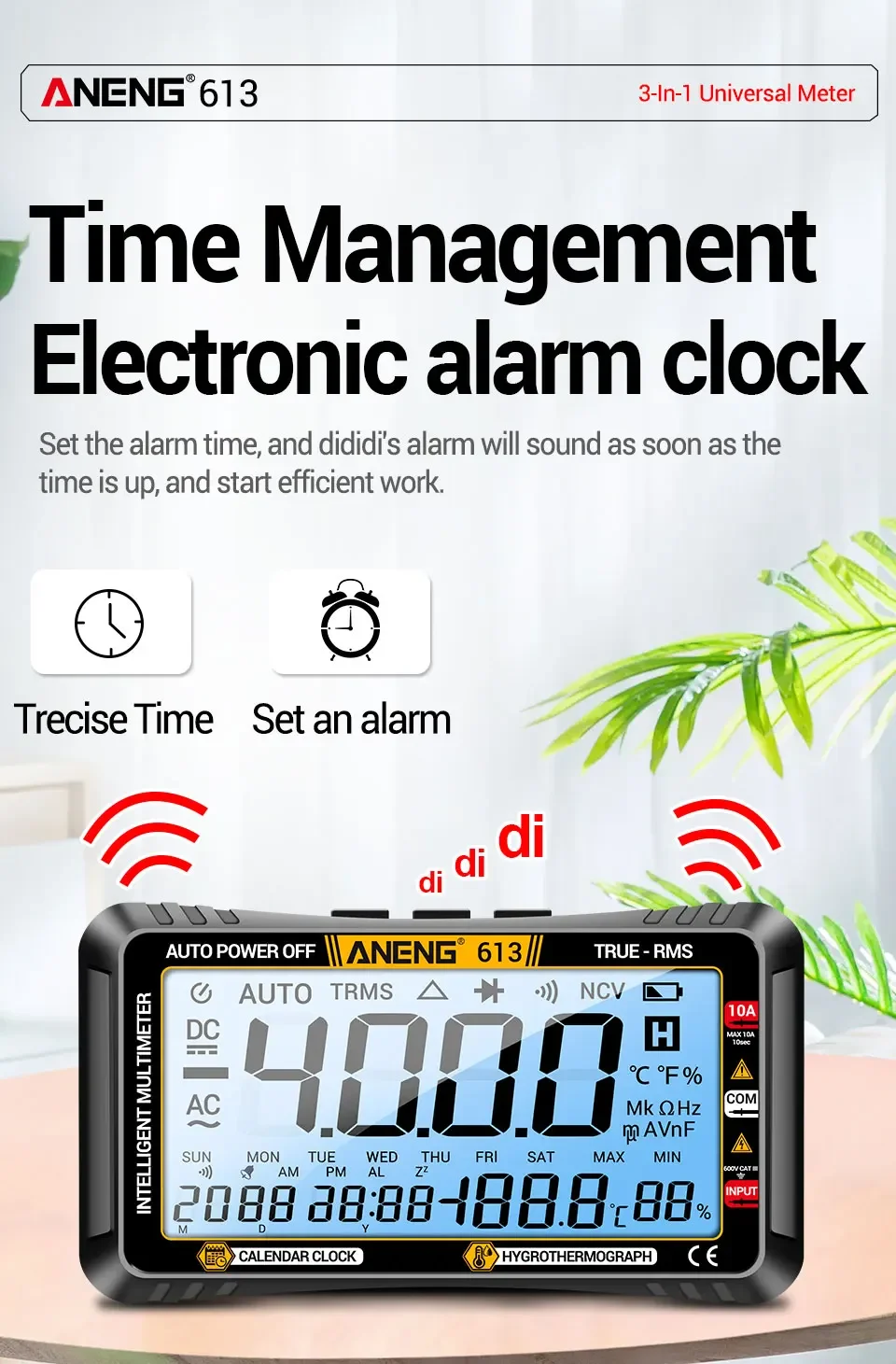

Weight	126g	Alamm clock	√
Maximum count	4000 count	Data retention	√
Material	ABS	Backlit display	√
Battery model	AAA Battery*2(Not including battery)	Low power prompt	√

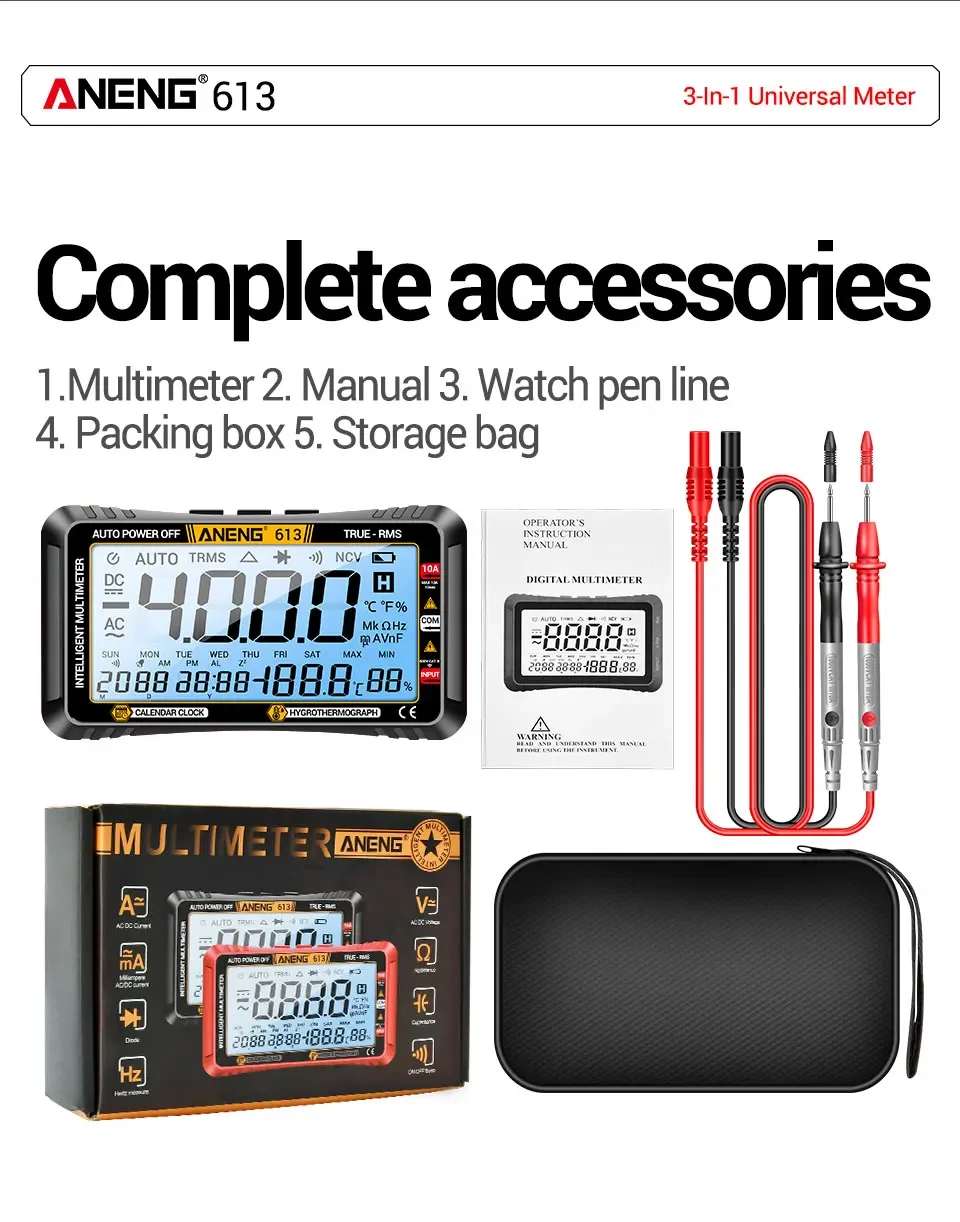

Package Include((Not including battery))
1 * Multimeter
1 * Manual
1 * Watch pen line
1 * Packing box
1 * Storage bag
16 in 1 Combination Line(according your choice)

Usage Precautions:

1.Do not touch the probes directly with your handselectric shock and ensure personal safety during testing

2. Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal.

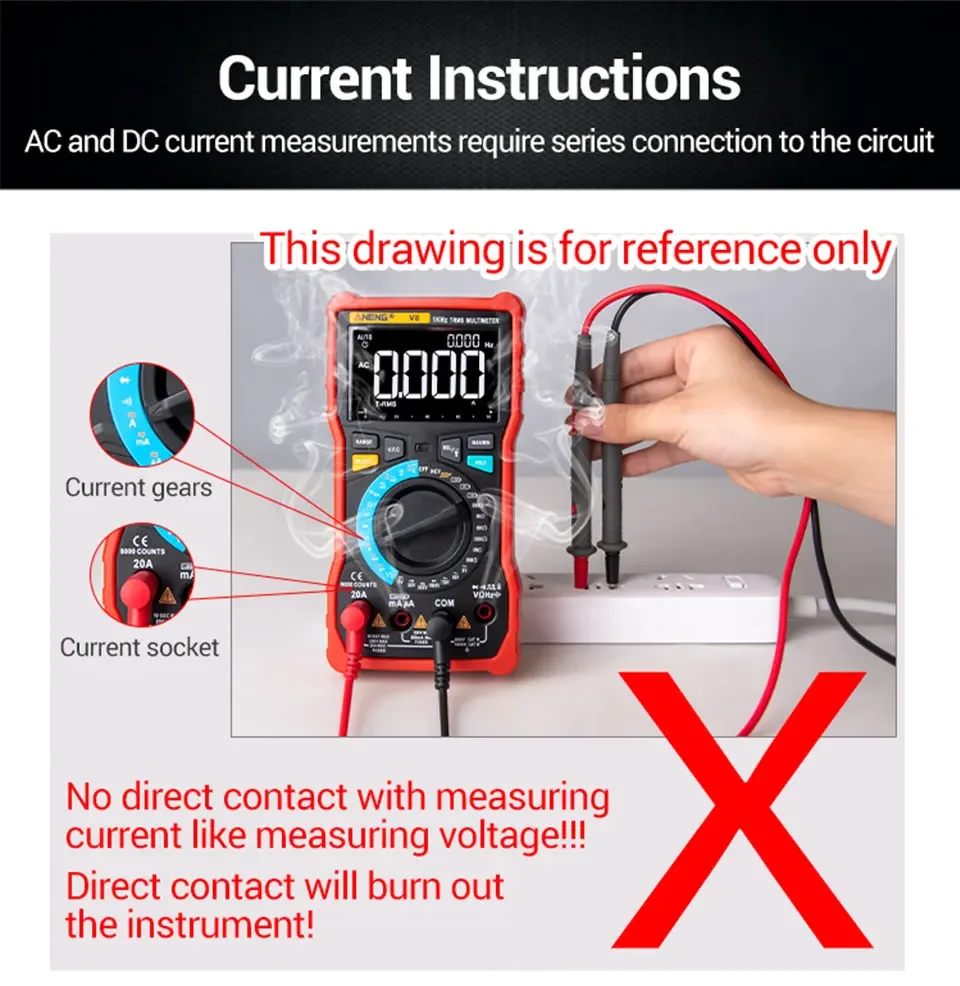

3. Do not use the current and voltage ranges interchangeably to prevent damage to the instrument.

4. it is best to remove the bateries when not in use for a long time to prevent battery corrosion of other intemal components of the instrument.

5.f you do notknow the maonilude ofthe voiage or curentto be measwred, siart with the highestrange and then selecthe appropiaie range based onthe measured yale.
