ANENG 618 Digital Multimeter Professional Smart Touch AC DC Ammeter True RMS Capacitor Frequency NCV Meter Electrical

ANENG 618 Digital Multimeter Professional Smart Touch AC DC Ammeter True RMS Capacitor Frequency NCV Meter Electrical

$104.36

$104.36 $0.00

Description

SPECIFICATIONS

AC Current: Digital Multimeter

AC Voltage: 600V

Battery Included: no

Brand Name: ANENG

Certification: CE

Choice: yes

DC Current: Digital Multimeter

DC Voltage: 6V/60V/600V/1000V

DIY Supplies: Electrical

Data Record: No

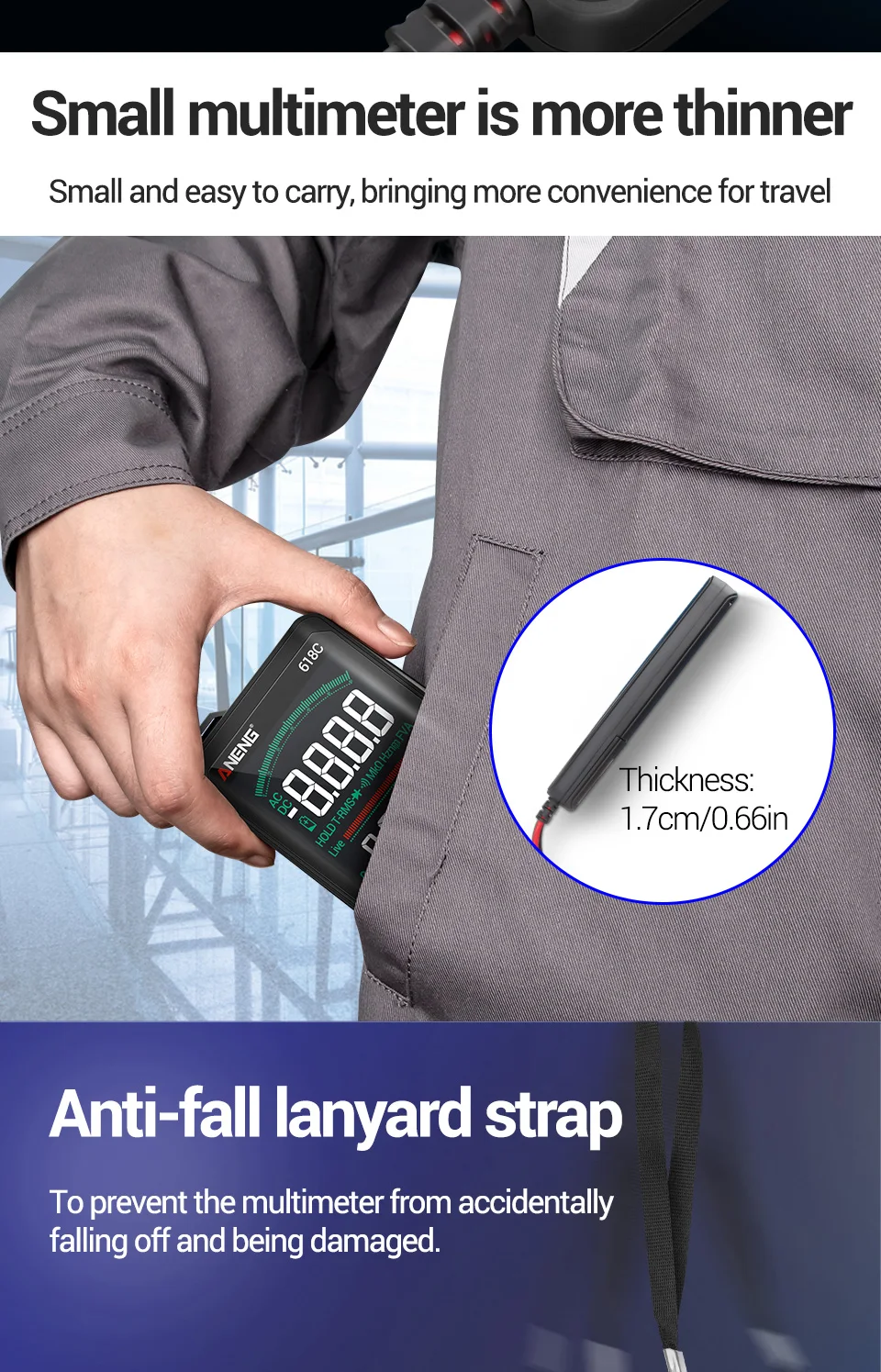

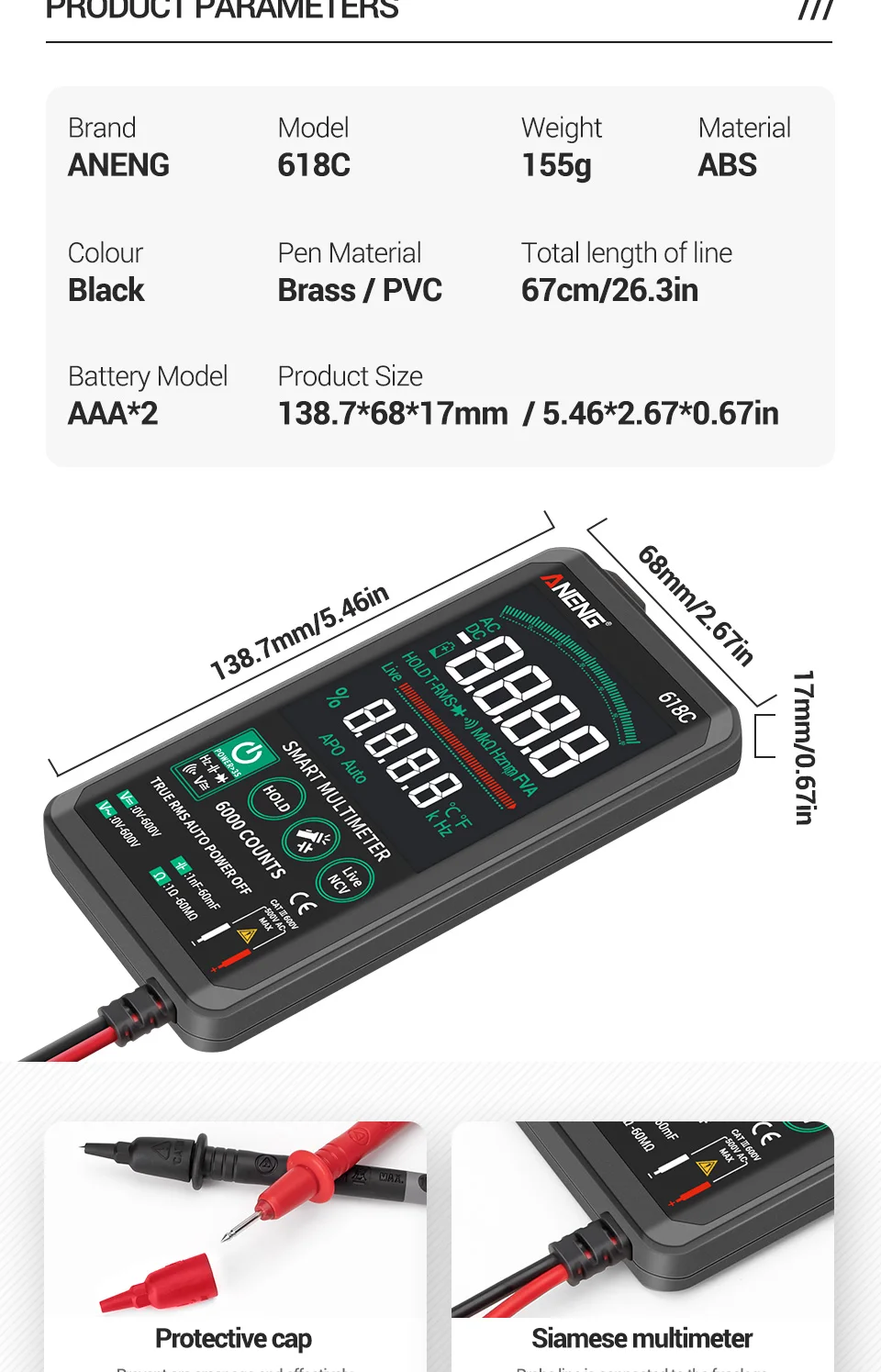

Dimensions: 139*68*18mm smart Multimeter

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Measuring Capacitance Range: 10nF/100nF /1uF/10uF/100uF/1mF/10mF/60mF

Measuring Inductance Range: Digital Multimeter touch screen

Measuring Resistance Range: 600/6k/60k/600k/6M/60M omh

Model Number: 618C ANENG digital Multimeter

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

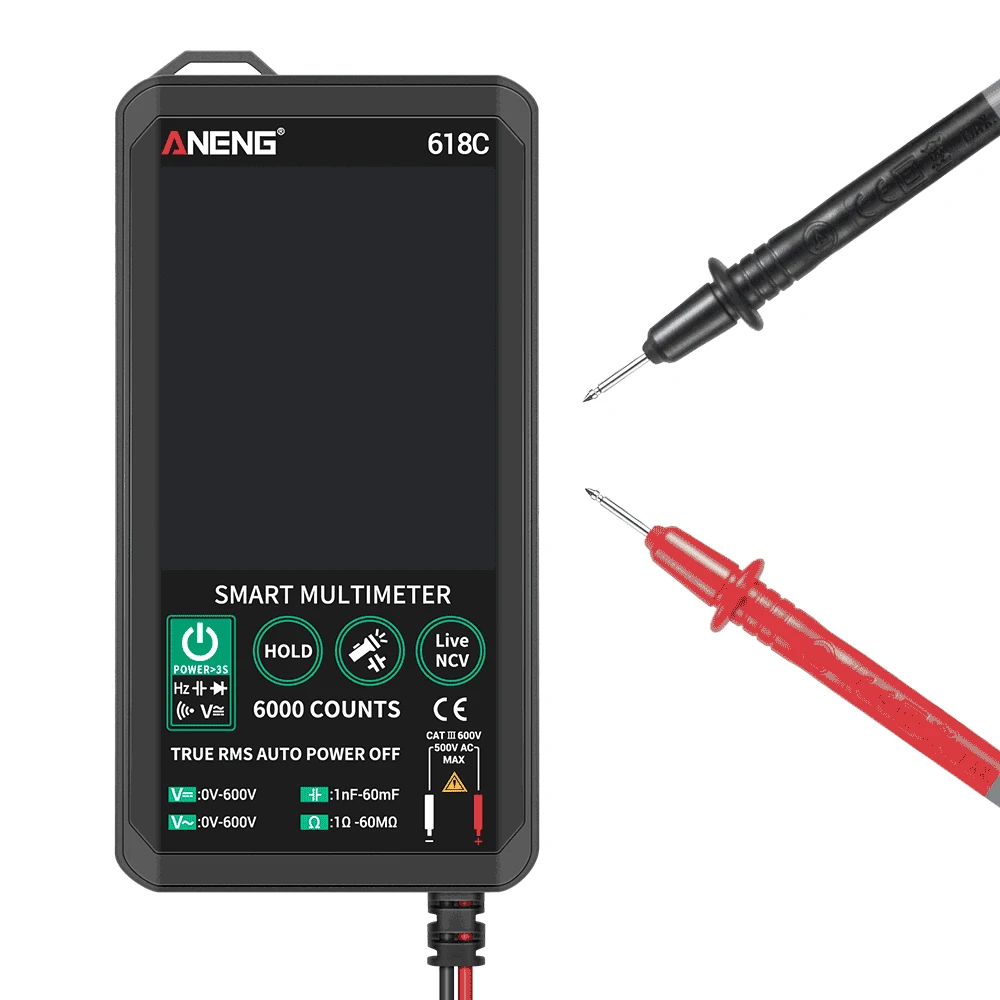

ANENG 618C Smart Touch Digital Multimeter DC/AC Analog Tester True RMS Professional Transistor Capacitor NCV smart Auto/Manual Testers Meter Multimetro

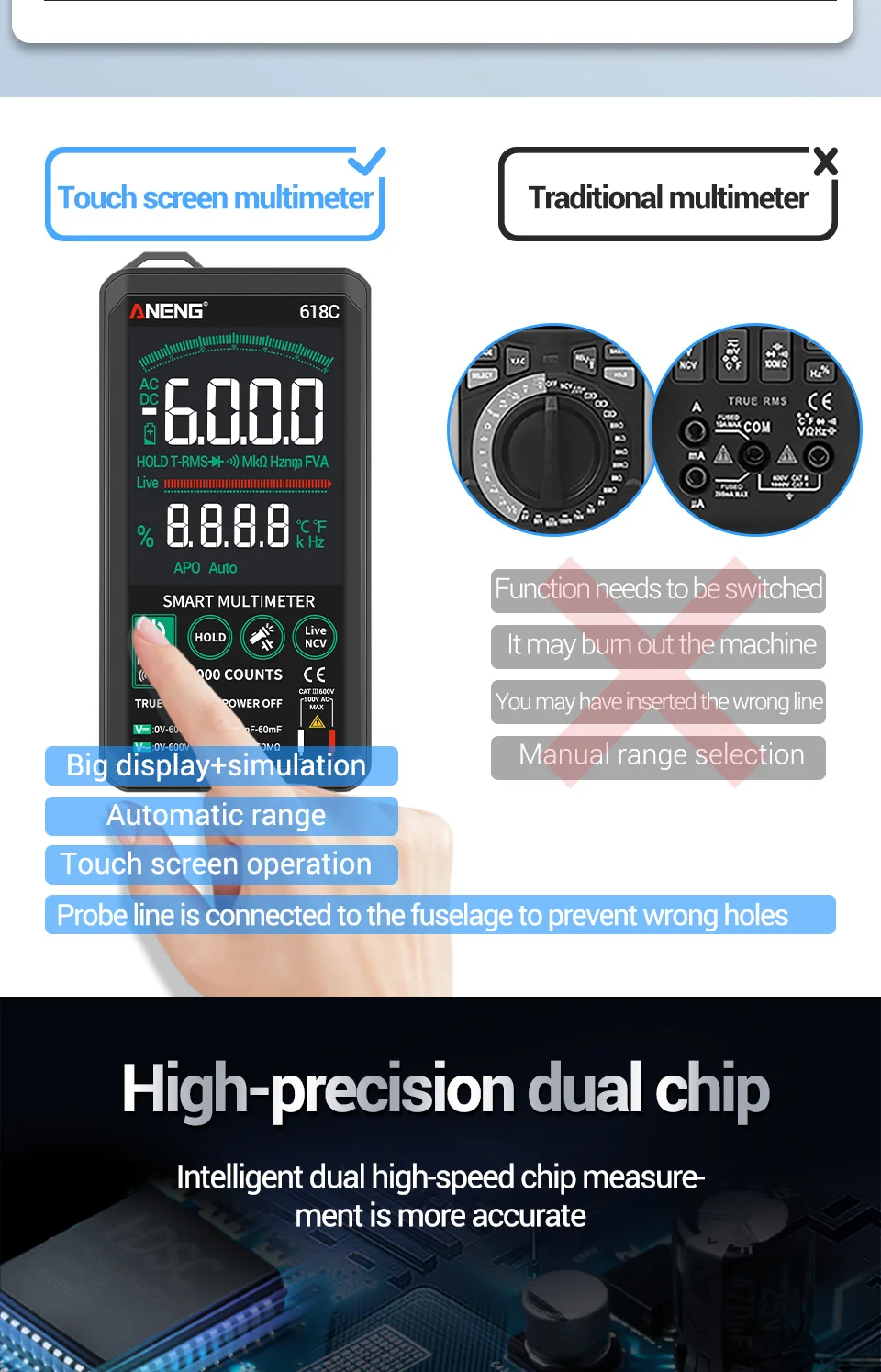

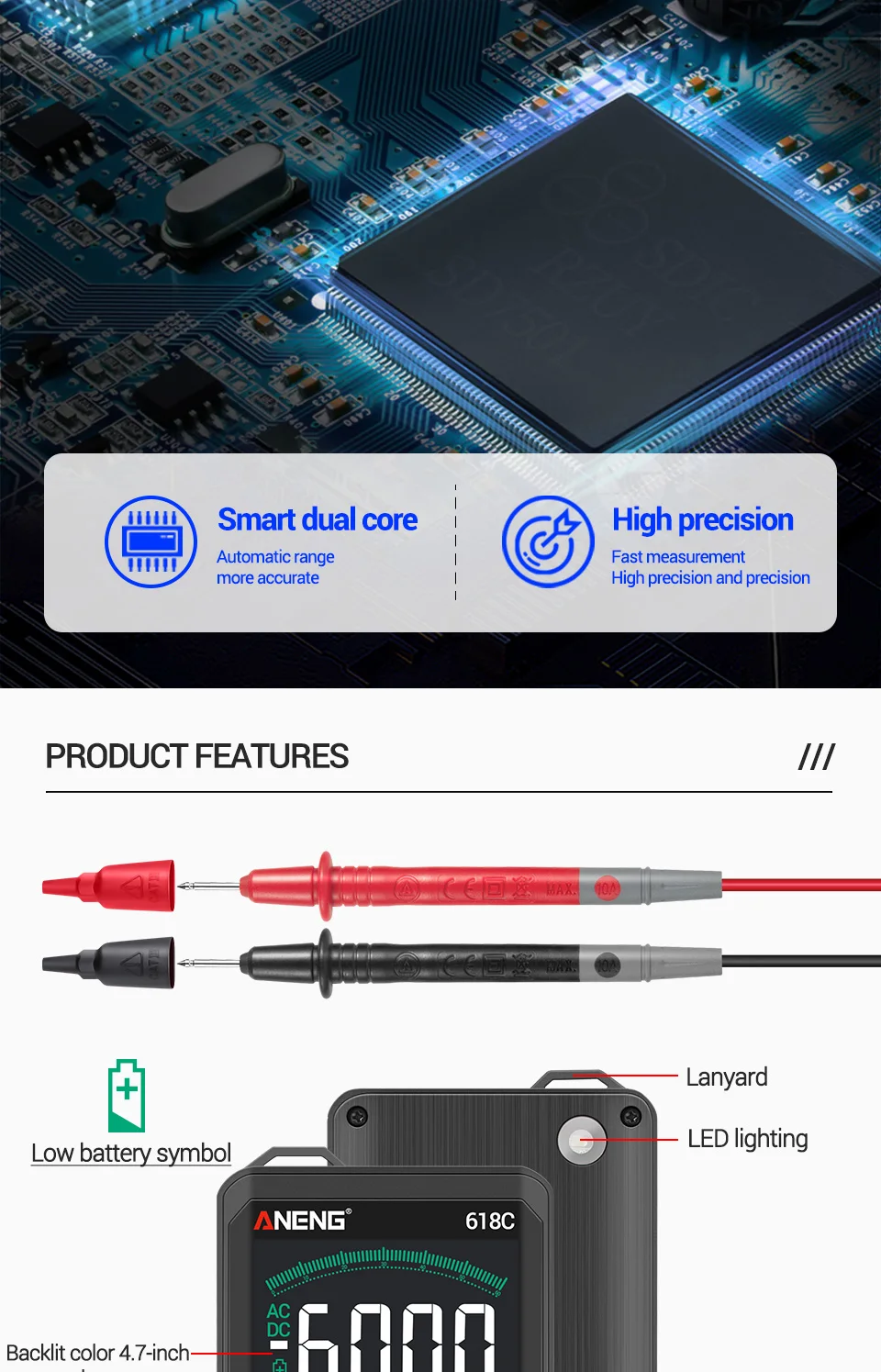

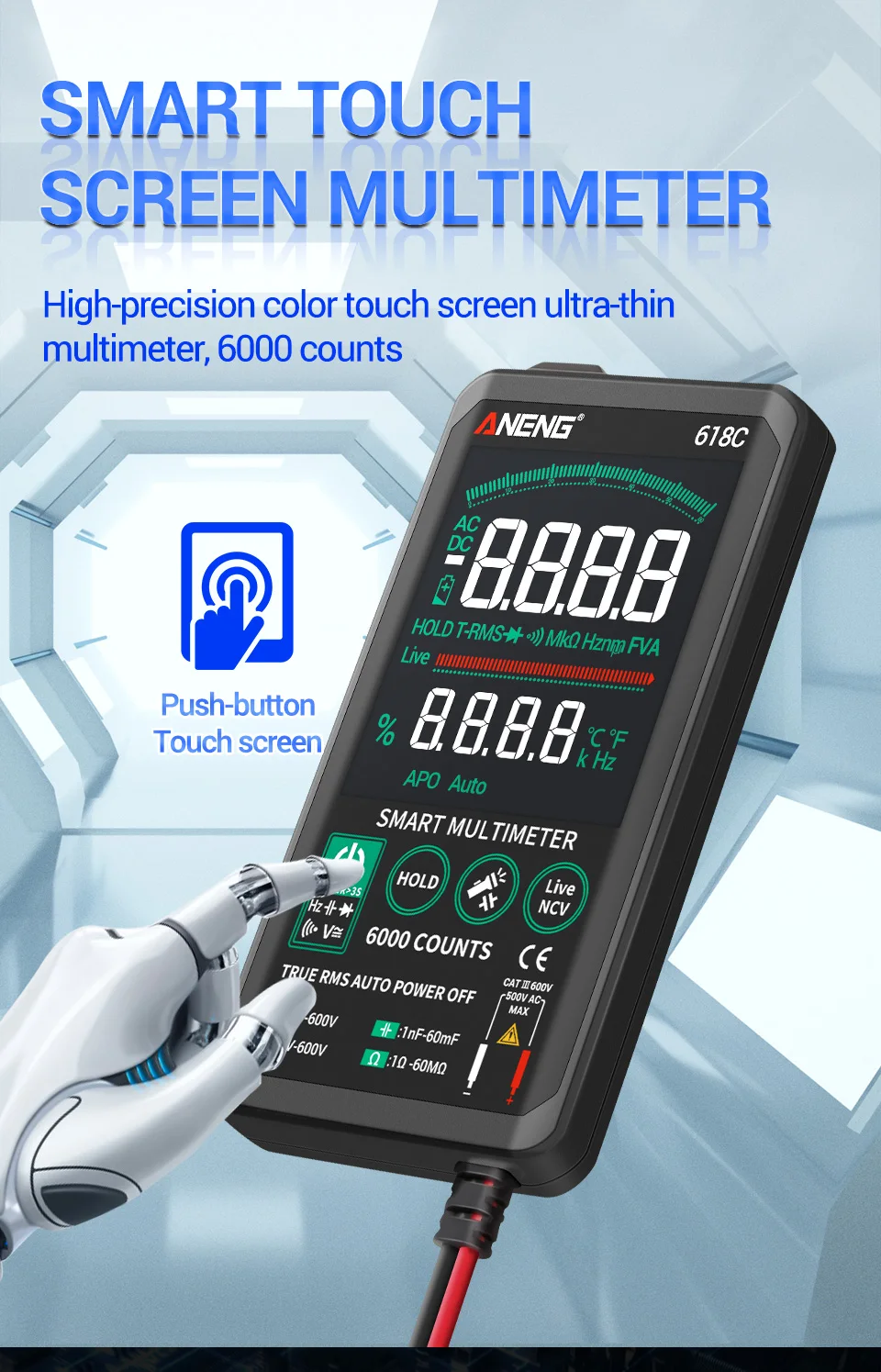

618C is a brand new multimeter with a color touch screen, the screen is triple display LCD; main display, sub display, analog bar; the interface is simplified, Manual/Auto recognition measurement, and the measurement accuracy is high; the multimeter is small in size , easy to carry.

Features:
1-1. Display mode: triple display LCD; main display, sub display, analog bar;
1-2. Maximum display: 5999 (5 5/6) bit automatic polarity display;
1-3. Measurement method: double integral A/D conversion;
1-4. Sampling rate: about 3 times per second;
1-5. Over range display: The highest position shows "OL";
1-6.Continuous power operation function;
1-7. Low voltage display
1-8. Working environment:(0～40)℃,relative humidity＜80%;
1-9. Power: AAA 2* 1.5V battery(Not included);

Specifications:
2-1. Accuracy: ±(a% of reading + least significant digit), to ensure accuracy Ambient temperature: (23±5)℃, relative humidity <75%

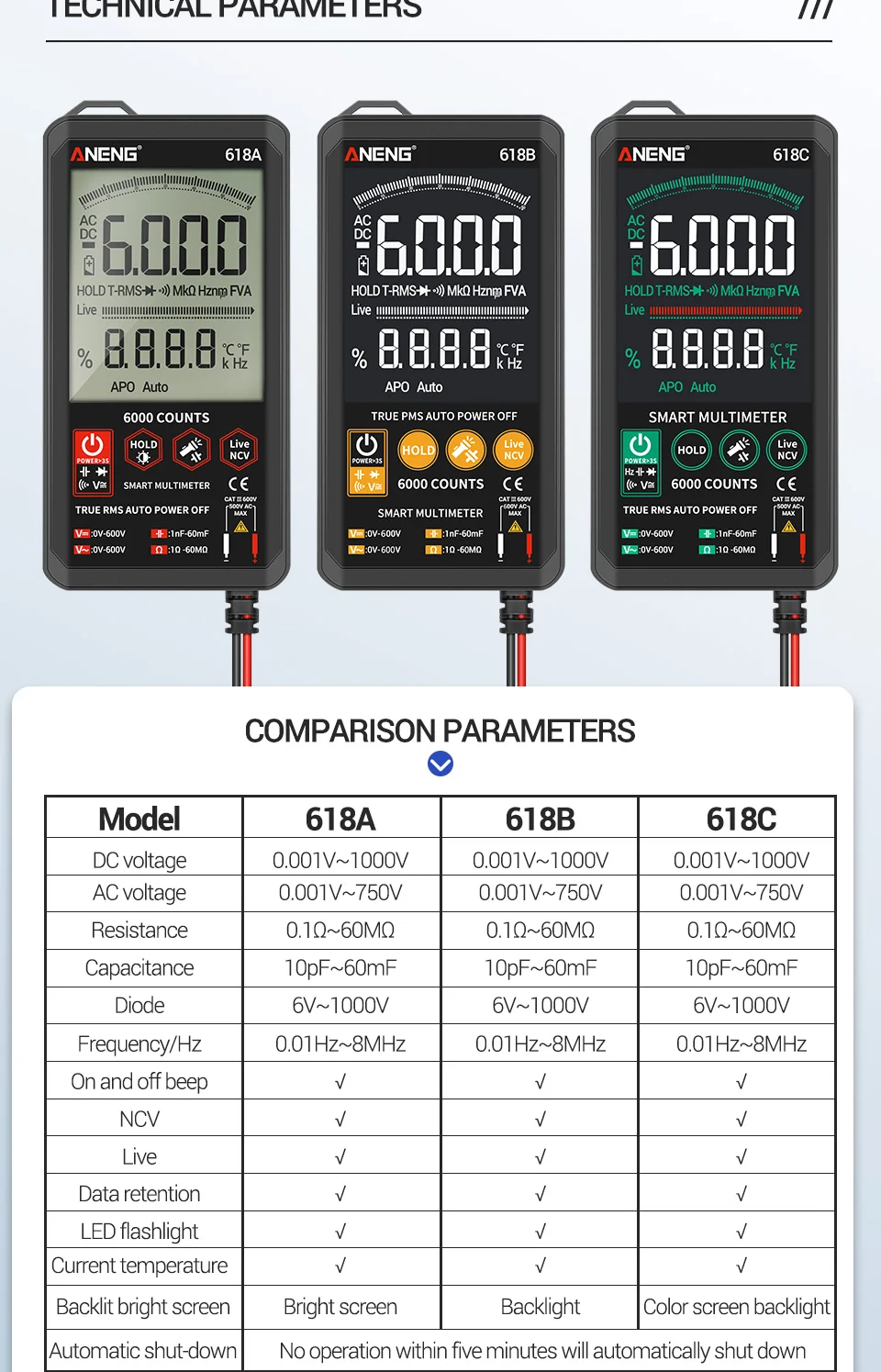

2-2. Performance (Note "▲" indicates that the meter has this function)

Function	618B	618C
DC voltage DCV	▲	▲
AC voltage ACV	▲	▲
Resistor	▲	▲

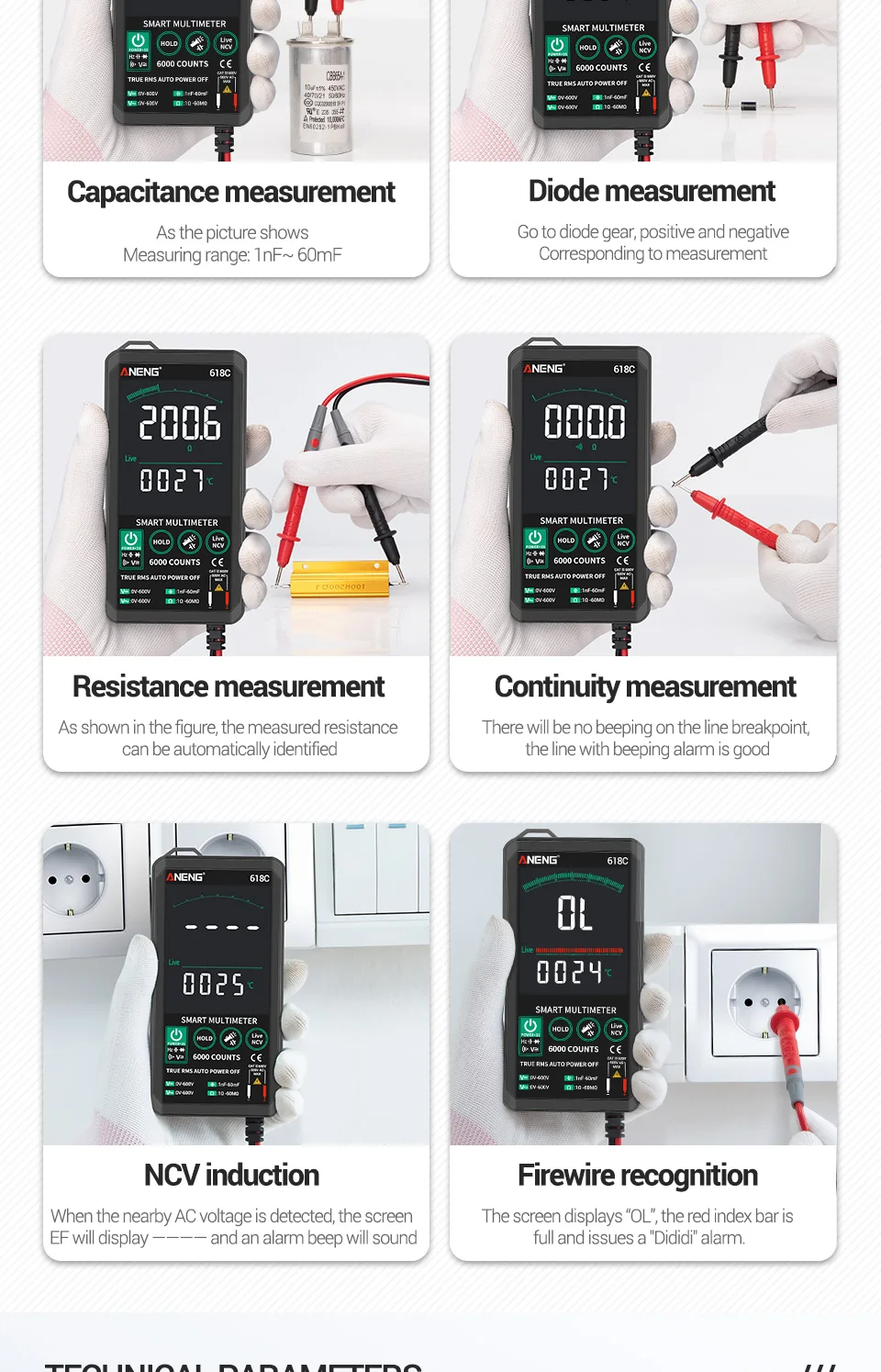

Diode / On-Off Test / Capacitor	▲	▲
Frequency F	▲	▲

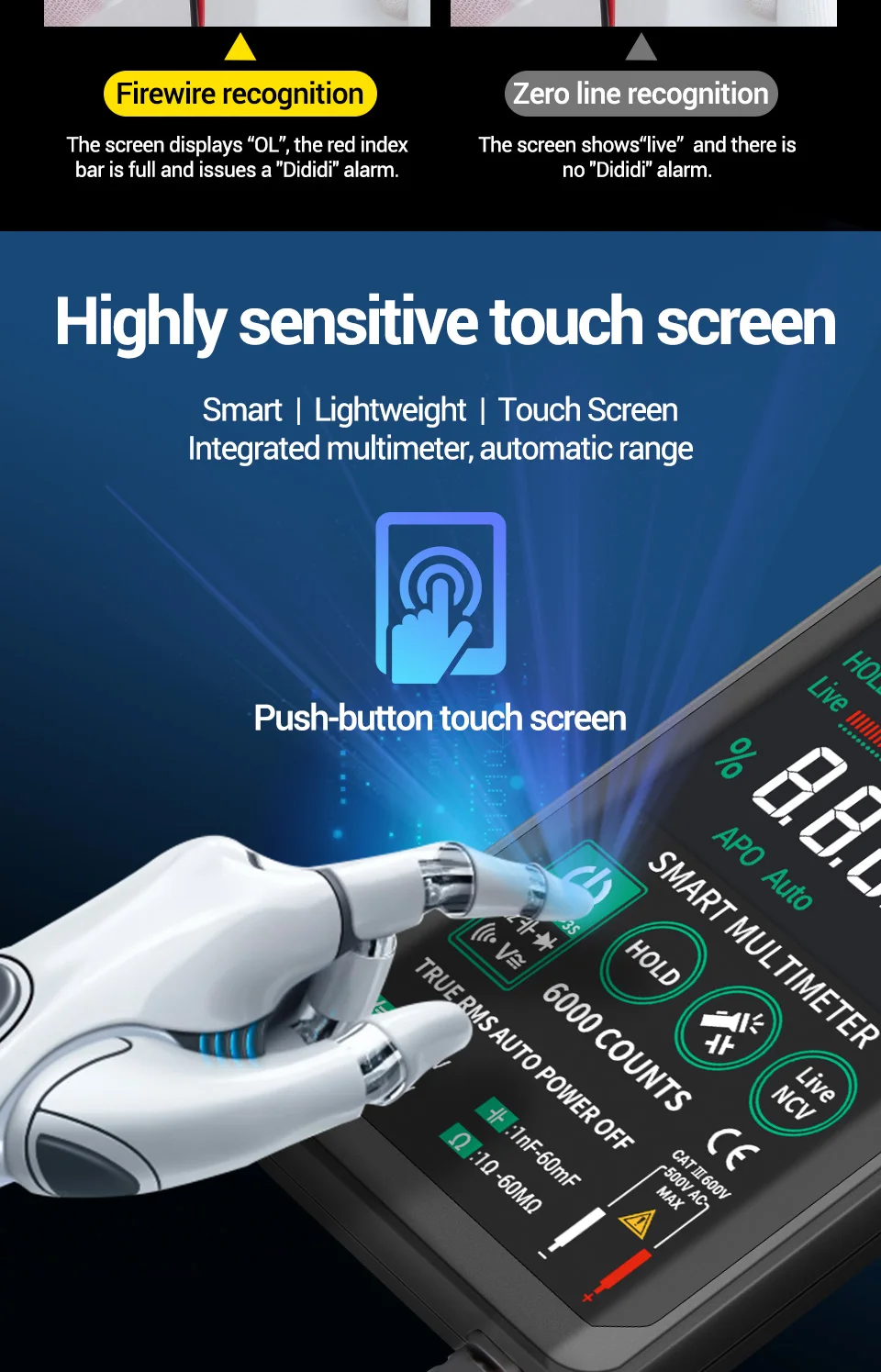

Touch key	▲	▲
Continuous power operation	▲	▲

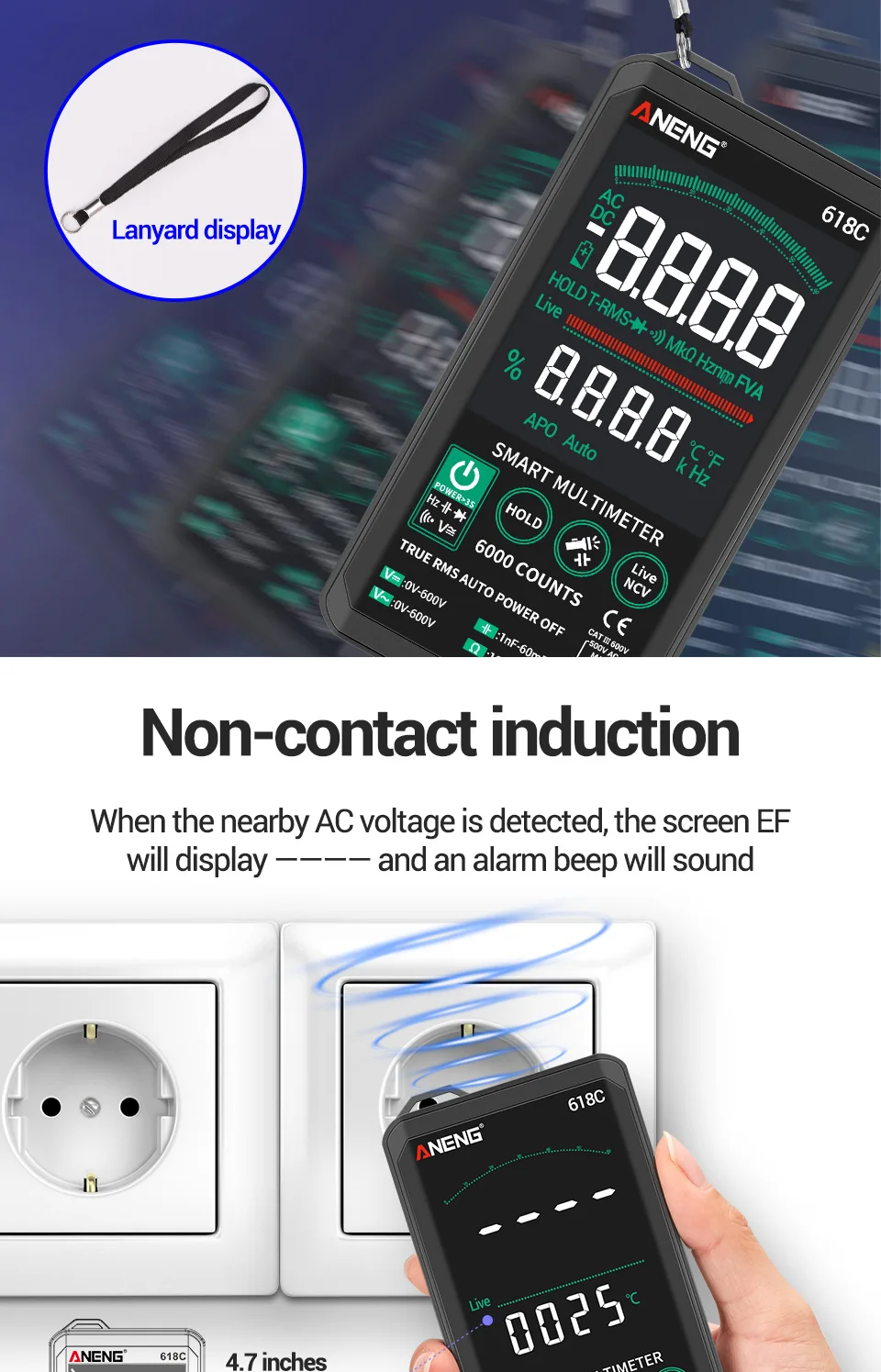

NCV	▲	▲

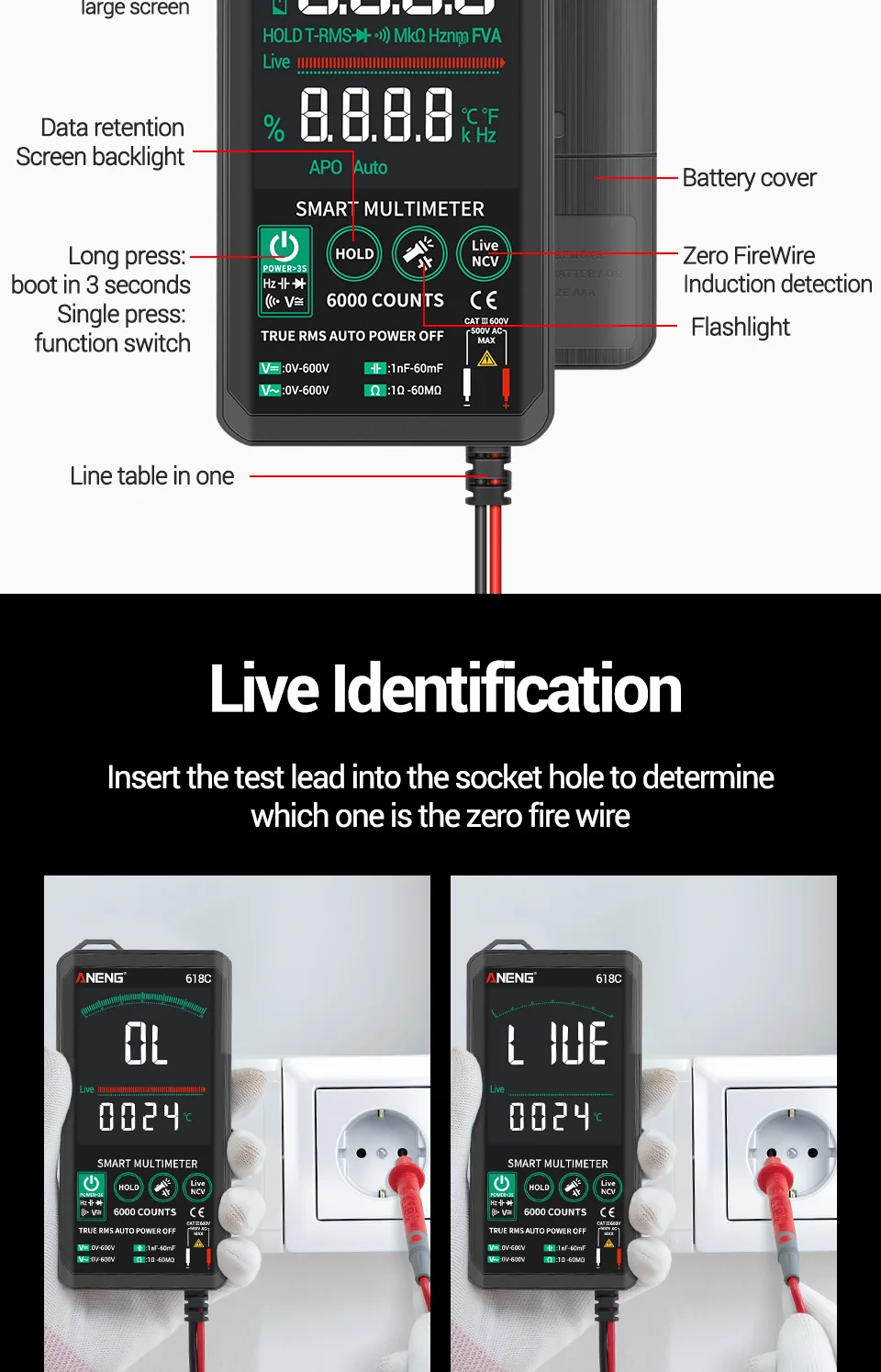

Zero line / Fire line test	▲	▲
Full unit symbol	▲	▲
Backlight manual/Auto off	▲	▲
True RMS measurement	▲	▲
Temperature(℃/℉)	▲	▲

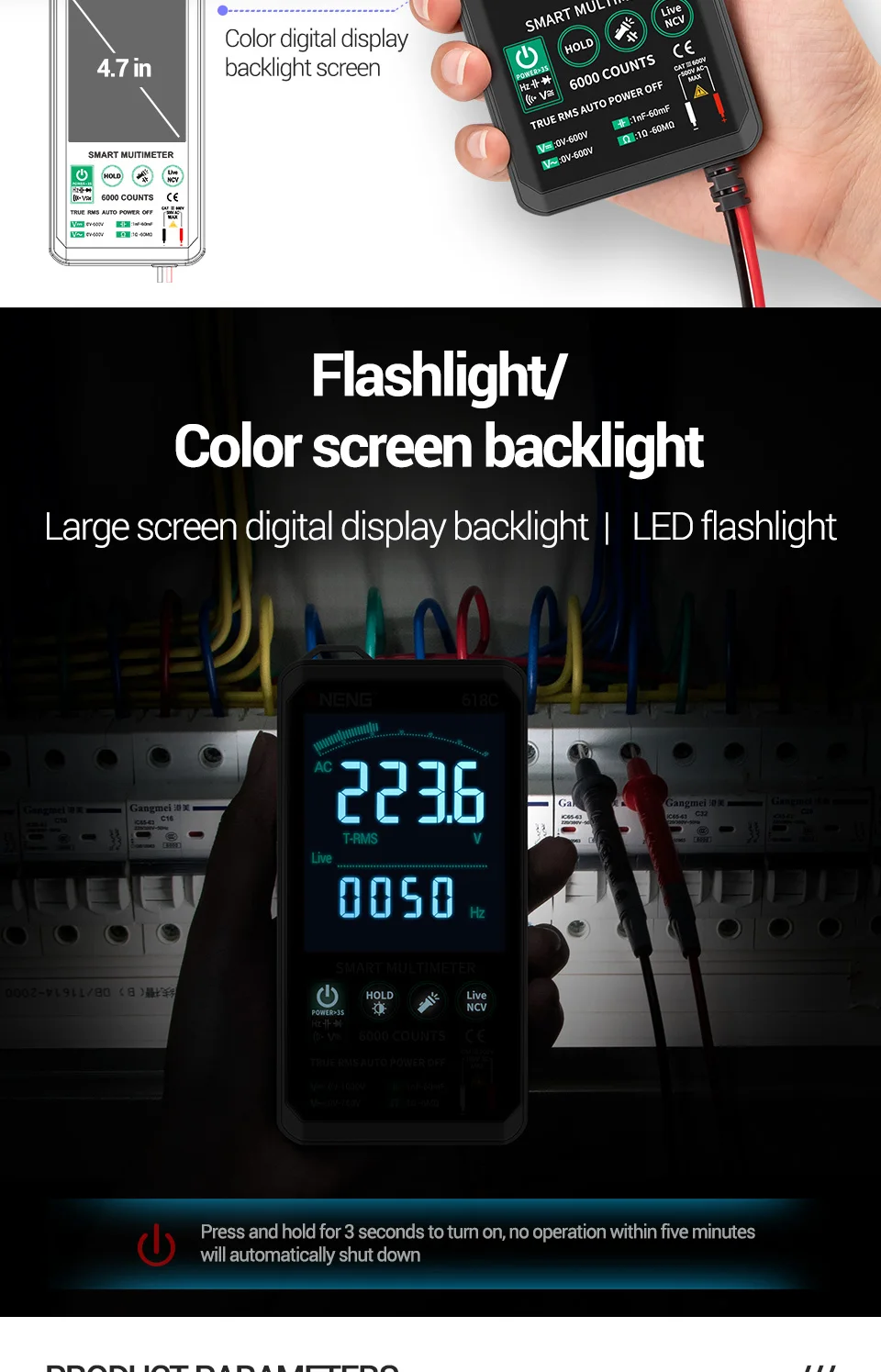

Flashlight lighting	▲	▲

	Range	Accuracy

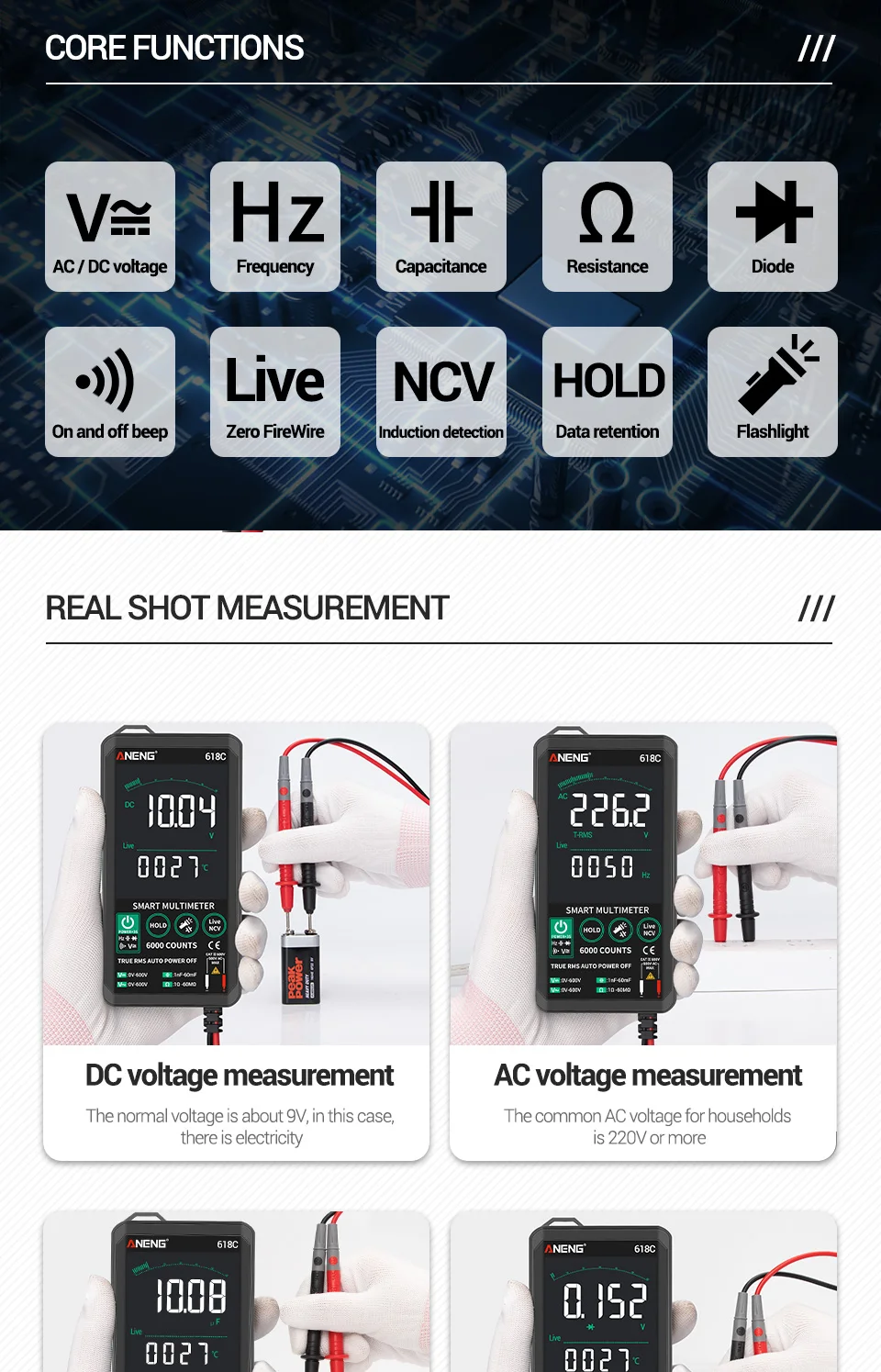

DCV / ACV	6V/60V/600V	±(0.5%+3)
DCV / ACV	DC1000V/AC750V	±(0.8%+10)
Resistance	600Ω	±(0.8%+5)
	6kΩ/60kΩ/600kΩ/6MΩ	±(0.8%+3)
	60MΩ	±(2.5%+3)
Capacitance	10nF/100nF /1uF/10uF/100uF/1mF/10mF	±(3.5%+20)
	60mF	±(5%+3)
Frequency	10Hz/100Hz/1kHz/10kHZ/100kHz/1MHz/10MHz(only 618C)	±(0.1%+3)
