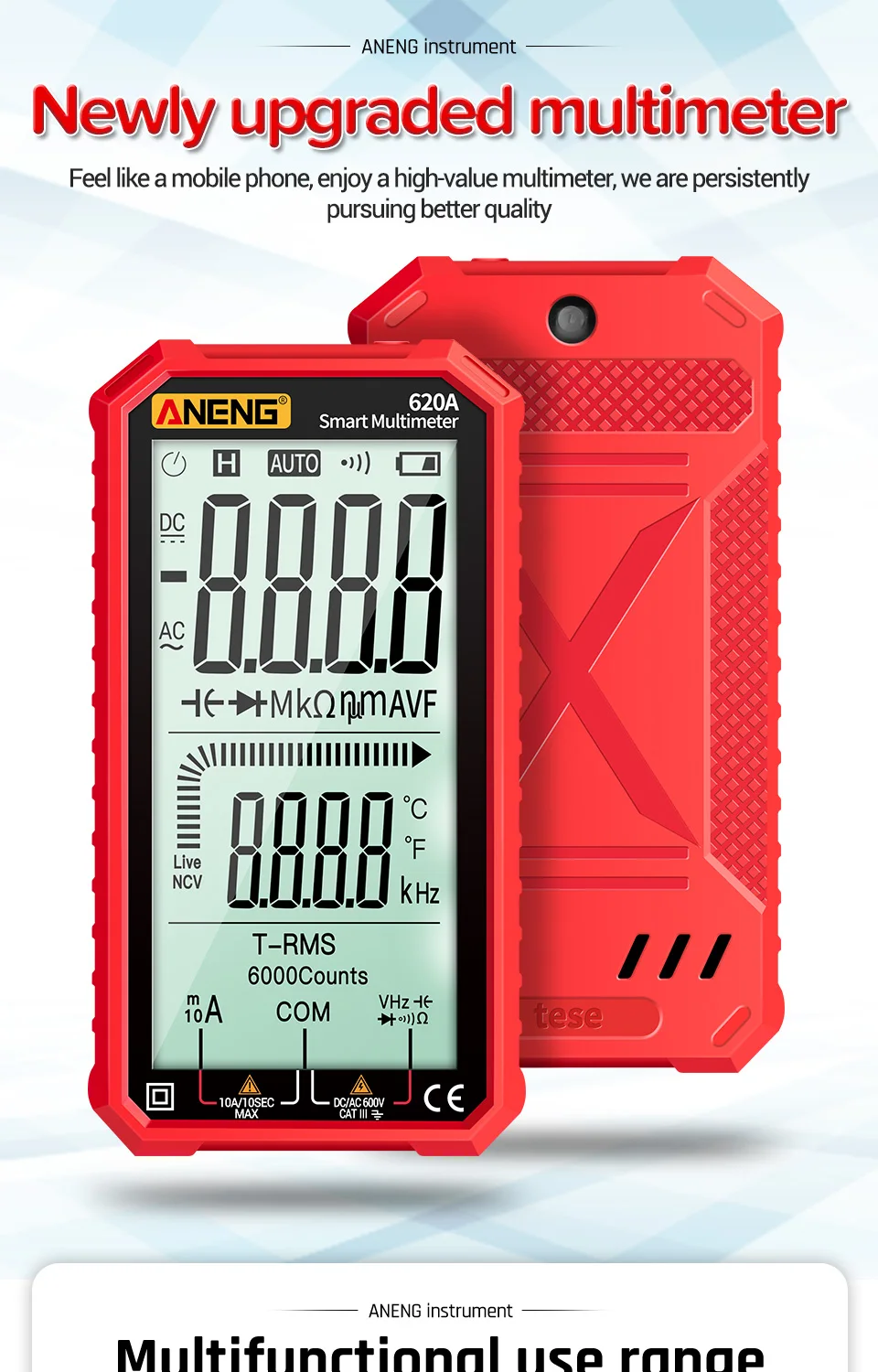

ANENG 620A Digital Smart Multimeter Transistor Testers 6000 Counts True RMS Auto Electrical Capacitance Meter Temp Resistance

ANENG 620A Digital Smart Multimeter Transistor Testers 6000 Counts True RMS Auto Electrical Capacitance Meter Temp Resistance

$134.36

$134.36 $0.00

Description

SPECIFICATIONS

AC Current: 6000mA/10A

AC Voltage: 6V/60V/600V

AC/DC Current: Yes

AC/DC Voltage: Yes

Battery Included: no

Brand Name: ANENG

Certification: CE

DC Current: 6000mA/10A

DC Voltage: 6V/60V/600V

DIY Supplies: Electrical

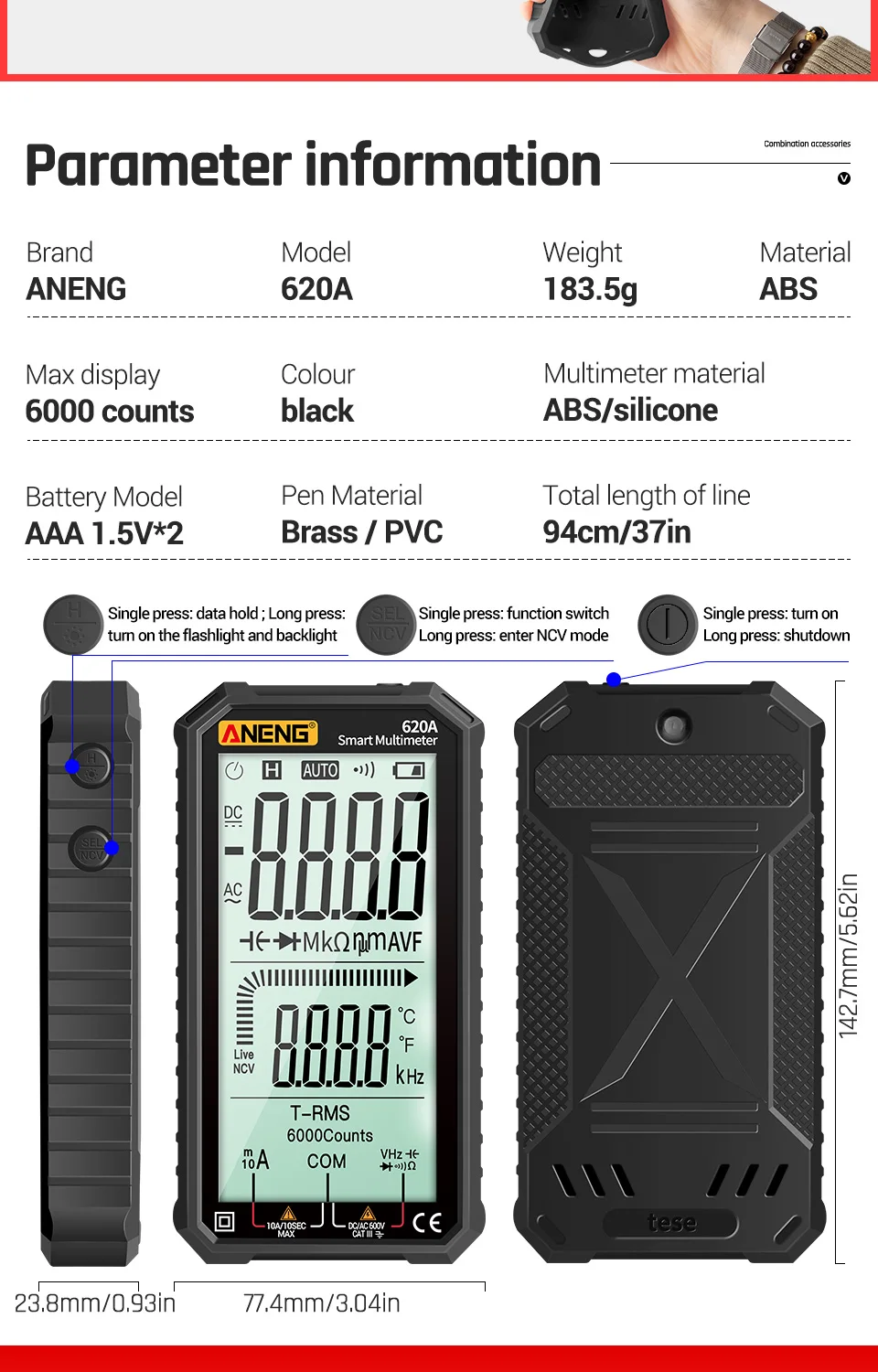

Dimensions: 142.7x77.4x23.8mm

Display Type: Digital Display

Display(LCD): 6000 Counts

High-concerned chemical: none

Hz: Yes

Is Smart Device: no

Measuring Capacitance Range: 6nF/60nF/6uF/60uF/600uF/6mF/60mF

Measuring Inductance Range: 100Hz/1000Hz

Measuring Resistance Range: 600/6k/60k/600k/6M/60M

Model Number: 620A Multimeter

NCV: Yes

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Resistance: Yes

Temperature: Yes

Zero fire line: Yes

data retention: Yes

diode: Yes

A.Overview:
Dispaly: LCD
Max. display value:6000 digit
Automatic shut down time:15 minutes
power supply:2*1.5V AAA Battery (Without)
The instrument specifies one year as a cycle,and shall be re-calibrated under 18℃~28℃,with relative humidity less than 75%.

B.Specification:

Function	Range	Accuracy

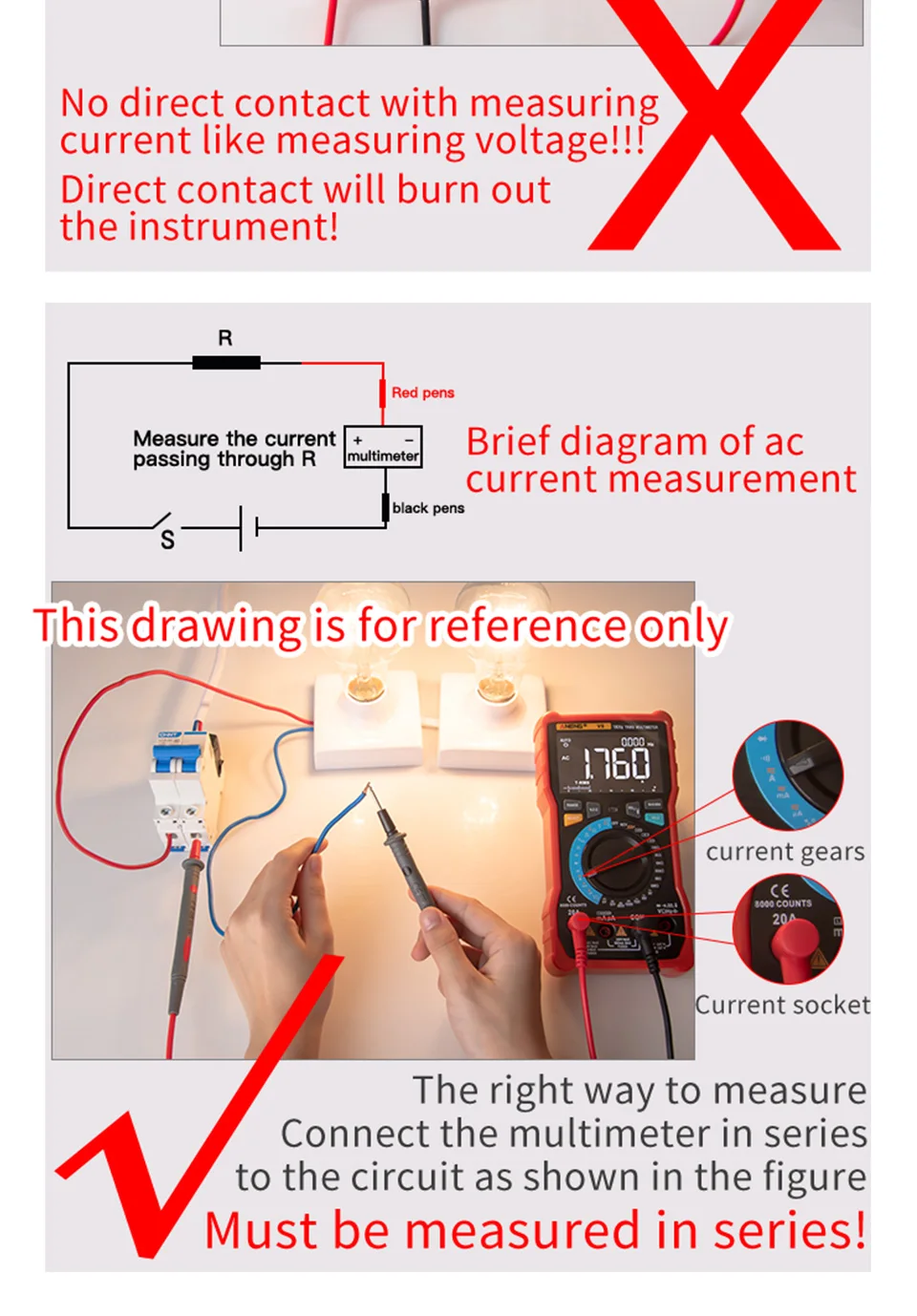

AC Current	6000mA/10A	+-(1.0%reading+8 digits)
DC Current	6000mA/10A	+-(1.0%reading+5 digits)
DC Voltage	6V/60V/600V	+-(0.5%reading+3 digits)

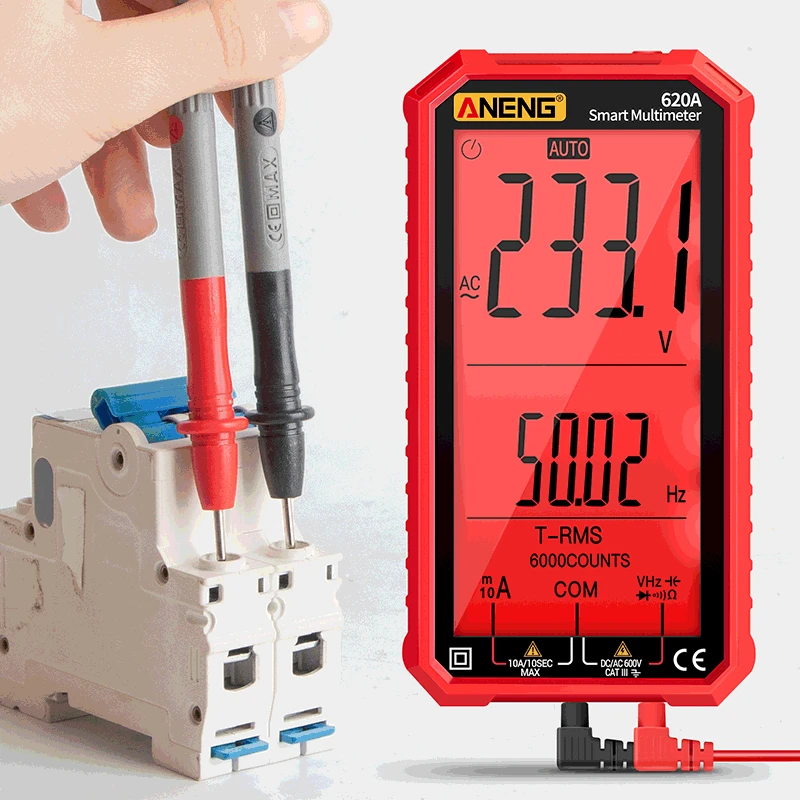

AC Voltage	6V/60V/600V	+-(0.8%reading+5 digits)
Line on-off Test	--	1Ω

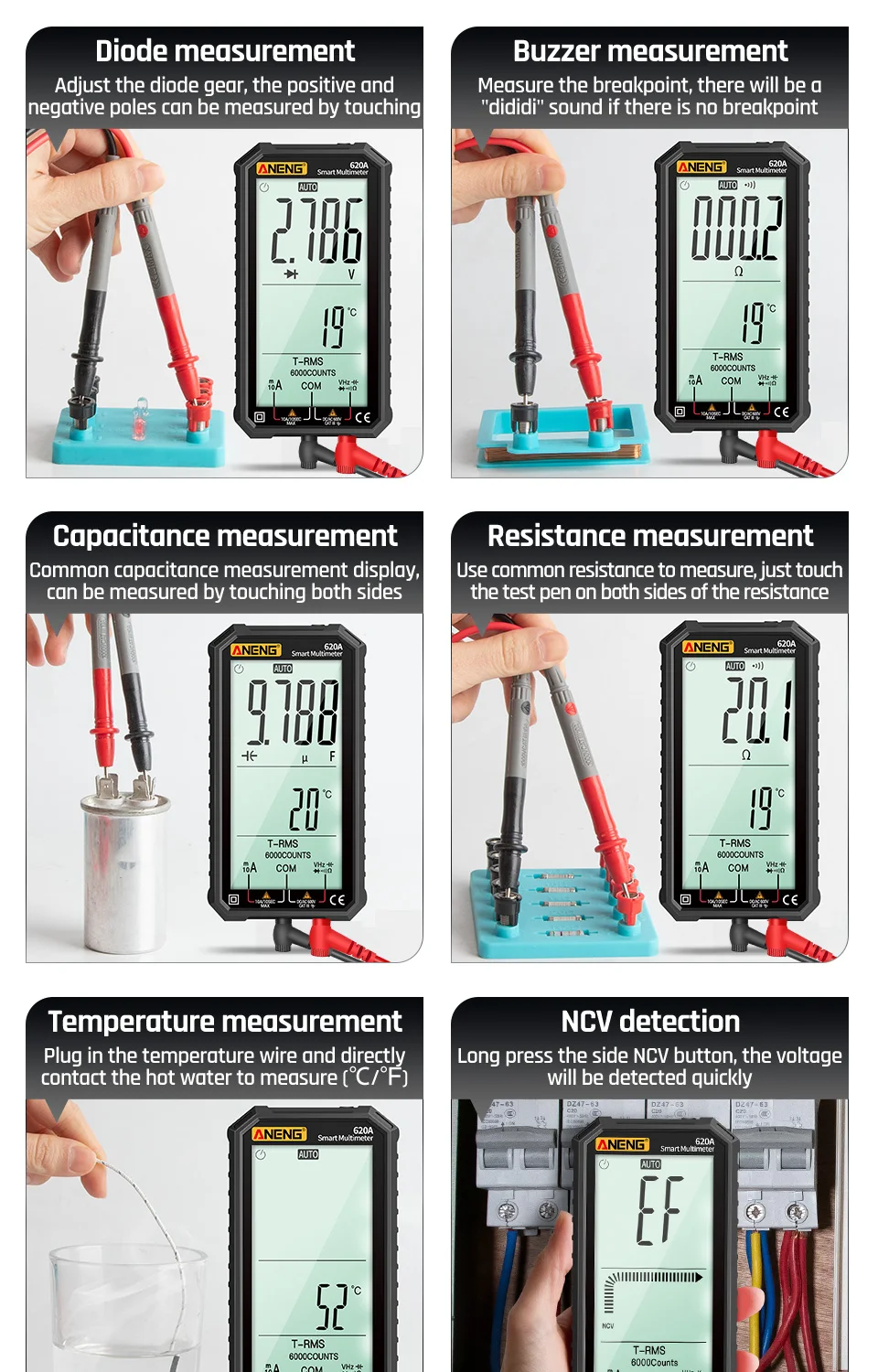

Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	+-(0.8%reading+3 digits)
Diode Test	--	1V
Capacitor	6nF	+-(10%reading+40 digits)
	60nF/6uF/60uF/600uF/6mF/60mF	+-(2.5%reading+20 digits)
Temperature	-40~1000℃	+-(1%reading+3℃)
	-40~1832℉	+-(1%reading+3 ℉ )
Frequency	100Hz/1000Hz	+-(1.0%reading+5 digits)
	100Hz/1000Hz	+-(1.0%reading+5 digits)
