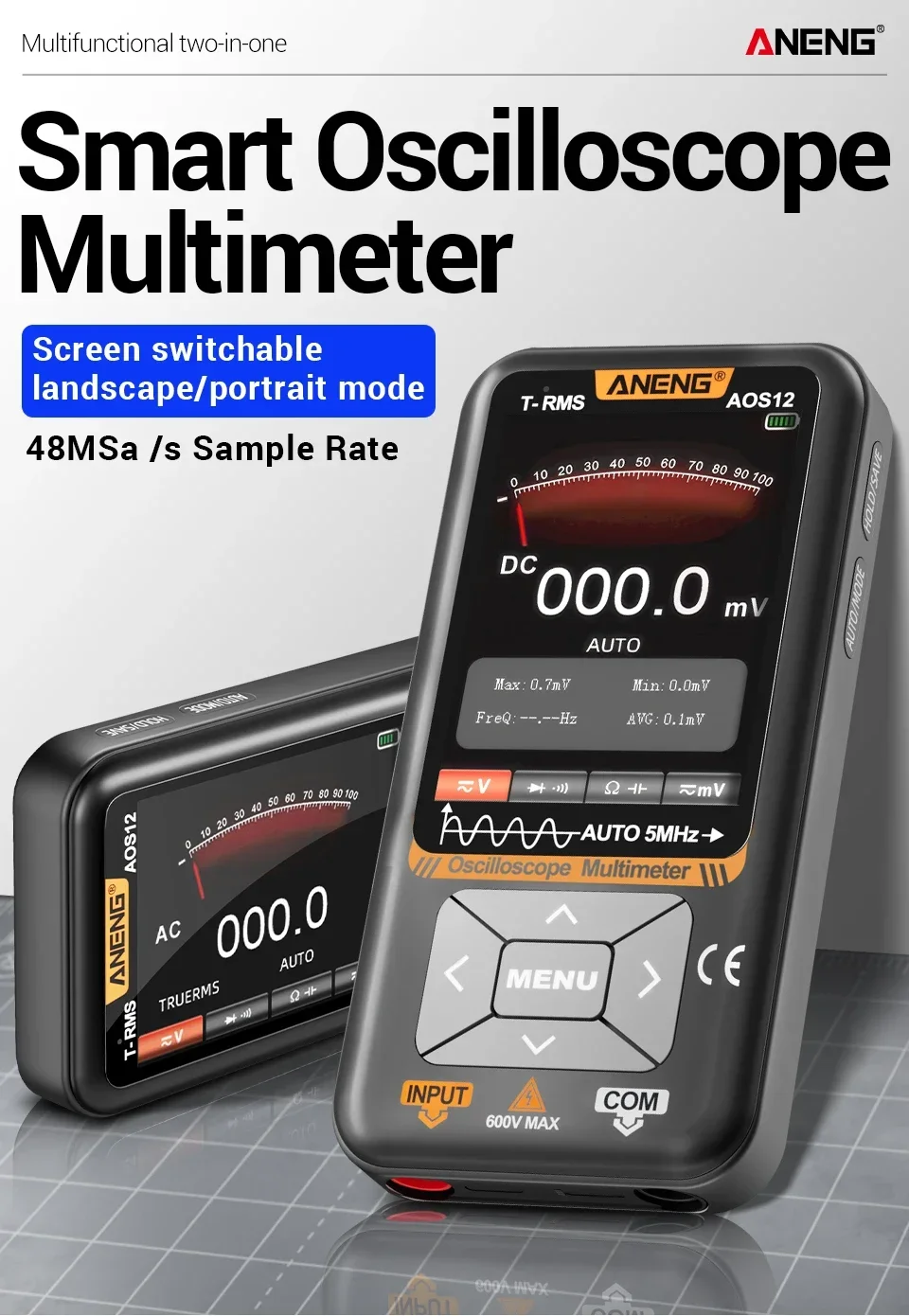

ANENG AOS12 2-in-1 Handheld Digital Oscilloscope Multimeter True RMS 9999 Counts 5MHz 48MSa/s Sampling Rate AC DC Voltage Curren
AOS12
$406.28
Sale price
$406.28
Regular price
$0.00
Skip to product information
Oscilloscope technical specifications:
ANENG AOS12 2-in-1 Handheld Digital Oscilloscope Multimeter True RMS 9999 Counts 5MHz 48MSa/s Sampling Rate AC DC Voltage Curren
$406.28
Sale price
$406.28
Regular price
$0.00
Description
SPECIFICATIONS
Band Width: Less than 60MHz
Battery Included: no
Brand Name: NONE
Certification: CE
DIY Supplies: Electrical
Digital Channels: 1
High-concerned chemical: none
Model Number: AOS12
Origin: Mainland China
Record Length: /
Semi-finishedproduct: No
ANENG AOS12 9999 Counts 2-in-1 Oscilloscope MHZ 48MSa/s Sampling Portable Professional Multifunctional Oscilloscope Tester Tools
Core Selling Points
2-in-1 Multifunctional Design：Combines an oscilloscope and a digital multimeter in one compact device, perfect for electrical testing, electronic repair, and DIY projects.
5MHz Bandwidth & High Precision Sampling：Delivers accurate waveform display with a 5MHz bandwidth and 48MSa/s sampling rate, ideal for capturing fast-changing signals.
True RMS Measurement：Supports true RMS voltage/current measurement for both AC and DC, ensuring stable and reliable readings in complex circuits.

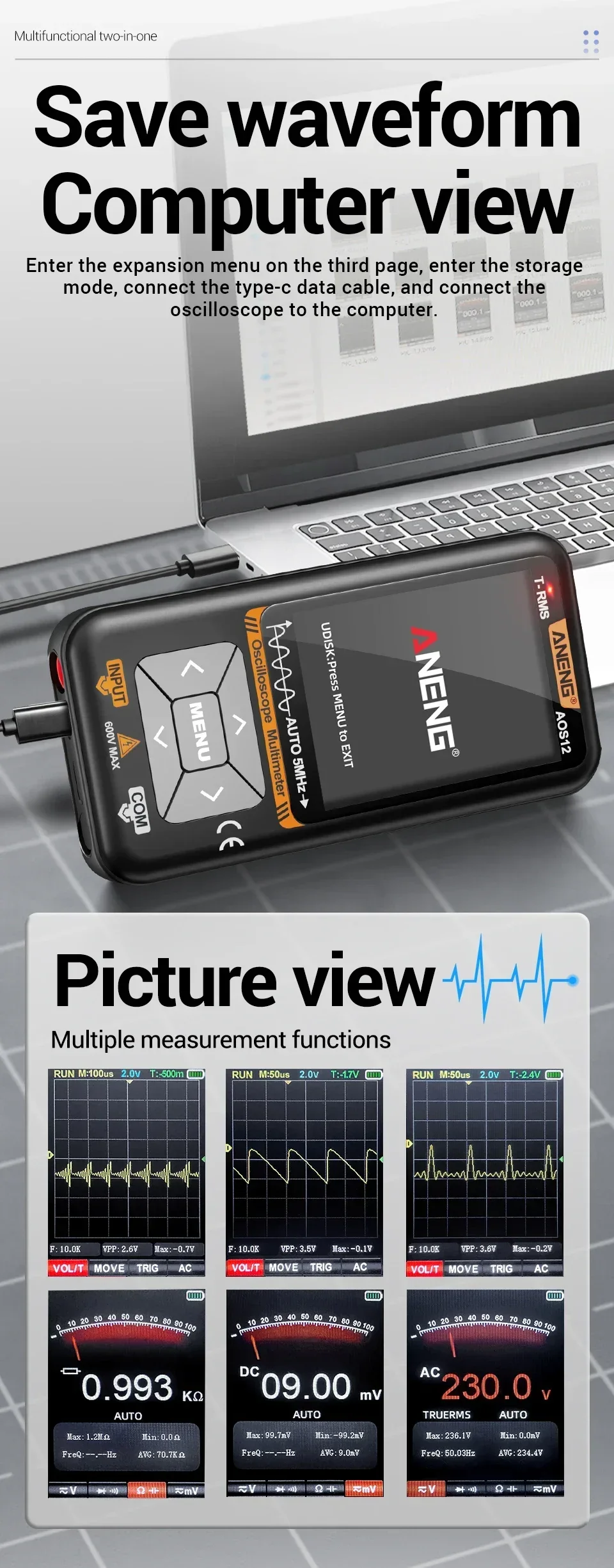

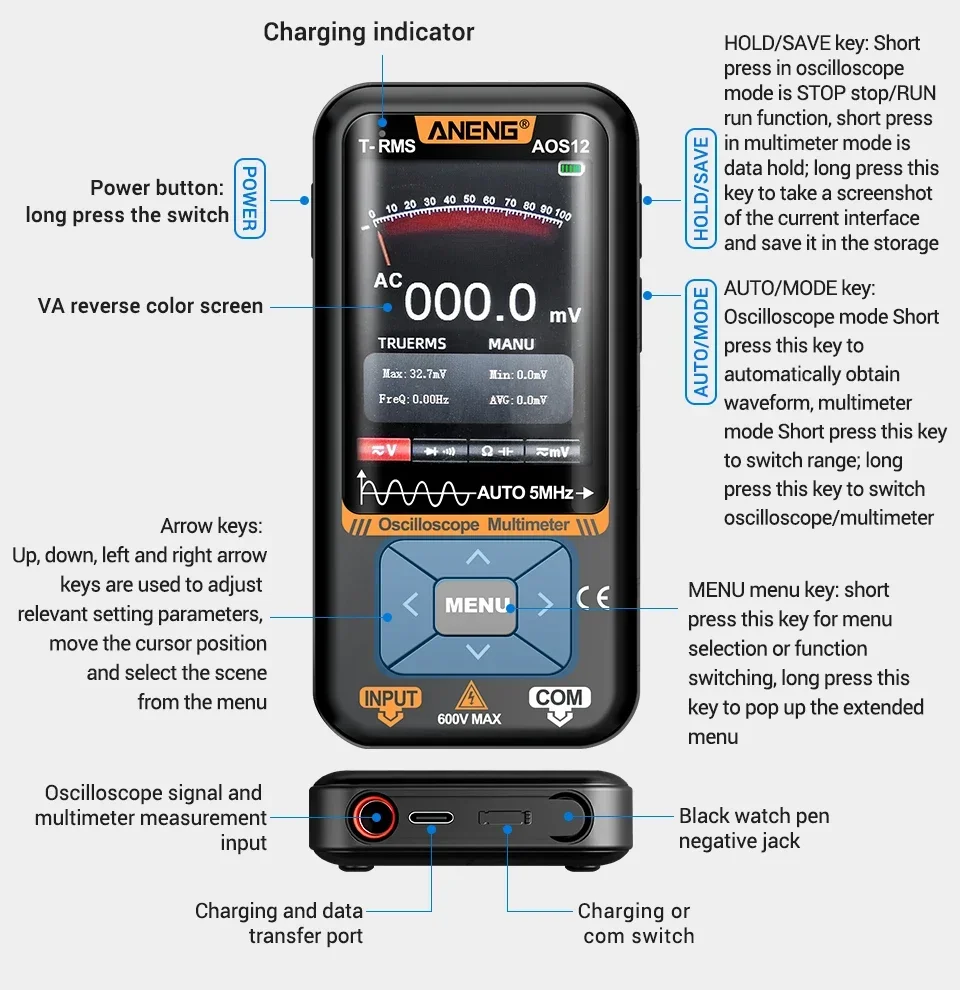

Waveform Storage & Screen Switching：Built-in waveform storage function lets you save and review data; dual screen modes (DC/AC) are switchable for different testing needs.
Bilingual Support：Comes with Chinese/English menu options, easy to operate for users worldwide.
Portable & User-Friendly：Compact handheld design with a clear color display, powered by AAA batteries for on-the-go testing.
Safety Certified：600V MAX voltage rating meets safety standards for daily electrical maintenance and troubleshooting.

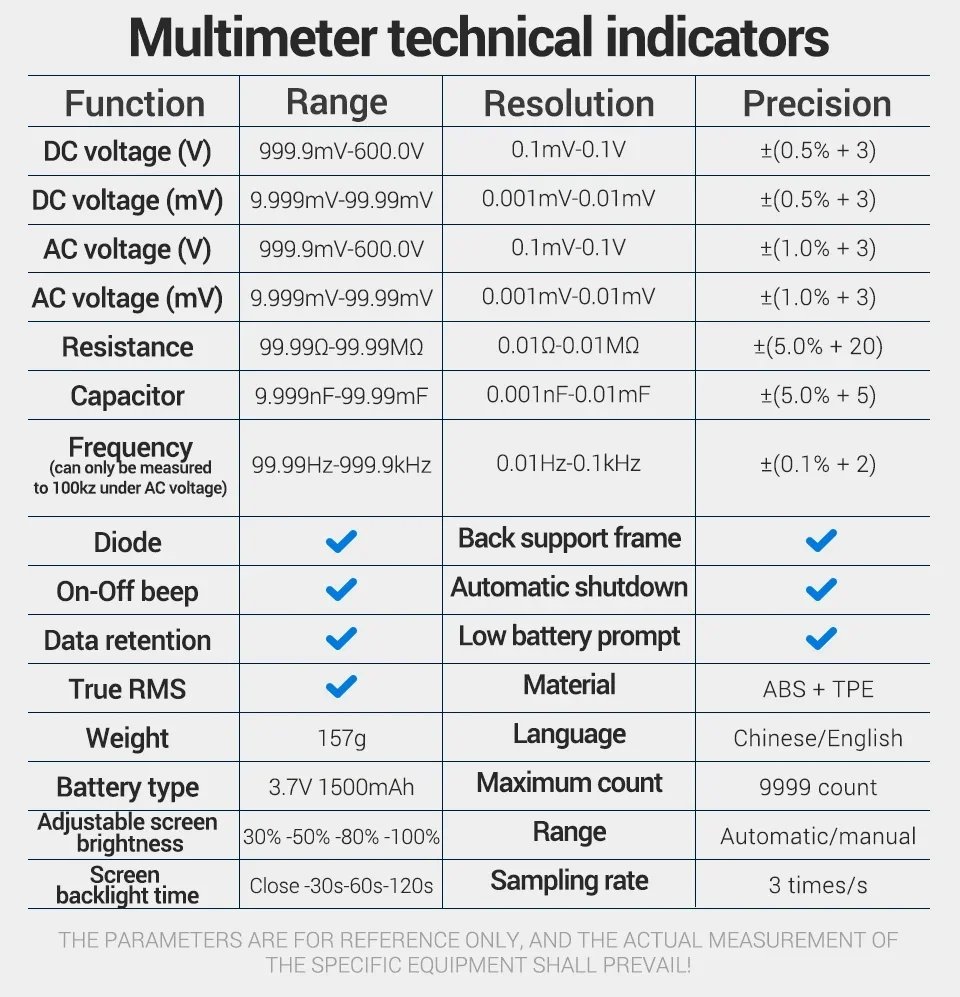

Multimeter technical indicators :
Function |
Range |
Resolution |
Precision |
DC voltage (V) |
999.9mV-600.0V |
0.1mV-0.1V |
±(0.5%+ 3) |
DC voltage (mV) |
9.999mV-99.99mV |
0.001mV-0.01mV |
±(0.5%+ 3) |
AC voltage (V) |
999.9mV-600.0V |
0.1mV-0.1V |
±(1.0%+ 3) |
AC voltage (mV) |
9.999mV-99.99mV |
0.001mV-0.01mV |
±(1.0%+ 3) |
Resistance |
99.990-99.99M0 |
0.01Q-0.01MQ |
±(5.0% + 20) |
Capacitor |
9.999nF-99.99mF |
0.001nF-0.01mF |
±(5.0%+ 5) |
Frequency |
99.99Hz-999.9kHz |
0.01Hz-0.1kHz |
+(0.1%+ 2) |
Diode |
√ |
Back support frame |
√ |
On-Off beep |
√ |
Automatic shutdown |
√ |
Data retention |
√ |
Low battery prompt |
√ |
True RMS |
Material |
ABS + TPE |
|

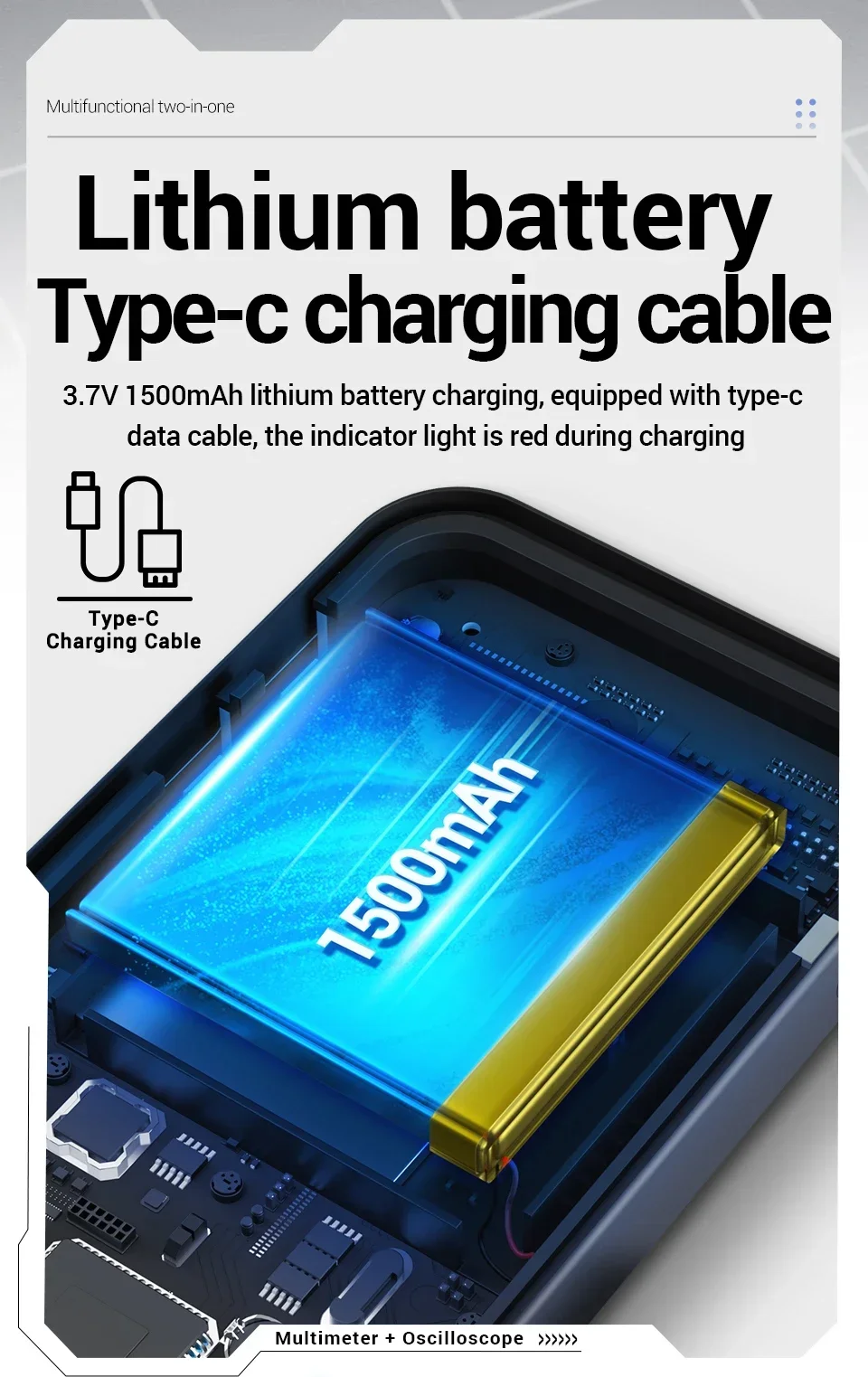

Battery type |
3.7V 1500mAh |
Language |
Chinese/English |

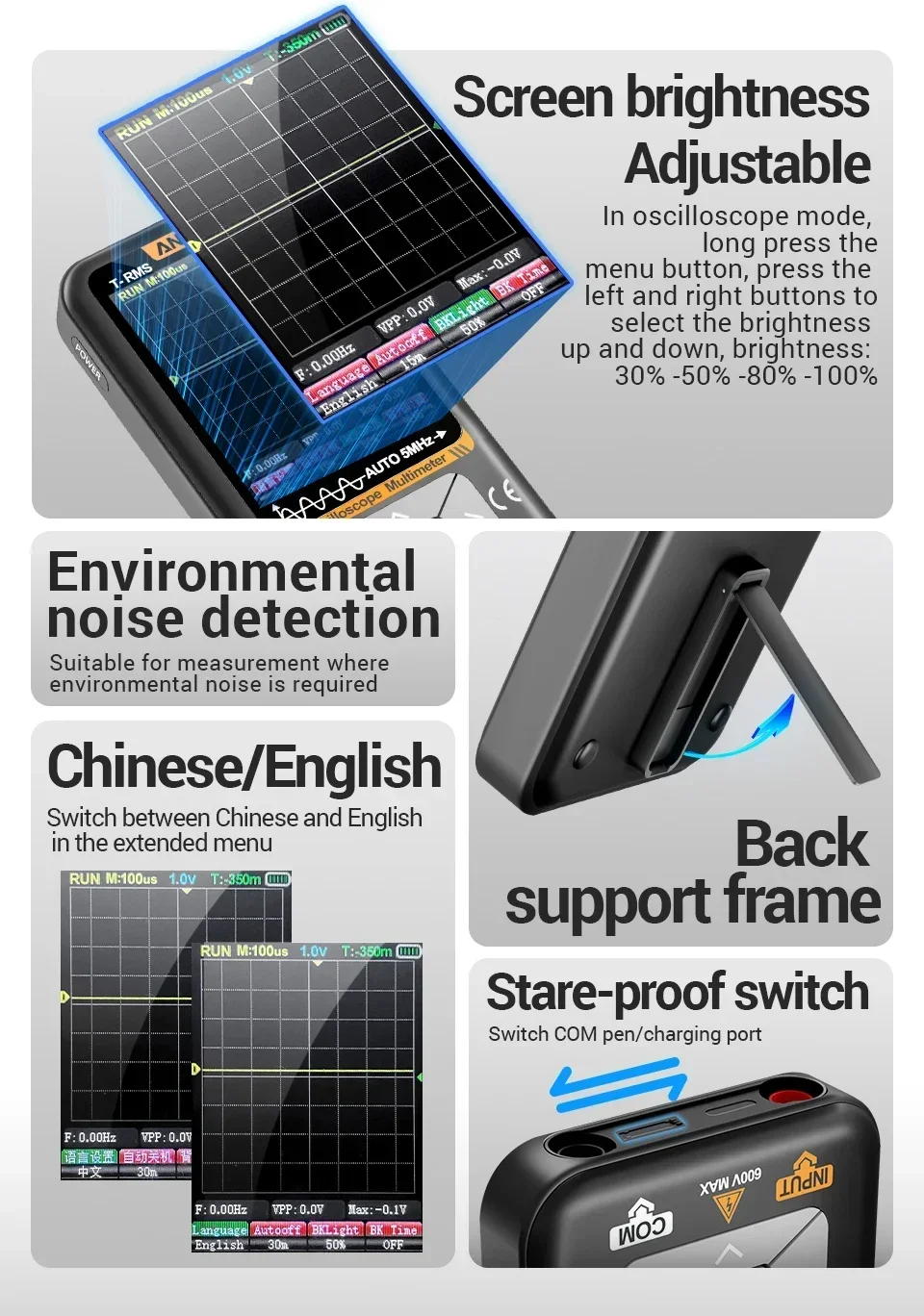

Adjustable screen brightness |
30%-50%-80%-100% |
Maximum count |
9999 count |
Screenbacklight time |
Close-30s-60s-120s |
Range |
Automatic/manua |
Sampling rate |
3 times/s |

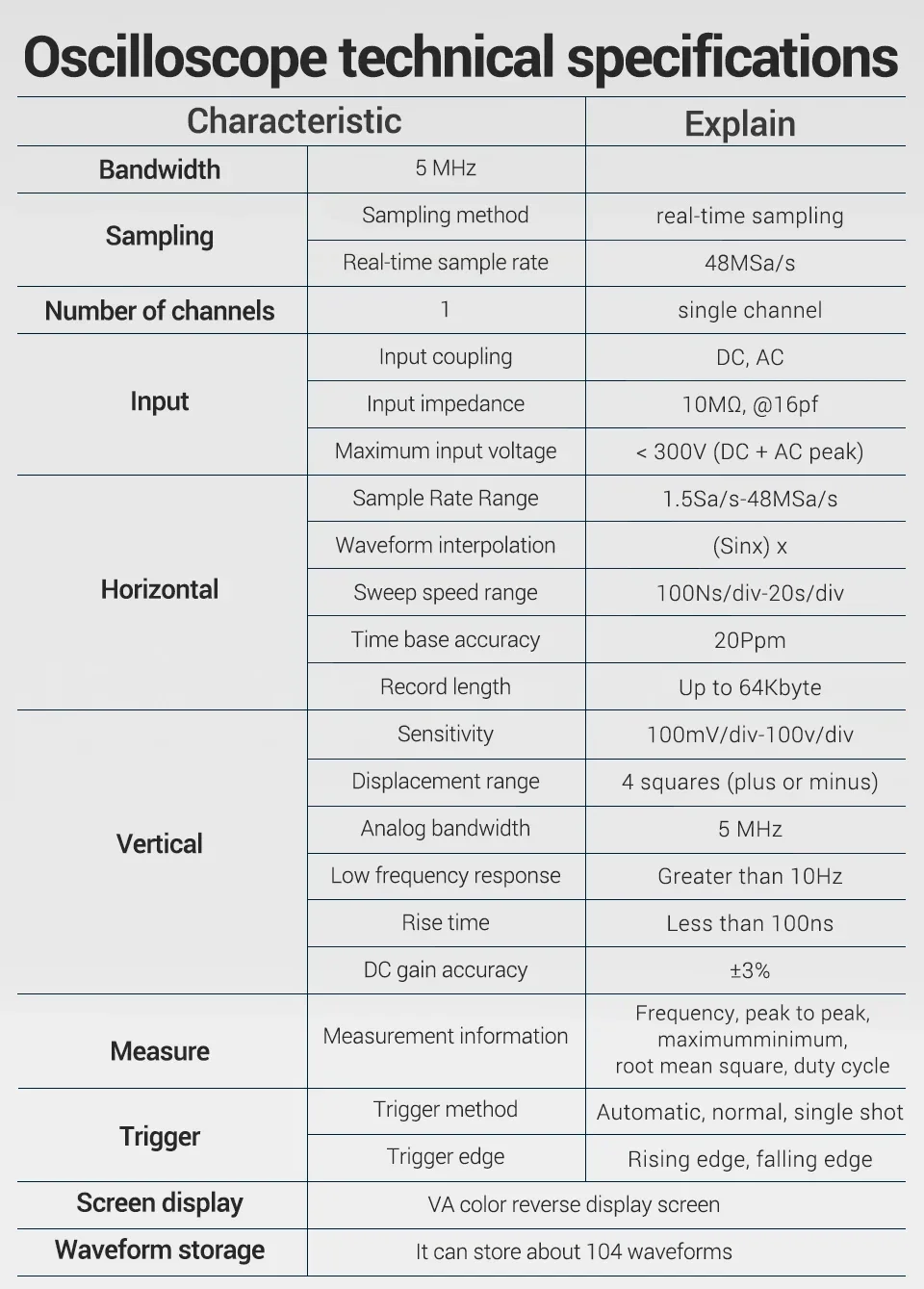

Oscilloscope technical specifications:
Item |
Specification |
Bandwidth |
5 MHz |
Real-time Sampling Rate |
48MSa/s |
Channels |
1 Single Channel |
Input Coupling |
DC / AC |
Input Impedance |
10MΩ @16pF |
Max Input Voltage |
<300V (DC + AC peak) |
Horizontal Sweep Speed |
100Ns/div ~ 20s/div |
Vertical Sensitivity |
100mV/div ~ 100V/div |
Record Length |
Up to 64Kbyte |
Waveform Storage |
Up to 104 Waveforms |
Trigger Mode |
Auto / Normal / Single Shot |
Trigger Edge |
Rising / Falling Edge |
Display |
VA Color Reverse Display Screen |

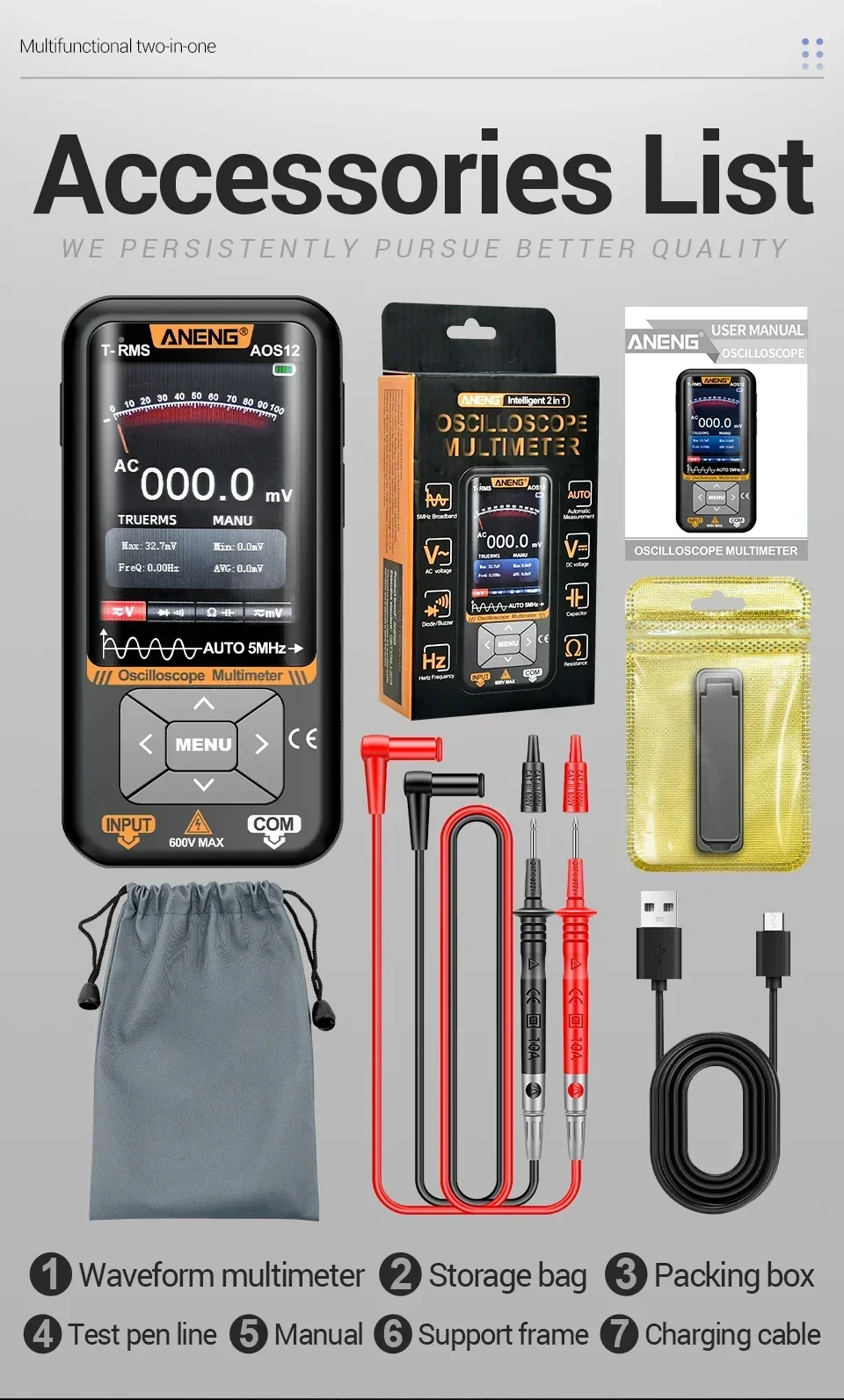

Package Include:
according to your choice
according to your choice
