ANENG M109 Smart Multimeter Tester AC/DC Voltage Voice Broadcast Meter NCV Capacitance Continuity Professional Electrical Tools
M109 Red without box
$42.08
Sale price
$42.08
Regular price
$0.00
Skip to product information
Features(M109):
Packing List: （Without Battery）
1 * User Manual
1 * Test leads
1 * M109 Digital Multimeter
ANENG M109 Smart Multimeter Tester AC/DC Voltage Voice Broadcast Meter NCV Capacitance Continuity Professional Electrical Tools
$42.08
Sale price
$42.08
Regular price
$0.00
Description
SPECIFICATIONS
AC Current: 400mA/2A
AC Voltage: 4V/40V/400V/500V
ANENG Model: M109
Battery Included: no
Brand Name: ANENG
Certification: CE
Choice: yes
DC Current: 400mA/2A
DC Voltage: 4V/40V/400V/500V
DIY Supplies: Electrical
Dimensions: /
Display Type: Digital Display
High-concerned chemical: none
Is Smart Device: no
Measuring Capacitance Range: /
Measuring Inductance Range: /
Measuring Resistance Range: 4k~20M Ohm
Model Number: M109 Mini Digital Multimeter
Operating Mode: Auto Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
Semi-finishedproduct: No
A NENG M109 Digital Multimeter Smart Voice Broadcast AC/DC Voltage Meter NCV Capacitance Coutinuity Profesional Electrical Tester Tools
Introduction:

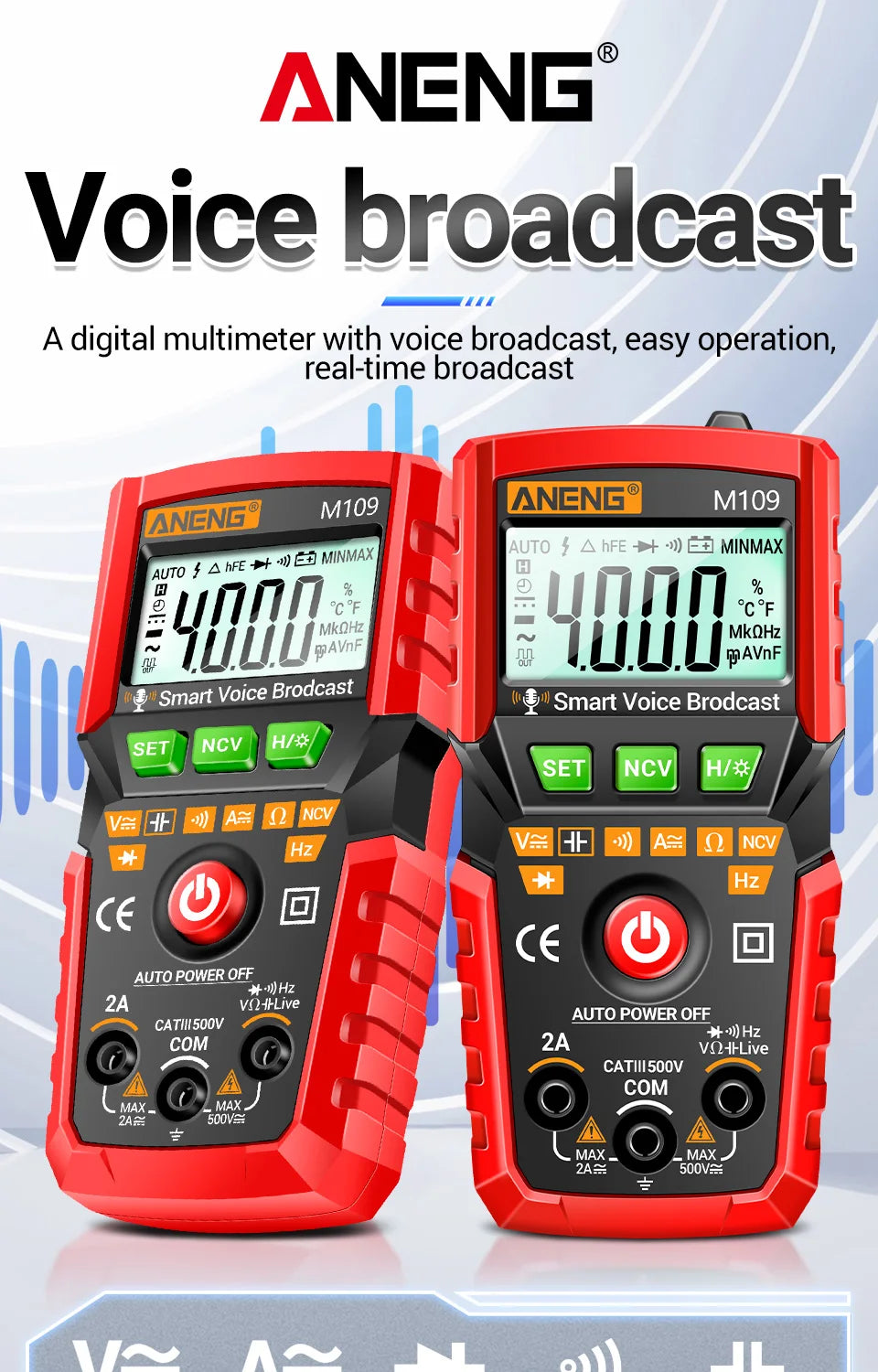

M109 is a Smart Voice Broadcast battery-powered,auto-ranging, mini digital multimeter with a 4000 counts LCD display.
M109 is a Smart Voice Broadcast battery-powered,auto-ranging, mini digital multimeter with a 4000 counts LCD display.
Features(M109):
Brand |
ANENG |
Modle |
M109 |
Ranging |
Auto |
Display |
4000 counts |
Material |
ABS/PVC |
Ture RMS |
NO |
Diode |
YES |
Resistiance |
YES |
Capacitance |
YES |
Coutinuity |
YES |
NCV |
YES |
Data Hold |
YES |
Backlight |
YES |

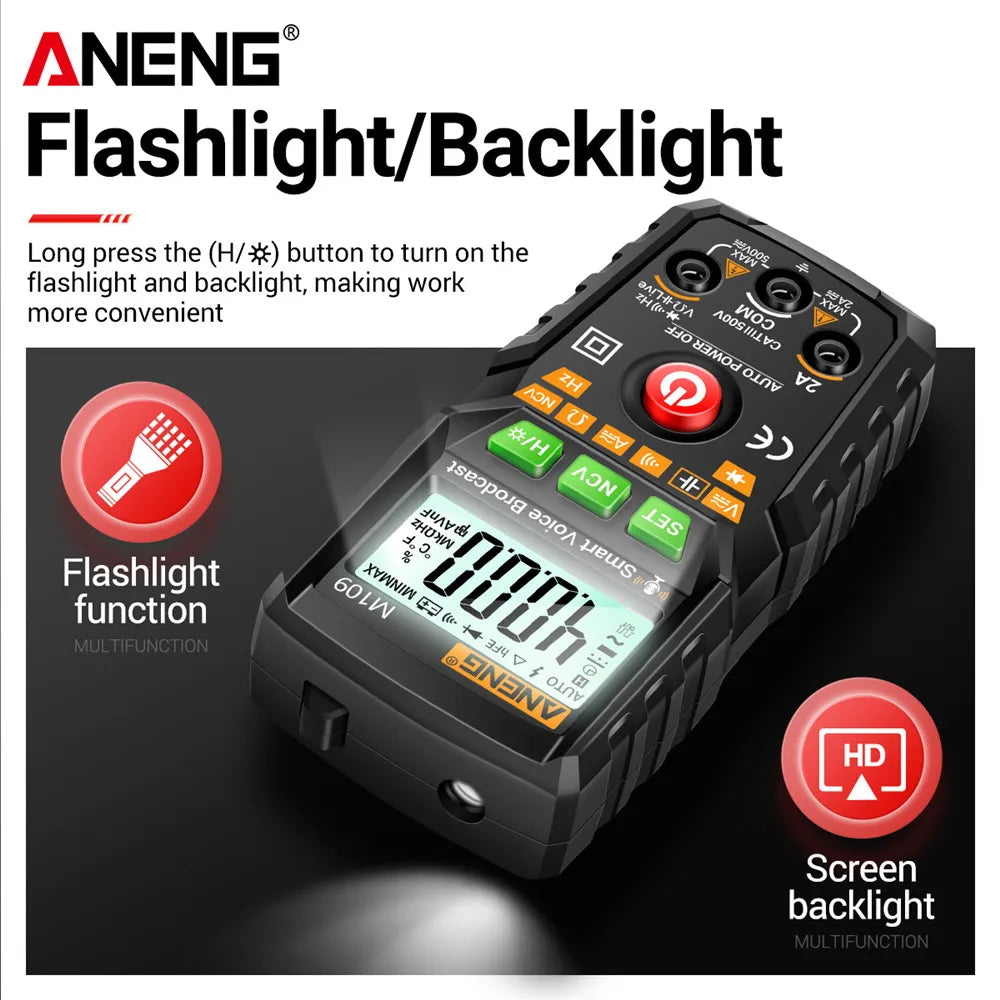

Flashlight |
YES |
Update Rate |
YES |
Power Supply |
2 * 1.5V AAA (not included) |
Low Battery Indication |
YES |
Auto Power Off |
YES |

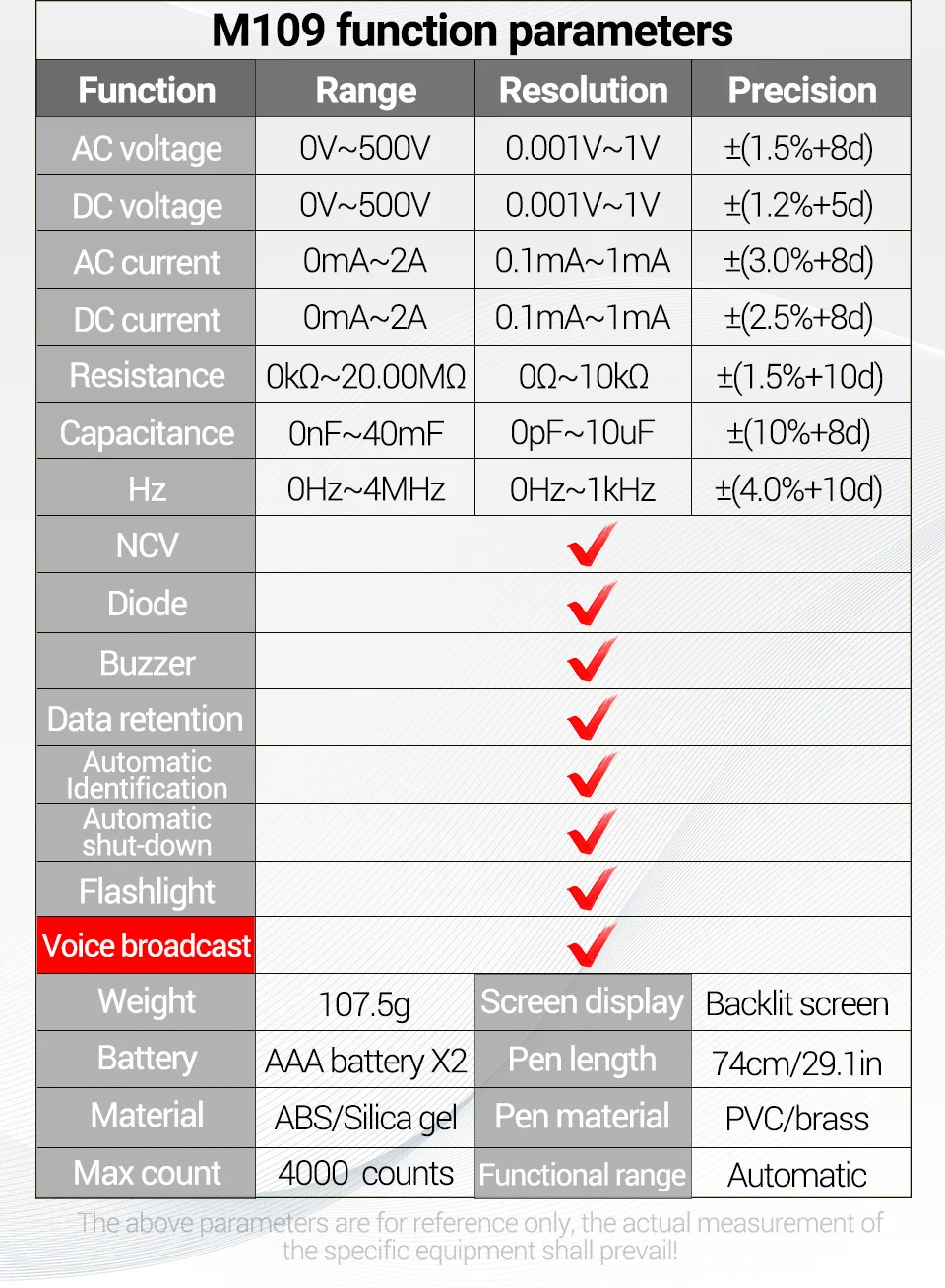

Range |
Accuracy |
|
DC Voltage |
4V/40V |
±(1.0%+5d) |
400V/500V |
±(1.2%+5d) |
|
AC Voltage |
4V/40V |
±(1.2%+5d) |
400V/500V |
±(1.5%+8d) |
|
DCA |
400mA/2A |
±(1.5%+5d)/±(2.5%+8d) |
ACA |
400mA/2A |
±(1.8%+6d)/±(3.0%+8d) |
Capacitance |
4nF/40nF/400nF/4uF/40uF |
±(3.0%+5d) |
400uF |
±(3.5%+5d) |
|
4mF |
±(5.0%+6d) |
|
Resistiance |
4.000kΩ |
±(1.5%+10d) |
40.00kΩ/400.0kΩ/4.000MΩ |
±(1.0%+5d) |
|
20.00MΩ |
±(1.5%+10d) |
|
Frequency |
400Hz/4KHz/40KHz |
±(1.5%+5d) |
400kHz |
±(3.0%+5d) |
|
4MHz |
±(4.0%+10d) |
Operating Temperature |
0～40℃ |

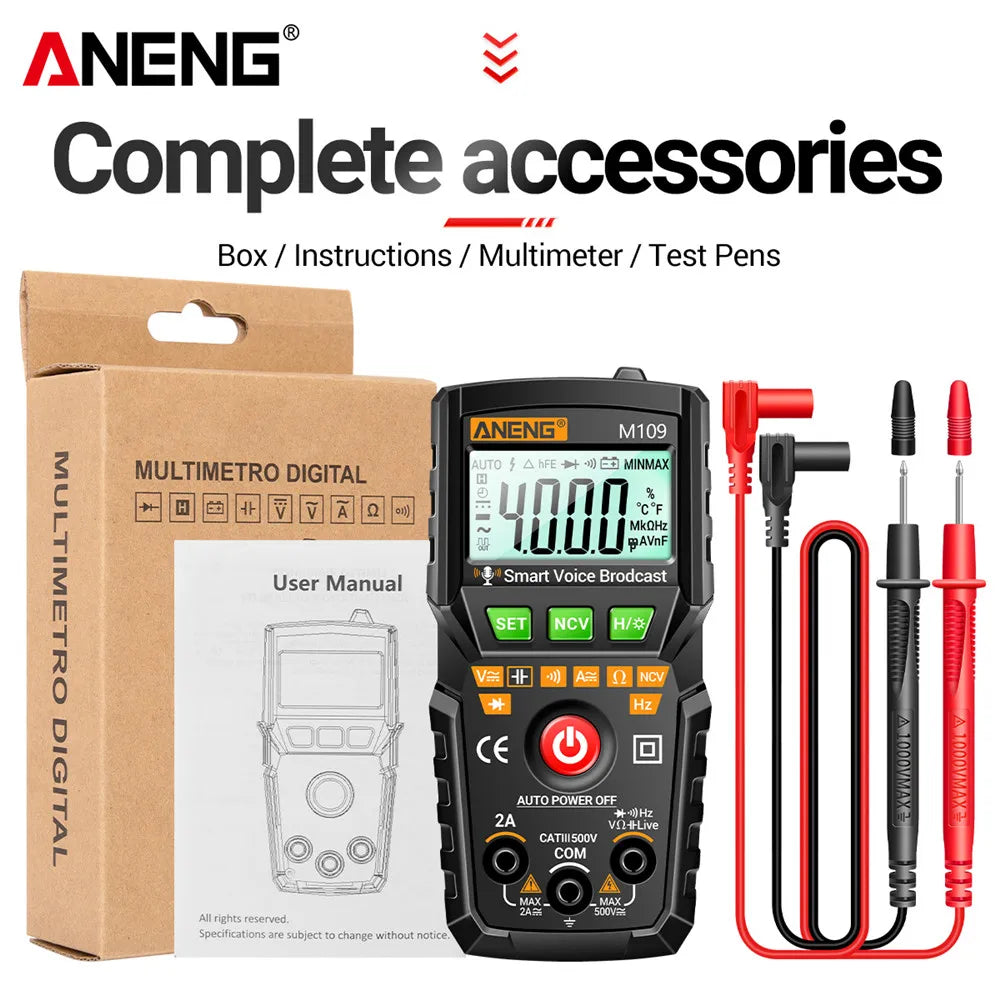

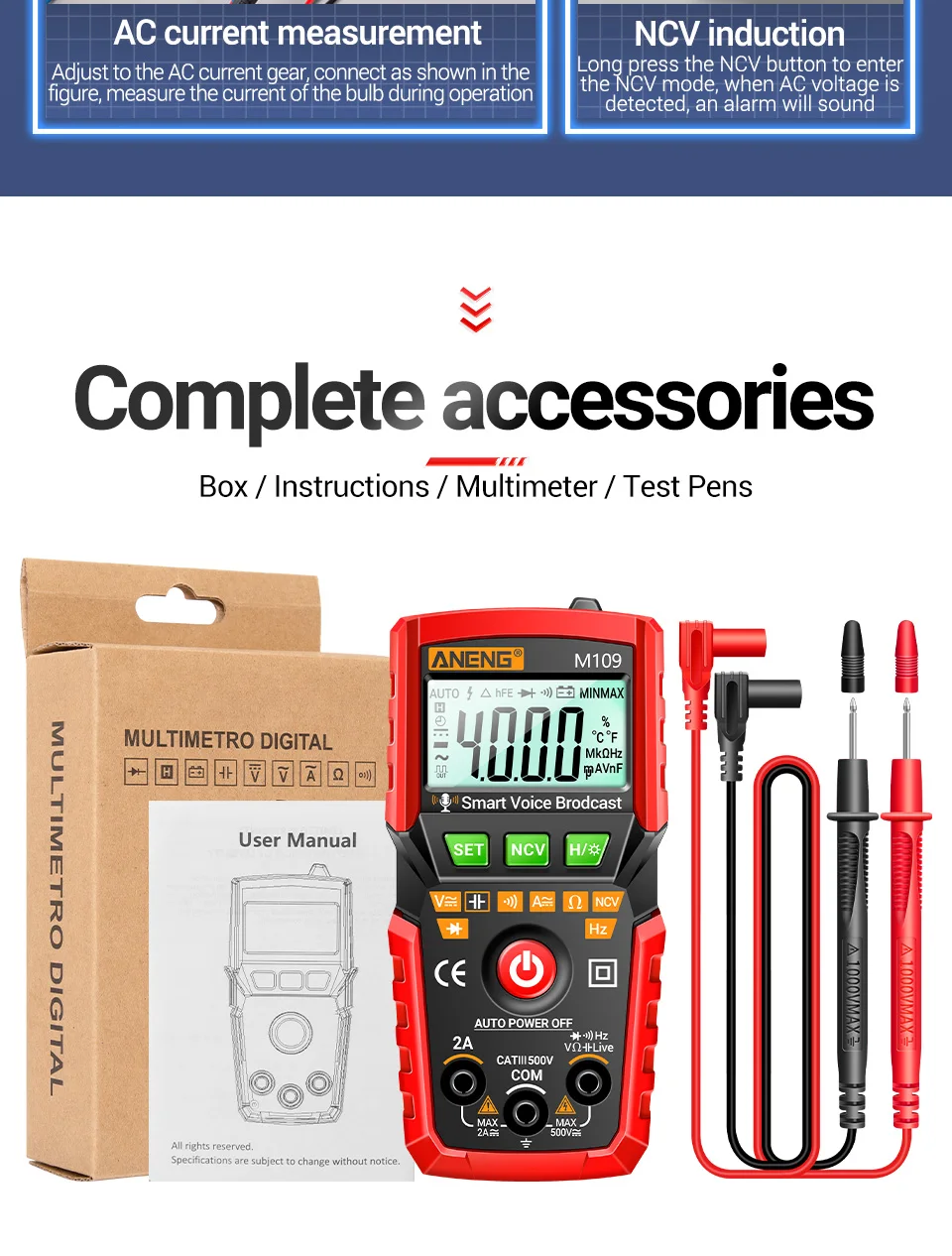

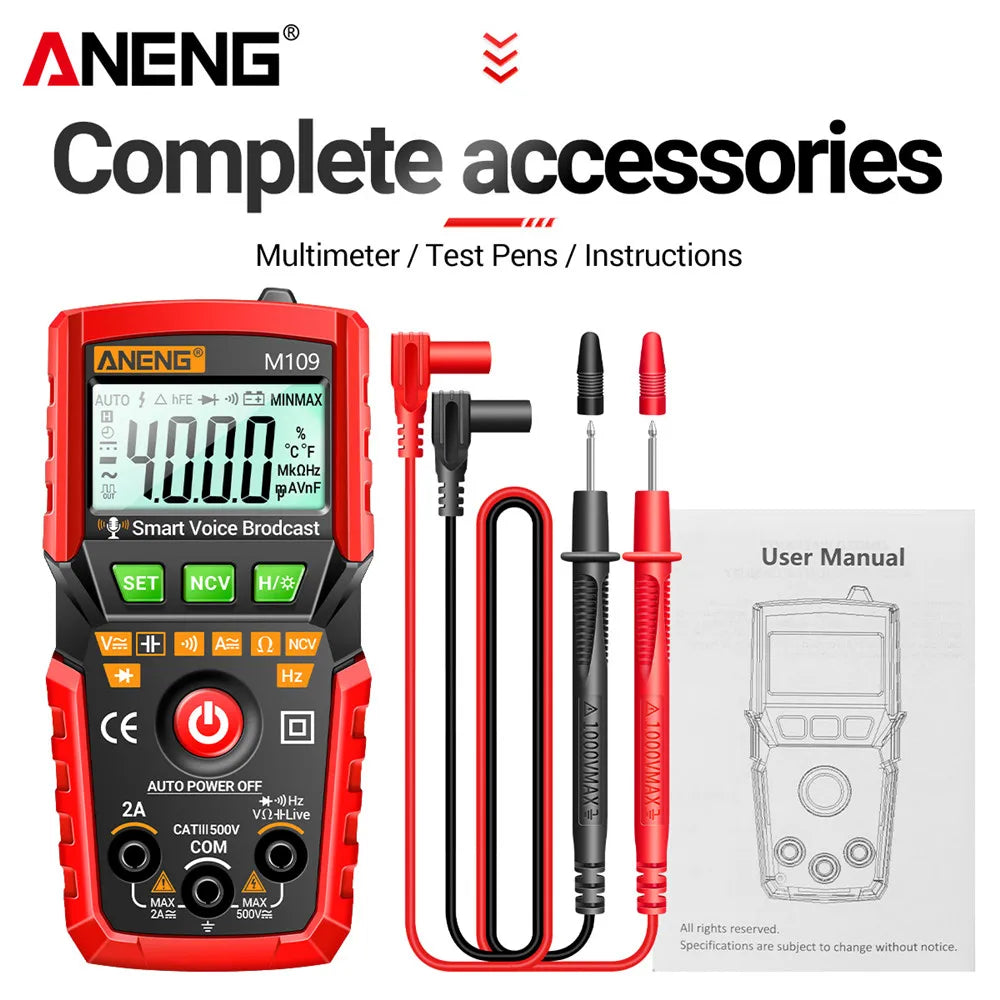

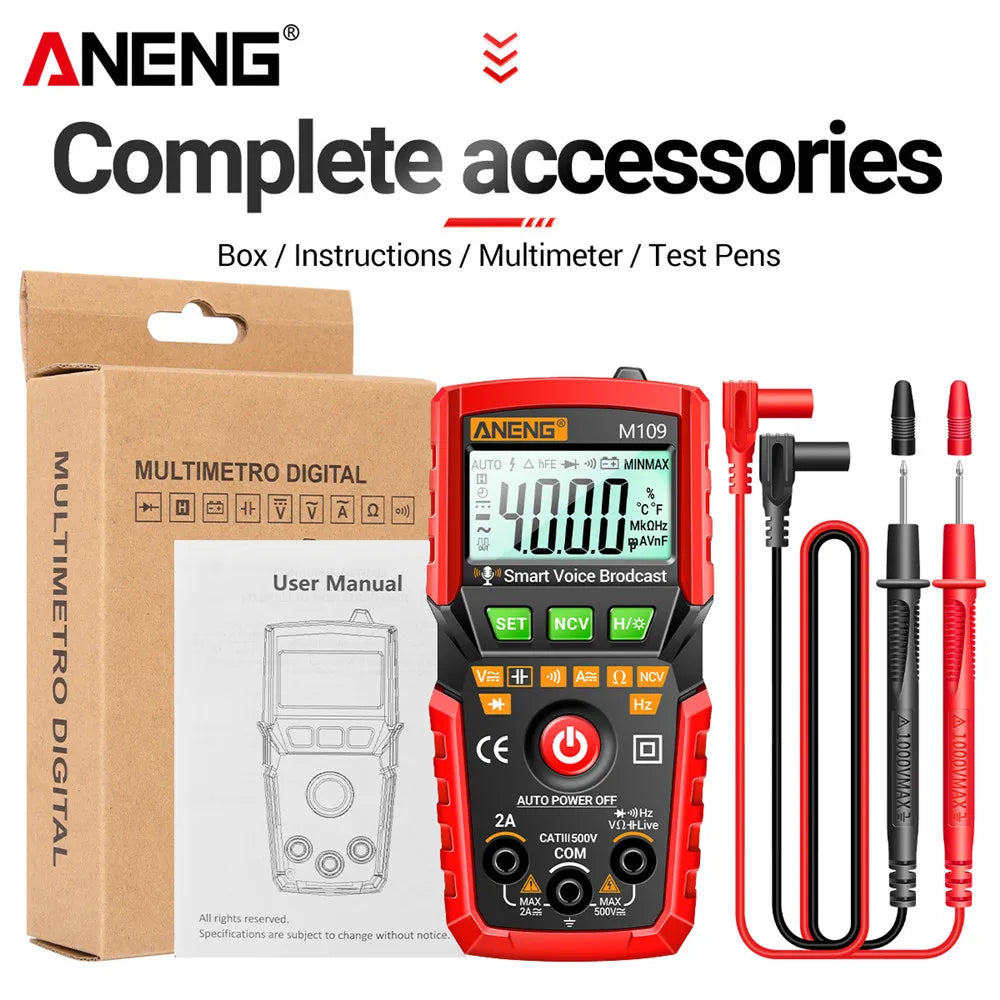

Packing List: （Without Battery）
1 * User Manual
1 * Test leads
1 * M109 Digital Multimeter
