ANENG PN129 Digital Clamp Multimeter Meter AC/DC Voltage 4000 Counts Capacitance NCV Ohm Voltage Current Test Tester Tools

ANENG PN129 Digital Clamp Multimeter Meter AC/DC Voltage 4000 Counts Capacitance NCV Ohm Voltage Current Test Tester Tools

$133.12

$133.12 $0.00

Description

SPECIFICATIONS

ANENG Model: PN129

Automatic range: Yes

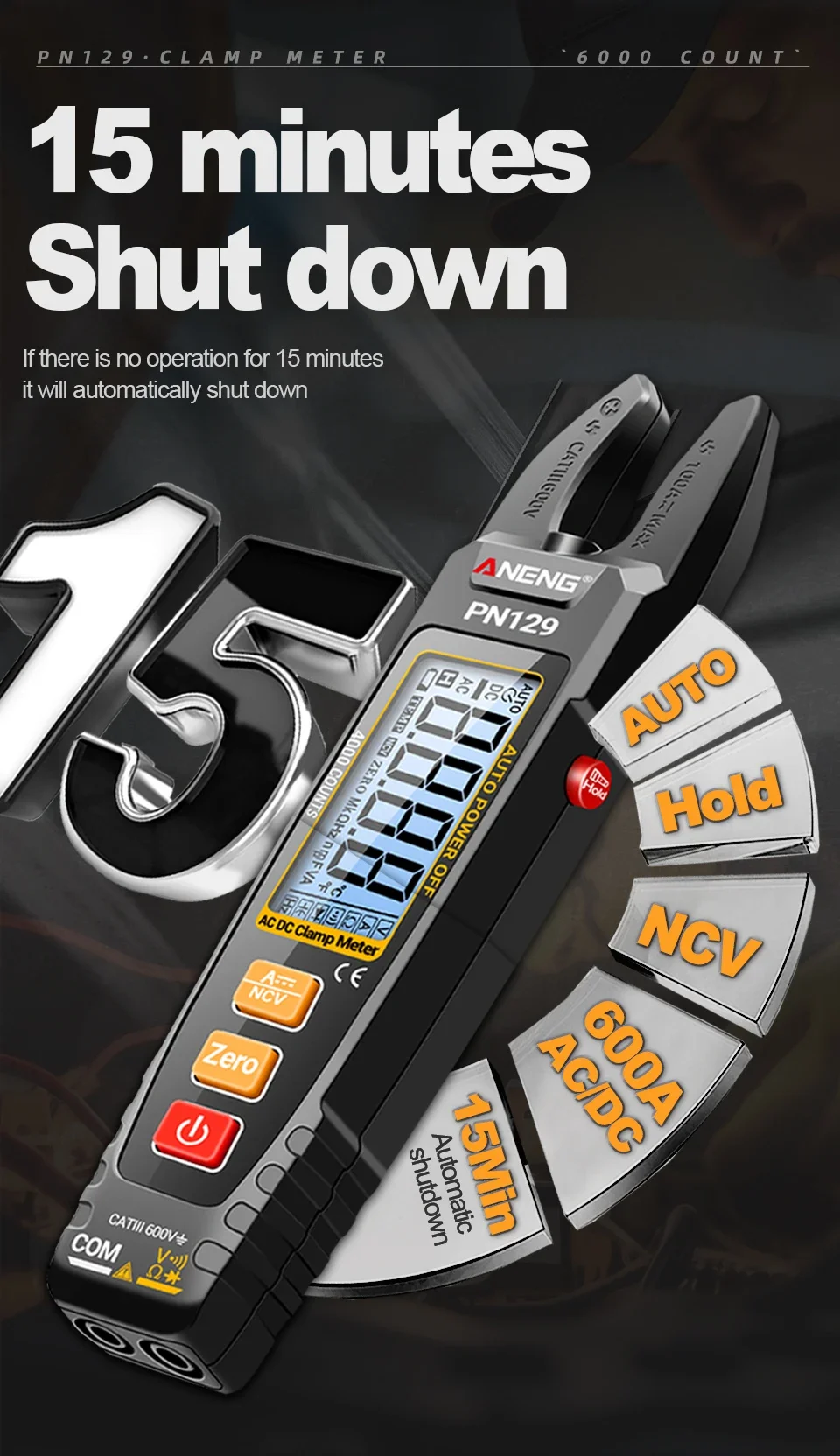

Automatic shutdown: After 15 minutes

Battery Included: Yes

Battery model: AAA*2(without shipment)

Brand Name: ANENG

Certification: CE

DIY Supplies: Electrical

Dimensions: /

Display Type: Digital Only

Flashlight lighting: Yes

H data retention: Yes

High-concerned chemical: none

Low power display: Yes

Material: ABS

Maximum count: 4000 Count

Measuring Capacitance Range: /

Measuring Current Range: 0A-100A

Measuring Inductance Range: /

Measuring Resistance Range: 0-20MOhm

Measuring Voltage Range: 0V-400V

Model Number: ANENG PN129 Clamp Meter

NCV voltage detection: Yes

Operating Temperature: /

Origin: Mainland China

Test on and off beep: Yes

Weight: 66g

ANENG PN129 Digital Clamp Multimeter Meter AC/DC Voltage 4000 Counts Capacitance NCV Ohm Voltage Current Test Tester Tools

Features:

LCD display: 4000 counts

Polarity indication: DC voltage automatically displays a "-" sign, positive polarity defaults

Overload indicator: Only display "OL"

Power requirement: AAA*2

Range selection: automatic

Operating temperature: 0~40 ℃, humidity less than 80%

Storage temperature: -10~50 ℃, humidity less than 85%

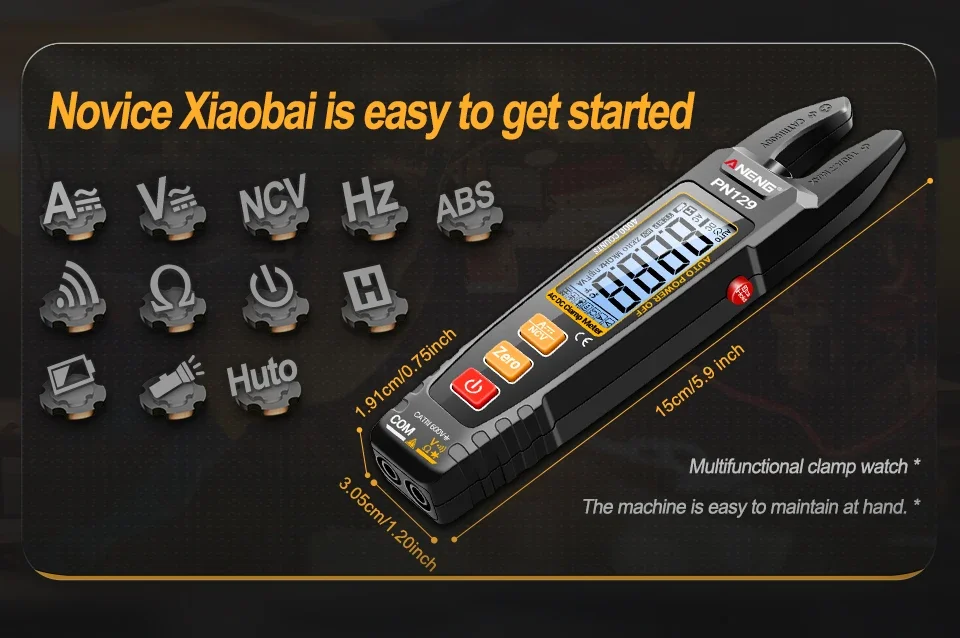

Product dimensions: length 160 x 37 x 26mm(L x W x T)

Product weight: approximately 66g

Specifications:

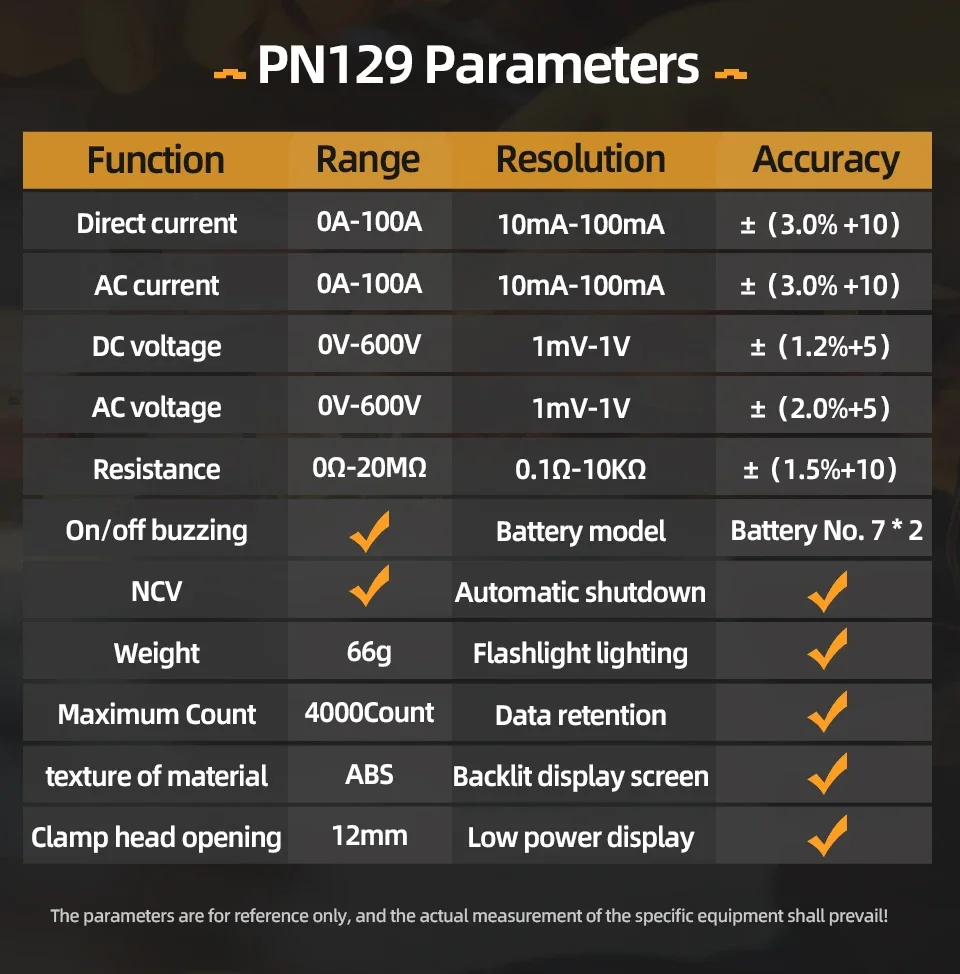

PN129 Technical parameter
Function	Range	Resolution	Precision
DC current	0A-100A	10mA-100mA	±(3.0% of rdg+10d)

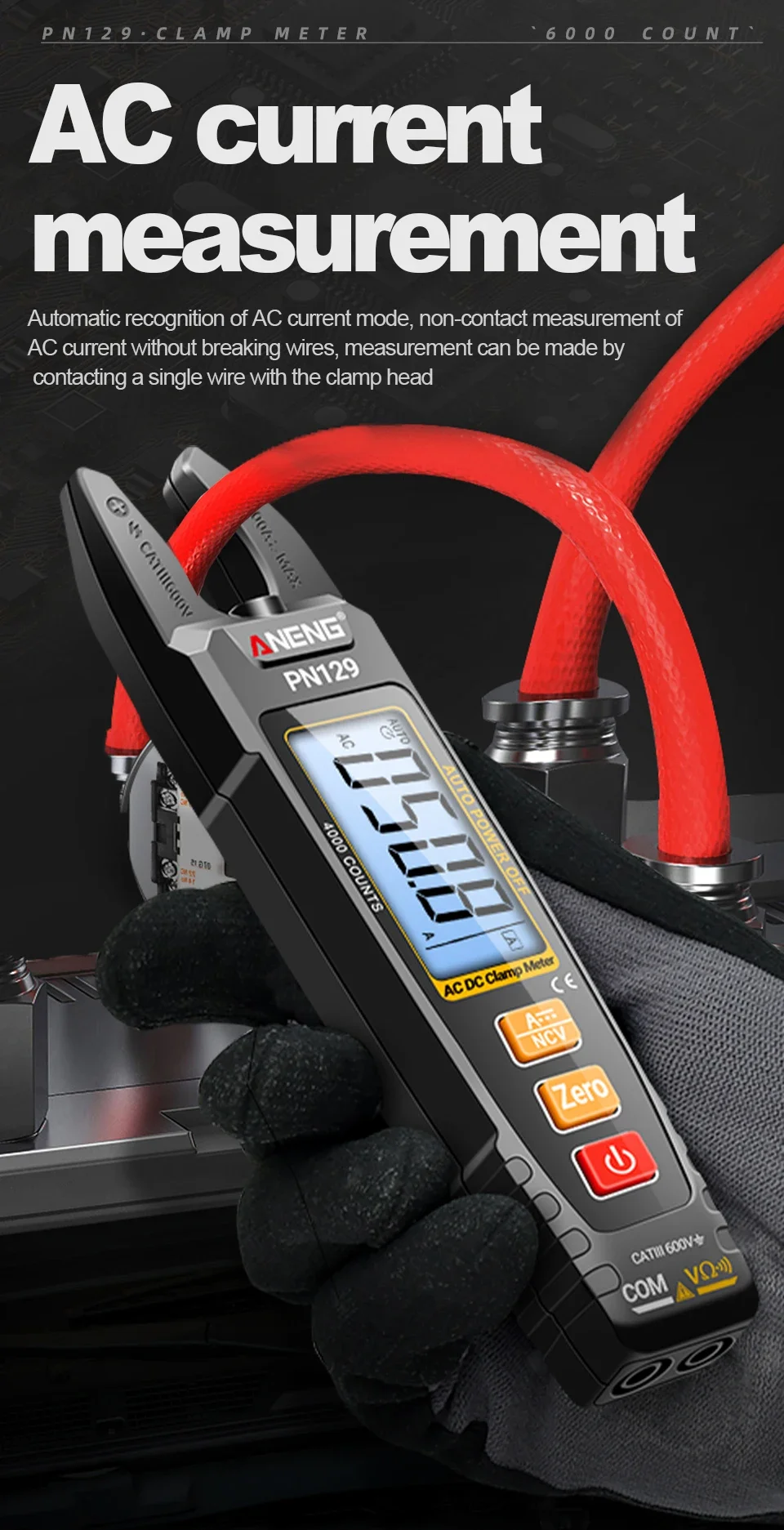

AC current	0A-100A	10mA-100mA	±(3.0% of rdg+10d)
DC voltage	0V-400V	1mV-100mV	±(1.0% of rdg+5d)
DC voltage	600V	1V	±(1.2% of rdg+5d )
AC voltage	0V-400V	1mV-100mV	±(1.5% of rdg+5d)
AC voltage	600V	1V	±(2.0% of rdg+5d)
Resistance	0Ω	0.1Ω	±(1.5% of rdg+10d)
	4KΩ-4MΩ	1Ω-1KΩ	±(1.0% of rdg+10d)
	20MΩ	10KΩ	±(1.5% of rdg+10d)
Test on and off beep	√	Automatic shutdown	After 15 minutes
NCV voltage detection	√	Battery model	AAA*2 (without shipment)
Low power display	√	Flashlight lighting	√
		H data retention	√

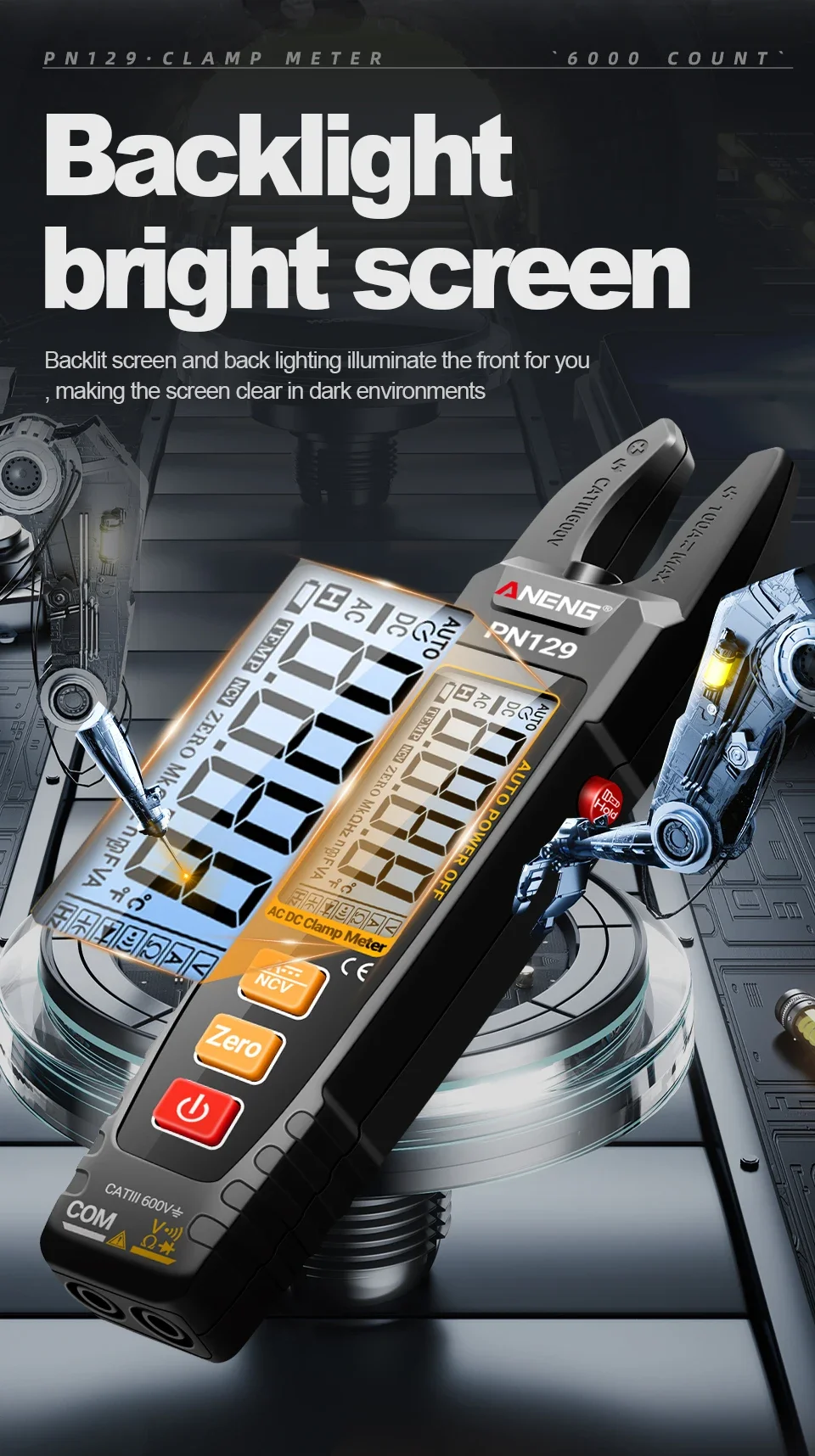

Maximum count	4000 Count	LCD backlit display	√
Material	ABS

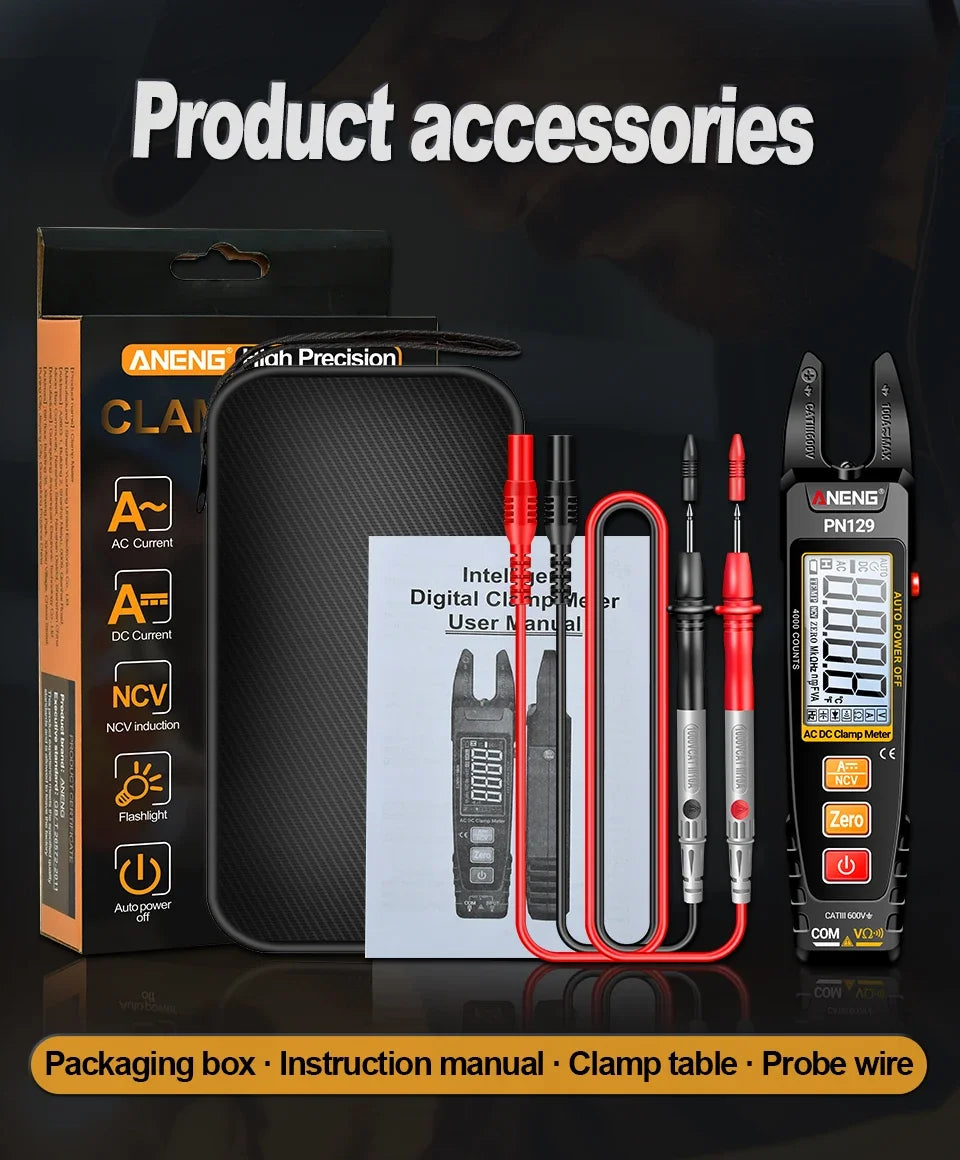

Package List:
1 * Packing box
1 * Storage bag
1 * English & Chinese Manual
1 * Clamp watch
1 * Watch pen line

16 in 1 Combination Line (according your choice)

Usage Precautions:
1. Do not touch the probes directly with your hands to avoid electric shock and ensure personal safety during testing.
2. Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal.
3. Do not use the current and voltage ranges interchangeably to prevent damage to the instrument.
4. It is best to remove the batteries when not in use for a long time to prevent battery corrosion of other internal components of the instrument.

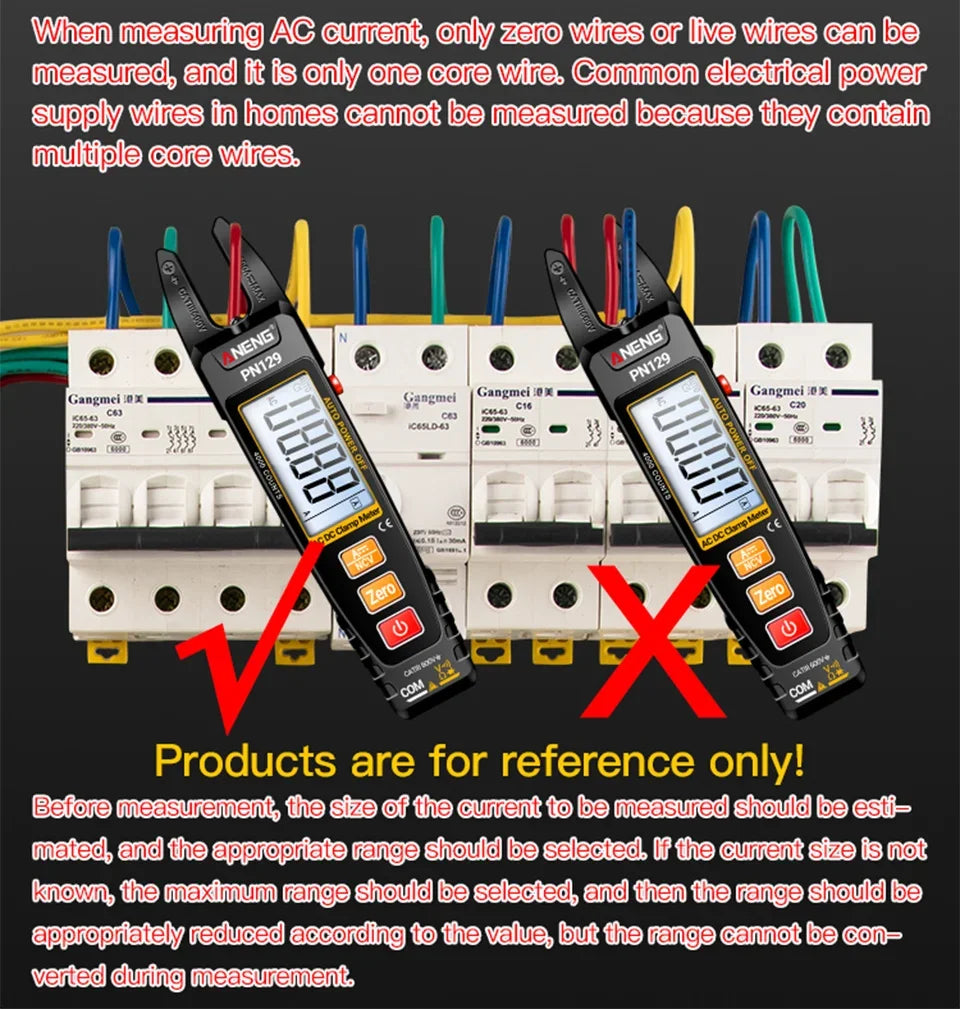

5. If you do not know the magnitude of the voltage or current to be measured, start with the highest range and then select the appropriate range based on the measured value.
