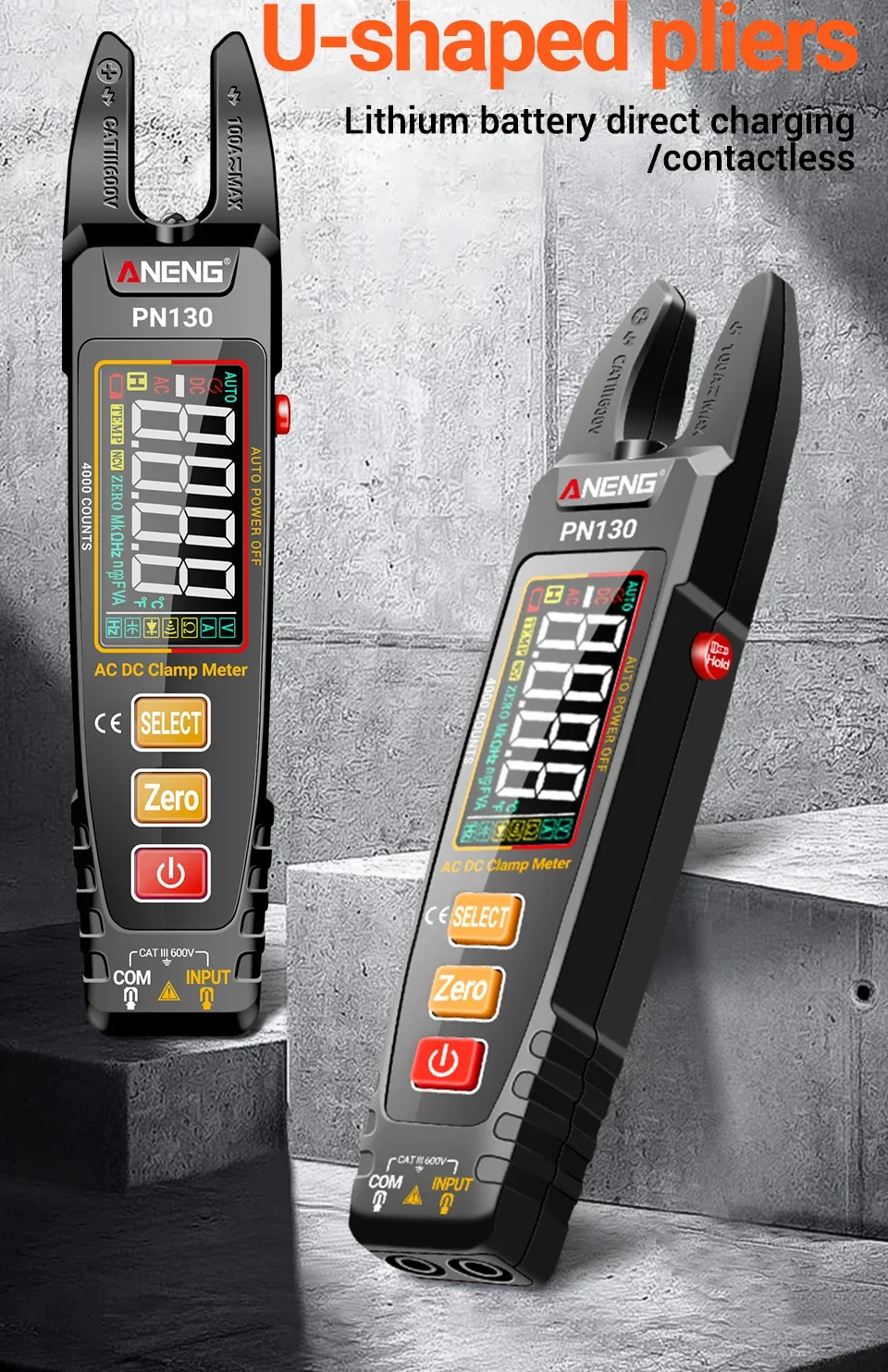

ANENG PN130 Clamp Meter Digital Multimeter 4000 Counts AC/DC Voltage Current Portable Capacitance Resistance Test Tools

ANENG PN130 Clamp Meter Digital Multimeter 4000 Counts AC/DC Voltage Current Portable Capacitance Resistance Test Tools

$99.96

$99.96 $0.00

Color PN129 Pro PN129 PN130 Pro PN130

Description

SPECIFICATIONS

Automatic range: Yes

Automatic shutdown: 15 minutes of inactivity.shutdown

Battery Included: no

Battery model: AAA*2

Brand Name: ANENG

Certification: NONE

Choice: yes

DIY Supplies: Electrical

Dimensions: /

Diode: Yes

Display Type: Digital Only

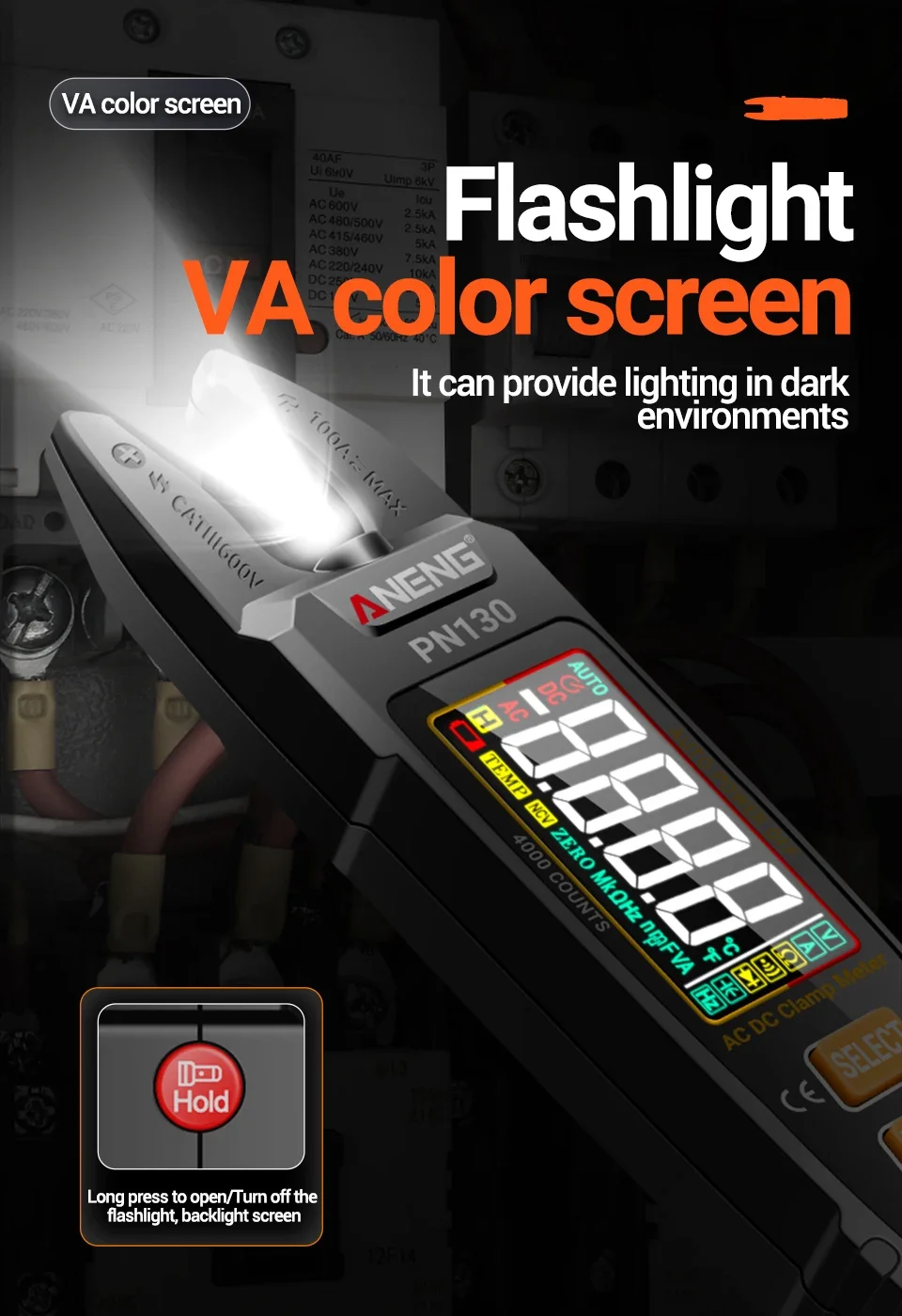

Flashlight lighting: Yes

H data retention: Yes

High-concerned chemical: none

Low power display: Yes

Material: ABS

Maximum count: 4000 Count

Measuring Capacitance Range: 0nF-4mF

Measuring Current Range: 0A-100A

Measuring Inductance Range: /

Measuring Resistance Range: 0Ω-20MΩ

Measuring Voltage Range: 0V-600V

Model Number: ANENG PN130 Clamp Meter

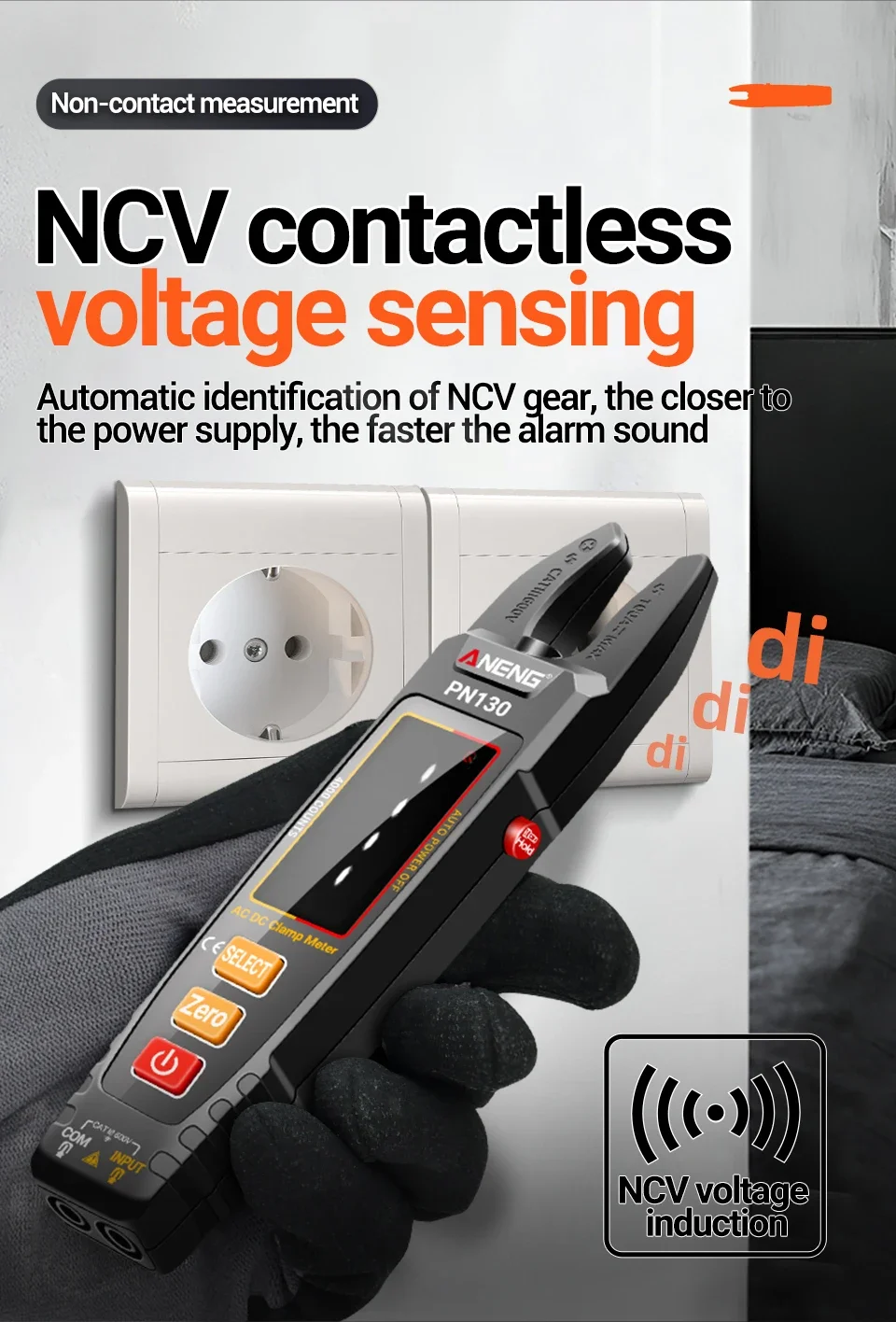

NCv voltage detection: Yes

Operating Temperature: /

Origin: Mainland China

Semi-finishedproduct: No

Test on and off beep: Yes

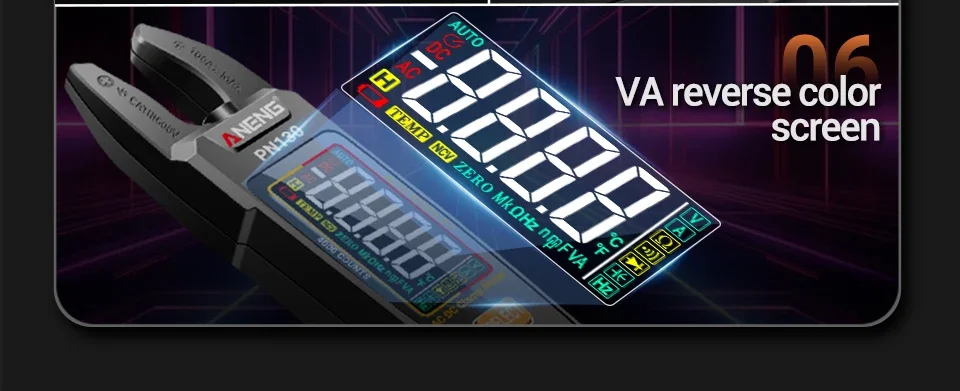

VA color screen: Yes

Weight: /,/

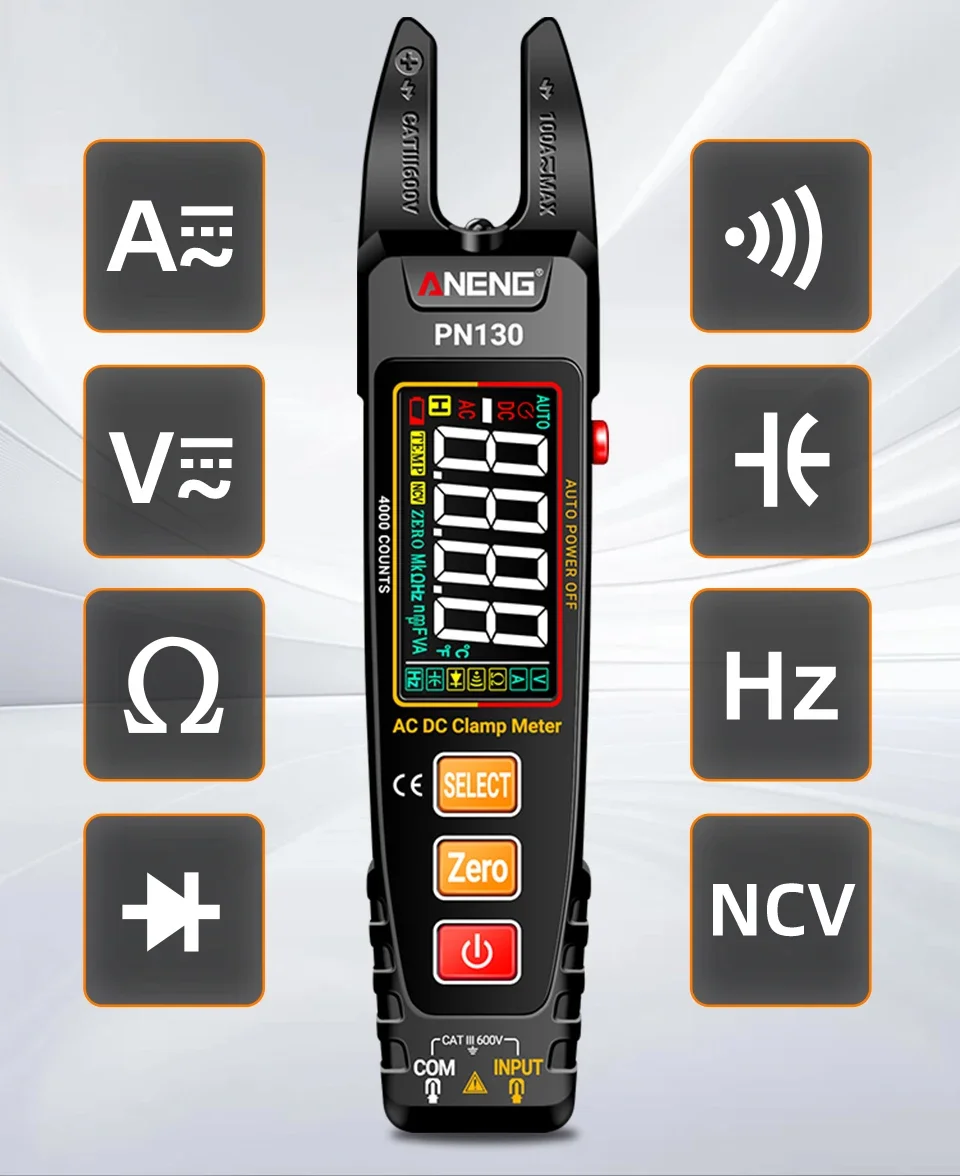

ANENG PN130 Mini Clamp Meter AC/DC 100A Current Voltage 4000 Counts Protable Multimeter Capacitance Resistance Testers

Note: PN129 Don't have capacitor,Hz frequency and Diode.PN129 is an LCD screen.

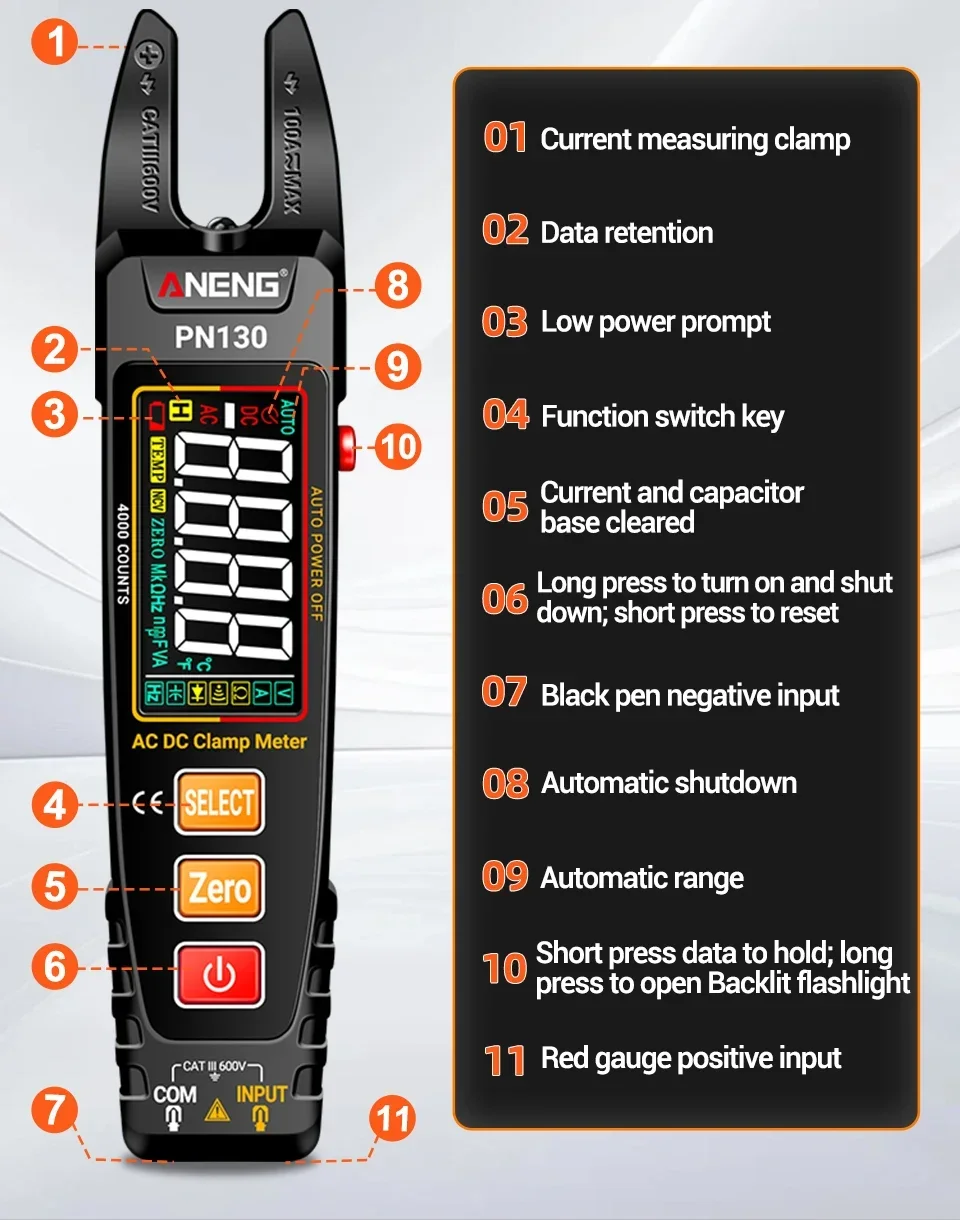

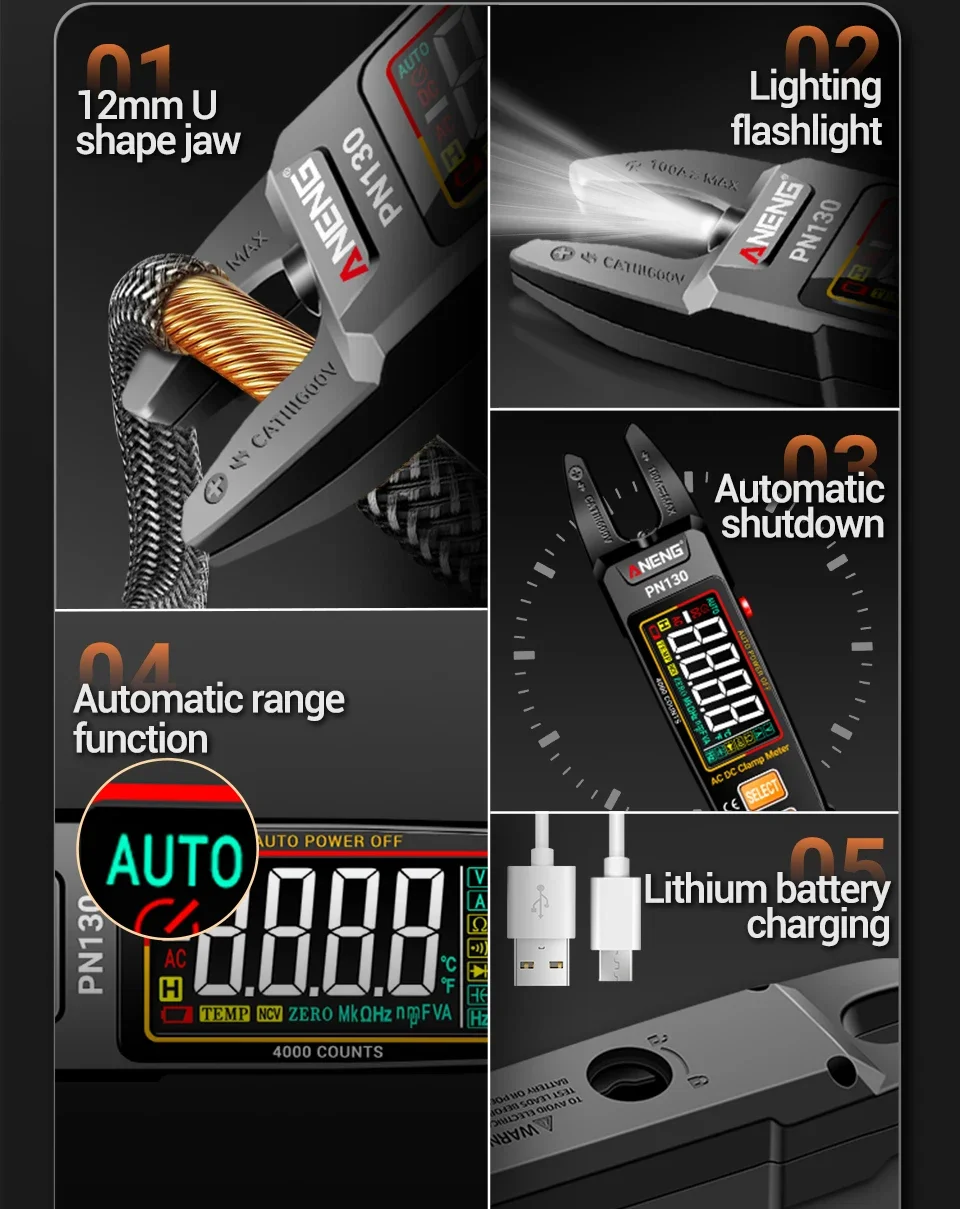

Features:

LCD display: 4000 counts

Polarity indication: DC voltage automatically displays a "-" sign, positive polarity defaults

Overload indicator: Only display "OL"

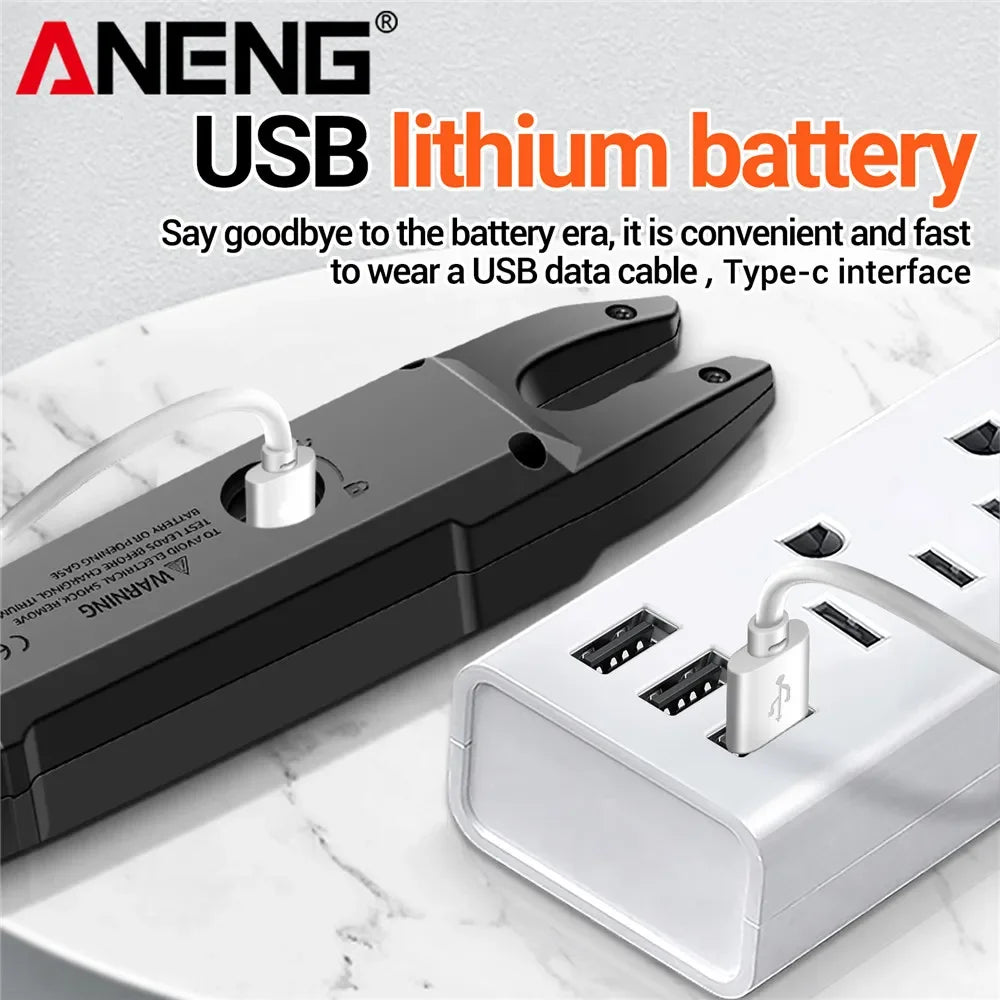

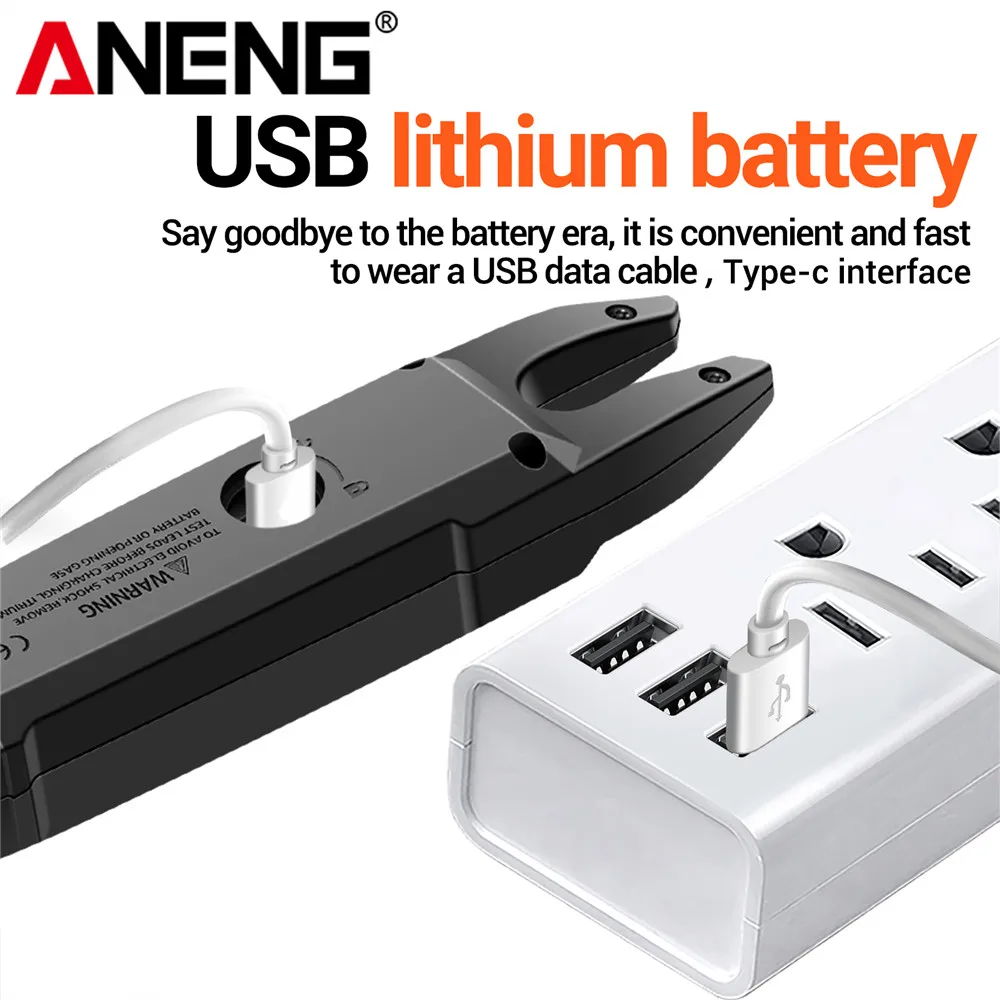

Power requirement: Built in lithium battery

Range selection: automatic

Operating temperature: 0~40 ℃, humidity less than 80%

Storage temperature: -10~50 ℃, humidity less than 85%

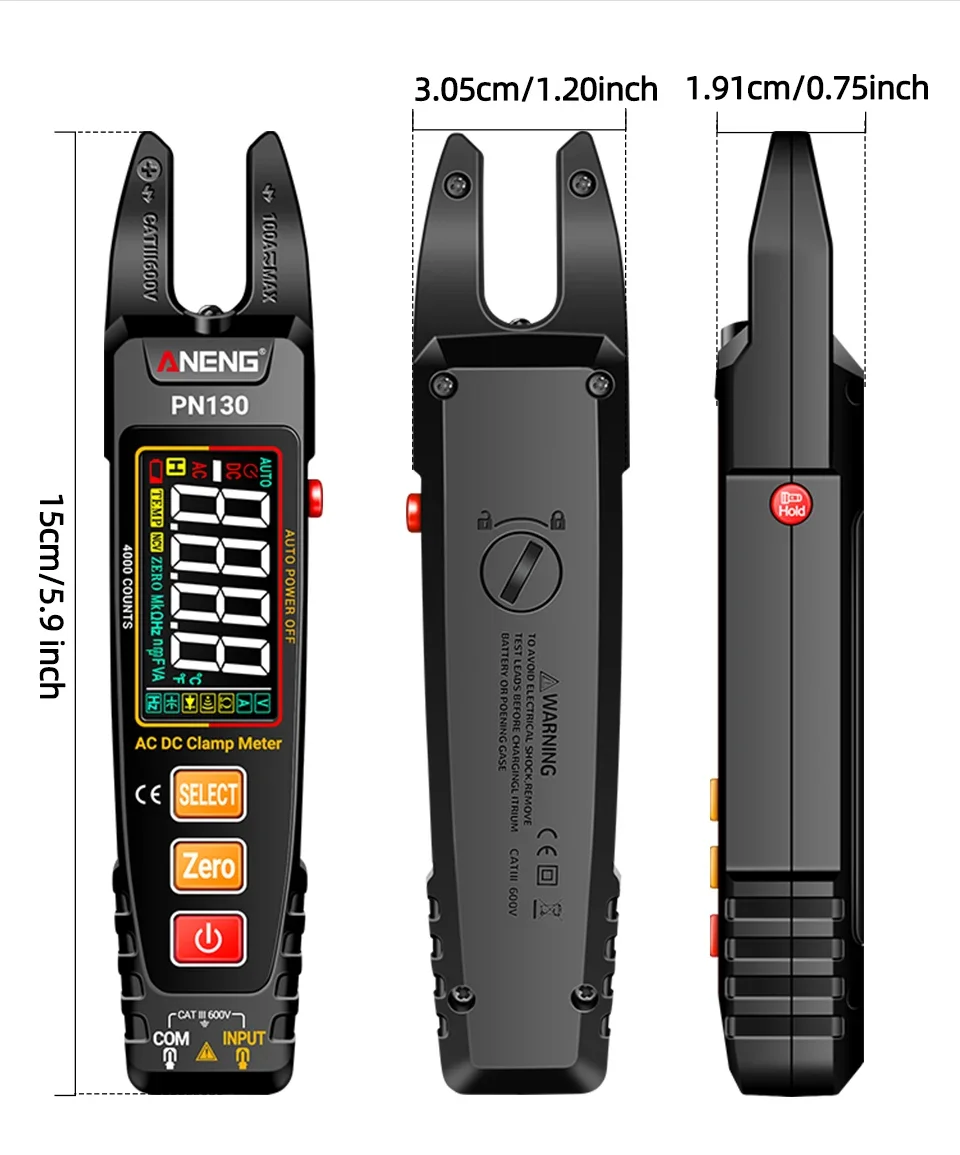

Product dimensions: length 160 x width 37 x thickness 26mm

Product weight: approximately 76g

Specifications:

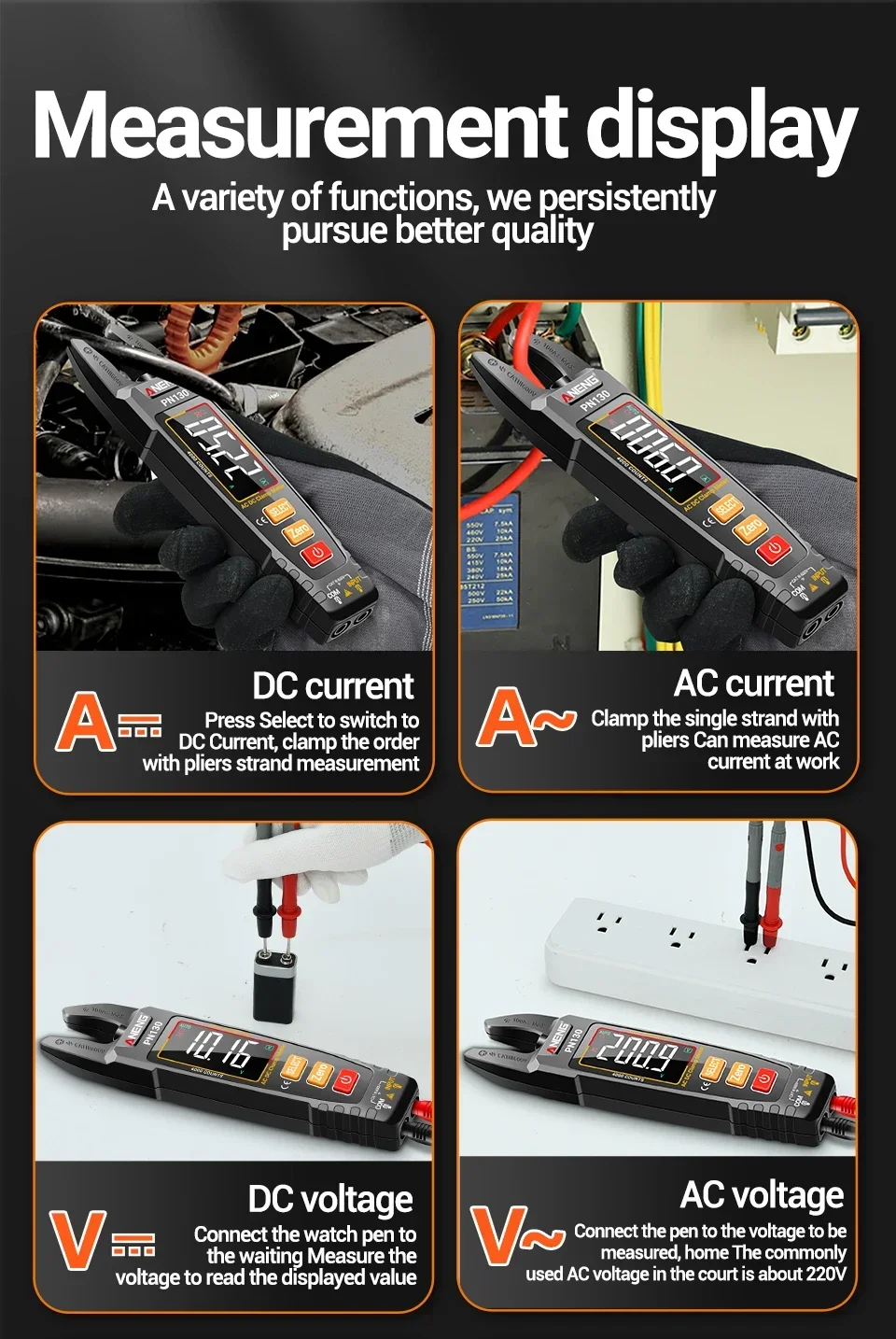

Function	Range	Resolution	Precision
DC current	0.5A-100A	10mA-100mA	±(3.0% of rdg+10d)

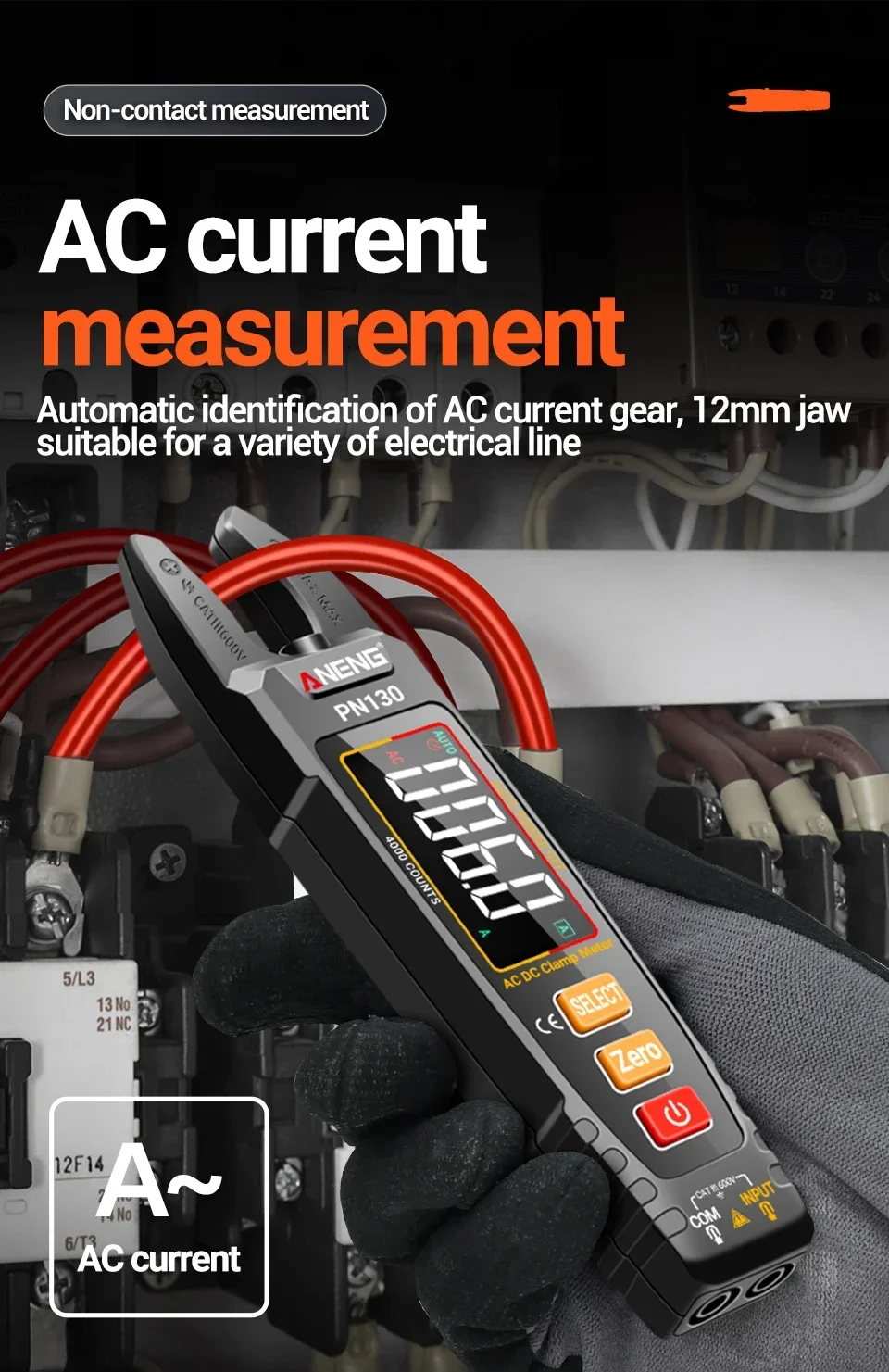

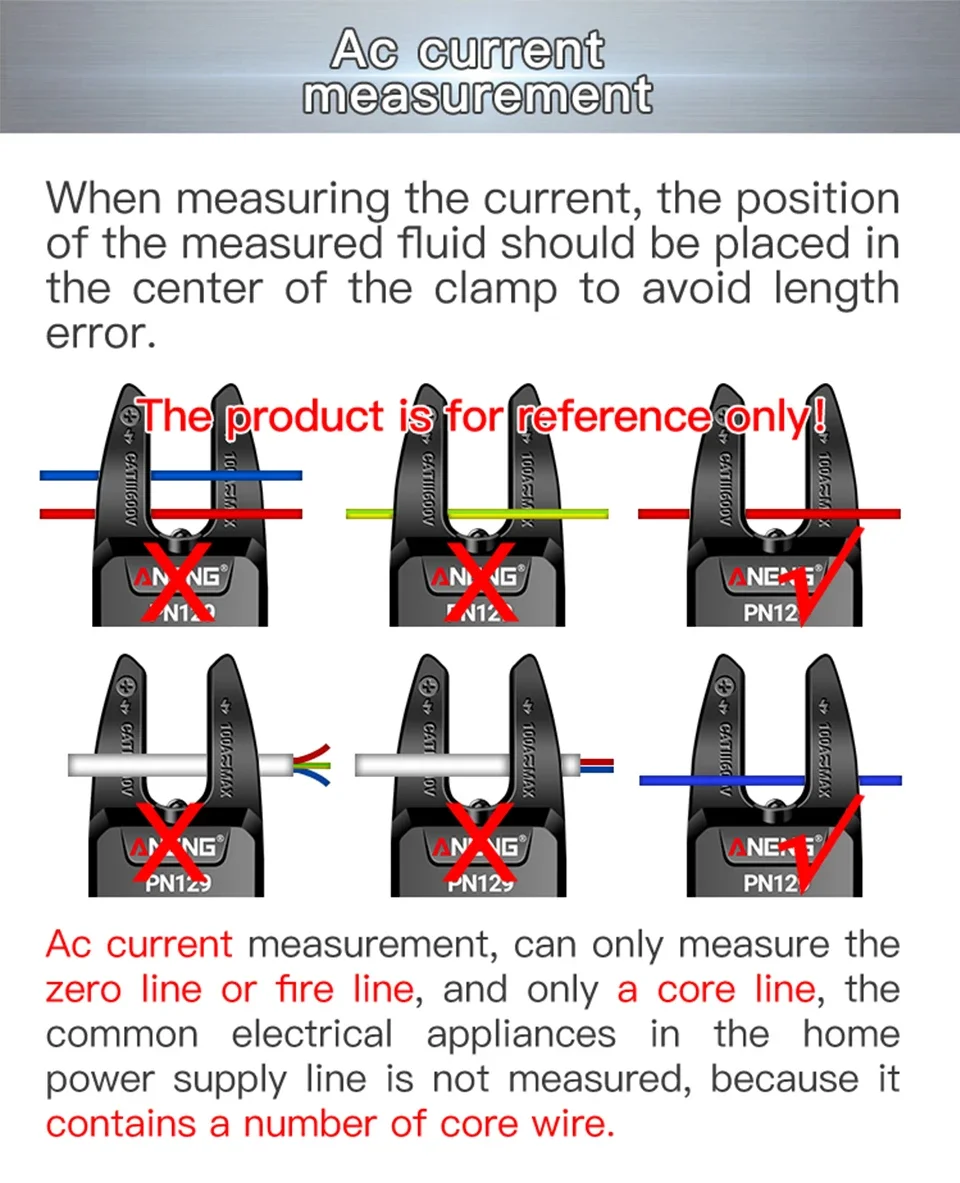

AC current	0.5A-100A	10mA-100mA	±(3.0% of rdg+10d)
DC voltage	0V-400V	1mV-100mV	±(1.0% of rdg+5d)
DC voltage	600V	1V	±(1.2% of rdg+5d )
AC voltage	0V-400V	1mV-100mV	±(1.5% of rdg+5d)
AC voltage	600V	1V	±(2.0% of rdg+5d)

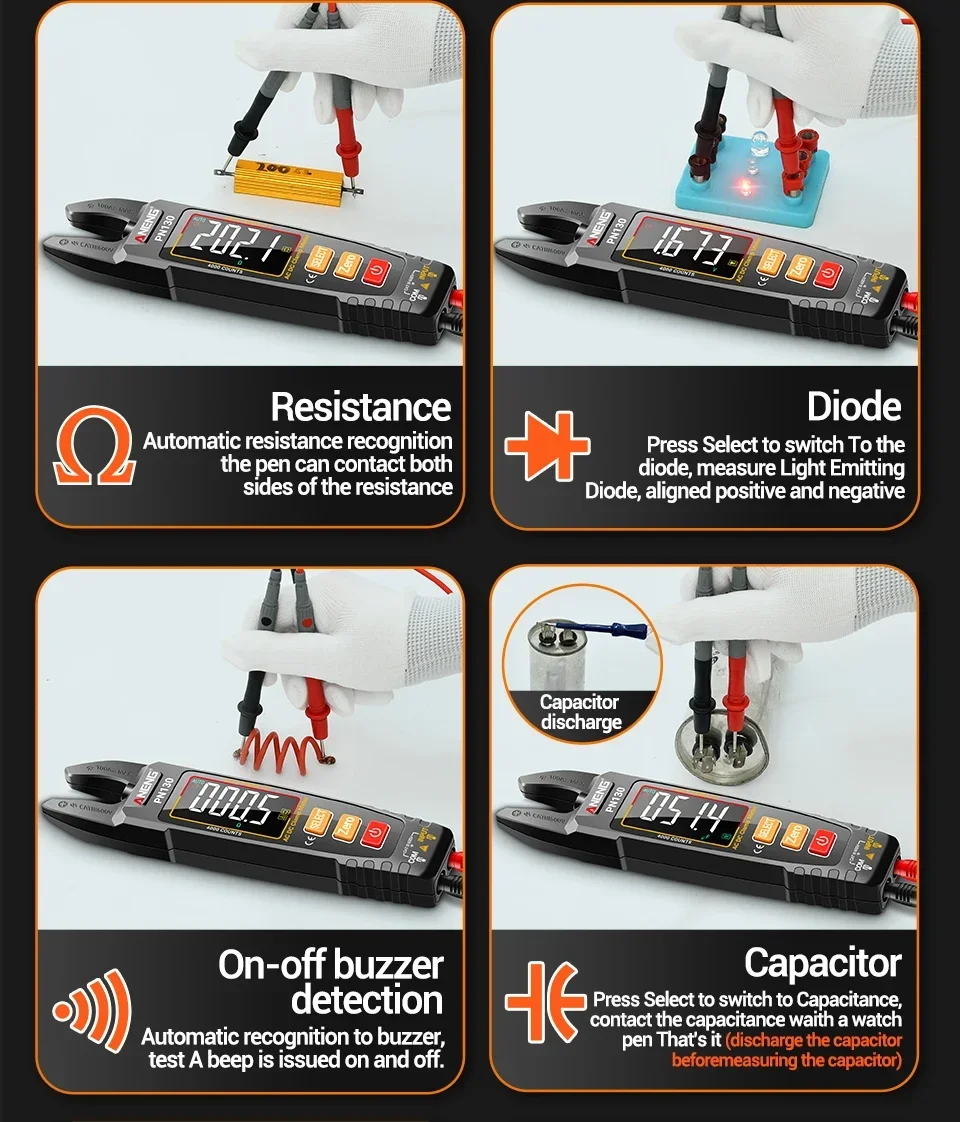

Resistance	0Ω	0.1Ω	±(1.5% of rdg+10d)
	4KΩ-4MΩ	1Ω-1KΩ	±(1.0% of rdg+10d)
	20MΩ	10KΩ	±(1.5% of rdg+10d)
Capacitor （PN129 don't this function）	0nF-40uF	1pF-10nF	±(4.0% of rdg+10d)
	400uF	100nF	±(4.5% of rdg+10d)
	4mF	1uF	±(5.0% of rdg+10d)

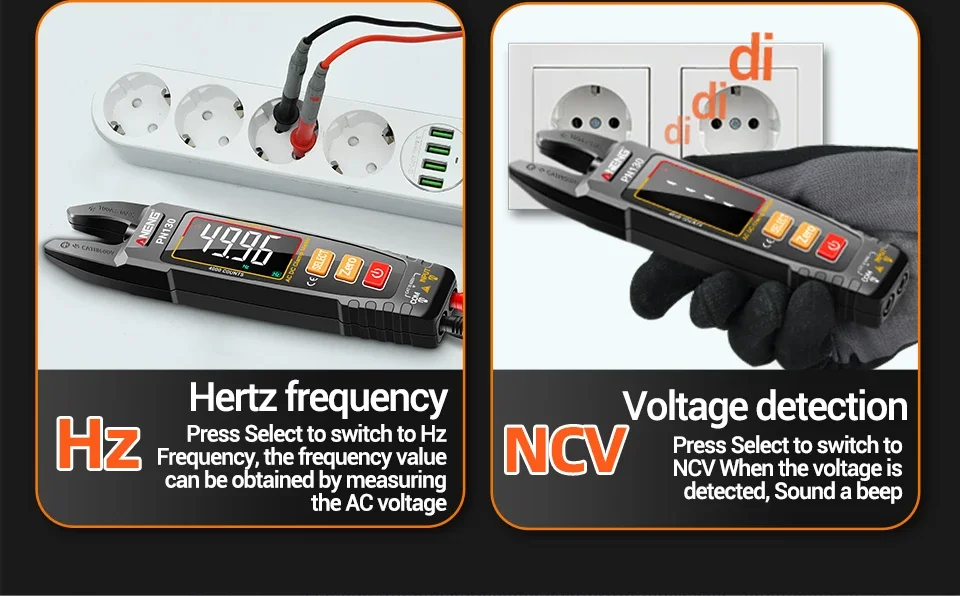

Hz frequency （PN129 don't this function）	0HZ-40KHZ	0.1HZ-10HZ	±(1.5% of rdg+10d)
Hz frequency （PN129 don't this function）	400KHZ-4MHZ	100Hz-1KHZ	±(2.0% of rdg+10d)
Diode （PN129 don't this function	√	PN130 Battery model	lithium battery
Test on and off beep	√	Automatic shutdown	15 minutes of inactivity.shutdown
NCV voltage detection	√	PN129Battery model	AAA*2（not include battery）
Automatic range	√	Flashlight lighting	√
Weight	68g	H data retention	√
Maximum count	4000 Count	PN129 LCD screen	PN130 VA color screen
Material	ABS	Low power display	√
