SPECIFICATIONS

AC Voltage: 12v

AC/DC Voltage & Current Resistance: Digital Multimeter

ANENG Model: sz02

Battery Included: no

Brand Name: ANENG

DC Voltage: 12V

DIY Supplies: Electrical

Digital Multimeter True: Multimetres Tools

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Model Number: Multimeters

Multimeters: Smart AC/DC Current Voltage

Operating Mode: Auto Range

Origin: Mainland China

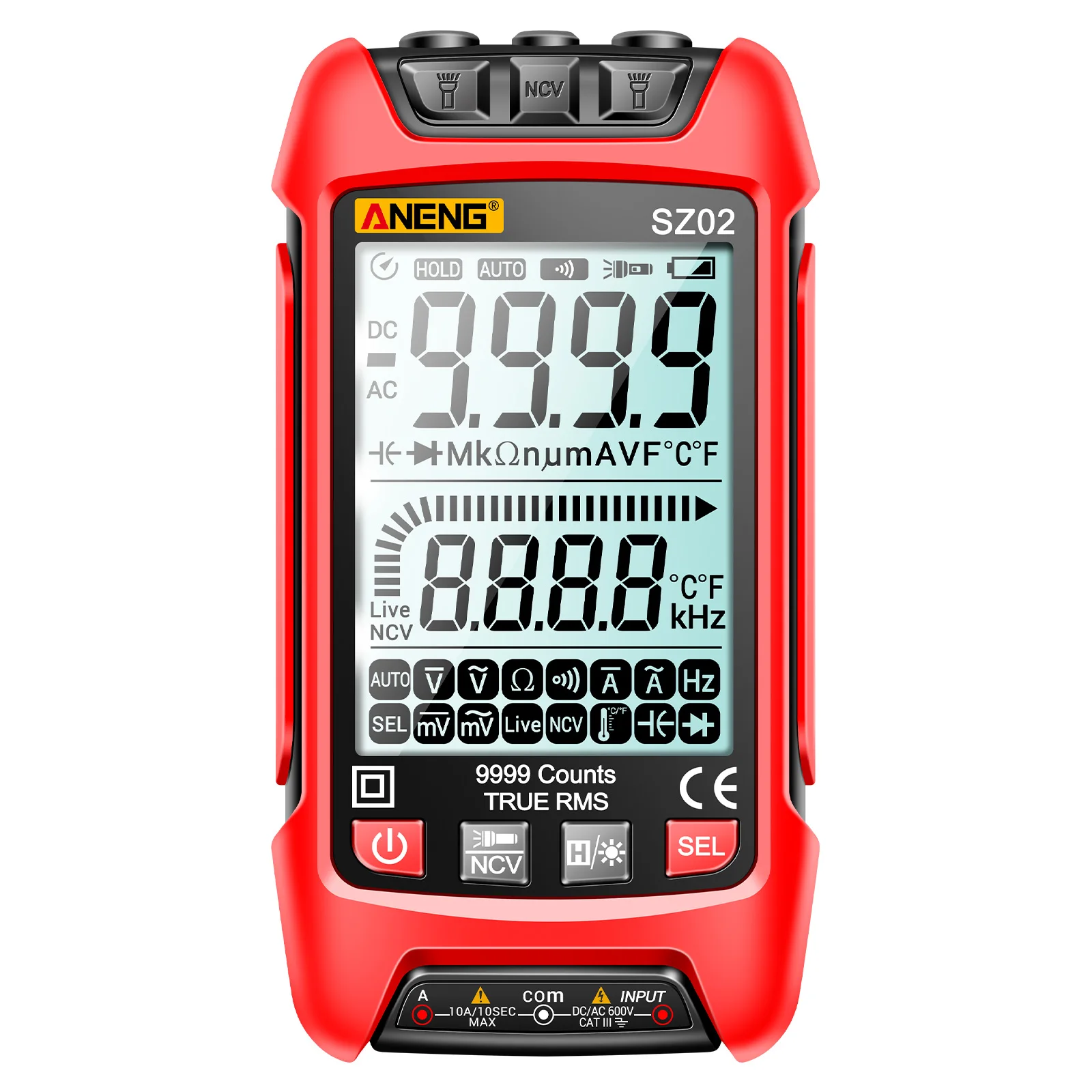

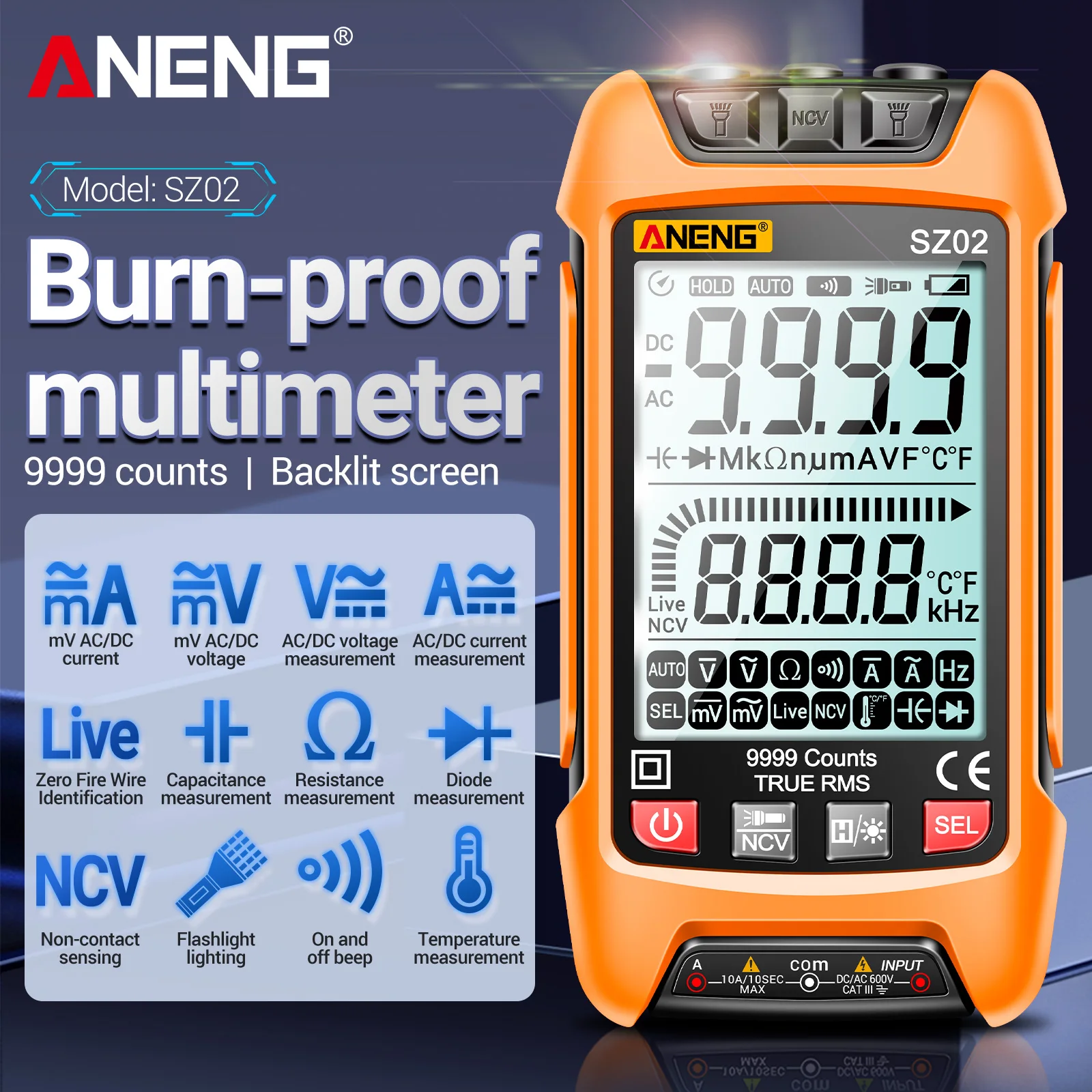

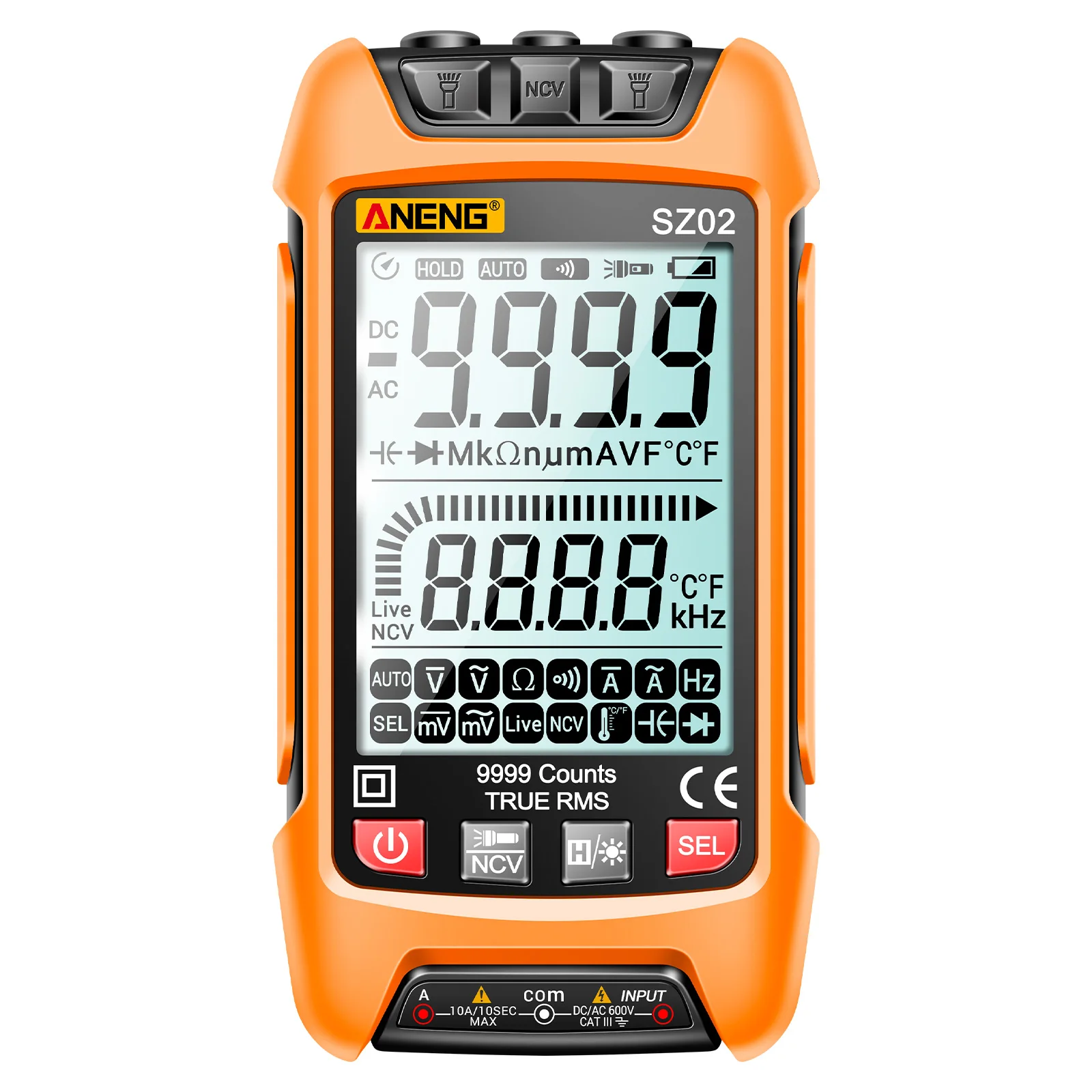

Professional Digital Multimeter: ANENG SZ02 Smart Digital Multimeter

Semi-finishedproduct: No

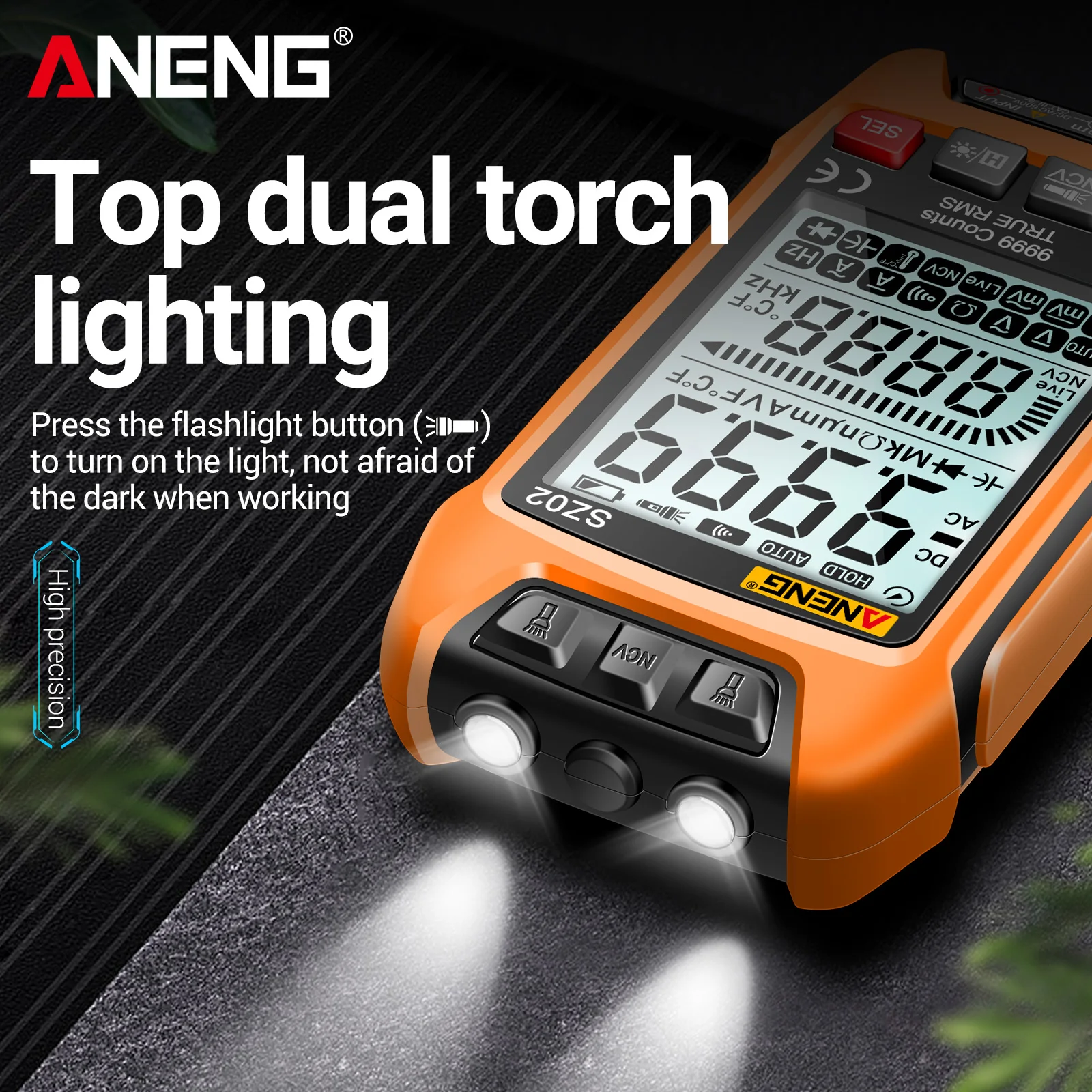

Universal Meter Handheld Multifunctional Tester: Voltmeter Ammeter with Backlight Flashlight

Specifications:

AC Voltage: 600mV-999.9V

DC Voltage: 600mV-999.9V

AC Current: 20mA~10A

DC Current: 20mA~10A

Resistance: 0Ω~99.99MΩ

Capacitance: 0nF~99.99mF

Hz: 0~1000Hz

Temperature: -40~1000 (-40~1832℉)

Diode: Yes

Buzzer: Yes

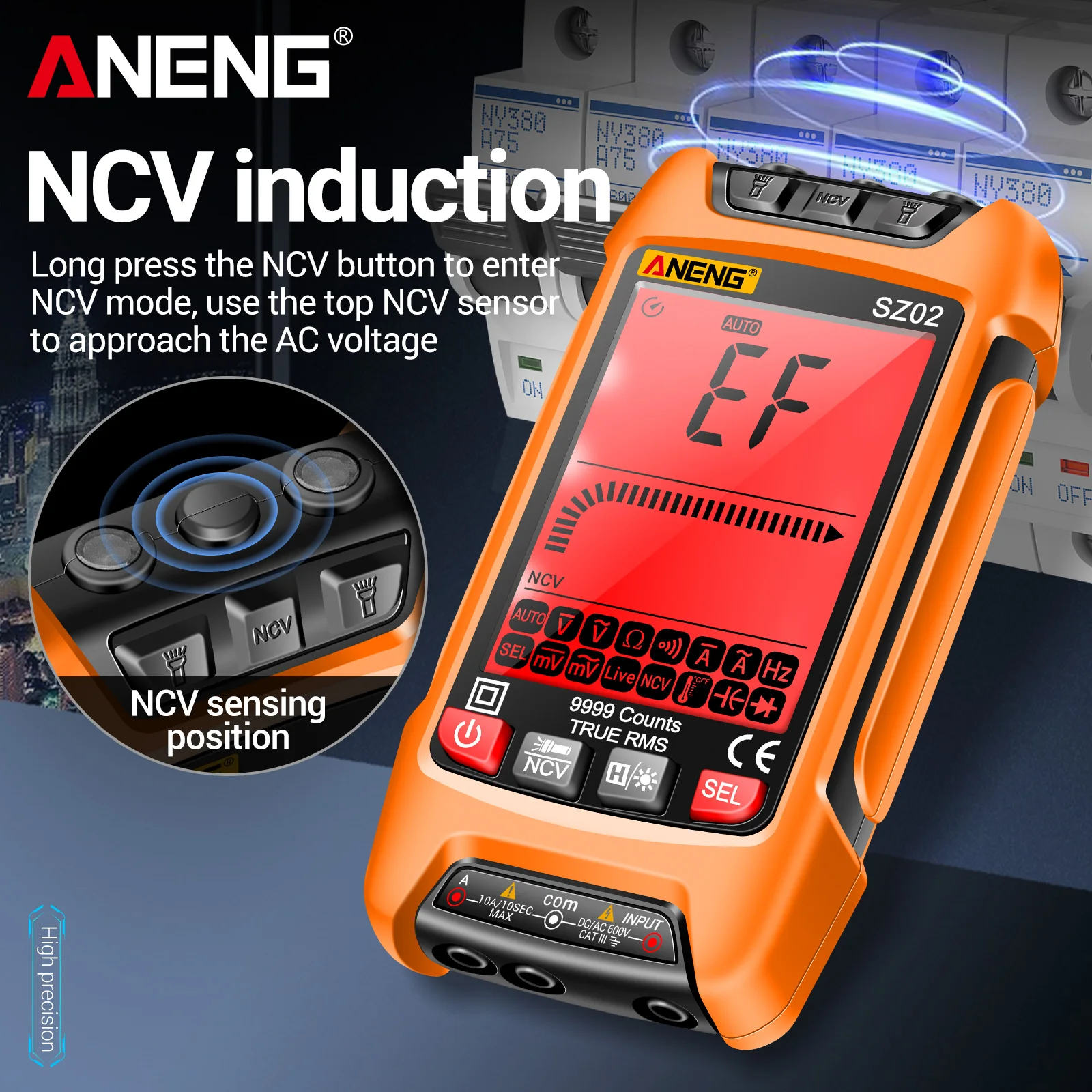

NCV Induction: Yes

Data Hold: Yes

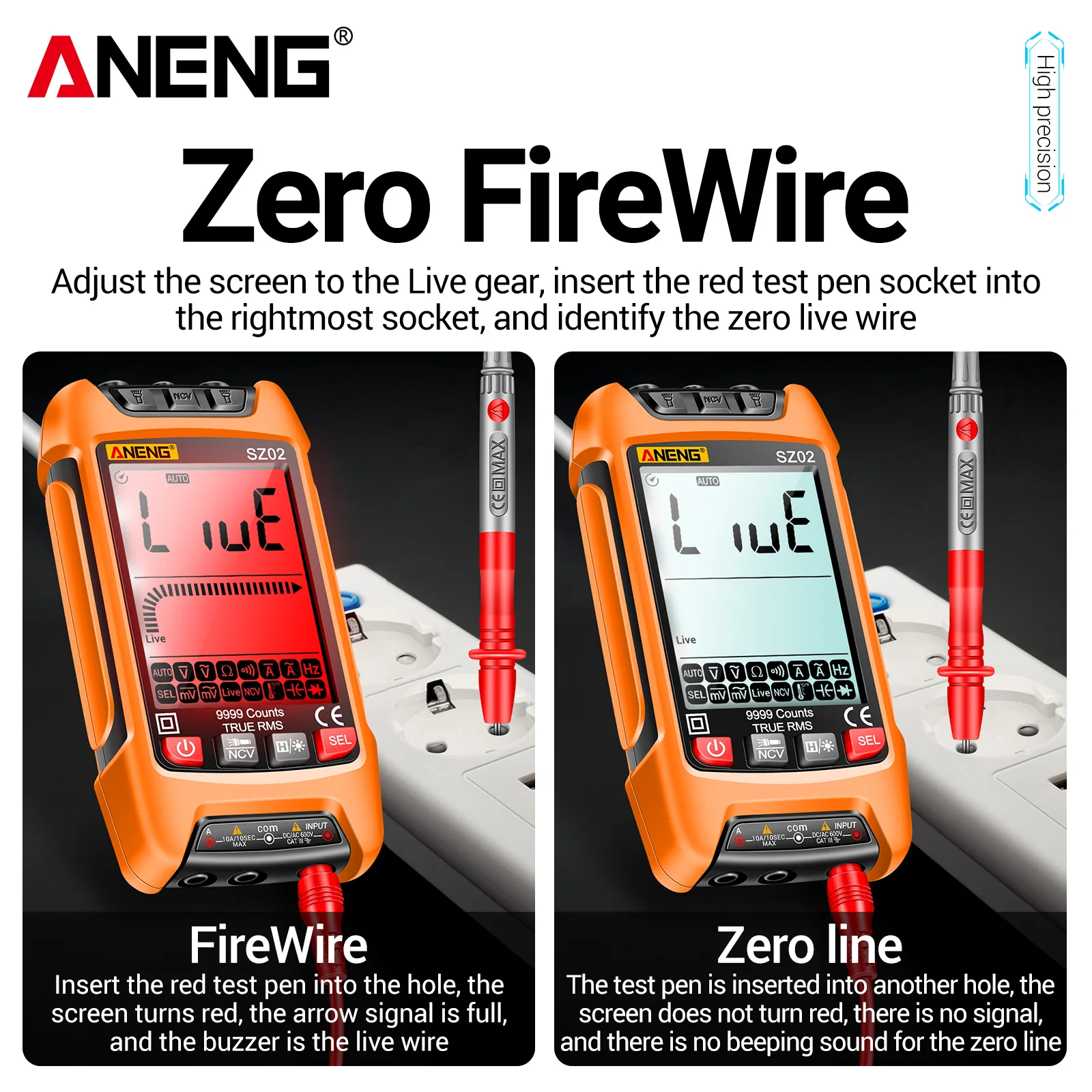

Zero/Fire Wire: Yes



Color: Orange / Red (Optional)

Material: ABS

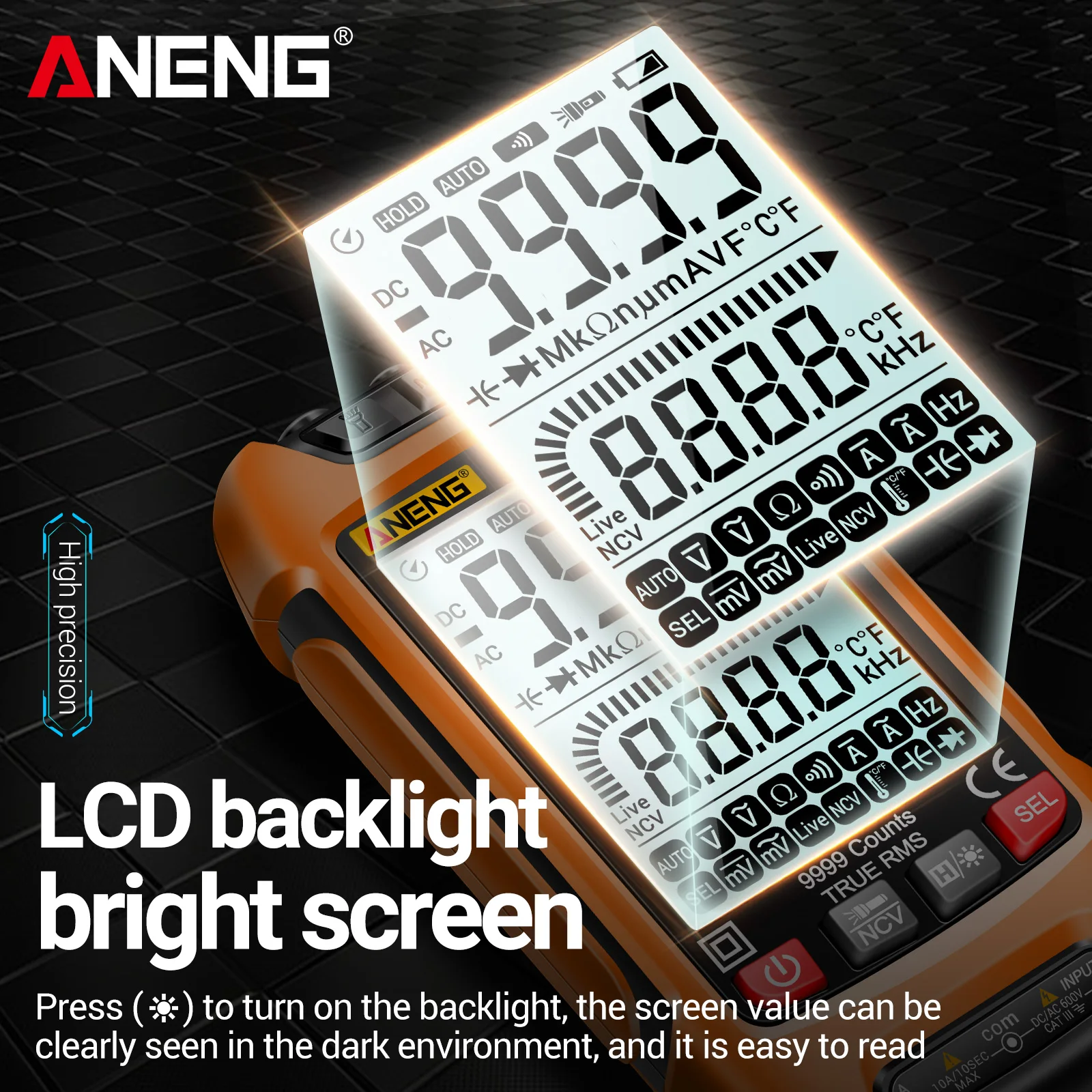

Display: LCD

Max. Display: 9999 digits

Range: Auto range

Sampling Time: About 3 times/second

Auto-off: 15 minutes

Working Altitude: Max. 2000m

Operating Temperature: 0~40℃

Storage Temperature: -10~50℃

Power Supply: 2 * 1.5V AAA battery (NOT included)

Item Size: 127 * 67 * 29.2mm / 5.00 * 2.64 * 1.15in

Item Weight: 131g / 4.62oz

Package Weight: 242g / 8.54oz

Package Size: 13.5 * 7.5 * 6.6cm / 5.31 * 2.95 * 2.60in

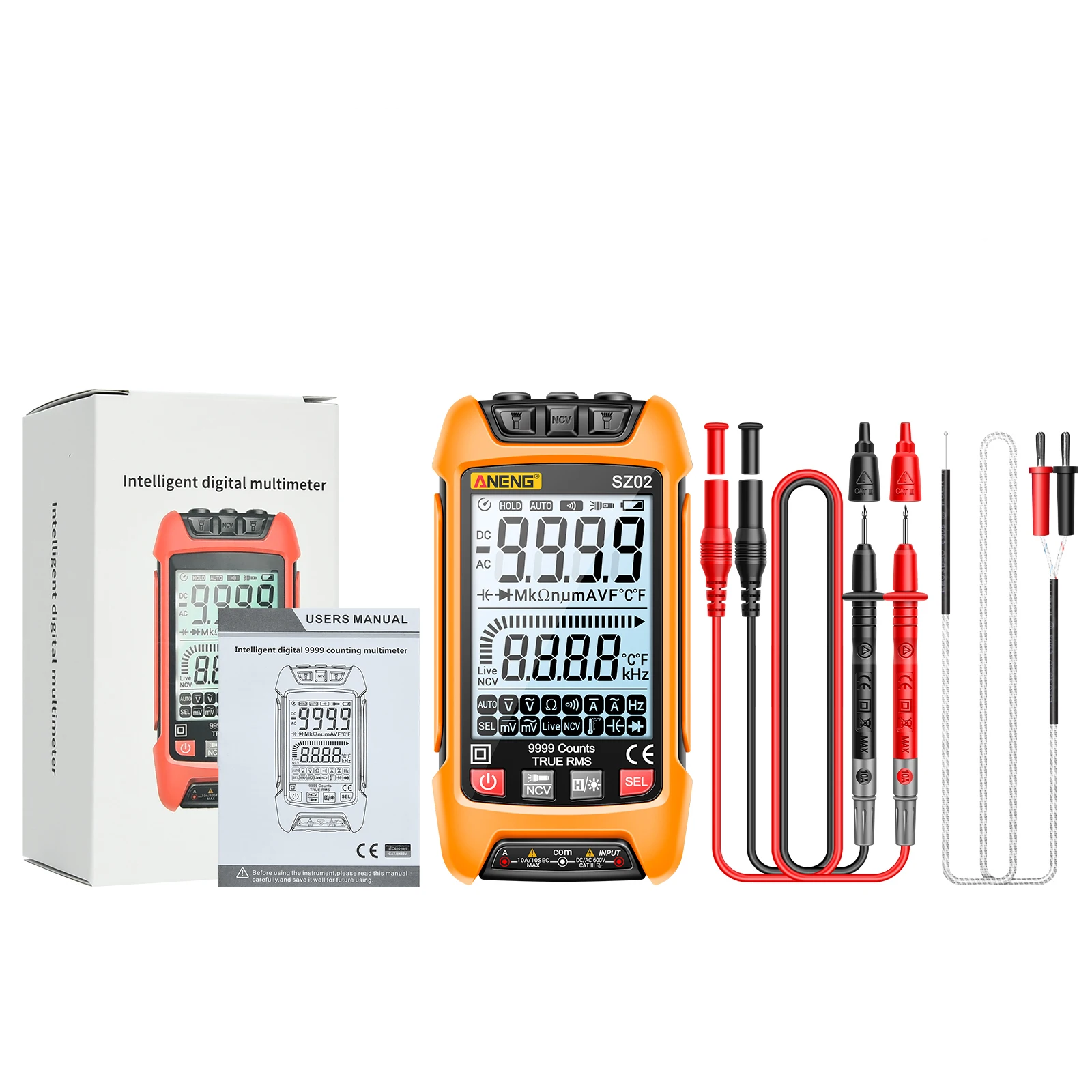

Package List:

1 * Multimeter

1 * Pair of Test Lead

1 * Thermocouple

1 * Manual (English)
