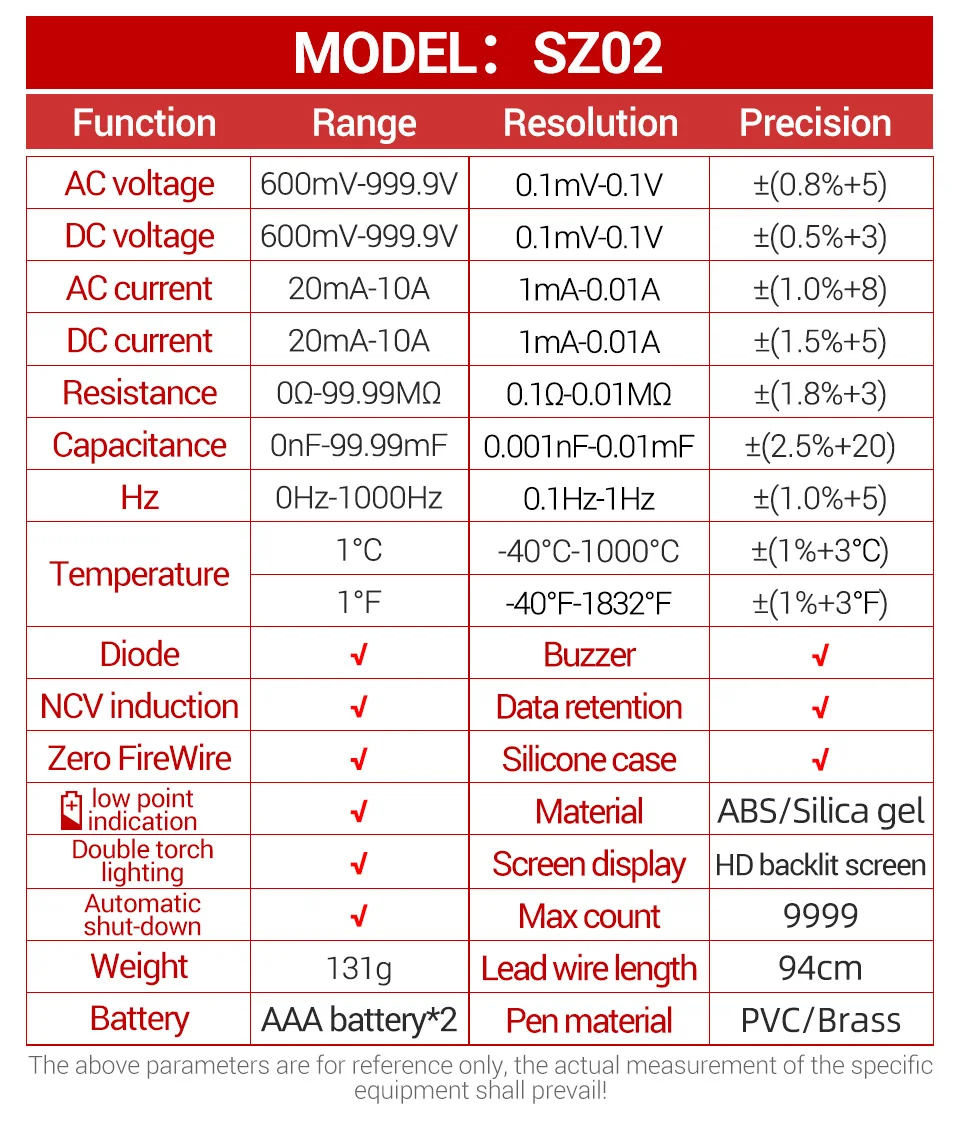

SPECIFICATIONS

AC Current: 999.9mA/10A

AC Voltage: 600.0mV/9.999V/99.99V/999.9V

AC/DC Current: Yes

AC/DC Voltage: Yes

Battery Included: no

Brand Name: JINGTOOL

Certification: CE

DC Current: 999.9mA/10A

DC Voltage: 600.0mV/9.999V/99.99V/999.9V

DIY Supplies: Electrical

Data retention: Yes

Diode: Yes

Display Type: Digital Display

Display(LCD): 9999 Counts

High-concerned chemical: none

Hz: Yes

Is Smart Device: no

Measuring Capacitance Range: 9.999nF999.9nF/9.999uF/ 99.99uF/999.9uF/9.999mF/99.99mF

Measuring Inductance Range: 100Hz/1000Hz

Measuring Resistance Range: 999.9/9.999k/99.99k/ 999.9k/9.999M/99.99M

Model Number: SZ02

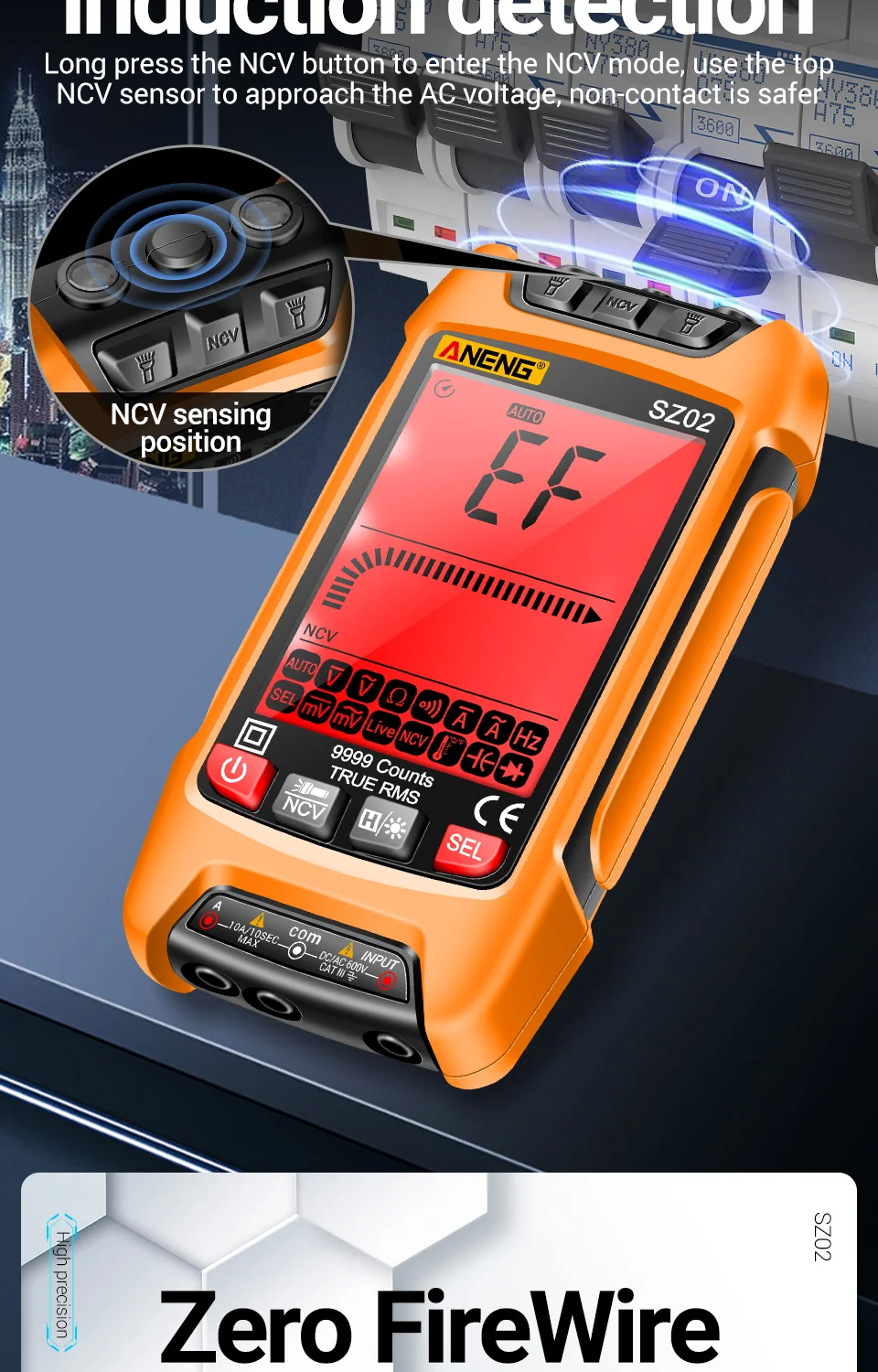

NCV: Yes

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Resistance: Yes

Temperature: Yes

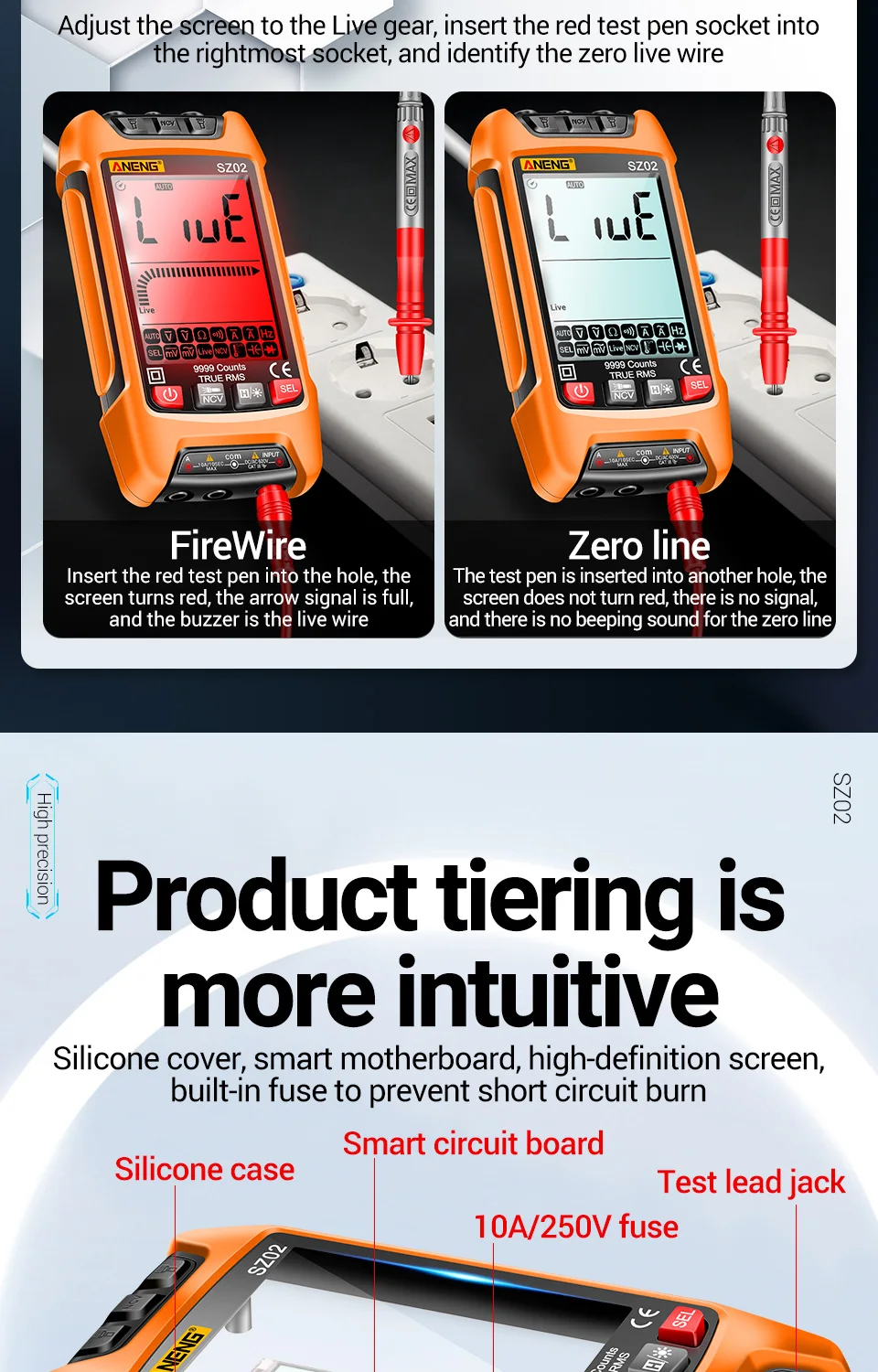

Zero fire line: Yes

Overview:

Automatic selection of measuring function and range.

Full range oveload protection.

Max. display value:9999 digits

Automatic shut down time:15 minutes

Sampling time: about 3 times/second

Power supply:2*1.5V AAA Battery (Without)

The max voltage between the measuring end and the ground is 1000V DC or 750V AC.

The instrument specifies one year as a cycle,and shall be re-calibrated under 18℃~28℃,with relative humidity less than 75%.
