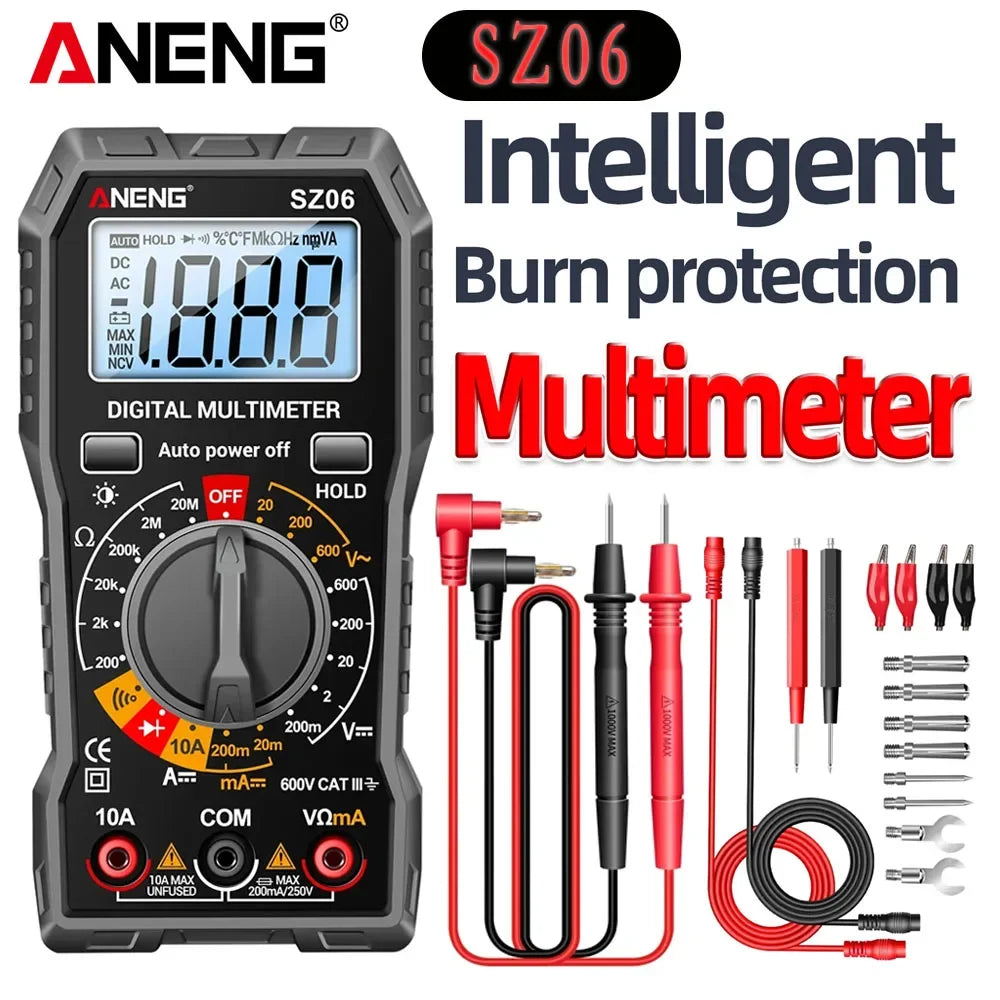

ANENG SZ06 Multimeter 2000 Diode Ohm Professional Smart Mini Multimetro Counts Digital AC/DC Voltage DC Current Tester Tools

ANENG SZ06 Multimeter 2000 Diode Ohm Professional Smart Mini Multimetro Counts Digital AC/DC Voltage DC Current Tester Tools

$68.68

$68.68 $0.00

Color SZ06 Red Pro SZ06 Red SZ06 Black Pro SZ06 Black SZ06 Gray Pro SZ06 Gray SZ06 Red A

Description

SPECIFICATIONS

AC Voltage: /

AC/DC Voltage: Yes

ANENG Model: ANENG SZ06

Battery: No. 5 AA battery*2 (not included, you need to bring your own)

Battery Included: no

Brand Name: ANENG

Certification: CE

Choice: yes

DC Current: 20mA-10A

DC Voltage: 200mV-600V

DIY Supplies: Electrical

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Maximum count: 2000

Measuring Resistance Range: 0-20M ohm

Model Number: ANENG SZ06 Multimeter

Operating Mode: Manual Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

ANENG SZ06 Multimeter 2000 Counts Digital AC/DC Voltage DC Current Diode Ohm Professional Smart Mini Multimetro Tester Tools

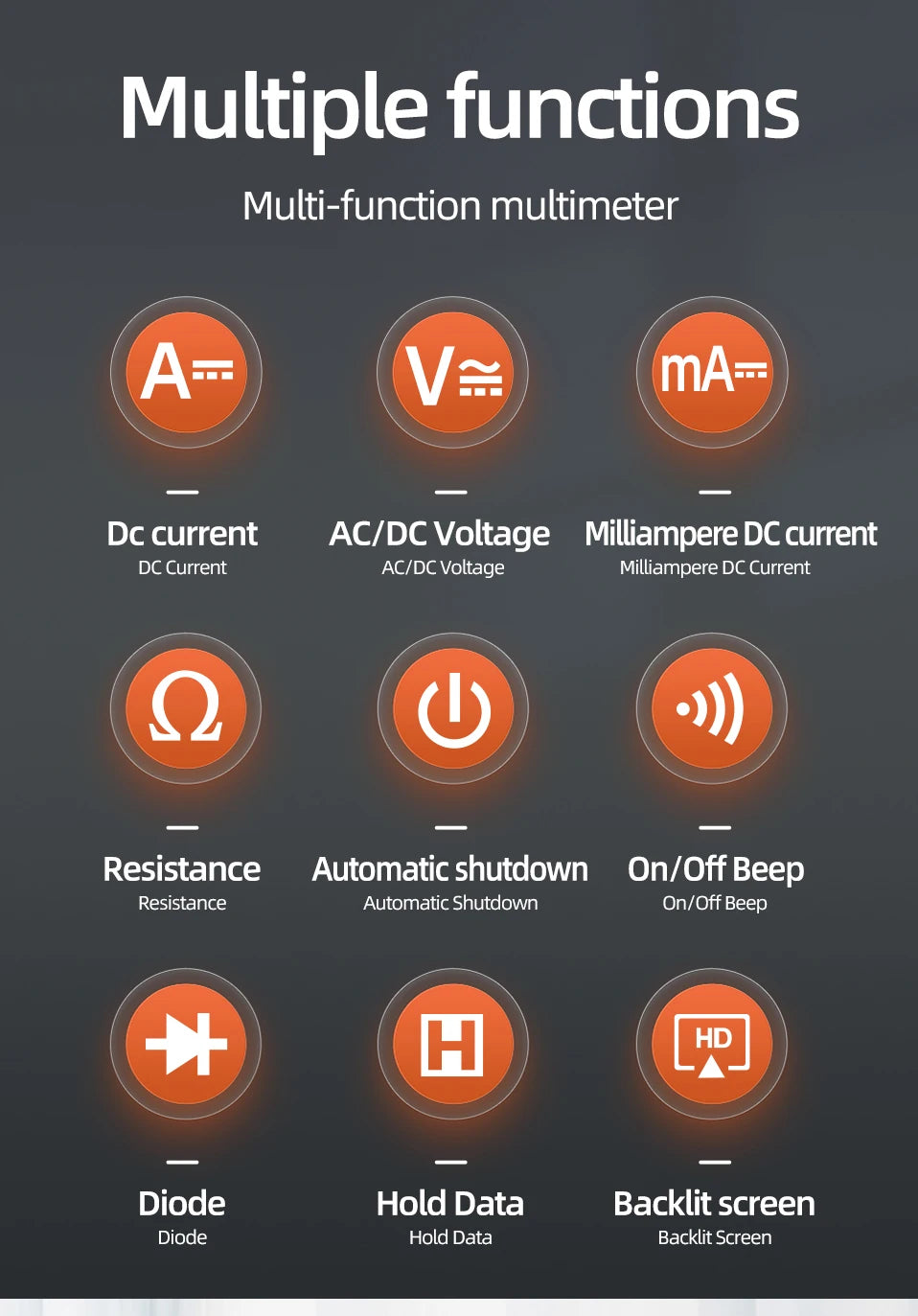

A.Overview:
Automatic selection of measuring function and range.
Full range oveload protection.

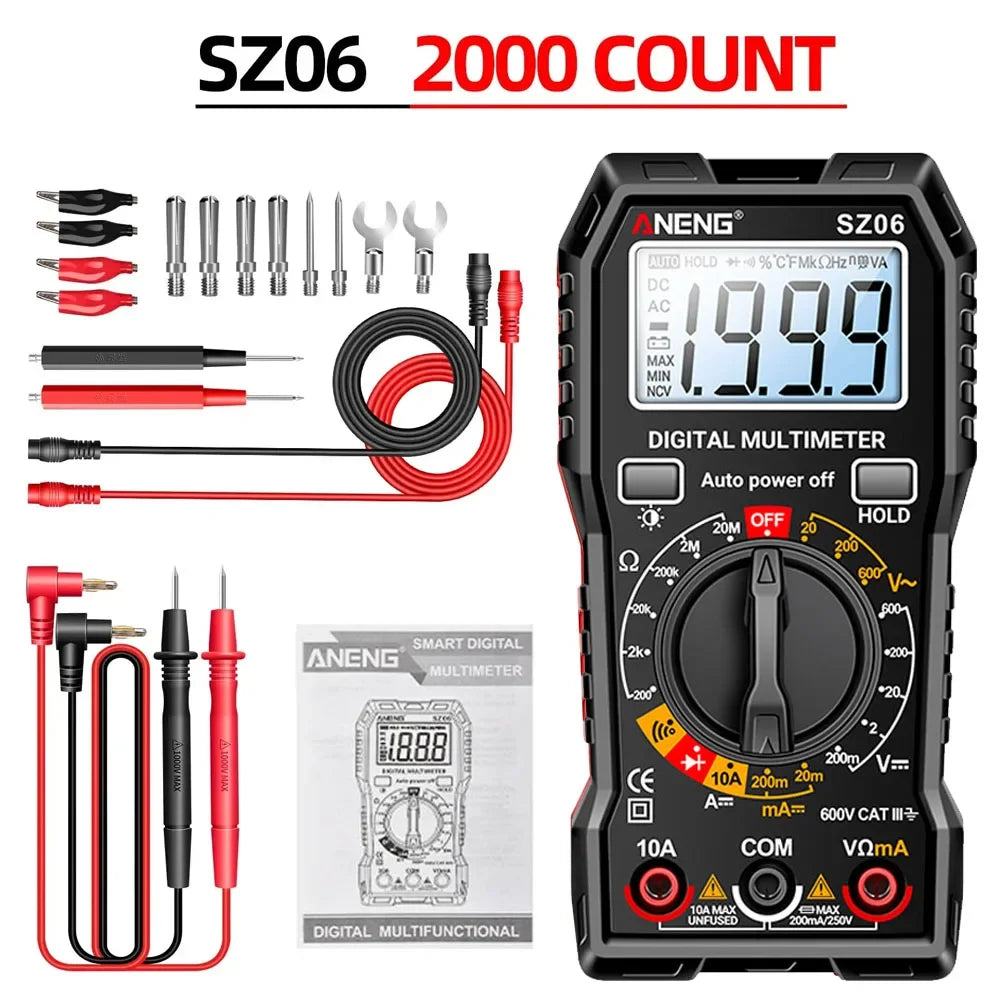

Max. display value:SZ06 2000 digits

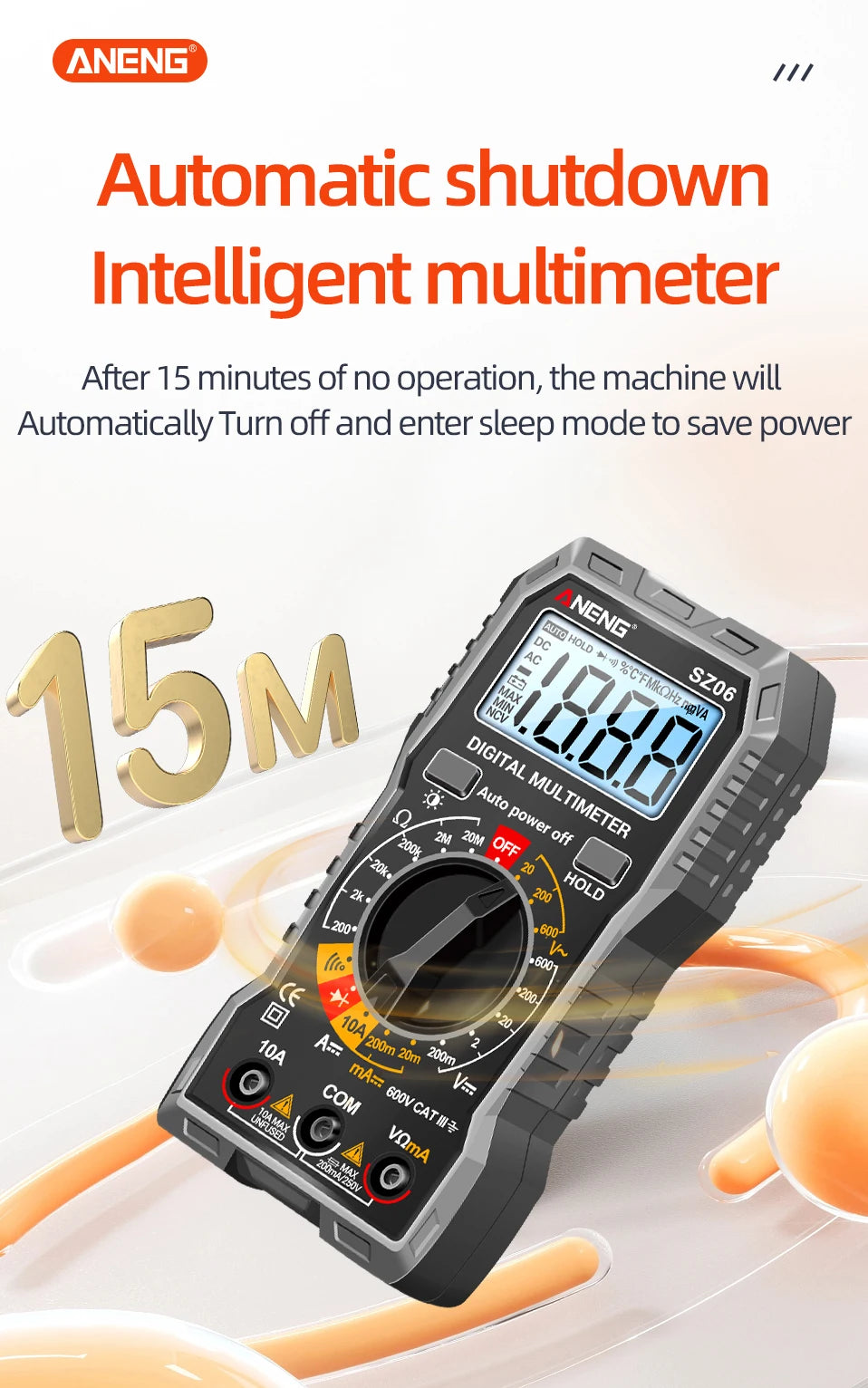

Automatic shut down time:15 minutes
Sampling time: about 3 times/second
power supply:2*1.5V AAA Battery (Ship without battery)
SZ06:The max voltage between the measuring end and the ground is 600V DC or 600V AC.

B.Specification:

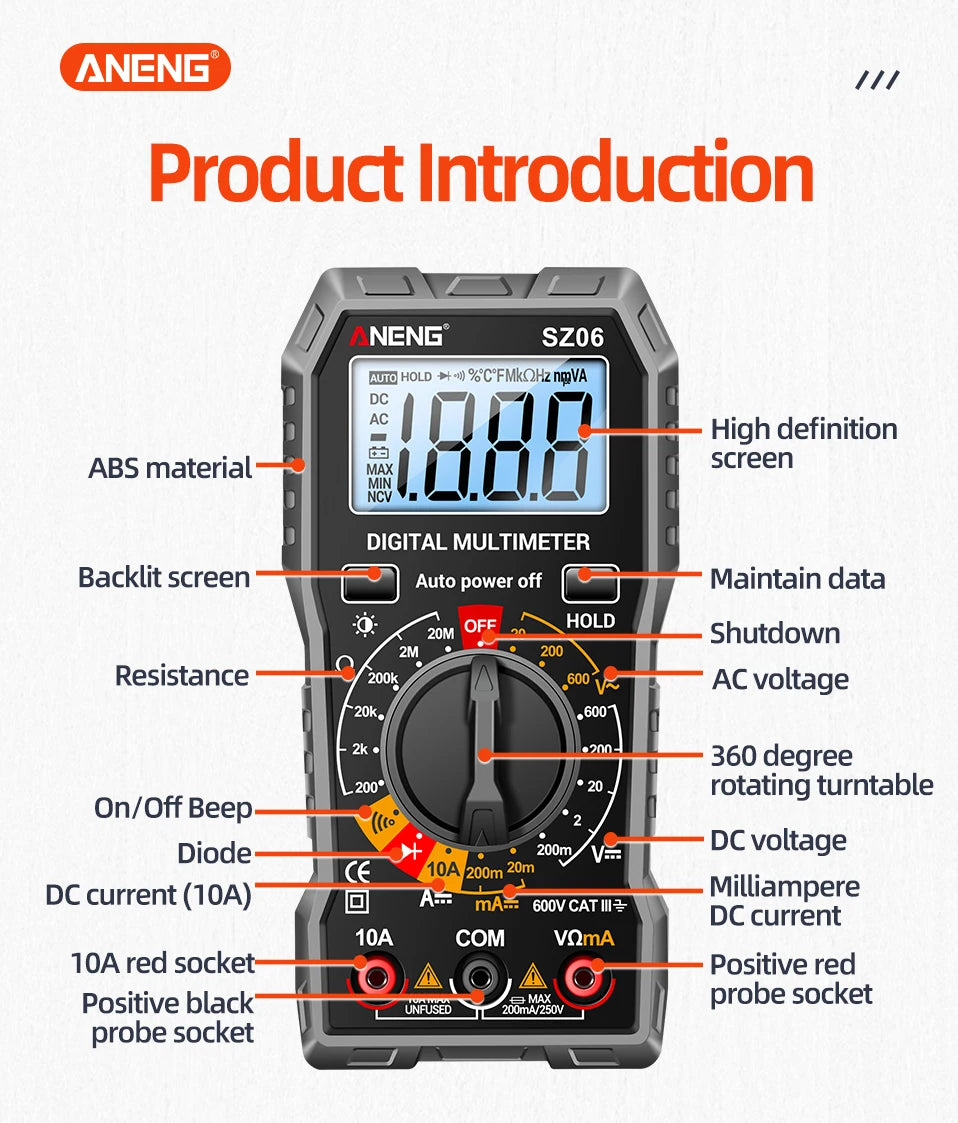

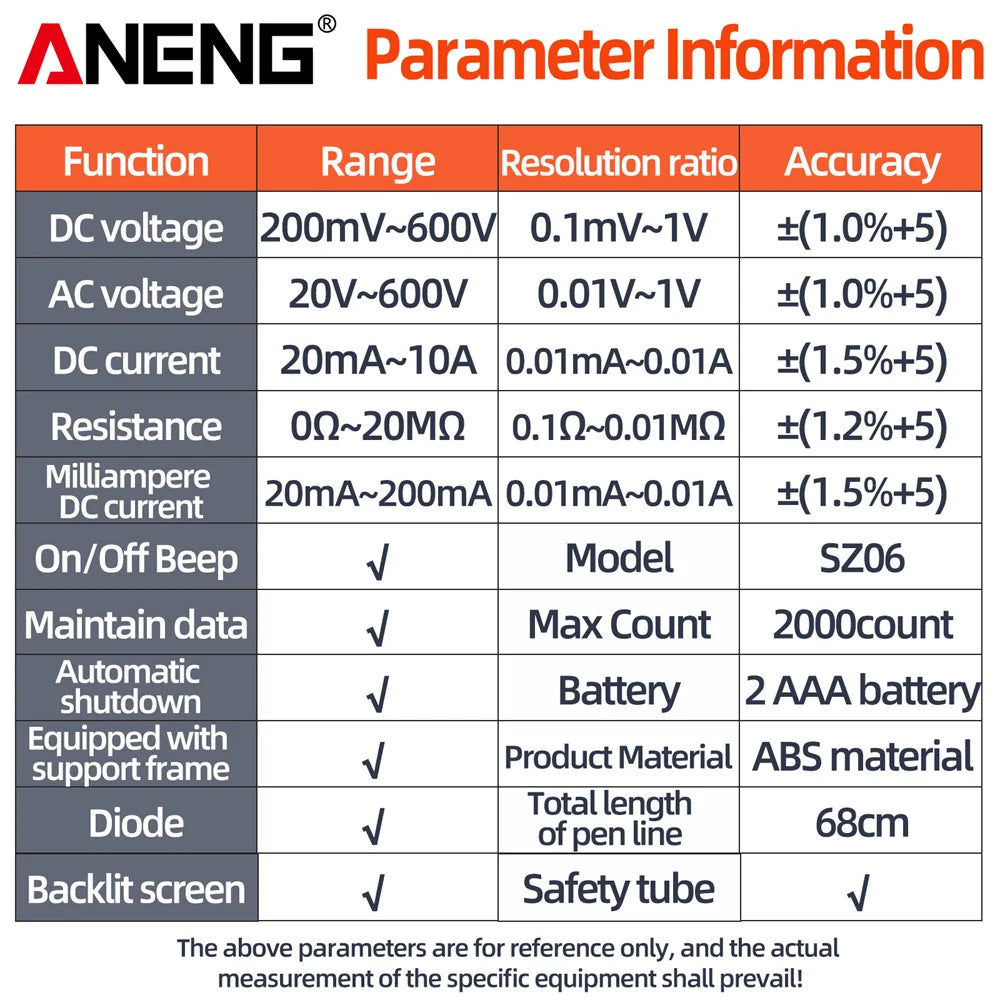

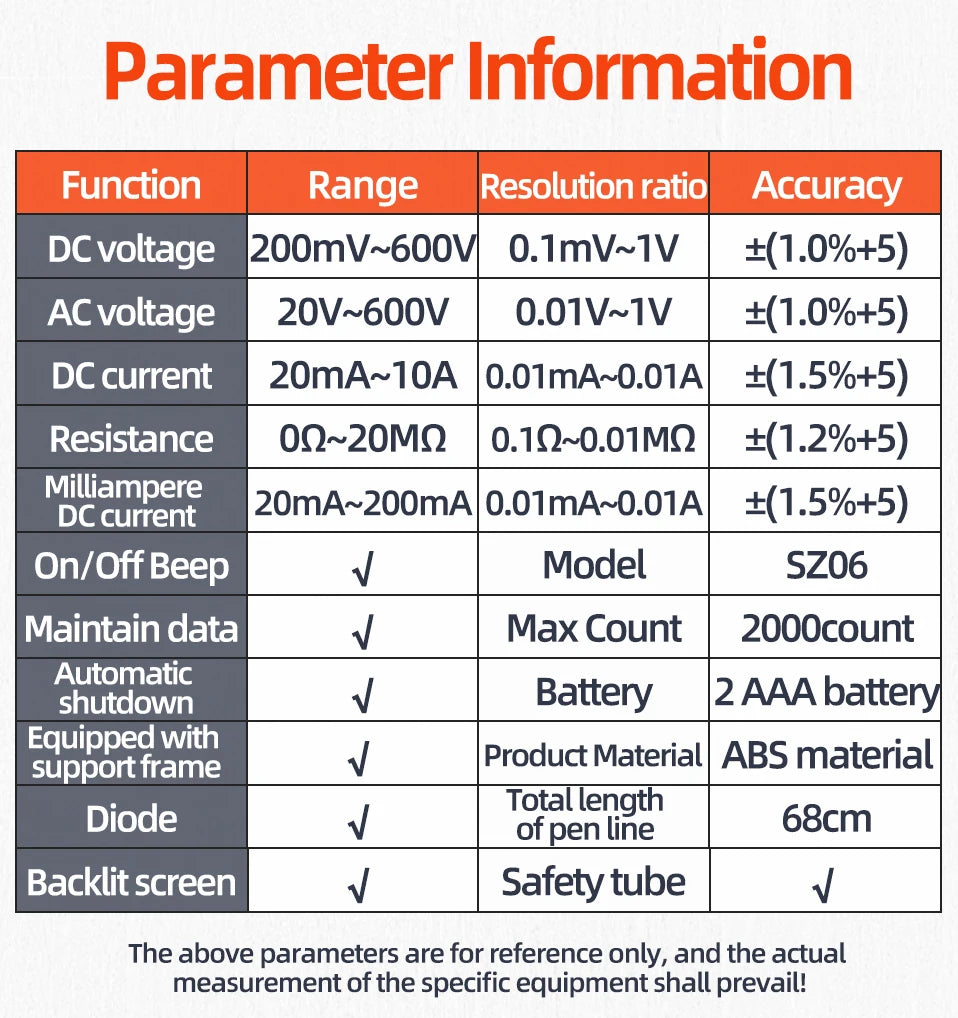

SZ06 Parameter Information
Function	Range	Resolution ratio	Accuracy

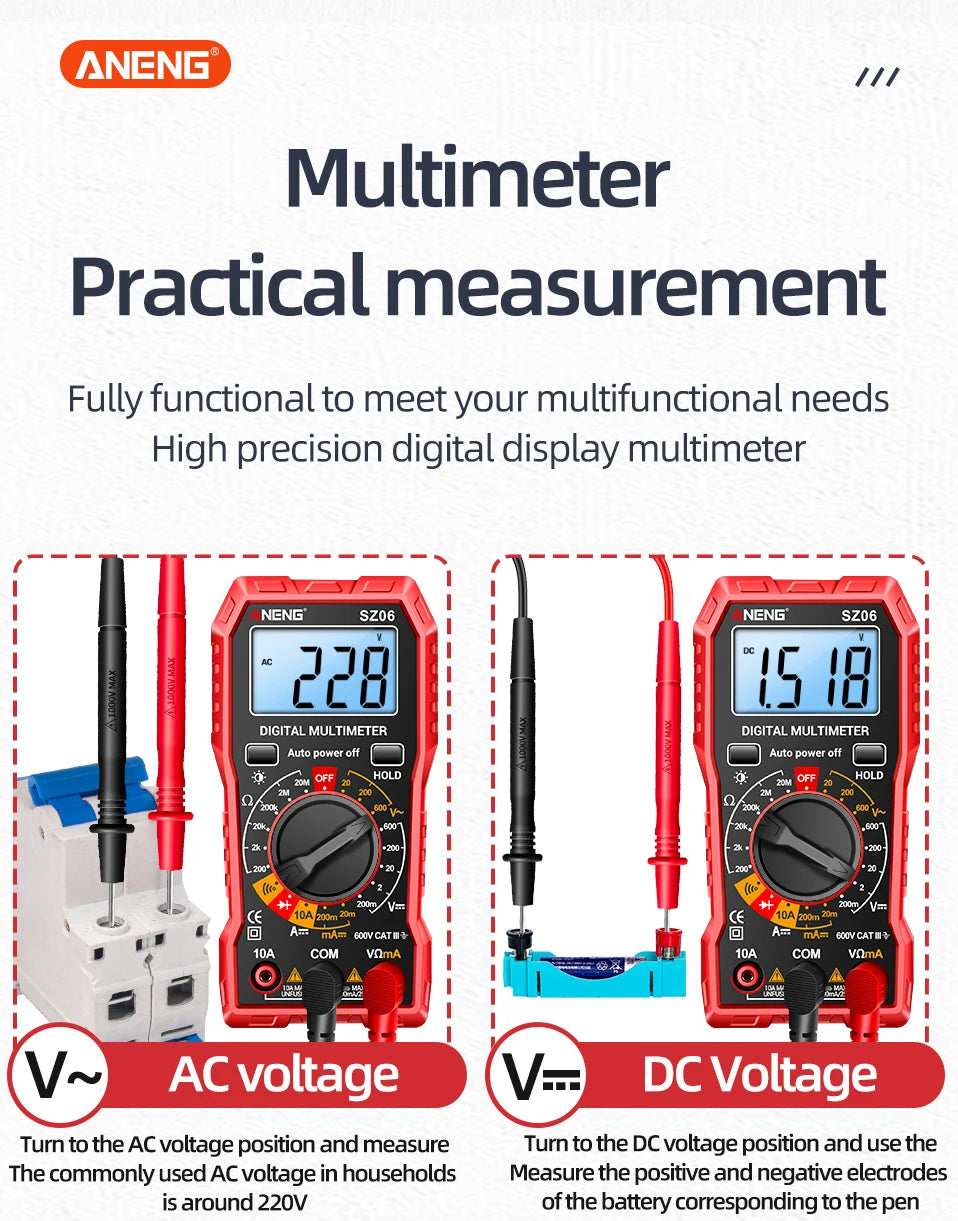

DC voltage	200mV~600V	0.1mV~1V	±(1.0%+5)

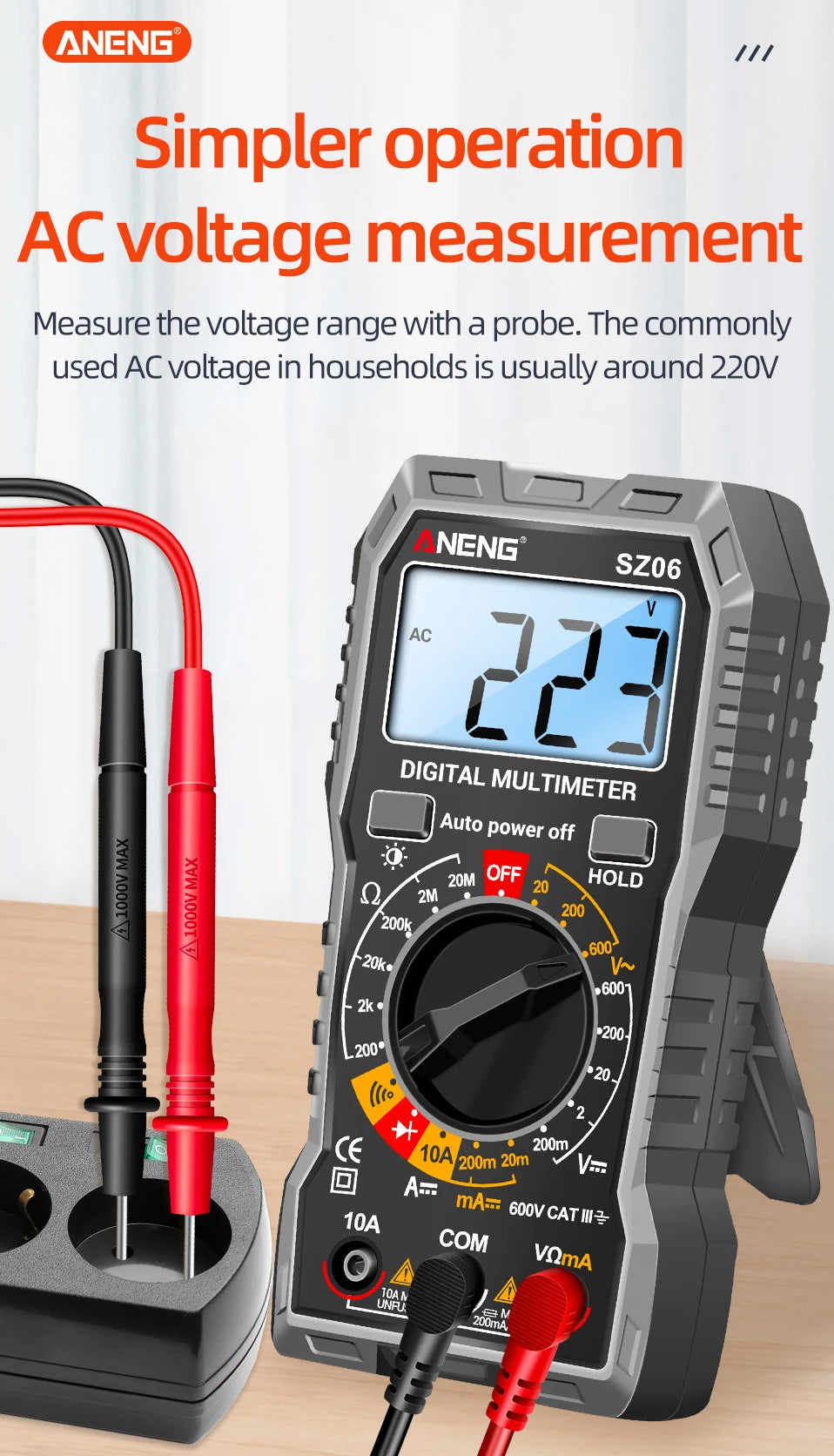

AC voltage	20V~600V	0.01V~1V	±(1.0%+5)

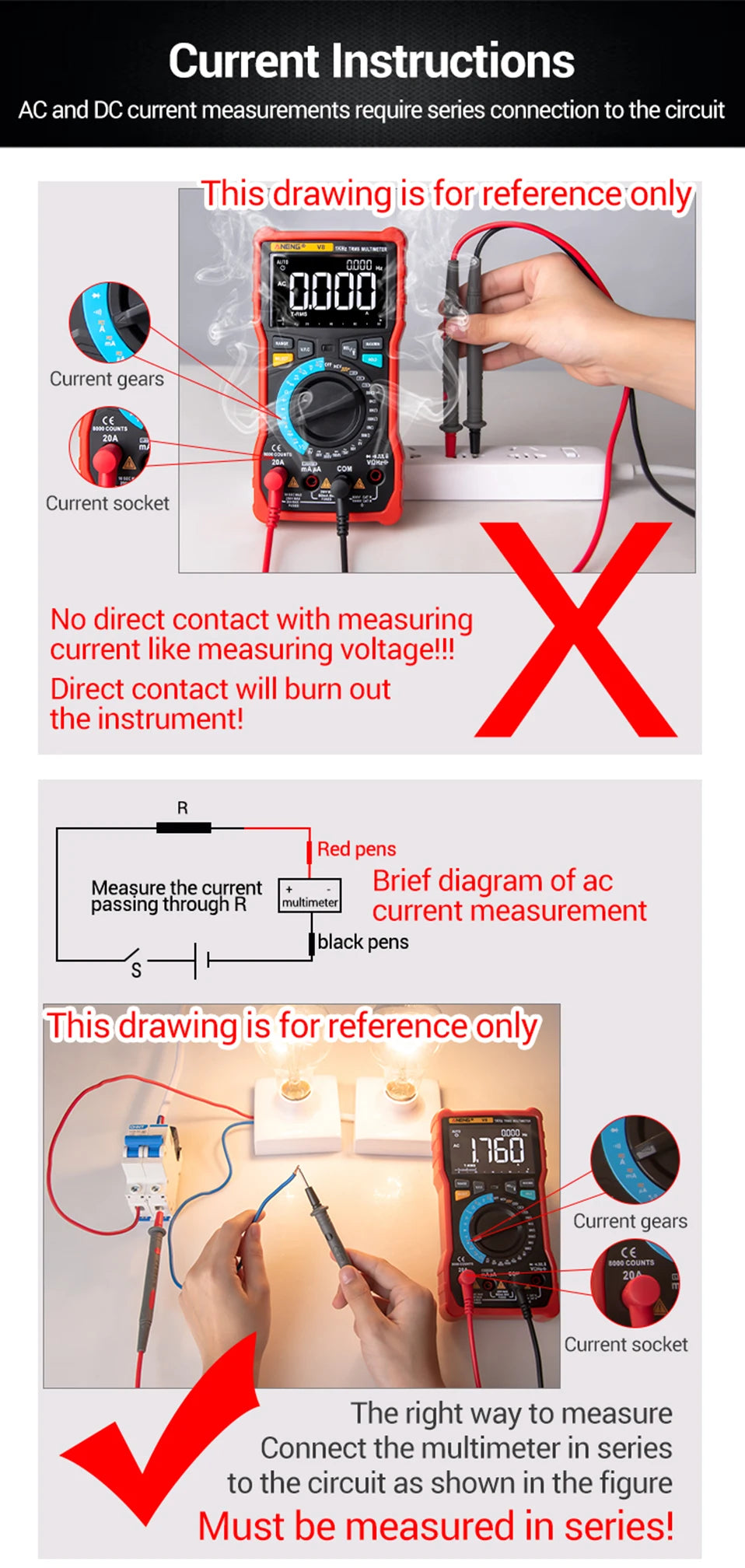

DC current	20mA~10A	0.01mA~0.01A	±(1.5%+5)
Resistance	0Ω~20MΩ	0.1Ω~0.01MΩ	±(1.2%+5)

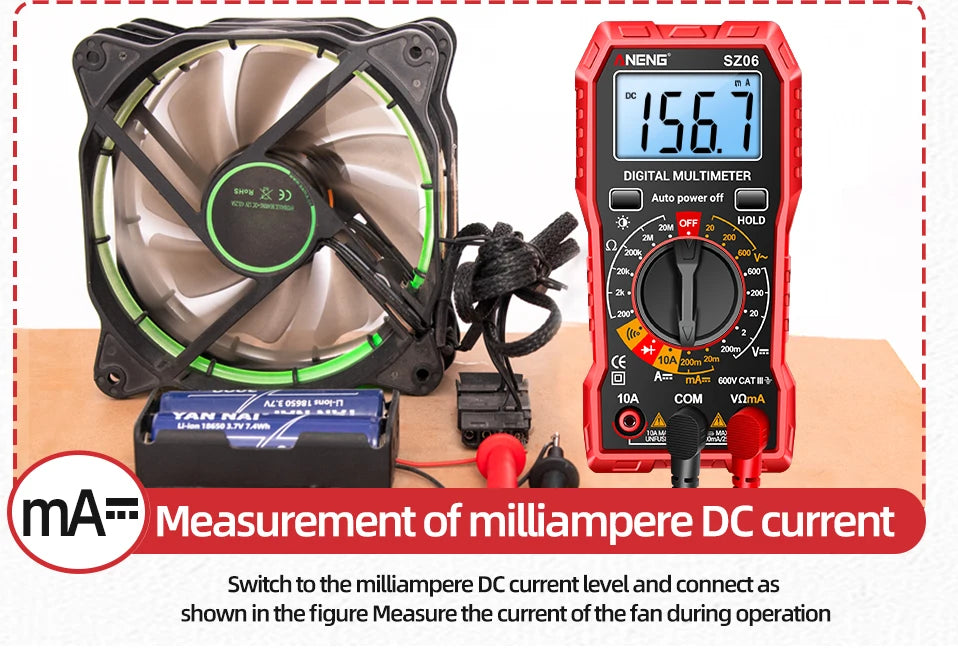

Milliampere DC current	20mA~200mA	0.01mA~0.01A	±(1.5%+5)
On/Off Beep	√	Model	SZ06
Maintain data	√	Max Count	2000 count
Automatic shutdown	√	Battery	2 AAA battery

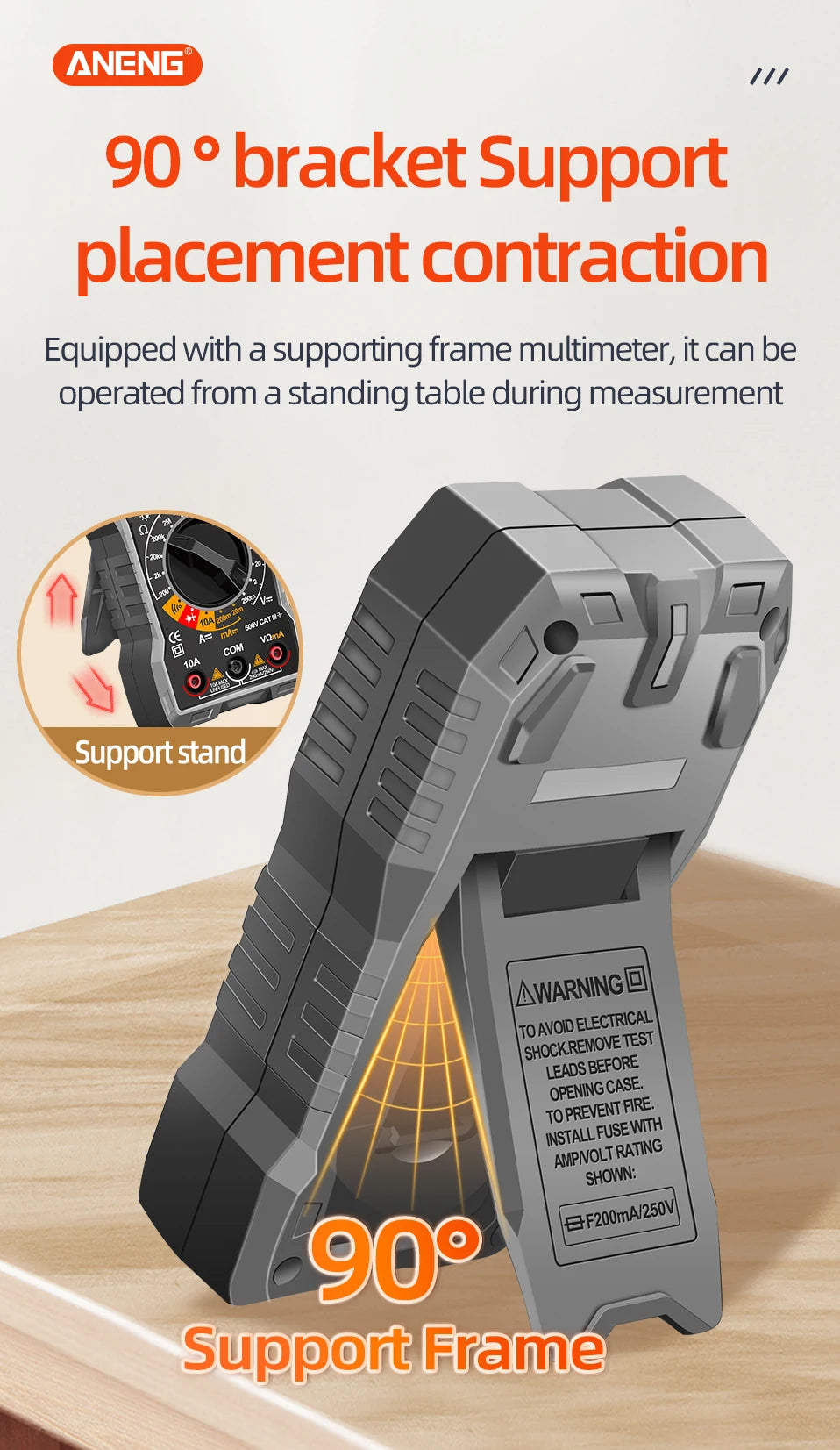

Equipped with support frame	√	Product Material	ABS material

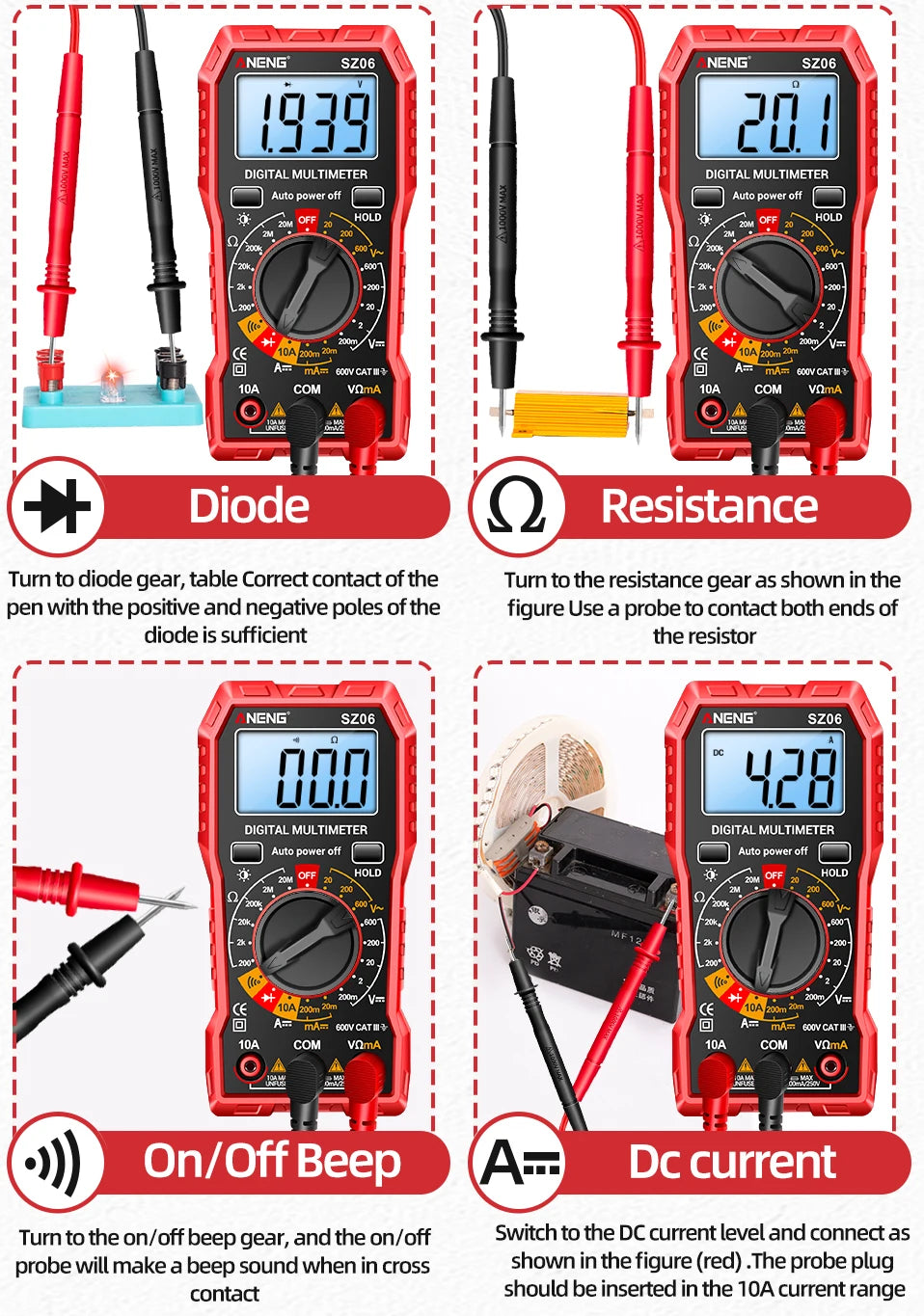

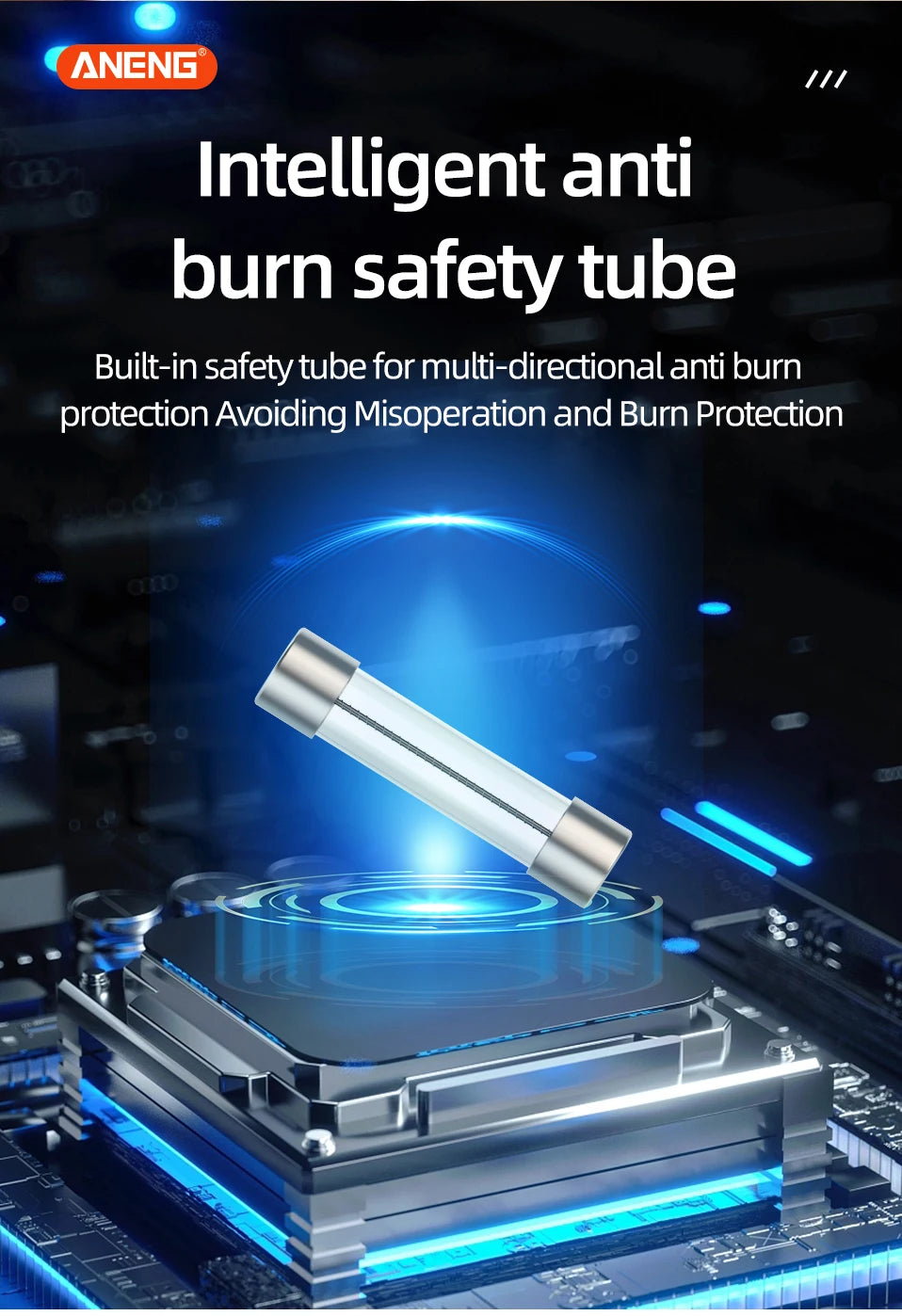

Diode	√	Safety tube	√

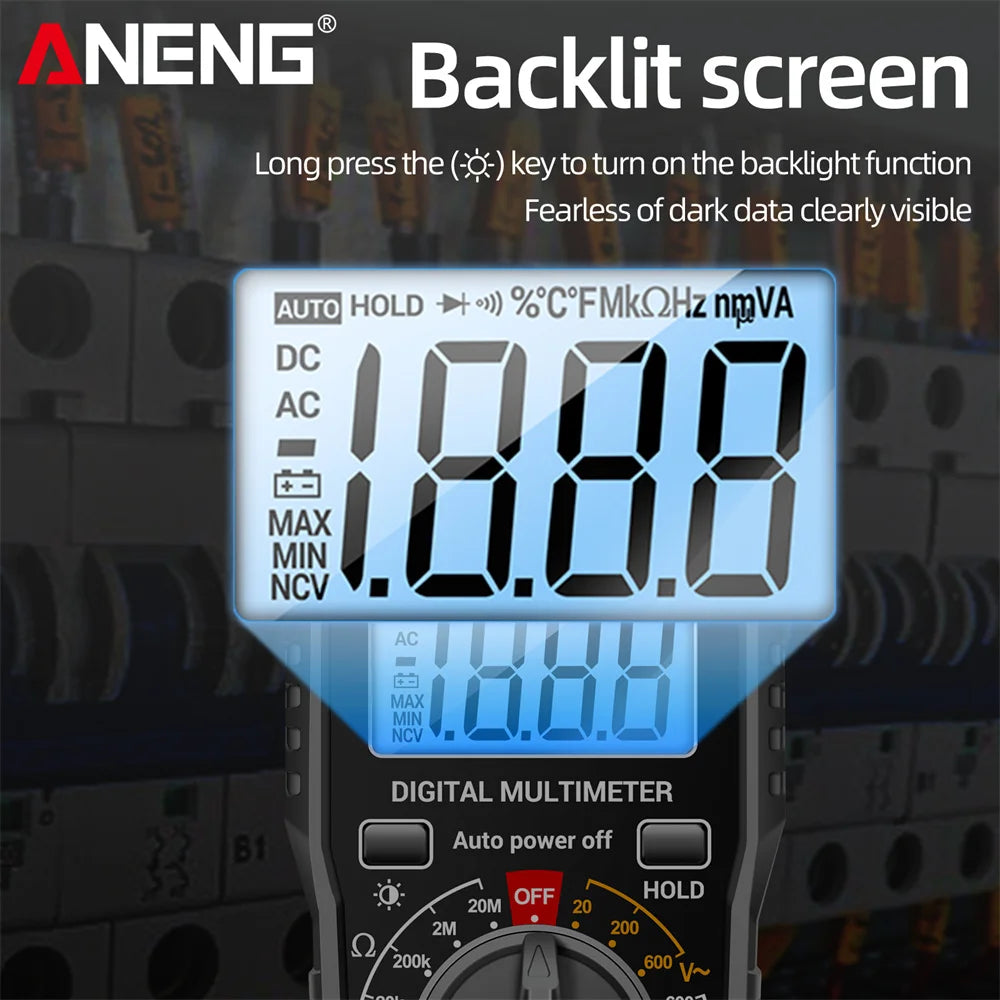

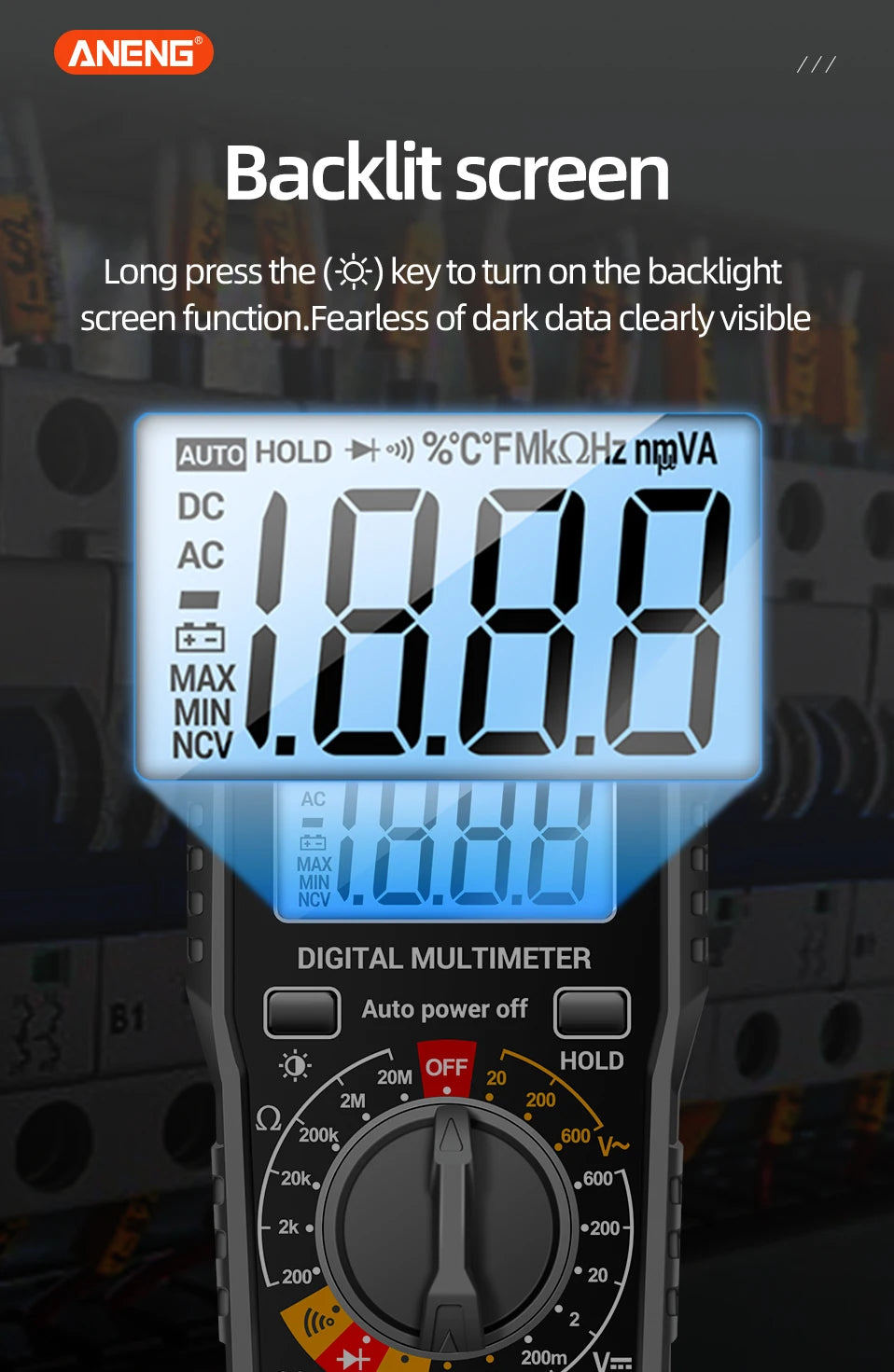

Backlit screen	√

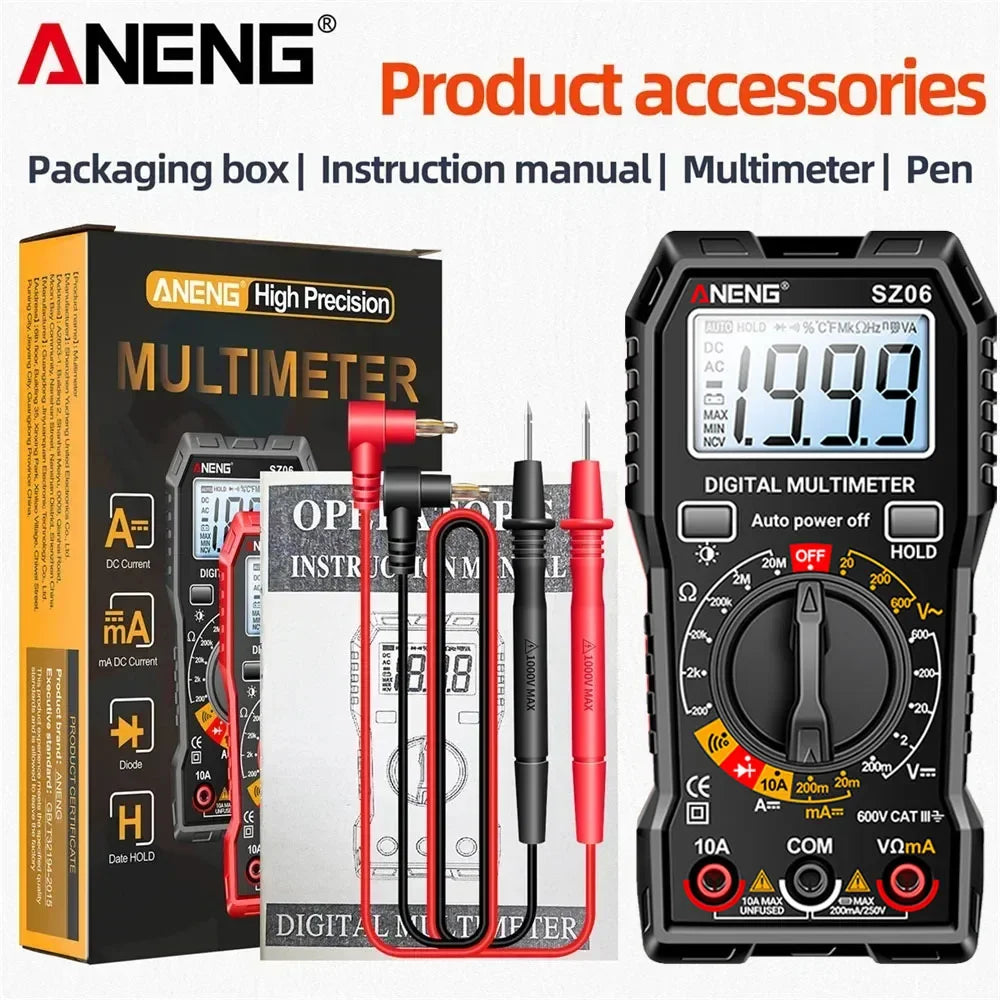

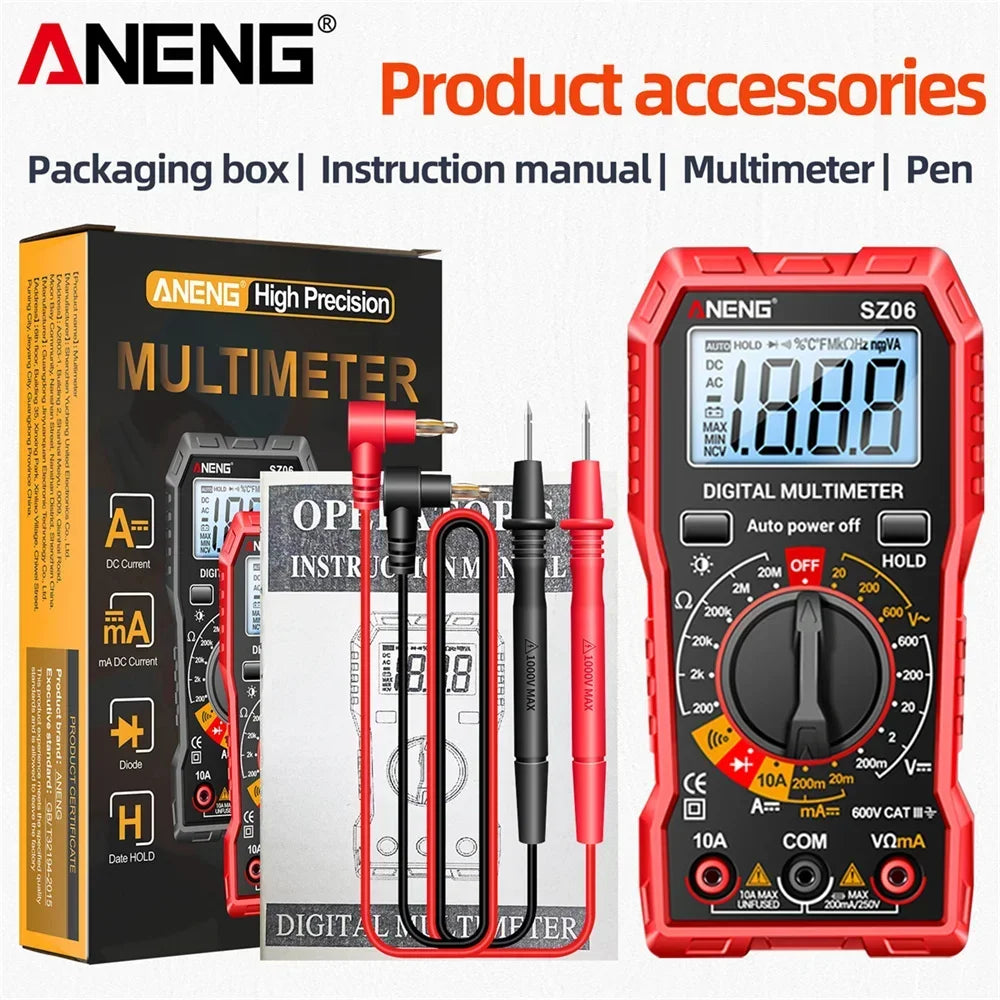

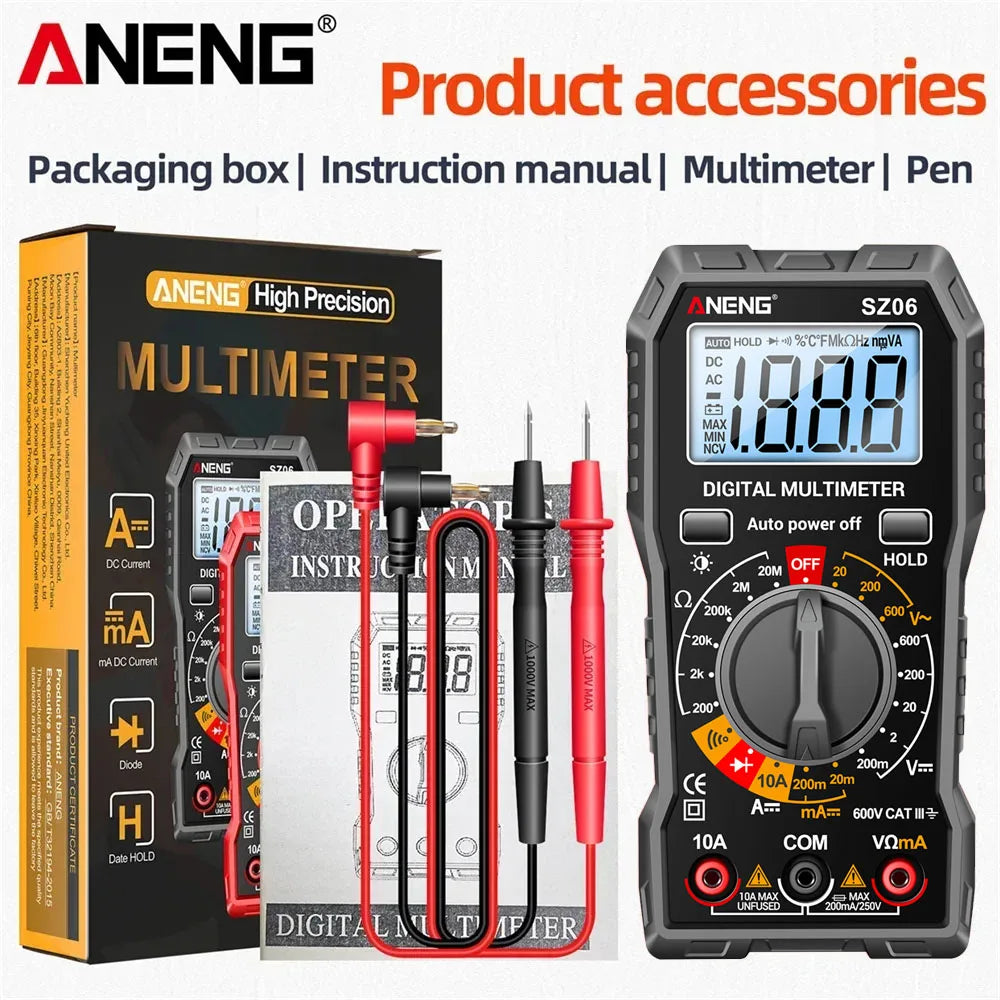

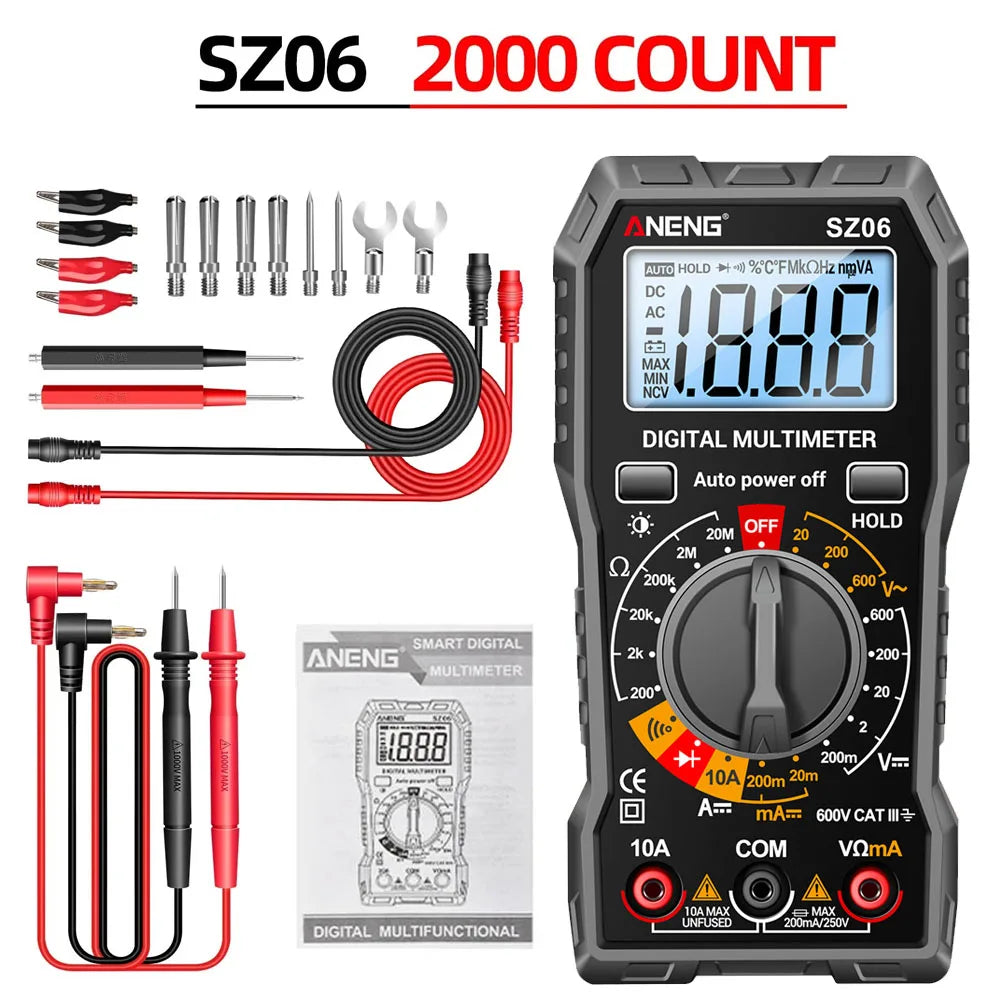

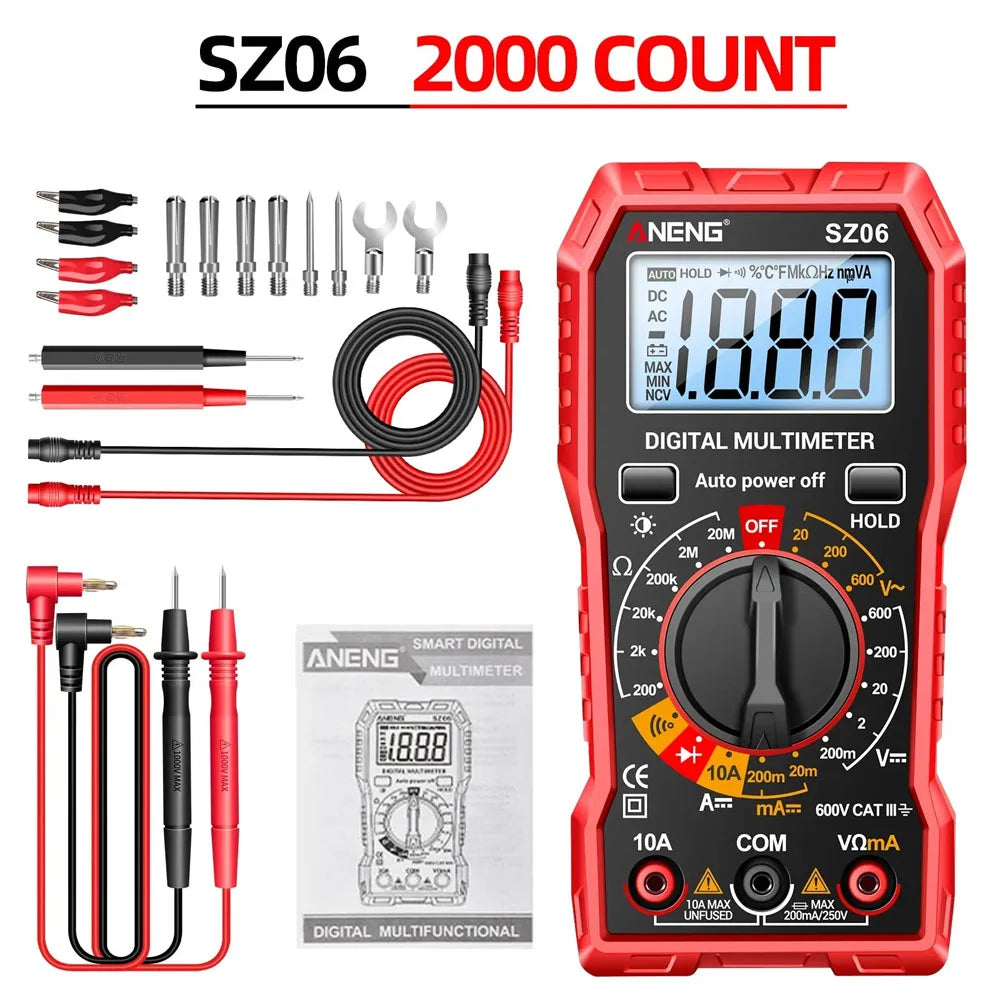

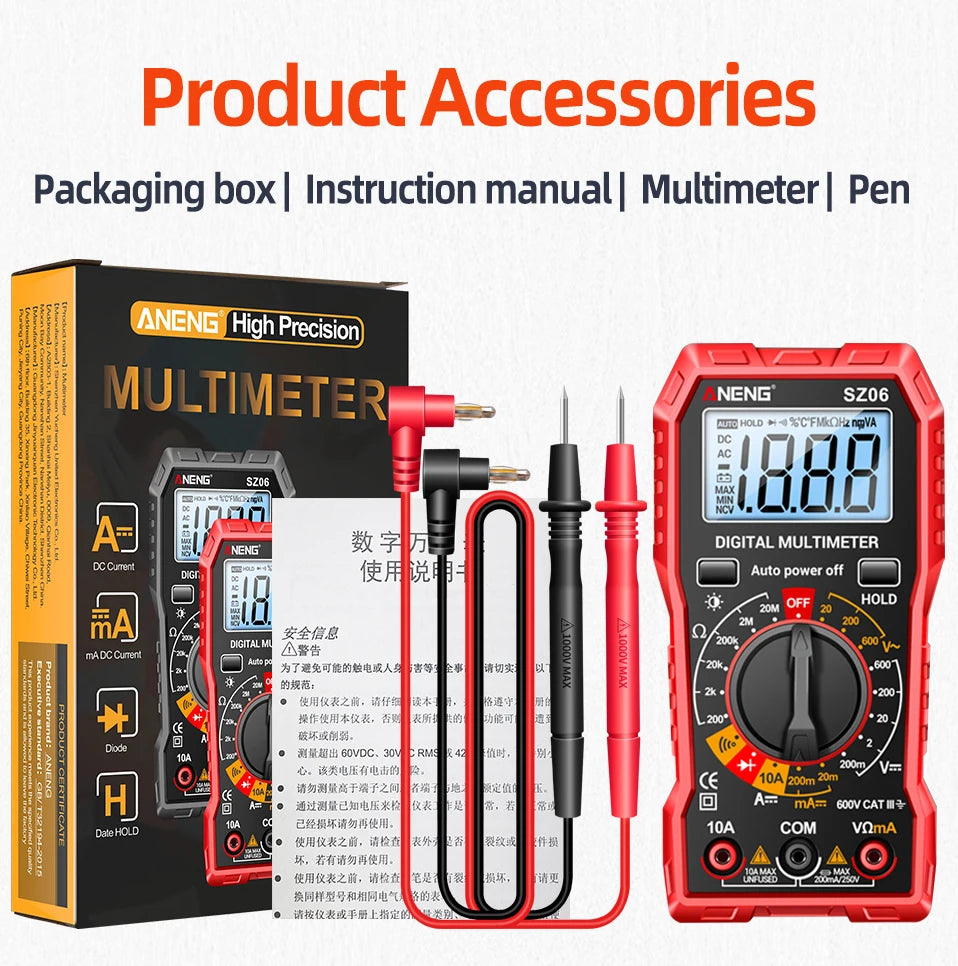

C.Package Include:（Without Battery）
According to your choice
