ANENG SZ302 Digital Automatic Tester NCV Detector Resistance Ohm Ammeter Capacitance Meter Multimeter AC/DC Votage Current
Red with box
$43.04
Sale price
$43.04
Regular price
$0.00
Skip to product information
ANENG SZ302 Digital Automatic Tester NCV Detector Resistance Ohm Ammeter Capacitance Meter Multimeter AC/DC Votage Current
$43.04
Sale price
$43.04
Regular price
$0.00
Description
SPECIFICATIONS
AC Current: 2mA/20mA/200mA/10A
AC Voltage: 12
Battery Included: no,No
Brand Name: NONE
DC Current: 2mA/20mA/200mA/10A
DC Voltage: 200mV/2V/20V/200V/600V
DIY Supplies: Electrical,Electrical

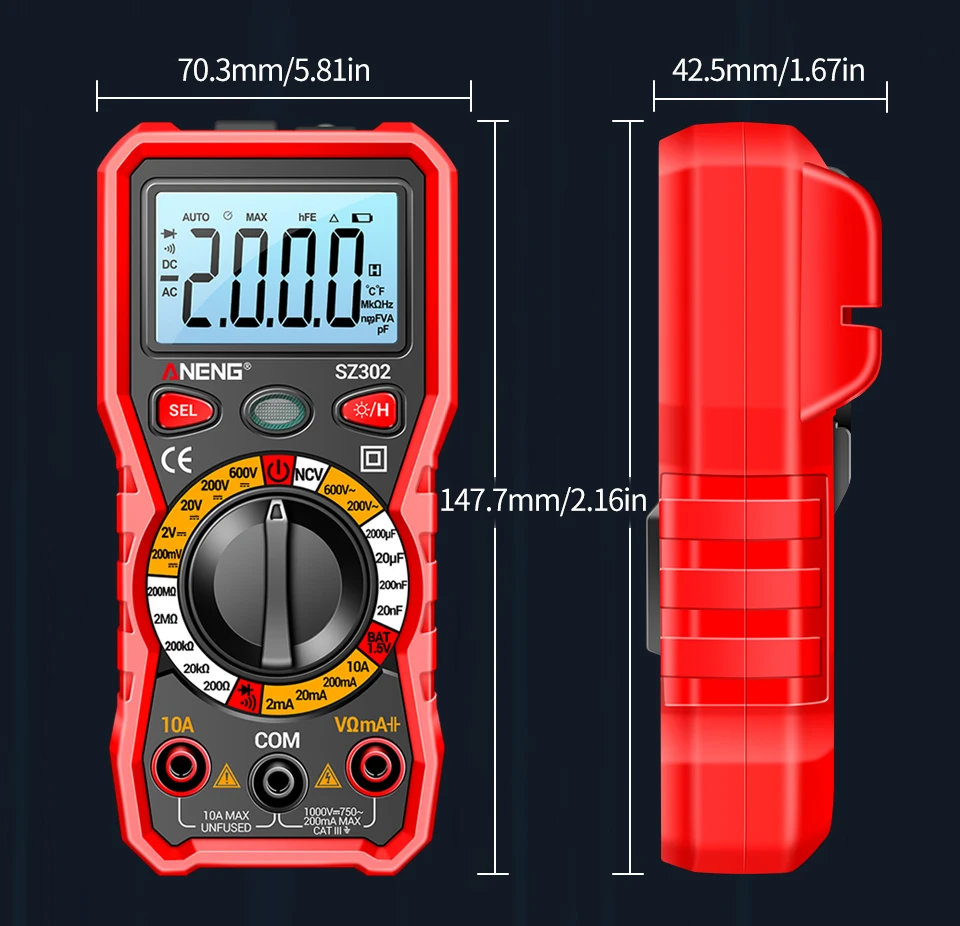

Dimensions: 42.5x147.7x70.3 mm
Display Type: Digital Display
High-concerned chemical: none,None
Measuring Capacitance Range: 20nF/200nF/20uF/2000uF,20nF/200nF/20uF/2000uF
Measuring Inductance Range: ANENG Digital Multimeter,ANENG Digital Multimeter
Measuring Resistance Range: 200/20k/200k/2M/200M,200/20k/200k/2M/200M
Model Number: ANENG SZ302 Multimeter,ANENG SZ302 Multimeter
Operating Mode: Manual Range,Manual Range
Operating Temperature: 0 - 40 ℃,0 - 40 ℃
Origin: Mainland China,Mainland China
A
NENG SZ302
Digital Multimeter
Describe
:

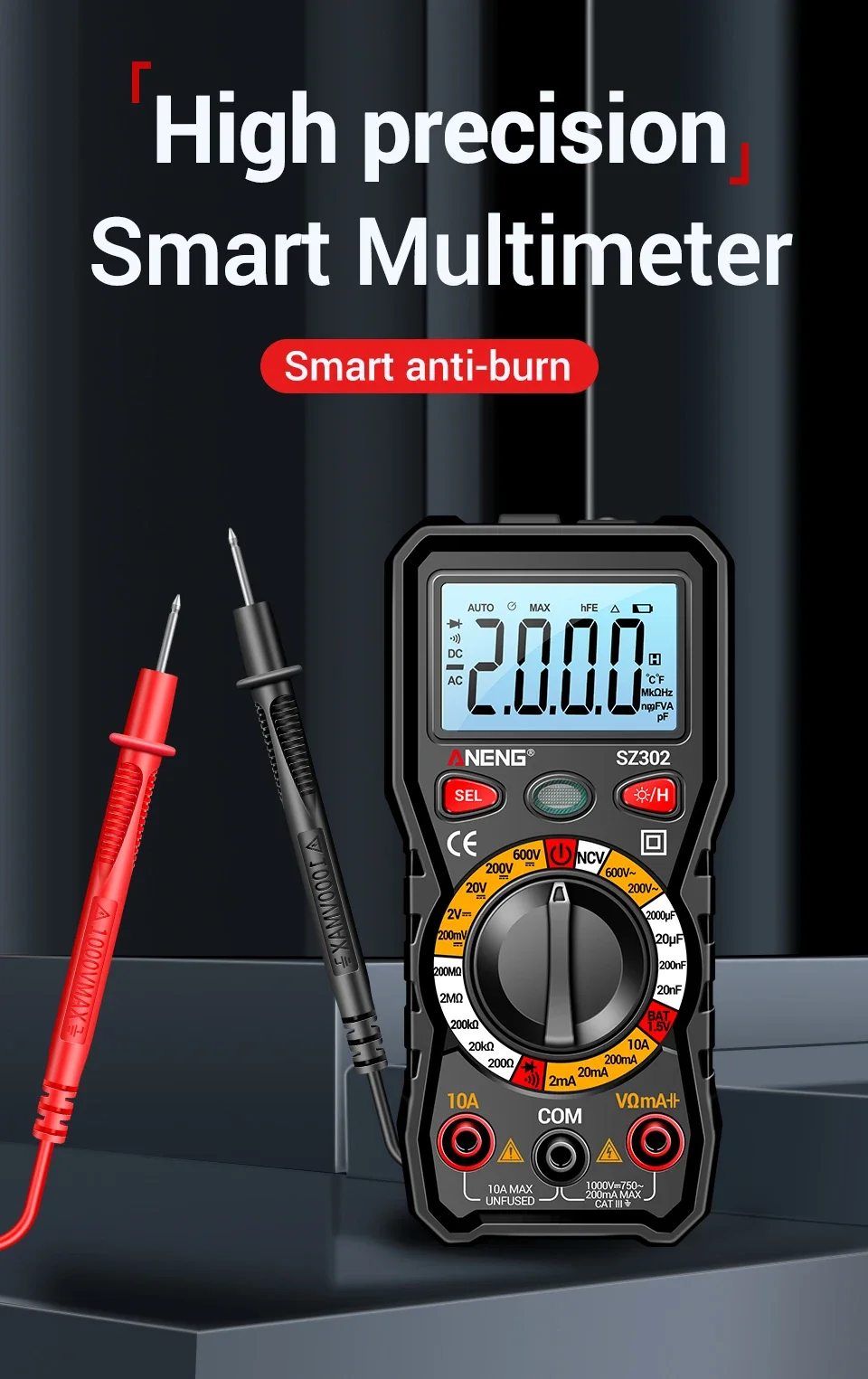

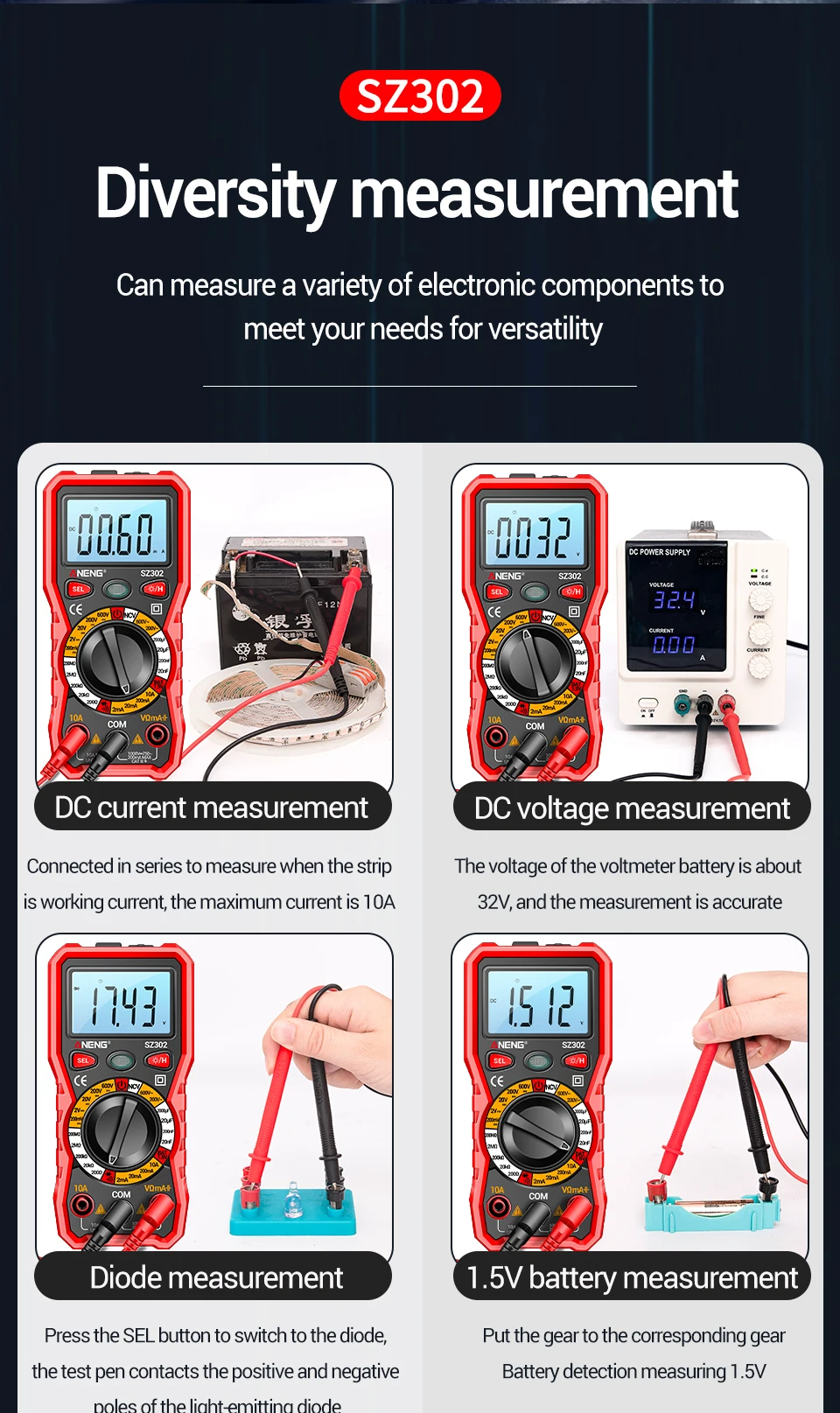

ANENG SZ302 is a handheld digital multimeter, designed and produced according to international electrical safety standards, used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode and NCV and other functions

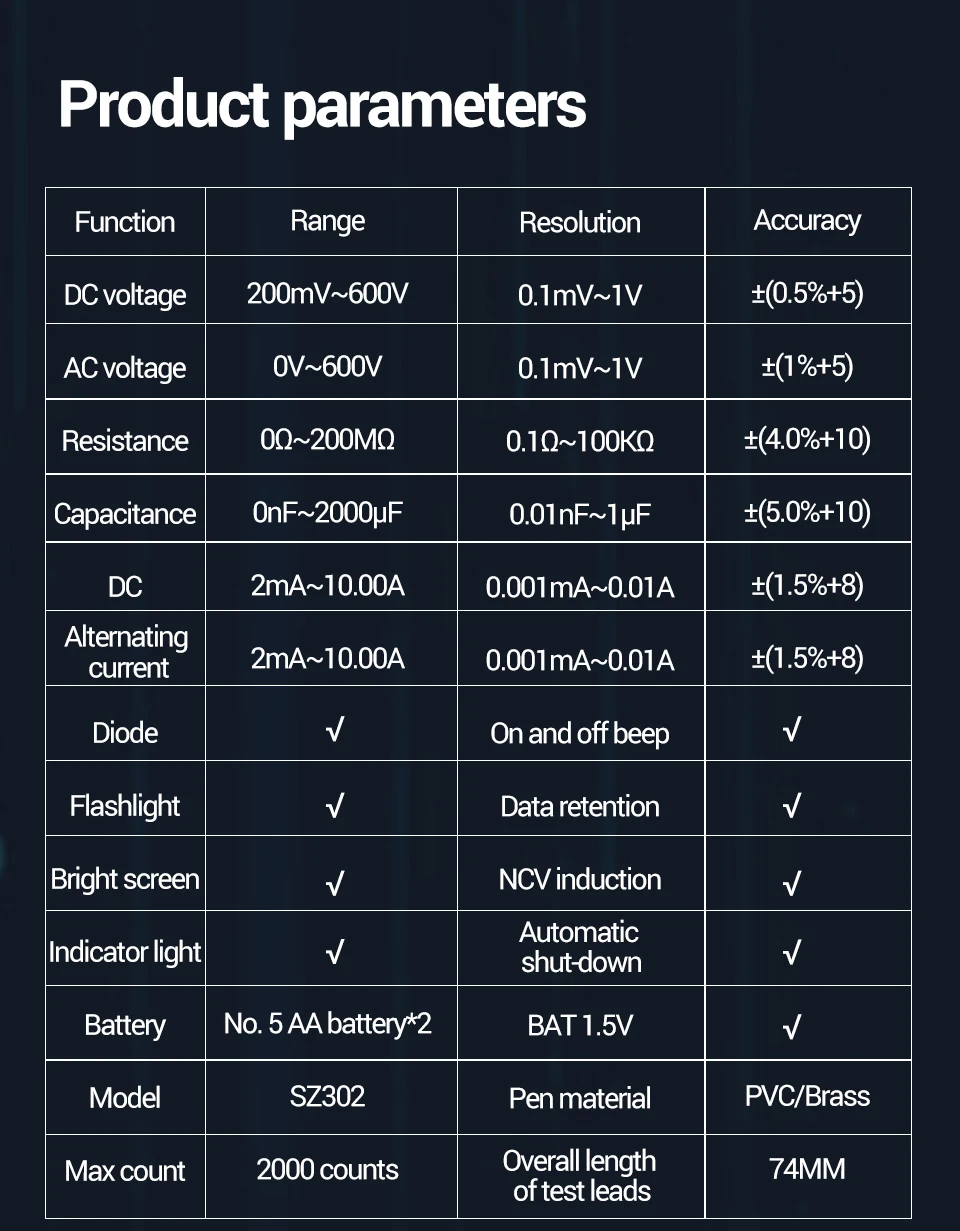

Feature:
|
Function
|
Range
|
Resolution
|
Accurate
|
|
DC voltage
|
200mV/2V/20V/200V/600V
|
0.1mV/1mV/10mV/0.1V/1V
|
±(0.5%+5)
|
|
AC voltage
|
200V/600V
|
100mV/1V
|
±(1%+5)
|
|
DC current
|
2mA/20mA/200mA/10.00A
|
0.001mA/0.01mA/0.1mA/0.01A
|
±(1.5%+8)
|
|

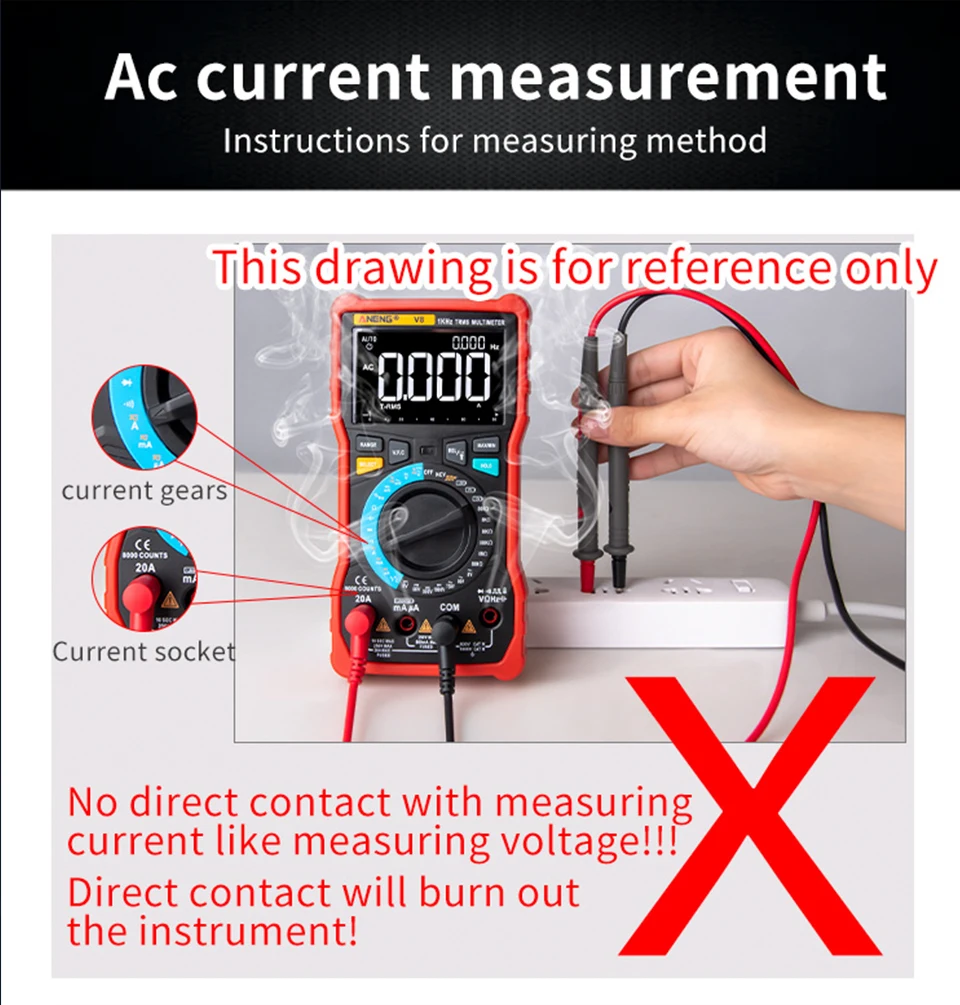

AC current
|
2mA/20mA/200mA/10.00A
|
0.001mA/0.01mA/0.1mA/0.01A
|
±(1.5%+8)
|
|

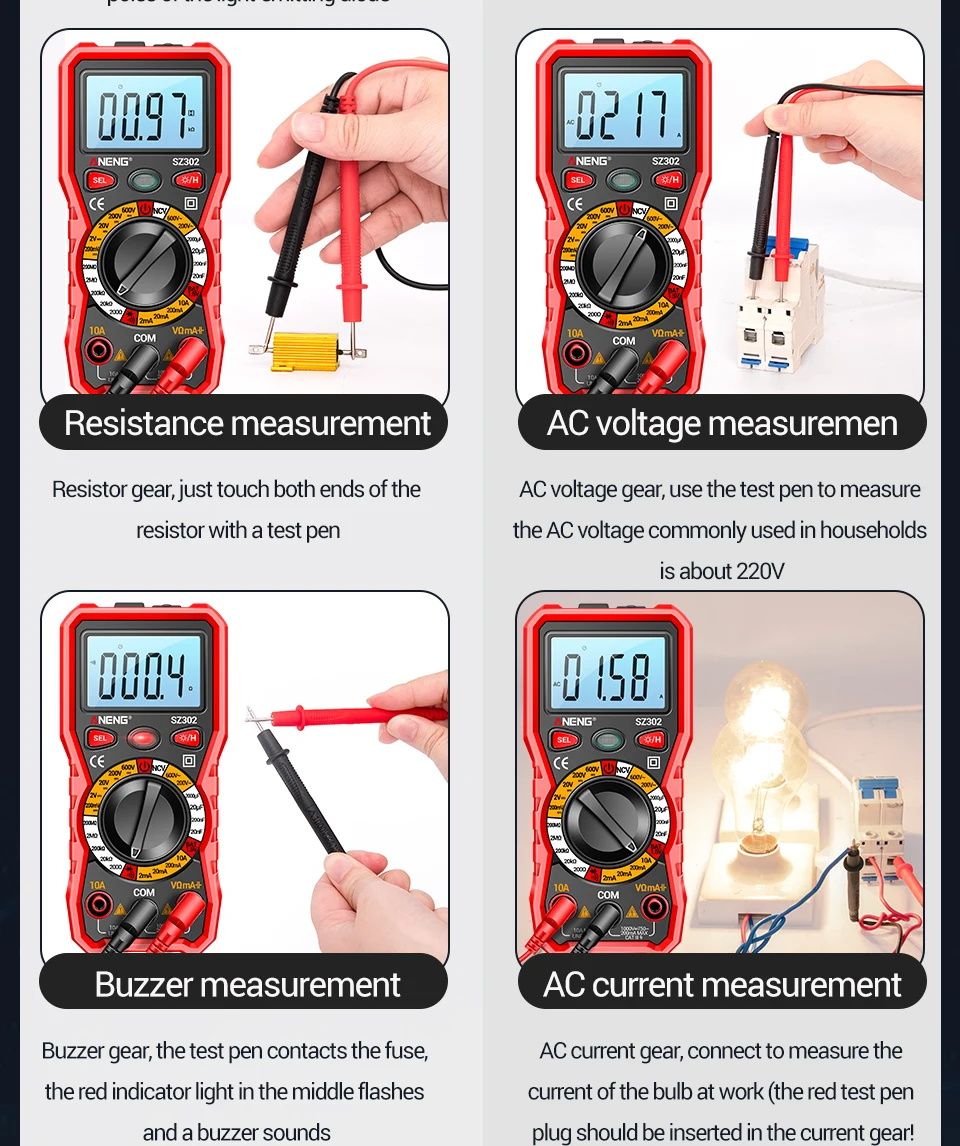

Resistance
|
200Ω/20kΩ/200kΩ/2MΩ/200MΩ
|
0.1Ω/10Ω/100Ω/1kΩ/100kΩ
|
±(4.0%+10)
|
|

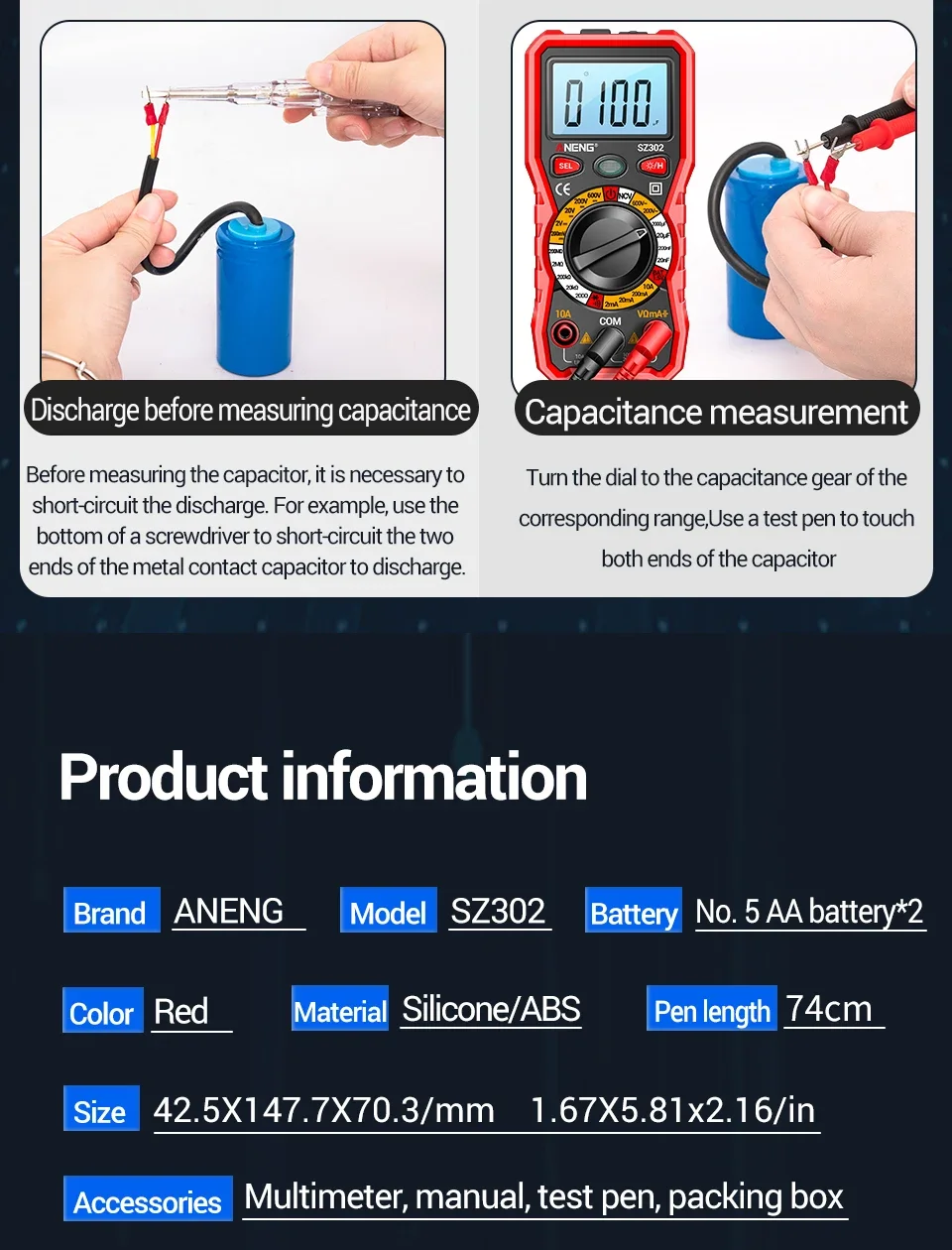

Capacitance
|
20nF/200nF/20uF/2000uF
|
0.01nF/0.1nF/0.01uF/1uF
|
±(5.0%+10)
|
|
Diode
|
√
|
On and off beep
|
√
|
|

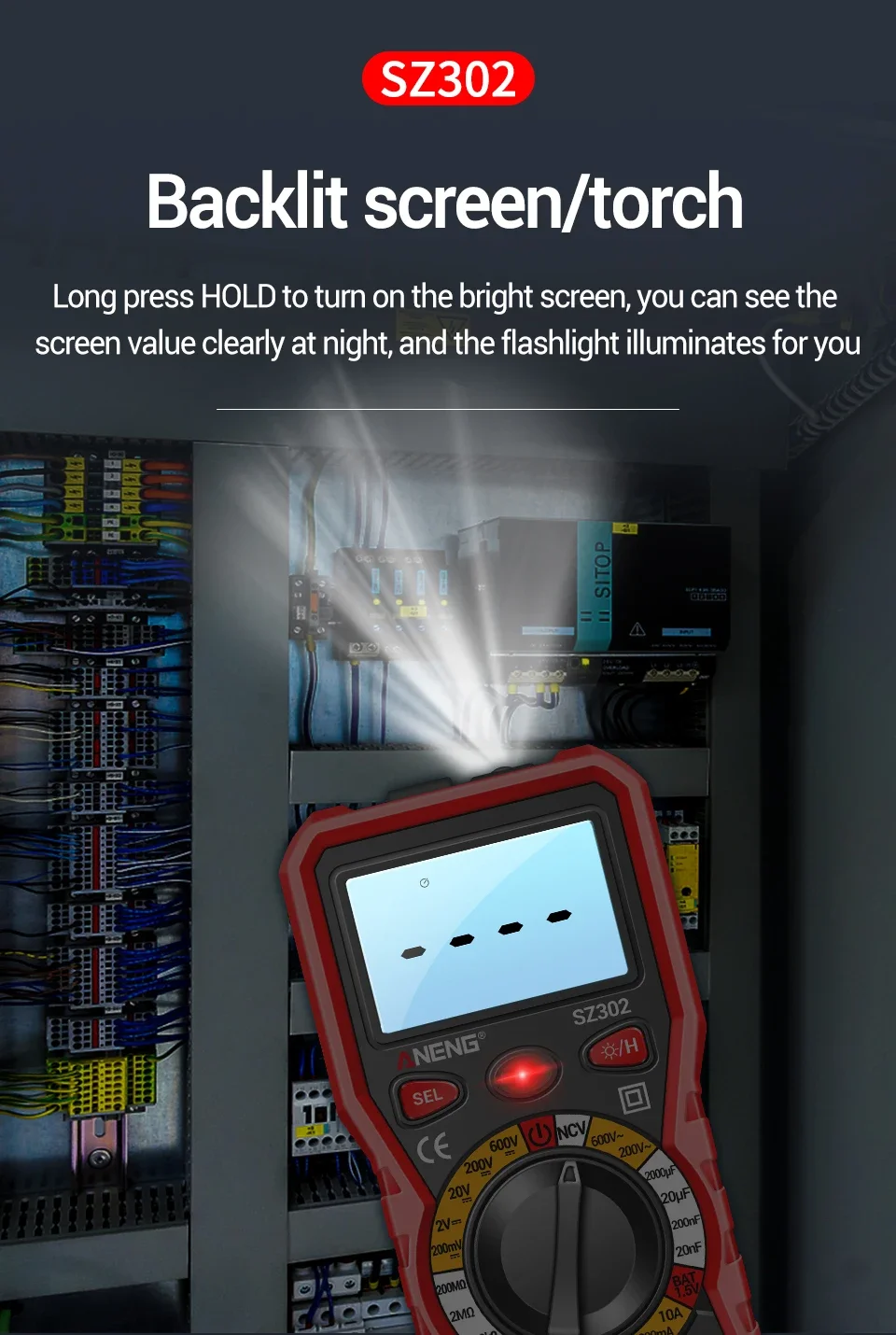

Flashlight
|
√
|
Data retention
|
√
|
|
Bright screen
|
√
|

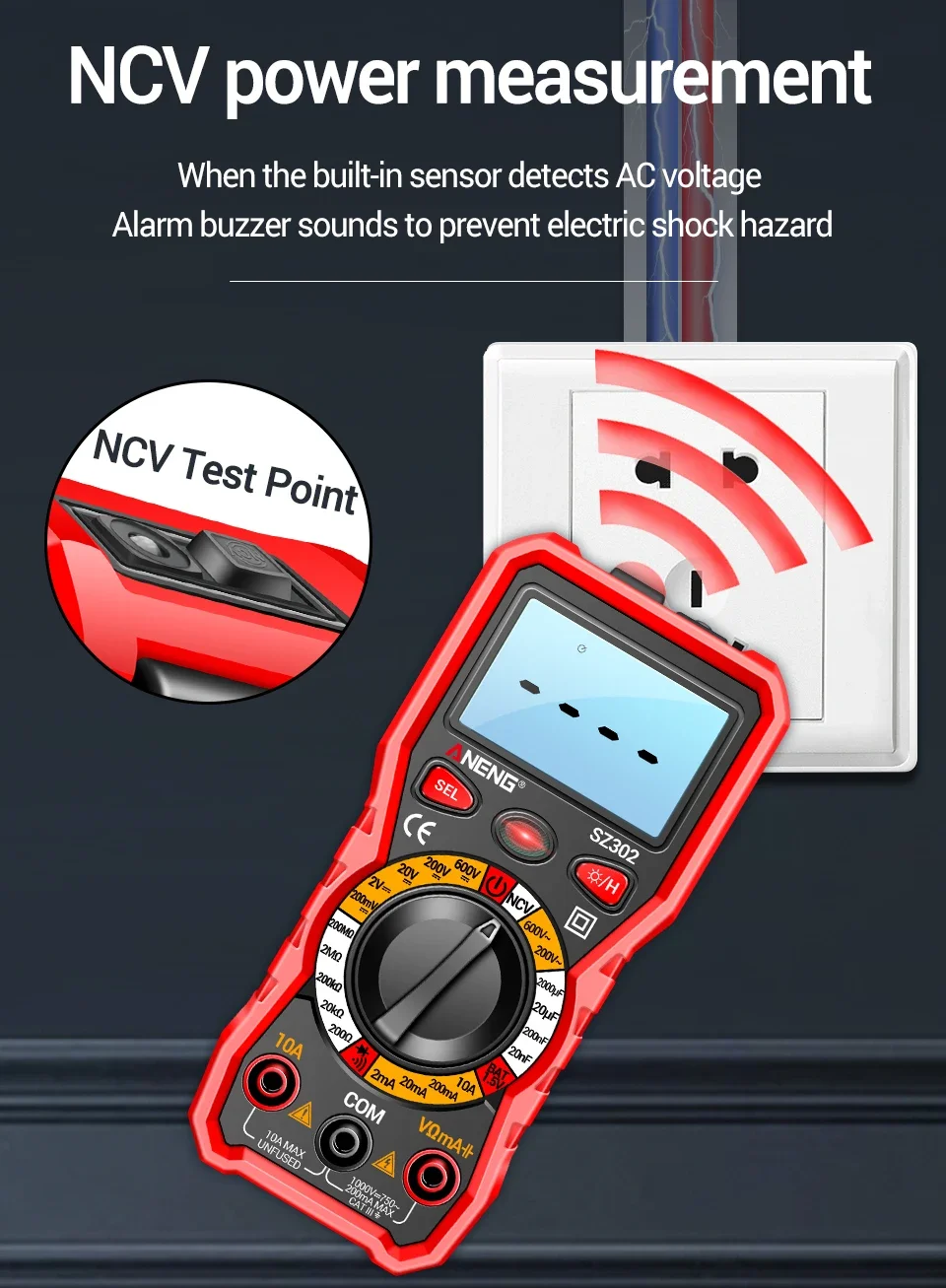

NCV induction
|
√
|
|
Indicator light
|
√
|

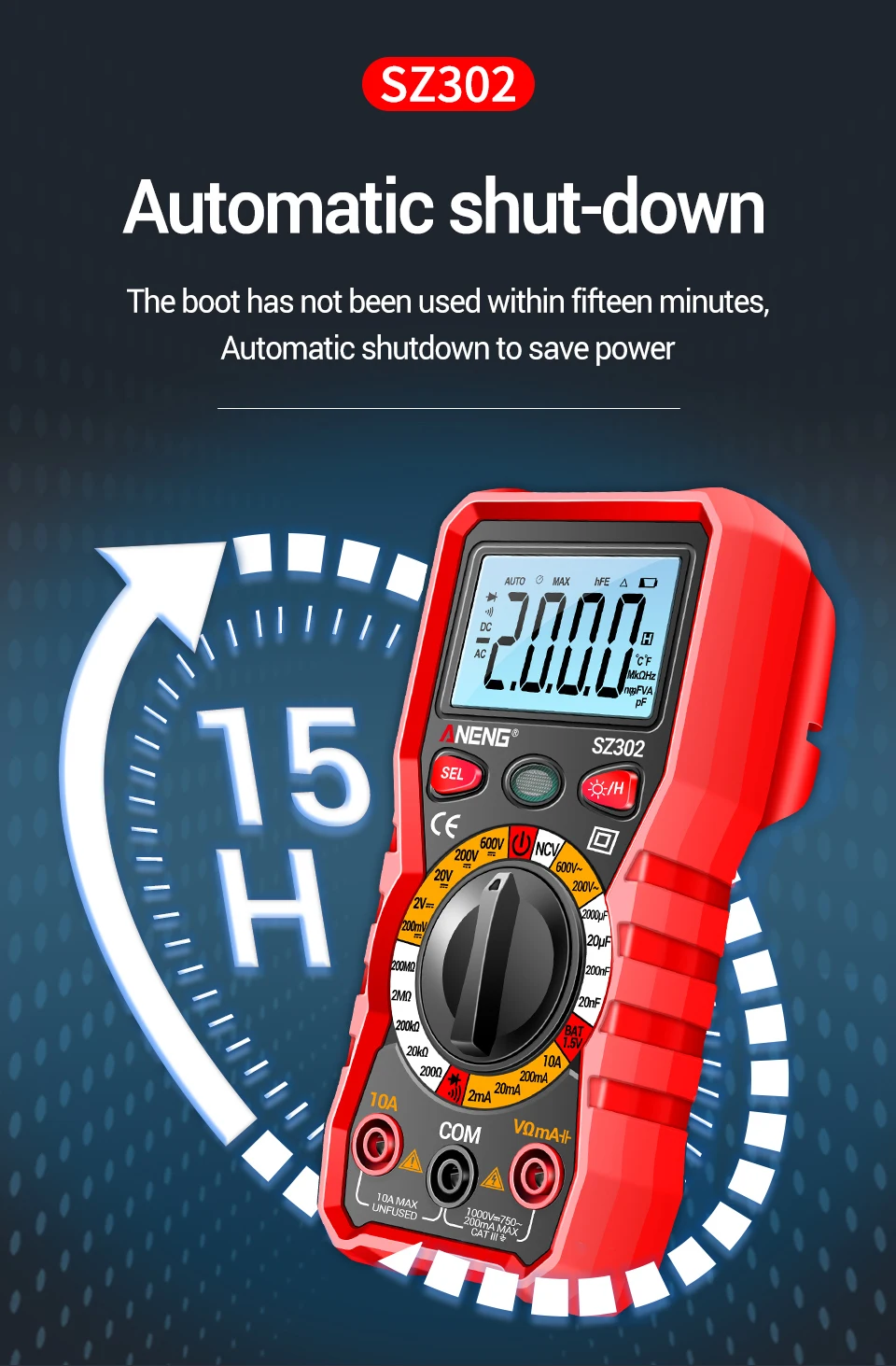

Automatic shut-down
|
√
|
|
Battery
|
No.5 AA battery*2
|
BAT 1.5V
|
√
|
|
Model
|
SZ302
|
Pen material
|
PVC/Brass
|
|
Max count
|
2000 counts
|

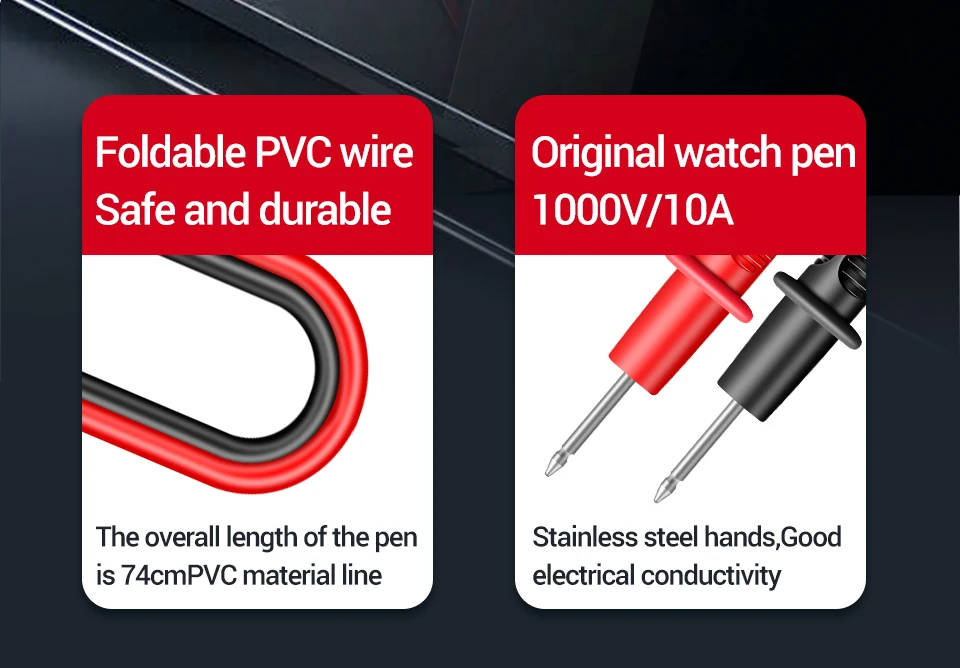

Overall length of test leads
|
74MM
|

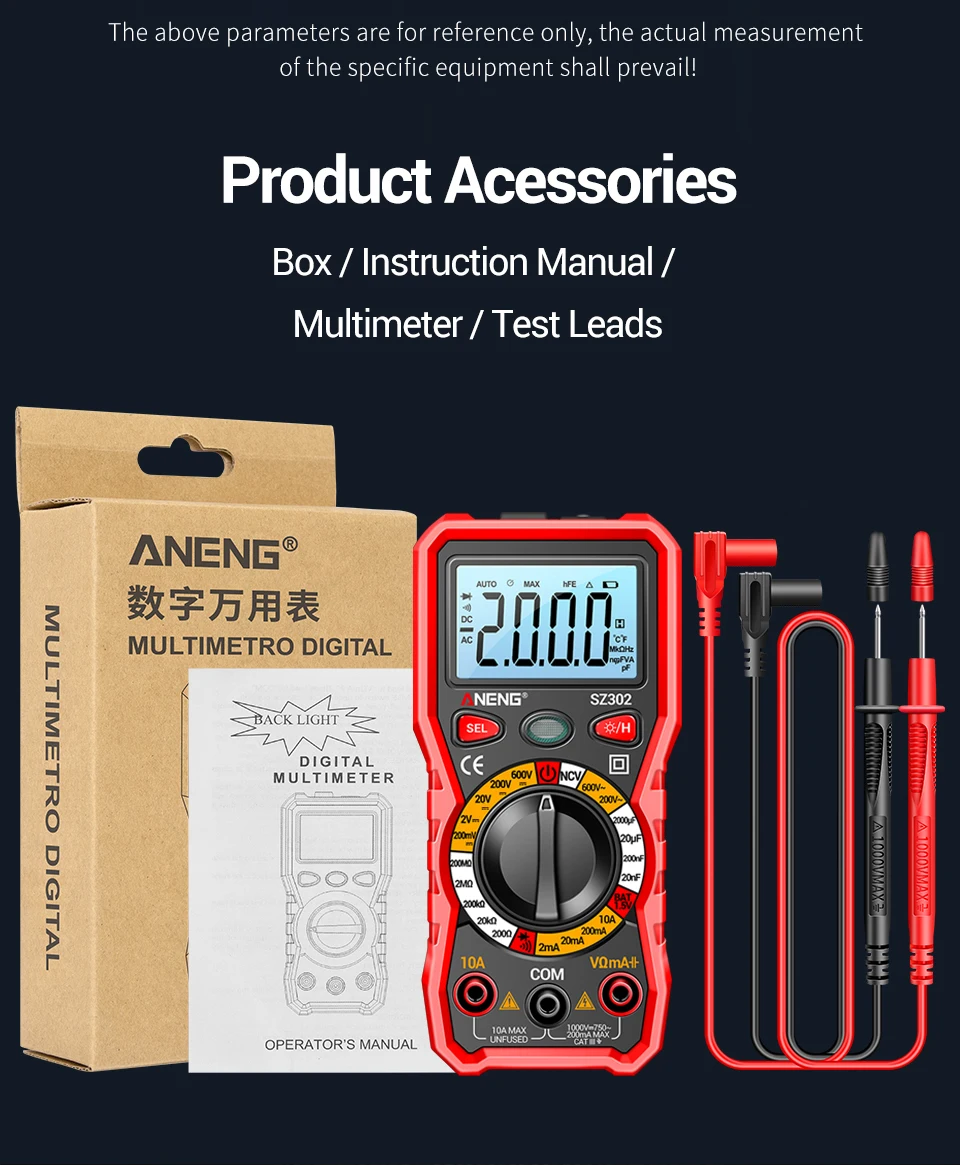

Packaging content:（Without Battery）
1 x Multimeter
1 x Test lead
1 x User Manual
1 x Outer packing Box
1 x Outer packing Box
