SPECIFICATIONS

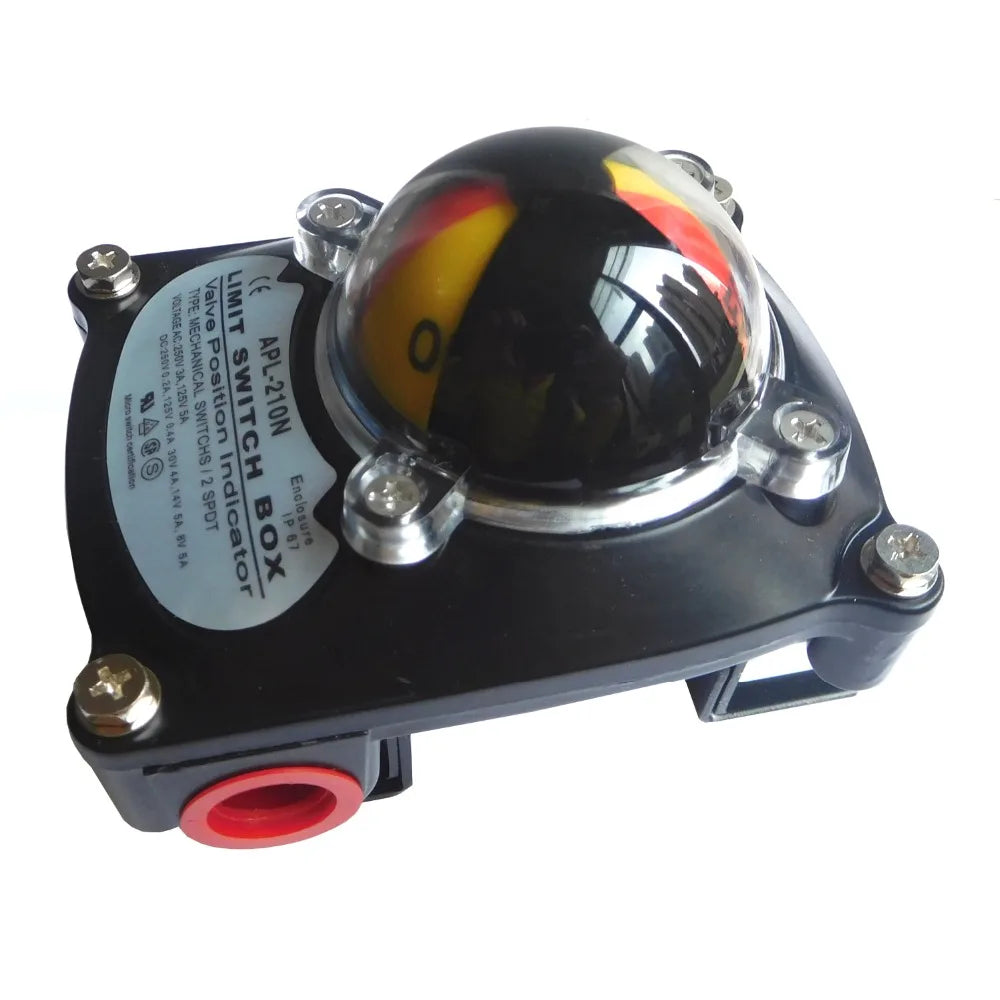

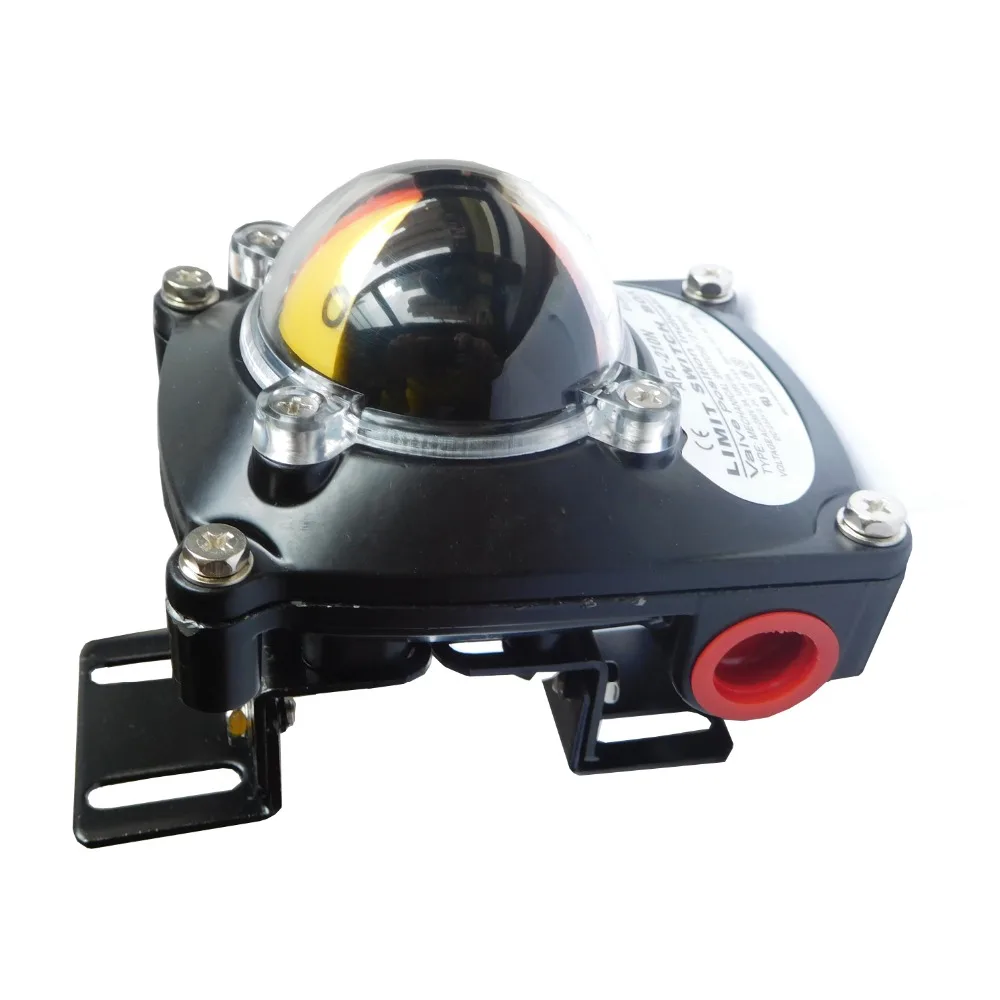

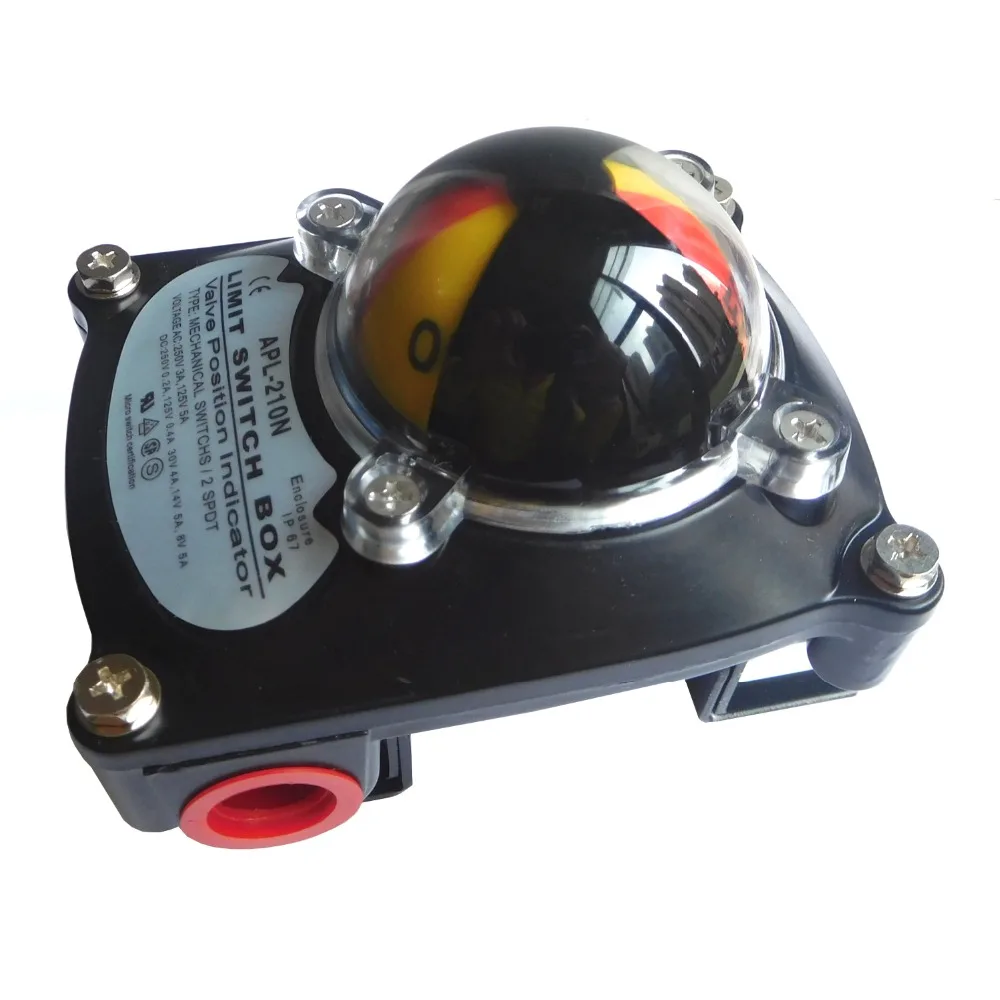

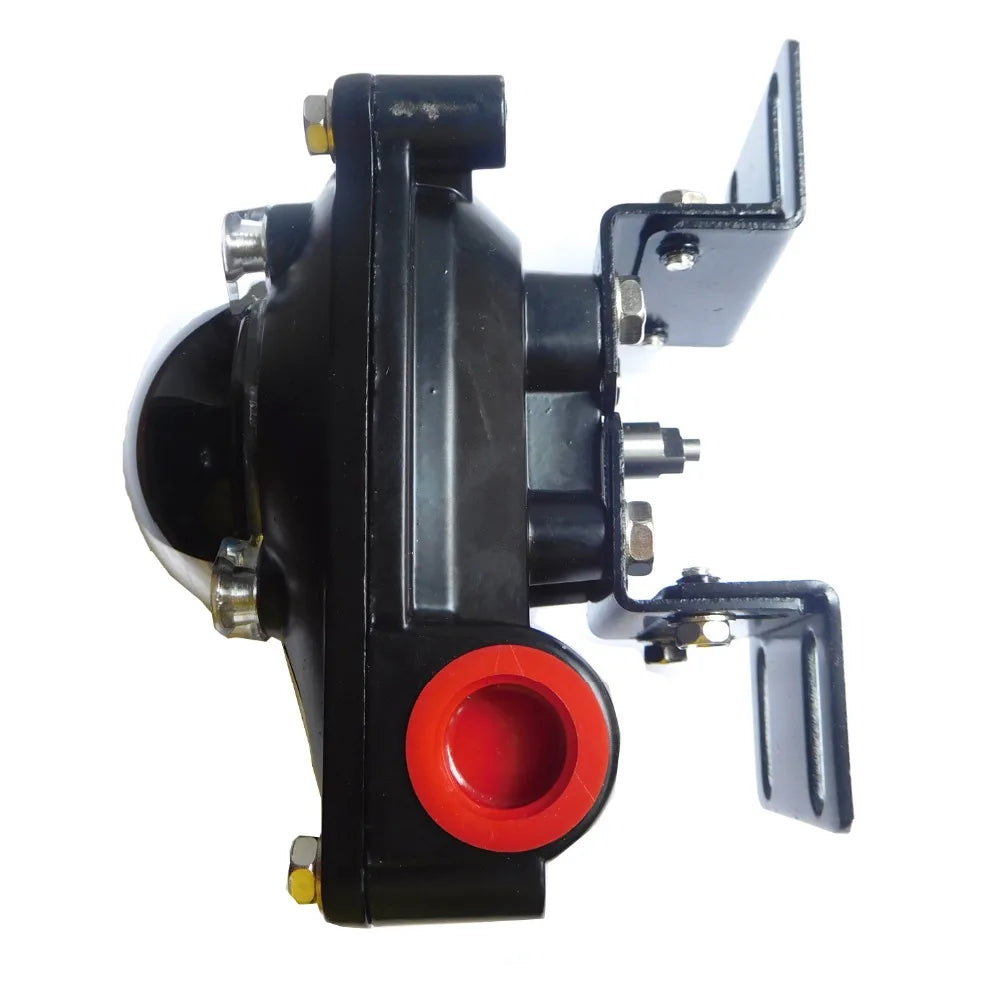

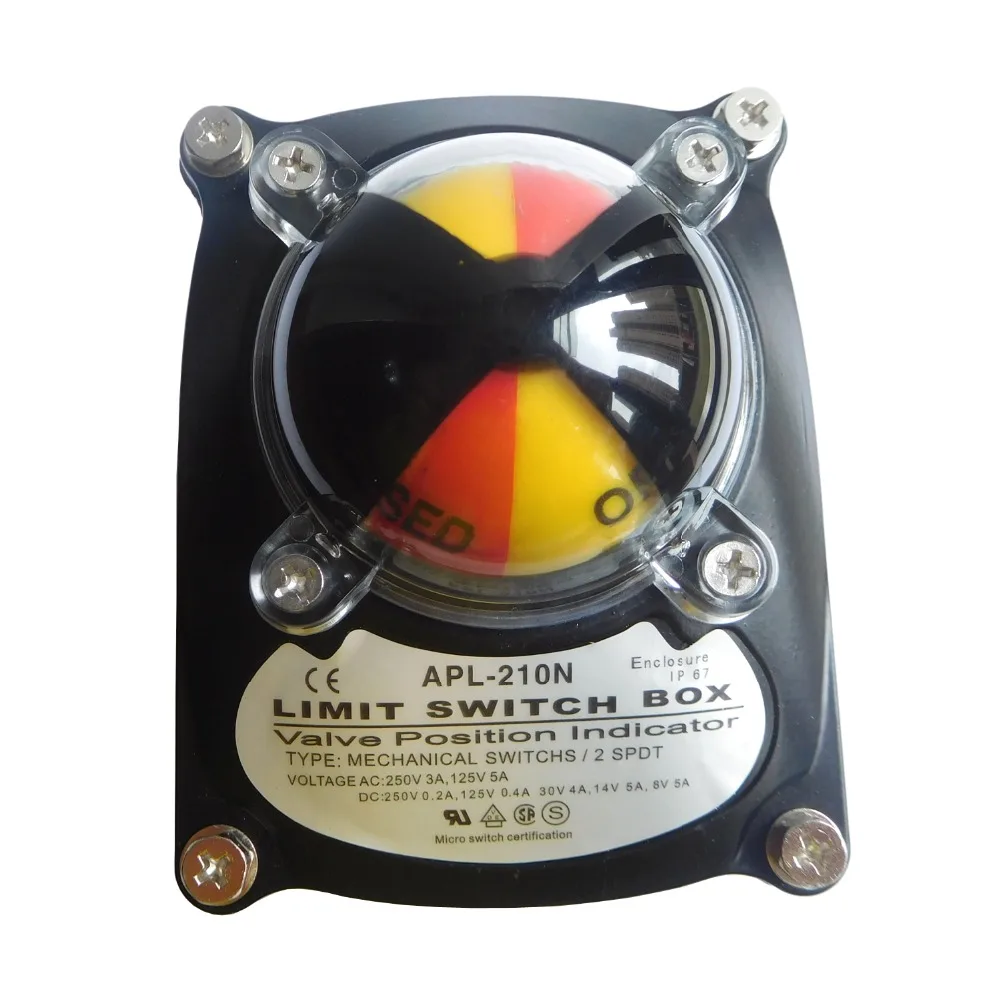

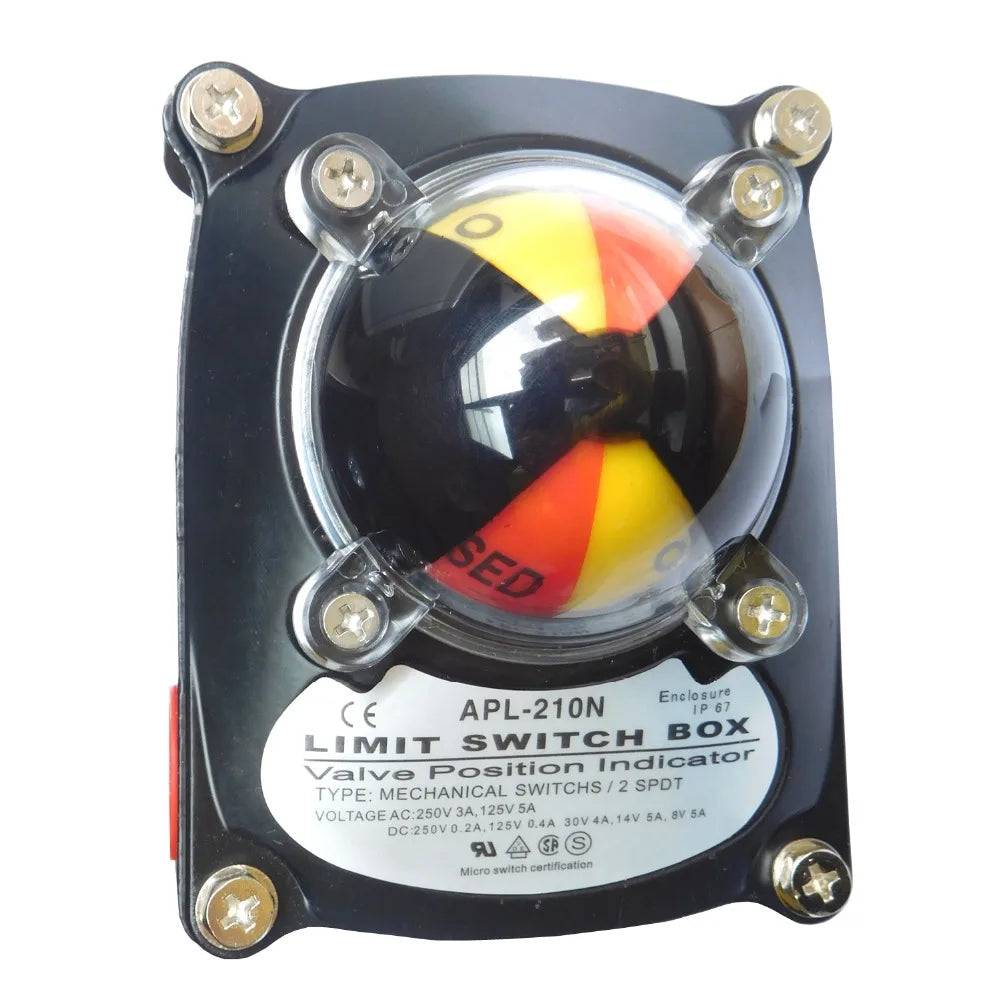

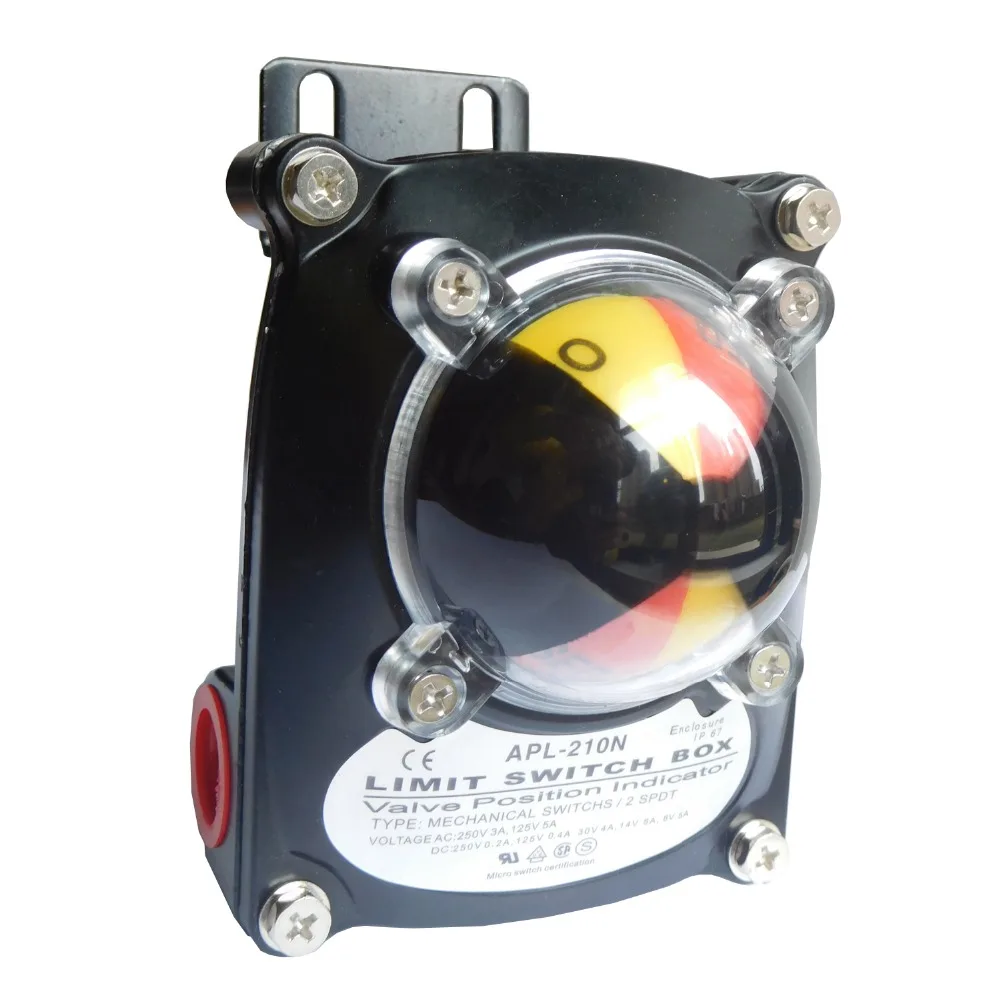

APL-210N IP67 Built-in 2SPDT Enclosure Mechanical Limit Switch Micro Switches Valve Position Indicator 125V/5A 250V/3A for Pneumatic Actuator

Features:

1. Voltage/Current: AC: 250V/3A, 125V/5A. DC: 250V/0.2A, 125V/0.4A, 30V/ 4A, 14V/ 5A, 8V/5A

2. Mechanical Limit Switches Protection: Waterproof IP67, NEMA4&4X

3. Cable Entry of the Micro Switch: 2 x NPT1/2(PF1/2 PT1/2 M20, PG13.5 for option)

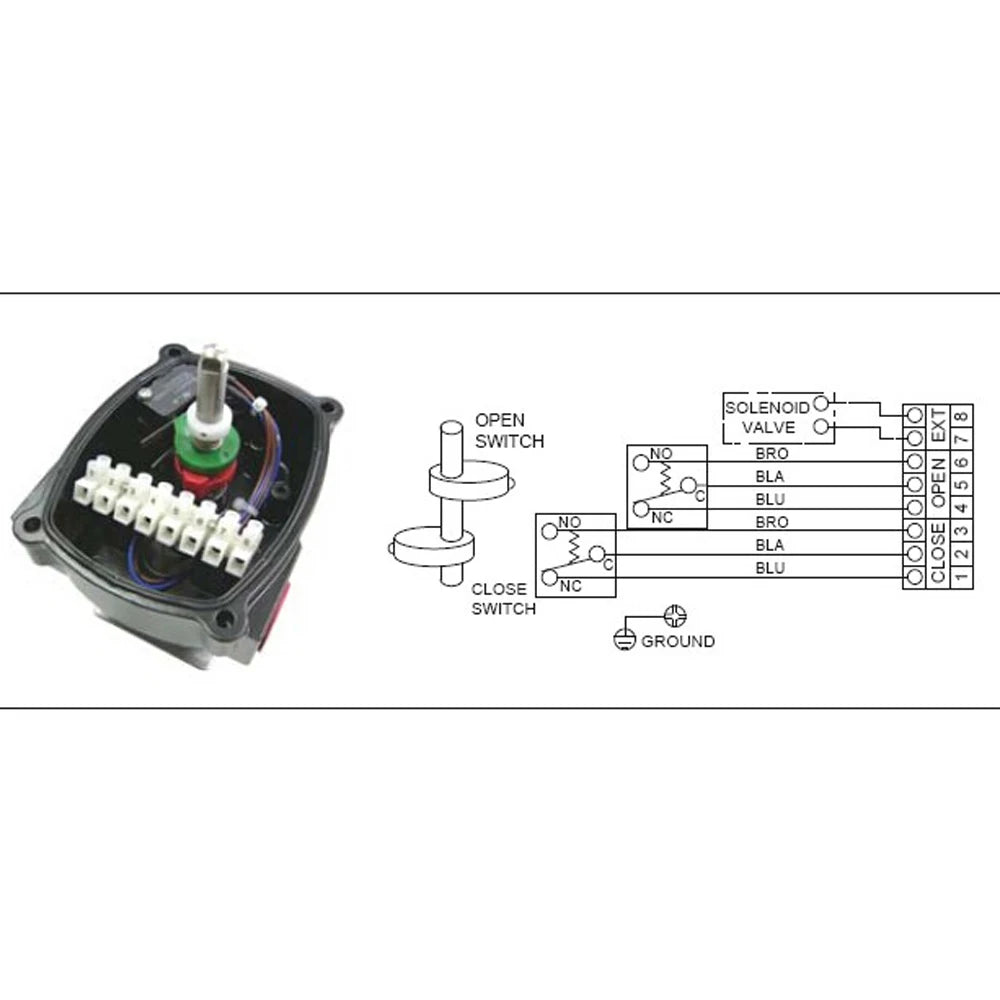

4. Valve Position Indicator terminal: Multi point terminal strip standard 8 point and enough strips for connection.

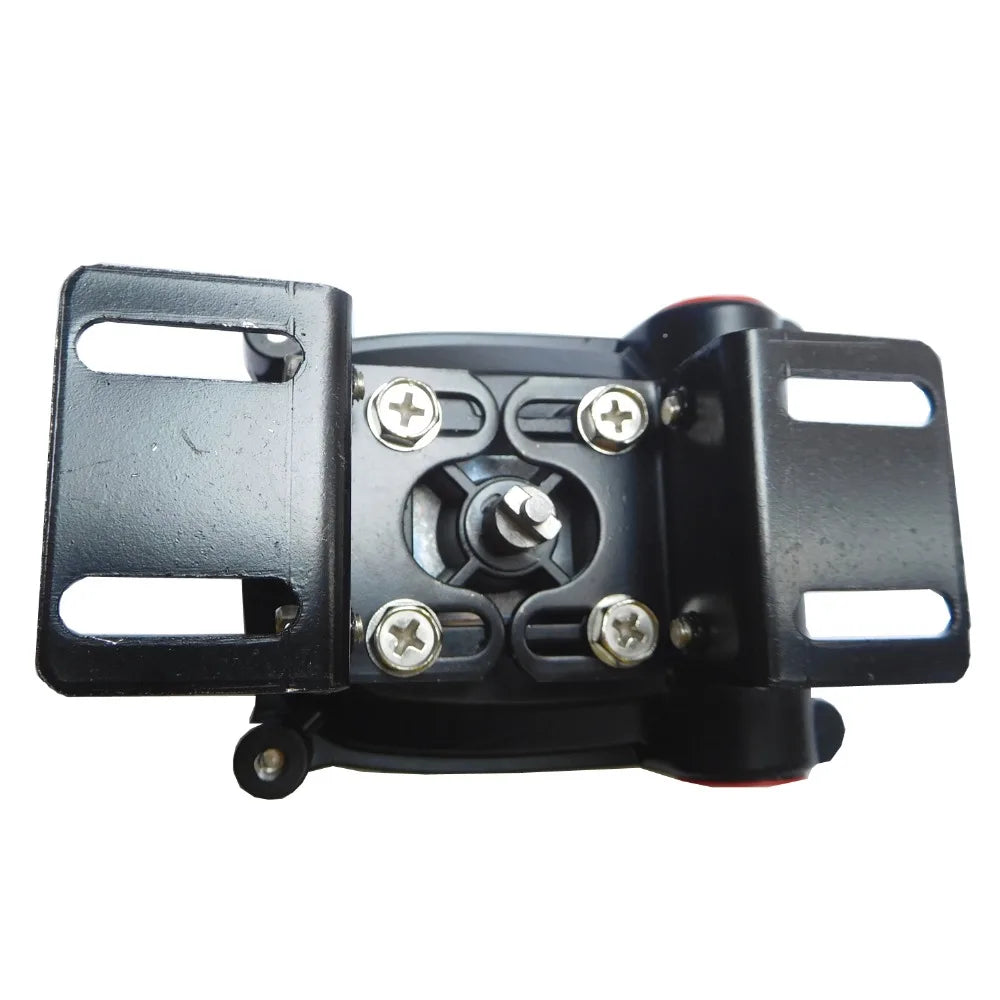

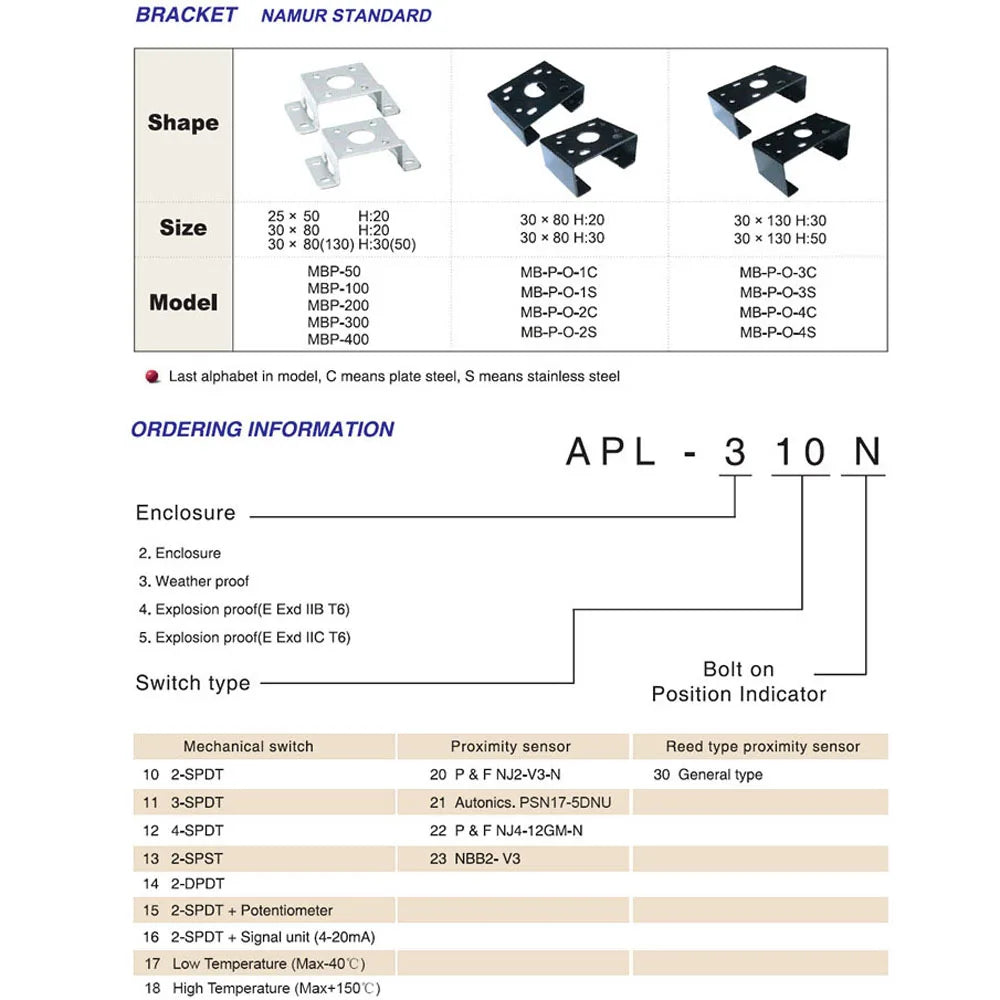

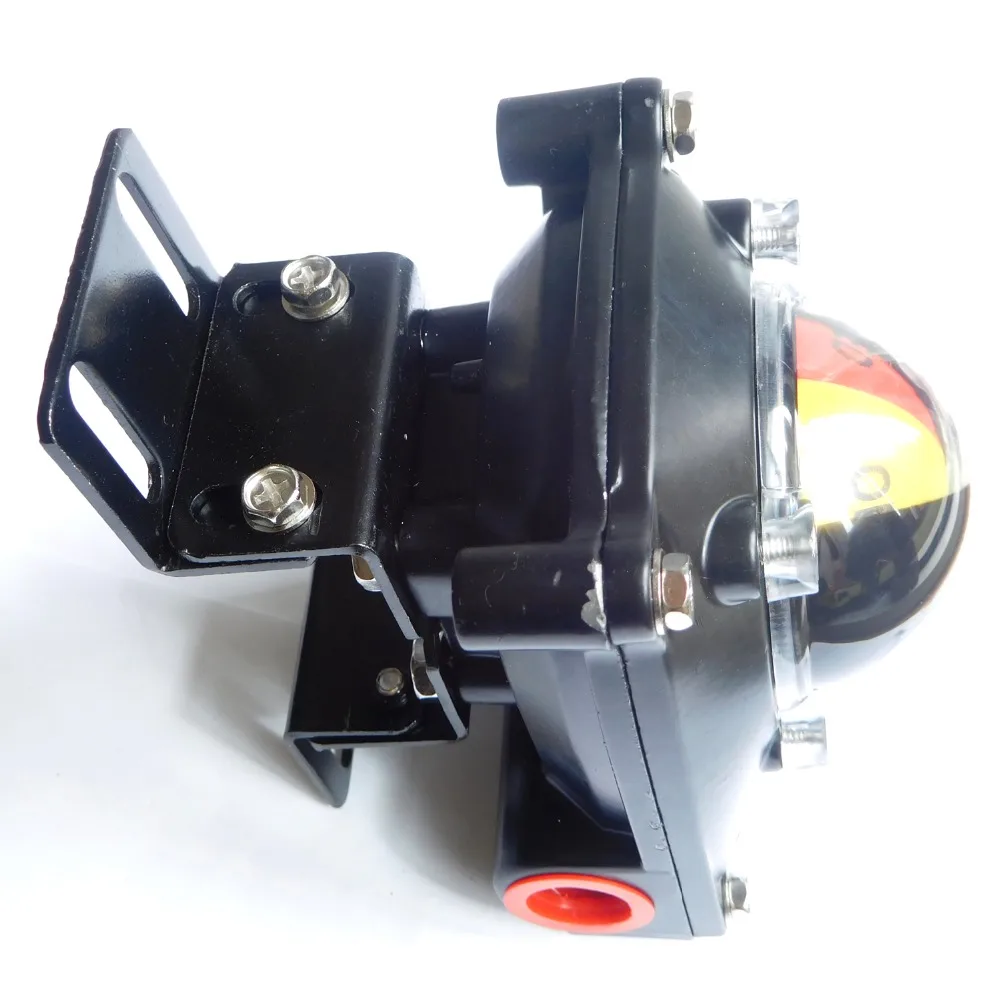

5. Material: Solid and beautiful design Aluminum die-casting housing and powder coated. Easy mounting NAMUR standard stainless steel shaft and bracket.

Description:

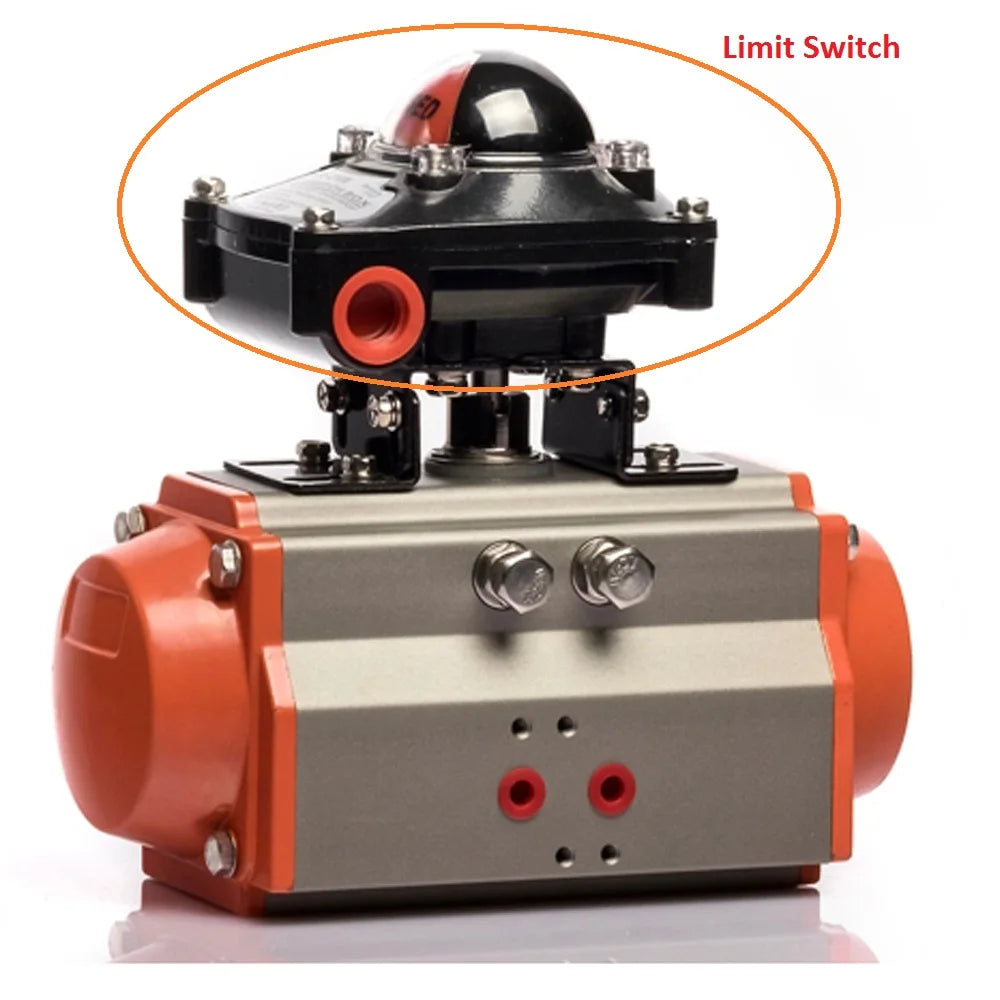

APL-210N Monitor Limit Switch Valve Position Indicator Signal Feedback Device Use For Pneumatic Actuator AC DC 250V 125V

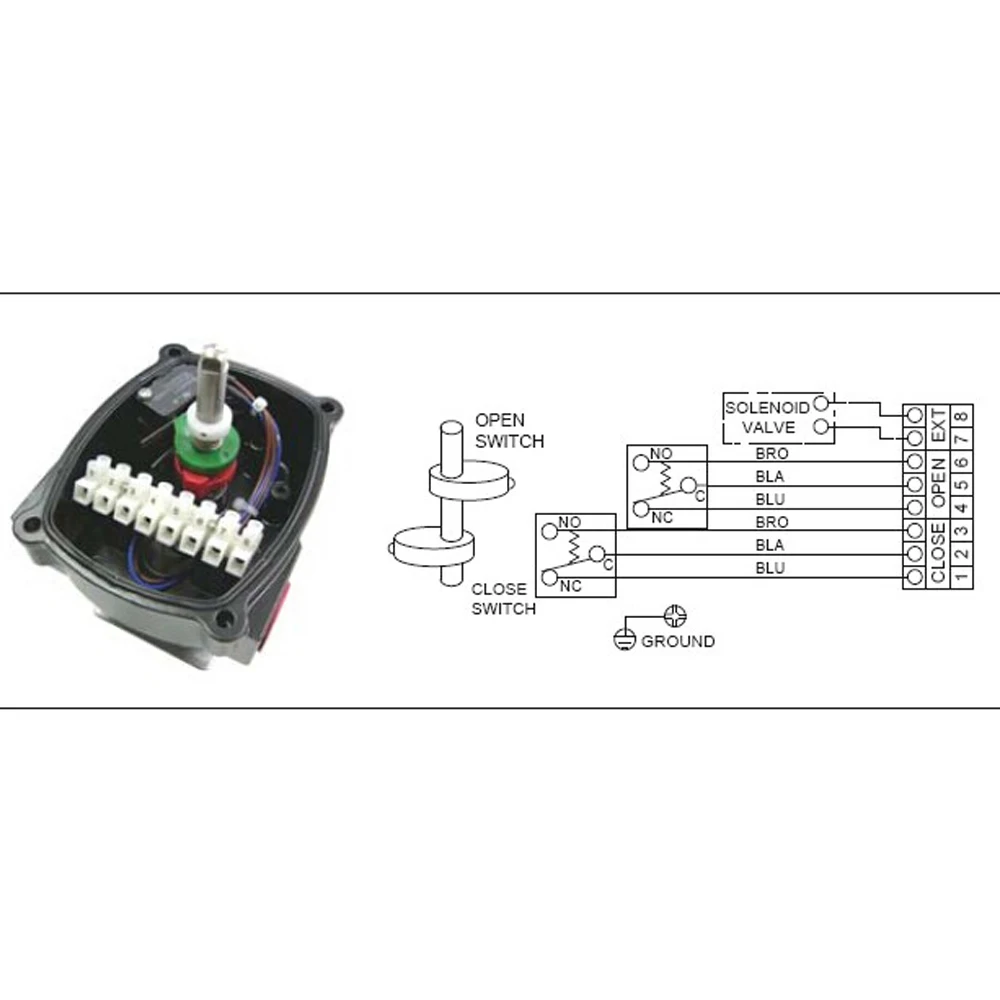

1. Terminal Strips: 8 Points ( 0.08-2.5mm2)

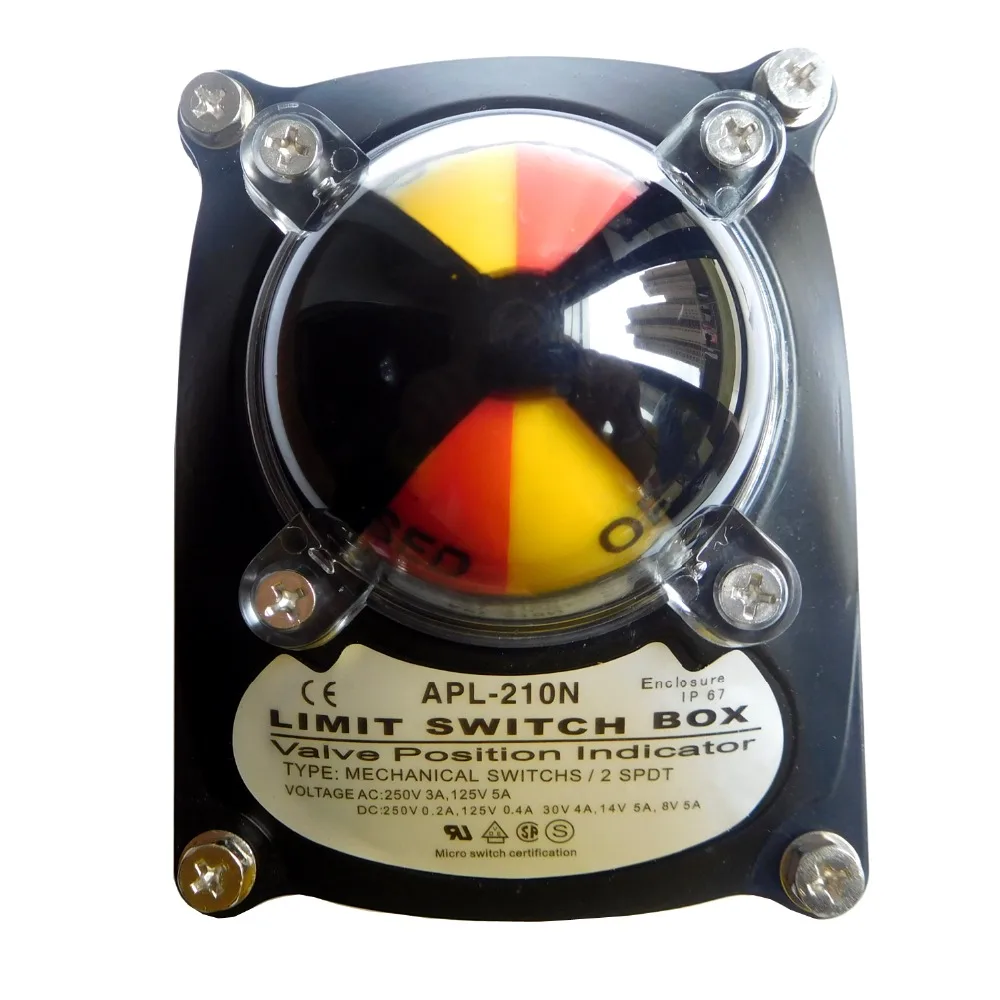

2. Position indicator: Open-Yellow, Close-Red, 0-90 degree

3. Temperature range:  -20 +80 degree

4. Switches type:  Mechanical switch x 2, Proximity sensor switch x 2

5. Bolts on visual position indicator secure weatherproof

6. Quick-set cam spring loaded splined cam, no need to adjust again after initial setting

7. Easy setting without tool and convenient for installation

8. Shaft: Standard shaft(17mm), extension shaft(17mm)

9. Structure type: micro motion

10. Packing: 1xswitch +4x screws
