SPECIFICATIONS

Overview

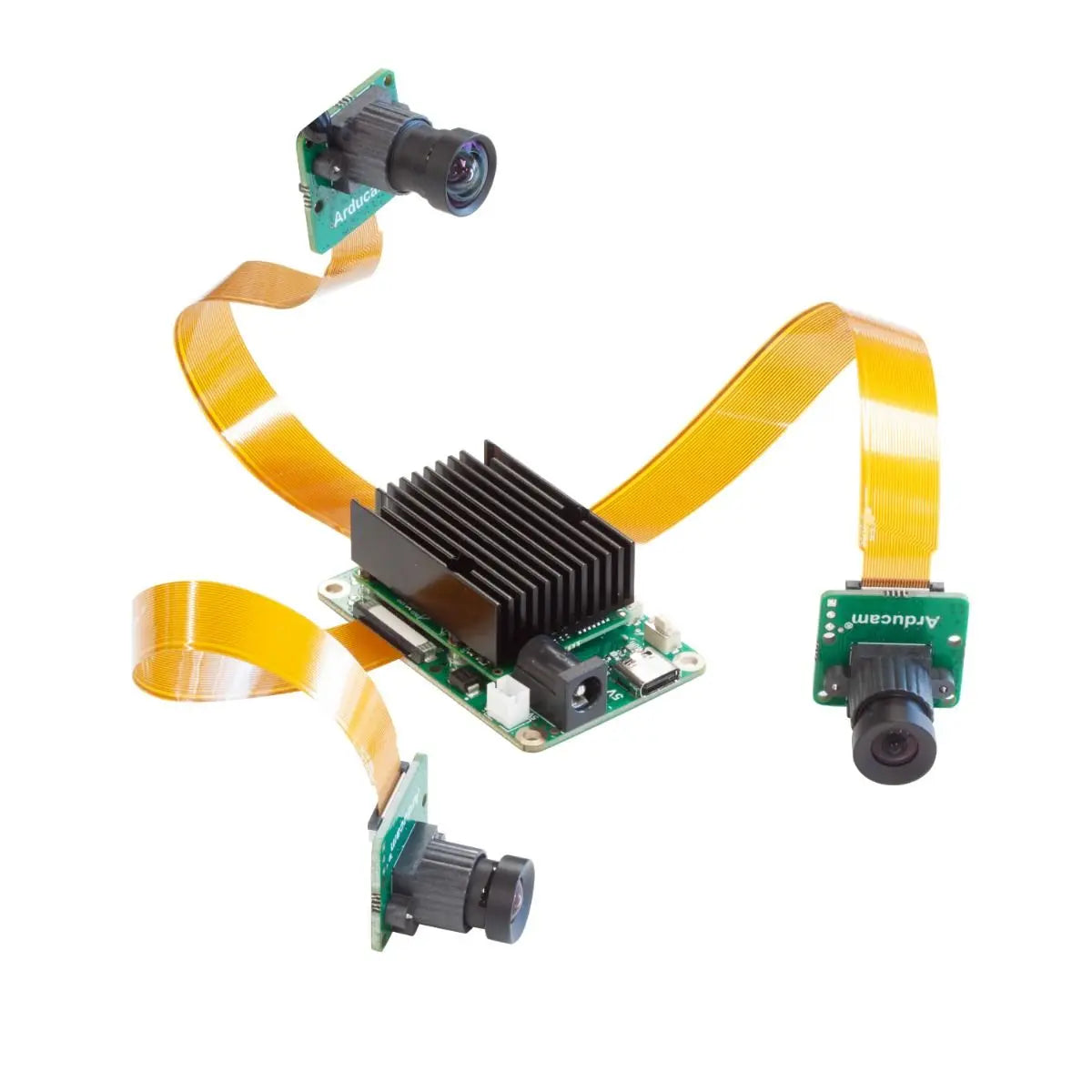

The OAK USB3 bundle kit includes OAK-FFC-3P (DM1090FFC_R0M0E0) DepthAI OAK USB3 Edition with one 12MP IMX477 camera module and two 1MP OV9282 MONO camera modules.
The advantage of this kit is that you can change the baseline for each camera flexibly, and the lens can be replaced with any FOV(field of view) you want.

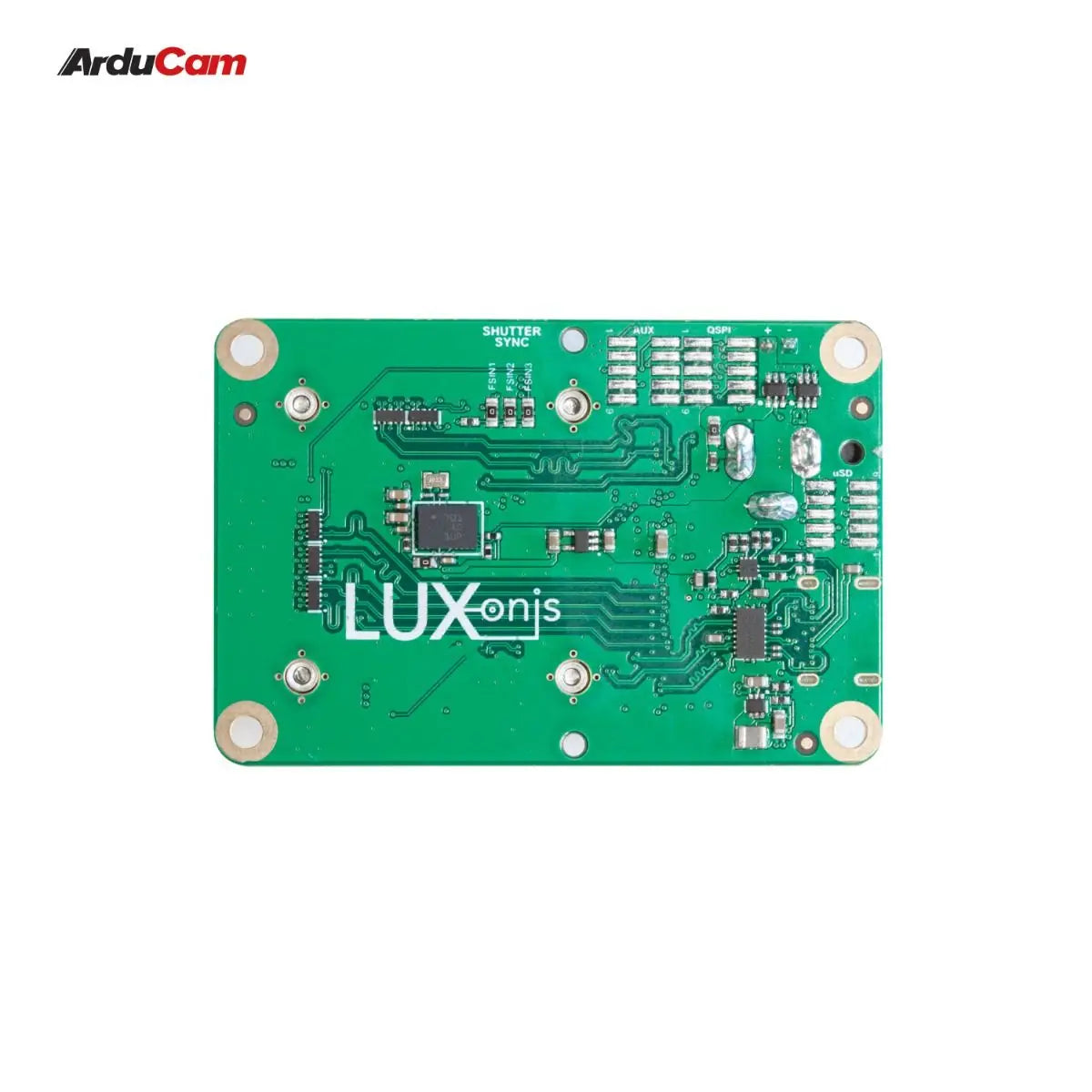

This repository contains open hardware designed by Luxonis and is meant to be used as a baseboard for the Luxonis BW1099 DepthAI SoM. The OAK-FFC-3P (DM1090FFC) baseboard has three FFC interfaces which allow for two 2-lane MIPI camera modules i.e. DM0250TG (stereo pair) and one DM0249 RGB camera module. There is also a chance to connect three 2-lane MIPI camera modules i.e. DM0250TG if the DM0249 RGB camera module is not required.

In addition, IMU over SPI support was also added to the OAK-FFC-3P (DM1090FFC).

Note: Only revision R1M1E1 and newer camera modules can be connected to the OAK-FFC-3P (DM1090FFC). With OAK-FFC-3P (DM1090FFC)we gained support for the 22-pin RPi camera interface. For that, you will need an FFC from Arducam, which converts 26-pin Luxonis camera pinout to 22 pin RPi camera pinout.

Specification

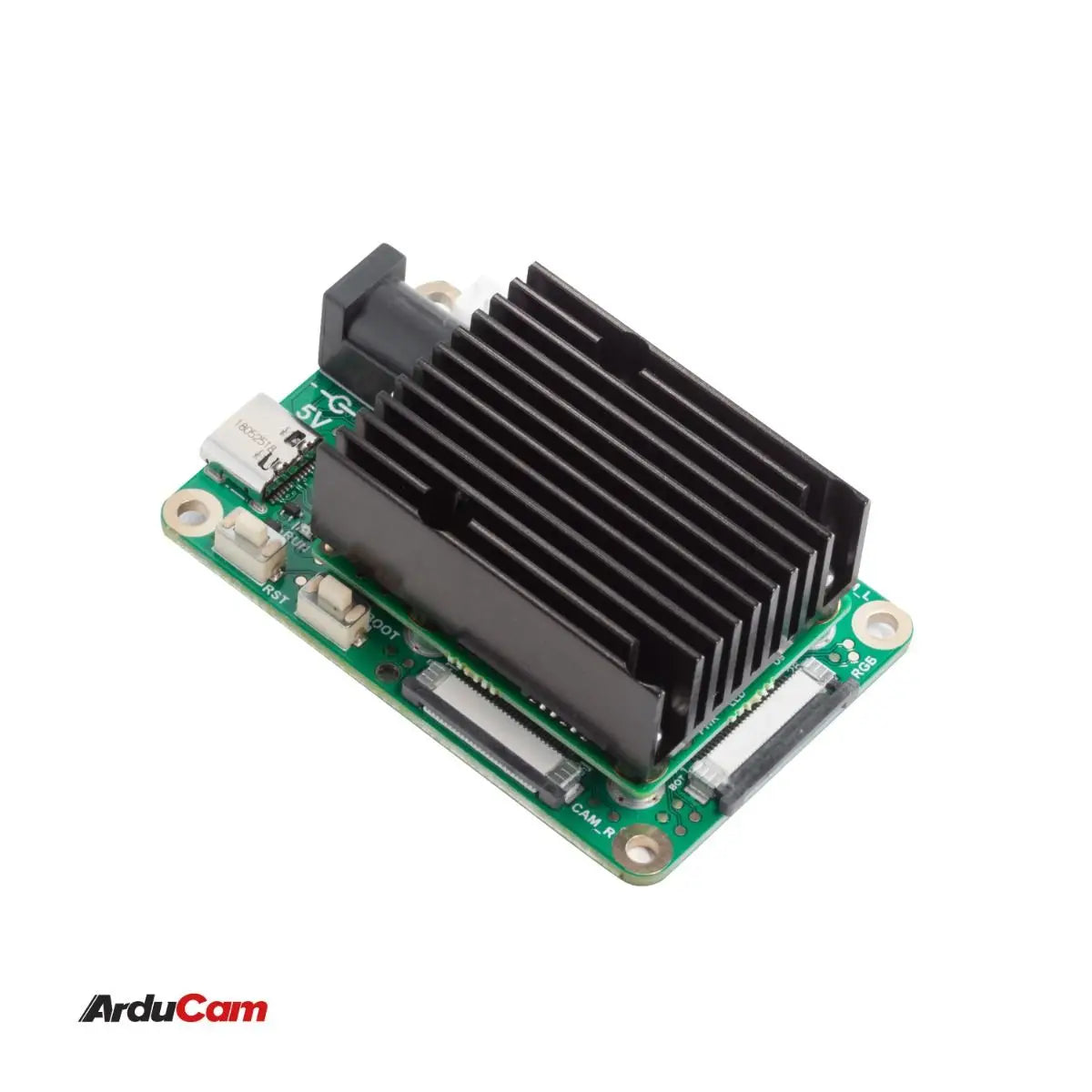

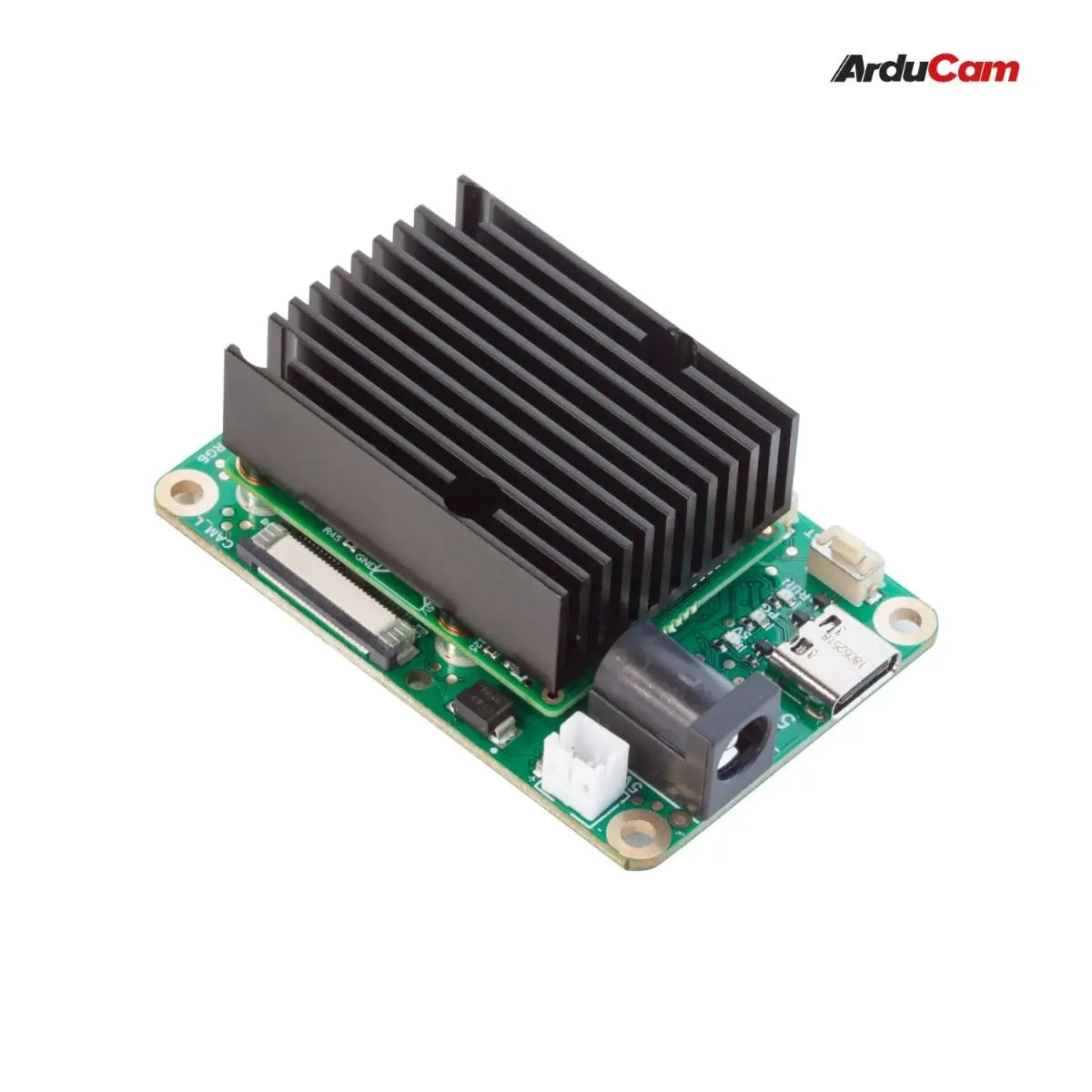

OAK-FFC-3P (DM1090FFC_R0M0E0) DepthAI OAK USB3 Edition

• 3x DM0250TG_R1M1E1 mono camera module interfaces or

• 2x DM0250TG_R1M1E1 and 1x DM0249_R1M1E1 RGB camera module interface

• 5V power input via barrel jack

• USB 3.1 Gen 1 Type-C

• Interface for Luxnois BW1099 DepthAI SoM

• Pads for DepthAI SoM 1.8V SPI

• Pads for DepthAI SoM 3.3V SDIO

• Pads for DepthAI SoM 1.8V Aux Signals (I2C, UART, GPIO)

• 5V Fan OR USB Type-C

• Design files produced with Altium Designer 20

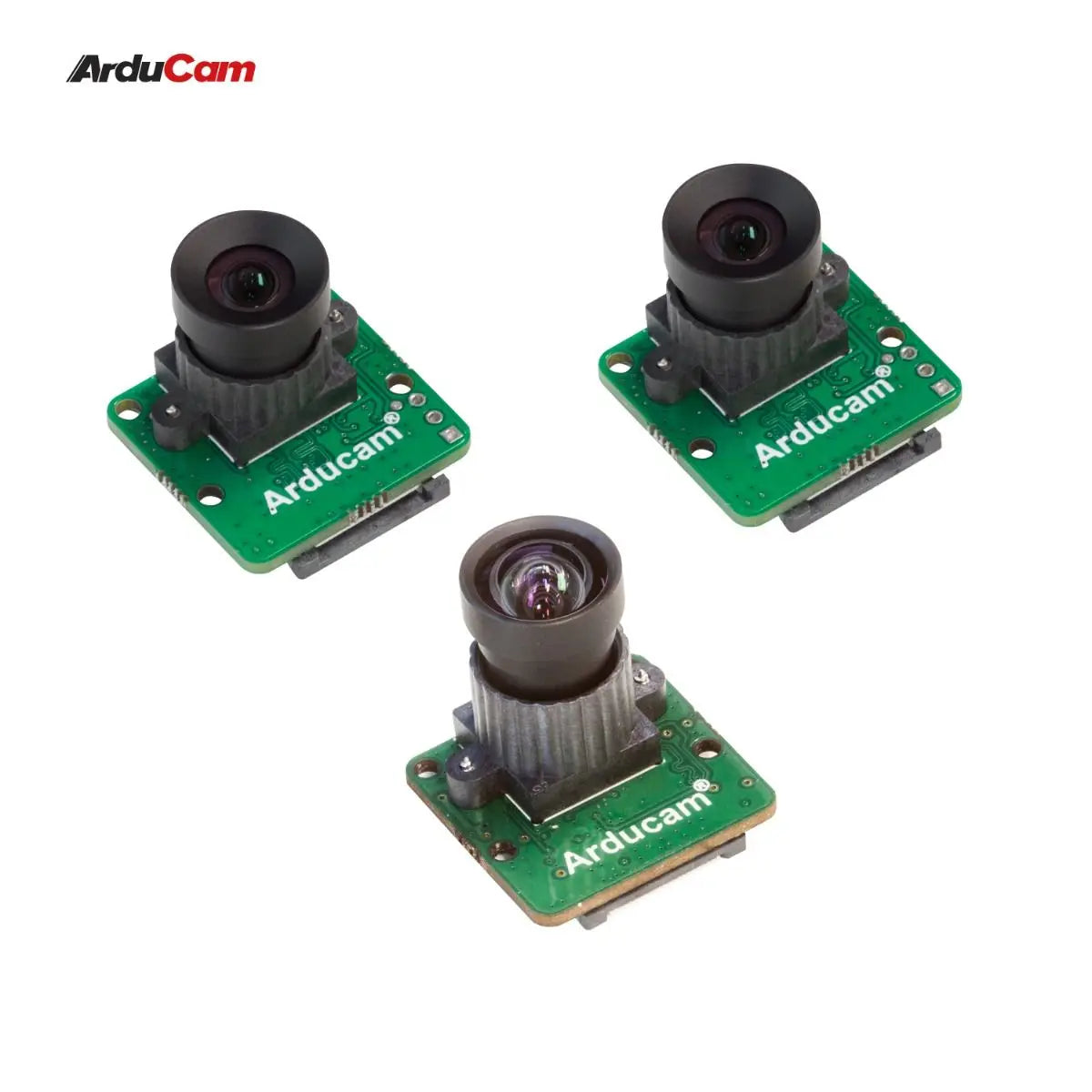

IMX477 HQ camera module

• Sensor: IMX477 12.3MP

• Optical Format: 1/2.3″ (diagonal 7.857mm)

• Resolution: 4056(H) x 3040(V)

• Pixel Size: 1.55um x 1.55um

• IR Sensitivity: With IR filter, sensitive to Visible light

• Interface: 4-lane MIPI CSI-2

• Maximum image transfer rate: 4K@60 fps

• Default Lens Mount: 75° (H)  M12 Mount(SKU: LN053)

• Camera board Size: 24mm×25mm

OV9282 Global shutter Mono camera module

• Sensor: Mono global shutter OV9282 1MP

• Optical Format: 1/4 ″

• Resolution: 1280(H) x 800(V)

• Pixel Size: 3um x 3um

• IR Sensitivity: With IR filter, sensitive to Visible light

• Interface: 2-lane

• Maximum image transfer rate: 1280 x 800@120 fps

• Default Lens Mount: 75° (H)  M12 Mount(SKU: LN013)

• Camera board Size: 24mm×25mm

Package Including

• 1 pc DepthAI OAK-FFC-3P

• 1 pcs 12.3MP IMX477 color MIPI camera module for DepthAI OAK-FFC-3P

• 2 pcs 1MP OV9282 Global shutter Mono MIPI camera module for DepthAI OAK-FFC-3P

• 1 pc USB cable

• 1 pc Charger

• 3 pcs 150mm 22pin-26pin camera cable
