SPECIFICATIONS

Applicable systems: Windows Macos

Application: Computer

Brand Name: NoEnName_Null

Choice: yes

Condition: New

Development board working voltage: 3.3V

Feature: J-LINK ST-LINK

High-concerned chemical: none

Origin: Mainland China

Processor: STM32F103C8T6

Reserved port: Boot

Type: Module

USB port power supply voltage: 5V

interface type: Micro USB

is_customized: Yes

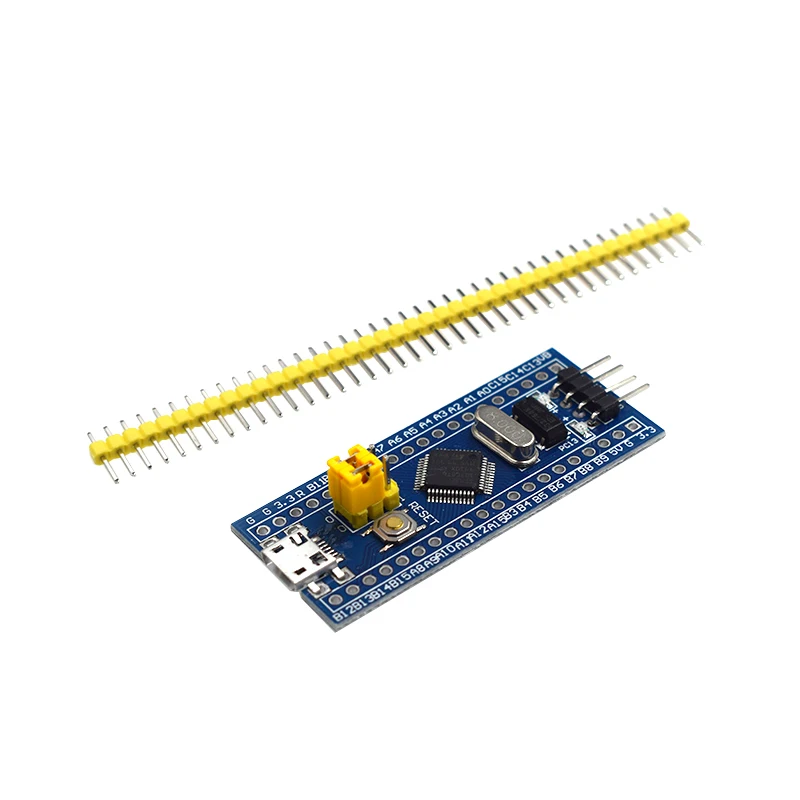

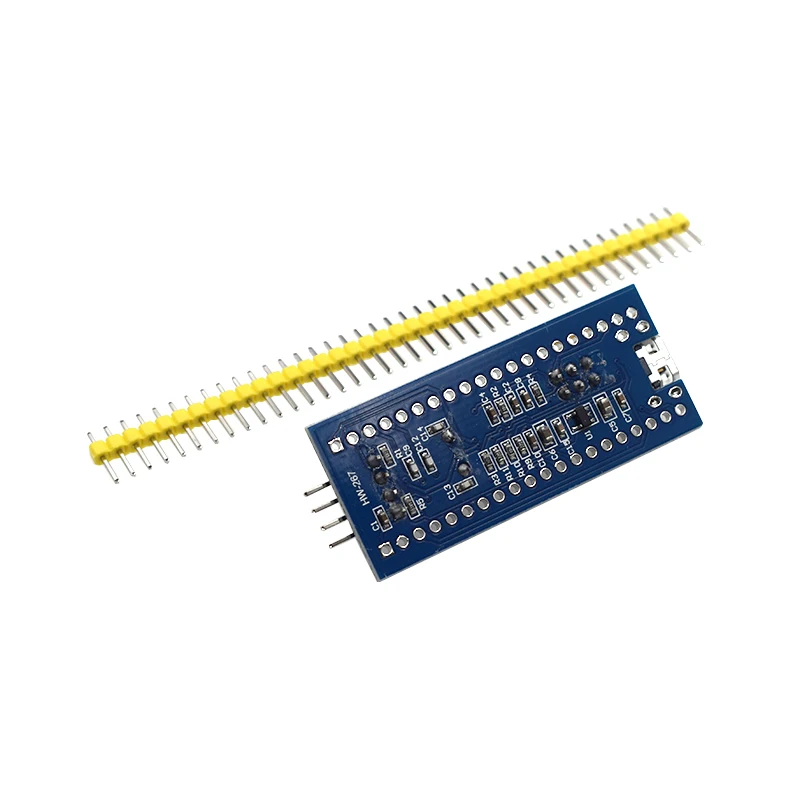

ARM STM32 Minimum System Development Board J-LINK ST-LINK USB Core Learning Board Emulator Downloader Programmer

Product Introduction

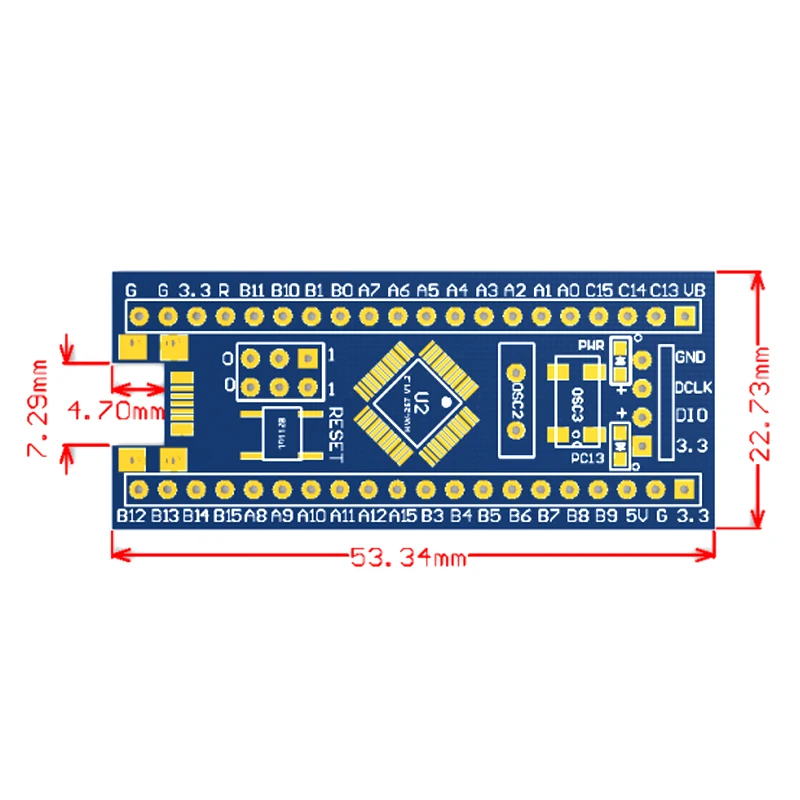

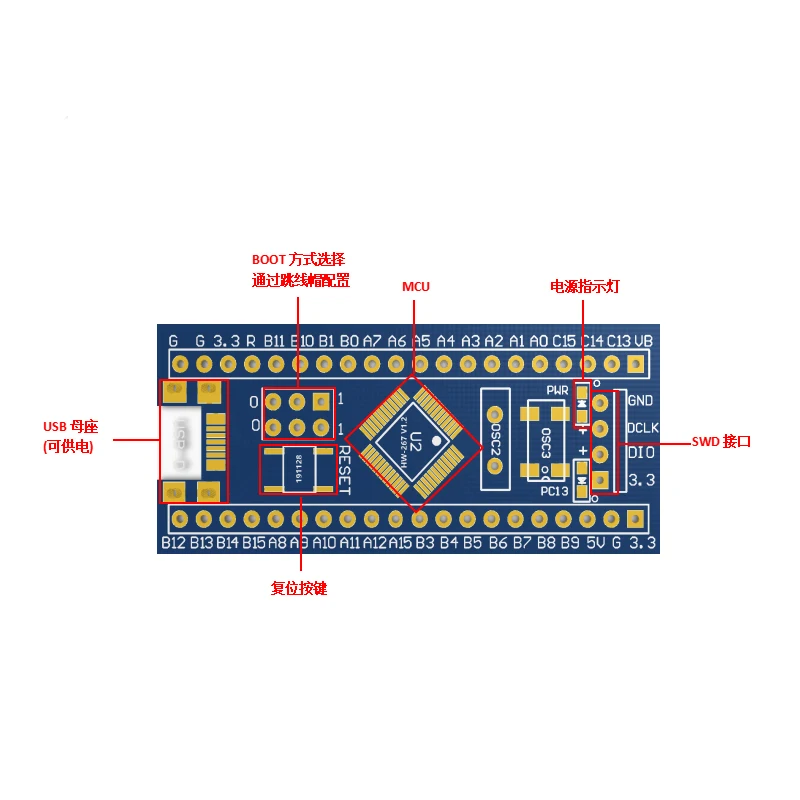

This product is an STM32F103C8T6 microcontroller development board, equipped with an RT9193-33PB voltage regulator chip that can provide a maximum current of 450mA. It can convert 5V power supply from 5V USB to 3.3V voltage for powering the chip; The development board comes with a Micro USB interface, which can provide power to modules and also has communication capabilities; Support the use of J-LINK and ST-LINK to download programs; Reserved serial port download interface, convenient for connecting with 5V USB to serial port module, program can be downloaded using serial port; Reserve B00T selection port, which can be configured and selected using jumper caps. A large number of I/O port pin sockets are reserved on the board and equipped with corresponding silk screen instructions, providing convenience for developers to use.

Product Features

Working voltage of the development board: 3.3V

USB port power supply voltage: 5V

Processor: STM32F103C8T6 microprocessor

Interface type: Micro USB

Working temperature: 0~85 ℃

Supported platforms: Windows, MacOS
