Aruba USB Console Cable With CP2102 Chip for Aruba Wirelss Access Point AP-207 AP-304/305 AP-314/315
black / 1.8M / CN
$64.89
Sale price
$64.89
Regular price
$0.00
Skip to product information
Aruba USB Console Cable With CP2102 Chip for Aruba Wirelss Access Point AP-207 AP-304/305 AP-314/315
Aruba USB Console Cable With CP2102 Chip for Aruba Wirelss Access Point AP-207 AP-304/305 AP-314/315
$64.89
Sale price
$64.89
Regular price
$0.00
Description
SPECIFICATIONS
Assembly Required: no
Brand Name: BETTCONN
Cable Length: 6FT/1.8M
Certification: CE,RoHS,UL
Chipset: Original Silicon Labs CP2102
Choice: yes
Color: Black
Connector A: USB 2.0 Type A Male
Connector B: 4x0.1" pole connector
High-concerned chemical: none
Level: TTL 3.3V logic Level
Model Number: BE-CP2102-TTL3V3-RPi
Origin: Mainland China
Package: Yes
Type: Serial Cable
Warranty: One Year
semi_Choice: yes
Aruba USB Console Cable With CP2102 Chip for Aruba Wirelss Access Point AP-207 AP-304/305 AP-314/315

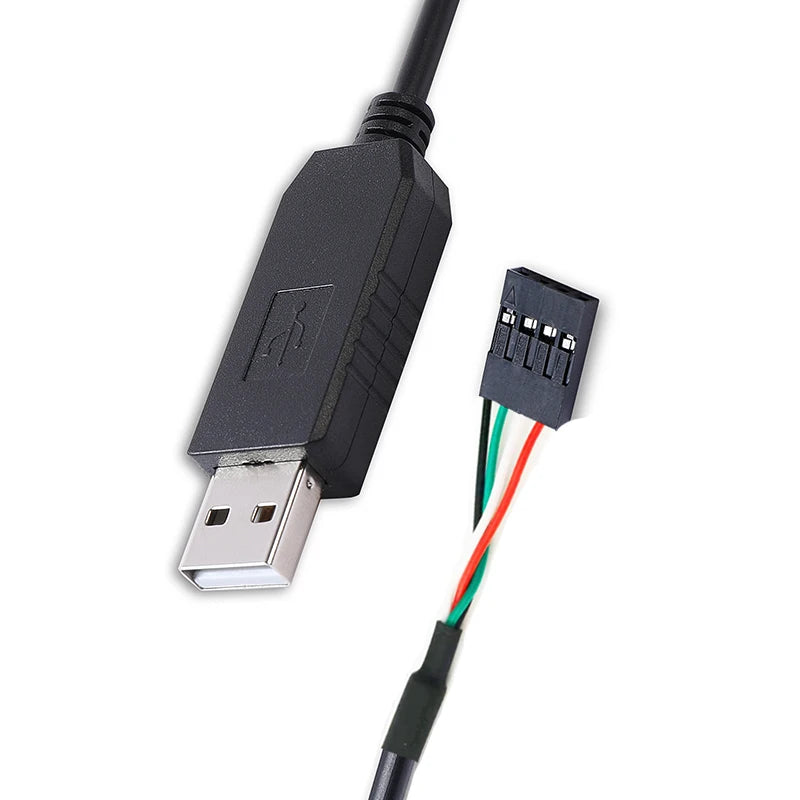

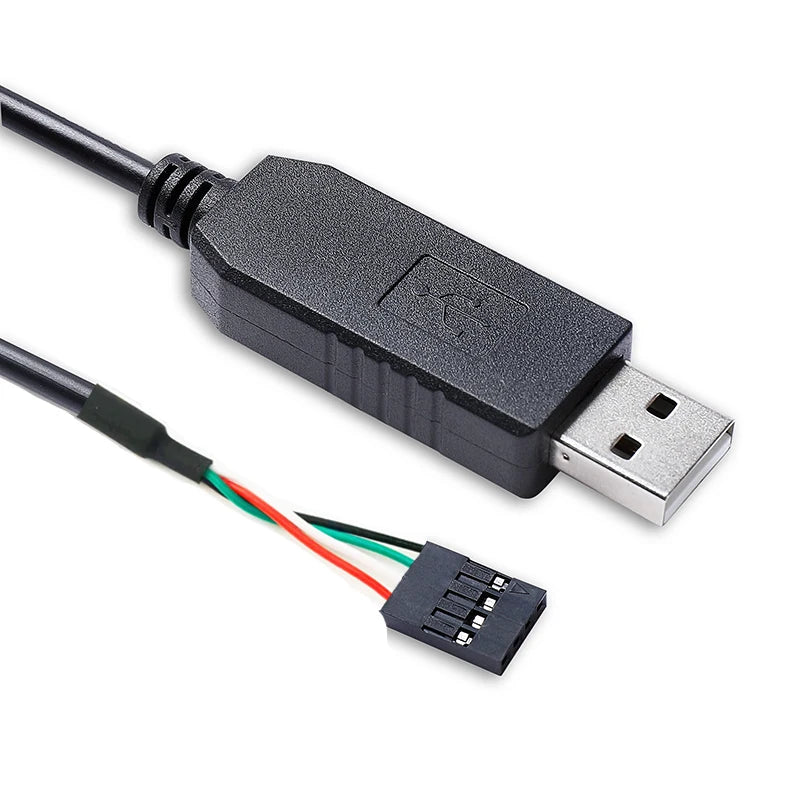

USB TTL Level Serial UART Converter Console Cable for Aruba AP-207 AP-304/305 AP-314/315
Compatible with Aruba AP-CBL-SER
This cable is a USB to TTL level serial UART converter cables incorporating Silicon Labs CP2102 USB to Serial UART interface IC device which handles all the USB signalling and protocols. It is designed for use with the Raspberry Pi (RPi), an ultra-low cost, Linux based miniaturised computer. The debug cable sits on the Rx/Tx of the RPi ARM processor UART – which provides much more detail of what’s happening within the RPi operating system. Connecting the debug cable to a PC and communicating with the RPi via a terminal emulator on a PC gives the user access to more detailed information from the Linux kernel during RPi start-up, which appears on the Rx/TX lines of the UART, as well as being able to login and access the kernel itself from the PC.
Material: PVC
Cable: 28AWG*4C
Conductor Wire: Oxygen-free copper
Color: Black
Chipset: Silicon Labs CP2102

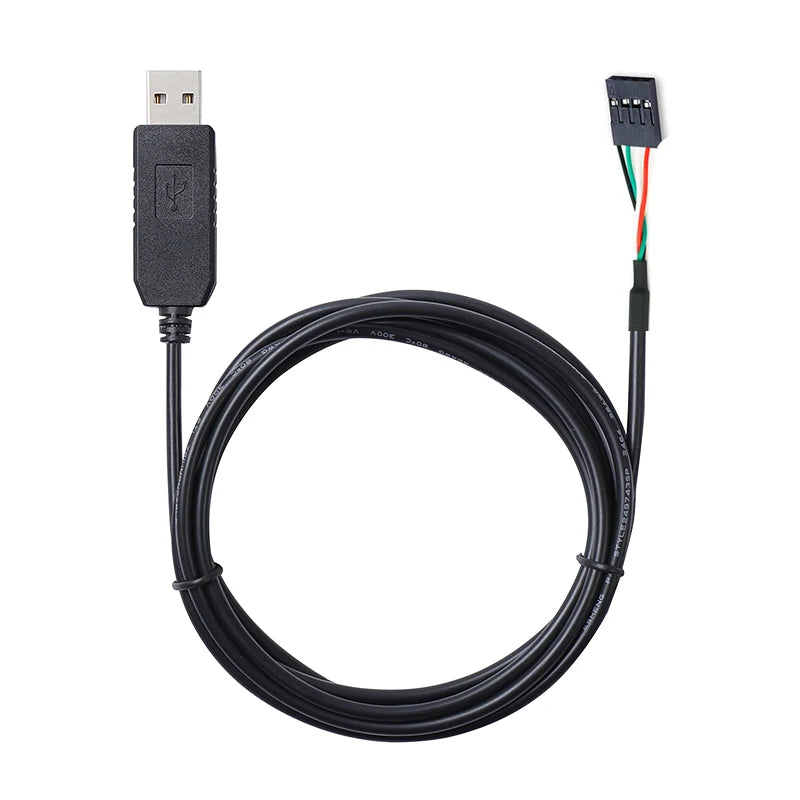

Length: 100cm/180cm optional, other length can be customized
Connector: Nickel plated shell, gold plated contacts

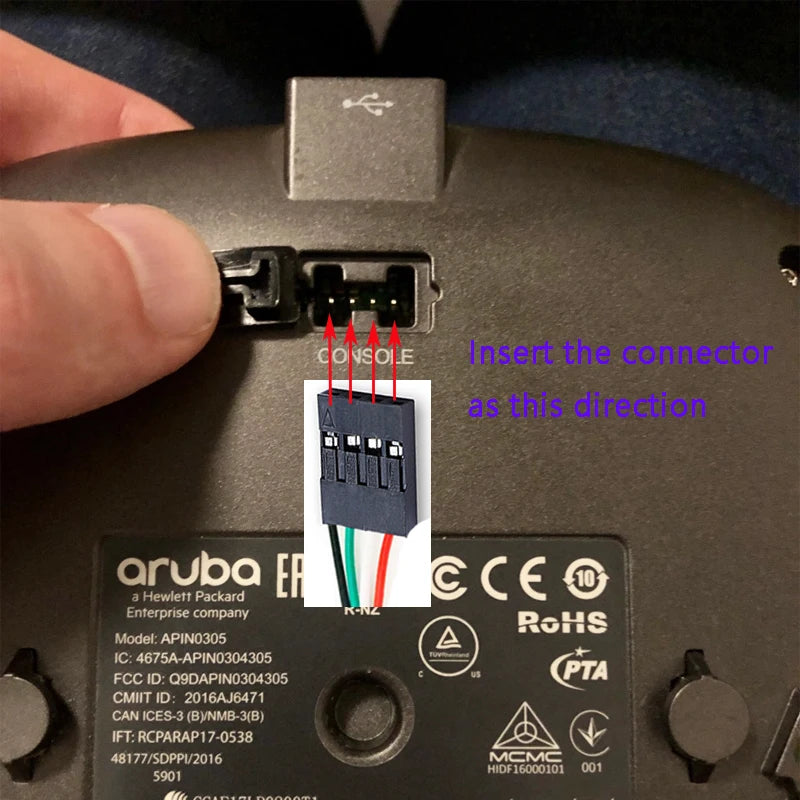

Application: use for Aruba AP-207, AP-304/305, AP-314/315

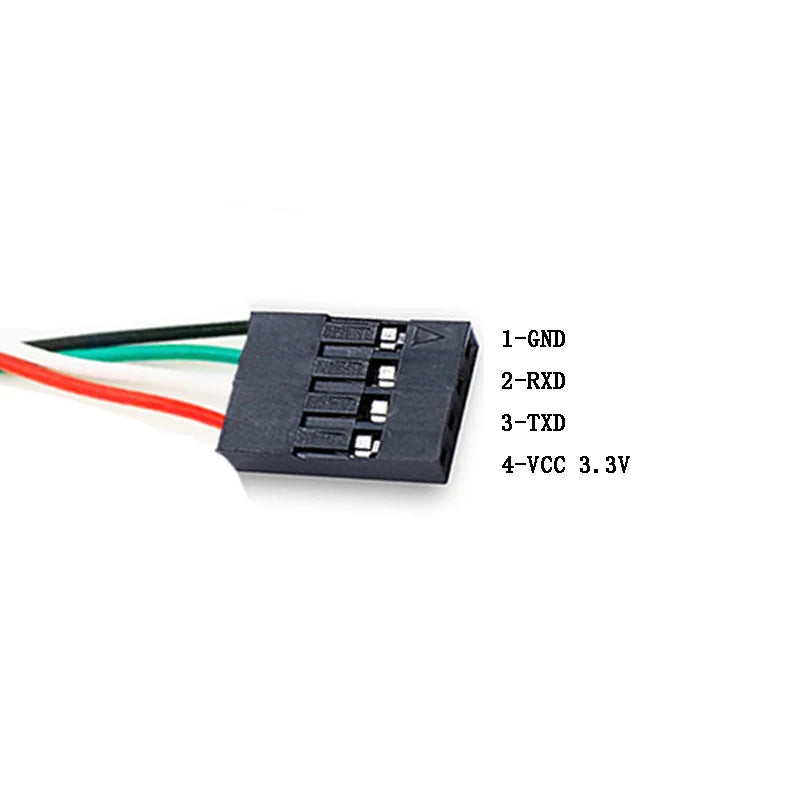

Pinout : 1-GND, 2-RXD. 3-TXD, 4-VCC 3.3V
Molding: PVC material, RoHS complaint
Testing: 3 times electrical inspection, appearance inspection
Package: PE Bag
About CP2102
Single-Chip USB to UART Data Transfer
- Integrated USB transceiver; no external resistors required
- Integrated clock; no external crystal required
- Internal 1024-byte programmable ROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings
- EEPROM (CP2102)
- EPROM (One-time programmable) (CP2109)
- On-chip power-on reset circuit
- On-chip voltage regulator
- 3.3 V output (CP2102)
- 3.45 V output (CP2109)
- 100% pin and software compatible with CP2101
USB Function Controller
- USB Specification 2.0 compliant; full-speed (12 Mbps)
- USB suspend states supported via SUSPEND pins
Asynchronous Serial Data BUS (UART)
- All handshaking and modem interface signals
- Data formats supported:
- Data bits: 5, 6, 7, and 8
- Stop bits: 1, 1.5, and 2
- Parity: odd, even, mark, space, no parity
- Baud rates: 300 bps to 1 Mbps
- 576 Byte receive buffer; 640 byte transmit buffer
- Hardware or X-On/X-Off handshaking supported
- Event character support
- Line break transmission
Virtual COM Port Device Drivers
- Works with existing COM port PC Applications
- Royalty-free distribution license
- Windows 8/7/Vista/Server 2003/XP/2000
- Mac OS-X/OS-9
- Linux
USBXpress Direct Driver Support
- Royalty-Free Distribution License
- Windows 8/7/Vista/Server 2003/XP/2000
- Windows CE
Example Applications
- Upgrade of RS-232 legacy devices to USB
- Cellular phone USB interface cable
- USB interface cable
- USB to RS-232 serial adapter
Supply Voltage
- Self-powered: 3.0 to 3.6 V
- USB bus powered: 4.0 to 5.25 V
CP210x USB to UART Bridge VCP Drivers
The CP210x USB to UART Bridge Virtual COM Port (VCP) drivers are required for device operation as a Virtual COM Port to facilitate host communication withCP210xproducts. These devices can also interface to a host using thedirect access driver. These drivers are static examples detailed in application note 197: The Serial Communications Guide for the CP210x, download an example below:
AN197: The Serial Communications Guide for the CP210x
Download Software
The CP210x Manufacturing DLL and Runtime DLL have been updated and must be used with v6.0 and later of the CP210x Windows VCP Driver. Application Note Software downloads affected are AN144SW.zip, AN205SW.zip and AN223SW.zip. If you are using a 5.x driver and need support you can download archivedApplication Note Software.
Windows 7/8/8.1/10 (v6.7.3) »
Windows XP/Server 2003/Vista/7/8/8.1 (v6.7) »
Windows 2K (v6.3a) »
WinCE »
Macintosh OSX (v4) »
Linux »
Android »
