SPECIFICATIONS

2*25W Amplifier  DC 6-18V

Model: JX-Y39 (Power: 2*25W)

Bluetooth version 5.0

Power: 2*25W

Bluetooth calling function

recording function

Music format: MP3/WMA/WAV/FLAC/APE lossless format music

Radio FM frequency: 87.5—107.5 MHZ

Folder switching function

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 6V-18V

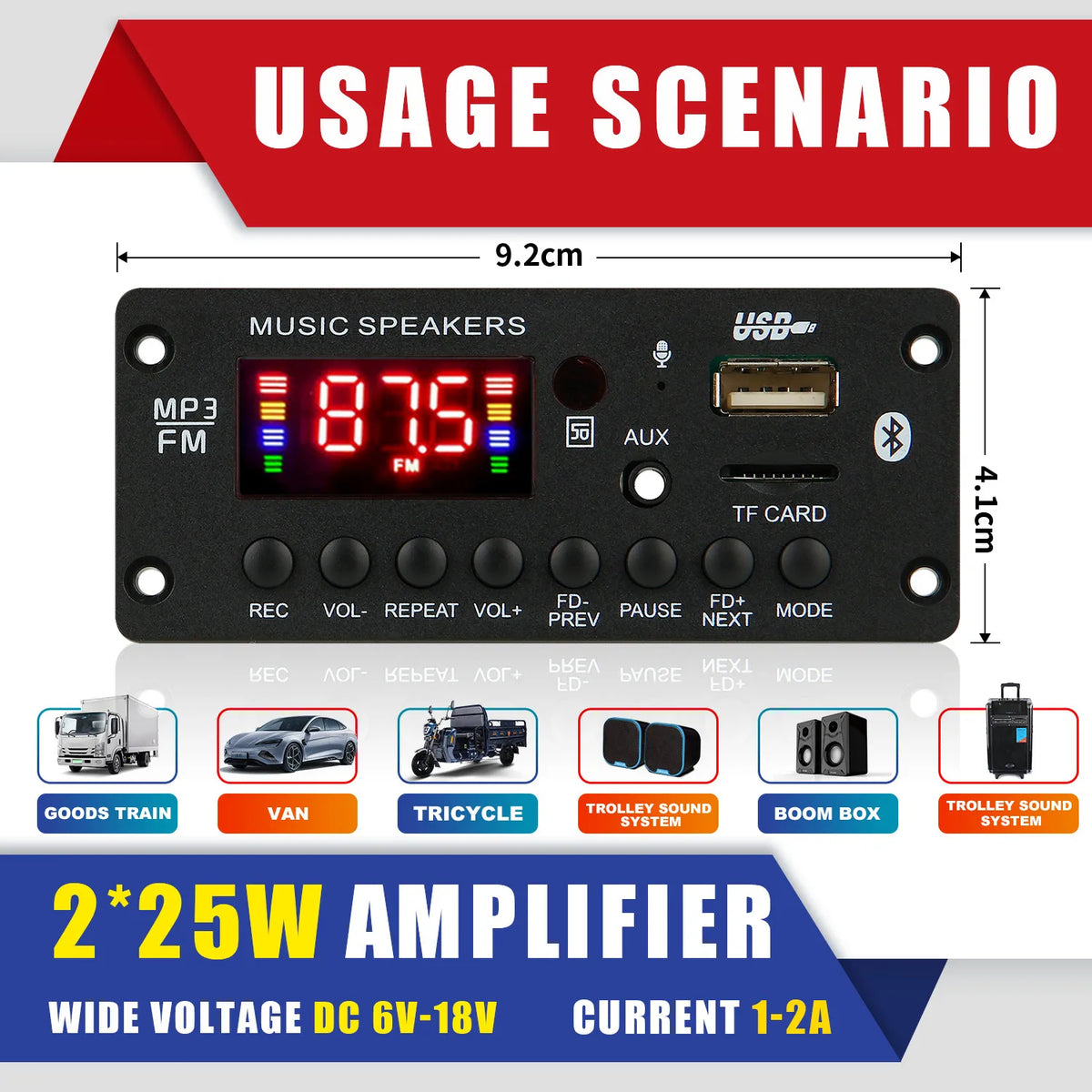

About the structure: Panel size: length 94 * width 40MM, the panel is surrounded by screw holes, the depth of the panel is 20MM

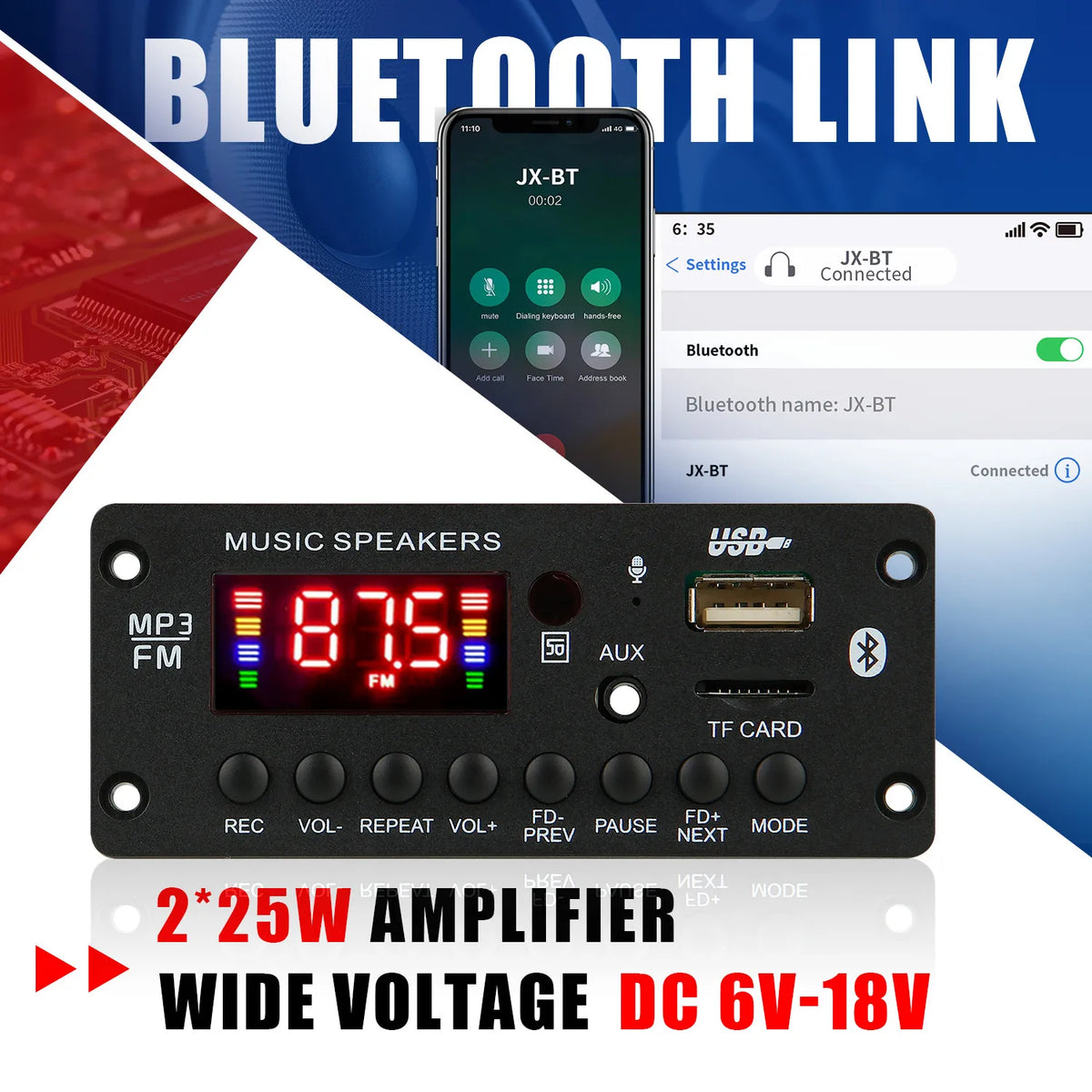

1. Button and interface function

1. Display screen: digital color screen display, showing red;

2. IR: infrared receiving module;

3. AUX interface: audio input interface;

4, MIC: support call and recording function

5. TF card slot: connect SD memory card (maximum support 32GB);

6, USB interface: connect U disk (maximum support 32GB);

7. REC: Long press the REC button to start recording, press the REC button again to cancel the recording function and play the recorded file; when recording, you need to connect a storage device, such as a U disk or TF card;

8. VOL-: volume decrease;

9. REPEAT: Press the single loop function once, press it again to cancel the single loop, and play it in sequence;

10. VOL+: volume increase;

11. PREV: short press to select the previous song; long press to rewind, double-click to switch to the previous folder;

12. PLAY/PAUSE: short press is to switch between pause and play; long press is to radio FM automatic station;

13. NEXT: short press to select the next song; long press to fast forward, double click to switch to the next folder;

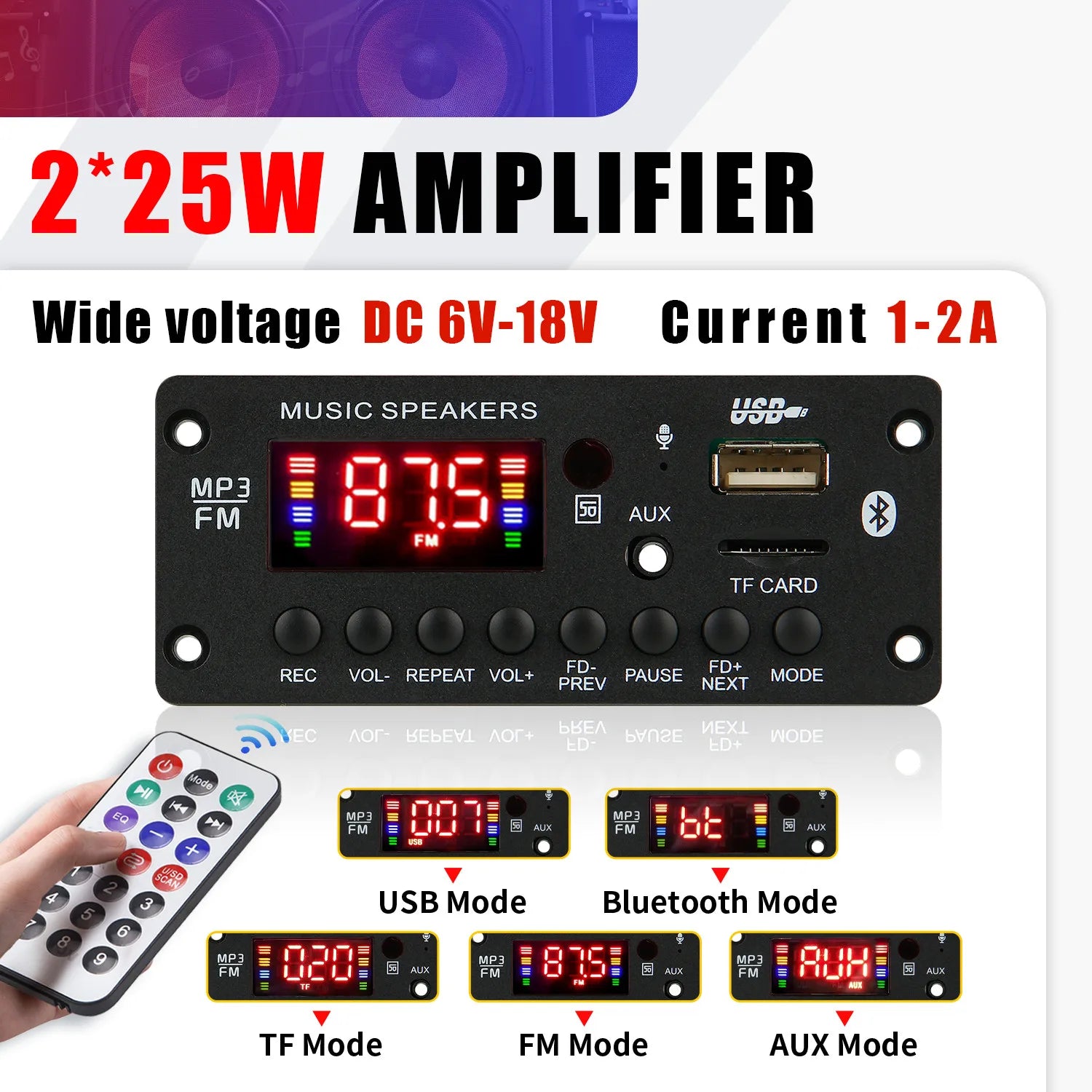

14. MODE: Switch between USB / TF / FM / AUX / BLUETOOTH;
