SPECIFICATIONS

Brand Name: Aideepen

Certification: CE,ce

Choice: yes

Current: 10A

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

Material: Plastic

Origin: Mainland China

Switch Type: Sensor Switch

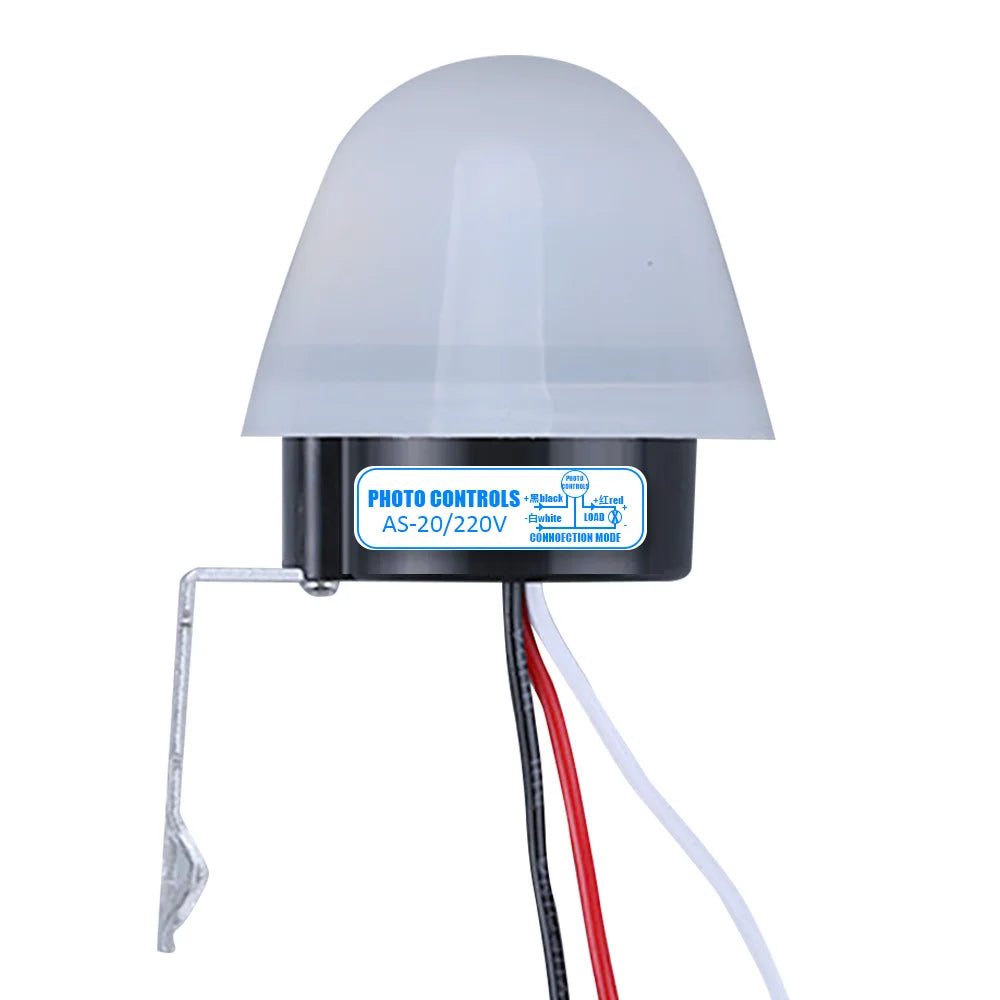

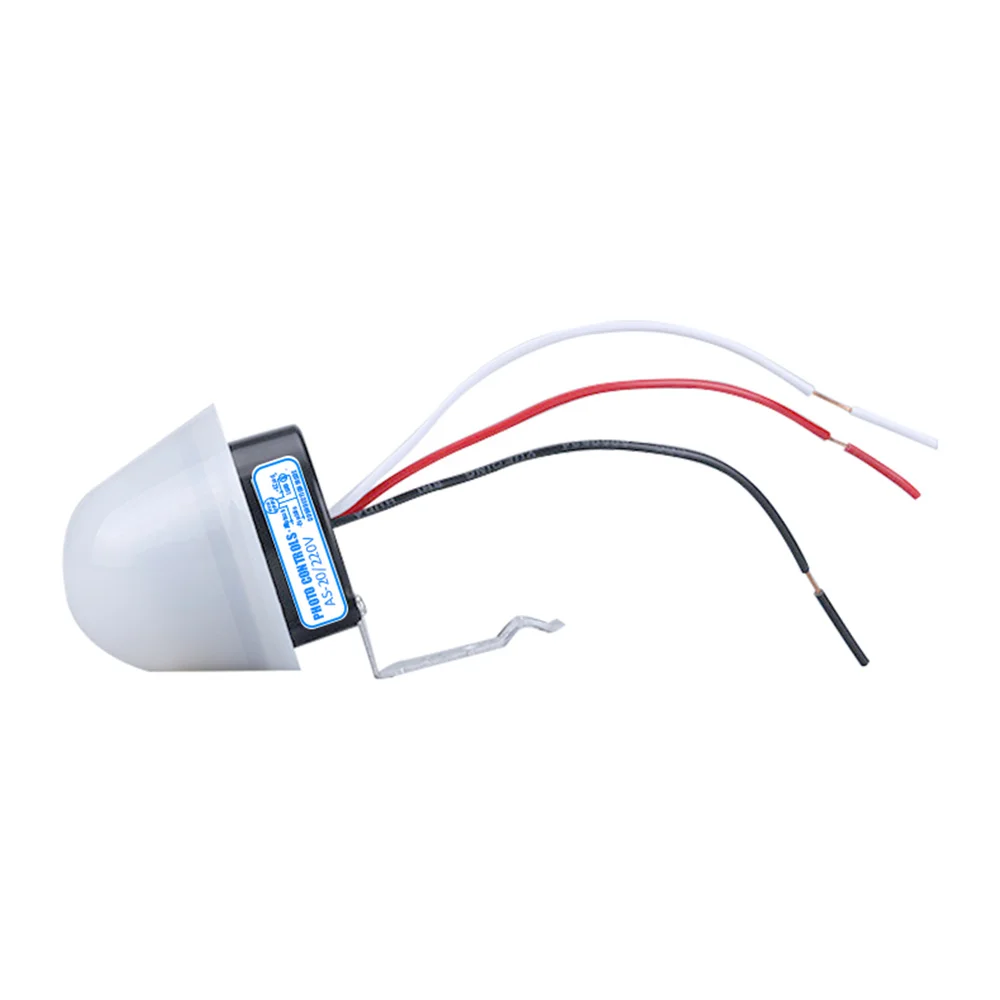

AS-20 DC 12V AC 110V 220V 10A Waterproof Sensitive Auto Photo Switch On/Off Photocell Street LED Light Switch Sensor Switch Tool

The AS-20 type optically controlled street light automatic switch is a novel photoelectric switch designed and manufactured based on the photoelectric conversion characteristics of semiconductor components. It is mainly composed of a sealed CDS photoresistor and an integrated circuit. It can automatically control the opening and closing of street lights based on changes in natural light, thereby achieving the function of automatic control of street lights and energy conservation. The circuit is equipped with a delay circuit, which has the anti-interference ability to prevent accidental lightning, flashlights, steam, and other lights from shining on the electrical head, and the mistakenly opening and closing of photoelectric components that are temporarily blocked by falling leaves. Widely used in street lamps, highways, factories, gardens, ports, airports, farms, parks, schools, and other places.

Parameters:

Name AS-20 optical switch

Size 10 * 7CM

Voltage 10A/DC 12V AC 110V 220V

Weight 60G

Power incandescent lamp ≤ 1000W

Suitable for street lights, park lights, and road lights

Energy saving lamp ≤ 50W

Note: Please install on the backlight side

Package List:

Light control switch * 1
